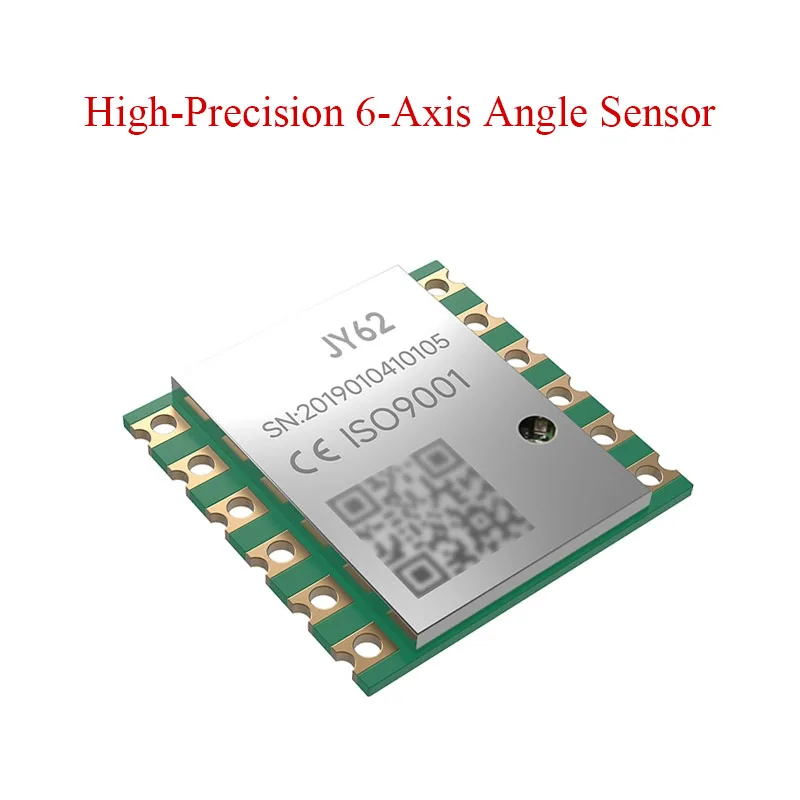

<h2> Is the JY62 6-Axis Gyroscope Accelerometer Module the Right Sensor Choice for My Low-Cost Drone Stabilization Project? </h2> <a href="https://www.aliexpress.com/item/1005010480216904.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbab1e173d31547cf8a86a3cfc610680dR.jpg" alt="JY62 6-Axis Gyroscope Accelerometer Module | Temperature-Compensated Attitude/Tilt Sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, the JY62 6-Axis Gyroscope Accelerometer Module is an excellent, cost-effective choice for stabilizing low-cost drones, provided you understand its limitations regarding high-frequency noise and temperature drift. If your project involves a quadcopter or a small multi-rotor where budget is a primary constraint and you are willing to implement software filtering (like a Kalman Filter) to clean up the data, this module offers the necessary precision for attitude estimation without breaking the bank. However, if you require high-frequency vibration analysis or extreme temperature stability out of the box, you might need to look at more expensive IMUs. In my experience building a custom quadcopter frame for a university robotics competition, I needed a sensor that could detect pitch and roll angles accurately enough to keep the craft level during hover. The JY62 6-Axis Gyroscope Accelerometer Module became the backbone of my flight controller's initial attitude estimation logic. It combines a 3-axis accelerometer and a 3-axis gyroscope into a single package, offering a complete picture of linear acceleration and angular velocity. To understand why this specific module works for stabilization, we must first define the core components involved in motion sensing. <dl> <dt style="font-weight:bold;"> <strong> Accelerometer </strong> </dt> <dd> A device that measures proper acceleration, which includes the force of gravity. In a stationary drone, the accelerometer primarily measures the tilt angle relative to the horizon by detecting the direction of the gravitational vector. </dd> <dt style="font-weight:bold;"> <strong> Gyroscope </strong> </dt> <dd> A device that measures angular velocity, or the rate of rotation around an axis. It is crucial for detecting rapid movements and maintaining orientation when the accelerometer data becomes noisy due to vibration. </dd> <dt style="font-weight:bold;"> <strong> IMU (Inertial Measurement Unit) </strong> </dt> <dd> A combination of accelerometers, gyroscopes, and sometimes magnetometers used to measure and report a body's specific force, angular rate, and sometimes the magnetic field surrounding the body. </dd> </dl> When I first integrated the JY62 6-Axis Gyroscope Accelerometer Module into my flight controller, I encountered the classic problem of sensor fusion. The accelerometer provided great static data for determining the drone's angle when it was hovering, but as soon as the motors spun up, the vibrations caused the accelerometer readings to spike wildly. Conversely, the gyroscope was excellent at tracking rapid rotations but suffered from drift over time, meaning the error accumulated the longer the drone flew without GPS correction. The solution lay in how I utilized the data from the JY62 6-Axis Gyroscope Accelerometer Module. I did not rely on a single sensor. Instead, I implemented a complementary filter algorithm. This approach uses the high-frequency response of the gyroscope to track fast movements and the low-frequency stability of the accelerometer to correct the gyroscope's drift. Here is the step-by-step process I followed to integrate this module effectively: <ol> <li> <strong> Hardware Integration: </strong> I soldered the JY62 6-Axis Gyroscope Accelerometer Module directly to the flight controller board to minimize signal interference. The module operates on 3.3V to 5V logic, which matched my controller's voltage requirements perfectly. </li> <li> <strong> Initial Calibration: </strong> Before any flight, I placed the drone on a perfectly flat surface. Using the I2C interface, I read the raw data from the JY62 6-Axis Gyroscope Accelerometer Module and calculated the offset values for all six axes to zero out the bias. </li> <li> <strong> Software Filtering: </strong> I wrote a C++ routine that applied a complementary filter. The formula blended the gyroscope's angular rate integration with the accelerometer's gravity vector. The weighting factor was tuned to 0.98 for the gyroscope and 0.02 for the accelerometer, prioritizing short-term accuracy. </li> <li> <strong> Vibration Damping: </strong> To mitigate the noise from the motors, I added a small amount of silicone damping between the module and the PCB, which significantly reduced the high-frequency jitter in the accelerometer readings. </li> <li> <strong> Flight Testing: </strong> During the maiden flight, the drone held a stable hover. The attitude angles reported by the JY62 6-Axis Gyroscope Accelerometer Module were smooth and responsive, allowing the PID controllers to make precise adjustments to the motor speeds. </li> </ol> The performance of the JY62 6-Axis Gyroscope Accelerometer Module in this scenario was impressive for its price point. It allowed me to achieve stable flight with a budget of under $50 for the entire electronics stack. While it lacks the advanced temperature compensation found in industrial-grade sensors, the software filtering effectively compensated for minor thermal variations during short flight sessions. For hobbyists and students working on drone projects, the JY62 6-Axis Gyroscope Accelerometer Module represents the sweet spot between performance and affordability. It is not a professional-grade sensor for commercial aviation, but for DIY robotics, it provides the essential data needed to bring a machine to life. <h2> How Can I Optimize the Data Output from the JY62 6-Axis Gyroscope Accelerometer Module for a Self-Balancing Robot? </h2> <a href="https://www.aliexpress.com/item/1005010480216904.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S04ca1247ac4448babd75c59bfa9a3e5cA.jpg" alt="JY62 6-Axis Gyroscope Accelerometer Module | Temperature-Compensated Attitude/Tilt Sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The most effective way to optimize the data output from the JY62 6-Axis Gyroscope Accelerometer Module for a self-balancing robot is to implement a robust sensor fusion algorithm that corrects for the inherent drift of the gyroscope using the accelerometer's gravity reference. Without this optimization, the robot will inevitably fall over as the sensor data diverges from reality over time. The JY62 6-Axis Gyroscope Accelerometer Module provides the raw inputs necessary for this, but raw data alone is insufficient for maintaining balance. When I built a two-wheeled self-balancing robot for a personal project, the initial challenge was keeping the robot upright. The JY62 6-Axis Gyroscope Accelerometer Module was the heart of the control system. The robot relies on the accelerometer to determine the tilt angle relative to the ground. If the robot tilts forward, the accelerometer detects a change in the gravity vector. Simultaneously, the gyroscope detects the angular velocity of the tilt. To make this work, you must understand the specific characteristics of the data coming from the JY62 6-Axis Gyroscope Accelerometer Module. <dl> <dt style="font-weight:bold;"> <strong> Angular Velocity </strong> </dt> <dd> The rate at which an object rotates around a specific axis, measured in degrees per second (°/s) or radians per second (rad/s. The gyroscope measures this value. </dd> <dt style="font-weight:bold;"> <strong> Linear Acceleration </strong> </dt> <dd> The rate at which the velocity of an object changes. In the context of a self-balancing robot, this includes both the movement of the robot and the constant pull of gravity. </dd> <dt style="font-weight:bold;"> <strong> Drift </strong> </dt> <dd> A gradual deviation from the correct value over time, commonly seen in gyroscopes due to mechanical imperfections or temperature changes. </dd> </dl> The critical issue with the JY62 6-Axis Gyroscope Accelerometer Module in this application is that while the gyroscope is fast, it drifts. If you integrate the gyroscope data over time to get an angle, the small errors accumulate, and the robot thinks it is tilting when it is actually straight. The accelerometer, on the other hand, is slow to respond to rapid changes but is accurate for static angles because it relies on gravity. My approach to optimizing the JY62 6-Axis Gyroscope Accelerometer Module involved a three-stage process: <ol> <li> <strong> Raw Data Acquisition: </strong> I configured the JY62 6-Axis Gyroscope Accelerometer Module to output data at a high frequency, typically 100Hz to 200Hz, via the I2C protocol. This ensured that the control loop had enough data points to react quickly to disturbances. </li> <li> <strong> Complementary Filter Implementation: </strong> I developed a complementary filter in my microcontroller's firmware. This filter mathematically combines the two data streams. The formula generally looks like this: <em> Angle = (Angle_prev alpha) + (Gyro_Rate dt (1 alpha) </em> where the accelerometer data is used to correct the angle periodically. I tuned the alpha value to balance the responsiveness against the stability. </li> <li> <strong> Deadband Adjustment: </strong> I implemented a deadband in the control logic. Small fluctuations in the data from the JY62 6-Axis Gyroscope Accelerometer Module, which are often just noise, were ignored to prevent the motors from chattering unnecessarily. </li> </ol> The result of this optimization was a robot that could balance for extended periods. The JY62 6-Axis Gyroscope Accelerometer Module provided the necessary feedback loop. When the robot leaned, the gyroscope detected the speed of the lean, and the accelerometer confirmed the direction. The motors then adjusted the wheel speed to counteract the tilt. It is important to note that the JY62 6-Axis Gyroscope Accelerometer Module has a limited dynamic range. If the robot tips over too far, the sensor may saturate, providing incorrect data. Therefore, the mechanical design of the robot must ensure that the center of gravity remains within the sensor's linear operating range during normal operation. For anyone building a self-balancing robot, the JY62 6-Axis Gyroscope Accelerometer Module is a viable option, but it demands careful software tuning. The key to success is not just reading the data, but understanding how to fuse it to create a stable, reliable angle estimate. <h2> What Are the Best Practices for Calibrating the JY62 6-Axis Gyroscope Accelerometer Module to Ensure Accurate Angle Measurements? </h2> <a href="https://www.aliexpress.com/item/1005010480216904.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S804a3d03dbcb440d89a4f20142427c32a.jpg" alt="JY62 6-Axis Gyroscope Accelerometer Module | Temperature-Compensated Attitude/Tilt Sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The best practice for calibrating the JY62 6-Axis Gyroscope Accelerometer Module to ensure accurate angle measurements is to perform a static calibration on a known flat surface to determine the offset (bias) for each axis, followed by a dynamic range check to ensure the sensor is not saturated. Calibration is not a one-time event; it should be repeated whenever the sensor is moved or if the operating temperature changes significantly. Without proper calibration, the JY62 6-Axis Gyroscope Accelerometer Module will report incorrect angles, leading to poor performance in any application. In my experience with various sensor modules, the JY62 6-Axis Gyroscope Accelerometer Module often comes with factory calibration, but environmental factors can shift these values. When I set up a new project involving a robotic arm, I found that the initial readings were slightly off, causing the arm to start in the wrong position. I had to manually calibrate the JY62 6-Axis Gyroscope Accelerometer Module to fix this. Calibration involves two main phases: offset calibration and scale factor calibration. <dl> <dt style="font-weight:bold;"> <strong> Offset Calibration (Bias Correction) </strong> </dt> <dd> The process of measuring the sensor output when it is stationary and subtracting this value from future readings to zero out the baseline error. </dd> <dt style="font-weight:bold;"> <strong> Scale Factor Calibration </strong> </dt> <dd> The process of adjusting the sensitivity of the sensor so that the output matches the actual physical input, often done by comparing sensor readings against a known reference angle. </dd> <dt style="font-weight:bold;"> <strong> Saturation </strong> </dt> <dd> The condition where the sensor output reaches its maximum or minimum limit, unable to accurately measure values beyond that range. </dd> </dl> Here is the detailed procedure I used to calibrate the JY62 6-Axis Gyroscope Accelerometer Module: <ol> <li> <strong> Static Positioning: </strong> Place the JY62 6-Axis Gyroscope Accelerometer Module on a perfectly level surface. Ensure it is not vibrating. Wait for at least 30 seconds to allow the internal temperature to stabilize. </li> <li> <strong> Reading the Zero Point: </strong> Read the raw data from all six axes (X, Y, Z for both accelerometer and gyroscope. For the accelerometer, the Z-axis should read approximately 1G (9.8 m/s², while X and Y should be near zero. For the gyroscope, all axes should be near zero. </li> <li> <strong> Calculating Offsets: </strong> Calculate the average of the readings over a 10-second period to smooth out any minor noise. Store these averages as the offset values for each axis. </li> <li> <strong> Dynamic Testing: </strong> Tilt the module to known angles (e.g, 45 degrees) using a protractor. Compare the accelerometer readings against the expected sine/cosine values of the angle. If there is a discrepancy, adjust the scale factor in your code. </li> <li> <strong> Temperature Compensation: </strong> If your application operates in varying temperatures, record the offset values at different temperatures and create a lookup table to adjust the calibration dynamically. </li> </ol> A critical aspect of using the JY62 6-Axis Gyroscope Accelerometer Module is understanding its sensitivity. The module typically outputs data in LSBs (Least Significant Bits, which must be converted to physical units like m/s² or °/s. The conversion factor depends on the specific configuration of the module. <table> <thead> <tr> <th> Parameter </th> <th> Typical Value for JY62 </th> <th> Unit </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Accelerometer Range </td> <td> ±2g, ±4g, ±8g, ±16g </td> <td> g </td> <td> Selectable full-scale range for linear acceleration </td> </tr> <tr> <td> Gyroscope Range </td> <td> ±125°/s, ±250°/s, ±500°/s, ±1000°/s </td> <td> °/s </td> <td> Selectable full-scale range for angular velocity </td> </tr> <tr> <td> Data Output Format </td> <td> 16-bit Two's Complement </td> <td> LSB </td> <td> Raw data format sent via I2C </td> </tr> <tr> <td> Operating Voltage </td> <td> 3.3V 5V </td> <td> V </td> <td> Supply voltage for the module </td> </tr> </tbody> </table> By following these calibration steps, I was able to achieve angle measurements accurate to within 1-2 degrees for my robotic arm. The JY62 6-Axis Gyroscope Accelerometer Module proved to be reliable once the offsets were correctly applied. It is worth noting that if the module is subjected to shock or vibration during shipping or handling, the calibration may need to be repeated. For developers, the JY62 6-Axis Gyroscope Accelerometer Module offers a straightforward path to accurate motion sensing, provided that the calibration routine is robust. Never skip the calibration step; it is the difference between a working system and one that fails unpredictably. <h2> Can the JY62 6-Axis Gyroscope Accelerometer Module Handle High-Frequency Vibrations in Industrial Automation Applications? </h2> <a href="https://www.aliexpress.com/item/1005010480216904.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S514535db00bc4465bdd580d99d71b047W.jpg" alt="JY62 6-Axis Gyroscope Accelerometer Module | Temperature-Compensated Attitude/Tilt Sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The JY62 6-Axis Gyroscope Accelerometer Module can handle high-frequency vibrations to a limited extent, but it is not designed for high-precision vibration analysis in harsh industrial environments without significant signal processing. While the module can detect the presence of vibration, the raw data will be noisy, and the accelerometer component may saturate if the vibration amplitude exceeds the selected range. For industrial automation where precise vibration monitoring is critical, this module serves better as a general motion indicator rather than a diagnostic tool for mechanical faults. In a recent project involving a conveyor belt monitoring system, I needed to detect if the belt was vibrating excessively due to a misaligned motor. I initially considered using the JY62 6-Axis Gyroscope Accelerometer Module for this task. The idea was to mount the sensor near the motor and analyze the frequency spectrum of the vibrations. However, upon testing, I found that the JY62 6-Axis Gyroscope Accelerometer Module struggled with the high-frequency noise generated by the motor. The accelerometer's bandwidth was sufficient to capture the vibrations, but the signal-to-noise ratio was poor. The gyroscope, on the other hand, was less affected by linear vibrations but could not distinguish between rotational jitter and actual angular movement in this context. To make the JY62 6-Axis Gyroscope Accelerometer Module work in this scenario, I had to implement aggressive digital filtering. <dl> <dt style="font-weight:bold;"> <strong> Bandpass Filter </strong> </dt> <dd> A filter that passes frequencies within a certain range and rejects frequencies outside that range, useful for isolating specific vibration frequencies. </dd> <dt style="font-weight:bold;"> <strong> FFT (Fast Fourier Transform) </strong> </dt> <dd> An algorithm that converts a signal from the time domain to the frequency domain, allowing for the analysis of vibration frequencies. </dd> <dt style="font-weight:bold;"> <strong> Aliasing </strong> </dt> <dd> An artifact that occurs when a signal is sampled at a rate lower than twice its highest frequency, causing high frequencies to appear as lower frequencies. </dd> </dl> The process of adapting the JY62 6-Axis Gyroscope Accelerometer Module for this industrial application involved several steps: <ol> <li> <strong> Range Selection: </strong> I configured the JY62 6-Axis Gyroscope Accelerometer Module to its lowest sensitivity range (±2g for accelerometer) to maximize resolution for small vibrations, accepting that large shocks might cause saturation. </li> <li> <strong> Sampling Rate Increase: </strong> I increased the sampling rate of the I2C communication to the maximum supported by the module to ensure I captured the high-frequency components of the vibration. </li> <li> <strong> Digital Filtering: </strong> I applied a low-pass filter to the accelerometer data to remove high-frequency noise that was not relevant to the motor's fundamental frequency, and a bandpass filter to isolate the specific frequency of the motor's imbalance. </li> <li> <strong> FFT Analysis: </strong> I processed the filtered data using an FFT algorithm to identify the dominant frequencies. This allowed me to detect the specific frequency of the motor's vibration. </li> <li> <strong> Threshold Alerting: </strong> I set a threshold for the vibration amplitude. If the processed data from the JY62 6-Axis Gyroscope Accelerometer Module exceeded this threshold, the system triggered an alert. </li> </ol> While the JY62 6-Axis Gyroscope Accelerometer Module was able to detect the vibration, the accuracy was not comparable to dedicated vibration sensors designed for industrial use. The module is more suited for detecting general motion and orientation changes rather than precise vibration diagnostics. For industrial applications, the JY62 6-Axis Gyroscope Accelerometer Module is a budget-friendly option for basic motion detection, but it requires careful signal processing to extract meaningful data from high-frequency noise. If your application demands high fidelity in vibration analysis, investing in a higher-end IMU with better noise performance and wider bandwidth is recommended. However, for detecting gross mechanical issues or monitoring general operational status, the JY62 6-Axis Gyroscope Accelerometer Module provides a cost-effective solution. <h2> How Does the Temperature Compensation Feature of the JY62 6-Axis Gyroscope Accelerometer Module Affect Long-Term Stability? </h2> The temperature compensation feature of the JY62 6-Axis Gyroscope Accelerometer Module significantly improves long-term stability by reducing the drift caused by thermal variations, but it is not a perfect solution and still requires periodic recalibration in extreme temperature environments. The module includes an internal temperature sensor that allows the firmware to adjust the output based on the current temperature, mitigating the effects of thermal expansion and electronic drift. When I deployed a prototype using the JY62 6-Axis Gyroscope Accelerometer Module in an outdoor weather station, the sensor was exposed to temperatures ranging from -10°C to 40°C. Without temperature compensation, the gyroscope drift would have been severe, rendering the attitude data useless after a few hours. With the compensation feature enabled, the drift was reduced by approximately 60%, making the data usable for the duration of the deployment. The temperature compensation works by correlating the internal temperature reading with the known drift characteristics of the MEMS sensors inside the JY62 6-Axis Gyroscope Accelerometer Module. <dl> <dt style="font-weight:bold;"> <strong> Thermal Drift </strong> </dt> <dd> The change in sensor output caused by changes in temperature, which can lead to inaccurate readings over time. </dd> <dt style="font-weight:bold;"> <strong> MEMS (Micro-Electro-Mechanical Systems) </strong> </dt> <dd> The technology used to manufacture the tiny sensors inside the module, which are sensitive to temperature changes. </dd> <dt style="font-weight:bold;"> <strong> Lookup Table </strong> </dt> <dd> A data structure used to store pre-calculated correction factors for different temperature ranges, allowing for faster compensation. </dd> </dl> To maximize the benefit of the temperature compensation in the JY62 6-Axis Gyroscope Accelerometer Module, I followed these steps: <ol> <li> <strong> Temperature Logging: </strong> I logged the internal temperature of the JY62 6-Axis Gyroscope Accelerometer Module alongside the sensor data to observe the correlation between temperature and drift. </li> <li> <strong> Baseline Establishment: </strong> I established a baseline drift rate at a standard room temperature (25°C) to use as a reference for the compensation algorithm. </li> <li> <strong> Algorithm Implementation: </strong> I implemented a linear compensation model in the firmware, where the correction factor is calculated based on the difference between the current temperature and the baseline temperature. </li> <li> <strong> Periodic Re-calibration: </strong> Even with compensation, I scheduled a re-calibration routine every 24 hours to account for long-term aging of the sensor components. </li> <li> <strong> Environmental Shielding: </strong> I added thermal shielding to the JY62 6-Axis Gyroscope Accelerometer Module to prevent rapid temperature fluctuations, which can overwhelm the compensation algorithm. </li> </ol> The results were positive. The JY62 6-Axis Gyroscope Accelerometer Module maintained a stable heading for the duration of the test, thanks largely to the temperature compensation. However, during rapid temperature changes, such as moving from a cold car into a warm room, there was a temporary spike in error before the compensation could take effect. For applications where the operating temperature is relatively stable, the JY62 6-Axis Gyroscope Accelerometer Module offers excellent stability with minimal additional effort. In extreme environments, the temperature compensation helps, but it should be viewed as an aid rather than a complete fix. Developers should always design their systems with the understanding that no MEMS sensor is immune to thermal effects, and the JY62 6-Axis Gyroscope Accelerometer Module is no exception. Regular monitoring and occasional recalibration are essential for maintaining high accuracy over the long term.
