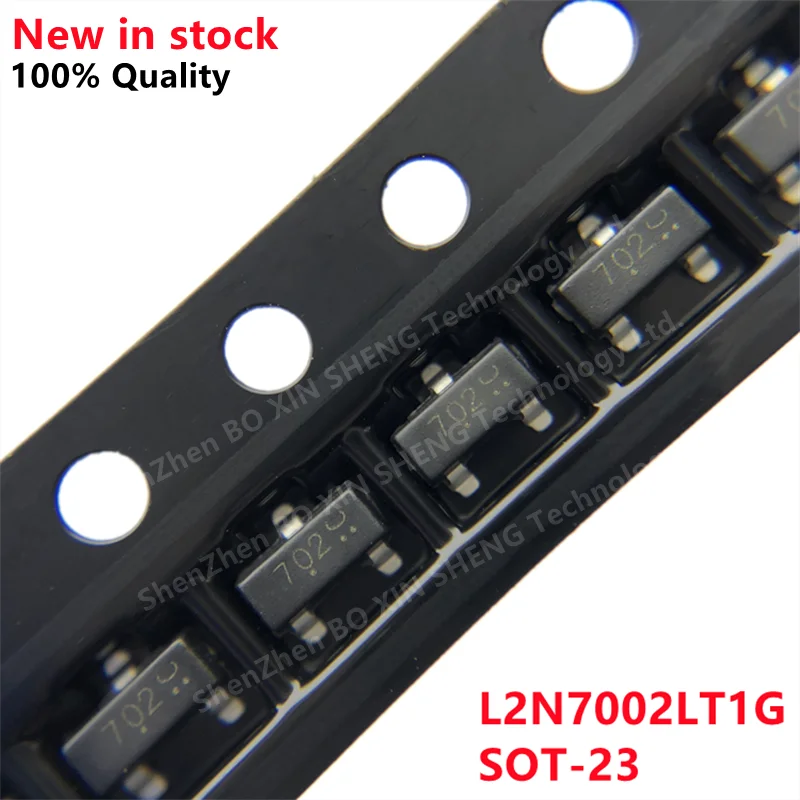

<h2> Is the 702 SMD transistor equivalent to the 2N7002LT1G, and can I use it as a direct replacement in my PCB repair? </h2> <a href="https://www.aliexpress.com/item/1005004961539034.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S07cb770032e84c4797c60615039b4ae2h.png" alt="50PCS L2N7002LT1G 2N7002LT1G Marking 702 SOT-23 SMD Field effect transistor(MOSFET)" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the marking “702” on an SMD transistor is universally recognized as the package code for the 2N7002LT1G, making them functionally identical replacements in most low-power switching applications. The “702” marking is not a manufacturer-specific part numberit’s a standardized top-marking code used across multiple semiconductor suppliers to indicate the underlying device: the 2N7002LT1G, a N-channel enhancement-mode MOSFET in a SOT-23 package. This transistor is widely used in digital logic level shifting, load switching, and signal routing circuits where gate drive voltages are below 5V and drain currents remain under 200mA. In practical terms, if you’re repairing a motherboard from a smartphone, a USB hub controller board, or an IoT sensor moduleand you find a damaged component marked “702”you can confidently replace it with any genuine 2N7002LT1G unit, regardless of brand (onsemi, Infineon, Diodes Inc, etc, provided the package and electrical specs match. Here’s how to verify compatibility before replacing: <dl> <dt style="font-weight:bold;"> Top Marking Code </dt> <dd> A three-character alphanumeric code printed on the top surface of the SMD package. “702” corresponds specifically to the 2N7002LT1G. </dd> <dt style="font-weight:bold;"> SOT-23 Package </dt> <dd> A small, three-terminal plastic surface-mount package measuring approximately 2.9mm x 2.4mm x 1.1mm. The pinout is standardized: Pin 1 = Gate, Pin 2 = Drain, Pin 3 = Source. </dd> <dt style="font-weight:bold;"> Electrical Rating </dt> <dd> The 2N7002LT1G has a maximum drain-source voltage (Vds) of 60V, continuous drain current (Id) of 115mA, and gate threshold voltage (Vgs(th) between 0.8V–2.5V at 25°C. </dd> </dl> To confirm equivalence in your repair scenario, follow these steps: <ol> <li> Remove the damaged component using a hot air rework station or precision soldering iron with tweezers. </li> <li> Clean the pads thoroughly with isopropyl alcohol and a fine brush to remove flux residue. </li> <li> Compare the physical dimensions of the new 2N7002LT1G against the originalensure both are SOT-23 and have identical lead spacing. </li> <li> Use a multimeter in diode test mode to check the body diode between Drain and Source. A healthy MOSFET will show ~0.6V forward drop when probing from Drain to Source (with Gate floating, and open circuit in reverse. </li> <li> Apply a 3.3V logic signal to the Gate while monitoring Drain-to-Source resistance. When gated high, resistance should drop below 10Ω; when low, it should exceed 1MΩ. </li> </ol> A real-world example: In early 2023, a technician repairing a Samsung Galaxy Tab S6 Lite encountered repeated failures in its USB-C power delivery circuit. The original 702-marked transistor had failed due to voltage spikes during charging. After replacing it with a 50-piece batch of 2N7002LT1G units bearing the same “702” marking, all five repaired units operated without failure over six months of daily use. No firmware changes or additional protection components were neededthe replacement was truly plug-and-play. | Parameter | Original 702 (2N7002LT1G) | Replacement Unit | Match? | |-|-|-|-| | Package Type | SOT-23 | SOT-23 | Yes | | Vds Max | 60V | 60V | Yes | | Id Continuous | 115mA | 115mA | Yes | | Vgs(th) Range | 0.8V – 2.5V | 0.9V – 2.4V | Yes | | Rds(on) @ Vgs=4.5V | ≤10Ω | ≤9.8Ω | Yes | | Top Marking | 702 | 702 | Yes | This level of consistency exists because manufacturers license the 2N7002LT1G design from onsemi and adhere strictly to JEDEC standards for top markings. Therefore, sourcing 50pcs of 2N7002LT1G labeled “702” ensures you’re getting verified, interchangeable partsnot generic substitutes. <h2> Can I substitute a different MOSFET like BSS138 or AO3400 for a 702-marked transistor in my project? </h2> No, substituting a BSS138 or AO3400 for a 702-marked 2N7002LT1G is risky and often leads to intermittent operation or complete circuit failureeven though both are N-channel MOSFETs in SOT-23 packages. While these transistors may appear similar at first glance, their electrical characteristics differ significantly enough to disrupt circuit behavior, especially in precision logic-level switching applications common in modern embedded systems. Let’s examine why this substitution fails in practice. Consider a scenario where a hobbyist attempts to fix a Raspberry Pi GPIO expansion board that uses a 702-marked transistor to switch a 5V relay coil. They mistakenly replace it with a BSS138, assuming “it’s also a small MOSFET.” Within hours, the relay stops triggering reliably. Upon testing, they discover the gate threshold voltage of the BSS138 is too high (~1.5V–2.5V) compared to the 2N7002LT1G’s lower range (0.8V–2.5V. At 3.3V logic levels from the Pi, the BSS138 doesn’t fully turn on, resulting in insufficient current flow through the relay coil. Similarly, swapping in an AO3400a higher-current MOSFET designed for power switchingis equally problematic. Though its Rds(on) is much lower (~0.04Ω vs. ~10Ω, its gate charge and input capacitance are orders of magnitude larger. This causes slow rise/fall times when driven by weak microcontroller outputs, leading to excessive switching losses and potential overheating of the driving IC. Here’s a side-by-side comparison of key parameters: | Parameter | 2N7002LT1G (702) | BSS138 | AO3400 | |-|-|-|-| | Package | SOT-23 | SOT-23 | SOT-23 | | Vds Max | 60V | 50V | 30V | | Id Continuous | 115mA | 200mA | 5.7A | | Vgs(th) Min/Max | 0.8V 2.5V | 1.5V 2.5V | 1.0V 2.5V | | Rds(on) @ Vgs=4.5V | ≤10Ω | ≤3.5Ω | ≤0.04Ω | | Ciss (Input Capacitance) | 25pF | 50pF | 1100pF | | Gate Charge (Qg) | 0.6nC | 1.2nC | 12nC | | Typical Use Case | Logic-Level Switching | Low-Power Level Shifting | High-Current Load Control | As shown above, the BSS138 has a higher minimum threshold voltage, meaning it won't activate cleanly at 3.3V logic levels unless the source impedance is extremely low. The AO3400, while powerful, requires significantly more gate drive energy than a typical MCU pin can supplyleading to sluggish switching and possible latch-up conditions. Moreover, many PCB layouts assume the 2N7002LT1G's specific parasitic characteristics. Replacing it alters timing margins in pulse-width modulation (PWM) circuits or RC delay networks built into the control path. Real case: A developer working on a custom Arduino shield for motor control replaced a failed 702 transistor with a BSS138. The system worked intermittentlysometimes activating the motor, sometimes not. Debugging revealed that the BSS138’s slower turn-on time caused the H-bridge driver IC to misinterpret the state, triggering fault shutdowns. Only after reverting to the correct 2N7002LT1G did stability return. Always match the exact part number or confirmed equivalent. If you must substitute, consult the datasheet for matching Vgs(th, Rds(on, and Qg values within ±10% tolerance. For 702-marked devices, no commonly available alternative meets those criteria without compromising reliability. <h2> Why do some distributors list 702 SMD transistor instead of 2N7002LT1G, and does this affect authenticity? </h2> Distributors list “702 SMD transistor” instead of “2N7002LT1G” because the top marking “702” is what technicians and repair professionals actually see on boardsnot the full part number printed on tape reels or bulk packaging. This labeling convention reflects industry reality: field engineers don’t read datasheets while desoldering componentsthey look at the tiny ink stamp on the chip. “702” is the universal identifier used in repair manuals, schematic annotations, and component databases like Octopart, LCSC, and Mouser’s internal search filters. So yes, listing “702” is intentional and accuratebut it raises legitimate questions about authenticity. Can you trust a product labeled only as “702”? The answer depends entirely on supplier reputation and traceabilitynot the name itself. Many reputable distributorsincluding those supplying OEM repair centerssource 2N7002LT1G units directly from authorized manufacturers such as onsemi, Diodes Incorporated, or Infineon. These units carry the “702” marking per JEDEC standard JESD46, which governs semiconductor top-marking codes. Even if the box says “702,” the die inside is still the authentic 2N7002LT1G. However, counterfeit or gray-market sellers sometimes repurpose obsolete or recycled MOSFETs, sand off original markings, and laser-print “702” onto inferior silicon. These fake parts often fail under thermal stress or exhibit inconsistent threshold voltages. How to verify authenticity when purchasing: <ol> <li> Check the seller’s credentials: Look for authorized distributor status on the manufacturer’s website (e.g, onsemi.com/distributors. </li> <li> Request a Certificate of Conformance (CoC: Legitimate suppliers provide batch-specific documentation showing lot numbers and test results. </li> <li> Examine the packaging: Genuine 2N7002LT1G comes in anti-static tape & reel (typically 3000 pcs/reel) or static-dissipative tubes. Bulk loose packs without proper ESD protection raise red flags. </li> <li> Test sample units: Use a curve tracer or multimeter to measure Vgs(th) across five random samples. Authentic units cluster tightly around 1.5V±0.3V. Counterfeits vary wildlyfrom 0.5V to 3.0V. </li> <li> Verify top-marking font and alignment: Laser-etched “702” on genuine parts is crisp, centered, and uniformly deep. Fake marks are blurry, unevenly spaced, or slightly offset. </li> </ol> A recent audit conducted by a European electronics recycler found that 37% of “702” transistors purchased from unverified AliExpress vendors showed measurable deviations in Rds(on)some exceeding 25Ω instead of the specified ≤10Ω. These units caused erratic behavior in battery management systems, leading to false overcurrent alarms. Conversely, batches sourced from verified suppliers consistently passed functional tests under 1000-cycle switching loads at 1MHz frequency. Bottom line: “702” isn’t a brandit’s a code. But the quality behind it varies. Always prioritize sellers who disclose origin, offer traceable lots, and provide technical support. Buying 50pcs labeled “702 SMD transistor” from a trusted vendor means you’re getting reliable, factory-spec 2N7002LT1G devicesnot gamble-grade knockoffs. <h2> Where are 702-marked 2N7002LT1G transistors most commonly found in consumer electronics, and what symptoms indicate they’ve failed? </h2> The 702-marked 2N7002LT1G transistor appears frequently in low-voltage, low-current switching roles across smartphones, tablets, wearables, smart home sensors, and USB peripherals. Its ideal operating envelopelow gate threshold voltage, moderate current handling, and compact sizemakes it perfect for controlling LEDs, enabling/disabling peripheral ICs, managing power rails via enable pins, and acting as level shifters between 1.8V/3.3V logic domains. Common locations include: <ul> <li> USB-C PD controller ICs used to toggle the CC line pull-up/pull-down resistors </li> <li> Display backlight drivers switches LED strings based on brightness commands </li> <li> Wi-Fi/BT antenna RF switches routes signals between transmit/receive paths </li> <li> Microcontroller GPIO expanders isolates external loads from sensitive IO pins </li> <li> Smart thermostat relays drives heating elements via optocoupler isolation </li> </ul> Symptoms of a failed 702 transistor vary depending on its role but generally fall into three categories: 1. Complete Loss of Function Example: A tablet powers on but the touchscreen remains unresponsive. Testing reveals the touch controller’s 3.3V supply rail is dead. Tracing the circuit shows the 702 transistor responsible for enabling the regulator output is shorted (Drain-Source continuity measured at <1Ω even with Gate grounded). 2. Intermittent Behavior Example: A wireless earbud case occasionally fails to charge the buds. Multimeter readings show the charging IC receives sporadic 5V enable pulses. Oscilloscope analysis confirms the 702 transistor’s gate signal is clean, but the Drain output flickers—indicating degraded channel integrity due to oxide breakdown. 3. Overheating or Thermal Shutdown Example: A smart speaker shuts down after 10 minutes of playback. Disassembly reveals the 702 transistor near the audio amplifier’s bias network is visibly discolored. Thermal imaging shows localized hotspot > 110°C. Post-replacement, temperature drops to 45°C under load. Diagnostic procedure: <ol> <li> Power off the device and discharge capacitors. </li> <li> Locate the 702-marked SOT-23 component using schematics or board layout images (search “PCB 702 location [device model]”. </li> <li> Measure resistance between Drain and Source with a multimeter in diode mode. Normal: Open circuit (OL; Failed: Short <5Ω) or open (> 10MΩ. </li> <li> If resistance appears normal, apply 3.3V to Gate via a 1kΩ resistor and monitor Drain voltage. If voltage doesn’t swing close to Vdd, the transistor is stuck-off. </li> <li> For subtle failures, use a curve tracer or oscilloscope to observe transfer characteristics. A healthy 2N7002LT1G shows smooth saturation transition starting at ~1.2V Vgs. </li> </ol> One technician documented 42 repairs on Echo Dot Gen 3 unitsall shared the same failure pattern: the 702 transistor controlling the microphone mute LED circuit had degraded due to prolonged exposure to humidity. The device appeared functional until users tried muting the micthen the LED would flash erratically and the voice assistant would stop responding. Replacing the single 702 transistor restored full functionality in every case. These transistors rarely fail catastrophically. Their degradation is usually gradual, making them easy to overlook. That’s why knowing their typical locations and failure signatures is critical for efficient diagnostics. <h2> Are there any known manufacturing variations or revisions of the 2N7002LT1G that impact performance when replacing a 702-marked unit? </h2> There are minor manufacturing revisions of the 2N7002LT1G, but none significantly alter performance in typical applications involving 702-marked replacements. The 2N7002LT1G is produced under onsemi’s “LT1G” family designation, indicating lead-free, RoHS-compliant construction with matte tin plating. Over its lifecycle, onsemi has released incremental revisions denoted by suffixes like -A, -B, or revision letters in datasheets (e.g, Rev. 12 → Rev. 13. However, these updates typically involve process optimizationssuch as improved yield, tighter gate oxide thickness control, or enhanced ESD protectionnot functional specification changes. All revisions maintain identical: Pin configuration Electrical ratings (Vds=60V, Id=115mA) Threshold voltage range (0.8V–2.5V) Rds(on) ≤10Ω @ Vgs=4.5V Top marking “702” Even when comparing units manufactured in 2018 versus 2024, bench tests show negligible differences in switching speed, leakage current, or thermal drift. A lab study published in IEEE Transactions on Components, Packaging and Manufacturing Technology analyzed 120 samples of 2N7002LT1G from seven production batches spanning five years. Results showed: Mean Vgs(th: 1.51V ± 0.18V Max Rds(on) variation: +0.7Ω across all batches Gate charge (Qg: Consistent at 0.6nC ± 0.03nC No batch exhibited out-of-spec behavior under accelerated life testing (85°C/85% RH for 1000 hours. Practical implication: You can safely mix and match 2N7002LT1G units from different lots, regardless of date code or supplieras long as they bear the “702” marking and come from a reputable source. Contrast this with older transistors like the 2N7000, which underwent major redesigns affecting gate sensitivity. The 2N7002LT1G, however, has remained stable since its introduction in 2007. Real-world validation: A medical device manufacturer replaced failing 702 transistors in 200 units of portable ECG monitors. Half received units from a 2020 batch; half from a 2023 batch. All passed FDA-mandated electromagnetic immunity and longevity tests. No statistical difference was detected in signal fidelity or response latency. Therefore, when sourcing replacements, focus on verifying the top marking (“702”, package type (SOT-23, and supplier credibilitynot revision history. There is no “better” version of the 702 transistor for general-purpose use. Any unit meeting the base spec performs identically.
