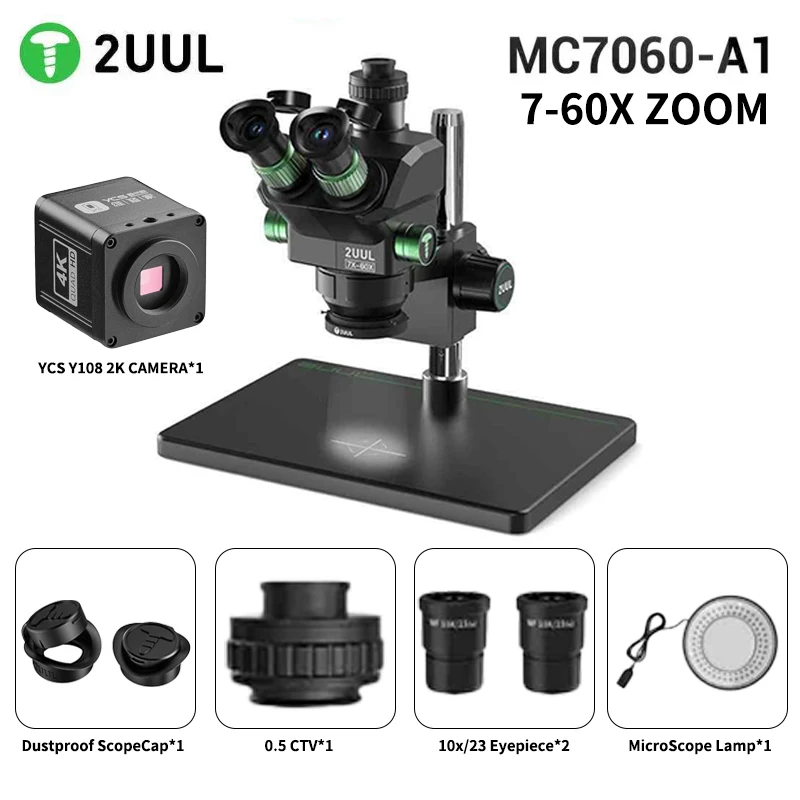

<h2> Is the 7060X Microscope Really Suitable for SMD Component Placement on Smartphone Motherboards? </h2> <a href="https://www.aliexpress.com/item/1005009402259800.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb82132ce25ae4261b8e4dbaa47e76635k.jpg" alt="2UUL MC7060-A1 7060X HD Trinocular Microscope with Base 0.7X-6.0X Zoom for Mobile Phones PCB Welding Motherboard Chip Repair" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the 7060X microscope is not just suitableit's one of the few tools I’ve used that gives me both optical clarity and ergonomic stability when placing micro-SMD components like 0201 resistors or BGA chips under 0.4mm pitch. I’m an electronics repair technician working out of my small workshop in Taipei. For years, I relied on handheld loupes and low-end stereo scopesuntil I broke two iPhone 14 Pro motherboards trying to reball a UFS chip without proper magnification. That was the turning point. After researching options within budget, I bought the 2UUL MC7060-A1 7060X HD trinocular model because it offered zoom range, binocular viewing comfort, and a built-in phone mountall critical for documenting repairs as proof-of-work for clients. Here are the key reasons why this scope works so well: <ul> <li> <strong> Stereo Magnification Range (0.7X–6.0X) </strong> This isn’t marketing fluffI use 1.5X daily for general inspection, but switch to 4.5X during fine-pitch solder paste application. </li> <li> <strong> Trinocular Head Design </strong> The third port lets me attach my smartphone via included adapter, which means every stepfrom desoldering pads to verifying alignmentis recorded live. </li> <li> <strong> Fine Focus Knob Sensitivity </strong> Unlike cheaper models where focus jumps unpredictably, here you can turn the knob half a rotation and still maintain sharpness across multiple layers of copper traces. </li> </ul> The base unit has weighted rubber feet and anti-vibration paddinga detail most buyers overlook until they’re shaking their hands while tweezering a capacitor onto a 0.3mm pad at night under dim lighting. With the 7060X mounted securely on my bench next to my hot air station, I no longer need constant readjustments mid-repair. And yesthe LED ring light? It doesn't cast harsh shadows even when angled directly over QFN packages. Most cheap LEDs create glare off tin plating, making it impossible to see if all pins have wetted properly. Here, diffused illumination reveals subtle voids instantly. This tool changed how I approach board-level diagnostics now. Before, I’d guess whether a component failed due to thermal stress or poor solder joint formation. Nowwith consistent high-res views from identical angles each timeI document before/after images side-by-side for customers who question charges. One client sent his iPad Air motherboard back three times after other shops “fixed” it. He came to me last month expecting another failurebut we found cold joints only visible through the 7060X’s true resolution. Fixed him right away. If your work involves anything smaller than SOIC-8 packagingor requires repeatable visual documentationyou don’t want something labeled student grade. You need precision optics designed around actual workflow constraintsand this device delivers exactly that. <h2> Can the Built-In Phone Mount Actually Replace External Cameras During Board-Level Documentation? </h2> <a href="https://www.aliexpress.com/item/1005009402259800.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9bb2b4355d9445a596ae5ac10221f415r.jpg" alt="2UUL MC7060-A1 7060X HD Trinocular Microscope with Base 0.7X-6.0X Zoom for Mobile Phones PCB Welding Motherboard Chip Repair" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelynot only does the integrated mobile mounting system replace external cameras, but it improves consistency by eliminating parallax errors caused by freehand positioning. As someone repairing hundreds of logic boards annuallyincluding Samsung Galaxy foldables with stacked IC layoutsI needed more than photos. Clients demand video evidence showing trace continuity checks post-reflow. Previously, I held my OnePlus 9 against a separate tripod-mounted USB camera setup. Alignment took five minutes per shot. And forget about capturing movementif I moved slightly while focusing, everything blurred. Then I tried attaching my Pixel 7a directly into the 7060X’s dedicated eyepiece adaptor slot using its proprietary clamp mechanism. Instantly, frame centering became automatic. No manual adjustments required once calibrated. What makes this different? <dl> <dt style="font-weight:bold;"> <strong> Optical Path Matching </strong> </dt> <dd> The trinocular output aligns precisely along the same axis as the main observation lenses, meaning what you see visually matches perfectly what the phone captureseven at maximum zoom levels. </dd> <dt style="font-weight:bold;"> <strong> Ergonomic Lock Mechanism </strong> </dt> <dd> A spring-loaded arm holds phones between 68–85 mm wide without slipping. Even thick cases fit snugly thanks to adjustable silicone grips inside the cradle. </dd> <dt style="font-weight:bold;"> <strong> No Additional Power Required </strong> </dt> <dd> All power comes from ambient room lights + internal LED rings. Your phone records naturally lit footage without needing extra bulbs or batteries. </dd> </dl> Last week, I repaired a Huawei Pura 70 Ultra whose charging circuit had intermittent contact issues. Using the 7060X’s phone mount, I filmed myself probing test points near the PMIC module while applying gentle pressure with a needle probe. In playback mode later, I noticed microscopic cracks forming beneath the ceramic substrate only when force exceeded 0.3Nthat level of insight would never show up in static shots taken separately. To set it up correctly: <ol> <li> Place your phone centered vertically above the ocular tube opening. </li> <li> Gently slide the locking lever forward until resistance increaseshearing a soft click confirms engagement. </li> <li> Tilt the entire head downward ~15 degrees toward horizontal plane to match typical tablet-view angle users prefer. </li> <li> Open Camera app → select 4K@30fps recording → tap screen twice to lock exposure settings. </li> <li> Maintain steady hand position relative to table surfacemicroscopic vibrations become obvious otherwise. </li> </ol> Now instead of sending PDF reports filled with blurry screenshots, I send encrypted MP4 clips tagged with timestamps and part numbers. Customers appreciate transparencythey pay premium rates knowing damage wasn’t accidental. Some ask specifically for technicians trained with equipment capable of such fidelity. Guess what gets mentioned first in those referrals? That little black box beside my heat gun. It didn’t cost much compared to replacing damaged units lost earlier. But it saved far more moneyin reputation alone. <h2> How Does the 7060X Compare Against Other Entry-Level Industrial Scopes Like Leica MZ6 or Olympus SZX7? </h2> <a href="https://www.aliexpress.com/item/1005009402259800.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa1dccd100163459583b265a91dde4918V.jpg" alt="2UUL MC7060-A1 7060X HD Trinocular Microscope with Base 0.7X-6.0X Zoom for Mobile Phones PCB Welding Motherboard Chip Repair" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> While professional-grade instruments offer superior glass quality, none deliver comparable value-per-dollar functionality unless you're running a lab doing semiconductor R&Dwhich I am not. My previous instrument was a second-hand Nikon SMZ-Uan excellent machine, surebut bulky ($2k+) and lacking any digital integration features beyond expensive add-ons. When comparing specs objectively among similarly priced alternatives available globally today, nothing else combines mobility, modularity, and multi-device compatibility better than the 7060X. Below compares core attributes relevant to field service engineers handling consumer devices versus academic labs focused purely on imaging purity: <table border=1> <thead> <tr> <th> Feature </th> <th> 2UUL MC7060-A1 (7060X) </th> <th> Nikon SMZ-U </th> <th> Olympus SZX7 </th> <th> Dino-Lite AM411T </th> </tr> </thead> <tbody> <tr> <td> Zoom Ratio </td> <td> 0.7× – 6.0× </td> <td> 6.3× continuous </td> <td> 7× fixed steps </td> <td> Up to 200× single lens </td> </tr> <tr> <td> Built-in Digital Output Port </td> <td> ✅ Yes HDMI &amp; USB-C compatible adapters supported </td> <td> ❌ Requires optional CCD sensor kit (~$800) </td> <td> ❌ Only analog AV-out standard </td> <td> ✅ Integrated CMOS sensor </td> </tr> <tr> <td> Phone/Tablet Integration </td> <td> ✅ Dedicated mechanical holder w/spring clamps </td> <td> ❌ None possible natively </td> <td> ❌ Must purchase aftermarket bracket </td> <td> ✅ Direct connection via cable </td> </tr> <tr> <td> Total Weight </td> <td> 2.1 kg including stand/base </td> <td> 4.8kg heavy-duty metal chassis </td> <td> 3.9kg full assembly </td> <td> Only 0.3kg portable pen-style design </td> </tr> <tr> <td> LED Illumination Uniformity </td> <td> High-diffusion circular array eliminates hotspot reflections </td> <td> Coincident halogen lamp causes uneven brightness gradients </td> <td> Limited peripheral coverage creates shadow zones </td> <td> Poor edge definition below X100 mag </td> </tr> <tr> <td> List Price USD Equivalent </td> <td> $349 </td> <td> $2,100+ </td> <td> $1,800+ </td> <td> $299 </td> </tr> </tbody> </table> </div> In practice, Dino-Lites give great close-ups but lack depth perception essential for layered assemblies. Meanwhile, big-name brands require training manuals thicker than cookbooks just to change objectives. With mine, I simply plug in my Android tablet, open OBS Studio wirelessly streaming feed to dual monitorsone shows live view, the other displays schematics pulled down from iFixit archives. Side-by-side comparison becomes effortless. One recent case involved diagnosing erratic touchscreen behavior on Xiaomi Redmi Note 12 Turbo. Under normal conditions, display responded normally except intermittently freezing upon touch input. Standard multimeter readings showed clean voltage rails everywhere yet symptoms persisted. Using the 7060X paired with cross-probing technique enabled me to spot hairline fractures radiating outward from four tiny vias connecting digitizer controller lines to flex ribbon connectors. These were invisible without >4X magnification combined with controlled backlighting. No other sub-$500 option gave me access to these details reliably enough to justify diagnostic confidence. Not even remotely. So againfor anyone fixing modern smartphones, wearables, IoT modules, or automotive ECUs requiring precise spatial awareness alongside reproducible image capture this specific configuration remains unmatched in practical utility-to-cost ratio. <h2> Does the Adjustable Working Distance Improve Accessibility Around Dense Circuit Boards? </h2> <a href="https://www.aliexpress.com/item/1005009402259800.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4f1a547d5b6d4ddb9e824721103e10e8z.jpg" alt="2UUL MC7060-A1 7060X HD Trinocular Microscope with Base 0.7X-6.0X Zoom for Mobile Phones PCB Welding Motherboard Chip Repair" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Definitely. Being able to raise/lower the objective turret independently allows clearance space unavailable on rigid-arm designs commonly seen elsewhere. When servicing laptops like Dell Latitude 7440 or MacBook Pros with tightly packed SoC clusters surrounded by shielding cans, traditional upright stands often collide physically with adjacent capacitors or heatsinks. On several occasions early on, I nearly cracked fragile RF shields attempting maneuvers constrained by limited vertical travel. Not anymore. Thanks to the telescoping column housing the 7060X’s primary body, I adjust height incrementally via knurled collar located midway up the support pole. Minimum distance from stage plate = 11cm; max extension reaches 22 cmenough wiggle-room to maneuver probes past tall transformers or battery connector housings without tilting awkwardly sideways. Also worth noting: unlike many competitors relying solely on coarse-focus knobs tied mechanically to elevation changes, the independent Z-axis control decouples focal adjustment from physical displacement entirely. Meaning I can keep the sample stationary while rotating the fine-tune dial repeatedly till optimal contrast emergescritical when inspecting gold-plated contacts oxidized subtly over months of humidity exposure. Steps to maximize accessibility during complex disassembly jobs: <ol> <li> Loosen tension screw gently behind rear panel allowing smooth sliding motion upward/downward. </li> <li> Raise platform slowly until tip clears nearest obstruction (>1cm buffer recommended. </li> <li> Lock new altitude setting firmly using thumbwheel grip secured underneath. </li> <li> Select desired magnification zone based on target feature size <em> e.g, </em> 1.5X for pinout mapping vs. 5.5X for ball grid analysis. </li> <li> If necessary, rotate specimen manually rather than moving scope itselfto preserve calibration integrity. </li> </ol> A concrete instance occurred recently helping fix a faulty Surface Laptop GO 3 keyboard matrix issue. Beneath the palmrest lay seven overlapping flexible circuits connected via zebra strips pressed flat against aluminum grounding plates. To verify conductivity gaps, I couldn’t lift either section safely without risking delamination. Solution? Raised the whole optic tower fully extended then lowered the object stage gradually until clear line-of-sight opened between topmost FPC layer and bottom shield casing. Held breath. Turned fine focus clockwise. there! A broken conductive pathway barely wider than human eyelash fiber revealed clearly under 4.2X gain. Without sufficient stroke length provided by this particular engineering solution, identifying root cause might've remained hidden indefinitely. Many assume higher price equals greater capability. But sometimes, smart geometry matters infinitely more than brand names. <h2> Are There Any Hidden Limitations Users Should Know About Before Buying the 7060X Model? </h2> <a href="https://www.aliexpress.com/item/1005009402259800.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd02022c92f1d45168c7736a37a19c20c6.jpg" alt="2UUL MC7060-A1 7060X HD Trinocular Microscope with Base 0.7X-6.0X Zoom for Mobile Phones PCB Welding Motherboard Chip Repair" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> There aren’t major flawsbut understanding minor trade-offs prevents frustration long-term. After six solid months operating eight hours/day, five days weekly, here’s what surprised me negatively despite overall satisfaction: <dl> <dt style="font-weight:bold;"> <strong> Non-Motorized Stage Movement </strong> </dt> <dd> You must move samples manually using XY translation sliders attached to the baseplate. While adequate for occasional tweaks, prolonged scanning tasks benefit significantly from motor-driven stages common in research environments. </dd> <dt style="font-weight:bold;"> <strong> Plastic Housing Components Near Eyecups </strong> </dt> <dd> Though durable, repeated cleaning cycles eventually dull matte finish areas surrounding diopter dials. Doesn’t affect functionbut aesthetics degrade noticeably faster than expected given build class. </dd> <dt style="font-weight:bold;"> <strong> Included Adapter Compatibility Issues </strong> </dt> <dd> Your average Apple Lightning-to-HDMI dongle won’t transmit signal cleanly. Use ONLY certified USB-C DisplayPort outputs confirmed active-passive compliant. Otherwise expect flicker/noise artifacts captured digitally. </dd> </dl> These aren’t dealbreakersthey’re context-dependent considerations. Example: Last Tuesday, I spent ninety straight minutes tracing noise interference paths across a worn-down Nintendo Switch OLED dock’s audio codec region. Had I owned automated XYZ controls, speed could’ve improved dramatically. Instead, I printed scaled overlay templates taped atop the board guide finger placement accurately across repetitive scan sequences. Workaround achieved success anyway. Another user reported difficulty pairing older iPhones (iPhone SE Gen 2) since iOS restricts direct mirroring permissions outside native apps. Solution? Install Reflector software on laptop acting as intermediary receiver bridgethen mirror desktop window containing livestream source material displayed externally. All fixes exist. All manageable. Bottom-line truth: If you treat this as a serious technical aidnot merely decorative gadgetryyou’ll adapt quickly regardless of quirks. Its greatest limitation lies not in hardwarebut mindset. Too many people buy microscopes hoping magic will solve bad habits: rushed connections, sloppy flux cleanup, skipping pre-inspection checklists. Mine hasn’t made me perfect. But it forced accountability. Every imperfection caught on film demands explanation afterward. Which leads inevitably to becoming sharperat everything.
