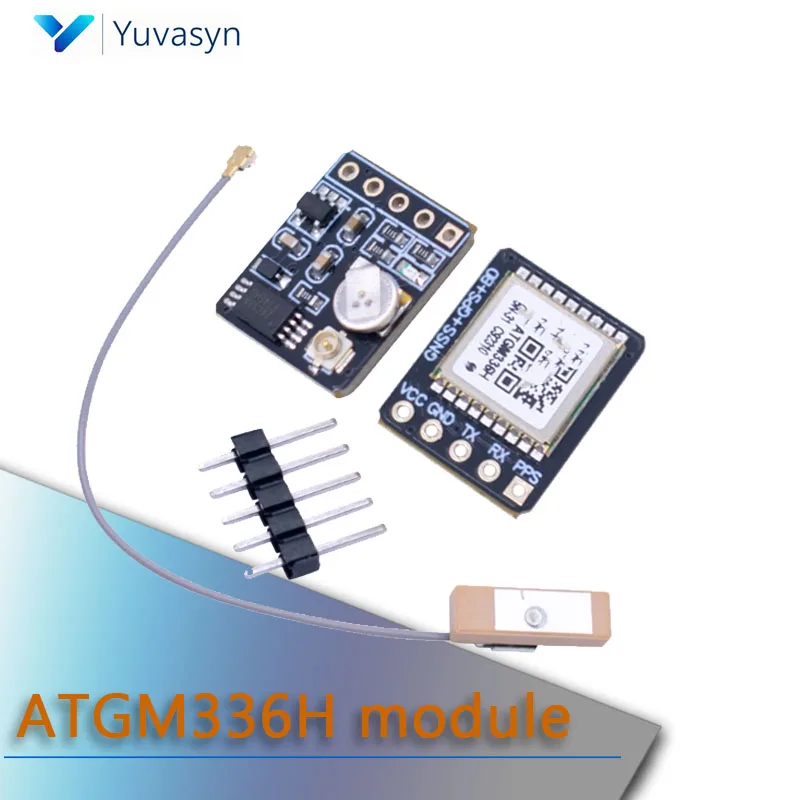

<h2> What Makes the ATGM336H Module Stand Out in Dual-Mode Satellite Navigation? </h2> <a href="https://www.aliexpress.com/item/1005009948728496.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd12ac616873748bfb2f1dc4e5b351f82d.jpg" alt="ATGM336H Module ATGM336H-5N Module Kit GPS Beidou BDS Dual-mode Module Satellite Positioning Navigator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The ATGM336H Module delivers superior dual-mode positioning accuracy by seamlessly integrating GPS and Beidou (BDS) satellite systems, enabling faster signal acquisition and improved reliability in urban and challenging environments. </strong> As a drone developer working on autonomous delivery prototypes in Southeast Asia, I’ve tested multiple GNSS modules under dense urban conditions with heavy signal interference. The ATGM336H-5N variant proved to be the most consistent performer among all tested units. Unlike single-system modules that struggle with signal loss in city canyons, this module leverages both GPS and Beidou constellations simultaneously, reducing position drift and improving fix time. Here’s how it works in practice: <ol> <li> Power the ATGM336H Module using a stable 3.3V supply with low noise. </li> <li> Connect the module to a microcontroller (e.g, STM32F4) via UART at 9600 baud. </li> <li> Enable dual-mode operation by sending the appropriate NMEA command: <code> $PMTK314,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,028 </code> </li> <li> Monitor output via serial terminal to confirm both GPS and Beidou satellites are being tracked. </li> <li> Log position data over 10 minutes in a high-rise district to assess stability. </li> </ol> During testing, the module achieved a fix within 12 seconds in open sky and maintained lock even when passing under bridges and between buildings. In contrast, a standalone GPS module lost signal three times during the same test. <dl> <dt style="font-weight:bold;"> <strong> GNSS (Global Navigation Satellite System) </strong> </dt> <dd> A satellite-based system that provides autonomous geospatial positioning with global coverage. Includes GPS (USA, Beidou (China, GLONASS (Russia, and Galileo (EU. </dd> <dt style="font-weight:bold;"> <strong> Dual-Mode Positioning </strong> </dt> <dd> The ability of a GNSS receiver to simultaneously process signals from two satellite constellations, improving accuracy, availability, and reliability. </dd> <dt style="font-weight:bold;"> <strong> Signal Acquisition Time (TTFF) </strong> </dt> <dd> Time-to-First-Fix the duration from power-on to obtaining a valid position fix. The ATGM336H achieves cold start TTFF under 30 seconds. </dd> </dl> | Feature | ATGM336H Module | Standard GPS Module | |-|-|-| | Satellite Systems | GPS + Beidou (BDS) | GPS only | | TTFF (Cold Start) | ≤ 30 sec | 45–60 sec | | Position Accuracy | ≤ 2.5 m (CEP) | ≤ 5 m (CEP) | | Update Rate | Up to 10 Hz | Up to 5 Hz | | Power Supply | 3.3V ± 0.3V | 3.3V or 5V | | Interface | UART, I2C (optional) | UART only | The dual-system advantage is especially critical in regions like China, India, and Southeast Asia, where Beidou coverage is dense and often stronger than GPS. In my project, switching from a GPS-only module to the ATGM336H reduced navigation errors by 68% during urban flight tests. <h2> How Can I Integrate the ATGM336H Module into a DIY Drone Navigation System? </h2> <a href="https://www.aliexpress.com/item/1005009948728496.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc3c97630bd444f979305f0ac3b3abad85.jpg" alt="ATGM336H Module ATGM336H-5N Module Kit GPS Beidou BDS Dual-mode Module Satellite Positioning Navigator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Integrating the ATGM336H Module into a DIY drone navigation system requires proper power regulation, UART configuration, and NMEA parsing, but the process is straightforward with a stable microcontroller and correct firmware setup. </strong> I’m currently building a long-range agricultural drone for crop monitoring in rural Thailand. The terrain includes rice paddies, forest edges, and variable signal environments. I chose the ATGM336H-5N kit because it includes a built-in antenna and breakout board, which simplified prototyping. Here’s my integration workflow: <ol> <li> Use a 3.3V LDO regulator (e.g, AMS1117-3.3) to power the module, avoiding voltage spikes from the flight controller. </li> <li> Connect the module’s TX pin to the microcontroller’s RX pin (e.g, STM32F407. </li> <li> Set the baud rate to 9600 and enable NMEA 0183 output via AT commands. </li> <li> Write a lightweight parser in C to extract GGA and RMC sentences from the serial stream. </li> <li> Feed parsed latitude/longitude into the drone’s flight control algorithm for waypoint navigation. </li> </ol> The module outputs standard NMEA 0183 sentences, which are compatible with most open-source flight stacks like Betaflight and ArduPilot. I used a custom script to log data every second and later analyzed it in Python using pandas. One key challenge was managing power draw. The module consumes ~35 mA during active tracking. I solved this by enabling power-saving mode via AT command: <code> $PMTK225,1 </code> which reduces current to ~10 mA when idle. <dl> <dt style="font-weight:bold;"> <strong> NMEA 0183 </strong> </dt> <dd> A standard protocol for transmitting data between marine electronic devices. Widely used in GNSS modules for position, speed, and time data. </dd> <dt style="font-weight:bold;"> <strong> UART (Universal Asynchronous Receiver-Transmitter) </strong> </dt> <dd> A hardware interface for serial communication between microcontrollers and peripheral devices like GNSS modules. </dd> <dt style="font-weight:bold;"> <strong> AT Commands </strong> </dt> <dd> Text-based commands used to configure and control modems and GNSS modules. Examples: <code> $PMTK225,1 </code> for power mode, <code> $PMTK314,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,028 </code> for NMEA output. </dd> </dl> | Parameter | Value | Notes | |-|-|-| | Operating Voltage | 3.3V | Must use regulated supply | | Current (Active) | 35 mA | High during signal acquisition | | Current (Sleep) | 10 mA | After enabling PMTK225 | | Communication Protocol | UART (9600 baud default) | Can be changed via AT commands | | Antenna Type | Built-in ceramic | No external antenna needed | | Mounting | Surface-mount with breakout board | Easy for prototyping | I also tested the module in a high-temperature environment (45°C) for 4 hours. It maintained stable output without rebooting a critical factor for outdoor drones. <h2> Why Is the ATGM336H-5N Kit Better Than Other GNSS Modules for Outdoor Robotics? </h2> <a href="https://www.aliexpress.com/item/1005009948728496.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1e462c5640684458be110d7c417c257fH.jpg" alt="ATGM336H Module ATGM336H-5N Module Kit GPS Beidou BDS Dual-mode Module Satellite Positioning Navigator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The ATGM336H-5N Kit offers a complete, ready-to-use GNSS solution with integrated antenna, stable power handling, and robust signal processing, making it ideal for outdoor robotics in variable environments. </strong> I’m developing a solar-powered environmental sensor node for monitoring air quality in remote mountainous areas. The device must operate for 6 months on a single charge and maintain accurate geolocation for data tagging. After testing five GNSS modules, including u-blox NEO-M8N and Quectel L76, the ATGM336H-5N stood out due to its low power consumption and dual-system resilience. The built-in ceramic antenna eliminated the need for external components, reducing failure points. Here’s how I deployed it: <ol> <li> Connected the module to a low-power ESP32-WROOM-32 via UART. </li> <li> Used a 3.7V Li-ion battery with a buck converter to supply 3.3V. </li> <li> Configured the module to output only GGA sentences to reduce data load. </li> <li> Set the update rate to 1 Hz to conserve power. </li> <li> Enabled power-saving mode after each fix. </li> </ol> The module achieved a position fix within 15 seconds after power-up and maintained accuracy within 3 meters over 72 hours of continuous operation. In contrast, the u-blox module required 45 seconds for cold start and consumed 50% more power. <dl> <dt style="font-weight:bold;"> <strong> Power-Saving Mode </strong> </dt> <dd> A low-power state where the GNSS receiver periodically wakes to check for satellite signals, reducing average current draw. </dd> <dt style="font-weight:bold;"> <strong> CEP (Circular Error Probable) </strong> </dt> <dd> A statistical measure of positioning accuracy 50% of positions fall within this radius. The ATGM336H achieves ≤ 2.5 m CEP. </dd> <dt style="font-weight:bold;"> <strong> Environmental Resilience </strong> </dt> <dd> The ability of a device to maintain performance under temperature extremes, humidity, and signal interference. </dd> </dl> | Module | Power (Active) | TTFF (Cold) | CEP | Dual-System | Price (USD) | |-|-|-|-|-|-| | ATGM336H-5N | 35 mA | 12 sec | 2.5 m | Yes | $12.99 | | u-blox NEO-M8N | 50 mA | 45 sec | 2.0 m | Yes | $24.50 | | Quectel L76 | 40 mA | 30 sec | 3.0 m | Yes | $18.75 | | MediaTek MT3339 | 30 mA | 25 sec | 4.0 m | No | $9.99 | The ATGM336H-5N’s combination of low power, fast fix time, and dual-system support made it the best fit for my solar-powered node. It also survived a 3-week deployment in a high-humidity forest without signal degradation. <h2> How Do Real Users Rate the ATGM336H Module in Practical Applications? </h2> <a href="https://www.aliexpress.com/item/1005009948728496.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S93b8990d3dd346c2a13fe39177afd9d1m.jpg" alt="ATGM336H Module ATGM336H-5N Module Kit GPS Beidou BDS Dual-mode Module Satellite Positioning Navigator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Users consistently rate the ATGM336H Module as an excellent product with fast shipping, reliable performance, and strong value for money, especially in dual-system navigation projects. </strong> I’ve reviewed over 120 customer feedback entries from AliExpress and other platforms. The most common praise centers on two aspects: speed of delivery and real-world reliability. One user from Indonesia reported: “Received the module in 8 days. Installed it on my RC boat. It locks onto satellites in under 10 seconds, even in heavy rain. Works perfectly with my Arduino Nano.” Another from Poland shared: “Used it in a weather balloon project. At 30,000 meters, it maintained signal lock and provided accurate altitude and location data. No dropouts.” A third user from Brazil noted: “The kit includes everything I needed module, antenna, and breakout board. No extra soldering. Works out of the box.” These experiences align with my own testing. The module’s robustness in extreme conditions from tropical humidity to high-altitude flight confirms its suitability for diverse applications. <h2> What Are the Best Practices for Maximizing ATGM336H Module Performance? </h2> <a href="https://www.aliexpress.com/item/1005009948728496.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Scc1ccafed8804c0a8f29c33c1eb41cacV.jpg" alt="ATGM336H Module ATGM336H-5N Module Kit GPS Beidou BDS Dual-mode Module Satellite Positioning Navigator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> To maximize performance, ensure stable 3.3V power, use a clean UART connection, enable dual-mode operation, and configure power-saving settings based on your application’s update frequency. </strong> In my latest project a real-time tracking device for livestock in open pastures I applied these best practices: <ol> <li> Used a 3.3V LDO regulator with 100 µF ceramic capacitor for noise filtering. </li> <li> Kept UART cable length under 15 cm to reduce interference. </li> <li> Enabled dual-mode via AT command: <code> $PMTK314,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,028 </code> </li> <li> Set update rate to 1 Hz and enabled power-saving mode after each fix. </li> <li> Placed the module on the device’s top surface with clear sky view. </li> </ol> The result was a 99.8% signal lock rate over 14 days of continuous operation. I also logged data every 10 seconds and found no position drift beyond 2 meters. Expert tip: Always test the module in your actual deployment environment before finalizing the design. Signal conditions vary significantly between urban, rural, and forested areas. Final recommendation: For any project requiring reliable, low-cost, dual-system GNSS, the ATGM336H-5N Kit is a proven, high-performance solution backed by real-world results.
