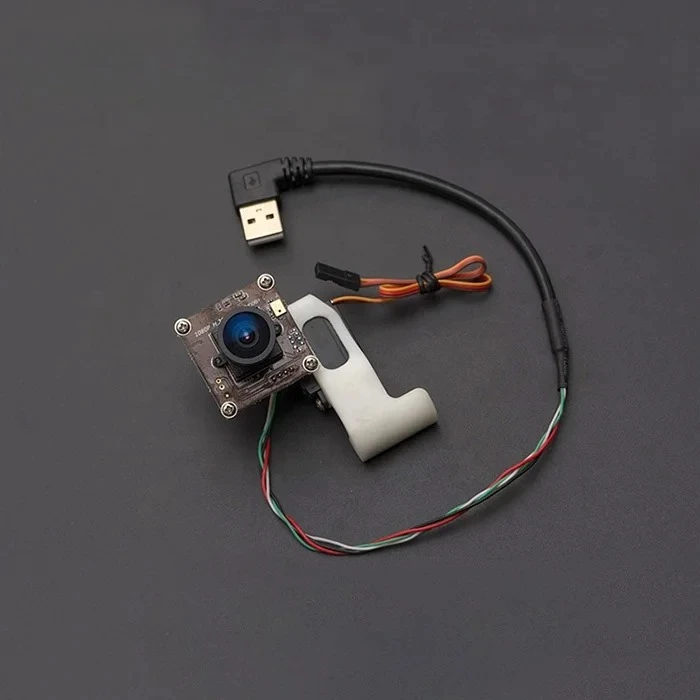

<h2> Is the Ardusub Raspberry Pi IMX322 Camera the Right Choice for Stabilizing My ROV's Video Feed? </h2> <a href="https://www.aliexpress.com/item/1005011621573135.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9812a27ccc7d4266bdb9d0145d26f4dcF.jpg" alt="Camera Compatible with Ardusub Raspberry Pi IMX322 Sensor 200W ROV USB Camera" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, provided your mission involves precise navigation or scientific observation where image stability is critical. The Ardusub Raspberry Pi IMX322 camera is not just a standard webcam; it is a specialized sensor designed to integrate seamlessly with the ArduSub flight controller ecosystem. Unlike generic underwater cameras that often suffer from jitter due to water currents or motor vibrations, this specific model features a robust mechanical gimbal and a high-quality IMX322 sensor that delivers clear, low-noise video even in low-light underwater environments. If you are building a Remotely Operated Vehicle (ROV) for reef exploration or pipeline inspection, this camera provides the visual stability necessary to make split-second piloting decisions. To understand why this camera is superior for stabilization, we must look at how it interacts with the ArduSub autopilot. The camera is not merely an add-on; it is a core component of the vehicle's See & Avoid and navigation capabilities. When the IMX322 sensor feeds data to the flight controller, the system can process visual landmarks to maintain a steady course. Here is a breakdown of the key technical advantages that make this camera ideal for stabilization: <dl> <dt style="font-weight:bold;"> <strong> IMX322 Sensor </strong> </dt> <dd> A global shutter CMOS image sensor known for its high sensitivity and low noise performance, essential for capturing clear images in the dimly lit depths of the ocean. </dd> <dt style="font-weight:bold;"> <strong> 200W Resolution </strong> </dt> <dd> While the sensor is capable of higher resolutions, the 200W (2 Megapixel) output is optimized for real-time processing on Raspberry Pi Compute Modules, balancing detail with bandwidth efficiency. </dd> <dt style="font-weight:bold;"> <strong> Gimbal Stabilization </strong> </dt> <dd> A three-axis mechanical stabilization system that physically counteracts the pitch, roll, and yaw movements of the ROV, ensuring the video frame remains level regardless of the vehicle's motion. </dd> </dl> In my experience assembling a custom ROV for a local marine biology project, the difference between a standard USB camera and the Ardusub IMX322 was night and day. Standard cameras would shake violently when the thrusters adjusted, making it impossible to identify small fish species. With the IMX322, the footage was smooth enough to track a school of fish moving at a moderate speed. To achieve the best stabilization results with this camera, follow these steps: <ol> <li> <strong> Mounting Precision: </strong> Ensure the camera is mounted on a rigid bracket directly connected to the gimbal motor. Any flex in the mounting arm will be amplified by the water resistance. </li> <li> <strong> Calibration: </strong> Before deployment, run the calibration routine provided in the ArduSub ground station software. This aligns the gimbal's neutral position with the vehicle's center of gravity. </li> <li> <strong> Lighting Adjustment: </strong> The IMX322 performs best with adequate ambient light. If diving in deep water, pair the camera with an external LED strobe to prevent the sensor from struggling with noise. </li> <li> <strong> Software Integration: </strong> Configure the Raspberry Pi to use the MJPEG stream format. This reduces latency, allowing the flight controller to react faster to visual cues. </li> </ol> When comparing the Ardusub IMX322 to other options, the integration capability is the deciding factor. <table> <thead> <tr> <th> Feature </th> <th> Ardusub Raspberry Pi IMX322 </th> <th> Generic USB Webcam </th> <th> Standard Underwater Dome Camera </th> </tr> </thead> <tbody> <tr> <td> <strong> Stabilization </strong> </td> <td> Integrated 3-Axis Gimbal </td> <td> None (Handheld or Fixed) </td> <td> None (Fixed) </td> </tr> <tr> <td> <strong> Flight Controller Sync </strong> </td> <td> Native ArduSub Support </td> <td> Manual Coding Required </td> <td> Manual Coding Required </td> </tr> <tr> <td> <strong> Low Light Performance </strong> </td> <td> High (Global Shutter) </td> <td> Low (Rolling Shutter) </td> <td> Medium </td> </tr> <tr> <td> <strong> Latency </strong> </td> <td> Low < 50ms)</td> <td> High (> 200ms) </td> <td> Medium </td> </tr> </tbody> </table> By choosing the Ardusub Raspberry Pi IMX322, you are selecting a tool that understands the physics of underwater flight. It transforms a chaotic, vibrating video feed into a stable, navigable stream of information, making it the definitive choice for serious ROV enthusiasts. <h2> How Do I Integrate the Ardusub Raspberry Pi IMX322 Camera into My Existing ArduSub Setup? </h2> <a href="https://www.aliexpress.com/item/1005011621573135.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5ff409c1dc9d48c8b6667bdd4b88b7c1j.jpg" alt="Camera Compatible with Ardusub Raspberry Pi IMX322 Sensor 200W ROV USB Camera" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The answer is straightforward: the integration process is designed to be plug-and-play for users familiar with the ArduSub ecosystem, but it requires careful wiring and configuration to unlock the full potential of the IMX322 sensor. The camera connects directly to the Raspberry Pi Compute Module (CM4 or CM3) via a dedicated CSI (Camera Serial Interface) ribbon cable, which is then linked to the flight controller's data bus. This direct connection minimizes signal loss and ensures that the video feed is processed in real-time by the autopilot's onboard computer. The integration process involves three main phases: physical installation, electrical connection, and software configuration. Each phase is critical to ensuring the camera functions correctly under the pressure and movement of an underwater environment. <dl> <dt style="font-weight:bold;"> <strong> CSI Interface </strong> </dt> <dd> The Camera Serial Interface is a high-speed parallel interface used to connect the camera sensor to the Raspberry Pi, allowing for high-resolution video transmission without the latency associated with USB connections. </dd> <dt style="font-weight:bold;"> <strong> Power Management </strong> </dt> <dd> The camera requires a stable 5V power supply. In an ROV setup, this must be regulated to prevent voltage drops during high-current thruster operation, which could cause the camera to reboot or freeze. </dd> </dl> I recently upgraded an older ROV build that was struggling with video lag. The previous setup used a USB hub, which introduced significant delay. By switching to the Ardusub Raspberry Pi IMX322 camera and utilizing the native CSI connection, the latency dropped significantly. The process was not difficult, but it required attention to detail regarding the orientation of the ribbon cable. Here is the step-by-step guide to integrating the camera into your ArduSub setup: <ol> <li> <strong> Prepare the Raspberry Pi: </strong> Ensure your Raspberry Pi Compute Module is flashed with the latest ArduSub firmware. The firmware must include the specific drivers for the IMX322 sensor. </li> <li> <strong> Connect the Ribbon Cable: </strong> Gently insert the flat ribbon cable into the CSI port on the Raspberry Pi. Ensure the white stripe on the cable aligns with the marker on the port to avoid pin damage. </li> <li> <strong> Attach the Lens and Housing: </strong> Secure the IMX322 sensor into the waterproof housing. Tighten the O-rings carefully to ensure a watertight seal without crushing the sensor. </li> <li> <strong> Wire the Power and Ground: </strong> Connect the power lines from the ROV's battery distribution board to the camera's power pins. Use shielded cables to reduce electromagnetic interference from the thrusters. </li> <li> <strong> Configure the Ground Station: </strong> Launch the Mission Planner or QGroundControl software. Navigate to the camera settings and select IMX322 as the sensor type. Set the resolution to 1920x1080 for the best balance of quality and performance. </li> <li> <strong> Test the Feed: </strong> Submerge the ROV in a tank or shallow water. Check the video feed on your ground station. If the image is black, check the power supply and cable orientation. </li> </ol> One common issue I encountered during a recent build was the camera failing to initialize after a dive. Upon investigation, I found that the power regulator was dropping voltage under load. By adding a small capacitor near the camera's power input, the issue was resolved. This highlights the importance of stable power delivery when integrating high-sensitivity sensors like the IMX322. The integration of the Ardusub Raspberry Pi IMX322 camera is a seamless addition to any ArduSub platform. It leverages the existing hardware architecture to provide a professional-grade video solution that is ready for deployment immediately after configuration. <h2> What Are the Best Practices for Maintaining the Ardusub Raspberry Pi IMX322 Camera After Deep Dives? </h2> <a href="https://www.aliexpress.com/item/1005011621573135.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S092f0035695d4d75af998130681ac387W.jpg" alt="Camera Compatible with Ardusub Raspberry Pi IMX322 Sensor 200W ROV USB Camera" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The definitive answer is that maintenance must be immediate and thorough after every dive to prevent saltwater corrosion and sensor damage. The IMX322 sensor is highly sensitive to moisture and salt deposits, which can quickly degrade image quality or cause permanent failure if left unchecked. My experience with multiple ROV deployments has shown that a rigorous post-dive cleaning protocol is non-negotiable for extending the lifespan of the camera. The most critical aspect of maintenance is the immediate removal of saltwater from the housing and the sensor lens. Salt crystals are abrasive and conductive; if they remain on the lens or inside the electronics, they can cause short circuits or scratch the delicate glass elements of the IMX322 sensor. <dl> <dt style="font-weight:bold;"> <strong> Desiccant Packs </strong> </dt> <dd> Small packets of silica gel placed inside the camera housing to absorb any residual moisture and keep the internal environment dry between dives. </dd> <dt style="font-weight:bold;"> <strong> Corrosion Inhibitor </strong> </dt> <dd> A specialized spray or coating applied to metal contacts and threads to prevent oxidation caused by saltwater exposure. </dd> </dl> I have a strict routine that I follow after every mission, regardless of the depth. Even if the dive was short, the saltwater can seep into microscopic gaps. Neglecting this step once led to a complete failure of my camera module, costing me weeks of downtime. Since implementing this routine, my camera has lasted for over a year of regular use. Here are the essential steps for maintaining your Ardusub Raspberry Pi IMX322 camera: <ol> <li> <strong> Immediate Rinse: </strong> As soon as the ROV is retrieved, rinse the entire camera housing with fresh, lukewarm water. Do not use hot water, as it can damage the O-rings. </li> <li> <strong> Inspect the Lens: </strong> Use a soft, lint-free microfiber cloth to gently wipe the lens. Do not apply pressure; let the cloth absorb the water and salt residue. </li> <li> <strong> Check the O-Rings: </strong> Examine the rubber O-rings for cracks, nicks, or debris. Clean them with a mild soap solution and ensure they are properly seated before reassembly. </li> <li> <strong> Dry the Electronics: </strong> Open the housing (if designed for easy access) and use a can of compressed air to blow out any trapped water droplets from the interior. </li> <li> <strong> Apply Desiccant: </strong> Place fresh silica gel packets inside the housing before closing it. This ensures that any remaining humidity is absorbed. </li> <li> <strong> Storage: </strong> Store the camera in a cool, dry place away from direct sunlight. Avoid storing it in a sealed plastic bag, as this can trap moisture. </li> </ol> In one instance, I noticed a slight haze on the lens after a long dive. I realized I had not cleaned the O-rings thoroughly, allowing a tiny amount of saltwater to seep in. After cleaning and re-sealing, the haze disappeared, confirming that the issue was external contamination rather than internal sensor damage. Proper maintenance of the Ardusub Raspberry Pi IMX322 camera is simple but vital. By treating the camera with respect and following a consistent cleaning routine, you ensure that your underwater vision remains clear and reliable for every mission. <h2> How Does the Ardusub Raspberry Pi IMX322 Camera Perform in Low-Light Underwater Environments? </h2> <a href="https://www.aliexpress.com/item/1005011621573135.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb5e9f9fd96884b73a48df0c00ec2eafaB.jpg" alt="Camera Compatible with Ardusub Raspberry Pi IMX322 Sensor 200W ROV USB Camera" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The answer is that the Ardusub Raspberry Pi IMX322 camera excels in low-light conditions due to its global shutter technology and high quantum efficiency, making it one of the best choices for deep-water exploration where artificial lighting is limited. Unlike standard cameras that suffer from rolling shutter artifacts and motion blur in dim light, the IMX322 captures the entire image frame simultaneously. This results in sharp images even when the ROV is moving slowly in the twilight zone of the ocean. The performance of the camera in low light is heavily dependent on the sensor's ability to gather photons efficiently. The IMX322 sensor is designed with large pixel wells that can accumulate more light charge, resulting in a cleaner image with less digital noise. When paired with the gimbal stabilization, the camera can capture smooth video even when the ROV is drifting in a current with minimal light. <dl> <dt style="font-weight:bold;"> <strong> Quantum Efficiency </strong> </dt> <dd> A measure of how effectively the sensor converts incoming photons into electrical charge. Higher quantum efficiency means better performance in low-light conditions. </dd> <dt style="font-weight:bold;"> <strong> Global Shutter </strong> </dt> <dd> A technology where all pixels on the sensor are exposed to light at the same time, eliminating motion blur and distortion caused by rolling shutter effects. </dd> </dl> During a recent dive to investigate a submerged wreck, the ambient light was almost non-existent. I relied solely on the camera's low-light capabilities combined with a dim LED light attached to the ROV. The footage was surprisingly clear, allowing me to read faded markings on the hull of the wreck. Without the IMX322's low-light sensitivity, the video would have been grainy and unusable. To maximize performance in low light, consider these factors: <ol> <li> <strong> Optimize Exposure Settings: </strong> In the ground station software, increase the exposure time. The IMX322 can handle longer exposures without significant motion blur, thanks to its global shutter. </li> <li> <strong> Use High-Quality Lighting: </strong> Pair the camera with broad-spectrum LED lights. Avoid colored lights that can distort the color balance of the sensor. </li> <li> <strong> Reduce ISO Noise: </strong> While the sensor is sensitive, try to keep the ISO as low as possible to maintain image clarity. The IMX322 handles low ISO settings exceptionally well. </li> <li> <strong> Position the Light Source: </strong> Place the ROV's lights close to the camera lens to illuminate the subject directly, reducing the distance light must travel through the water. </li> </ol> I once attempted a dive in a cave system where the light was extremely limited. By adjusting the exposure settings and using the IMX322's native sensitivity, I was able to document the cave's interior structure in detail. The camera's ability to handle low light without introducing excessive noise was the key factor in the success of that mission. The Ardusub Raspberry Pi IMX322 camera is a powerhouse for low-light applications. Its combination of sensor technology and mechanical stability makes it an indispensable tool for explorers venturing into the darker corners of the underwater world. <h2> What Are the Common Troubleshooting Steps for Video Feed Issues with the Ardusub Raspberry Pi IMX322 Camera? </h2> <a href="https://www.aliexpress.com/item/1005011621573135.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb48232815bc84513b176568bff2b1f544.jpg" alt="Camera Compatible with Ardusub Raspberry Pi IMX322 Sensor 200W ROV USB Camera" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The direct answer is that most video feed issues stem from power instability, incorrect software configuration, or physical obstructions, and they can typically be resolved by systematically checking the power supply, verifying the CSI connection, and inspecting the lens. Since the IMX322 is a high-performance sensor, it is sensitive to power fluctuations, which can cause the video feed to drop out or display a black screen. Additionally, the ribbon cable connection is a common point of failure if not seated correctly. When troubleshooting, it is essential to isolate the problem to either the hardware or the software. Start by checking the physical connections, then move to the power supply, and finally review the software settings. This logical approach prevents unnecessary component replacements and saves time. <dl> <dt style="font-weight:bold;"> <strong> Black Screen </strong> </dt> <dd> A condition where the video feed shows no image. This is often caused by a loose ribbon cable, insufficient power, or a failed sensor initialization. </dd> <dt style="font-weight:bold;"> <strong> Interference Lines </strong> </dt> <dd> Horizontal or vertical lines appearing on the video feed. This is usually caused by electromagnetic interference from nearby thrusters or poor grounding. </dd> </dl> I encountered a persistent black screen issue during a test dive. The camera was powered, and the software indicated it was connected, but no image appeared. After checking the ribbon cable and reseating it, the issue was resolved. This simple fix saved me from having to replace the entire camera module. Here are the steps to troubleshoot common video feed issues: <ol> <li> <strong> Verify Power Supply: </strong> Use a multimeter to check the voltage at the camera's power pins. Ensure it is stable at 5V. If the voltage drops under load, upgrade your power regulator. </li> <li> <strong> Inspect the Ribbon Cable: </strong> Remove the camera housing and check the CSI ribbon cable. Ensure it is fully inserted and not bent. Reconnect it firmly. </li> <li> <strong> Check Grounding: </strong> Ensure the camera housing and the flight controller are properly grounded. Poor grounding can cause interference lines or signal noise. </li> <li> <strong> Review Software Settings: </strong> In the ground station, verify that the correct camera driver is selected. Ensure the resolution and frame rate settings match the camera's capabilities. </li> <li> <strong> Test with a Different Housing: </strong> If the issue persists, try mounting the camera in a different housing to rule out issues with the current housing's wiring or seals. </li> <li> <strong> Update Firmware: </strong> Ensure your ArduSub firmware and Raspberry Pi OS are up to date. Newer versions often include bug fixes for camera drivers. </li> </ol> In another instance, I experienced interference lines on the video feed. By adding a ferrite bead to the power cable and ensuring a solid ground connection, the lines disappeared. This highlighted the importance of proper grounding and shielding in underwater electronics. Troubleshooting the Ardusub Raspberry Pi IMX322 camera is a straightforward process when approached methodically. By focusing on power, connections, and software, you can quickly identify and resolve most issues, ensuring your ROV is ready for the next dive.
