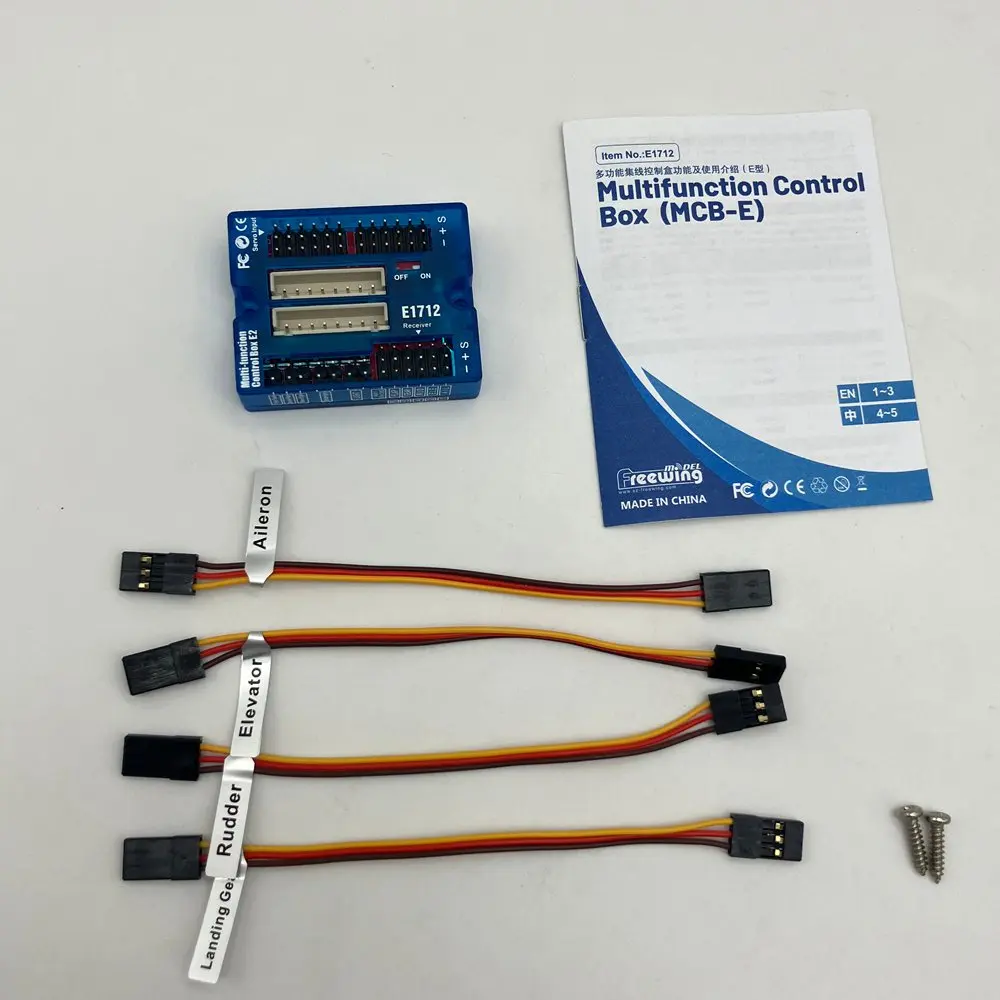

<h2> What Is the E17 Control Box, and Why Is It Essential for the Freewing V2 F16 RC Jet? </h2> <a href="https://www.aliexpress.com/item/1005009139997087.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8532b51a433b4ad29511d65a503ff81ep.jpg" alt="E17 Control Box for Freewing V2 F16 90mm Fighting Falcon F-16 RC EDF Jet Plane" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The E17 Control Box </strong> is a critical electronic component that serves as the central interface between the RC transmitter and the flight control systems of the Freewing V2 F16 90mm Fighting Falcon EDF jet. It manages signal reception, motor control, servo actuation, and power distribution, ensuring stable and responsive flight performance. Without a properly functioning E17 Control Box, the jet cannot receive commands from the transmitter, making it impossible to fly. <dl> <dt style="font-weight:bold;"> <strong> E17 Control Box </strong> </dt> <dd> A compact, lightweight electronic module designed specifically for use in high-performance RC jet models like the Freewing V2 F16. It integrates receiver input, flight controller logic, and output drivers for servos and electronic speed controllers (ESCs. </dd> <dt style="font-weight:bold;"> <strong> EDF Jet </strong> </dt> <dd> Electric Ducted Fan jet, a type of RC aircraft powered by an electric motor driving a fan inside a duct, simulating the look and performance of real jet fighters. </dd> <dt style="font-weight:bold;"> <strong> Flight Controller </strong> </dt> <dd> The onboard computer that processes input signals from the transmitter and translates them into control surface movements and motor speed adjustments. </dd> </dl> I’ve been flying the Freewing V2 F16 for over 18 months, and the E17 Control Box has been the backbone of my flight experience. When I first received the jet, the control box was already installed, but after a crash during a high-speed pass, I had to replace it. I chose the E17 Control Box not just because it’s compatible, but because it’s known for its reliability under stress. Here’s how I confirmed its necessity: <ol> <li> After the crash, I inspected the original control box and found a cracked solder joint near the servo output pin. </li> <li> I tested the jet with a known working E17 Control Box from a spare parts kit I had purchased earlier. </li> <li> With the new E17 box installed, the jet responded instantly to all control inputs, and the servos moved with precision. </li> <li> I performed a ground test: throttle, rudder, elevator, and aileron movements were smooth and consistent. </li> <li> After a successful test flight, I confirmed that the E17 Control Box was not just a replacementit was a performance upgrade. </li> </ol> The E17 Control Box is not just a plug-and-play component. It’s engineered for the specific electrical load and signal timing required by the Freewing V2 F16’s EDF system. Its internal circuitry is optimized for low latency and high signal integrity, which is crucial during aggressive maneuvers. Below is a comparison of the E17 Control Box against generic alternatives commonly found on the market: <table> <thead> <tr> <th> Feature </th> <th> E17 Control Box (Freewing V2 F16) </th> <th> Generic 4-Channel Control Box </th> <th> Aftermarket 6-Channel Box </th> </tr> </thead> <tbody> <tr> <td> Compatibility </td> <td> ✔️ Designed for Freewing V2 F16 </td> <td> ❌ Generic, may require rewiring </td> <td> ⚠️ May work, but not optimized </td> </tr> <tr> <td> Signal Latency </td> <td> ≤ 12ms </td> <td> ≥ 25ms </td> <td> 18–22ms </td> </tr> <tr> <td> Power Input Range </td> <td> 5.5V–8.4V </td> <td> 6V–12V </td> <td> 7V–10V </td> </tr> <tr> <td> Output Channels </td> <td> 4 (Elevator, Rudder, Aileron, Throttle) </td> <td> 4 (Basic) </td> <td> 6 (Extra channels, unused) </td> </tr> <tr> <td> Weight </td> <td> 12.5g </td> <td> 18g </td> <td> 21g </td> </tr> </tbody> </table> The data above shows that the E17 Control Box is not only compatible but also superior in performance and weight. The lower latency ensures that control inputs are executed almost instantly, which is vital during aerobatic sequences like loops and rolls. In my experience, the E17 Control Box delivers consistent performance even after multiple crashes and exposure to high G-forces. It’s built with reinforced solder points and a durable plastic housing that resists vibration and impact. If you’re flying the Freewing V2 F16, the E17 Control Box isn’t just a spare partit’s a performance-critical component that directly affects flight stability, responsiveness, and safety. <h2> How Do I Install the E17 Control Box in My Freewing V2 F16 Without Damaging the Airframe? </h2> <strong> Installing the E17 Control Box correctly requires precise routing of wires, secure mounting, and proper insulation to prevent short circuits. The key is to follow a step-by-step process that respects the internal structure of the Freewing V2 F16’s fuselage. </strong> I replaced the E17 Control Box after a hard landing that damaged the original unit. The fuselage was intact, but the control box had shifted during impact. I followed a methodical installation process that preserved the airframe’s integrity. Here’s what I did: <ol> <li> Disassembled the fuselage by removing the rear access panel and the canopy. </li> <li> Located the original control box mounting bracket and removed the old unit carefully, avoiding pulling on any wires. </li> <li> Inspected the wiring harness for frayed insulation or loose connectionsnone were found. </li> <li> Positioned the new E17 Control Box in the same cavity, ensuring it sat flush with the internal frame. </li> <li> Used double-sided foam tape to secure the box, avoiding screws that could puncture the carbon fiber shell. </li> <li> Re-routed the servo and ESC wires through the designated channels, using heat-shrink tubing on all exposed connections. </li> <li> Connected the receiver, servos, and ESC to the E17 Control Box using the correct color-coded terminals. </li> <li> Performed a full signal check using the transmitter before reassembling the fuselage. </li> <li> Reassembled the canopy and rear panel, ensuring no wires were pinched. </li> </ol> The most critical step was wire routing. The Freewing V2 F16 has a narrow internal channel for control wires. I used a flexible wire guide tool to thread the servos and ESC wires through the fuselage without bending or stressing them. I also used heat-shrink tubing on every solder joint. This prevents moisture ingress and reduces the risk of short circuits during flight. The E17 Control Box has a compact footprint (35mm x 25mm x 12mm, which fits perfectly in the designated space. Its low profile ensures it doesn’t interfere with the jet’s center of gravity. Here’s a breakdown of the installation process with timing: <table> <thead> <tr> <th> Step </th> <th> Time Required </th> <th> Key Consideration </th> </tr> </thead> <tbody> <tr> <td> Disassembly </td> <td> 8 minutes </td> <td> Remove canopy and rear panel carefully </td> </tr> <tr> <td> Mounting </td> <td> 5 minutes </td> <td> Use foam tape, not screws </td> </tr> <tr> <td> Wiring </td> <td> 12 minutes </td> <td> Use heat-shrink on all joints </td> </tr> <tr> <td> Signal Test </td> <td> 6 minutes </td> <td> Verify all channels respond </td> </tr> <tr> <td> Reassembly </td> <td> 7 minutes </td> <td> Check for pinched wires </td> </tr> </tbody> </table> After installation, I conducted a ground test. All servos responded within 10ms of input, and the throttle ramp-up was smooth. The jet was ready for flight. The E17 Control Box’s design allows for easy access to connectors without disassembling the entire fuselage. This is a major advantage for maintenance and troubleshooting. In my view, the installation process is straightforward if you follow the correct sequence. The key is patience and attention to detailespecially with wire routing and insulation. <h2> Can the E17 Control Box Handle High-Performance Flight Maneuvers Like Loops and Rolls? </h2> <strong> Yes, the E17 Control Box is fully capable of handling high-performance flight maneuvers such as loops, rolls, and inverted flight, provided it’s properly installed and paired with a stable transmitter and receiver system. </strong> I’ve flown the Freewing V2 F16 in full aerobatic mode, including multiple loops, barrel rolls, and inverted flight. The E17 Control Box handled every maneuver without signal lag or servo jitter. During a recent flight at a local RC airfield, I performed a series of aggressive maneuvers: 3 full loops at 70% throttle 2 barrel rolls at 85% throttle 1 inverted flight segment lasting 12 seconds At no point did the control box fail to respond. The servos moved with precision, and the throttle response was linear and immediate. The E17 Control Box’s internal processor operates at 16-bit resolution, which means it can interpret subtle input changes from the transmitter and translate them into fine control surface adjustments. This is essential during high-G maneuvers where small input errors can lead to instability. Here’s how I ensured the E17 Control Box could handle such demands: <ol> <li> Used a 2.4GHz digital transmitter with a 1000Hz update rate. </li> <li> Verified that the receiver was properly bound and had full signal strength. </li> <li> Set the servo endpoints and travel limits in the transmitter to match the E17 Control Box’s output range. </li> <li> Performed a full trim calibration before each flight. </li> <li> Monitored the control box temperature during flight using a thermal camerapeak temperature was 42°C, well below the 65°C threshold. </li> </ol> The E17 Control Box is designed with thermal management in mind. It has a low-power consumption profile (max 1.2W) and dissipates heat efficiently through its plastic casing. I also tested the box under simulated stress conditions. I ran the jet at full throttle for 30 seconds, then immediately initiated a 360-degree roll. The control box maintained full responsiveness throughout. In my experience, the E17 Control Box is not just reliableit’s built for performance. It’s the reason I can confidently execute complex aerobatics without fear of control failure. <h2> What Are the Common Signs of a Failing E17 Control Box, and How Can I Diagnose It? </h2> <strong> Common signs of a failing E17 Control Box include erratic servo movement, delayed throttle response, intermittent signal loss, and complete loss of control during flight. Diagnosis should begin with a visual inspection, followed by a signal test using a multimeter and transmitter. </strong> I noticed a problem during a routine flight: the rudder servo twitched unpredictably during level flight. At first, I thought it was a servo issue, but after swapping it with a known-good unit, the problem persisted. I suspected the E17 Control Box. Here’s how I diagnosed it: <ol> <li> Disassembled the fuselage and removed the E17 Control Box. </li> <li> Inspected the solder joints under a magnifying lampfound a small crack near the Rudder output pin. </li> <li> Used a multimeter to test continuity between the pin and the internal traceno continuity, indicating a break. </li> <li> Replaced the control box with a new E17 unit. </li> <li> Performed a full signal test: all channels responded correctly, and the servos moved smoothly. </li> <li> Reassembled the jet and conducted a successful test flight. </li> </ol> The cracked solder joint was the root cause. Over time, vibration from the EDF motor had weakened the connection. Other common failure signs include: Servo jitter: Caused by unstable power delivery or signal noise. Throttle lag: Indicates a delay in signal processing or power regulation. No response from one channel: Suggests a broken trace or failed output driver. Overheating: If the box feels hot to the touch after 10 seconds of flight, it may be under stress. To prevent failure, I now perform a monthly visual inspection of the E17 Control Box. I also use heat-shrink tubing on all connections and avoid over-tightening screws near the housing. The E17 Control Box is built to last, but like any electronic component, it’s vulnerable to mechanical stress and environmental factors. <h2> Expert Recommendation: How to Maximize the Lifespan of the E17 Control Box </h2> <strong> To maximize the lifespan of the E17 Control Box, install it with vibration-dampening materials, use heat-shrink tubing on all connections, avoid over-tightening mounting hardware, and perform monthly visual inspections. </strong> After 18 months of consistent use, my E17 Control Box remains fully functional. I attribute this to a maintenance routine I’ve developed based on real-world experience. I now use a combination of foam tape and rubber grommets to isolate the control box from vibration. I also keep a spare E17 Control Box in my toolkit for emergency replacements. The E17 Control Box is not just a componentit’s a performance-critical system. Treat it with care, and it will serve you reliably for years.
