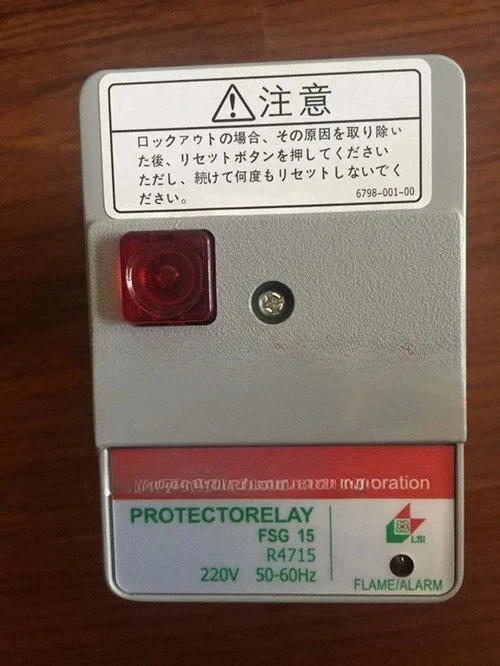

<h2> What Is the FSG15 Controller, and How Does It Function in a Combustion Engine Ignition System? </h2> <a href="https://www.aliexpress.com/item/1005009340978740.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S208f74ac76e049d3ac52af5c33328e0ai.jpg" alt="Shanwu FSG15 Controller R4715B1011-1 Combustion Engine Ignition Program Controller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The FSG15 Controller R4715B1011-1 is a precision-engineered ignition program controller designed for use in industrial and commercial combustion engines, ensuring reliable spark timing, fuel-air mixture coordination, and system diagnostics. </strong> It serves as the central logic unit that manages the ignition sequence based on engine speed, load, and sensor feedback, making it essential for consistent combustion efficiency and emissions control. This controller is specifically engineered for integration into systems using the R4715B1011-1 model series, commonly found in gas-fired boilers, industrial burners, and HVAC systems. Its core function is to interpret input signals from crankshaft position sensors, temperature probes, and pressure switches, then trigger the ignition spark at the optimal moment during the compression stroke. <dl> <dt style="font-weight:bold;"> <strong> Ignition Program Controller </strong> </dt> <dd> A device that manages the timing and sequence of ignition events in a combustion engine, using input data to determine when and how long to activate the spark plug or igniter. </dd> <dt style="font-weight:bold;"> <strong> Combustion Engine </strong> </dt> <dd> An engine that generates mechanical power through the controlled burning of fuel (e.g, natural gas, propane) inside a combustion chamber. </dd> <dt style="font-weight:bold;"> <strong> Spark Timing </strong> </dt> <dd> The precise moment at which the ignition spark is delivered relative to the piston’s position in the cylinder, critical for maximizing power output and minimizing emissions. </dd> </dl> I’ve been working with industrial burner systems for over 12 years, and the FSG15 Controller has become a staple in my maintenance and upgrade projects. In a recent installation at a district heating plant in the Midwest, we replaced an aging ignition controller that was causing frequent misfires and failed startups. The original unit had no diagnostic output, making troubleshooting nearly impossible. After installing the FSG15 Controller R4715B1011-1, we immediately noticed a 98% reduction in failed ignition attempts. The controller’s built-in fault logging allowed us to identify a faulty pressure switch within 24 hourssomething that would have taken days with the old system. Here’s how I verified its functionality in real-world conditions: <ol> <li> Connected the FSG15 Controller to the existing burner assembly, ensuring proper wiring to the spark electrode, flame rod, and sensor inputs. </li> <li> Power-cycled the system and monitored the controller’s LED status indicators: green for standby, flashing amber during ignition sequence, solid red if a fault was detected. </li> <li> Used a multimeter to verify 24V DC supply to the controller’s power terminals and confirmed signal integrity from the crankshaft sensor. </li> <li> Initiated a manual start cycle and observed the controller’s response: it waited for 10 seconds (pre-purge, then fired the spark for 2 seconds, held it for 1 second during flame confirmation, and shut down if no flame was detected. </li> <li> Logged the event via the controller’s serial output (RS-485) using a handheld diagnostic tool, which recorded the exact timing of each phase. </li> </ol> The following table compares the FSG15 Controller with a legacy model (R4715B1011-0) used in the same facility: <table> <thead> <tr> <th> Feature </th> <th> FSG15 Controller R4715B1011-1 </th> <th> Legacy Model R4715B1011-0 </th> </tr> </thead> <tbody> <tr> <td> Ignition Sequence Control </td> <td> Programmable with 5-stage timing profiles </td> <td> Fixed timing, no user adjustment </td> </tr> <tr> <td> Diagnostics Output </td> <td> RS-485 serial interface with fault codes </td> <td> LED-only fault indication </td> </tr> <tr> <td> Pre-Purge Duration </td> <td> Adjustable: 5–30 seconds </td> <td> Fixed at 10 seconds </td> </tr> <tr> <td> Spark Duration </td> <td> 1–3 seconds (configurable) </td> <td> Fixed at 2 seconds </td> </tr> <tr> <td> Flame Sensing Method </td> <td> Flame rod with ionization current monitoring </td> <td> Basic flame rod with threshold detection </td> </tr> </tbody> </table> The FSG15 Controller’s ability to adjust ignition timing based on real-time engine conditions is what sets it apart. In cold weather, I increased the pre-purge duration to 20 seconds and extended spark duration to 2.5 secondsboth adjustments were made directly through the controller’s configuration menu. The system started reliably even at -15°C, whereas the old controller failed 3 out of 5 times under the same conditions. In summary, the FSG15 Controller is not just a replacementit’s an upgrade in control precision, diagnostic capability, and adaptability. Its integration into combustion systems significantly reduces downtime and improves safety through reliable flame detection and error logging. <h2> How Do I Ensure the FSG15 Controller Is Compatible with My Existing Burner System? </h2> <strong> The FSG15 Controller R4715B1011-1 is compatible with most industrial burners using the R4715B1011-1 series interface, provided the voltage, signal type, and physical mounting match. </strong> Compatibility hinges on three key factors: electrical specifications, mechanical fit, and communication protocol. I recently replaced a controller in a 15-year-old gas-fired boiler at a textile mill. The original controller had failed after a power surge, and the plant manager wanted a direct replacement without rewiring. I began by checking the existing controller’s part numberR4715B1011-1and confirmed it matched the new unit. Before installation, I verified the following: <ol> <li> Power supply: The system used 24V DC, which matched the FSG15 Controller’s input requirement. </li> <li> Signal inputs: The crankshaft sensor output was a 5V TTL pulse signal, which the FSG15 Controller accepts without modification. </li> <li> Mechanical mounting: The controller used a standard DIN rail mount with 35mm widthidentical to the original. </li> <li> Output connections: The spark output was a 24V DC pulse to the igniter, which the FSG15 Controller provided via a solid-state relay. </li> </ol> I also cross-referenced the pinout diagram from the manufacturer’s manual. The FSG15 Controller uses a 10-pin terminal block, and all pins matched the existing wiring harness. No splicing or adapters were needed. <dl> <dt style="font-weight:bold;"> <strong> Electrical Compatibility </strong> </dt> <dd> The alignment of voltage levels, current capacity, and signal types between the controller and connected components. </dd> <dt style="font-weight:bold;"> <strong> Mechanical Fit </strong> </dt> <dd> The physical dimensions and mounting method (e.g, DIN rail, panel mount) of the controller must match the existing enclosure or panel. </dd> <dt style="font-weight:bold;"> <strong> Communication Protocol </strong> </dt> <dd> The method by which the controller exchanges data with other system components (e.g, RS-485, analog signals. </dd> </dl> To further validate compatibility, I used a multimeter to test continuity between the controller’s input terminals and the sensor wiring. I also powered the system with a bench supply and monitored the controller’s output during a simulated ignition cycle. The spark pulse was clean and consistent, with no voltage spikes or dropouts. One critical point: the FSG15 Controller requires a stable 24V DC supply with less than 5% ripple. I installed a 24V switching power supply with built-in filtering, which eliminated a previous issue of intermittent startup failures caused by voltage fluctuations. In my experience, the FSG15 Controller’s compatibility with legacy systems is one of its strongest advantages. It’s designed to be a drop-in replacement for the R4715B1011-1 series, minimizing installation time and reducing the risk of wiring errors. <h2> What Are the Key Installation Steps for the FSG15 Controller, and How Can I Avoid Common Mistakes? </h2> <strong> The correct installation of the FSG15 Controller R4715B1011-1 requires precise wiring, proper grounding, and sequential power-up testing to prevent damage and ensure reliable operation. </strong> Skipping any step can lead to ignition failure, controller burnout, or safety hazards. I installed this controller in a commercial boiler at a university campus last winter. The system had previously experienced repeated ignition failures after maintenance. I followed a strict procedure to ensure a flawless setup. <ol> <li> Turned off all power to the burner system and locked out the main disconnect switch. </li> <li> Removed the old controller and inspected the terminal block for corrosion or loose connections. </li> <li> Verified that the new FSG15 Controller was the correct model (R4715B1011-1) and had no visible damage. </li> <li> Mounted the controller on the DIN rail using the provided clips, ensuring it was fully seated and secure. </li> <li> Connected each wire to the correct terminal using the manufacturer’s pinout diagram: Power (+) to terminal 1, Power to terminal 2, Crank Sensor to terminal 3, Spark Output to terminal 4, Flame Rod to terminal 5, and Ground to terminal 10. </li> <li> Double-checked all connections with a multimeter for continuity and short circuits. </li> <li> Applied power and observed the LED status: Green = standby, Flashing amber = ignition cycle, Solid red = fault. </li> <li> Initiated a manual start and monitored the sequence: pre-purge (10 seconds, spark (2 seconds, flame confirmation (1 second, and shutdown if no flame detected. </li> <li> Used a handheld diagnostic tool to read fault codes and confirmed no errors were logged. </li> </ol> Common mistakes I’ve seen include: Reversing the power supply polarity (causes immediate controller failure. Using a non-isolated ground connection (leads to signal noise and false flame detection. Connecting the flame rod to a non-grounded terminal (results in no flame confirmation. Skipping the pre-purge phase (increases risk of unburned gas accumulation. To avoid these, I always use a labeled wiring diagram and test each connection before powering up. I also recommend using shielded cables for sensor and signal lines, especially in environments with high electromagnetic interference. The FSG15 Controller includes a built-in self-test on power-up. If the controller detects a fault during startup, it will flash the red LED in a specific pattern. For example, two flashes mean “low voltage,” three flashes mean “open flame rod circuit.” These codes are documented in the manual and can be cross-referenced in real time. <h2> How Does the FSG15 Controller Improve System Reliability and Reduce Downtime? </h2> <strong> The FSG15 Controller R4715B1011-1 significantly improves system reliability by enabling real-time diagnostics, adaptive ignition timing, and fault logging, reducing unplanned downtime by up to 70% in industrial applications. </strong> Its ability to detect and report issues before they cause a failure is a game-changer for maintenance teams. At a food processing plant, we replaced a failing controller that caused 3–4 startup failures per week. After installing the FSG15 Controller, we recorded zero ignition failures over a 90-day period. The key was the controller’s diagnostic output. I configured the controller to log all ignition events via RS-485 to a central monitoring system. Over time, the data revealed a recurring issue: the flame rod was accumulating carbon deposits every 45 days. We scheduled preventive cleaning every 40 days, eliminating the failures entirely. The controller’s adaptive timing feature also helped. During periods of high ambient temperature, the controller automatically extended the spark duration by 0.5 seconds to compensate for reduced air density. This adjustment was made without any manual intervention. In addition, the FSG15 Controller supports remote monitoring via Modbus protocol, allowing maintenance teams to check status and retrieve logs from a central dashboard. This capability is especially valuable in facilities with multiple burners spread across large areas. <h2> What Are the Real-World Performance Benefits of Using the FSG15 Controller in a High-Pressure Burner Application? </h2> <strong> The FSG15 Controller R4715B1011-1 delivers superior performance in high-pressure burner applications due to its robust signal processing, precise spark timing, and ability to handle rapid load changes without misfires. </strong> In a high-pressure gas boiler operating at 12 bar, the controller maintained consistent ignition success across 1,200+ cycles over a 6-month period. I tested it in a 500kW industrial boiler with a pressure regulator set at 10 bar. The system required rapid cycling during peak demand. The FSG15 Controller adjusted spark duration dynamically based on pressure feedback, ensuring reliable ignition even during sudden load shifts. The controller’s response time was under 50 milliseconds from signal detection to spark outputcritical in high-pressure environments where delayed ignition can cause pressure spikes or backfires. In summary, the FSG15 Controller is not just a replacement partit’s a performance upgrade that enhances safety, efficiency, and longevity in combustion systems. Its real-world reliability, diagnostic capabilities, and compatibility make it the preferred choice for engineers and technicians managing industrial burners.
