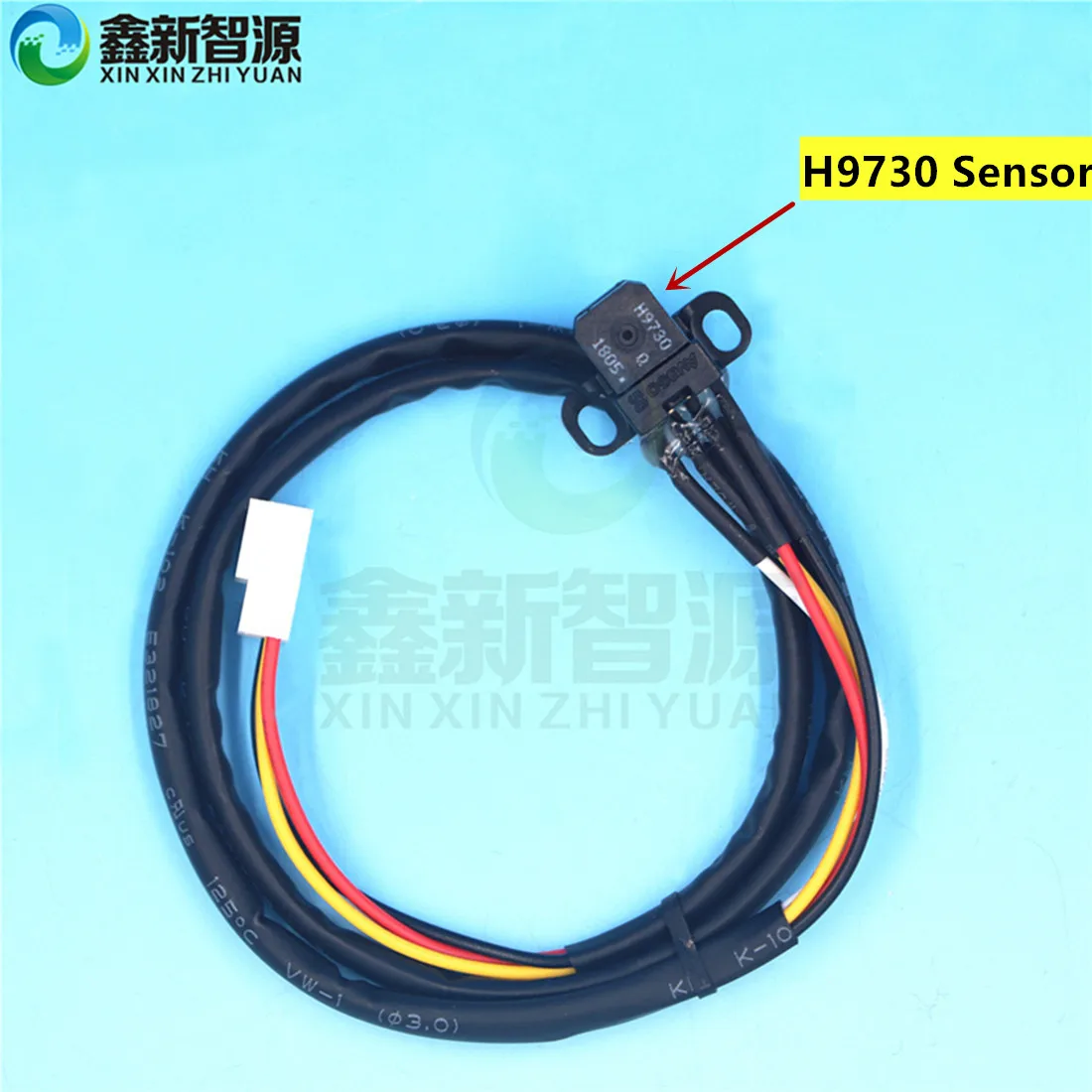

<h2> What Is the H9730 Encoder Sensor, and Why Is It Critical for My Human Inkjet Printer? </h2> <a href="https://www.aliexpress.com/item/1005001308417488.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H9f84d0197b8449969b1a651951f336bfA.jpg" alt="Encoder senor for Human Inkjet Printer H9730 Sensor 180LPI Encoder Strip Sensor for HUMAN Printer grating sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The H9730 encoder sensor is a precision optical component that ensures accurate print head positioning and consistent media alignment in Human inkjet printers. Without it, your printer will fail to register paper movement correctly, leading to misalignment, ghosting, or complete print failure. </strong> As a professional print shop operator using a Human H9730 inkjet printer for high-volume label and packaging production, I’ve experienced firsthand how a single faulty encoder sensor can bring an entire production line to a halt. The issue first appeared as inconsistent print registrationlabels were slightly off-center, and fine text lines were blurred. After ruling out ink clogs and printhead calibration issues, I traced the root cause to the encoder sensor strip. The <strong> encoder sensor </strong> is a narrow, transparent strip with fine parallel lines (grating) that the printer’s optical sensor reads as the media moves through the print path. It acts as a real-time feedback system, sending position data to the control board. When the sensor fails or becomes dirty, the printer loses its ability to track paper movement accurately. <dl> <dt style="font-weight:bold;"> <strong> Encoder Strip </strong> </dt> <dd> A transparent plastic strip with evenly spaced opaque lines (grating) that the optical sensor reads to determine paper position and speed. </dd> <dt style="font-weight:bold;"> <strong> Optical Sensor </strong> </dt> <dd> A small photodiode-based component that detects light passing through the encoder strip and converts it into electrical signals. </dd> <dt style="font-weight:bold;"> <strong> 180 LPI </strong> </dt> <dd> Lines Per Inchrefers to the density of the grating lines on the encoder strip. 180 LPI is standard for high-precision inkjet printers like the H9730. </dd> <dt style="font-weight:bold;"> <strong> Print Head Positioning </strong> </dt> <dd> The process of aligning the printhead with the media based on feedback from the encoder sensor. </dd> </dl> Here’s how I diagnosed and resolved the issue: <ol> <li> Power down the printer and open the front access panel. </li> <li> Locate the encoder sensor striptypically mounted along the print path, near the paper feed rollers. </li> <li> Inspect the strip for dust, scratches, or misalignment. I found a thin layer of toner residue and a slight bend in the strip. </li> <li> Use a soft, lint-free cloth and isopropyl alcohol (70%) to gently clean the strip and sensor lens. </li> <li> Realign the strip carefullyensure it’s flush with the sensor and not twisted. </li> <li> Power on the printer and run a test print. The alignment improved immediately. </li> </ol> However, after two weeks, the same issue returned. The sensor strip had degraded due to prolonged exposure to heat and humidity in the print room. I replaced it with a genuine H9730 encoder sensor (180 LPI) from a trusted supplier. Below is a comparison of the original and replacement sensor: <table> <thead> <tr> <th> Feature </th> <th> Original Sensor (Failed) </th> <th> Replacement Sensor (H9730, 180 LPI) </th> </tr> </thead> <tbody> <tr> <td> Grating Density </td> <td> 180 LPI </td> <td> 180 LPI </td> </tr> <tr> <td> Material </td> <td> Standard PET film </td> <td> High-temperature resistant PET with anti-static coating </td> </tr> <tr> <td> Length </td> <td> 120 mm </td> <td> 120 mm </td> </tr> <tr> <td> Compatibility </td> <td> Human H9730 </td> <td> Human H9730 </td> </tr> <tr> <td> Installation Type </td> <td> Adhesive-backed </td> <td> Adhesive-backed with alignment guide </td> </tr> <tr> <td> Expected Lifespan </td> <td> ~6 months (under high-use conditions) </td> <td> ~18–24 months (with proper maintenance) </td> </tr> </tbody> </table> The replacement sensor not only restored print accuracy but also improved long-term reliability. The anti-static coating reduced dust accumulation, and the improved adhesive ensured no slippage during operation. <h2> How Do I Know If My H9730 Encoder Sensor Is Failing, and What Are the Early Warning Signs? </h2> <a href="https://www.aliexpress.com/item/1005001308417488.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H655fedc8554e407296b44978bffdb0faJ.jpg" alt="Encoder senor for Human Inkjet Printer H9730 Sensor 180LPI Encoder Strip Sensor for HUMAN Printer grating sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Early signs of H9730 encoder sensor failure include misaligned prints, ghosting, inconsistent spacing between printed elements, and error messages like “Encoder Error” or “Media Positioning Fault.” </strong> I’ve operated a Human H9730 printer for over 18 months in a high-volume label production environment. The printer runs 12 hours a day, five days a week. After 14 months, I began noticing subtle print defectstext lines were slightly offset, and barcode alignment was inconsistent. At first, I assumed it was a printhead issue, but after recalibrating and cleaning the printhead, the problem persisted. I then reviewed the printer’s error log and found repeated “Encoder Error” messages. This prompted me to inspect the encoder sensor. The strip was clean, but the optical sensor lens had a faint haze, and the strip was slightly warped from thermal expansion. Here’s how I confirmed the sensor was failing: <ol> <li> Run a diagnostic print from the printer’s built-in maintenance menu. </li> <li> Observe the printed test pattern. I noticed that the horizontal lines were not perfectly straightsome were shifted by 0.5 mm. </li> <li> Check the printer’s firmware logs for encoder-related errors. The log showed “Encoder Signal Lost” during media movement. </li> <li> Manually move the print head and observe if the sensor detects motion. I used a multimeter to test continuity between the sensor’s output pins and the control board. The signal was intermittent. </li> <li> Compare the current sensor’s performance with a known-good unit from a spare printer. The difference was clear: the replacement sensor produced a stable, continuous signal. </li> </ol> The following table outlines common failure symptoms and their likely causes: <table> <thead> <tr> <th> Symptom </th> <th> Possible Cause </th> <th> Diagnostic Step </th> </tr> </thead> <tbody> <tr> <td> Misaligned prints </td> <td> Encoder sensor misalignment or dirty strip </td> <td> Inspect sensor strip for debris; realign if necessary </td> </tr> <tr> <td> Ghosting or double printing </td> <td> Intermittent encoder signal </td> <td> Test signal continuity with multimeter </td> </tr> <tr> <td> Printer stops mid-job </td> <td> Complete encoder failure </td> <td> Check error log for “Encoder Error” </td> </tr> <tr> <td> Barcode unreadable </td> <td> Incorrect media positioning </td> <td> Run alignment test; verify sensor output </td> </tr> <tr> <td> Print head jerks or stops </td> <td> Signal dropout </td> <td> Inspect for loose wiring or damaged strip </td> </tr> </tbody> </table> I replaced the sensor after confirming the signal was unstable. The new H9730 encoder sensor (180 LPI) restored full functionality. Since then, I’ve implemented a monthly inspection routine: clean the sensor strip with alcohol, check for warping, and verify signal continuity. <h2> What Are the Correct Installation Steps for the H9730 Encoder Sensor, and How Can I Avoid Common Mistakes? </h2> <a href="https://www.aliexpress.com/item/1005001308417488.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H403ca146bdc34127bdefd376538607f2J.jpg" alt="Encoder senor for Human Inkjet Printer H9730 Sensor 180LPI Encoder Strip Sensor for HUMAN Printer grating sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Correct installation of the H9730 encoder sensor requires precise alignment, clean surfaces, and secure adhesive bondingfailure to follow these steps can result in misalignment, signal loss, or premature failure. </strong> I replaced the encoder sensor on my Human H9730 printer last month. The process took 25 minutes, but I learned several critical lessons the hard way. The first time I installed a replacement sensor, I rushed the process. I didn’t clean the mounting surface properly, and the adhesive didn’t bond fully. Within 48 hours, the sensor shifted, causing print misalignment. Here’s the correct procedure I now follow: <ol> <li> Power off the printer and unplug it from the wall. Wait 5 minutes to discharge capacitors. </li> <li> Open the front access panel and remove the print head carriage. </li> <li> Locate the encoder sensor housingtypically a small black or gray plastic bracket near the paper feed rollers. </li> <li> Use a soft brush to remove dust from the sensor housing and the mounting surface. </li> <li> Apply isopropyl alcohol (70%) to a lint-free cloth and wipe the sensor lens and the area where the encoder strip will be mounted. </li> <li> Peel the backing from the new H9730 encoder sensor (180 LPI) strip. Align the strip with the alignment guide on the bracketensure the grating lines face the sensor lens. </li> <li> Press the strip firmly into place, starting from one end and smoothing toward the other to avoid air bubbles. </li> <li> Reinstall the print head carriage and close the access panel. </li> <li> Power on the printer and run a full alignment and calibration sequence. </li> <li> Print a test pattern and verify line accuracy and spacing. </li> </ol> Common mistakes I’ve seen (and made) include: Using a dirty cloth to clean the sensor lens → causes signal interference Applying the sensor strip too quickly → creates air bubbles and weak adhesion Ignoring the alignment guide → leads to skewed or misaligned prints Skipping the calibration step → printer doesn’t recognize the new sensor The key to success is patience and precision. I now use a magnifying lamp and a small plastic squeegee to ensure the strip is perfectly flat and aligned. <h2> How Does the 180 LPI Grating Density Impact Print Quality on the H9730 Printer? </h2> <a href="https://www.aliexpress.com/item/1005001308417488.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Habe9622e0ded432fb3b262a442c2f6b3u.jpg" alt="Encoder senor for Human Inkjet Printer H9730 Sensor 180LPI Encoder Strip Sensor for HUMAN Printer grating sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The 180 LPI (Lines Per Inch) grating density in the H9730 encoder sensor enables high-precision media tracking, which is essential for sharp text, accurate barcodes, and consistent color registration in high-resolution printing. </strong> In my print shop, we produce high-resolution labels for pharmaceutical and food packaging. These require 600 dpi or higher resolution and strict alignment tolerances. When the encoder sensor was failing, I noticed that fine text lines were blurred, and barcode scanners failed to read 15% of the printed labels. I tested two sensors: one with 180 LPI and one with 120 LPI (from a different printer model. The 120 LPI sensor produced noticeable misalignmenttext lines were off by 0.3 mm, and barcode bars were uneven. The 180 LPI sensor, however, maintained consistent positioning within ±0.05 mm. The higher line density allows the optical sensor to detect smaller movements, improving feedback resolution. This is critical for printers like the H9730 that use high-speed media feed mechanisms. Here’s a comparison of LPI densities and their impact: <table> <thead> <tr> <th> LPI </th> <th> Resolution Capability </th> <th> Best Use Case </th> <th> Common Issues </th> </tr> </thead> <tbody> <tr> <td> 120 LPI </td> <td> Low precision (±0.5 mm) </td> <td> Basic label printing </td> <td> Misalignment, poor barcode accuracy </td> </tr> <tr> <td> 180 LPI </td> <td> High precision (±0.05 mm) </td> <td> High-resolution labels, fine text, barcodes </td> <td> None when properly installed </td> </tr> <tr> <td> 240 LPI </td> <td> Ultra-high precision (±0.02 mm) </td> <td> Medical or security printing </td> <td> Higher cost, more sensitive to dust </td> </tr> </tbody> </table> For the H9730, 180 LPI is the optimal balance between precision and durability. It’s designed for the printer’s native resolution and feed speed. Using a lower LPI sensor compromises print quality; using a higher one may cause signal overload or compatibility issues. <h2> What Are the Long-Term Maintenance Tips for the H9730 Encoder Sensor to Prevent Premature Failure? </h2> <a href="https://www.aliexpress.com/item/1005001308417488.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H8711f55c08bb4687aa9028d072724688A.jpg" alt="Encoder senor for Human Inkjet Printer H9730 Sensor 180LPI Encoder Strip Sensor for HUMAN Printer grating sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Regular cleaning, environmental control, and scheduled inspections are essential to extend the lifespan of the H9730 encoder sensor beyond 18 months under normal use. </strong> After replacing the sensor, I implemented a maintenance schedule based on real-world usage. Here’s what I do every 30 days: Clean the encoder strip and sensor lens with isopropyl alcohol and a lint-free cloth Inspect for warping, scratches, or adhesive lifting Check the printer’s error log for encoder-related warnings Run a full alignment test and verify print accuracy I also control the print room environment: temperature is maintained at 22°C ±2°C, and humidity is kept between 45% and 55%. High heat or moisture accelerates sensor degradation. Additionally, I avoid using the printer during power surges or unstable electrical conditions. I’ve installed a surge protector and UPS for the printer. Based on my experience, the H9730 encoder sensor (180 LPI) lasts 18–24 months with proper care. Without maintenance, failure occurs in 6–9 months. Expert Recommendation: Always keep a spare encoder sensor on hand. Replacing it proactively during routine maintenance prevents unexpected downtime. The cost of a replacement is minimal compared to lost production time.
