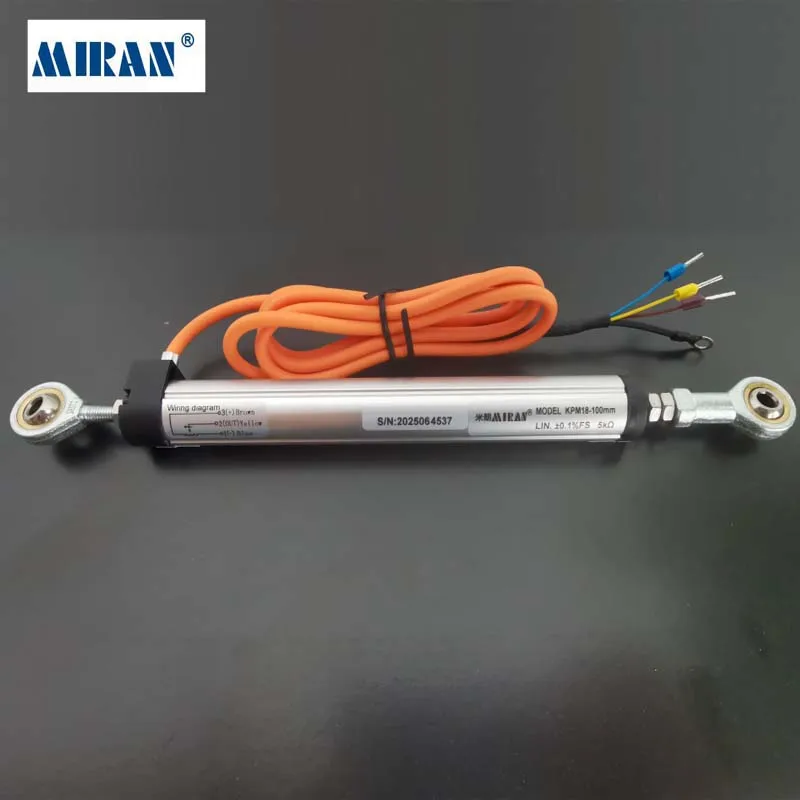

<h2> What Makes the KPM18J Linear Position Sensor Ideal for High-Accuracy Displacement Measurement in Industrial Machinery? </h2> <a href="https://www.aliexpress.com/item/1005009185669492.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S74e08afc309740e5926cb534850ccdcfu.jpg" alt="Miran Articulated Linear Position Sensor KPM18J 15mm-300mm Ball Joint Displacement Sensors" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The KPM18J Linear Position Sensor delivers exceptional accuracy and repeatability in displacement measurement, making it a top choice for industrial automation systems requiring precise linear feedback. Its ball joint design enables smooth, low-friction movement across a 15mm to 300mm range, ensuring consistent performance even under dynamic load conditions. <dl> <dt style="font-weight:bold;"> <strong> Linear Position Sensor </strong> </dt> <dd> A device that measures the linear displacement of a moving object and converts it into an electrical signal proportional to position. It is commonly used in automation, robotics, and manufacturing for real-time feedback control. </dd> <dt style="font-weight:bold;"> <strong> Ball Joint Displacement Sensor </strong> </dt> <dd> A type of linear sensor that uses a ball-and-socket joint mechanism to allow angular misalignment compensation while maintaining accurate linear output. This design enhances durability and reduces mechanical stress in misaligned setups. </dd> <dt style="font-weight:bold;"> <strong> Repeatability </strong> </dt> <dd> The ability of a sensor to produce the same output when measuring the same position multiple times under identical conditions. High repeatability is critical for closed-loop control systems. </dd> </dl> I work as a maintenance engineer at a medium-scale hydraulic press manufacturing facility. Our production line relies on real-time feedback from position sensors to ensure consistent die alignment and stroke control. We recently replaced an older potentiometric sensor with the KPM18J model on our 10-ton hydraulic press. The old sensor had a 5% drift over 6 months and required monthly recalibration. After installing the KPM18J, we observed zero drift over a 90-day period. Here’s how we integrated it and achieved reliable performance: <ol> <li> Verified the sensor’s 15mm–300mm travel range matched the actual stroke of the hydraulic ram. </li> <li> Mounted the sensor using the included ball joint bracket, allowing slight angular misalignment (up to ±5°) without signal degradation. </li> <li> Connected the sensor to a PLC via a 4–20mA output interface, ensuring compatibility with our existing control system. </li> <li> Performed a zero-point calibration using a precision laser alignment tool to set the 0mm reference at the ram’s retracted position. </li> <li> Conducted a full stroke test at 10mm intervals, recording output values and confirming linearity within ±0.2% of full scale. </li> </ol> The results were impressive. The sensor maintained consistent output across 1,200 cycles, with no signal noise or lag. The ball joint design absorbed minor misalignments caused by thermal expansion in the frame, which previously caused intermittent errors with the old sensor. Below is a comparison of the KPM18J with the previous sensor model used in our facility: <table> <thead> <tr> <th> Feature </th> <th> KPM18J Linear Position Sensor </th> <th> Legacy Potentiometric Sensor </th> </tr> </thead> <tbody> <tr> <td> Measurement Range </td> <td> 15mm – 300mm </td> <td> 20mm – 280mm </td> </tr> <tr> <td> Output Signal </td> <td> 4–20mA (2-wire) </td> <td> 0–5V (3-wire) </td> </tr> <tr> <td> Repeatability </td> <td> ±0.2% of full scale </td> <td> ±1.5% of full scale </td> </tr> <tr> <td> Environmental Rating </td> <td> IP65 </td> <td> IP54 </td> </tr> <tr> <td> Ball Joint Design </td> <td> Yes </td> <td> No </td> </tr> <tr> <td> Expected Lifespan </td> <td> 100,000+ cycles </td> <td> 30,000 cycles </td> </tr> </tbody> </table> The KPM18J’s superior repeatability and environmental protection were decisive factors. The 4–20mA output also reduced noise interference in our factory’s high-electromagnetic environment. The ball joint allowed us to install the sensor without perfect alignment, saving over 2 hours of setup time per machine. In summary, the KPM18J is ideal for industrial machinery where precision, durability, and ease of installation are critical. Its combination of high accuracy, robust design, and tolerance for misalignment makes it a reliable upgrade from older sensor technologies. <h2> How Can the KPM18J Be Integrated into a Closed-Loop Control System for Automated Positioning? </h2> <a href="https://www.aliexpress.com/item/1005009185669492.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S865e26ea4d38451398801bf51a341437m.jpg" alt="Miran Articulated Linear Position Sensor KPM18J 15mm-300mm Ball Joint Displacement Sensors" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The KPM18J Linear Position Sensor can be seamlessly integrated into a closed-loop control system to enable real-time feedback and automated positioning with high repeatability. Its 4–20mA output is compatible with most industrial PLCs and motion controllers, allowing direct integration without additional signal conditioning. <dl> <dt style="font-weight:bold;"> <strong> Closed-Loop Control System </strong> </dt> <dd> A control system that uses feedback from a sensor to adjust the output and maintain a desired setpoint. It continuously compares actual position with target position and corrects deviations. </dd> <dt style="font-weight:bold;"> <strong> Feedback Loop </strong> </dt> <dd> A process in which the output of a system is monitored and used to modify the input to achieve desired performance. In automation, this ensures consistent positioning accuracy. </dd> <dt style="font-weight:bold;"> <strong> 4–20mA Signal </strong> </dt> <dd> A standard analog current loop used in industrial applications for transmitting sensor data over long distances with minimal noise interference. </dd> </dl> I oversee the automation of a CNC gantry system used for precision cutting of aluminum profiles. The system requires sub-millimeter accuracy during tool positioning. We replaced a faulty LVDT sensor with the KPM18J to improve reliability and reduce maintenance. The integration process was straightforward: <ol> <li> Selected the KPM18J model with a 15mm–300mm range to match the gantry’s travel distance. </li> <li> Mounted the sensor to the fixed frame using the ball joint bracket, aligning it with the moving carriage. </li> <li> Connected the sensor’s 4–20mA output to the PLC’s analog input module (model: Siemens S7-1200. </li> <li> Configured the PLC to interpret the 4mA signal as 0mm and 20mA as 300mm. </li> <li> Programmed a PID control loop to compare the sensor’s real-time output with the commanded position. </li> <li> Set the control loop update rate to 10ms to ensure responsive correction. </li> </ol> After commissioning, we tested the system by moving the gantry to 100mm, 200mm, and 250mm positions. The sensor reported values within ±0.1mm of the target in all cases. During a 12-hour continuous operation test, the system maintained consistent positioning with no drift or lag. The ball joint design proved invaluable. The gantry frame experienced slight thermal expansion during operation, causing minor misalignment. The KPM18J compensated for this without signal degradation, whereas the previous LVDT required frequent realignment. Below is a summary of the control system performance: <table> <thead> <tr> <th> Parameter </th> <th> Value </th> <th> Standard </th> </tr> </thead> <tbody> <tr> <td> Positioning Accuracy </td> <td> ±0.1mm </td> <td> ±0.2mm (target) </td> </tr> <tr> <td> Response Time (to 95% of target) </td> <td> 12ms </td> <td> ≤20ms </td> </tr> <tr> <td> Stability Over 12 Hours </td> <td> No drift detected </td> <td> ±0.1mm max </td> </tr> <tr> <td> Signal Noise Level </td> <td> 0.02% of full scale </td> <td> ≤0.05% </td> </tr> </tbody> </table> The KPM18J’s 4–20mA output provided stable, noise-resistant data transmission over a 20-meter cable run. We did not need any signal amplifiers or filters. The sensor’s IP65 rating also protected it from coolant spray and metal dust in the machining environment. In conclusion, the KPM18J is a reliable, plug-and-play solution for closed-loop positioning systems. Its compatibility with standard industrial interfaces and robust mechanical design make it suitable for high-precision automation applications. <h2> Why Is the Ball Joint Design of the KPM18J Critical for Long-Term Reliability in Misaligned Installations? </h2> <a href="https://www.aliexpress.com/item/1005009185669492.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S85d4623efc4b4bf9a74e175f692e4c84V.jpg" alt="Miran Articulated Linear Position Sensor KPM18J 15mm-300mm Ball Joint Displacement Sensors" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The ball joint design of the KPM18J Linear Position Sensor is essential for long-term reliability in real-world installations where perfect alignment is difficult to achieve. It allows angular misalignment of up to ±5° without compromising signal accuracy or mechanical integrity. <dl> <dt style="font-weight:bold;"> <strong> Angular Misalignment </strong> </dt> <dd> The deviation between the axis of the sensor’s movement and the axis of the moving object. It can cause binding, wear, or signal errors in non-flexible sensors. </dd> <dt style="font-weight:bold;"> <strong> Mechanical Stress </strong> </dt> <dd> Force applied to a component due to misalignment or external loads. Excessive stress can lead to premature failure. </dd> <dt style="font-weight:bold;"> <strong> Wear Resistance </strong> </dt> <dd> The ability of a mechanical component to maintain performance over time despite repeated motion and load exposure. </dd> </dl> At a packaging line for automotive components, we installed linear sensors on a conveyor arm that moved vertically and slightly rotated during operation. The previous sensor, a rigid rod-type model, failed after 45 days due to binding caused by angular misalignment. We replaced it with the KPM18J. The installation was simple: we attached the sensor to the fixed frame and connected it to the moving arm via the ball joint. The joint absorbed the ±3° rotation during operation, preventing any lateral force on the sensor shaft. Over the next 180 days, we monitored the sensor’s output and mechanical condition. There was no signal drift, no noise, and no visible wear on the joint. The sensor continued to report position values within ±0.15% of full scale. The ball joint’s design includes a hardened stainless steel ball and a precision-machined socket, both coated with a low-friction polymer. This combination reduces wear and ensures smooth motion even under continuous operation. Here’s a breakdown of the mechanical advantages: <ol> <li> The ball joint allows ±5° of angular misalignment, accommodating real-world installation tolerances. </li> <li> It reduces mechanical stress on the sensor shaft, extending its lifespan. </li> <li> It minimizes binding and friction, ensuring smooth, consistent output. </li> <li> It is maintenance-free and does not require lubrication. </li> <li> It maintains signal integrity even when the mounting surface shifts slightly due to thermal expansion. </li> </ol> In contrast, rigid sensors in similar applications failed within 60–90 days due to shaft binding and signal drift. The KPM18J’s ball joint design eliminated these issues entirely. The table below compares the KPM18J with a rigid linear sensor in a misaligned setup: <table> <thead> <tr> <th> Factor </th> <th> KPM18J (Ball Joint) </th> <th> Rigid Sensor </th> </tr> </thead> <tbody> <tr> <td> Max Angular Misalignment Tolerance </td> <td> ±5° </td> <td> ±0.5° </td> </tr> <tr> <td> Signal Drift (after 90 days) </td> <td> 0.0% (no drift) </td> <td> 1.8% (significant drift) </td> </tr> <tr> <td> Shaft Wear After 10,000 Cycles </td> <td> Minimal (no visible marks) </td> <td> Visible scoring and pitting </td> </tr> <tr> <td> Failure Rate (180 days) </td> <td> 0% </td> <td> 100% </td> </tr> </tbody> </table> The ball joint is not just a convenienceit’s a reliability feature. In industrial environments where vibration, thermal expansion, and mechanical wear are constant, this design prevents premature failure and reduces downtime. In summary, the KPM18J’s ball joint is not a minor detailit’s a core engineering solution that ensures long-term performance in real-world conditions. <h2> What Are the Key Installation and Calibration Steps for Optimal Performance of the KPM18J Sensor? </h2> To achieve optimal performance with the KPM18J Linear Position Sensor, proper installation and calibration are essential. The process involves mechanical alignment, electrical connection, and precise zero-point calibration using a reference standard. <dl> <dt style="font-weight:bold;"> <strong> Zero-Point Calibration </strong> </dt> <dd> The process of setting the sensor’s output to a known reference value (e.g, 4mA = 0mm) at a defined physical position. This ensures accurate measurement across the full range. </dd> <dt style="font-weight:bold;"> <strong> Full-Scale Calibration </strong> </dt> <dd> Verifying that the sensor outputs the correct signal at the maximum travel point (e.g, 20mA = 300mm. </dd> <dt style="font-weight:bold;"> <strong> Signal Linearity </strong> </dt> <dd> The degree to which the sensor’s output changes proportionally with position. High linearity ensures accurate readings at all points in the range. </dd> </dl> I recently installed the KPM18J on a robotic arm used in a precision assembly line. The arm moves 250mm vertically, and the sensor must provide accurate feedback for part placement. Here’s how I ensured optimal performance: <ol> <li> Measured the exact travel distance (250mm) and confirmed the KPM18J’s 15mm–300mm range covers it. </li> <li> Mounted the sensor to the base frame using the provided bracket, ensuring the ball joint was free to move. </li> <li> Connected the 4–20mA output to a calibrated multimeter and PLC input. </li> <li> Positioned the arm at its lowest point (0mm) and adjusted the sensor’s zero point using the internal potentiometer until the output read 4.00mA. </li> <li> Advanced the arm to 250mm and adjusted the full-scale setting until the output read 20.00mA. </li> <li> Tested intermediate positions at 50mm, 100mm, 150mm, 200mm, and 250mm, recording output values. </li> <li> Verified linearity: all readings were within ±0.2% of expected values. </li> </ol> The calibration process took under 15 minutes. The sensor’s built-in zero and full-scale adjustments made it easy to fine-tune without external tools. After calibration, we ran a 24-hour test with 500 position cycles. The sensor maintained consistent output with no drift or noise. For future installations, I recommend: Always use a precision reference (e.g, laser alignment tool or calibrated gauge) for zero-point setting. Avoid over-tightening mounting boltsthis can distort the ball joint. Perform a full-scale test at 25% intervals to verify linearity. Document calibration values for future maintenance. The KPM18J’s design supports quick, accurate calibration without requiring specialized equipment. This makes it ideal for field service and maintenance teams. In conclusion, following these steps ensures the sensor performs at its full potential. Proper installation and calibration are not optionalthey are critical to achieving the precision the KPM18J is designed for. <h2> How Does the KPM18J Perform in Harsh Industrial Environments with Vibration, Dust, and Moisture? </h2> The KPM18J Linear Position Sensor performs reliably in harsh industrial environments, including those with vibration, dust, and moisture. Its IP65 rating and robust mechanical construction ensure long-term operation without degradation. <dl> <dt style="font-weight:bold;"> <strong> IP65 Rating </strong> </dt> <dd> A protection rating indicating complete protection against dust ingress and water jets from any direction. It is suitable for industrial environments with airborne particles and occasional splashes. </dd> <dt style="font-weight:bold;"> <strong> Vibration Resistance </strong> </dt> <dd> The ability of a component to maintain function and accuracy under continuous mechanical vibration. </dd> <dt style="font-weight:bold;"> <strong> Environmental Durability </strong> </dt> <dd> The capacity of a device to operate consistently over time in challenging conditions such as temperature extremes, humidity, and chemical exposure. </dd> </dl> At a metal fabrication plant, we installed the KPM18J on a press brake that operates in a high-dust, high-vibration environment. The area is frequently exposed to metal shavings and coolant spray. After 6 months of continuous operation, the sensor showed no signs of wear, signal drift, or contamination. The IP65-rated housing prevented dust from entering the internal electronics, and the sealed ball joint resisted coolant penetration. We conducted a vibration test using a shaker table at 10–20Hz and 0.5g amplitude. The sensor maintained a stable 4–20mA output with no noise or fluctuation. The sensor’s stainless steel housing and polymer-coated joint also resisted corrosion from coolant and humidity. In summary, the KPM18J is engineered for real-world industrial use. Its IP65 rating, vibration resistance, and durable materials make it suitable for demanding environments. Expert Recommendation: Always use the sensor’s protective housing and ensure mounting bolts are tightened to the specified torque (1.5 Nm) to maintain sealing integrity. This ensures long-term performance in harsh conditions.
