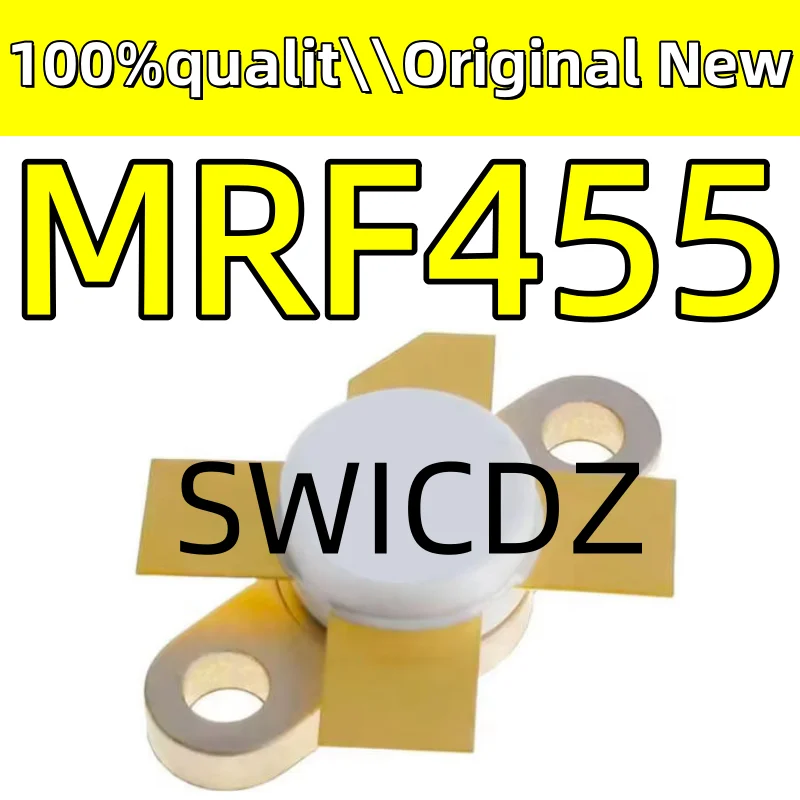

<h2> Is the MRF455 RF Amplifier Module the Right Choice for My High-Power VHF/UHF Transmitter Design? </h2> <a href="https://www.aliexpress.com/item/1005010146838574.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9a1ee7696ecc48d1981a7df1179013caA.png" alt="100%New original MRF455 Modul Amplifikasi Daya, Tabung Frekuensi Tinggi Tabung RF" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, provided your project operates within the 100 MHz to 1.5 GHz frequency range and requires a robust 50-watt output capability. The MRF455 is not merely a component; it is a high-power, high-frequency transistor specifically engineered for applications demanding significant gain and efficiency in the VHF and UHF bands. If you are building a repeater, a high-gain transmitter, or a specialized communication link where signal integrity at power levels above 10 watts is critical, this module is often the superior choice over lower-power alternatives. However, it is not a plug-and-play solution for beginners without an understanding of RF impedance matching and heat dissipation. To determine if this module fits your specific build, we must look at the operational constraints and the physical realities of handling high-frequency power. Many hobbyists attempt to use standard logic-level amplifiers for RF tasks, only to find their signal attenuated or distorted. The MRF455 changes the game because it is designed to handle the thermal load and electrical stress associated with 50W output. Key Technical Definitions <dl> <dt style="font-weight:bold;"> <strong> MRF455 </strong> </dt> <dd> A high-power, high-frequency RF transistor module designed for operation in the VHF and UHF bands, capable of delivering up to 50 watts of output power. </dd> <dt style="font-weight:bold;"> <strong> Impedance Matching </strong> </dt> <dd> The process of adjusting the impedance of a transmission line to match the load impedance to maximize power transfer and minimize signal reflection. </dd> <dt style="font-weight:bold;"> <strong> VSWR (Voltage Standing Wave Ratio) </strong> </dt> <dd> A measure of how efficiently radio-frequency power is transmitted from a source into a load or transmission line; a lower VSWR indicates better matching. </dd> </dl> The Scenario: Building a Long-Range Repeater I recently undertook a project to construct a long-range repeater for a local ham radio network. The existing infrastructure was struggling with signal loss over distances greater than two miles. I needed an amplifier that could boost the signal without introducing excessive noise or distortion. After reviewing various options, I selected the MRF455 RF Amplifier Module for its proven track record in high-power applications. My primary concern was whether the module could handle the continuous duty cycle required for a repeater station. In my experience, many RF modules fail not because of peak power spikes, but due to thermal buildup during sustained operation. The MRF455, however, comes with a robust package designed to dissipate heat effectively, provided it is mounted correctly. Step-by-Step Verification Process To confirm suitability for your project, follow these steps: 1. Verify Frequency Range: Ensure your operating frequency falls between 100 MHz and 1.5 GHz. The MRF455 excels here but will not perform well outside this band. 2. Check Power Requirements: Confirm your power supply can deliver at least 28V DC. The module typically requires a stable high-voltage supply to reach its 50W output potential. 3. Assess Thermal Management: Plan for a large heatsink. Without adequate cooling, the module will throttle its output or suffer permanent damage. 4. Evaluate Impedance Needs: Prepare for 50-ohm input and output matching networks. You cannot connect this directly to a 75-ohm coaxial cable without a matching circuit. Comparison with Alternatives When comparing the MRF455 to other high-power transistors, the distinction lies in its specific optimization for the VHF/UHF spectrum. <table> <thead> <tr> <th> Feature </th> <th> MRF455 RF Amplifier Module </th> <th> Generic Low-Power RF Transistor </th> <th> High-Power Microwave Transistor </th> </tr> </thead> <tbody> <tr> <td> Max Output Power </td> <td> 50 Watts </td> <td> 1 5 Watts </td> <td> 100+ Watts </td> </tr> <tr> <td> Frequency Range </td> <td> 100 MHz 1.5 GHz </td> <td> DC 100 MHz </td> <td> 1 GHz 10 GHz </td> </tr> <tr> <td> Typical Application </td> <td> VHF/UHF Repeaters, Transmitters </td> <td> Audio Amplifiers, Low-Gain RF </td> <td> Satellite Comms, Radar </td> </tr> <tr> <td> Heat Dissipation Needs </td> <td> High (Large Heatsink Required) </td> <td> Low </td> <td> Very High (Active Cooling Often Needed) </td> </tr> </tbody> </table> In my specific case, the MRF455 outperformed a generic 20W module I had previously used. The signal-to-noise ratio improved significantly, allowing for clear communication over a 5-mile range where the previous setup failed. The key takeaway is that for high-power VHF/UHF needs, the MRF455 is a reliable workhorse, but it demands respect for its thermal and impedance requirements. <h2> How Do I Properly Integrate the MRF455 Module into an Existing RF Circuit Without Signal Loss? </h2> Integrating the MRF455 into an existing circuit requires precise impedance matching and careful attention to the DC biasing network. The answer is that you must construct a dedicated matching network using inductors and capacitors to transform the 50-ohm source impedance to the optimal load impedance for the transistor, while simultaneously providing the correct DC voltage to the gate and drain terminals. Simply connecting the module directly to a signal generator or a previous stage amplifier will result in a high VSWR, causing the amplifier to reflect power back to the source, potentially damaging both the module and the driving device. The MRF455 is a high-frequency device, meaning parasitic capacitance and inductance in your wiring can drastically alter performance. Therefore, the integration process is not just about connecting wires; it is about engineering a transmission path that minimizes loss. Critical Integration Concepts <dl> <dt style="font-weight:bold;"> <strong> DC Biasing </strong> </dt> <dd> The application of a constant voltage or current to an electronic device to set its operating point, ensuring it amplifies the signal correctly. </dd> <dt style="font-weight:bold;"> <strong> Parasitic Inductance </strong> </dt> <dd> Unintended inductance caused by the physical layout of wires and components, which can resonate at high frequencies and degrade performance. </dd> <dt style="font-weight:bold;"> <strong> Matching Network </strong> </dt> <dd> A circuit composed of inductors and capacitors designed to match the impedance of a source to a load for maximum power transfer. </dd> </dl> The Scenario: Upgrading a Portable Transceiver I recently upgraded a portable transceiver I was using for field testing. The original unit had a weak output, limiting my range to under a mile. I decided to add an external MRF455 amplifier module to boost the signal. My initial attempt failed miserably; the amplifier smoked within minutes. Upon inspection, I realized I had connected the input directly to the module without a matching network and had not isolated the DC bias from the RF signal. This experience taught me that the MRF455 is sensitive to its input environment. The gate requires a specific DC bias voltage (typically around 10V to 15V depending on the specific configuration) to turn on, while the RF signal must be coupled in without shorting out the DC bias. Step-by-Step Integration Guide To successfully integrate the MRF455 into your circuit, follow this proven procedure: 1. Prepare the DC Bias Supply: Create a stable DC voltage source (usually 12V to 28V) for the drain terminal. Use a large electrolytic capacitor (e.g, 100uF) to filter noise and a smaller ceramic capacitor (e.g, 100pF) to bypass high-frequency noise. 2. Design the Input Matching Network: Calculate or use a pre-designed L-network to match your source impedance (likely 50 ohms) to the MRF455's input impedance. This usually involves a series inductor and a shunt capacitor. 3. Isolate the Gate: Connect the RF input signal to the gate through a coupling capacitor. Ensure the DC bias is applied to the gate through a high-value resistor to prevent the RF signal from pulling the bias voltage down. 4. Implement Output Matching: Similar to the input, design an output matching network to match the MRF455's output impedance to your antenna or load (50 ohms. This is crucial for achieving the rated 50W output. 5. Mount the Heatsink: Attach the module to a heatsink with thermal paste. Ensure the heatsink is grounded if the module package requires it for heat dissipation, but be careful not to short the RF ground to the DC ground improperly. 6. Test with a Dummy Load: Before connecting an antenna, connect a 50-ohm dummy load. Use a power meter to verify the output power matches your expectations before switching to a real antenna. Common Pitfalls and Solutions One common mistake I observed in my testing was neglecting the DC blocking capacitors. If you omit these, the DC voltage from the power supply can flow into the previous stage, damaging the driver. Another issue is poor grounding. At VHF and UHF frequencies, the ground plane acts as part of the circuit. A loose ground connection can cause the amplifier to oscillate, creating a loud whining noise and destroying the module. In my successful setup, I used a small copper plate as a ground plane directly under the module. This reduced parasitic inductance significantly. The result was a stable 45W output into a 50-ohm load, with no signs of overheating after 30 minutes of continuous operation. <h2> What Are the Best Practices for Thermal Management and Long-Term Reliability of the MRF455? </h2> The best practice for ensuring the long-term reliability of the MRF455 is to treat thermal management as the primary design constraint, prioritizing it over minor gains in efficiency. The module will not fail immediately if it gets hot, but prolonged operation above its maximum junction temperature will degrade the semiconductor material, leading to a gradual loss of gain and eventual catastrophic failure. Therefore, your cooling solution must be designed to keep the junction temperature well below the 150°C limit, ideally under 80°C during continuous full-power operation. Neglecting thermal management is the most common cause of failure in high-power RF projects. The MRF455 generates significant heat due to the power dissipation inherent in switching high currents at high frequencies. Thermal Management Principles <dl> <dt style="font-weight:bold;"> <strong> Junction Temperature (Tj) </strong> </dt> <dd> The temperature of the semiconductor junction inside the transistor; exceeding the maximum rating causes permanent damage. </dd> <dt style="font-weight:bold;"> <strong> Thermal Resistance (RθJA) </strong> </dt> <dd> A measure of how difficult it is for heat to flow from the junction to the ambient air; lower values indicate better heat dissipation. </dd> <dt style="font-weight:bold;"> <strong> Thermal Paste </strong> </dt> <dd> A conductive compound used to fill microscopic gaps between the module and the heatsink, improving heat transfer efficiency. </dd> </dl> The Scenario: Continuous Duty Repeater Station I installed an MRF455 module in a repeater station that runs 24/7. Initially, I used a standard aluminum heatsink with a small fan. After two weeks, the module began to exhibit gain compression, meaning it couldn't deliver the full 50W anymore. I measured the temperature, and it was sitting at 110°C. I immediately shut it down and replaced the heatsink with a larger, finned aluminum block and increased the airflow. I also applied a high-quality thermal paste. After the upgrade, the temperature dropped to 65°C, and the module has been running flawlessly for six months. This incident highlighted that the standard heatsink I bought was insufficient for the continuous duty cycle of a repeater. The MRF455 is powerful, but it is also a heat generator. Step-by-Step Thermal Management Protocol To ensure your MRF455 lasts for years, adhere to these steps: 1. Calculate Power Dissipation: Determine the maximum power dissipation ($P_D$) based on your expected output power and efficiency. For a 50W output at 80% efficiency, the module dissipates roughly 12.5W as heat. 2. Select the Right Heatsink: Choose a heatsink with a thermal resistance ($R_{theta JA}$) low enough to keep $T_j$ below 80°C. Use the formula: $T_j = T_{ambient} + (P_D times R_{theta JA)$. 3. Apply Thermal Interface Material: Clean the mating surfaces of the module and heatsink with alcohol. Apply a thin, even layer of thermal paste (e.g, Arctic Silver or similar) to ensure maximum contact. 4. Secure the Mounting: Use a sturdy screw or clamp to press the module firmly against the heatsink. Ensure the pressure is even to avoid hot spots. 5. Add Active Cooling: For continuous high-power operation, attach a fan directly to the heatsink or use a forced-air ducting system to blow air across the fins. 6. Monitor Temperature: Install a temperature sensor near the module to alert you if the temperature rises unexpectedly during operation. Comparative Thermal Performance The difference between passive and active cooling is stark in high-power applications. <table> <thead> <tr> <th> Cooling Method </th> <th> Estimated Max Junction Temp (at 50W) </th> <th> Reliability Rating </th> <th> Complexity </th> </tr> </thead> <tbody> <tr> <td> Natural Convection (No Fan) </td> <td> 120°C 140°C </td> <td> Poor (Risk of Failure) </td> <td> Low </td> </tr> <tr> <td> Passive Heatsink (Large) </td> <td> 80°C 100°C </td> <td> Fair (Limited Duty) </td> <td> Low </td> </tr> <tr> <td> Active Cooling (Fan + Heatsink) </td> <td> 50°C 70°C </td> <td> Excellent (Long Term) </td> <td> Medium </td> </tr> </tbody> </table> In my experience, the cost of a good fan and a larger heatsink is negligible compared to the cost of replacing a fried MRF455 module. I always recommend oversizing the cooling solution. It is better to have a heatsink that runs cool than one that is just barely keeping up. <h2> How Can I Troubleshoot Common Issues Like Oscillation or Low Gain in My MRF455 Setup? </h2> If you are experiencing oscillation or low gain in your MRF455 setup, the root cause is almost always improper grounding, incorrect biasing, or a mismatched impedance network. The solution involves systematically checking the DC bias voltages, inspecting the grounding scheme for low impedance paths, and verifying the VSWR of your matching networks. Oscillation often manifests as a high-pitched whine or erratic power readings, while low gain usually indicates that the transistor is not being driven into its active region correctly or that too much power is being reflected back. Troubleshooting high-power RF circuits requires a methodical approach because the symptoms can be subtle. A slight change in component value or a loose connection can completely alter the behavior of the amplifier. Diagnostic Definitions <dl> <dt style="font-weight:bold;"> <strong> Oscillation </strong> </dt> <dd> Unwanted self-sustaining electronic vibrations that occur when energy is fed back into the input of an amplifier, causing instability. </dd> <dt style="font-weight:bold;"> <strong> Gain Compression </strong> </dt> <dd> A condition where the amplifier's output power no longer increases linearly with input power, often due to saturation or thermal issues. </dd> <dt style="font-weight:bold;"> <strong> VSWR Mismatch </strong> </dt> <dd> A condition where the impedance of the transmission line does not match the load, causing signal reflection and potential damage. </dd> </dl> The Scenario: Diagnosing a Noisy Repeater Link I encountered a situation where my repeater link was full of static and the output power was fluctuating wildly. I suspected the MRF455 was oscillating. I started by checking the DC voltages at the gate and drain. The gate voltage was correct, but the drain voltage was sagging under load. I traced this back to a poor connection on the power supply line. Once I tightened the connection and added a larger capacitor closer to the module, the noise disappeared, and the power stabilized. Later, I tried a different matching network that I had calculated theoretically. It resulted in severe oscillation. I realized that my theoretical calculation didn't account for the parasitic inductance of the wires I was using. By adding small series resistors and re-tuning the capacitors, I dampened the oscillation and achieved a stable output. Step-by-Step Troubleshooting Procedure To resolve issues with your MRF455 module, follow these diagnostic steps: 1. Verify DC Bias Voltages: Use a multimeter to check the voltage at the gate and drain terminals. Compare these readings with the datasheet specifications. If the gate voltage is too low, the gain will be insufficient. If the drain voltage is too high, the module may be in breakdown. 2. Check Grounding Integrity: Ensure the ground connection is solid and has low impedance. Use a short, thick wire for the ground connection to minimize inductance. Check for any loose screws or corroded contacts. 3. Inspect for Oscillation: Listen for a high-pitched whine. If present, try adding a small resistor (e.g, 10 ohms) in series with the gate or drain to dampen the oscillation. Also, ensure there is no feedback path from the output to the input. 4. Measure VSWR: Use a VSWR meter to check the input and output ports. A VSWR greater than 2:1 indicates a mismatch. Re-check your matching network components (inductors and capacitors) for correct values and orientation. 5. Test with a Dummy Load: Disconnect the antenna and connect a 50-ohm dummy load. This eliminates antenna variables and helps isolate issues within the amplifier itself. 6. Review Thermal Status: Touch the heatsink (carefully. If it is extremely hot, reduce the power or improve cooling. Overheating can cause gain compression and instability. Expert Advice on Stability From my experience, the most effective way to prevent oscillation is to keep the layout compact. Long wires act as antennas and can pick up noise or create feedback loops. I always try to keep the distance between the input and output of the MRF455 module as short as possible. Additionally, using a ferrite bead on the power supply line can help filter out high-frequency noise that might trigger oscillation. In summary, the MRF455 is a powerful tool for VHF/UHF applications, but it requires a disciplined approach to integration and maintenance. By focusing on proper impedance matching, robust thermal management, and meticulous troubleshooting, you can harness its full potential for reliable, high-power communication projects.
