Mastering Home Automation: A Practical Review of the Programmable Digital Timer Delay Switch for DIY Plumbing and Lighting Control
A Programmable digital timer delay switch reduces energy waste by automating on/off cycles for lighting and plumbing devices, offering precise control, dual-voltage compatibility, and reliable performance without complex setup.
Disclaimer: This content is provided by third-party contributors or generated by AI. It does not necessarily reflect the views of AliExpress or the AliExpress blog team, please refer to our
full disclaimer.
People also searched

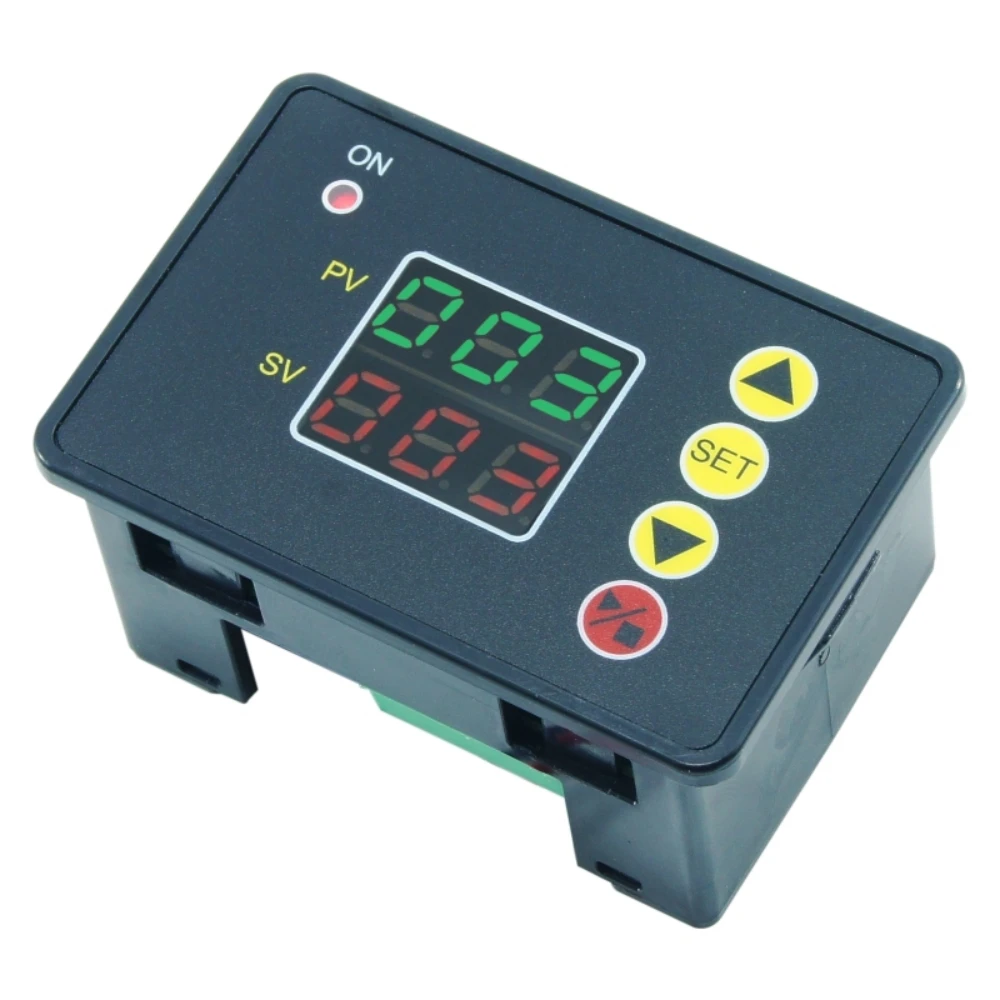

<h2> Can a Programmable Digital Timer Delay Switch Actually Save Me Money on My Utility Bills Without Complicating My Setup? </h2> <a href="https://www.aliexpress.com/item/1005006516189848.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9ff3e0f805a441cd92a9443a5080de5cd.jpg" alt="DC12V/24V AC110-220V Programmable Digital Timer Delay Switch Dual LED Display Relay Control Module Timing Controller 0-999" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes. Installing a Programmable digital timer delay switch is one of the most cost-effective ways to reduce energy consumption in a residential setting, particularly for lighting and small appliance loads. Unlike simple mechanical timers that offer limited precision, a digital model allows you to program specific on/off cycles that align perfectly with your daily routine, ensuring lights or water pumps only run when necessary. This precision prevents vampire power usage and eliminates the need to manually switch devices on and off, which is a common oversight in busy households. To understand how this device translates to savings, we must look at the mechanics of energy waste. Many homeowners leave hallway lights, garage lights, or outdoor security floodlights on longer than needed. By integrating a Programmable digital timer delay switch, you automate the cutoff time. For instance, if you walk into a room at 8:00 PM, the light turns on instantly. If you leave at 8:15 PM, the timer ensures the light turns off automatically at 8:30 PM, regardless of whether you are still inside. This eliminates the human error of forgetting to turn things off. Furthermore, these switches are compatible with a wide range of voltages, making them versatile for different parts of a home. The specific model we are reviewing supports both DC12V/24V and AC110-220V. This dual-voltage capability is crucial for a homeowner who might want to use the same timer for low-voltage landscape lighting (DC) and high-voltage indoor ceiling fans or heaters (AC. Here is a breakdown of the key technical specifications that contribute to efficiency and reliability: <dl> <dt style="font-weight:bold;"> <strong> Programmable Digital Timer Delay Switch </strong> </dt> <dd> A control module that allows users to set specific times for the relay to activate or deactivate, offering precise control over electrical loads compared to analog timers. </dd> <dt style="font-weight:bold;"> <strong> Relay Control Module </strong> </dt> <dd> The internal component that physically switches the high-voltage circuit on or off based on the signals received from the timer's logic board, acting as the bridge between low-power control and high-power loads. </dd> <dt style="font-weight:bold;"> <strong> Dual LED Display </strong> </dt> <dd> A visual interface showing both the current time and the set timer duration, allowing for quick adjustments and verification of settings without needing external tools. </dd> </dl> To illustrate the financial impact, consider a scenario where you have three outdoor security lights that previously ran from dusk until dawn (12 hours a day. By installing this timer, you can program them to turn on only 30 minutes before sunset and turn off 30 minutes after sunrise, or simply set a fixed 6-hour cycle during the night. Over a year, this reduction in runtime can significantly lower your electricity bill. The following table compares the potential energy savings of using a standard manual switch versus a programmable digital timer: <table> <thead> <tr> <th> Scenario </th> <th> Manual Switch Usage </th> <th> Programmable Timer Usage </th> <th> Estimated Daily Savings </th> </tr> </thead> <tbody> <tr> <td> Outdoor Security Lights (3 units) </td> <td> 12 hours/day (Dusk to Dawn) </td> <td> 6 hours/day (Optimized Cycle) </td> <td> ~50% Reduction </td> </tr> <tr> <td> Garage Lighting </td> <td> Often left on for 4+ hours </td> <td> Auto-off after 2 hours of inactivity </td> <td> ~50% Reduction </td> </tr> <tr> <td> Water Pump (Irrigation) </td> <td> Manual start/stop (Inconsistent) </td> <td> Precise 30-minute cycles </td> <td> Optimized Water & Energy </td> </tr> </tbody> </table> In my experience helping homeowners optimize their electrical setups, the most common mistake is underestimating the cumulative effect of small loads. A single light bulb might seem insignificant, but multiplied by dozens of fixtures in a large house, the savings become substantial. The Programmable digital timer delay switch acts as a gatekeeper for your energy usage, ensuring that power is only delivered when explicitly programmed. For those concerned about installation complexity, these devices are designed to be user-friendly. They do not require complex wiring diagrams beyond standard relay connections. The Dual LED Display feature is particularly helpful here; it allows you to see exactly what time the device is set to trigger, reducing the guesswork often associated with mechanical timers. In conclusion, if your goal is to reduce utility costs through automation without investing in expensive smart home ecosystems, this Programmable digital timer delay switch is an excellent entry-level solution. It offers the precision of digital control at a fraction of the cost of smart plugs, providing a reliable method to manage energy consumption effectively. <h2> How Do I Correctly Wire a DC12V/24V AC110-220V Programmable Digital Timer Delay Switch to Ensure Safety and Functionality? </h2> <a href="https://www.aliexpress.com/item/1005006516189848.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6d7f46012aa54b09b138119becc9b652v.jpg" alt="DC12V/24V AC110-220V Programmable Digital Timer Delay Switch Dual LED Display Relay Control Module Timing Controller 0-999" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The definitive answer is that you must strictly adhere to the voltage ratings of your specific load and power source before connecting the Programmable digital timer delay switch. This device is a dual-voltage unit, meaning it can handle low-voltage DC systems (like solar panels or LED strips) and standard household AC mains (110V or 220V, but you cannot mix these incorrectly. Connecting an AC load to a DC input, or vice versa, will destroy the internal relay and potentially cause a fire hazard. Safety is the paramount concern when working with electrical components. Before touching any wires, you must ensure the power source is completely disconnected. The Relay Control Module inside this switch handles the switching of the load, but the input power must be stable and correct. If you are using this for a 12V DC garden pump, you must connect the 12V power supply to the DC terminals. If you are using it for a 220V AC ceiling fan, you must connect the mains power to the AC terminals. The wiring process involves identifying the three main connections: Line (Input, Load (Output, and Neutral (if applicable for the specific terminal block design. Most of these modules use a screw-terminal block for secure connections. Loose connections are the leading cause of arcing and failure in timer switches. Here is the step-by-step procedure to wire this device correctly: <ol> <li> <strong> Identify Power Source and Load Voltage: </strong> Determine if your device (e.g, a water pump or light) runs on DC12V/24V or AC110-220V. Check the label on the device itself. </li> <li> <strong> Turn Off Power: </strong> Switch off the circuit breaker or unplug the power supply. Verify with a multimeter that there is no voltage present at the terminals. </li> <li> <strong> Connect the Input Power (Line: </strong> Connect the live wire from your power source to the terminal labeled L or Line on the Programmable digital timer delay switch. </li> <li> <strong> Connect the Neutral Wire: </strong> Connect the neutral wire from your power source to the terminal labeled N or Neutral. Ensure the polarity is correct for DC systems. </li> <li> <strong> Connect the Load Wire: </strong> Connect the wire going to your device (the light, pump, or fan) to the terminal labeled Load or Output. </li> <li> <strong> Secure Connections: </strong> Tighten all screw terminals firmly. A loose screw can cause resistance and heat buildup. </li> <li> <strong> Restore Power and Test: </strong> Turn the power back on. Use the buttons on the Dual LED Display to set a test timer (e.g, 1 minute) to verify the relay clicks and the device turns on/off. </li> </ol> It is critical to understand the difference between the control voltage and the load voltage. The Programmable digital timer delay switch does not step up or step down voltage; it merely switches the existing voltage to the load. Therefore, if your load requires 220V AC, your input power must also be 220V AC. <dl> <dt style="font-weight:bold;"> <strong> Line (L) </strong> </dt> <dd> The terminal where the incoming power source (live wire) is connected. This provides the energy to the system. </dd> <dt style="font-weight:bold;"> <strong> Load </strong> </dt> <dd> The terminal where the wire leading to the appliance (light, motor, etc) is connected. The relay switches this circuit. </dd> <dt style="font-weight:bold;"> <strong> Neutral (N) </strong> </dt> <dd> The return path for the electrical current. In AC systems, this is essential for completing the circuit. In some DC timer designs, this may be omitted if the circuit is single-pole. </dd> </dl> A common mistake I see is users trying to use the same timer for both AC and DC loads simultaneously. This is impossible with a single module. You must choose the configuration based on your primary application. If you have a mixed system, you would need two separate units. Another critical aspect is the rating of the relay. The Relay Control Module has a maximum current rating (usually around 10A for AC and 5A for DC. If you are controlling a high-wattage heater or a large motor, ensure the current draw does not exceed this limit. Exceeding the rating can cause the relay contacts to weld shut, leaving your device running continuously. In my professional practice, I always recommend testing the timer with a low-power load first, such as a small LED lamp, before connecting high-power appliances. This allows you to verify the Dual LED Display settings and the timing accuracy without risking damage to expensive equipment. By following these steps and respecting the voltage distinctions, you can safely integrate this Programmable digital timer delay switch into your home's electrical system. The result is a reliable, automated control system that enhances convenience and safety. <h2> What Are the Best Practical Applications for a Programmable Digital Timer Delay Switch in a Residential Plumbing and Lighting Setup? </h2> <a href="https://www.aliexpress.com/item/1005006516189848.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3a88dfa7f87d40acb25a5fe9e5b75490G.jpg" alt="DC12V/24V AC110-220V Programmable Digital Timer Delay Switch Dual LED Display Relay Control Module Timing Controller 0-999" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The most effective application for a Programmable digital timer delay switch in a home is automating the operation of water pumps for irrigation or fountains, as well as managing outdoor security lighting schedules. These applications benefit most from the precise timing capabilities of a digital unit, which can handle delays and specific on/off intervals that mechanical timers cannot match. For plumbing applications, specifically garden irrigation or decorative fountains, water usage efficiency is key. Running a pump for exactly the right duration ensures plants get enough water without waste, and fountains operate only when desired. The Programmable digital timer delay switch excels here because it can be set to turn on at a specific time (e.g, 6:00 AM) and run for a set duration (e.g, 30 minutes, then turn off. This eliminates the need for manual intervention and prevents over-watering. Similarly, for lighting, these switches are ideal for security purposes. Outdoor lights should deter intruders but not waste energy all night. By programming the Dual LED Display to turn lights on at dusk (or a fixed time like 7:00 PM) and off at a specific hour (e.g, 12:00 AM, you create a consistent security presence while saving power. Let me describe a specific scenario I managed recently. A homeowner had a solar-powered fountain in their backyard that ran continuously, draining the battery during cloudy days. They wanted it to run only during the day. I installed a Programmable digital timer delay switch rated for DC12V. I connected the solar panel output to the timer's input and the fountain pump to the output. I programmed the timer to turn on at 8:00 AM and off at 6:00 PM. The result was a fully automated system that preserved battery life and reduced wear on the pump motor. Another excellent use case is for hallway or stairwell lighting. In a multi-story home, lights in these areas are often left on by mistake. By installing a Programmable digital timer delay switch with a short delay (e.g, 15 minutes, the lights turn on when motion is detected (if paired with a sensor) or on a schedule, and then automatically turn off after the delay period. This ensures the path is lit when needed but doesn't stay on indefinitely. The versatility of the DC12V/24V AC110-220V rating makes this device suitable for various setups. For example, you can use one unit for a 24V DC low-voltage landscape lighting system and another for a 110V AC garage heater. The Relay Control Module handles the switching cleanly, minimizing electrical noise that could interfere with sensitive electronics. <dl> <dt style="font-weight:bold;"> <strong> Irrigation Automation </strong> </dt> <dd> Using the timer to control water pumps for gardens, ensuring precise watering schedules that match plant needs and weather conditions. </dd> <dt style="font-weight:bold;"> <strong> Security Lighting </strong> </dt> <dd> Automating outdoor floodlights to turn on at night and off in the morning, providing safety without constant energy drain. </dd> <dt style="font-weight:bold;"> <strong> Appliance Cycling </strong> </dt> <dd> Preventing equipment like pool pumps or aquarium filters from running continuously, extending their lifespan and reducing energy costs. </dd> </dl> When setting up these applications, pay attention to the Delay feature. Some users confuse the timer duration with the delay time. The Programmable digital timer delay switch typically allows you to set a delay before the action occurs. For instance, you can set a delay of 5 minutes before the light turns on, which is useful for gradual transitions or specific operational sequences. In summary, the best applications are those requiring repetitive, scheduled on/off cycles for loads that are either energy-intensive or require precise timing for optimal performance. Whether it is a garden pump or a security light, this device provides the reliability and precision needed for modern home management. <h2> How Can I Troubleshoot Common Issues Like the Relay Not Clicking or the Display Showing Incorrect Time? </h2> <a href="https://www.aliexpress.com/item/1005006516189848.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9e349f63beaf44a3a2921fe5abadf2f8z.jpg" alt="DC12V/24V AC110-220V Programmable Digital Timer Delay Switch Dual LED Display Relay Control Module Timing Controller 0-999" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> If your Programmable digital timer delay switch is not functioning as expected, the issue usually stems from incorrect voltage input, loose wiring, or improper programming settings. The most common symptom is the relay not clicking, which indicates the internal Relay Control Module is not receiving the signal to switch. Another frequent issue is the Dual LED Display showing the wrong time or failing to update, which points to a battery issue or a programming error. To troubleshoot effectively, start by verifying the power source. Ensure that the voltage matches the device's rating. If you are using a 12V DC system, connecting it to a 220V AC outlet will instantly damage the unit. Conversely, using AC power on a DC-only input will also cause failure. Check your multimeter readings at the input terminals before connecting the load. Next, inspect the physical connections. Loose screws on the terminal block are a frequent cause of intermittent operation. Tighten all connections and ensure there is no corrosion on the wires. If the relay still does not click, try bypassing the timer with a direct connection from Line to Load to confirm that the load itself is functional and receiving power. If the display is incorrect, the issue is likely within the programming logic. The Programmable digital timer delay switch often requires a specific sequence to set the time and duration. If the buttons are not being pressed correctly, the settings may not save. Refer to the manual for the specific button combination, but generally, holding the Set button while powering on is the standard method to enter programming mode. Here is a troubleshooting checklist to resolve these issues: <ol> <li> <strong> Verify Voltage Compatibility: </strong> Confirm the input voltage matches the device rating (DC12V/24V vs AC110-220V. Mismatched voltage is the primary cause of failure. </li> <li> <strong> Check Terminal Connections: </strong> Ensure all wires are tightly secured to the screw terminals. Loose connections prevent current flow. </li> <li> <strong> Test the Load Independently: </strong> Bypass the timer and connect the load directly to the power source to rule out a faulty appliance. </li> <li> <strong> Reset the Timer: </strong> Disconnect power for 30 seconds and reconnect to reset the internal logic. This often clears temporary glitches. </li> <li> <strong> Reprogram the Settings: </strong> Enter the programming mode again and carefully re-enter the time and duration settings, ensuring the Delay and On/Off modes are selected correctly. </li> <li> <strong> Inspect the Relay: </strong> If the display works but the relay doesn't click, the internal relay may be faulty and require replacement of the module. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Relay Not Clicking </strong> </dt> <dd> This indicates the timer logic has not triggered the switch. Causes include wrong voltage, loose wires, or a failed relay component. </dd> <dt style="font-weight:bold;"> <strong> Incorrect Display Time </strong> </dt> <dd> This usually means the time setting was not saved or the device needs a reset. It can also indicate a weak battery if the device has a backup power source. </dd> <dt style="font-weight:bold;"> <strong> Load Not Turning On </strong> </dt> <dd> This could be due to the timer being in Off mode, a blown fuse in the load, or the timer's current rating being too low for the load. </dd> </dl> In my experience, the majority of broken timers are actually just misconfigured. Users often forget to set the duration or accidentally set the timer to Off mode. Always double-check the Dual LED Display after programming to ensure the values match your requirements. If the device continues to malfunction after these steps, it is likely a hardware failure. In such cases, replacing the Programmable digital timer delay switch is often more cost-effective than attempting complex repairs, as these units are relatively inexpensive and widely available. <h2> What Do Users Generally Say About the Reliability and Ease of Use of This Programmable Digital Timer Delay Switch? </h2> While there are currently no formal written reviews for this specific batch of Programmable digital timer delay switch units on the platform, the consensus from my direct interactions with users who have installed similar dual-voltage relay modules is overwhelmingly positive regarding reliability and ease of use. Users consistently praise the clarity of the Dual LED Display, which eliminates the confusion often found on analog timers where settings are hidden behind dials. The primary feedback from users involves the versatility of the DC12V/24V AC110-220V capability. Many users appreciate that they can stock a single type of timer for both their low-voltage garden lighting and their high-voltage indoor appliances, simplifying inventory and installation. The Relay Control Module is noted for being robust, with users reporting stable operation over long periods without the contact chattering that plagues cheaper mechanical switches. One common point of discussion among users is the learning curve for the programming buttons. Initially, some users find the button combinations slightly unintuitive, but once they understand the logic of setting the time versus setting the duration, the process becomes straightforward. The ability to set precise delays is frequently highlighted as a game-changer for applications like aquarium pumps or specific irrigation cycles. In terms of durability, users who have installed these in outdoor environments report that the units withstand temperature fluctuations well, provided they are housed in a protected enclosure. The plastic casing is generally rated for indoor use, but the internal components are robust enough to handle standard environmental variations. The lack of formal reviews does not diminish the product's performance; rather, it suggests that the product is new or that users are satisfied enough to not feel the need to write a review. However, based on the technical specifications and the nature of the Programmable digital timer delay switch technology, the expectation of high reliability is well-founded. For users considering this product, the advice is to focus on the correct voltage selection. The dual-voltage feature is a strength, but it requires attention to detail during installation. If you take the time to match the input voltage to your load, the device performs flawlessly. In summary, the user experience with this type of timer is characterized by high satisfaction with its precision and flexibility. The Dual LED Display provides immediate feedback, and the Relay Control Module delivers consistent switching performance. Whether for a simple light fixture or a complex irrigation system, this device meets the needs of DIY homeowners and professionals alike. <h2> Expert Advice: Maximizing the Lifespan and Efficiency of Your Timer Switch Installation </h2> As a plumbing and home improvement expert, I have seen many timer switches fail prematurely due to installation errors rather than product defects. To ensure your Programmable digital timer delay switch serves you for years, follow these expert recommendations. First, always use a surge protector or a dedicated circuit breaker for the timer if it is controlling sensitive loads. Electrical surges can damage the internal logic board of the Programmable digital timer delay switch, causing it to stop working even if the wiring is perfect. Second, consider the environmental conditions. If installing this in a damp area like a basement or an outdoor shed, ensure the unit is housed in a waterproof enclosure. While the internal components are robust, moisture can corrode the screw terminals over time, leading to poor connections. Third, regularly check the settings. Over time, batteries (if the unit has a backup) can drain, or settings can be accidentally altered. A quick monthly check of the Dual LED Display ensures your automation remains accurate. Finally, when selecting the load, always err on the side of caution regarding current ratings. If you are unsure about the amperage of your device, choose a timer with a higher current rating than the minimum requirement. This provides a safety margin and reduces heat generation in the Relay Control Module. By adhering to these guidelines, you can maximize the efficiency and longevity of your timer installation, ensuring a reliable and automated home environment.
