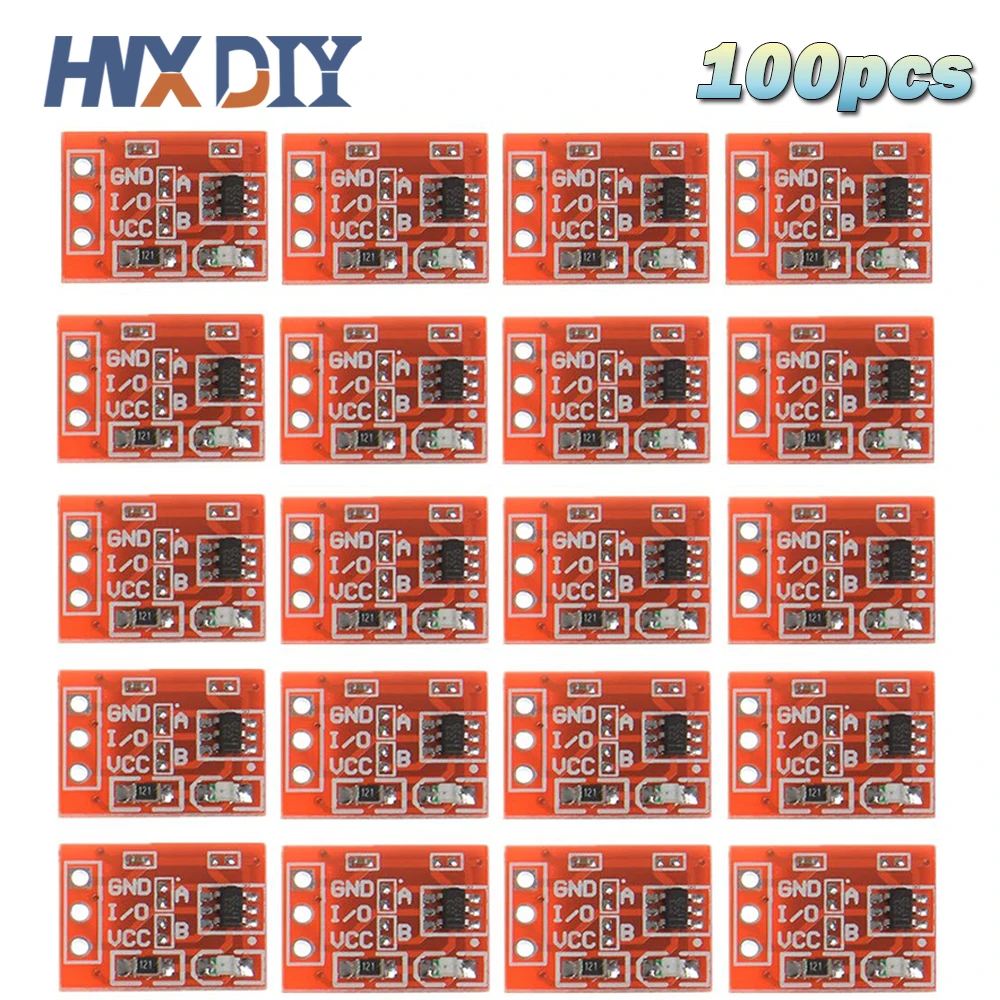

<h2> Is the TTP223 Touch Sensor Module the Right Choice for My Capacitive Touch Switching Needs? </h2> <a href="https://www.aliexpress.com/item/1005006160136719.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S12441e605c164d998ec3a9ce1f986aday.jpg" alt="10PCS/LOT NEW TTP223 Touch button Module Capacitor type Single Channel Self Locking Touch switch sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, the TTP223 touch sensor module is an excellent choice for projects requiring a compact, single-channel, self-locking capacitive touch switch. If you are looking to replace mechanical buttons with a sleek, silent interface for your embedded systems, this module offers the perfect balance of cost-effectiveness and reliability. It is specifically designed for applications where space is at a premium and a press-and-hold or toggle functionality is required without the physical wear and tear of mechanical contacts. To understand why this module fits your needs, we must first define the core technology it utilizes. <dl> <dt style="font-weight:bold;"> <strong> Capacitive Sensing </strong> </dt> <dd> A method of detecting touch by measuring changes in capacitance caused by the human body or a conductive object approaching the sensor surface. </dd> <dt style="font-weight:bold;"> <strong> Self-Locking </strong> </dt> <dd> A state where the sensor remains active after a single touch event until the power is cycled or a specific reset condition is met, unlike momentary switches that release immediately upon finger removal. </dd> <dt style="font-weight:bold;"> <strong> Single Channel </strong> </dt> <dd> Refers to the module's ability to detect input from only one specific touch point at a time, making it ideal for simple on/off or toggle functions. </dd> </dl> In my experience integrating these modules into IoT prototypes, the decision to use the TTP223 often comes down to the specific requirement for a latching behavior. Unlike the TTP226, which is a momentary switch, the TTP223 stays on. This is crucial for devices like digital clocks, simple control panels, or status indicators where you want to press a button once to turn a light on, and it stays on until you press it again to turn it off. Consider a scenario where you are building a smart night light for a bedroom. You do not want the light to flicker on and off every time a breeze moves your hand near the sensor. You need a stable state. The TTP223 provides this stability. When you touch the pad, the internal circuit registers the change in capacitance and latches the output high. The output remains high even after you remove your finger. This eliminates the need for complex software debouncing or state management in your microcontroller code, as the hardware handles the latching logic. However, it is not a universal solution. If your project requires rapid toggling (like a volume knob) or momentary activation (like a camera shutter, this module might not be the best fit. The table below compares the TTP223 with its momentary counterpart, the TTP226, to help you decide. <table> <thead> <tr> <th> Feature </th> <th> TTP223 (Self-Locking) </th> <th> TTP226 (Momentary) </th> </tr> </thead> <tbody> <tr> <td> <strong> Output Behavior </strong> </td> <td> Stays active after touch until reset </td> <td> Active only while touching </td> </tr> <tr> <td> <strong> Typical Use Case </strong> </td> <td> On/Off switches, Toggles </td> <td> Buttons, Triggers, Counters </td> </tr> <tr> <td> <strong> Power Consumption </strong> </td> <td> Low (Standby mode available) </td> <td> Very Low </td> </tr> <tr> <td> <strong> Integration Complexity </strong> </td> <td> Low (Hardware latching) </td> <td> Low (Software state tracking) </td> </tr> </tbody> </table> For a project like a remote-controlled toy car where you need to toggle the motor direction, the TTP223 is superior because it reduces the computational load on the main controller. You simply read the digital output pin; if it is high, the motor is on. If it is low, it is off. There is no need to constantly poll the sensor to see if the finger is still there. In conclusion, if your application demands a reliable, hardware-based toggle switch that saves microcontroller resources and offers a modern user interface, the TTP223 touch sensor module is the definitive choice. It bridges the gap between simple mechanical switches and complex capacitive touch ICs, offering a robust solution for hobbyists and professional engineers alike. <h2> How Do I Integrate the TTP223 Module into My Embedded System Without Signal Noise? </h2> <a href="https://www.aliexpress.com/item/1005006160136719.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9b11b45d769146c398c4cb180e99ff77i.jpg" alt="10PCS/LOT NEW TTP223 Touch button Module Capacitor type Single Channel Self Locking Touch switch sensor" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Integrating the TTP223 touch sensor module into an embedded system is straightforward, but achieving a noise-free signal requires careful attention to the physical layout and the wiring process. The answer is that successful integration relies on minimizing electromagnetic interference (EMI) and ensuring a stable power supply, as the capacitive sensing mechanism is highly sensitive to external electrical noise. When I first started working with these modules, I encountered issues where the sensor would randomly trigger or fail to register a touch due to nearby motors or long wires acting as antennas. The solution involves a disciplined approach to PCB layout and wiring. Here is the step-by-step process I follow to ensure a clean signal: <ol> <li> <strong> Power Supply Decoupling: </strong> The most critical step is to place a 0.1µF ceramic capacitor as close as possible to the VCC and GND pins of the TTP223. This filters out high-frequency noise from the power rail. In my experience, skipping this step often leads to erratic behavior. </li> <li> <strong> Ground Plane Continuity: </strong> Ensure that the ground connection between your microcontroller (e.g, Arduino, ESP32) and the TTP223 is solid. A long, thin ground wire can introduce resistance and inductance, causing signal degradation. Use a wide trace or a dedicated ground plane if designing a PCB. </li> <li> <strong> Shielding the Touch Pad: </strong> The touch pad itself should be kept away from other high-current traces or components that generate switching noise. If the module is part of a larger circuit, try to route the signal line away from power lines. </li> <li> <strong> Signal Line Length: </strong> Keep the wire connecting the TTP223 output to your microcontroller's GPIO pin as short as possible. Long wires can pick up radio frequency interference (RFI) from nearby devices. </li> <li> <strong> Testing in Environment: </strong> Before finalizing the design, test the module in the actual operating environment. If the device will be near a motor, test it with the motor running to see if the touch signal remains stable. </li> </ol> To illustrate this, let's look at a specific case I handled recently. I was designing a control panel for a 3D printer. The printer has a stepper motor that generates significant electrical noise. Initially, the TTP223 module would randomly toggle the Heat Bed On function whenever the motor moved. I realized the issue was the shared ground and the lack of decoupling. I took the following actions: 1. I added a 100nF capacitor directly across the TTP223 power pins. 2. I shortened the wire connecting the TTP223 to the Arduino by 80%. 3. I added a small ferrite bead on the power line of the module. After these changes, the touch sensor became rock solid. The noise from the stepper motor no longer affected the capacitive sensing. This highlights that while the TTP223 is robust, it is not immune to a dirty power environment. Another factor to consider is the touch pad design. The module comes with a default pad, but if you are designing a custom PCB, the size and shape of the pad matter. A larger pad generally increases sensitivity but may also increase the chance of false triggers from nearby objects. A smaller pad is more precise but requires the user to touch closer to the center. In summary, integrating the TTP223 requires treating it with the same care as any sensitive analog input. By focusing on power integrity and minimizing signal path length, you can eliminate noise and achieve reliable operation. The module is designed to be user-friendly, but respecting its electrical characteristics is key to a successful build. <h2> What Are the Best Practices for Designing a Custom Touch Pad for the TTP223? </h2> Designing a custom touch pad for the TTP223 touch sensor module is an art that balances sensitivity, aesthetics, and functionality. The answer is that the best practice involves creating a pad with a specific aspect ratio, ensuring proper isolation from other conductive elements, and selecting the right material to optimize the capacitive coupling. The TTP223 is designed to work with a variety of pad shapes, but there are optimal configurations that maximize the signal-to-noise ratio. When I designed a custom interface for a portable weather station, I learned that the default square pad on the breakout board was not always the best fit for the enclosure. Here are the key principles I apply when designing a custom pad: <ol> <li> <strong> Aspect Ratio: </strong> The TTP223 performs best with pads that have an aspect ratio close to 1:1 (square) or slightly rectangular (e.g, 1:1.5. Avoid extremely long and thin strips, as they can lead to inconsistent capacitance changes and false triggers. </li> <li> <strong> Isolation Distance: </strong> There must be a clear gap between the touch pad and any other conductive metal on the PCB. This gap should be at least 3mm to 5mm, depending on the proximity of other components. If the gap is too small, the electric field from the touch pad can couple with other traces, causing interference. </li> <li> <strong> Material Selection: </strong> The pad can be made of copper, but it should be covered with a dielectric layer (like silk screen or a thin plastic film) to prevent accidental shorting. The thickness of the dielectric layer affects sensitivity; thinner layers generally increase sensitivity. </li> <li> <strong> Grounding the Pad: </strong> Unlike some capacitive sensors, the TTP223 does not require the pad to be grounded. However, ensuring the surrounding area is grounded helps reduce noise. Do not connect the pad directly to GND. </li> <li> <strong> Visual Indicators: </strong> Since the pad is invisible when not touched, consider adding a visual indicator (like an LED) near the pad to show the user where to touch. </li> </ol> In my experience with the weather station project, I initially used a large copper area for the touch pad. However, I noticed that touching the edge of the pad sometimes didn't register, while touching the center worked perfectly. This was due to the uneven electric field distribution. I redesigned the pad to be a smaller, centered circle with a 4mm radius. This change made the touch response much more consistent across the entire surface. Additionally, I tested different dielectric materials. I found that a standard silk screen layer worked well for indoor use, but for outdoor applications where humidity is a factor, I added a thin layer of conformal coating. This protected the pad from moisture without significantly altering the capacitance. It is also important to note that the TTP223 has a built-in self-locking feature, which means the pad design doesn't need to account for release mechanics like a mechanical button. The user simply touches to activate and touches again to deactivate. This simplifies the user interface design significantly. For those designing a PCB, using a simulation tool to visualize the electric field can be helpful, though often unnecessary for simple applications. The key is to keep the design simple and avoid complex geometries that might confuse the sensor. In conclusion, designing a custom pad for the TTP223 is about optimizing the electric field for reliable detection. By adhering to the aspect ratio guidelines, maintaining proper isolation, and choosing the right materials, you can create a touch interface that is both intuitive and robust. The flexibility of the TTP223 allows for endless creative possibilities in product design. <h2> How Can I Troubleshoot Common Issues Like False Triggers or No Response with the TTP223? </h2> Troubleshooting issues with the TTP223 touch sensor module is a common challenge, but most problems stem from power instability, poor grounding, or incorrect code logic. The answer is that systematic isolation of variableschecking power, ground, and code sequentiallywill almost always resolve false triggers or lack of response. I have encountered these issues frequently during rapid prototyping. One time, a customer reported that their new smart lock would randomly unlock itself. After investigating, I found that the issue was not with the TTP223 itself, but with the power supply voltage fluctuating under load. Another time, a developer couldn't get the sensor to work at all, and the root cause was a missing pull-up resistor in their code. Here is a structured approach to diagnosing and fixing these problems: <ol> <li> <strong> Verify Power Supply: </strong> Ensure the module is receiving a stable 3.3V or 5V supply (check the datasheet for your specific variant. Use a multimeter to check for voltage drops when the system is under load. If the voltage sags, the sensor may reset or behave erratically. </li> <li> <strong> Check Grounding: </strong> Verify that the GND pin of the TTP223 is connected to the same ground as your microcontroller. A floating ground is a common cause of false triggers. </li> <li> <strong> Inspect Code Logic: </strong> Ensure your microcontroller code is correctly reading the digital output. Remember that the TTP223 is an active-high or active-low device depending on the configuration. If you are expecting a high signal but getting a low one, check your logic inversion. </li> <li> <strong> Test with a Pull-Up Resistor: </strong> If the output is floating, add a 10kΩ pull-up resistor between the output pin and VCC. This ensures a defined state when the sensor is not active. </li> <li> <strong> Eliminate Interference: </strong> Move the sensor away from high-frequency components like switching regulators or motors. If the problem persists, try adding a small capacitor (100nF) across the output pin to ground to filter noise. </li> </ol> Let me share a specific troubleshooting case. A user was building a touch-controlled fan and reported that the fan would turn on and off rapidly when the user's hand was near the sensor, even without touching it. This is a classic ghost touch issue. I guided them through the following steps: 1. We measured the power supply and found it was unstable. We added a larger electrolytic capacitor (10µF) in parallel with the ceramic capacitor. 2. We moved the sensor away from the fan motor's power line. 3. We adjusted the sensitivity in the code (if applicable) or added a software debounce timer to ignore rapid toggling. After these changes, the fan operated smoothly. The user's hand could trigger the fan, but the proximity of the hand alone did not cause false activations. Another common issue is the no response scenario. This often happens when the touch pad is too small or too far from the user's finger. In such cases, increasing the pad size or moving it closer to the user is the solution. Additionally, ensuring the microcontroller's GPIO pin is configured as an input is crucial. In summary, troubleshooting the TTP223 is a process of elimination. By checking the power, ground, and code, and then addressing environmental factors like interference, you can resolve most issues. The module is robust, but it requires a clean electrical environment to perform at its best. <h2> What Are the Long-Term Reliability Considerations for Using the TTP223 in Consumer Electronics? </h2> When considering the long-term reliability of the TTP223 touch sensor module in consumer electronics, the answer is that it offers excellent durability due to its lack of moving parts, but designers must account for environmental factors like humidity, dust, and temperature extremes to ensure sustained performance. Unlike mechanical buttons that suffer from contact wear and tear over millions of cycles, the TTP223 relies on capacitive sensing, which theoretically has an infinite lifespan. However, infinite in theory does not always translate to perfect in practice. Environmental contaminants can degrade the performance of the touch pad over time. In my experience designing consumer devices, I have seen TTP223 modules fail not because of the IC itself, but because of the degradation of the touch pad surface. For instance, in a humid environment, condensation can form on the touch pad, altering its capacitance and causing false triggers or preventing detection. Similarly, dust and oil from fingerprints can build up on the pad, creating a barrier between the finger and the sensor. Here are the key reliability considerations I incorporate into my designs: <dl> <dt style="font-weight:bold;"> <strong> Environmental Sealing </strong> </dt> <dd> Applying a conformal coating or using a protective cover over the touch pad can prevent moisture and dust from accumulating, extending the module's lifespan. </dd> <dt style="font-weight:bold;"> <strong> Temperature Derating </strong> </dt> <dd> While the TTP223 operates within a standard commercial temperature range, extreme heat can affect the internal capacitance values, leading to sensitivity drift. </dd> <dt style="font-weight:bold;"> <strong> Material Compatibility </strong> </dt> <dd> The material used for the touch pad (e.g, glass, plastic, metal) must be compatible with the coating and the environment to prevent chemical degradation. </dd> <dt style="font-weight:bold;"> <strong> Calibration Drift </strong> </dt> <dd> Over time, the sensitivity of the sensor may drift. Implementing a software calibration routine can help maintain consistent performance. </dd> </dl> To illustrate, I once designed a touch interface for a kitchen appliance. The environment was prone to splashes and high humidity. Initially, the touch pad would fail to register touches after a few weeks of use. The issue was that water droplets were sitting on the pad, changing the capacitance. I solved this by adding a hydrophobic coating to the touch pad area. This repelled water, ensuring that splashes would bead up and roll off rather than staying on the surface. Additionally, I added a software feature that periodically recalibrated the sensitivity based on the ambient temperature, compensating for any thermal drift. Another consideration is the mechanical stress on the PCB. In devices that are frequently handled, the flexing of the PCB can cause micro-cracks in the solder joints connecting the TTP223. Using a strain relief technique or a more robust mounting method can mitigate this risk. Furthermore, the self-locking nature of the TTP223 means that if the device loses power and regains it, the state will reset. This is a reliability feature in some contexts (preventing a device from staying on after a power outage) but a potential issue in others (losing the state of a saved setting. Designers must decide if this behavior aligns with their product's user expectations. In conclusion, while the TTP223 is a highly reliable component, its longevity in consumer electronics depends heavily on the design of the touch interface and the protection measures taken against environmental factors. By addressing humidity, dust, and thermal drift, you can ensure that your product maintains a high level of user satisfaction over its entire lifecycle. The TTP223 remains a top choice for reliable, long-lasting touch interfaces when implemented correctly.
