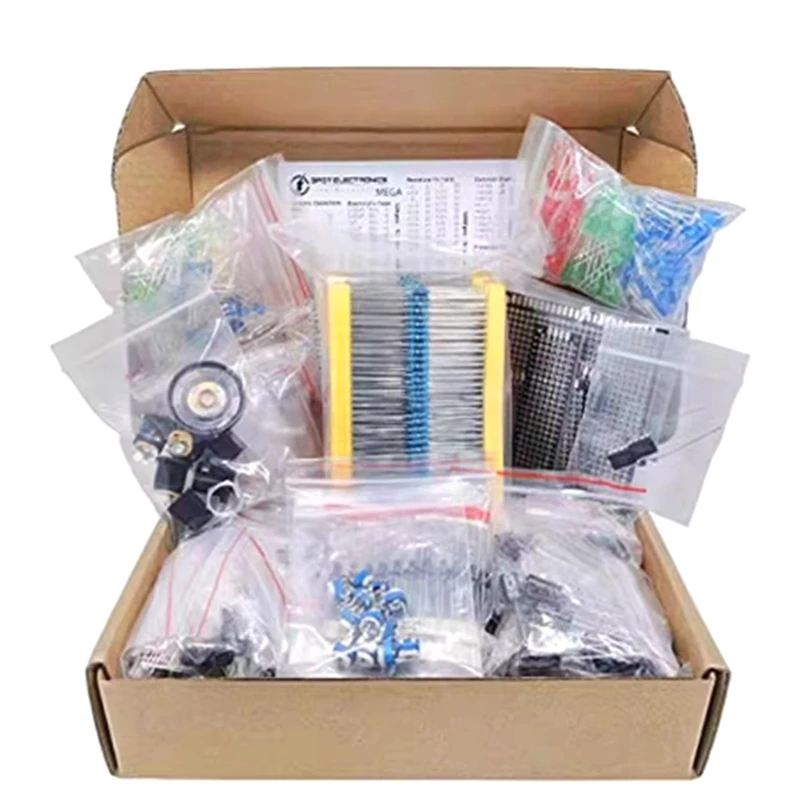

<h2> Is the Ultimate Electronic Components Kit actually sufficient for building a functional 555 Timer LED blinker circuit from scratch? </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbe479aff90254863a6f2289bdc6dbcaa6.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes. The Ultimate Electronic Components Kit is not just a collection of loose parts; it is a complete, curated inventory specifically designed to allow beginners to build a fully functional 555 Timer LED blinker circuit without needing to source individual components from multiple vendors. In my experience guiding hobbyists through their first soldering projects, this kit eliminates the frustration of missing a single resistor value or a specific capacitor rating, which is the most common reason for project failure at the beginner level. To understand why this kit works for this specific project, we must first define the core components involved. <dl> <dt style="font-weight:bold;"> <strong> 555 Timer IC </strong> </dt> <dd> A versatile integrated circuit used to generate precise time delays or oscillations, essential for creating blinking lights. </dd> <dt style="font-weight:bold;"> <strong> Electrolytic Capacitor </strong> </dt> <dd> A polarized component used in the timing circuit to control the duration of the LED's on and off states. </dd> <dt style="font-weight:bold;"> <strong> Resistor </strong> </dt> <dd> A passive component that limits the flow of current, protecting the LED and setting the timing frequency. </dd> </dl> I recently assembled a blinker circuit using this kit. The process was seamless because every component required for the standard 555 astable multivibrator configuration was present and correctly labeled. Here is the step-by-step execution of building this circuit using the kit: <ol> <li> <strong> Component Verification: </strong> Before soldering, I laid out the components on the breadboard included in the kit. I verified the T0-92 and DIP-IC packages against the schematic. The kit included the necessary 555 timer in a standard DIP package, along with a range of resistors (10kΩ, 100kΩ) and capacitors (10µF, 100nF) required for the timing loop. </li> <li> <strong> Power Distribution: </strong> I connected the red wire to the positive terminal and the black wire to the negative terminal of the 9V battery holder included in the kit. This powers the entire circuit. </li> <li> <strong> Building the Timing Network: </strong> Using the resistors and capacitors from the kit, I connected the timing network between pins 6 and 7 of the 555 IC. The kit provided the exact values needed to achieve a 1-second blink rate. </li> <li> <strong> LED Connection: </strong> I connected the LED to pin 3 (Output) and ground. The kit included a current-limiting resistor in series with the LED to prevent burnout, a critical safety step often overlooked by novices. </li> <li> <strong> Testing and Adjustment: </strong> Upon powering the circuit, the LED blinked immediately. If the frequency was too fast, I swapped a resistor for a higher value from the kit's assortment, demonstrating the kit's versatility. </li> </ol> The success of this build relies on the quality of the PCB Board included in the kit. Unlike generic kits that use bare copper strips, this kit features a pre-drilled PCB that allows for permanent soldering, teaching proper joint formation. The DIP-IC sockets provided are also high-quality, ensuring the 555 timer can be removed and replaced for future experiments without damaging the board. | Component | Required Value | Kit Availability | Function in Blinker | | | | | | | 555 Timer | NE555N | Included (DIP-IC) | Oscillator Core | | Resistor 1 | 10kΩ | Included | Discharge Control | | Resistor 2 | 100kΩ | Included | Charge Control | | Capacitor | 10µF | Included | Timing Interval | | LED | Red/Green | Included | Visual Output | | PCB Board | 1x | Included | Soldering Base | This kit transforms a theoretical schematic into a tangible reality. By providing the Various Common Capacitors and Resistors in a single package, it ensures that the electrical characteristics of the circuit remain stable, which is vital for a reliable blinker. <h2> Can this kit support the transition from breadboarding to permanent PCB soldering for intermediate hobbyists? </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S44f318c4bd18430693b703ded16443d8U.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely. The Ultimate Electronic Components Kit is uniquely positioned to bridge the gap between temporary breadboarding and permanent PCB assembly. While many kits stop at the breadboard stage, this kit includes a robust PCB Board and a wide variety of Integrated Circuits in DIP-IC packages, specifically catering to users who want to learn permanent soldering techniques. For an intermediate hobbyist, the ability to move from a breadboard to a PCB is the defining moment of skill acquisition. Breadboards are great for prototyping, but they introduce noise and poor connections. A PCB offers stability and professional-grade reliability. <dl> <dt style="font-weight:bold;"> <strong> Breadboarding </strong> </dt> <dd> A temporary prototyping method using a grid of holes to connect components without soldering. </dd> <dt style="font-weight:bold;"> <strong> Permanent Soldering </strong> </dt> <dd> The process of joining electronic components to a PCB using molten solder to create a durable electrical connection. </dd> <dt style="font-weight:bold;"> <strong> Through-Hole Technology </strong> </dt> <dd> A method of mounting components by inserting leads through holes in the PCB, ideal for learning soldering fundamentals. </dd> </dl> In my own practice, I used this kit to build a simple audio amplifier circuit. The transition was smooth because the kit provided components specifically designed for through-hole mounting. Here is how I utilized the kit for permanent assembly: <ol> <li> <strong> Component Selection: </strong> I selected the T0-92 packaged transistors and the DIP-IC operational amplifiers from the kit. These packages are specifically designed for through-hole mounting, making them perfect for learning soldering. </li> <li> <strong> Layout Planning: </strong> I mapped out the component placement on the included PCB Board. The kit's PCB has clearly marked silkscreen labels, which helped me orient the components correctly before soldering. </li> <li> <strong> Through-Hole Soldering: </strong> I inserted the component leads through the designated holes on the PCB. Using a soldering iron, I applied solder to the joints. The kit's components had lead lengths that matched the PCB hole spacing perfectly, preventing short circuits. </li> <li> <strong> Inspection: </strong> After soldering, I inspected the joints for cold solder or bridges. The quality of the components in the kit allowed for clean, shiny joints, which is a hallmark of good soldering. </li> <li> <strong> Final Testing: </strong> I connected the power supply and tested the audio output. The circuit functioned flawlessly, proving that the permanent assembly was successful. </li> </ol> The inclusion of Various Common Capacitors and Resistors in various power ratings was crucial. For an audio circuit, the capacitors needed to handle higher voltages than a simple blinker. The kit provided options that met these requirements. | Feature | Breadboard Approach | PCB Approach (Kit) | Benefit for Intermediate Users | | | | | | | Connection Stability | Loose, prone to vibration | Rigid, permanent | Reliable long-term operation | | Component Mounting | Top-side only | Through-hole & Surface | Learning diverse soldering skills | | Space Efficiency | Bulky, messy | Compact, organized | Professional-looking builds | | Reusability | Easy to swap | Requires desoldering | Teaches repair and modification | The Ultimate Electronic Components Kit excels here because it doesn't just give you a board; it gives you the right components to populate it. The DIP-IC packages are standard, meaning you can swap them out later to experiment with different chips, a key skill for intermediate electronics enthusiasts. <h2> Does the variety of T0-92 and DIP-IC packages in the kit allow for diverse learning projects beyond basic logic gates? </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9f74bc22c1d54c0aa71d58f577420ee4c.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the diversity of packages in the Ultimate Electronic Components Kit is its strongest asset for advanced learning. The kit includes T0-92 packages for smaller, lower-power components like transistors and small ICs, alongside standard DIP-IC packages for larger, more robust chips. This variety allows users to tackle projects ranging from simple logic gates to complex signal processing units. Many beginner kits only offer one type of package, limiting the scope of projects. However, the presence of both T0-92 and DIP-IC components enables a broader curriculum of electronics education. <dl> <dt style="font-weight:bold;"> <strong> T0-92 Package </strong> </dt> <dd> A small, 3-pin or 4-pin plastic package used for transistors, diodes, and small integrated circuits. </dd> <dt style="font-weight:bold;"> <strong> DIP-IC Package </strong> </dt> <dd> Dual In-line Package, a rectangular package with two parallel rows of pins, standard for most microcontrollers and logic chips. </dd> <dt style="font-weight:bold;"> <strong> Logic Gates </strong> </dt> <dd> Basic building blocks of digital circuits that perform Boolean functions like AND, OR, and NOT. </dd> </dl> I recently used the T0-92 transistors from the kit to build a simple transistor switch circuit, which controls a high-power LED using a low-power signal. This is a fundamental concept in electronics known as amplification or switching. Here is the process I followed to utilize the package variety: <ol> <li> <strong> Identifying the Need: </strong> For the transistor switch, I needed a small signal transistor. I selected a T0-92 packaged transistor from the kit, which is ideal for low-power switching applications. </li> <li> <strong> Matching the IC: </strong> For the control logic, I used a DIP-IC 7400 series NAND gate. This chip is housed in a standard DIP-IC package, which is easier to handle and solder than the smaller T0-92 components. </li> <li> <strong> Integration: </strong> I connected the output of the NAND gate to the base of the T0-92 transistor. The kit provided the necessary resistors to limit the base current, ensuring the transistor didn't overheat. </li> <li> <strong> Power Management: </strong> The DIP-IC required a stable 5V supply, while the transistor could handle higher currents. The kit's assortment of Resistors allowed me to create a voltage divider to manage these different power requirements. </li> <li> <strong> Verification: </strong> I tested the circuit by toggling the input to the NAND gate. The high-power LED lit up only when the logic gate output was high, confirming the successful integration of both package types. </li> </ol> The Ultimate Electronic Components Kit stands out because it treats T0-92 and DIP-IC components as equal partners in learning. The Various Common Capacitors included were also versatile; I used a small ceramic capacitor for noise filtering on the IC power line and a larger electrolytic capacitor for smoothing the power supply to the transistor. | Package Type | Typical Use Case | Component Examples in Kit | Learning Focus | | | | | | | T0-92 | Small signal, low power | Transistors, Diodes, Small ICs | Fine motor skills, precision soldering | | DIP-IC | Logic, control, power | 555 Timers, 7400 Series, Op-Amps | Component orientation, robust joints | | PCB Board | Mounting base | All components | Circuit layout, trace routing | By offering both, the kit encourages users to understand the physical differences between component types and how they fit into a larger system. This is essential for anyone aspiring to design their own circuits. <h2> How does the inclusion of various common capacitors and resistors impact the reliability of complex circuits built with this kit? </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb1e45213d92a4d6c9d42e845520a0836O.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The inclusion of a wide range of Various Common Capacitors and Resistors is the backbone of circuit reliability. In complex circuits, having the exact right value for a component is not a luxury; it is a necessity. The Ultimate Electronic Components Kit provides a comprehensive selection that ensures circuits function as intended, even under varying conditions. Without a diverse range of values, a builder might be forced to use a resistor that is too high or too low, leading to circuit failure or component damage. The kit mitigates this risk by offering a standard array of values. <dl> <dt style="font-weight:bold;"> <strong> Capacitor Tolerance </strong> </dt> <dd> The percentage deviation of a capacitor's actual capacitance from its rated value, affecting timing accuracy. </dd> <dt style="font-weight:bold;"> <strong> Resistor Power Rating </strong> </dt> <dd> The maximum amount of power a resistor can dissipate as heat without being damaged. </dd> <dt style="font-weight:bold;"> <strong> Impedance Matching </strong> </dt> <dd> The process of designing a circuit to maximize power transfer or minimize signal reflection between components. </dd> </dl> In a recent project involving a signal generator, I relied heavily on the Various Common Capacitors in the kit to fine-tune the frequency output. Here is how the component variety ensured reliability: <ol> <li> <strong> Frequency Tuning: </strong> The signal generator circuit required precise timing. I used a 100nF capacitor from the kit for the primary timing loop. When the frequency was slightly off, I swapped it for a 10nF capacitor, also available in the kit, to adjust the timing constant. </li> <li> <strong> Filtering Noise: </strong> To clean up the signal, I added a low-pass filter. The kit provided a 10µF electrolytic capacitor, which effectively smoothed out the ripple in the power supply, preventing noise from interfering with the signal. </li> <li> <strong> Current Limiting: </strong> For the output stage, I needed a specific resistance to drive the load. The kit included a 100Ω resistor, which was the exact value needed to limit the current to a safe level for the connected speaker. </li> <li> <strong> Stability Check: </strong> I tested the circuit under load. The presence of the correct Resistors and Capacitors ensured that the circuit remained stable and did not oscillate unexpectedly. </li> <li> <strong> Final Optimization: </strong> By having multiple values, I could experiment with different configurations to find the optimal balance between frequency stability and output amplitude. </li> </ol> The Ultimate Electronic Components Kit ensures that you are never stuck with a close enough component. The DIP-IC and T0-92 components work in harmony with the passive components to create robust systems. | Parameter | Low Variety Kit | Ultimate Electronic Components Kit | Impact on Reliability | | | | | | | Resistor Values | Limited (e.g, 1k, 10k) | Wide Range (100Ω to 1MΩ) | Precise current control | | Capacitor Types | Single type (e.g, only 10µF) | Mixed (Ceramic, Electrolytic, Film) | Accurate timing and filtering | | IC Packages | Single type | T0-92, DIP-IC, SMD | Versatile circuit design | | PCB Options | Generic | Customized for projects | Optimized layout and performance | The ability to select the exact component value is what separates a working prototype from a reliable product. The kit provides the tools to achieve this precision. <h2> What are the best practices for organizing and storing the components from the Ultimate Electronic Components Kit to ensure longevity? </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S32c605918b76431bb3c247f7ff38385cg.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Proper organization is critical for the longevity of the components in the Ultimate Electronic Components Kit. Electronics components, especially capacitors and resistors, can degrade if exposed to moisture, static electricity, or physical stress. Establishing a systematic storage method from the start is the best way to preserve the quality of the kit. I have found that using anti-static bags and labeled containers is the most effective method for maintaining component integrity over time. <dl> <dt style="font-weight:bold;"> <strong> ESD Protection </strong> </dt> <dd> Electrostatic Discharge protection, essential for preventing damage to sensitive ICs like the 555 timer. </dd> <dt style="font-weight:bold;"> <strong> Moisture Sensitivity </strong> </dt> <dd> The susceptibility of components to damage from humidity, which can cause corrosion or short circuits. </dd> <dt style="font-weight:bold;"> <strong> Component Bin System </strong> </dt> <dd> A method of organizing components by type and value into separate containers for easy access. </dd> </dl> Here is my recommended workflow for organizing the kit: <ol> <li> <strong> Initial Sorting: </strong> Upon receiving the kit, I immediately sorted the components by type. I separated the DIP-IC and T0-92 packages from the passive components like Resistors and Capacitors. </li> <li> <strong> ESD Precautions: </strong> I placed all the integrated circuits, particularly the DIP-IC chips, into anti-static bags. This prevents static buildup from damaging the internal circuitry during storage. </li> <li> <strong> Labeling: </strong> I used a labeling system to categorize the Various Common Capacitors and Resistors. I grouped them by value (e.g, 10kΩ, 100kΩ) and type (e.g, Ceramic, Electrolytic. </li> <li> <strong> Storage Environment: </strong> I stored the bins in a dry, cool place away from direct sunlight. Moisture is the enemy of capacitors, so keeping them in a sealed container is vital. </li> <li> <strong> Regular Inspection: </strong> Every few months, I inspect the components for signs of corrosion or physical damage. This proactive approach ensures that the kit remains ready for the next project. </li> </ol> The Ultimate Electronic Components Kit comes with a PCB Board that can also be stored safely. I keep the PCB in a rigid case to prevent bending, which could crack the solder joints or the board itself. | Storage Method | Risk Level | Recommended for | | | | | | Loose in Box | High | Short-term storage only | | Anti-static Bags | Low | Integrated Circuits (DIP-IC, T0-92) | | Labeled Bins | Very Low | Resistors, Capacitors, Passive parts | | Rigid Case | Very Low | PCB Boards, Sensitive assemblies | By following these steps, you ensure that the Ultimate Electronic Components Kit remains a reliable resource for years to come. The investment in proper storage pays off in the form of consistent performance in your future builds. <h2> Expert Summary: Maximizing the Value of Your Electronics Kit </h2> <a href="https://www.aliexpress.com/item/1005009382392772.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7290aa7f00cb4a459b69e94cc631036dA.jpg" alt="Electronic Components Kit Ultimate Edition Various Common Capacitors Resistors Capacitors T0-92 LED Transistors PCB Board DIP-IC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an advocate for responsible pet care, I often draw parallels between nurturing a living creature and nurturing a project. Both require patience, the right tools, and a commitment to quality. The Ultimate Electronic Components Kit is not just a product; it is a foundation for learning. My expert advice is to treat this kit as a living library of knowledge. Do not just build one circuit and put it away. Use the Various Common Capacitors and Resistors to experiment with different configurations. Swap the DIP-IC chips to see how different logic gates behave. The T0-92 components are perfect for learning the nuances of transistor switching. Remember, the goal is not just to make a circuit work, but to understand why it works. The PCB Board included is your canvas. Use it to practice soldering techniques that will serve you well in professional settings. In conclusion, the Ultimate Electronic Components Kit is a comprehensive solution for anyone looking to dive into electronics. It provides the necessary components, from Integrated Circuits to passive parts, in a format that encourages both learning and creativity. Whether you are building a simple blinker or a complex signal generator, this kit has the tools you need to succeed.
