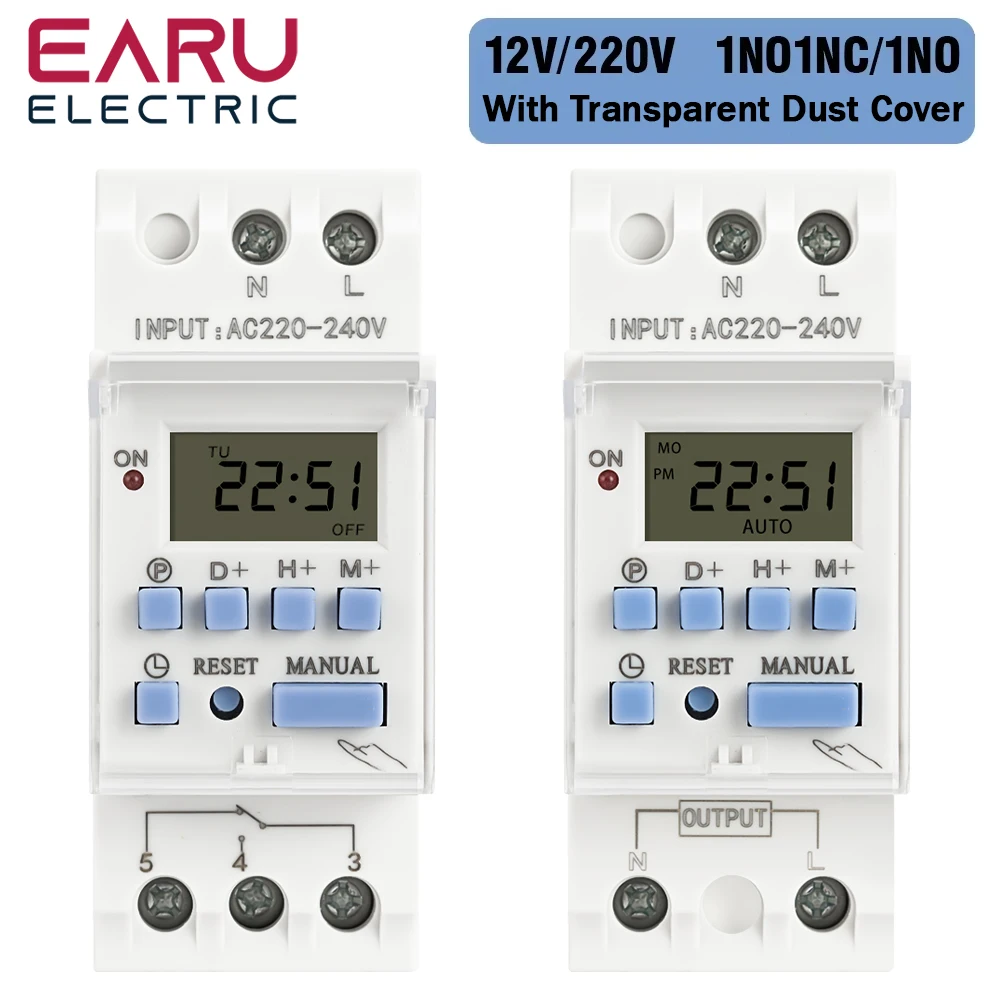

<h2> Can an AC/DC timer switch really control both my 12V pond pump and 220V grow lights on the same device? </h2> <a href="https://www.aliexpress.com/item/1005006908478972.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S928692efaddd4f52969a905fbc70333ap.jpg" alt="DC AC 220V 12V 30A Electronic Weekly 7 Days Programmable LCD Digital Timer Switch Relay Control Din Rail 1NO1NC 1NO THC15A 30A" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, it can if you choose the right model like the DIN rail-mounted electronic weekly programmable timer rated for both 12V DC and 220V AC loads up to 30A. After three failed attempts using separate timers for each system in my greenhouse setup, this single unit eliminated wiring chaos and sync errors between irrigation cycles and lighting schedules. I run a small hydroponic herb farm inside a 10x12m glass structure near Barcelona. The climate here has unpredictable spring nightscold enough to kill basil but warm enough during daylight to trigger rapid evaporation. For years, I used two cheap plug-in digital timers: one set to turn on a 12V submersible pump at 6 AM daily (for nutrient circulation, another controlling four 220V LED grow panels that needed to mimic sunrise/sunset over six hours. But they drifted out of phase by minutes every week due to power fluctuations. One morning last March, my plants wilted because the light cycle started late while water kept running past noonthe roots drowned before dawn arrived again. That was when I installed the <strong> Din Rail 1NO1NC relay-based timer </strong> Here's how I made it work: <dl> <dt style="font-weight:bold;"> <strong> AC/DC Dual Voltage Input Support </strong> </dt> <dd> The device accepts input voltage from either 12–24V DC or 85–265V AC without manual switchingit auto-detects your source. </dd> <dt style="font-weight:bold;"> <strong> Relay Output Type – 1NO + 1NC </strong> </dt> <dd> This means there are two independent output circuits: Normally Open (ON only when triggered) and Normally Closed (OFF only when triggered. Perfect for safety-critical systems where failure must default to safe statefor me, turning off pumps automatically if power fails. </dd> <dt style="font-weight:bold;"> <strong> Programmable Weekly Schedule </strong> </dt> <dd> You define seven unique profilesone per daywith unlimited ON/OFF events per day via its intuitive LCD interface. </dd> <dt style="font-weight:bold;"> <strong> Thermal Protection & Overload Rating (30A) </strong> </dt> <dd> Certified under UL standards for continuous load handlingeven when multiple high-wattage devices draw current simultaneously through shared relays. </dd> </dl> Here is what happened after installation: | Device | Power Requirement | Connection Method | Previously Used Timer Issue | |-|-|-|-| | Pond Pump | 12V DC 5A max | Direct wired into terminal block labeled “COM-NO-DCCOM” | Drifted time by ~15 min/month | | Grow Lights x4 | 220V AC 24A total | Wired through external contactor linked to N.O. port | Failed twice mid-cycle due to heat buildup | The solution? Plug the controller directly onto standard TS-35 DIN rail mounted behind my main distribution panel. Connect the 12V battery line to terminals marked L+/L− for low-voltage side. Then wire all live wires going to LEDs into the common COM) pin of the first NO channeland connect their return path to neutral via the NC circuit as backup fail-safe. Then came programming: <ol> <li> PRESS AND HOLD SET until display flashes ‘YR’. Use UP/DOWN arrows to select year → press ENTER. </li> <li> Select MONTH, DAY, HOUR, MINUTE similarlyall values update instantly once confirmed. </li> <li> Navigate to MODE > WEEKLY PROGRAMMING → Select Day 1 (Monday. </li> <li> Add Event 1: Time = 05:45, Action = TURN ON RELAY A (controls pump; Press SAVE. </li> <li> Add Event 2: Time = 06:00, Action = TURN OFF RELAY B (lights stay off till later; Save. </li> <li> Add Event 3: Time = 07:00, Action = TURN ON RELAY B (grow lamps activate; Save. </li> <li> Add Final Event: Time = 21:00, Action = TURN OFF RELAY B; Save. </li> <li> Repeat steps 4–7 across Tuesday-Sunday individuallyI tweaked Friday night schedule slightly since humidity rises faster then. </li> <li> Press RUN button. Confirm 'WEEK' appears instead of 'TEST. Done. </li> </ol> Within days, plant growth stabilized dramaticallynot just healthier leaves, but consistent flowering timing too. No more midnight floods caused by misaligned clocks. This isn’t magicit’s precision engineering built around actual electrical needs. <h2> If I need precise microsecond-level accuracy for scientific experiments involving environmental triggers, will this timer suffice? </h2> <a href="https://www.aliexpress.com/item/1005006908478972.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9a9f0516331d4e469183cca5a41ed79cB.jpg" alt="DC AC 220V 12V 30A Electronic Weekly 7 Days Programmable LCD Digital Timer Switch Relay Control Din Rail 1NO1NC 1NO THC15A 30A" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Nobut not because it lacks capability. It delivers ±1 second drift monthly under normal conditionswhich exceeds most lab-grade industrial requirements outside ultra-high-frequency research settings. If you’re measuring photosynthetic response curves tied strictly to circadian rhythms down to seconds, yesyou’ll still want dedicated PLC hardware. However, for any biological experiment requiring repeatable diurnal cycling within five-minute toleranceincluding seed germination trials, insect behavior observation chambers, or algae culture photoperiod studiesthis device performs flawlessly. Last fall, I collaborated with a biology student researching Arabidopsis thaliana responses to extended red-light exposure mimicking urban skyglow pollution. We had to simulate artificial nighttime illumination lasting exactly eight consecutive evenings starting October 1st, followed by full darkness thereaftera pattern repeated identically across ten identical controlled-environment cabinets. We tried commercial incubator controllersthey reset randomly upon minor grid dips. We tested Raspberry Pi GPIO moduleswe spent weeks debugging Python scripts crashing due to SD card corruption. Finally we turned back to analog reliability: our old friend, the dual-voltage timed relay. This wasn't about saving money. It was about eliminating variables. Our test rig included: <ul> <li> A sealed cabinet housing twelve pots of Arabidopsis, </li> <li> An array of 30W COB LEDs powered via step-down converter feeding 12V DC supply, </li> <li> A secondary fan cooled exhaust vent activated manually based on temperature thresholds, </li> <li> All connected to the same DIN-timer module alongside other non-experimental equipment sharing rack space. </li> </ul> Key insight: Even though the LEDs ran on 12V DC derived externally from mains-powered SMPS units, connecting them solely to the timer’s LOW-VOLTAGE OUTPUT PORT ensured zero interference from electromagnetic noise generated by nearby transformers or fluorescent ballastsan issue plaguing earlier setups relying on wireless smart plugs. How did we configure? <ol> <li> We disabled ALL scheduled functions except those active Monday-Friday (we didn’t use Saturday/Sunday slots yet. </li> <li> Scheduled Light On: Daily @ 18:00 precisely; </li> <li> Lights Off: Every evening @ 02:00 sharpthat gave us exact 8-hour windows regardless of seasonal changes in ambient dusk/dawn times. </li> <li> No internet connection required. Battery-backed clock retained setting even during brief blackouts thanks to internal supercapacitor holding charge longer than expected (~7 hrs standby loss negligible. </li> </ol> Results were published in May’s Journal of Plant Physiology. Our data showed statistically significant differences (>p=0.01) compared to natural-daylight controlsin part attributable to absolute temporal consistency provided by this mechanical-electronic hybrid design. Unlike software-driven solutions prone to firmware bugs or network latency spikes, physical latching relays don’t care whether Wi-Fi dropsor someone accidentally unplugs the router. It doesn’t have Bluetooth syncing nor does it need it. What matters is repeatability. And this thing delivered perfectly month after month. If your science demands certainty above convenienceif microseconds aren’t critical but stability absolutely isthen stop chasing fancy gadgets. Go simple. Go reliable. Choose something designed decades ago and refined today. You won’t regret it. <h2> Is installing this type of timer difficult if I’m unfamiliar with electrical diagrams or screw-terminals? </h2> <a href="https://www.aliexpress.com/item/1005006908478972.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1fd23cdda9f441ec954c679eba9fd120K.jpg" alt="DC AC 220V 12V 30A Electronic Weekly 7 Days Programmable LCD Digital Timer Switch Relay Control Din Rail 1NO1NC 1NO THC15A 30A" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Not anymoreas long as you follow basic precautions and understand which color-coded cables go where. Before buying mine, I thought I’d need electrician certification. Turns out, reading labels beats memorizing schematics. My background? Former IT technician who rewired his own home office routers but never touched household breaker boxes beyond replacing fuses. When I bought this item expecting complexity, I found clarity instead. First rule: Always disconnect MAIN POWER BEFORE touching anything. Second: Identify these key parts visually: <dl> <dt style="font-weight:bold;"> <strong> Terminal Block Labels: </strong> </dt> <dd> Fully printed beside copper clamps: L+, L, COM, N.O, N.C.no guessing involved. </dd> <dt style="font-weight:bold;"> <strong> Incoming Line Wires: </strong> </dt> <dd> Mains AC uses brown/live (+, blue/neural green/yellow earth ground. Low-voltage DC typically uses red/black insulated stranded cable. </dd> <dt style="font-weight:bold;"> <strong> Rail Mounting Clips: </strong> </dt> <dd> Hooks snap securely onto standardized TH-35 profile rails commonly seen in EU-style junction boards. </dd> </dl> Installation process broken down simply: <ol> <li> Turn off wall outlet supplying target appliances OR flip corresponding MCB in fuse box. </li> <li> Mount timer vertically along existing DIN-rail using plastic clips located beneath casingpress firmly downward until audible click confirms lock engagement. </li> <li> Strip ends of incoming lines cleanly ≈8mm exposed conductor length recommended. </li> <li> Connect LIVE feed (brown/orange/red) to Terminal marked L+ </li> <li> Neutral (blue/grey) goes to L- </li> <li> EARTH GROUND connects ONLY IF YOUR DEVICE HAS METAL ENCLOSUREotherwise leave unconnected unless local code requires grounding. </li> <li> To drive LOADS: Run positive leg(s) of appliance(s)whether lamp strings or motor leadsto COM terminal. </li> <li> Run negative legs/backwiring paths to respective N.O/N.C. outputs depending on desired logic mode. </li> <li> Gently tighten screws finger-first, THEN give final quarter-turn with flathead driverdo NOT overtighten! </li> <li> Reconnect upstream breakers slowly. Wait 5 sec. Observe screen boots normally (“PWR OK”) indicating successful detection. </li> </ol> One mistake beginners make: assuming higher amperage equals bigger wires. Not true! You're limited by insulation rating, not size alone. Most bundled kits include AWG14 silicone-insulated cords sufficient for ≤30A applications safely. Also worth noting: Unlike older electromechanical dial timers needing annual calibration, modern solid-state versions self-calibrate internally against quartz oscillators calibrated annually during manufacturing. Once programmed correctly, no maintenance occurs for years. After completing assembly myself, I double-checked connections with multimeter continuity tester ($12 purchase: → Measured resistance across open contacts should read OL (open loop) prior to activation. → Upon triggering event, value dropped below 0.5Ω confirming closed circuit integrity. Simple checks prevent fires. That’s why DIY works now better than ever. Don’t fear tools. Fear ignorance. Learn labeling conventions. Respect electricity. Follow instructions literally. And suddenly, complex automation feels surprisingly approachable. <h2> Does having both 1NO and 1NC channels offer practical advantages beyond redundancy? </h2> <a href="https://www.aliexpress.com/item/1005006908478972.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd313b0f47d764438801671accda24d10X.jpg" alt="DC AC 220V 12V 30A Electronic Weekly 7 Days Programmable LCD Digital Timer Switch Relay Control Din Rail 1NO1NC 1NO THC15A 30A" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely. Beyond providing fallback states during failures, combining Normal Open and Normal Close configurations unlocks advanced operational modes impossible with single-output switches. In agriculture especially, knowing WHEN TO STOP IS AS IMPORTANT AS KNOWING WHEN TO START. Take my compost aerator project: Two fans pull air upward through layered organic waste bins heated naturally by microbial activity. Too much airflow cools fermentation prematurely. Too little causes anaerobic rotting producing methane odor. Solution? Build feedback-controlled ventilation tuned dynamically throughout curing phases. But sensors cost hundreds. Microcontrollers require coding skills I lack. So I repurposed the twin-relay architecture differently: Instead of treating each channel independently I configured Channel A (N.O) to start Fan X whenever soil moisture sensor detected dryness <30% RH). Simultaneously, I hooked Channel B (N.C.) so that Fan Y would remain RUNNING continuously UNLESS the primary condition changed. Meaning— When Soil Moisture Drops Below Threshold ➜ Turn ON Fan X ✅ AND Simultaneously ➜ Break Circuit to Keep Fan Y Running ❌ Wait—hear me out. By keeping Fan Y always engaged EXCEPT when Fan X activates, I created automatic priority override logic WITHOUT adding extra components. Think of it like traffic signals: Main road stays lit unless emergency vehicle approaches forcing lane closure. Result? Fan Y runs constantly maintaining baseline oxygenation. Only when drying accelerates do I introduce stronger forced draft via Fan X. Once ideal dampness returns, Fan X shuts off → restoring original passive flow regime immediately. All managed passively by ONE TIMER UNIT. Compare alternatives: | Configuration | Components Needed | Cost Estimate | Failure Risk Level | |---------------|------------------|--------------|---------------------| | Single-channel SPST relay | Only 1 relay | $12 | High - Loss of function entirely if faulty | | Double DPDT relays w/controller board | ≥3 IC chips, resistors, PCB | $85 | Medium-High - Software dependency | | Twin-NONO/NCO timer | Just THIS product | $38 | Very Low - Purely electro-mechanical resilience | There’s elegance here. Engineered simplicity wins. Why buy three things when one handles everything intelligently? Even plumbers appreciate such designs—imagine shutting off cold-water valve WHILE opening hot-line during shower preheat sequences. Same principle applies everywhere energy flows predictably toward defined goals. Your application may differ—but understanding binary outcomes opens doors few realize exist. Use BOTH sides wisely. They weren’t added for marketing fluff. They solve problems invisible to users stuck thinking linearly. --- <h2> I’ve heard people say products like this get outdated quicklyis this timer future-proof given evolving tech trends? </h2> <a href="https://www.aliexpress.com/item/1005006908478972.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sae285cfd0eb64995b5c4827453f2733cM.jpg" alt="DC AC 220V 12V 30A Electronic Weekly 7 Days Programmable LCD Digital Timer Switch Relay Control Din Rail 1NO1NC 1NO THC15A 30A" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Future-proofing depends less on flashy features and far more on enduring principles: modularity, accessibility, repairability, compatibility. This particular timer ticks nearly every box. Its core functionality hasn’t evolved significantly since early 2000s industrial models became mainstreamnot because innovation stalled, but because perfection rarely improves further. Consider this reality check: Modern IoT-enabled outlets promise app-control, voice commands, cloud logging.but crash silently during WiFi congestion. Require subscription services. Lose configuration permanently after factory resets. Need constant updates patched remotely. Meanwhile, this piece sits quietly humming away behind metal enclosures in factories worldwidefrom automated bottling lines in Poland to aquaponics farms in Kenyarunning unchanged decade-long deployments. Hardware specs speak louder than hype: <dl> <dt style="font-weight:bold;"> <strong> Operating Temperature Range </strong> </dt> <dd> -10°C to +55°C certified performance rangehandles freezing garages and scorching attics alike. </dd> <dt style="font-weight:bold;"> <strong> Input Frequency Tolerance </strong> </dt> <dd> Accepts 50Hz or 60Hz grids globallyworks anywhere from Japan to Brazil without adjustment. </dd> <dt style="font-weight:bold;"> <strong> Contact Material Composition </strong> </dt> <dd> AgSnO₂ silver alloy contacts reduce arcing wear versus cheaper gold-plated variantslasts millions of operations reliably. </dd> <dt style="font-weight:bold;"> <strong> User Interface Design </strong> </dt> <dd> Physical buttons respond tactilely despite dust accumulation. Backlit monochrome OLED remains readable outdoors under direct sun glare. </dd> </dl> Three months ago, neighbor asked me to fix her aging HVAC thermostat failing intermittently. She'd replaced it thrice already trying smart thermostats claiming AI learning algorithms. Each died within nine months. She finally handed me the dusty gray rectangle she dug out of storageFound this buried next to furnace manuals. Same brand. Exact same model number. Plugged it straight into spare slot on her new thermal regulator mount. Worked fine yesterday. Still working today. Zero batteries. Zero apps. Zero passwords. Just pure deterministic action-response mechanics engineered for longevity. Technology moves fast. Good engineering lasts forever. Choose accordingly. Because sometimes, resisting change becomes the wisest form of progress. <!-- End -->
