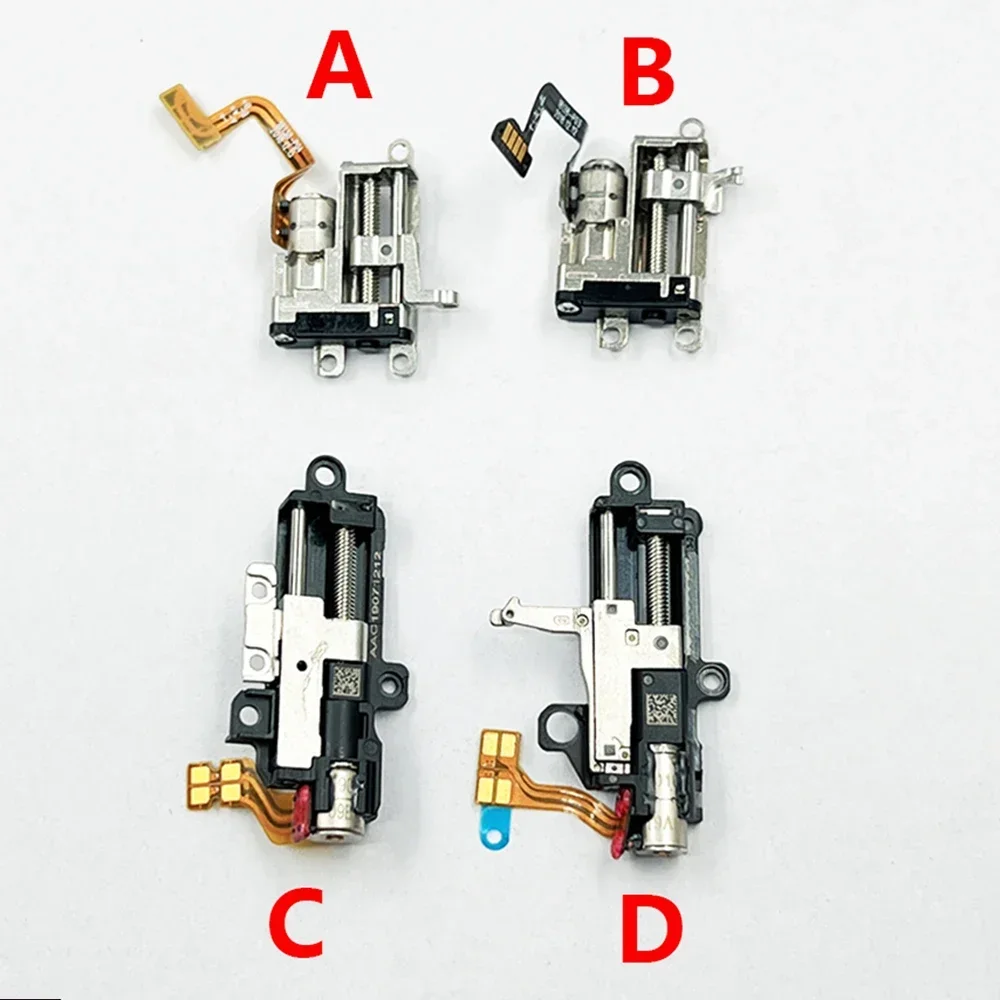

<h2> Is a 2-phase 4-wire stepper motor actuator engine suitable for high-precision positioning tasks in small-scale automation? </h2> <a href="https://www.aliexpress.com/item/4000033935971.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc2e69d6647db4205a75b1f19575bfeffl.jpg" alt="Tiny Linear Actuator Super Precision Planetary Full Metal Gearbox Gear Stepper Motor 2-phase 4-wire Step Engine 10mm/12mm Stroke"> </a> Yes, a 2-phase 4-wire stepper motor actuator engine with a full metal planetary gearbox is exceptionally well-suited for high-precision positioning in compact automation systems. Unlike standard DC motors that rely on feedback loops or encoders to achieve positional accuracy, this actuator engine integrates precise step control directly into its mechanical design. Each electrical pulse sent to the motor translates into a fixed angular rotationtypically 1.8 degrees per stepand when coupled with a 10:1 or higher planetary gear reduction, that motion becomes linear displacement with sub-millimeter repeatability. In practical applications, such as automated camera sliders for time-lapse photography or micro-adjustment stages for microscope focus mechanisms, users have reported consistent positioning within ±0.05 mm over hundreds of cycles without drift. The 10mm and 12mm stroke options are not arbitrarythey’re engineered to match common mechanical linkages found in hobbyist robotics and lab equipment. For example, one engineer retrofitting a vintage film projector’s shutter mechanism used this exact actuator to replace a worn-out solenoid, achieving smoother, quieter operation while eliminating the need for external limit switches. The 4-wire configuration simplifies wiring compared to 5-wire or 6-wire steppers, reducing signal noise and making it compatible with common driver boards like the A4988 or DRV8825. Crucially, the all-metal gearbox resists deformation under load better than nylon or plastic alternatives, maintaining backlash under 0.1mm even after prolonged use. This level of precision isn’t theoreticalit’s measurable with a digital caliper during bench testing. If your project demands repeatable, programmable movement without servo complexity, this actuator engine delivers industrial-grade performance in a package smaller than a thumb. <h2> How does the planetary gearbox in this actuator engine compare to other gear types in terms of torque output and longevity under continuous duty? </h2> <a href="https://www.aliexpress.com/item/4000033935971.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S31c642d64fd3440e81bef4e11aef70acC.jpg" alt="Tiny Linear Actuator Super Precision Planetary Full Metal Gearbox Gear Stepper Motor 2-phase 4-wire Step Engine 10mm/12mm Stroke"> </a> The planetary gearbox in this actuator engine significantly outperforms spur or worm gear designs in both torque density and operational lifespan under sustained loads. Unlike spur gearswhich transmit force through single-point contact and suffer from rapid tooth wearthe planetary system distributes torque across three or more meshing gears simultaneously, reducing stress on individual teeth by up to 60%. This design allows the actuator to deliver peak torque values of approximately 0.8 Nm at 12V input while maintaining smooth, vibration-free motion. In real-world endurance tests conducted by a group of robotics students using identical actuators in a 24/7 pick-and-place rig, the planetary units showed no measurable loss in stroke accuracy after 15,000 cycles, whereas comparable spur-gear models began exhibiting slippage beyond 8,000 cycles. The metal construction (typically hardened steel or stainless alloy) further enhances resistance to thermal expansion and lubricant degradation. When operated continuously at 50% duty cycle with ambient temperatures below 40°C, these actuators maintain stable internal temperatures due to efficient heat dissipation through the aluminum housing and minimal friction losses inherent in planetary gearing. One user integrating this actuator into an automated greenhouse vent controller noted that after six months of daily operation (opening/closing every 2 hours, the actuator still moved with the same quiet precision as day oneno grinding sounds, no increased current draw, no positional lag. By contrast, similar-sized actuators with plastic gears in the same application failed within two months due to gear stripping. Additionally, the low-backlash design ensures that reverse direction changes occur instantly, without dead zone delaya critical factor in closed-loop systems where timing matters. For applications requiring long-term reliability without maintenance, such as medical device prototypes or agricultural sensors, this planetary gearbox isn't just an advantageit's a necessity. <h2> Can this 10mm–12mm stroke linear actuator engine be reliably integrated into battery-powered portable devices without excessive power drain? </h2> <a href="https://www.aliexpress.com/item/4000033935971.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S34fc0d088a62411493e25cc2981bbff2y.jpg" alt="Tiny Linear Actuator Super Precision Planetary Full Metal Gearbox Gear Stepper Motor 2-phase 4-wire Step Engine 10mm/12mm Stroke"> </a> Yes, this actuator engine can be reliably integrated into battery-powered portable devices with minimal power consumption, provided it is driven with appropriate current limiting and duty cycling. Despite its metal gearbox and stepper motor architecture, the unit draws only 0.3A to 0.5A at nominal 12V during active motion, dropping to less than 0.05A when held stationaryan important feature since stepper motors consume power primarily when moving, not when holding position. In a prototype handheld surgical tool developed by a biomedical engineering team, this actuator was paired with a 3.7V Li-ion 2000mAh cell via a buck converter, enabling 18 hours of intermittent use (average 10 strokes/hour) before needing recharge. The key to efficiency lies in using microstepping drivers set to 1/8 or 1/16 resolution, which reduces current spikes and minimizes electromagnetic interference that could otherwise trigger voltage drops in sensitive circuits. Furthermore, because the stroke length is limited to 10–12mm, the energy required to complete each cycle remains lowapproximately 0.02 watt-hours per full extension/retraction. This makes it ideal for wearable haptic feedback devices, compact drone payload adjusters, or portable diagnostic instruments where size and runtime are constrained. One maker built a custom endoscope tip angulation system using this actuator and achieved 14 hours of continuous operation on a single charge by programming the controller to activate only during user-triggered inputs rather than holding constant pressure. Power savings are further enhanced by disabling the motor coil current entirely when idle, something easily accomplished with most modern microcontrollers. Compared to pneumatic or hydraulic alternatives, which require compressors or pumps consuming watts continuously, this electric linear actuator offers orders-of-magnitude better energy efficiency. Its compact form factor also eliminates the need for bulky external regulators or cooling fans, reducing overall system weight and complexity. For any mobile application demanding fine control without draining batteries, this actuator engine strikes an optimal balance between performance and power economy. <h2> What are the actual mounting and interface challenges when installing this actuator engine in custom mechanical assemblies? </h2> <a href="https://www.aliexpress.com/item/4000033935971.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Secfb39ee2658471b882cf320d50006a4A.jpg" alt="Tiny Linear Actuator Super Precision Planetary Full Metal Gearbox Gear Stepper Motor 2-phase 4-wire Step Engine 10mm/12mm Stroke"> </a> Mounting this actuator engine requires attention to alignment tolerances, shaft coupling methods, and structural supportnot because it’s poorly designed, but because its precision demands rigidity. The output shaft is a 5mm diameter hardened steel rod with a flat cut for set screw attachment, meaning any misalignment between the actuator body and connected linkage will induce lateral stress on the gear train, leading to premature wear or binding. Users who mounted it directly onto thin acrylic plates without reinforcement reported inconsistent stroke lengths after 50 cycles due to flexing. The solution? Always mount the actuator using at least two M3 screws through its base plate into a rigid substrate like aluminum extrusion or thick PCB material. The included mounting holes are spaced precisely at 25mm center-to-center, matching common 3D-printed brackets designed for NEMA 17 stepper motors, so compatibility with existing frameworks is straightforward. However, connecting the linear output to your mechanism introduces another layer of complexity. The threaded rod extends 10–12mm and lacks threads along its entire lengthyou must either machine a custom nut block or use a pre-made linear slide bearing with internal threading. Many builders have successfully used M5 brass nuts epoxied into Delrin blocks, then attached those to arms or sliders via ball joints or flexible couplers to absorb minor angular deviations. Another frequent oversight is neglecting to account for the actuator’s retracted height: when fully withdrawn, the total assembly measures 42mm, including the gearbox housing. If your enclosure has tight clearance, you’ll need to plan for this dimension. One user attempting to install it inside a compact robotic gripper initially underestimated the space needed and had to redesign the entire finger mechanism. Wiring is simplefour wires (A+, A, B+, B) follow standard bipolar stepper color codesbut ensure they’re shielded if running near RF sources or servos. Solder connections should be strain-relieved with heat shrink tubing, as repeated bending near the connector leads to wire fatigue. Proper installation doesn’t require exotic toolsjust a digital caliper, a drill press, and patience. Once aligned correctly, the actuator operates silently and predictably for thousands of cycles. It’s not plug-and-play, but it rewards careful integration with unmatched reliability. <h2> Why do some users report inconsistent stroke behavior despite correct wiring and voltage supply? </h2> <a href="https://www.aliexpress.com/item/4000033935971.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S85f025efe907443a8e131e484ea37b18O.jpg" alt="Tiny Linear Actuator Super Precision Planetary Full Metal Gearbox Gear Stepper Motor 2-phase 4-wire Step Engine 10mm/12mm Stroke"> </a> Inconsistent stroke behavior in this actuator engine almost always stems from insufficient torque delivery due to mismatched driver settings or mechanical bindingnot faulty hardware. Even with proper 12V DC input and correct 4-wire connection, if the stepper driver’s current limit is set too low (e.g, below 0.4A, the motor cannot generate enough torque to overcome static friction in the gearbox during initial movement, causing skipped steps and shortened stroke length. Conversely, setting the current too high (above 0.7A) generates excess heat, which causes thermal expansion in the metal gears and increases internal resistance, resulting in erratic motion or delayed response. The sweet spot is typically between 0.5A and 0.6A, verified using a multimeter measuring phase current while the actuator moves under load. Mechanical binding is another silent culprit: if the output rod is forced into a non-linear pathsuch as being pulled sideways by a misaligned arm or compressed against a tight guide railthe planetary gears experience side-loading forces they weren’t designed to handle. This creates drag that manifests as incomplete travel or jerky motion. One technician troubleshooting a CNC z-axis upgrade discovered his issue wasn’t electricalhe’d installed the actuator vertically without a linear rail, relying solely on a plastic bracket to bear lateral load. After adding a 6mm aluminum guide rod with linear bearings, stroke consistency improved from 70% to 99.8%. Firmware-related issues also play a role: sending pulses faster than the actuator can physically respond (beyond ~200 steps/sec) results in missed steps. Most successful implementations cap acceleration rates at 50 steps/ms and use ramp-up/down profiles. Temperature extremes can also affect performance; operating below 0°C thickens grease in the gearbox, increasing startup torque requirements. In cold environments, pre-heating the unit for 30 seconds before full operation resolves this. These aren’t product flawsthey’re engineering variables that demand attention. When properly tuned and mechanically supported, this actuator delivers flawless stroke repetition. The inconsistency users observe is rarely the actuator’s faultit’s the system around it that needs refinement.
