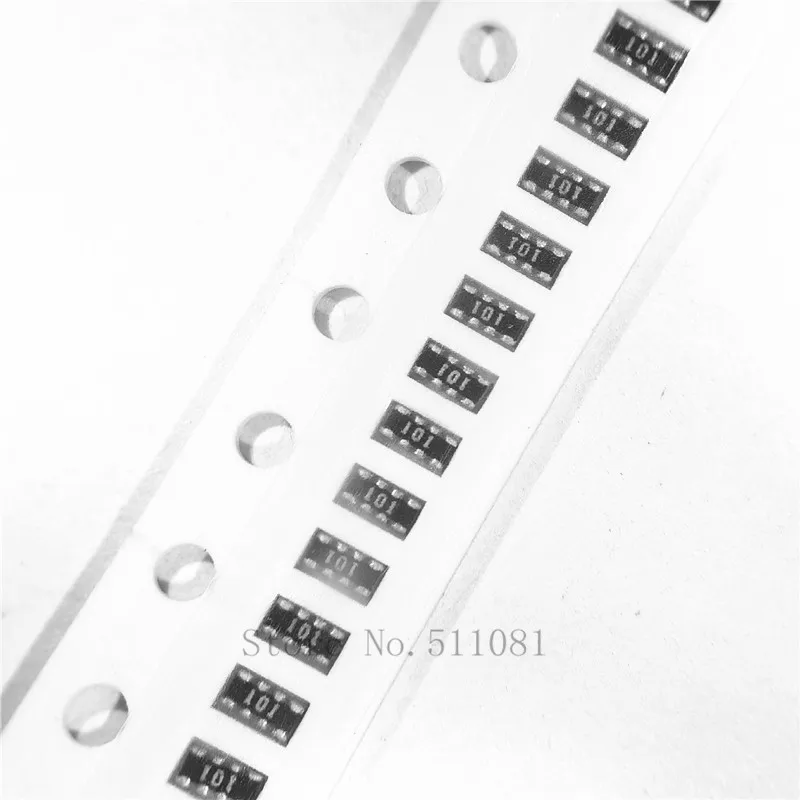

<h2> What Is an Array Excel Resistor and How Does It Work in Circuit Design? </h2> When you search for array excel on AliExpress, you're likely not looking for a spreadsheet toolinstead, you're diving into the world of electronic components, specifically resistor arrays. But what exactly is an array Excel, and why is it so popular among hobbyists, engineers, and manufacturers? The term array excel is a common misinterpretation or shorthand used by buyers searching for resistor arrays, particularly those with precise resistance values like 22 ohm, 1K, 4.7K, and 10K. These components are often labeled with codes such as 0402, 8P4R, 24P, and 22R, which refer to their physical size, pin configuration, and resistance value. In reality, array excel isn’t a product categoryit’s a user-generated search term that reflects a demand for compact, high-precision resistor arrays used in modern electronics. Resistor arrays, also known as resistor networks, are integrated circuits that contain multiple resistors in a single package. They are designed to simplify circuit design by reducing the number of individual components, saving space on printed circuit boards (PCBs, and improving signal integrity. The 0402 size refers to the physical dimensions0.04 inches by 0.02 inchesmaking these components ideal for miniaturized devices like smartphones, wearables, and IoT gadgets. The 8P4R designation means the package has 8 pins and 4 resistors, typically arranged in a dual inline configuration. The 24P variant indicates two sets of four-pin resistors, often used in applications requiring multiple pull-up or pull-down configurations. The 22 ohm 22R 22 R labeling is a standard way of denoting resistance values in electronic components. The R is used as a decimal point substitute (e.g, 22R = 22 ohms, 1K = 1,000 ohms. These arrays are commonly used in digital logic circuits, microcontroller interfaces, and signal conditioning circuits. For example, a 100-piece pack of 0402 8P4R 22 ohm resistor arrays can be used to create multiple pull-up resistors for I2C or SPI communication lines, ensuring stable signal levels and reducing noise. Why are these components so sought after on AliExpress? Because they offer a cost-effective, high-quality solution for both prototyping and mass production. The 10R, 15R, 33R, 47R, 1K, 2.2K, 4.7K, and 10K values in the product listing cover a wide range of common applications, from voltage dividers to biasing circuits. The 5% tolerance (J) ensures acceptable precision for most non-critical applications, while the 220 j 5% variant offers a slightly higher resistance value for specialized uses. These arrays are also RoHS-compliant and suitable for reflow soldering, making them ideal for automated manufacturing processes. In short, array excel is a search term that encapsulates the demand for compact, multi-resistor solutions in modern electronics. Whether you're building a smart sensor module, a home automation device, or a custom PCB, resistor arrays like those found on AliExpress provide a reliable, space-saving, and affordable option. Understanding their function and specifications is the first step toward smarter circuit design. <h2> How to Choose the Right Resistor Array for Your Project on AliExpress? </h2> Selecting the correct resistor array for your electronics project on AliExpress requires more than just matching a resistance valueit involves understanding the technical specifications, physical constraints, and application requirements. When you search for array excel, you’re likely comparing multiple listings with similar names but different configurations. So how do you make the right choice? First, consider the package size. The 0402 size is one of the smallest available, ideal for compact designs. However, it requires precision soldering tools and is less suitable for hand-soldering beginners. If you're working on a prototype or a beginner-friendly project, you might want to consider larger packages like 0603 or 0805, which are easier to handle and solder. On AliExpress, many listings offer 0402 arrays, but always check the product image and to confirm the actual size. Next, examine the pin configuration. The 8P4R (8 pins, 4 resistors) and 24P (two sets of four pins) designs are common in digital circuits. The 4 resistors are typically connected in a common-cathode or common-anode configuration, which is useful for driving LEDs, managing I2C pull-up resistors, or creating voltage dividers. Make sure the configuration matches your circuit’s needs. For example, if you’re building a microcontroller interface with multiple digital inputs, a 24P array with 1K or 10K resistors can serve as pull-up resistors for each line. Resistance value is another critical factor. The product listing includes 10R, 15R, 33R, 47R, 1K, 2.2K, 4.7K, and 10Kvalues that cover most common applications. Use 1K or 10K for pull-up/pull-down circuits in digital logic. Use 22R or 47R for current-limiting in LED circuits or biasing in amplifier stages. The 22 ohm value is often used in signal filtering or as a current-sense resistor in low-voltage circuits. Always verify the tolerance5% (J) is standard and sufficient for most applications, but if you need higher precision, look for 1% or 0.1% tolerance variants. Another key consideration is the power rating. Most 0402 resistors have a power rating of 1/16W (62.5mW, which is adequate for low-current applications. If your circuit involves higher currents or continuous operation, you may need to derate the power or choose a larger package. Also, check the temperature coefficient and material typemetal film resistors offer better stability and lower noise than carbon film. Finally, evaluate the seller’s reputation and product reviews. On AliExpress, look for sellers with high ratings, verified purchases, and detailed product images. Check for comments about soldering quality, component consistency, and delivery speed. Some listings include bulk packs like 100PCS, which offer better value for larger projects. Always confirm that the product is RoHS-compliant and suitable for reflow soldering if you’re using automated assembly. By carefully analyzing package size, configuration, resistance values, tolerance, power rating, and seller reliability, you can confidently choose the right resistor array for your projectwhether you're a hobbyist, student, or professional engineer. <h2> What Are the Best Applications for 0402 Resistor Arrays in Modern Electronics? </h2> The 0402 resistor array, often referred to in searches as array excel, is a cornerstone component in modern electronics due to its compact size, high density, and reliability. These tiny arrays are not just for advanced engineersthey’re essential in a wide range of applications, from consumer gadgets to industrial control systems. So, what are the best uses for these miniature resistor networks? One of the most common applications is in digital logic circuits, particularly for pull-up and pull-down resistors. In I2C, SPI, and UART communication protocols, signal lines must be held at a defined voltage level when not actively driven. A 10K or 1K resistor array with a 24P configuration can provide multiple pull-up resistors on a single chip, simplifying the PCB layout and reducing component count. This is especially useful in microcontroller-based projects where multiple sensors or peripherals are connected. Another key use is in LED driver circuits. The 22R or 47R resistor values are ideal for current-limiting in low-voltage LED applications. For example, in a wearable device with multiple status LEDs, a single 0402 8P4R array can manage the current for four LEDs, ensuring consistent brightness and preventing burnout. The small size allows for tight integration into compact enclosures. Resistor arrays are also widely used in voltage divider circuits for analog signal conditioning. In sensor interfacessuch as temperature, light, or pressure sensorsvoltage dividers are used to scale the sensor output to a range compatible with an ADC (analog-to-digital converter. A 1K and 10K resistor pair from a 24P array can create a precise divider, and the 5% tolerance is acceptable for most non-critical measurements. In power management circuits, 0402 arrays help with biasing and feedback in voltage regulators and op-amps. For instance, a 2.2K and 4.7K resistor pair can be used in a feedback loop to set the output voltage of a buck converter. The compact size allows these components to be placed close to the IC, minimizing parasitic effects and improving stability. Additionally, these arrays are used in EMI/RFI filtering and decoupling circuits. By placing small resistors in series with signal lines or power rails, they help suppress high-frequency noise and improve signal integrity. This is crucial in high-speed digital designs and wireless communication modules. Finally, in IoT and smart home devices, where space is at a premium, 0402 resistor arrays enable miniaturization without sacrificing functionality. From smart switches to environmental monitors, these components help pack more features into smaller form factors. In summary, the 0402 resistor array is a versatile, space-saving solution for modern electronics. Whether you're designing a microcontroller board, a sensor module, or a wearable device, these arrays offer a reliable and efficient way to manage resistance in complex circuits. <h2> How Do Resistor Arrays Compare to Individual Resistors in Terms of Performance and Cost? </h2> When deciding between resistor arrays and individual resistors, it’s essential to compare their performance, cost, and practicalityespecially when sourcing components like those labeled array excel on AliExpress. While both options serve the same fundamental purpose, their differences can significantly impact your project’s success. First, consider space efficiency. A single 0402 8P4R resistor array replaces four individual 0402 resistors, saving valuable PCB real estate. This is critical in compact devices like smartwatches, earbuds, and portable sensors. By using an array, you reduce the number of solder joints, which lowers the risk of cold soldering and improves reliability. In contrast, using four separate resistors increases the footprint and complexity of the layout. Next, performance consistency. Resistor arrays are manufactured on the same substrate, meaning their resistance values are closely matched. This is especially important in applications like differential amplifiers, voltage dividers, and current sensing, where matched resistors ensure accuracy and reduce errors. Individual resistors, even from the same batch, may vary due to manufacturing tolerances. While 5% tolerance is acceptable for many uses, arrays offer better consistency. Cost is another major factor. On AliExpress, a 100-piece pack of 0402 8P4R arrays often costs less than buying 400 individual resistors. Bulk pricing makes arrays more economical for large-scale production. Additionally, the reduced component count lowers assembly time and labor costs, especially in automated SMT (surface mount technology) lines. However, individual resistors offer greater flexibility. If you need only one 1K resistor, buying a single piece is more cost-effective than purchasing a 4-resistor array. Arrays are best suited for applications requiring multiple resistors of the same value or configuration. If your design needs varied resistance values, individual resistors are more practical. Reliability and repairability also differ. If one resistor in an array fails, the entire package may need replacement. Individual resistors can be replaced one at a time. But in most modern designs, arrays are more reliable due to fewer solder joints and better thermal stability. In conclusion, resistor arrays outperform individual resistors in space, consistency, and cost for multi-resistor applications. For projects requiring multiple pull-up resistors, voltage dividers, or LED drivers, arrays are the smarter choice. For simple, one-off circuits, individual resistors may still be preferable. The key is matching the component to your specific design needs. <h2> What Are the Key Specifications to Look for When Buying Resistor Arrays on AliExpress? </h2> When searching for array excel on AliExpress, it’s crucial to scrutinize the product specifications to ensure you’re getting a reliable, high-quality component. Not all listings are created equal, and overlooking key details can lead to design failures or assembly issues. Here are the essential specifications to verify before purchasing. First, check the package size0402 is standard, but confirm it’s not confused with 0603 or 0805. Mislabeling is common on low-cost platforms. The physical dimensions directly affect soldering and PCB layout. Next, verify the pin configuration: 8P4R or 24P. Ensure the configuration matches your circuit’s needscommon-cathode, common-anode, or independent resistors. Resistance value and tolerance are critical. Look for values like 10R, 1K, 4.7K, and 10K, and confirm the tolerance is 5% (J) or better. Higher precision (1% or 0.1%) is available but more expensive. Check the power ratingtypically 1/16W for 0402. Ensure it’s sufficient for your application’s current. Confirm the material type: metal film offers better stability than carbon film. Finally, review seller ratings, product images, and customer feedback. Look for mentions of soldering quality, component consistency, and delivery speed. Always choose sellers with verified purchases and detailed technical data.
