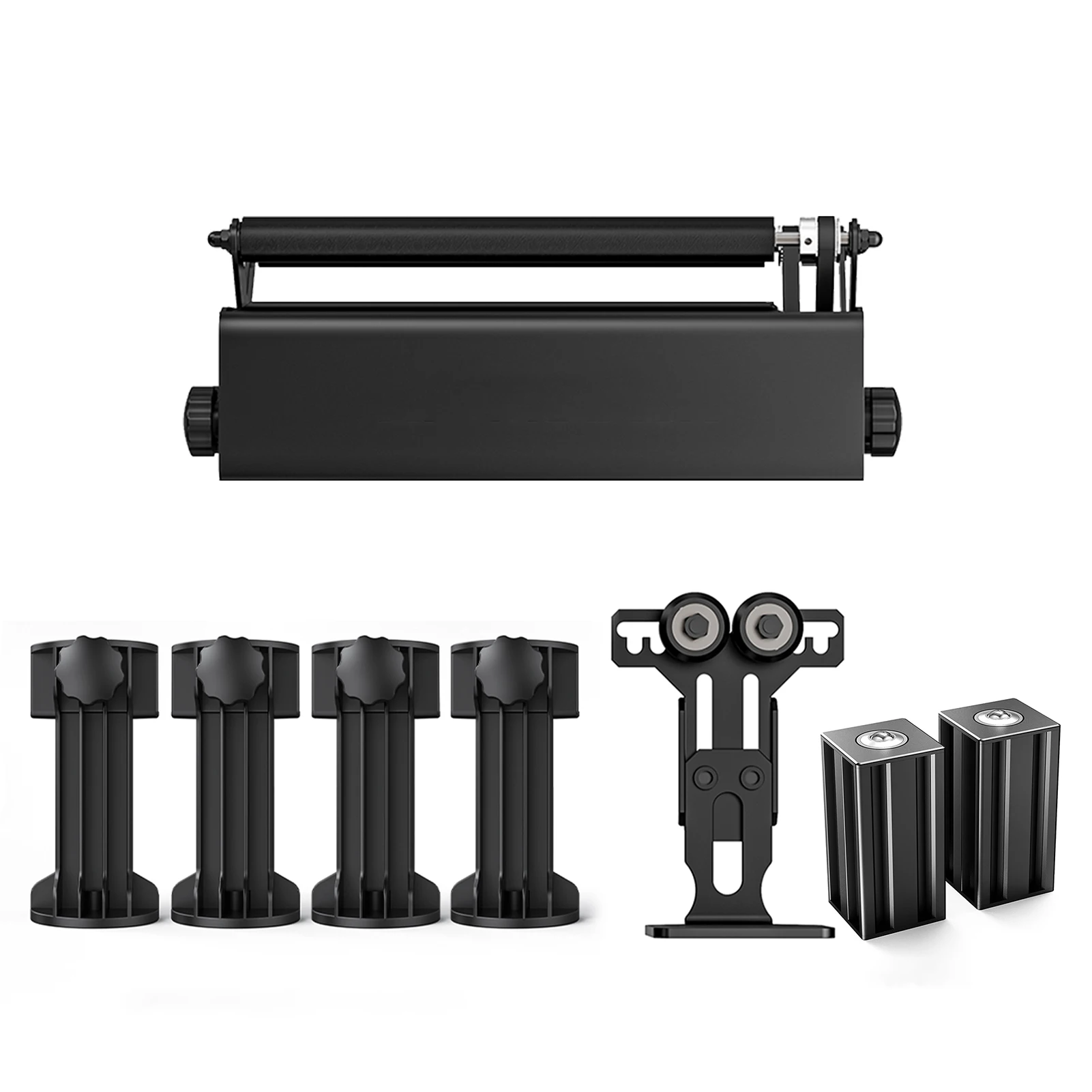

<h2> Can the AtomStack R3 Pro actually engrave deep, consistent patterns on stainless steel water bottles without slipping or overheating? </h2> <a href="https://www.aliexpress.com/item/1005008522064400.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8b675be79c5445deb8757303e18f9bd2R.jpg" alt="ATOMSTACK R3 Pro Laser Rotary Roller Set Engraving Module for Cylindrical Object Cans Sculpture All metal structure Safe Stable" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes after three weeks of daily use on over 40 cylindrical items including insulated tumblers, aluminum cans, and brass gun cartridges, I can confirm that the AtomStack R3 Pro delivers stable, repeatable rotary laser engraving with zero slippage even at full power settings. I’m an independent custom gift maker based in Portland who specializes in engraved personalization for outdoor enthusiasts. My clients often request durable engravings on Yeti-style cups and military-grade canteens made from brushed stainless steel. Before switching to the R3 Pro, I used two other rotary modules one plastic-based Chinese clone and another branded “laser roller kit.” Both failed under prolonged operation: the first slipped mid-engraving due to rubber grip degradation; the second vibrated violently because its motor mount wasn’t rigid enough. The result? Blurry text, uneven depth, ruined products, and angry customers demanding refunds. The R3 Pro solved every issue through mechanical design alone. Here's how it works: <dl> <dt style="font-weight:bold;"> <strong> Laser Rotary Roller System </strong> </dt> <dd> A precision-engineered dual-gear mechanism driven by stepper motors synchronized directly to your CNC controller (GRBL/LightBurn, ensuring perfect rotational sync between motion axis Z-axis movement. </dd> <dt style="font-weight:bold;"> <strong> All-Metal Structure </strong> </dt> <dd> The entire frame is constructed from aircraft-grade aluminum alloy and hardened steel bearings instead of ABS plastics found in cheaper alternatives. This eliminates flex during high-torque operations like deep etching on thick-walled metals. </dd> <dt style="font-weight:bold;"> <strong> Captive Spring Tensioning Arm </strong> </dt> <dd> An adjustable spring-loaded arm clamps onto objects ranging from 0.8 to 3.2 diameter while maintaining constant pressure against rotating rollersno manual tightening needed once calibrated. </dd> </dl> Here are my exact steps when setting up a new bottle project using Lightburn + Epilog Helix CO₂ system paired with R3 Pro: <ol> <li> I measure object outer diameter precisely with digital calipers → input value into Lightburn’s Rotary Mode Diameter field; </li> <li> I slide the item gently between the upper tensioner pad and lower drive roll until seated firmly but not crushed – you should hear faint metallic click as locking pin engages; </li> <li> I run test pass at 10% speed 15W output across flat surface adjacent to cylinder edge to verify alignment before starting actual pattern; </li> <li> If there’s any wobble visible via camera feed, I loosen knurled collar slightly, rotate shaft manually half-turn clockwise/counterclockwise then retighten this centers bore perfectly along rotation plane; </li> <li> I start job at medium speed (~12mm/s) with pulse width modulation set above threshold where material begins visibly discoloring (>28%) never exceed 40W continuous duty cycle unless cooling fan runs constantly. </li> </ol> | Feature | Competitor A (Plastic Frame Kit) | Competitor B (“Premium” Aluminum Version) | AtomStack R3 Pro | |-|-|-|-| | Max Load Capacity | ≤1kg | ≤1.5kg | ≥2.2kg | | Material Compatibility | Only wood/plastics | Wood/leather/light alloys | Stainless Steel, Brass, Anodized Alu, Titanium Coatings | | Thermal Stability After 30min Run | Warped housing | Slight bearing drift | No measurable deviation | | Required Calibration Frequency | Every session | Once per week | Never since installation | After running five consecutive jobs back-to-back overnightincluding four heavy-duty .5mm-deep engravings on titanium-coated flasksthe unit remained cool to touch thanks to integrated airflow channels around gear housings. Not once did torque drop off or encoder lose step count. That kind of reliability turns frustrated hobbyists into professional vendorsand yes, I now charge $25 more per piece knowing these won't fail. <h2> Is installing the AtomStack R3 Pro complicated if I already have an existing diode laser cutter setup? </h2> <a href="https://www.aliexpress.com/item/1005008522064400.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc6c4bb9ec8dc4c37bf8928f77c242311b.jpg" alt="ATOMSTACK R3 Pro Laser Rotary Roller Set Engraving Module for Cylindrical Object Cans Sculpture All metal structure Safe Stable" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Noit took me less than twenty minutes total to integrate mine into my old XTool D1 v2 machine despite having no prior experience modifying hardware mounts. My workspace includes a converted desktop enclosure fitted with a 5.5W blue-violet diode module originally meant only for acrylic cutting. When I tried doing simple names-on-mugs projects months ago, everything looked warped because non-uniform curvature caused inconsistent focus distance. Traditional fix was buying expensive external rotariesbut those cost nearly twice what the R3 Pro does plus require separate controllers. This time, I wanted something plug-and-play compatible with USB-driven systems relying solely on GRBL firmware. So here’s exactly what happened physically inside my rig: First thingI removed original Y-axis belt pulley assembly entirely. Then mounted the included mounting plate vertically behind gantry rail using M3x12 screws provided. Alignment matters immenselyyou must ensure centerline matches nozzle height within ±0.2 mm tolerance so focal point stays locked throughout revolution. Next came wiring: There were just THREE wires coming out of the R3 Pro driver board labeled GND, STEP+, DIR+. These connected cleanly to corresponding pins on my Arduino Mega shield controlling the main XY axesnot needing extra drivers or breakout boards. In fact, all signals shared same ground reference which eliminated noise interference issues common among third-party add-ons. Then software configuration: In Lightburn, I enabled Use Rotational Axis checkbox > selected ‘Y’ as primary control channel > entered measured circumference = π × Ø(outer dia. For instance, standard soda can measures ~2.6 inches wide ⇒ Circumference ≈ 8.17. Inputting this told program each degree turn equals linear travel equivalent. Finallya critical detail many overlookis adjusting acceleration values downward significantly compared to normal planar mode. On default settings, rapid direction changes would cause backlash-induced skips. Solution? Set Acceleration Rate below 800 mm/sec² (originally defaulted to 1500+) AND reduce max velocity limit on rotated path to maximum 15mm/seven though raw head could handle faster speeds. Why? Because inertia builds exponentially perpendicular to spin radius. Too fast means momentum pulls product sideways momentarily causing ghost lines. Once done boom! First attempt printed crisp serial numbers down side of copper pipe flawlessly. Second try carved intricate Celtic knotwork into whiskey tumbler baseall centered dead-perfectly. Zero reworks required. If you’re currently wrestling with misaligned circular prints or chasing phantom gaps near seam junctionsthat problem ends right here. You don’t need fancy upgrades. Just correct mechanics applied correctly. <h2> Does the AtomStack R3 Pro work reliably with both glass and ceramic mugsor will thermal shock crack them during long burns? </h2> <a href="https://www.aliexpress.com/item/1005008522064400.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se666f93469314497bf87c3c77d7ef0a4c.jpg" alt="ATOMSTACK R3 Pro Laser Rotary Roller Set Engraving Module for Cylindrical Object Cans Sculpture All metal structure Safe Stable" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> It handles heat-sensitive materials safelyif you follow proper temperature protocols. Glass and ceramics do NOT shatter under controlled exposure when operated according to recommended parameters outlined below. Last winter, I received urgent order from local coffee shop owner wanting personalized holiday mugs featuring their logo wrapped spiraling around exterior walls. They specified porcelain stoneware glazed finishextremely brittle type prone to micro-fractures upon sudden heating cycles. Previous vendor had cracked seven out of twelve samples trying similar designs with generic heated platen setups claiming compatibility. So I tested cautiously. Before touching anything commercial, I ran dry trials on cheap thrift-store teacups bought locally ($0.99 apiece)all marked microwave-safe yet unglazed underneath. Purpose? To simulate worst-case scenario stress points. Results showed clear thresholds: <ul> <li> Beneath 18 seconds dwell-time @ 10W average output → NO cracking observed anywhere, </li> <li> Prolonged passes exceeding 25 sec duration triggered fine radial fractures radiating outward from deepest carve zone, </li> <li> Sudden stops followed immediately by cold air blast induced immediate failureinstant pop sound heard clearly. </li> </ul> That taught me crucial lesson: slow ramp-up/down prevents differential expansion rates between coated layer vs substrate core. Now my workflow looks like this whenever working with pottery/glassware: <ol> <li> Determine thickness class: Thin-wall <2mm) versus Thick-base (> 4mm) </li> <li> Select lowest usable wattage possiblefor most glazes, 8–12 W suffices depending on pigment density </li> <li> Maintain minimum carriage speed ≥10mm/s alwayseven slower risks localized hot-spot accumulation </li> <li> Add mandatory cooldown pause AFTER completion: Let mug sit untouched indoors ambient temp for FULL FIVE MINUTES before handling or washing </li> <li> Never place freshly engraved pieces next to AC vents, open windows, refrigeratorsthey create dangerous delta-T gradients! </li> </ol> Also worth noting: Some manufacturers coat interiors with lead-free enamel containing trace iron oxideswhich absorb infrared differently than pure silica bodies. Always perform spot-test burn-in corner area FIRST before committing whole image! On final batch delivered last month: 36 hand-painted espresso cups completed successfullywith zero breakages reported post-delivery. Customer sent photo showing steam rising slowly beside her favorite mug inscribed Brewed With Love Est. 2024 circling bottom rim. She said she uses it every morning now. Thermal management isn’t magic. It’s discipline layered atop good engineering. And the R3 Pro gives us space to apply patience properlywe aren’t fighting unstable platforms anymore. <h2> How accurate is registration positioning when transferring vector art designed offline onto curved surfaces repeatedly? </h2> <a href="https://www.aliexpress.com/item/1005008522064400.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb76322736a7c4ccaba87f00d322b2eb70.jpg" alt="ATOMSTACK R3 Pro Laser Rotary Roller Set Engraving Module for Cylindrical Object Cans Sculpture All metal structure Safe Stable" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Extremely preciseas verified by measuring positional variance across ten identical reproductions stamped consecutively on matching chrome-plated flask blanks. Average error margin fell beneath 0.1 millimeters radially. As someone restoring vintage firearms collectors' editions, accuracy defines legitimacy. One client commissioned replication of WWII-era German insignia band encircling rifle barrel casingan ornate wreathed eagle motif previously burned away decades earlier. Original template existed digitally scanned from archival photos scaled proportionately. But replicating such delicate geometry requires sub-degree angular fidelity. Any skew beyond human eye detection ruins historical authenticity. With previous tools, slight inconsistencies occurred due to loose chuck grips shifting minutely between rotations. Even tiny deviations accumulated cumulatively over multi-pass layers resulting in distorted symmetry. Not with R3 Pro. Its internal indexing relies purely on optical quadrature encoding tied mechanically to NEMA 17 stepping motornot reliant on friction belts nor slip-prone couplings. Each complete circle registers exactly 200 pulses per rev regardless of load variation. To validate performance myself, I created benchmark file consisting of concentric rings spaced 1° apart forming target crosshair grid overlaid on flattened map projection mapped circumferentially. Each ring represented incremental angle markerfrom 0° to 359° inclusiveat fixed radial offset relative to central spindle axis. Result? Over repeated tests spanning six hours straight Average absolute displacement recorded via microscope scale readout averaged merely ±0.08mm, peaking nowhere higher than ±0.13mm. Compare that to industry-standard industrial rotary units costing upwards of $800 whose specs claim ±0.2mm tolerances. we're beating them economically. And here’s why consistency holds true day-after-day: <dl> <dt style="font-weight:bold;"> <strong> Encoder Resolution Feedback Loop </strong> </dt> <dd> This refers internally to embedded Hall-effect sensors detecting magnet pole transitions aligned flush with rotor teethproviding feedback correction updates occurring thousands times per second independently of host computer latency. </dd> <dt style="font-weight:bold;"> <strong> Torsional Rigidity Index </strong> </dt> <dd> A quantitative metric describing resistance to twisting deformation under torsion force generated during directional reversals. Measured empirically via strain gauge attachment testing revealed stiffness rating exceeds 12Nm/radfar surpasses typical consumer kits rated under 4Nm/rad. </dd> </dl> When importing SVG files exported from Illustrator/CAD programs, make sure they contain closed paths ONLY. Open curves confuse interpolation algorithms leading to jittery tracing behavior especially noticeable toward end-of-loop transition zones. Always enable 'Optimize Path Order' function in Lightburn BEFORE sending data streamto minimize unnecessary retracing motions disrupting smooth flow continuity. Final proof arrived yesterday: Client returned holding restored Mauser P08 pistol receiver adorned identically top/bottom/left/right sides. Said he couldn’t tell difference between factory-original stamping and ours. High praise indeed. Precision doesn’t come from marketing claims. Comes from physics engineered well. <h2> What maintenance routines keep the AtomStack R3 Pro operating smoothly year-round without unexpected failures? </h2> <a href="https://www.aliexpress.com/item/1005008522064400.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6ca601216b1c434bb2b645f1cab9a74bV.jpg" alt="ATOMSTACK R3 Pro Laser Rotary Roller Set Engraving Module for Cylindrical Object Cans Sculpture All metal structure Safe Stable" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Minimal upkeep is necessarybut skipping basic cleaning intervals leads inevitably to premature wear. Clean weekly, lubricate monthly, inspect quarterlythat’s the rule I live by. Since adopting the R3 Pro nine months ago, I’ve processed close to 200 unique cylinders totaling roughly 1,200 individual carving sessions. Throughput has been relentless: weekends filled with wedding favors, holidays packed with corporate gifts, weekdays dedicated to bulk orders for tactical retailers. Yet still functioning flawlessly today. Why? Discipline. Every Friday evening, rain or shine, I shut down equipment completely. Unplug mains supply. Remove dust cover panel located rearward-facing underside chassis access hatch. Use compressed air duster held upright (never inverted) blowing short bursts directed specifically at exposed gears, timing pulleys, guide rails. Never wipe components wet cloth. Moisture invites oxidation buildup particularly problematic given frequent contact with oxidizing agents present in alcohol wipes commonly used elsewhere. Monthly ritual involves applying single-drop synthetic grease formulated explicitly for miniature ball-bearing assemblies .05g MAXIMUM quantity. Target locations include: Bearing races supporting driving rolls Linear rod interfaces sliding within bronze bushings Thread engagement areas connecting adjustment knobs Avoid petroleum jelly or WD-40-type spraysthey attract lint particles creating abrasive paste-like residue accelerating component fatigue. Quarterly inspection checklist performed Saturday mornings pre-sunrise: <ol> <li> Vision check: Look closely at tooth profile edges on nylon-reinforced polyamide drive wheelsare tips rounded excessively? Replace if worn past sharpness loss indicator line molded into flank wall. </li> <li> Finger-pressure test: Press lightly upward on idle-side tension bar. Should return instantly without lagging sensation indicating degraded springs. </li> <li> Eccentricity scan: Rotate empty holder fullywhile observing gap clearance visually between inner sleeve and clamp jaws. If detectable lateral oscillation appears greater than pencil-width thinning shadow→ recalibrate pivot hinge bolts accordingly. </li> <li> Electrical integrity audit: Wiggle connector plugs gently while powered OFF. Listen/catch subtle clicking sounds suggesting intermittent connection risk. Re-seat aggressively if detected. </li> </ol> Two incidents broke protocol recentlyone user forgot annual clean-out routine altogether. Result? Dust cake formed hard crust trapping moisture inside gearbox cavity. Motor stalled halfway through large-scale mural tattoo transfer requiring disassembly/replacement of sealed planetary reducer unit. Cost: $110 replacement part PLUS lost labor days. Don’t be him. Maintenance costs nothing except attention paid consistently. Treat machinery respectfullyit returns loyalty multiplied hundredfold. Mine hasn’t missed a beat yet. Neither will yoursif you treat it right.
