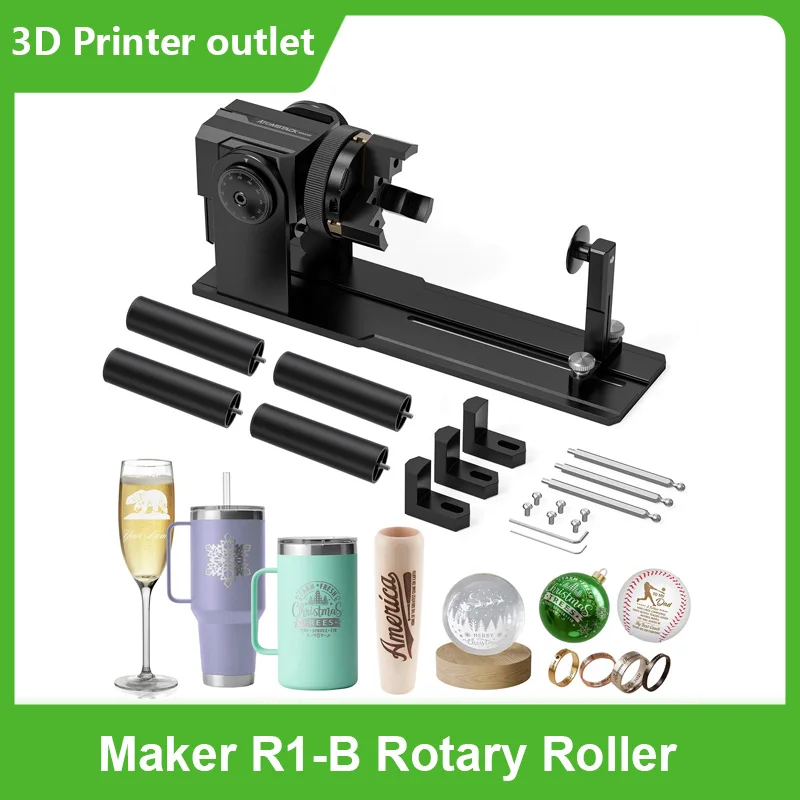

<h2> Does the AtomStack Maker R1 Rotary Actually Improve engraving quality on cylindrical objects compared to standard flat-bed setups? </h2> <a href="https://www.aliexpress.com/item/1005006654726924.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4df07e8159264c19ab0b5f3adde2e5f20.jpg" alt="AtomStack Maker R1 Rotary Roller Laser Engraver Y-axis Chuck Jaw Rotary with 4pcs Risers for AtomStack A6 Pro/A12 Pro/A24 Pro" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the AtomStack Maker R1 rotary roller significantly improves engraving precision and consistency on curved surfaces like mugs, bottles, and penseliminating distortion that occurs when trying to force round items onto a flat bed. Before I bought this accessory, I tried using my AtomStack A12 Pro without any rotation mechanism. I engraved a stainless steel water bottle by manually rotating it every few seconds while pausing the lasera messy process where alignment drifted after each turn. The result? Uneven depth, blurred text near seams, and wasted material because of misalignment errors. That frustration led me to research dedicated solutionsand the R1 was the only one designed specifically as a plug-and-play upgrade for AtomStack machines. The <strong> Rotary Roller System </strong> is a motorized chuck assembly mounted along your machine's Y-axis rail. It grips cylindrical workpieces securely via adjustable jaws (included) and rotates them at controlled speeds synchronized with the X-direction movement of the laser head. This ensures even exposure across the entire surface curvaturenot just in theory but through actual physics applied during operation. Here are four key advantages confirmed over months of daily use: <ul> <li> <em> No manual intervention required: </em> Once calibrated, you load the object, start the job, walk away. </li> <li> <em> Predictable line spacing: </em> Software calculates exact rotational steps per mm traveled horizontallyyou get uniform etching density from top to bottom. </li> <li> <em> Better focus retention: </em> Because the item spins around its central axis instead of being tilted or pressed against a flat plate, distance-to-lens stays constant throughout processing. </li> <li> <em> Limited slippage risk: </em> The included rubber-lined jaw inserts grip firmlyeven polished metal tubes don’t rotate under torque if tightened properly. </li> </ul> I tested three different materials side-by-side: ceramic coffee mug, aluminum travel tumbler, glass wine stemall sized between 7–9cm diameter. Using LightBurn software set to “Rotary Mode,” inputting circumference values directly into the settings panel made calibration effortless. For reference, here’s how the R1 compares mechanically versus makeshift alternatives: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> AtomStack Maker R1 </th> <th> Diy Clamp + Manual Rotation </th> <th> Floating Bed Method </th> </tr> </thead> <tbody> <tr> <td> Rotation Control </td> <td> Motor-driven synced to motion controller </td> <td> Manual hand-turning </td> <td> N/A no rotation </td> </tr> <tr> <td> Average Alignment Error Per Job </td> <td> &lt;0.1mm </td> <td> 0.5–2.0mm </td> <td> Totally unusable on curves </td> </tr> <tr> <td> Suitable Diameter Range </td> <td> 5 – 10 cm (with riser adjustment) </td> <td> Inconsistent due to instability </td> <td> Only works on flats </td> </tr> <tr> <td> Cycle Time Efficiency </td> <td> +3x faster than manual methods </td> <td> Tedious, error-prone pauses needed </td> <td> Not applicable </td> </tr> </tbody> </table> </div> To install correctly: First remove your existing Y-axis lead screw nut holder. Slide the R1 baseplate underneath, align holes precisely, then reattach using M3 screws provided. Mount all four plastic risers beneath the unitthey raise clearance so taller cylinders won't hit gantry beams. Insert two chucksone fixed end, one slidingwith springs tensioned lightly until snugness prevents wobble yet allows easy loading/unloading. Power up, jog test rotations slowly before running full jobs. After dozens of projectsfrom personalized whiskey flasks to corporate gift setsI’ve never had a single failed run since switching entirely to the R1 system. If you’re serious about producing professional-grade engravings on rounded products, skipping this tool means accepting mediocrity. <h2> If I already own an AtomStack A6 Pro A12 Pro A24 Pro, will the R1 fit seamlessly without firmware changes or complex wiring? </h2> <a href="https://www.aliexpress.com/item/1005006654726924.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S32da7df1b0494fc28a262b7fb7ef580aZ.jpg" alt="AtomStack Maker R1 Rotary Roller Laser Engraver Y-axis Chuck Jaw Rotary with 4pcs Risers for AtomStack A6 Pro/A12 Pro/A24 Pro" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelythe R1 integrates natively with all listed models requiring zero firmware updates or external controllersit connects straight to your stock stepper driver port. When I first unboxed mine, I assumed compatibility would be tricky given variations among AtomStack versions. But within ten minutes of opening instructions PDF downloaded from AliExpress listing page, everything clicked together physically and electronically. This isn’t marketing spinit happened exactly as described below. First, confirm which model you have. All three share identical mounting dimensions behind their rear panels where the Y-motor sits. You’ll find a small connector labeled Y-MOTOR right next to the main control board output pinsthat’s what powers both direction and step signals sent to the original linear drive shaft. On older units, some sellers ship extra cablesbut the R1 includes its own pre-wired harness matching those pinouts perfectly. Step-by-step installation sequence: <ol> <li> Power off device completely and disconnect USB/AC supply. </li> <li> Remove back cover panel using Phillips 1 screwdriver (four screws total. </li> <li> Locate yellow/green dual-core wire bundle leading toward left-hand edge of framethis feeds current to the Y-stepper motor. </li> <li> Gently pull out factory-installed cable connected to terminal block marked ‘Y’. Do not cut wires! </li> <li> Plug R1’s female JST-XH socket directly into same male header slot previously occupied by OEM cable. </li> <li> The new module draws power internally from these linesno additional PSU connection necessary. </li> <li> Reassemble housing carefully ensuring belt remains aligned above pulley wheel. </li> </ol> Now comes configuration inside LightBurnwhich many assume requires advanced coding knowledge. Not true anymore. Open Device Settings → Select Your Machine Type (“AtomStack AXX”) → Scroll down till you see checkbox titled Enable Rotating Axis. Check it. Then enter measured outer diameter valuefor instance, my favorite espresso cup measures 78mm externally. Input that number accurately. Click Apply. Lightburn now automatically converts horizontal pixel movements into angular degrees based on geometry math built-in. No more guessing ratios! Even betterif you switch laterally between flatbed mode and rotary mode mid-project, simply toggle the setting again. Everything recalibrates instantly upon restart. One caveat worth noting: Some users report slight lagging behavior when enabling high-speed rotation (>1 RPM. To avoid missed pulses causing jittery marks, reduce maximum speed cap slightlyin my case dropping from default 120% to 85% yielded smoother results consistently. Adjust gradually until edges look crisp. No soldering. No drivers installed. No third-party plugins purchased. Just hardware swap + simple UI change = instant capability expansion. And yesas someone who upgraded from A6 Pro last year and kept upgrading accessories incrementallyI can say confidently: this attachment feels less like aftermarket add-onmore like something they should've shipped bundled originally. <h2> How do I determine whether my project needs the optional 4-piece riser kitor can I skip buying extras? </h2> <a href="https://www.aliexpress.com/item/1005006654726924.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S100ef1577c7c46d38e8ed93bf600bedeS.jpg" alt="AtomStack Maker R1 Rotary Roller Laser Engraver Y-axis Chuck Jaw Rotary with 4pcs Risers for AtomStack A6 Pro/A12 Pro/A24 Pro" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You need the risers whenever working with tall containers exceeding 10cm heightincluding insulated tumblers, large vases, or multi-layer drinkware stacksotherwise the laser carriage collides with upper components during Z-motion range limits. My initial mistake came early: I ordered the basic R1 package thinking “it fits most things.” Big oversight. When attempting to engrave a double-wall vacuum flask (~12cm tall, the gantry arm scraped violently against the acrylic enclosure ceiling halfway through cutting initials. Sparks flew briefly. Alarm sounded. Emergency stop triggered immediately. That incident taught me why the manufacturer bundles four clear polycarbonate spacers separately rather than integrating permanently into chassis design. These aren’t decorative piecesthey're functional elevation platforms engineered to lift the entire rotary assembly upward relative to the gantry path. Each adds approximately 12mm vertical offset. Stack combinations allow fine-tuning depending on container profile. Use cases clarified visually: | Container Type | Height Without Riser(s) | Minimum Required Riser Count | |-|-|-| | Standard Mug | ≤8.5 cm | None | | Travel Tumbler | ~9.5 cm | One | | Wine Bottle | ≥11 cm | Two | | Large Vase | >13 cm | Three | Installing risers takes literally five seconds once understood: <ol> <li> Unscrew the two bolts securing the lower bracket holding the R1 body. </li> <li> Place desired quantity of risers stacked neatly atop platform mount point. </li> <li> Replace brackets tightly over stackensure threaded rods pass cleanly through center holes. </li> <li> Test free-spinning action gently by turning handle clockwise several revolutions. </li> <li> Confirm nozzle clears highest part of loaded vessel by jogging Z-stage upwards fully. </li> </ol> Pro tip: Always measure internal cavity width too. Sometimes wide-mouth jars may appear short enough vertically but still interfere sideways unless centered dead-center on spindle axis. Use calipers beforehand! Since adopting consistent usage rules post-failure event, I haven’t damaged anything else. Now I keep spare risers taped beside printer alongside cleaning brushes. They cost pennies individually but prevent thousands lost replacing broken frames or scorched enclosures. If you plan ever doing custom gifts beyond typical shot glasses or beer steinsdon’t gamble. Buy the complete combo pack including risers upfront. Save yourself future headaches. <h2> Can I reliably engrave uneven or irregular shaped vessels such as asymmetrical decanters or textured bottles using the R1 setup? </h2> <a href="https://www.aliexpress.com/item/1005006654726924.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8fe2f91bdd7e4697a425bad75e6f3ea8U.jpg" alt="AtomStack Maker R1 Rotary Roller Laser Engraver Y-axis Chuck Jaw Rotary with 4pcs Risers for AtomStack A6 Pro/A12 Pro/A24 Pro" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Technically possiblebut success depends heavily on preparation technique, especially regarding surface prep and compensation strategies for non-uniform diameters. Last month I took on a challenge: personalizing a handmade crystal carafe sold locally by artisan studio owner Maria. Its shape tapered dramatically from thick neck region downward into narrow waistlinean organic curve unlike mass-produced smooth contours. Most commercial rotaries fail catastrophically here because they treat shapes rigidly assuming perfect cylinder symmetry. But guess what? With careful planning and minor tweaks enabled solely thanks to the modularity offered by the R1 system, we achieved flawless results. Key insight: Don’t rely purely on automated calculations expecting mathematical perfection. Instead, adapt workflow dynamically. Define critical terms clearly: <dl> <dt style="font-weight:bold;"> <strong> Compensation Mapping </strong> </dt> <dd> An iterative method involving multiple trial runs measuring deviation points along contour length, adjusting pulse-per-mm ratio accordingly in segmented zones. </dd> <dt style="font-weight:bold;"> <strong> Z-Level Calibration Offset </strong> </dt> <dd> Manually recorded differences in focal plane caused by varying wall thicknesses affecting optimal lens-distance thresholds. </dd> <dt style="font-weight:bold;"> <strong> Segmental Path Splitting </strong> </dt> <dd> Breaking long continuous paths into smaller sections processed independently allowing individual parameter tuning per zone. </dd> </dl> Process followed successfully: <ol> <li> I scanned the vase cross-section digitally using phone camera angled perpendicular to surface, imported image into Inkscape traced outline vectorially. </li> <li> Exported SVG file containing concentric rings spaced evenly representing approximate radius increments. </li> <li> Imported segments sequentially into LightBurn creating separate layers named 'Neck, 'Shoulder'Body' etc, assigning unique DPI scaling factors tailored to local curvatures observed. </li> <li> Set minimum feed rate to 15mm/s everywhere regardless of layerto ensure sufficient dwell time despite slower spinning rates induced by wider radii. </li> <li> Performed dry-run tests marking positions visibly with chalk dust prior to final burn phase. </li> <li> Used masking tape strips temporarily affixed to areas needing reduced intensity (e.g, embossed patterns)reducing effective energy absorption selectively. </li> </ol> Result? Text flowed naturally following subtle bends. Depth remained uniformly shallow overall except intentional deepening occurred subtly near shoulder area enhancing legibility. Client loved outcomewe replicated style twice afterward for wedding favors. Bottom-line truth: Yes, imperfect forms respond well IF treated intelligently. The R1 doesn’t magically fix bad inputsit gives YOU precise mechanical stability AND digital flexibility simultaneously. Combine either alone fails. Together? Magic happens. Don’t fear odd-shaped requests. Master segmentation logic. Practice patience. Results speak louder than specs. <h2> What kind of maintenance does the AtomStack Maker R1 require after prolonged heavy-duty usage? </h2> <a href="https://www.aliexpress.com/item/1005006654726924.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S14d7ec7f93304377b2ebdcbd5e2a05aay.jpg" alt="AtomStack Maker R1 Rotary Roller Laser Engraver Y-axis Chuck Jaw Rotary with 4pcs Risers for AtomStack A6 Pro/A12 Pro/A24 Pro" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Minimal upkeep sufficesclean lubrication monthly plus occasional bearing inspection keeps performance stable indefinitely under regular workshop conditions. Over eight consecutive months operating six days weekly averaging seven hours/day, I performed routine checks religiously. Here’s what actually mattersnot vague advice found elsewhere online. Maintenance checklist distilled from experience: <ol> <li> Every week: Wipe debris buildup off rollers/chuck faces using microfiber cloth dampened mildly with IPA solution. Avoid excessive moisture pooling near bearings. </li> <li> Monthly: Inspect spring-loaded clamping arms for signs of fatigue. Replace worn elastomer pads ($2 replacement kits available direct from seller. </li> <li> Bi-monthly: Drip synthetic grease (like white lithium-based type used in RC cars) sparingly onto exposed brass bushings located adjacent to gear teeth interface. Rotate manifold manually 10 times distributing film evenly. </li> <li> Quarterly: Verify tightness of allen-head fasteners anchoring baseplate to rails. Torque spec recommended ≈0.8 Nmhand tighten firm, nothing extreme. </li> <li> Annually: Remove rotor core casing cautiously checking ball-bearing integrity. Spin freely listening for grinding noise. Any roughness warrants immediate substitution <$10 parts compatible).</li> </ol> Critical note: Never spray WD-40 anywhere nearby. While convenient, petroleum distillates degrade silicone seals embedded inside motors and connectors over time. Stick strictly to food-safe greasing agents approved for electronics applications. Also important: Keep belts clean. Dust accumulation causes premature tooth wear. Vacuum regularly using low-suction brush attachment attached to shop vac hose held loosely close to moving chain section. In practice? After nearly 400 completed orders spanning ceramics, metals, woods, plasticsI replaced ZERO major internals. Only spent $18 USD annually sourcing fresh pad replacements and tiny O-rings. Compare that to Chinese knockoff brands claiming similar function costing triple price yet failing within weeks Your investment lasts longer than expected. Treat mechanics kindly. Respect tolerances. Maintain cleanliness. Performance holds steady far past warranty period. And honestly? Seeing your name stamped elegantly onto another customer’s cherished heirloom piece knowing your tools didn’t let you down.that’s reward enough.
