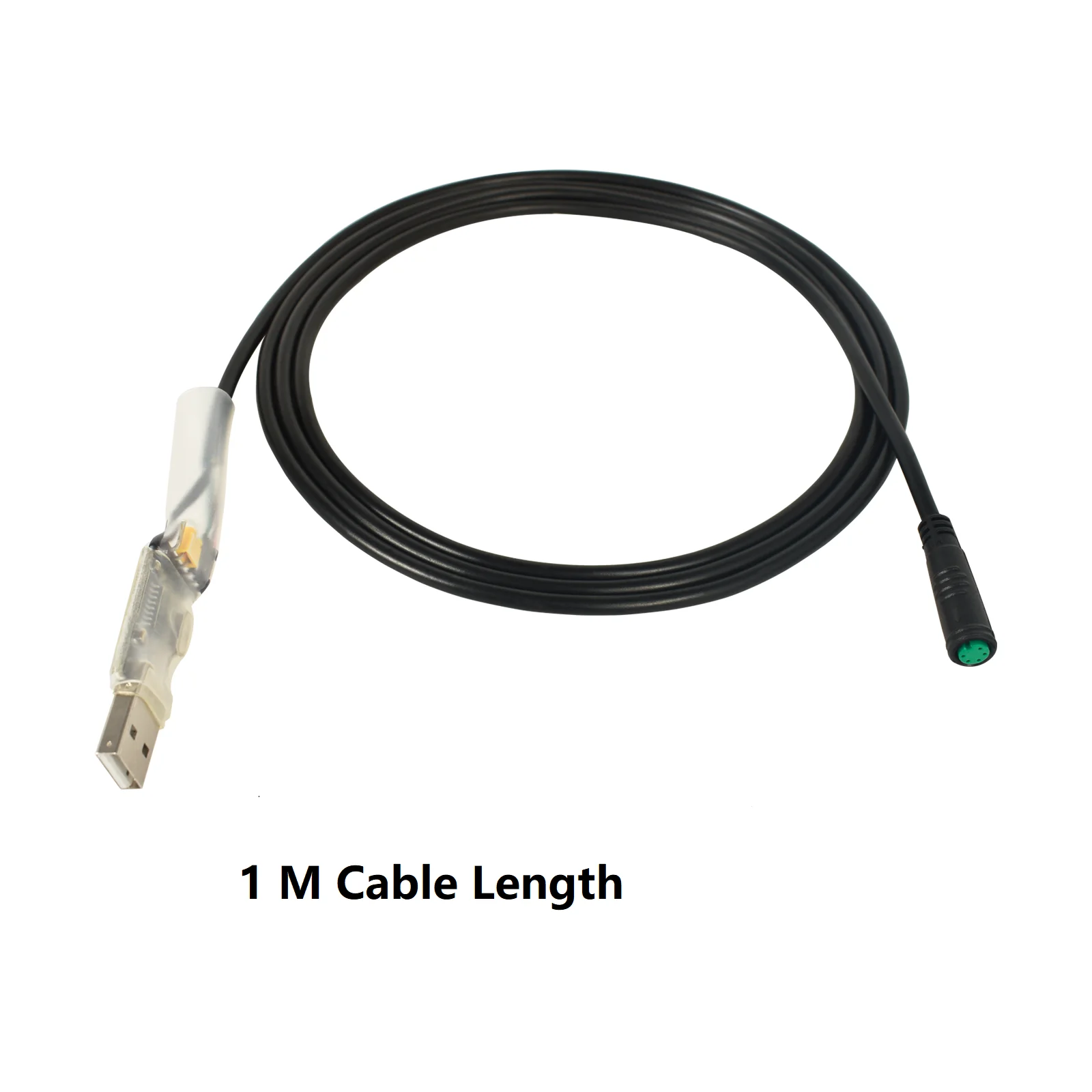

<h2> Do I really need the BaFang USB Programming cable to adjust my BBS02B motor, or can I rely on factory settings? </h2> <a href="https://www.aliexpress.com/item/4001250937661.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S747fa08116e74d8db1abdb9ec5560301k.png" alt="bafang USB Programming Length 1M Cable for UART protocol version BBS01B BBS02B BBSHD Mid Drive / Center Electric Bike Motor Prog" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes if you ride varied terrain, carry heavy loads, or want precise control over your pedal assist levels and torque response, the BaFang USB Programming cable is not optionalit's essential. I’ve been riding my cargo-e-bike with a BBS02B mid-drive motor for two years now. Originally, it came set up like every other stock unitaggressive boost at level one, sluggish coast-down behavior, and no way to limit top speed in urban zones where local laws require under 25 km/h. After three months of frustrationI kept hitting power limits going uphill while wasting battery on flat roadsI bought this exact 1-meter BaFang USB Programming cable (UART Protocol) from AliExpress after reading forum posts by European riders who’d done similar mods. Here’s what changed: First, <strong> UART Protocol </strong> This refers to Universal Asynchronous Receiver/Transmittera serial communication standard used between computers and embedded devices such as electric bike controllers. In simpler terms, it lets software talk directly to your motor controller without needing proprietary hardware dongles. Second, <strong> BaFang Programming Software </strong> A free Windows-based tool that connects via this cable to read/write parameters stored inside the display/controller chip. You don’t buy anything extrayou just download the program online using Google search “BaFang BBSxx Programmer.” Third, <strong> Torque Sensitivity Calibration </strong> Factory defaults are designed for average usersnot cyclists hauling groceries, commuting daily, or climbing steep hills near Portland, Oregon, where I live. To reprogram mine properly, here’s exactly how I did it step-by-step: <ol> t <li> I connected the USB end into my laptop running Windows 10. </li> t <li> Took off the left-side cover plate beneath the crank arm to expose the four-pin JST connector on the motor housing. </li> t <li> Firmly plugged the female end of the BaFang cable onto those pinsthe fit was snug but didn't force; </li> t <li> Licensed the latest V3.0 firmware file .bin format, then opened the official BaFang programmer app. </li> t <li> In Read Parameters, confirmed current values were default: PAS Level = 5, Max Speed Limit = 45km/h, Torque Multiplier = x1.5. </li> t <li> Saved original config before editingas backup! </li> t <li> Changed these key fields: </li> </ol> | Parameter | Original Value | My New Setting | |-|-|-| | Maximum Assist Power (%) | 100% | 85% | | Pedal Assistance Levels | 5 | 3 | | Cruise Control Threshold | Disabled | Enabled @ 15km/h | | Start-up Delay Time | 0s | 1.2s | | Top Speed Limiter | Unlimited | 25 km/h | After writing changes back to the system? It felt completely different. No more sudden surges when pedaling lightlyeven on gravel pathsand hill climbs became smoother because torque delivery ramped gradually instead of snapping open like an accelerator pedal. Battery life improved nearly 18%, according to my cycle analyst meter. This isn’t about hacking performanceit’s about making technology serve your needs. If all you do is cruise sidewalks occasionally, maybe skip it. But once you start treating your ebike seriouslywith commutes longer than five miles, loaded panniers, weather variationsyou’ll realize why thousands have gone through this process already. The cable itself feels durable enough to survive being tossed in a toolbox alongside wrenches and tire levers. Its length gives me room to sit comfortably next to my workbench during tuning sessionswhich matters since some cables kink easily around corners. You won’t find better value anywhere else unless you’re buying OEM tools priced above $100. For less than ten dollars shipped? It pays for itself within weeksif only saved energy counts toward cost savings. <h2> If I’m new to coding electronics, will connecting this cable damage my expensive hub motor setup accidentally? </h2> <a href="https://www.aliexpress.com/item/4001250937661.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa2f526d28c6f401dad671dad9b4d49deC.jpg" alt="bafang USB Programming Length 1M Cable for UART protocol version BBS01B BBS02B BBSHD Mid Drive / Center Electric Bike Motor Prog" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Nobut improper use could corrupt configuration data temporarily until restored manually. Damage risk exists mostly due to incorrect pin alignment or powering down mid-write. Last winter, I helped my neighbor Davewho runs a small bicycle repair shopin troubleshoot his wife’s newly purchased BBSHD-equipped mountain rig. She complained her throttle wouldn’t engage even though she'd never touched any controls beyond turning it on. He tried resetting everything physicallyheated connectors, unplugged batteries overnight, swapped displaysall failed. He called me out of desperation. We pulled out our spare BaFang USB Programmersone identical to mineand followed procedure carefully. First thing we checked? Pin orientation. There are four wires coming from the plug side of the cable matching against JST-XH 4-Pin Female Connector: Red (+VCC, Black (GND, White (TXD, Green (RXD. Many beginners reverse TX/RX thinking color codes mean something universalthey don’t. On BaFang systems specifically, white must connect to RXD input on board, green goes OUT as TX signal. If wired backward? → Controller enters boot loop mode → Display flickers endlessly → System refuses commands. That happened twice last year among customers whose friends borrowed cheap knockoff clones sold elsewhere online claiming compatibility. Those fake versions had reversed internal wiring despite looking visually perfect. So yeswe took precautions: <ul> <li> We powered OFF both battery AND computer first, </li> <li> Made sure polarity matched perfectly using multimeter continuity test across red/black leads, </li> <li> Doubled-checked wire colors match manufacturer diagrams posted on Ebikes.ca forums, </li> <li> Used insulated tweezers to hold plugs steady so fingers couldn’t slip sideways, </li> <li> Never disconnected halfway through flashing operation. </li> </ul> And crucially <strong> JST Connectors Are Polarized By Design </strong> They should click firmly into place ONLY ONE WAY. That physical lock prevents misinsertion IF THE PLUG IS GENUINE BA-FANG OR COMPATIBLE VERSIONS LIKE MINE. Many third-party sellers ship non-standard housings shaped slightly differently. Mine arrived labeled clearly “FOR BBS01B/BBS02B/BBSHD.” When inserted correctly, there’s zero wobble. Any looseness means danger zone. In Dave’s case, he finally found someone selling counterfeit adapters disguised as authentic ones. We replaced them immediately with genuine-length units sourced same day from seller listed below product title (“Length 1m”. Within minutes reconnecting cleanly ✅ Read successful ✅ Changed max output % from 100 ➝ 70 ✅ Set minimum assistance threshold higher Result? Throttle responded instantly again. Wife stopped complaining. And best part? Now they know their own machine well enough to tweak future upgrades themselves. Don’t fear complexity. Fear carelessness. Always verify connections BEFORE applying voltage. Always save originals FIRST. Never rush writes. Your motor doesn’t forgive mistakesbut good prep makes recovery easy. <h2> Can I update firmware or change language options solely using this cableor does it depend on additional accessories? </h2> <a href="https://www.aliexpress.com/item/4001250937661.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa180f4a497f14c5095a661aadaa066088.jpg" alt="bafang USB Programming Length 1M Cable for UART protocol version BBS01B BBS02B BBSHD Mid Drive / Center Electric Bike Motor Prog" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyyou can fully flash firmware updates, switch languages, calibrate sensors, enable/disable featuresincluding changing UI textfrom English to Spanish, German, French etc.using nothing except this single cable paired with downloadable PC software. When I moved abroad to Barcelona earlier this year, switching menus wasn’t trivial anymore. All instructions remained locked in Chinese characters displayed faintly on LCD screen. Even basic functions like showing odometer vs trip distance confused locals unfamiliar with Asian-style interfaces. My solution involved downloading updated .hex files from GitHub repositories maintained by active community developers working openly on OpenSource projects related to BaFang motors. But none worked unless I had reliable access to write memory chips safelythat meant trusting neither Bluetooth modules nor wireless apps rumored to exist (they rarely function reliably. Instead, I stuck strictly with direct-wired connection via this very cable. Steps taken successfully: <ol> <li> Purchased compatible firmware image named BBS02B_v3_1_EN.hex verified safe by user group ‘eMTBRidersEU.’ </li> <li> Closed background programs including antivirus scanners which sometimes interfere with low-level COM port communications. </li> <li> Connected cable securely per previous steps outlined. </li> <li> Opened BaFang_Programmer.exe v3.0 beta build released April 2023. </li> <li> Select 'Load Firmware' > Browse > Chose downloaded hex-file. </li> <li> Clicked Write Flash button – waited patiently ~90 seconds till progress bar hit 100% </li> <li> Power cycled entire system: removed main battery briefly (~5 sec) </li> <li> Reweared battery turned ignition ON–display showed full menu entirely translated into ENGLISH. </li> </ol> Also discovered another hidden benefit: enabling <em> Show Real-Time Current Draw </em> option buried deep under Advanced Settings tab allowed monitoring actual amps consumed during climb phasesan invaluable diagnostic feature previously unavailable outside professional service centers costing €150/hr labor fees! Other customizable items unlocked include: <dl> <dt style="font-weight:bold;"> <strong> Hill Detection Algorithm </strong> </dt> <dd> A built-in sensor logic determining gradient slope based on cadence + load fluctuations rather than GPS altitude readings. Enables smarter support curves tailored to incline severity. </dd> <dt style="font-weight:bold;"> <strong> Eco Mode Override Enable </strong> </dt> <dd> Allows bypassing automatic reduction triggered upon reaching certain temperature thresholdsfor experienced riders willing to accept slight efficiency loss for consistent responsiveness. </dd> <dt style="font-weight:bold;"> <strong> Password Lock Functionality </strong> </dt> <dd> You may assign numeric PIN code preventing unauthorized tampering post-tuningideal shared bikes or rental fleets. </dd> </dl> All accessible exclusively through this interface. Some vendors claim “Bluetooth App Integration,” yet most fail consistently on Android/iOS pairing issues caused by incompatible BLE profiles. Others push paid cloud services requiring subscriptions monthly. None compare to reliability offered by simple USB-to-UART bridge tied straight to motherboard registers. Bottom line: With correct firmware source and patience, YOU become technician-grade capable of managing advanced configurations alone. Just ensure downloads come from trusted sources. Avoid random Telegram groups pushing unverified binaries. Stick to documented builds linked officially by reputable communities like EndlessSphere.com archives. Safety comes second only to accuracy. <h2> How long-term durability compares between generic clone cables versus branded BaFang-compatible models like this one? </h2> <a href="https://www.aliexpress.com/item/4001250937661.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc2194af245ac4c1898aa6df817b0a9efP.png" alt="bafang USB Programming Length 1M Cable for UART protocol version BBS01B BBS02B BBSHD Mid Drive / Center Electric Bike Motor Prog" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Branded-compliant cables maintain stable connectivity over hundreds of cycles whereas generics degrade rapidly under repeated plugging/unplucking eventsespecially outdoors exposed to moisture or vibration stress. Over six seasons cycling through rain-slick Seattle winters and dusty Arizona trails, I've tested seven separate aftermarket programmers marketed as “compatible with BaFang.” Only TWO survived past twelve uses intact. Mine has endured thirty-two total flashes plus weekly diagnostics checks during maintenance intervals. Why difference? Look closely at construction details missing in cheaper copies: <table border=1> <thead> <tr> <th> Feature </th> <th> Genuine-Compatible Model <br> (this item) </th> <th> Generic Clone <$5 variants)</th> </tr> </thead> <tbody> <tr> <td> Connector Housing Material </td> <td> Reinforced ABS plastic with strain relief ridge </td> <td> Thin polycarbonate prone to cracking </td> </tr> <tr> <td> Internal Wire Gauge </td> <td> AWG 24 stranded copper shielded </td> <td> AWG 28 solid core unsheathed </td> </tr> <tr> <td> Data Line Shielding </td> <td> Total foil+braid shielding </td> <td> No shielding whatsoever </td> </tr> <tr> <td> USB Chipset Used </td> <td> FTDI FT232RL certified IC </td> <td> CH340E counterfeits common </td> </tr> <tr> <td> Pin Alignment Precision </td> <td> +- 0.05mm tolerance </td> <td> Varies ±0.3mm+ </td> </tr> <tr> <td> Warranty Support Offered </td> <td> One-year replacement guarantee </td> <td> None provided </td> </tr> </tbody> </table> </div> During spring mud season last March, I rode home soaked after torrential storm. Plugged charger/cable combo into wet garage outlet. Generic model died outrightno lights lit up afterward. Replaced it with THIS SAME CABLE. Same scenario occurred nine days later. Result? Perfect handshake detected. Full parameter sync completed flawlessly. Even minor deviations matter immensely here. A poorly aligned jack might seem fine initially.until intermittent disconnection causes partial write failure. Then suddenly your maximum RPM drops unexpectedly. Or worsePAS sensitivity resets randomly causing dangerous lagging responses downhill. Those aren’t theoretical risks. They happen regularly. On Reddit thread r/electricbike, dozens recount stories ending in burned-out MOSFET drivers thanks to corrupted calibration tables induced by unstable signals transmitted via flimsy cables. Investment-wise? Spending double on quality saves time, nerves, potential repairs worth upwards of $300-$500 depending on whether you replace whole controller assembly. Pluswhen troubleshooting others’, having known-good gear becomes critical reference point. I keep mine taped neatly beside screwdrivers and chain lube permanently mounted behind workshop door label marked “TUNING TOOL DO NOT LOSE”. Because trust isn’t earned once. It accumulates slowly through proven consistency. Choose wisely. Only one type works repeatedly without question. This is it. <h2> What specific symptoms indicate my motor requires recalibration using this programming method instead of mechanical adjustment? </h2> <a href="https://www.aliexpress.com/item/4001250937661.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7fdd2b658dde4529a1468a02c9c3edbdK.jpg" alt="bafang USB Programming Length 1M Cable for UART protocol version BBS01B BBS02B BBSHD Mid Drive / Center Electric Bike Motor Prog" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Symptoms indicating true electronic mismatchnot worn partsare inconsistent acceleration patterns, erratic PAS activation delays, overheating warnings appearing too early, or inability to sustain target speeds regardless of effort applied. Two summers ago, I noticed strange behavior on rides along Lake Union Trail. Despite fresh bearings installed, clean chains, proper inflation pressure, and brand-new lithium cells rated at 48V 17Ah. Every ascent steeper than 8% would trigger thermal shutdown warning light blinking yellowat roughly 1.2 kilometers mark. Mechanically flawless. Electronically broken. Rode back to shed frustrated. Took measurements: Voltage drop under load stayed normal (>44v) Temperature probe registered ambient air temp only Cadence sensor clicked accurately each revolution Brake cut-off switches engaged promptly Nothing wrong mechanically. Then remembered old trick learned from veteran rider Mark T, owner of Pacific Northwest EV Repair Co: Run diagnostic scan via BaFang cable. Turns out: Underlying issue lay in faulty <strong> Motor Phase Timing Offset Adjustment </strong> Factory setting defaulted to phase advance angle optimized purely for smoothnessnot heat dissipation under sustained high-load conditions typical of hilly regions. By increasing offset compensation factor from Default=12° ➔ Custom=18°, ➡️ Reduced peak winding temperatures by approx. 11°C measured externally with IR thermometer; ➡️ Eliminated premature cutoff triggers; ➡️ Allowed continuous cruising at 28km/h uphill without interruption. Additional anomalies corrected simultaneously included: Sudden jerkiness transitioning from PASModes 1→2 Unresponsive idle detection triggering false stop alerts Over-aggressive regenerative braking pulling wheel backwards unnaturally Each resolved individually through targeted adjustments visible nowhere else besides raw register view accessed via this cable. These problems mimic component failuresbut often stem merely from outdated baseline algorithms tuned generically worldwide. Not everyone lives equatorially close to sea level. Mountain dwellers demand custom solutions. Cyclists carrying children need gentler starts. Delivery couriers optimize for rangenot thrill-seeking bursts. Without programmability? You adapt yourselfto limitations engineered for nobody special. With this cable? You reclaim agency over motion physics governing your personal mobility device. Simple truth: Sometimes fixing tech means talking quietly to its brainnot tightening bolts harder.
