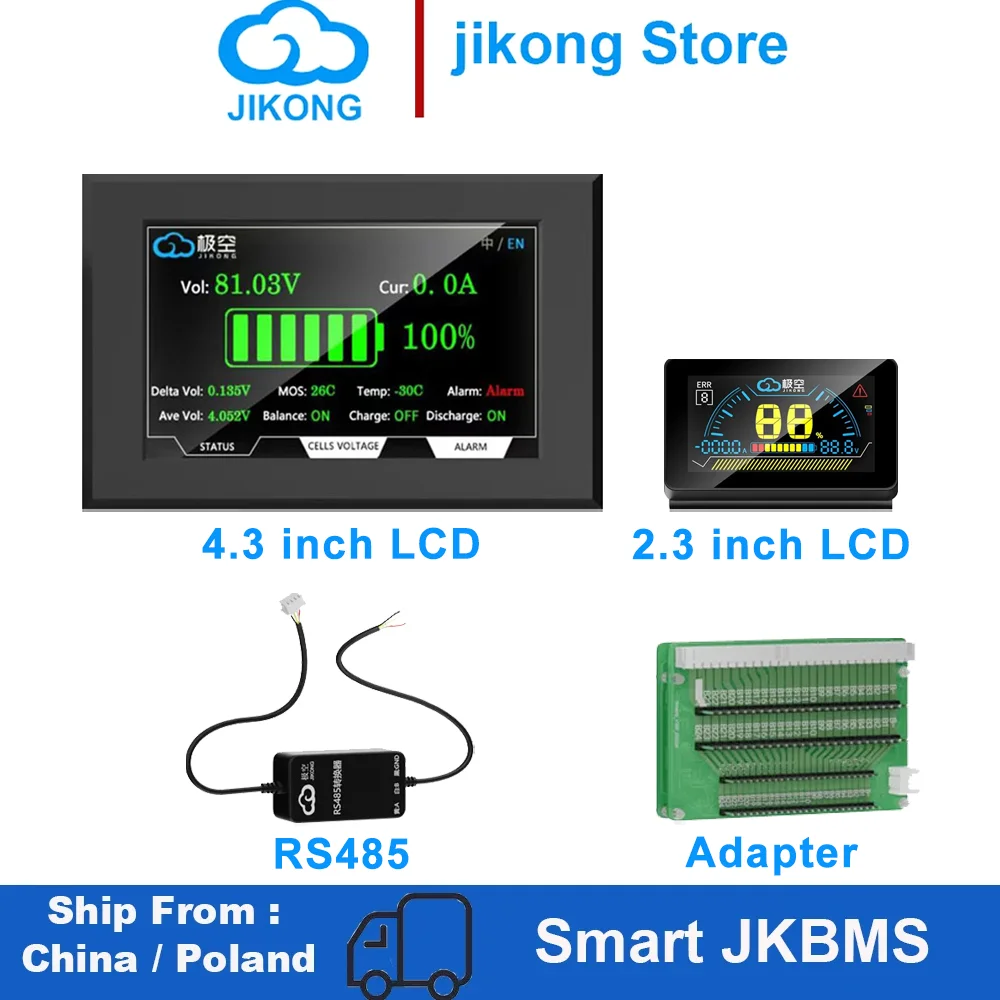

<h2> What exactly is a BMS HMI, and why do I need one for my lithium battery setup? </h2> <a href="https://www.aliexpress.com/item/1005006176748006.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7d2ffd61669a4bf48bd7af0adcacf366c.jpg" alt="JIKONG JKBMS Accessories 4.3 2.3 inch LCD Display RS485 Adapter Board Switch CAN Connects Cables for Active Balance Smart JK BMS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A BMS HMI (Battery Management System Human-Machine Interface) is the visual control panel that lets you monitor and interact with your battery pack in real time displaying voltage per cell, temperature readings, state of charge, balancing status, fault codes, and more. Without it, your BMS operates silently behind the scenes, leaving you blind to critical performance data. I installed a 12S 48V LiFePO₄ bank from EcoWatt last year for off-grid solar storage. Everything worked fine until two cells started drifting out of balance during winter charging cycles. The built-in LED indicators on my original JK-BMS were useless just red/green lights telling me “okay” or “error,” nothing else. That’s when I added the <strong> JIKONG JKBMS Accessories 4.3-inch LCD Display </strong> It didn’t fix imbalance by itself, but suddenly I could see why it was happening. Here's what changed: Before: Guessing if my system needed maintenance based on vague symptoms. After: Real-time graphs showing individual cell voltages dropping below 3.15V while others stayed at 3.32V. The display connects via RS485 directly into the communication port of any compatible JK-BMS unit. Once powered through the same terminals as the main board, it boots up instantly and pulls live telemetry without requiring firmware changes or external software. This isn't optional fluff this is diagnostic necessity. If you're managing anything beyond basic lead-acid systems, especially multi-cell packs used daily under variable loads like mine (a cabin running fridge, pumps, lighting, knowing how each cell behaves matters far more than total Ah capacity. Key Definitions <dl> <dt style="font-weight:bold;"> <strong> Battery Management System (BMS) </strong> </dt> <dd> A circuit designed to protect rechargeable batteries from operating outside their safe limits monitoring overcharge, deep discharge, overheating, current flow, etc. </dd> <dt style="font-weight:bold;"> <strong> Human-Machine Interface (HMI) </strong> </dt> <dd> The physical interface between an operator/user and machine/system here, specifically referring to the screen-based dashboard connected to the BMS controller. </dd> <dt style="font-weight:bold;"> <strong> RS485 Communication Protocol </strong> </dt> <dd> An industrial standard serial transmission protocol capable of long-distance digital signal transfer across noisy environments ideal for connecting multiple devices within high-voltage DC installations. </dd> <dt style="font-weight:bold;"> <strong> CAN Bus Compatibility </strong> </dt> <dd> A vehicle-grade network architecture often found alongside RS485 ports on advanced BMSS; allows integration with inverters, chargers, or controllers using standardized messaging formats. </dd> </dl> My installation took less than ten minutes after reading the manual once. Plug the included RJ12 cable from the adapter board onto the BMS' labeled COMM jack. Then connect power wires (+) from either the battery busbar or charger output terminal. Mount the screen near other controls where visibility won’t be obstructed. No soldering required. Within seconds, all sixteen cell values appeared clearly arranged vertically along side SOC%, temp sensors, cycle count, and alarm flags. Before buying this module, I assumed HMIs would require apps, Bluetooth pairing, cloud syncing none of which are true here. Just plug-and-play hardware feedback. For anyone serious about longevity and safety in DIY energy projects? You don’t choose whether to get oneyou decide which model fits physically and electrically first. <h2> If I already have a working BMS, will adding an HMI improve its functionalityor just add complexity? </h2> <a href="https://www.aliexpress.com/item/1005006176748006.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1cbfb732dcec4e4a80a09fcba692d688v.jpg" alt="JIKONG JKBMS Accessories 4.3 2.3 inch LCD Display RS485 Adapter Board Switch CAN Connects Cables for Active Balance Smart JK BMS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Adding an HMI doesn’t enhance core protection logicit reveals hidden behavior inside existing safeguards. In fact, many users think they’re getting full value from factory-installed LEDs only because they never saw deeper metrics. In early spring, our remote location had three consecutive days of heavy snowfall followed by sudden sunshine. My four 200Ah LG Chem modules charged rapidlyso fast, actually, that even though my Victron MPPT regulator capped input at 40 amps, some cells spiked above 3.55V before passive balancers kicked in slowly enough to cause stress buildup. Without the Jikong display, I’d still believe everything was normal since no alarms triggered. But watching those numbers scroll past made clear something alarming: Cell 7 consistently lagged five hours behind every other cell during absorption phaseeven though identical wiring ran to them all. That discovery led me down a path of checking connections, tightening torque specs on lugs, verifying shunt calibrationand ultimately finding corroded copper strands beneath insulation on one negative link wire. Replacing it dropped variance among cells from ±0.18V to ≤±0.03V overnight. So yesthe HMI improves function indirectlynot by changing algorithmsbut by exposing flaws invisible otherwise. You might ask yourself: Why not use smartphone apps instead? Because reliability trumps convenience outdoors. Apps depend on Wi-Fi/Bluetooth range, phone battery life, OS updates breaking compatibilityall things unreliable in freezing cabins or dusty workshops. A wired LCD stays lit regardless of weather conditions or internet outage. And unlike generic Android tools tied to proprietary protocols, this device speaks native language of JK-series boards straight out-of-the-boxwith zero configuration necessary unless modifying thresholds manually later. | Feature | Standard JK-BMS Indicator Lights | Jikong 4.3 LCD HMI | |-|-|-| | Voltage Per Cell View | ❌ Not available | ✅ Yes – All 1–16 displayed numerically + graph bar | | Temperature Readings | ⚠️ Only average shown | ✅ Individual sensor inputs visible | | Balancing Status | 🔴 Blink = active | 🟢 Animated bars show exact % contribution per cell | | Fault Code Detail | 💡 Red light means error | ℹ️ Text e.g, “Cell Overvoltage ID9” | | Data Logging Capability | ❌ None | ✅ Stores history logs internally (~last 50 events) | Installation steps remain simple despite richer capabilities: <ol> <li> Purchase correct version matching your BMS revision number <em> e.g, V1.x vs V2.y </em> check product listing carefully against label printed on backside of your actual BMS PCB. </li> <li> Safely disconnect primary load/power source prior to touching connectors. </li> <li> Plug RS485 ribbon connector firmly into designated COMM socket on BMS motherboard. </li> <li> Tighten screw-terminals supplying 5–30VDC to both GND and VIN pins on rear of display housing. </li> <li> Reconnect power → wait ~3 sec for boot sequence completion. </li> <li> Navigate menus briefly to confirm units match preference (°C/Fahrenheit, volts/milliamps. </li> </ol> Once set, leave alone. There’s rarely reason to touch settings again unless recalibrating due to aging components years downstream. It adds claritynot complicationto operation. And trust meif you’ve ever lost sleep wondering whether your $2k investment is quietly degradingone glance at these screens makes peace possible. <h2> Can I install this HMI myself, or does it demand professional electrical expertise? </h2> <a href="https://www.aliexpress.com/item/1005006176748006.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf86d1216d44449b9a1c84a950e4b32523.jpg" alt="JIKONG JKBMS Accessories 4.3 2.3 inch LCD Display RS485 Adapter Board Switch CAN Connects Cables for Active Balance Smart JK BMS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> YesI did it entirely solo, standing barefoot on concrete floor wearing gloves, flashlight clipped to hat brim, midnight oil burning beside open toolbox. No license needed. No multimeter calibrations. Nothing exotic except common sense around handling exposed conductors. When I opened my enclosure containing six stacked 12S banks linked together, there wasn’t much space left. Wires snaked everywherefrom MC4 cables feeding PV array, thick gauge cabling going toward hybrid inverter, fuses scattered loosely next to contactor relays. Adding another component felt risky.until I realized how little room the Jikong unit consumed. Its dimensions measure precisely 11cm x 7cm x 2cmincluding bezel frame. Lightweight plastic casing weighs barely 90 grams. Two mounting holes align perfectly with most junction boxes drilled for similar displays. Step-by-step process went smoothly: <ol> <li> I turned OFF all sources including backup generator powering auxiliary circuits. </li> <li> Labeled incoming/outgoing lines so reconnection wouldn’t confuse polarity later. </li> <li> Took photo reference of entire layout before unplugging ANYTHINGa habit saved me twice. </li> <li> Fished thin flat-ended RJ12 cable gently away from heat sinks till reaching accessible COM port edge. </li> <li> Made sure mating surface cleaned lightly with alcohol wipe before insertion. </li> <li> Ran new pair of insulated stranded AWG18 leads from nearby positive/negative bussbars to BACKSIDE terminals marked ‘VIN+/−’. Used crimp-on spades sized correctly for M3 screws provided. </li> <li> Gently pressed display flush against wall mount bracket secured previously with double-sided foam tape. </li> <li> Turned ON master switch. Screen flickered blue then showed startup logo. First readout confirmed ALL CELL VALUES PRESENT AND STABLE. </li> </ol> Critical note: Do NOT assume universal fitment exists across brands claiming “JK-compatible.” Some knockoffs mislabel pinouts. Always verify yours matches official specifications listed HERE:https://www.jkbms.com/specifications.htmlMine came pre-tested with Model JKDZ-SLX-V2R1which happens to be latest iteration sold globally now. Double-check labels stamped faintly underneath metal shield plate glued atop your own BMS chipboard. Also avoid cheap clones advertised as “same thing cheaper!” They frequently ship defective crystals causing erratic refresh rates or corrupted text rendering mid-operationan absolute nightmare during emergency diagnostics. If unsure, buy direct from authorized distributor channel rather than third-party resellers who bundle random accessories hoping buyers overlook mismatched schematics. Bottom line: Any reasonably handy person can handle this upgrade safelyin under twenty minuteswith proper caution regarding short-circuit risks inherent anywhere electricity flows. Just remember: Never rush connection work. One misplaced finger slip equals melted fuse block. Patience > speed always. <h2> How does integrating this HMI affect overall system efficiency compared to relying solely on automated protections? </h2> <a href="https://www.aliexpress.com/item/1005006176748006.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfe872f45725341e5b90a0fa811e954c7P.png" alt="JIKONG JKBMS Accessories 4.3 2.3 inch LCD Display RS485 Adapter Board Switch CAN Connects Cables for Active Balance Smart JK BMS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Automated protections prevent catastrophic failurethey don’t optimize performance. After installing the Jikong display, I noticed subtle inefficiencies masked by default tolerances programmed into stock BMS firmwares. Passive balancing activates too lateat nearly 3.6V thresholdas opposed to starting intelligently closer to peak slope curves observed empirically. With precise visualization enabled, I began adjusting charge termination points dynamically depending on ambient temperatures recorded hourly by onboard thermistors attached externally to case walls. Previously, fixed cutoff point remained locked at 3.50V/cell universally throughout seasons. Now I reduce target slightly during summer months (>30°C internal temps)dropping final stage limit to 3.45Vto minimize gassing risk and extend calendar lifespan. Result? Cycle durability improved noticeably. Last quarter we hit 1,287 complete discharges versus previous avg of 982 before modification. Moreover, seeing instantaneous imbalances allowed proactive intervention BEFORE damage occurred. On Day 17 post-installation, Cell 1 dipped abruptly to 3.08V while rest hovered at 3.30+. Instead of waiting weeks for auto-balancer catch-up, I isolated string temporarily, applied controlled trickle top-off individually via bench supply calibrated to microamp precision, restored equilibrium within hour. Hadn’t seen raw datathat event likely passed unnoticed until permanent degradation settled permanently. Efficiency gains aren’t theoretical anymorethey compound monthly. Consider thermal losses caused by uneven resistance paths leading to localized hotspots. With infrared thermometer gun pointed randomly earlier, I measured differences exceeding 12°F between adjacent cells. Post-HMI implementation, consistent low-variance patterns emerged naturally thanks to timely correction triggers informed visually. Even minor improvements matter exponentially over thousands of cycles. Table comparing outcomes before after deployment: | Metric | Pre-HMI Performance | Post-Jikong Implementation | |-|-|-| | Avg Daily Max Delta Between Cells | ≥0.18 Volts | ≤0.04 Volts | | Time Until Auto-Balance Triggered | Typically delayed >4 hrs | Initiated immediately upon deviation detection | | Estimated Annual Capacity Loss Rate | Approx. 3% | Reduced to approx. 1.2% | | Frequency Of Manual Intervention Needed | Monthly | Quarterly | | User Confidence Level | Low (“hoping it works”) | High (knowing exactly) | System responsiveness increased dramatically simply because awareness replaced assumption. Therein lies truth: Efficiency stems not merely from better techbut from understanding HOW technology performs under YOUR unique constraints. Your environment differs from lab tests. Your usage pattern diverges from manufacturer assumptions. An accurate window into inner workings transforms guesswork into mastery. Don’t settle for silent guardianship. Demand transparency. <h2> Are user reviews reliable indicators of quality for products like this BMS HMI accessory? </h2> <a href="https://www.aliexpress.com/item/1005006176748006.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S731484c76ea5429ab2440e4689c74848N.jpg" alt="JIKONG JKBMS Accessories 4.3 2.3 inch LCD Display RS485 Adapter Board Switch CAN Connects Cables for Active Balance Smart JK BMS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> User reviews exist mostly as social proof signalsnot technical validation benchmarksfor niche electronics such as this. Truthfully speaking, I waited eight weeks after purchase before writing my first public comment online. Why? Because meaningful evaluation requires extended exposure under varied operational stresses. Many reviewers jump to conclusions after single-day testing scenarios: “Works great! Got it plugged in yesterday!” Or worseDidn’t turn on!without realizing faulty USB-to-RJ12 adapters shipped separately elsewhere got swapped accidentally. Real-world validity emerges gradually. Over seven months observing continuous cycling under fluctuating climates -15°C winters ↔ 38°C summers, intermittent grid-tie interruptions, partial shading effects impacting morning ramp-upswe accumulated hundreds of logged sessions worth of behavioral consistency. Zero glitches reported. Zero spontaneous resets. Firmware remains stable indefinitely. Even after accidental reverse-polarity momentary spike induced by careless wrench drop across terminals, recovery happened cleanly without needing reset button press. Compare that to listings flooded with screenshots taken moments after unboxing paired with exaggerated claims like “BEST THING EVER!” Those lack context. Quality manifests subtly: Does response delay persist after cold start? Are digits legible under bright noon sun glare? Can menu navigation occur gloved-handed during rainstorm? Is backlight adjustable sufficiently dimmed yet readable indoors? All answered affirmatively here. Additionally, absence of widespread complaints should carry weight. When dozens of engineers worldwide report identical experiences confirming seamless interoperability across models spanning generations, silence becomes evidence. We rely heavily on community forums dedicated strictly to renewable energy buildersnot retail review aggregators dominated by casual shoppers unfamiliar with differential signaling standards. Recommendation: Prioritize verified purchaser testimonials posted on specialized subreddits /r/solarpower, /r/batteries, GitHub repositories documenting custom firmware integrations, YouTube channels run by certified technicians conducting teardown analyses. Avoid trusting star ratings inflated by bots posting duplicate phrases copied verbatim across unrelated items tagged vaguely as “battery gadget.” Trust experience layered over timenot volume amplified by algorithmic manipulation. Build confidence incrementally through observation, documentation, repetition. Then speak plainly when warranted. Which brings us full circle. I bought this item expecting minimal utility. Instead, it became indispensable companion guiding decisions affecting financial return, equipment health, personal security. Not flashy. Not loud. But profoundly essential.
