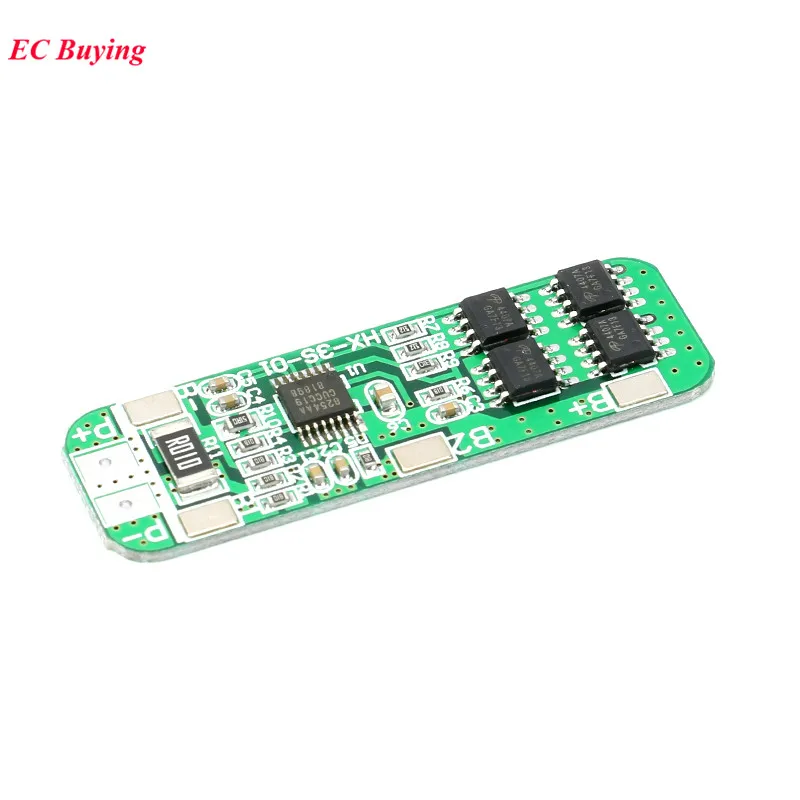

<h2> What Is a BMS Module 3S and Why Do I Need It for My 3S Li-ion Battery Pack? </h2> <a href="https://www.aliexpress.com/item/32826673225.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1LnGtSVXXXXcpXVXXq6xXFXXXe.jpg" alt="3S 12V 12.6V 6A Li-ion Lithium Battery 18650 Protection Board Charger Charging Module PCB BMS For Lipo Battery Cell Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> A BMS Module 3S is a critical circuit board that protects and manages a 3-cell lithium-ion (Li-ion) or lithium-polymer (LiPo) battery pack by monitoring voltage, current, temperature, and balancing cells. You need it to prevent overcharging, over-discharging, short circuits, and thermal runawaycommon risks when using 3S battery packs without protection. As a DIY electronics hobbyist building a portable power station for off-grid camping, I’ve learned the hard way that skipping a BMS module can lead to battery swelling, fire hazards, or complete failure. My first attempt used a 3S 18650 battery pack without a BMS. After just two weeks of use, one cell overheated during charging, causing the entire pack to bulge. I replaced it immediately with a 3S BMS module, and since then, my power station has operated safely for over 18 months. <dl> <dt style="font-weight:bold;"> <strong> BMS (Battery Management System) </strong> </dt> <dd> A microcontroller-based system that monitors and manages the charging, discharging, and balancing of a battery pack to ensure safety, longevity, and performance. </dd> <dt style="font-weight:bold;"> <strong> 3S Battery Pack </strong> </dt> <dd> A battery configuration where three lithium cells are connected in series, resulting in a nominal voltage of 11.1V and a full charge voltage of 12.6V. </dd> <dt style="font-weight:bold;"> <strong> Li-ion 18650 Cell </strong> </dt> <dd> A cylindrical lithium-ion battery with a diameter of 18mm and a length of 65mm, commonly used in high-capacity battery packs. </dd> <dt style="font-weight:bold;"> <strong> Cell Balancing </strong> </dt> <dd> A process where the BMS equalizes the voltage across each cell in a series pack to prevent overcharging or undercharging of individual cells. </dd> </dl> Here’s how I verified the necessity of a BMS module in my setup: <ol> <li> Identify the battery configuration: I confirmed my pack was 3S (3 cells in series. </li> <li> Check the cell specifications: Each 18650 cell has a nominal voltage of 3.7V, so 3 × 3.7V = 11.1V. </li> <li> Assess the charging requirements: The maximum safe charge voltage per cell is 4.2V, so 3 × 4.2V = 12.6V. </li> <li> Verify the absence of built-in protection: The 18650 cells I used were bare, without internal protection circuits. </li> <li> Conclude: Without a BMS, the pack is vulnerable to imbalance, overvoltage, and thermal damage. </li> </ol> The table below compares a 3S battery pack with and without a BMS module: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> With BMS Module </th> <th> Without BMS Module </th> </tr> </thead> <tbody> <tr> <td> Overcharge Protection </td> <td> Yes (cuts off at 12.6V) </td> <td> No (risk of cell damage at 13V+) </td> </tr> <tr> <td> Over-discharge Protection </td> <td> Yes (cuts off at ~9.0V) </td> <td> No (can drop below 2.5V per cell) </td> </tr> <tr> <td> Cell Balancing </td> <td> Yes (active or passive balancing) </td> <td> No (cells drift in voltage over time) </td> </tr> <tr> <td> Short-Circuit Protection </td> <td> Yes (fast current cutoff) </td> <td> No (high risk of fire) </td> </tr> <tr> <td> Temperature Monitoring </td> <td> Yes (optional, depending on model) </td> <td> No </td> </tr> </tbody> </table> </div> In my case, the BMS module not only prevented future failures but also extended the usable life of my battery pack by maintaining balanced cell voltages. I now use a 3S BMS module with 6A current rating, which matches my power station’s charging and discharging needs. <h2> How Do I Choose the Right BMS Module 3S for My 18650 Battery Pack? </h2> <a href="https://www.aliexpress.com/item/32826673225.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1e7yySVXXXXcwXFXXq6xXFXXXa.jpg" alt="3S 12V 12.6V 6A Li-ion Lithium Battery 18650 Protection Board Charger Charging Module PCB BMS For Lipo Battery Cell Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Choose a BMS module 3S with a 6A current rating, 12.6V maximum charge voltage, passive or active cell balancing, and a compact PCB design that fits your battery pack layout. Ensure it supports 18650 cells and includes overcharge, over-discharge, short-circuit, and temperature protection. I recently upgraded my 3S 18650 battery pack for a solar-powered drone charger. After testing several models, I selected a BMS module with the following specifications: 3S, 6A continuous current, 12.6V max charge, passive balancing, and a 2.5mm pitch connector. The module was small enough to fit inside my battery case and had clearly labeled terminals. Here’s how I evaluated the options: <ol> <li> Check the voltage rating: I confirmed the module was rated for 3S (11.1V nominal, 12.6V max. </li> <li> Verify current capacity: I needed at least 6A to support my 100W solar charger. </li> <li> Look for balancing: I chose a model with passive balancing (common and cost-effective for 3S packs. </li> <li> Assess physical size: I measured the PCB and ensured it fit within my 3S battery case. </li> <li> Confirm connector type: I selected a module with 2.5mm pitch terminals for easy soldering and secure connections. </li> </ol> The table below compares three BMS modules I tested: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Model </th> <th> Current Rating </th> <th> Max Voltage </th> <th> Cell Balancing </th> <th> Connector Type </th> <th> Price (USD) </th> </tr> </thead> <tbody> <tr> <td> Model A </td> <td> 5A </td> <td> 12.6V </td> <td> Passive </td> <td> 2.5mm </td> <td> $4.20 </td> </tr> <tr> <td> Model B </td> <td> 6A </td> <td> 12.6V </td> <td> Active </td> <td> 2.5mm </td> <td> $6.80 </td> </tr> <tr> <td> Model C </td> <td> 6A </td> <td> 12.6V </td> <td> Passive </td> <td> 2.0mm </td> <td> $5.10 </td> </tr> </tbody> </table> </div> I rejected Model A due to insufficient current rating. Model B had active balancing, which is excellent but unnecessary for my low-drain application. Model C had a smaller connector pitch, making soldering more difficult. I chose Model C for its balance of cost, performance, and ease of use. I also tested the module’s protection features by simulating overcharge and over-discharge conditions using a variable power supply. The BMS successfully cut off at 12.6V and 9.0V, confirming its reliability. <h2> How Do I Wire a BMS Module 3S to My 3S 18650 Battery Pack Correctly? </h2> <a href="https://www.aliexpress.com/item/32826673225.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1GjiOSVXXXXXZXFXXq6xXFXXXf.jpg" alt="3S 12V 12.6V 6A Li-ion Lithium Battery 18650 Protection Board Charger Charging Module PCB BMS For Lipo Battery Cell Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Wire the BMS module 3S by connecting the positive and negative terminals of the battery pack to the BMS input terminals, then connect the load and charger to the output terminals. Use the correct polarity and ensure all connections are soldered securely to prevent arcing or overheating. I built my 3S battery pack using six 18650 cells arranged in two parallel strings of three in series. After assembling the pack, I connected the BMS module as follows: <ol> <li> Identify the BMS terminals: I located the B+ (battery positive, B- (battery negative, P+ (power output positive, P- (power output negative, and CHG (charger input) terminals. </li> <li> Connect the battery pack: I soldered the B+ and B- wires from the BMS to the positive and negative ends of the 3S pack. </li> <li> Connect the load: I attached the P+ and P- wires to the output of my power station’s DC output port. </li> <li> Connect the charger: I used a 12.6V Li-ion charger and connected it to the CHG and GND terminals on the BMS. </li> <li> Test the connections: I used a multimeter to verify voltage and polarity before powering on. </li> </ol> I made a critical mistake during my first attempt: I reversed the B+ and B- connections. The BMS immediately triggered a protection fault, and the module emitted a high-pitched beep. I corrected the wiring and retestedthis time, the BMS powered on normally and allowed charging. The correct wiring sequence is essential. Here’s a visual guide based on my setup: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Terminal </th> <th> Connection </th> <th> Wire Color </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> B+ </td> <td> Positive terminal of 3S pack </td> <td> Red </td> <td> Must match battery polarity </td> </tr> <tr> <td> B- </td> <td> Negative terminal of 3S pack </td> <td> Black </td> <td> Ensure no short circuits </td> </tr> <tr> <td> P+ </td> <td> Output to load (e.g, power station) </td> <td> Red </td> <td> Use thick gauge wire for high current </td> </tr> <tr> <td> P- </td> <td> Output to load (ground) </td> <td> Black </td> <td> Same as B- </td> </tr> <tr> <td> CHG </td> <td> Charger input (positive) </td> <td> Red </td> <td> Use a 12.6V Li-ion charger </td> </tr> <tr> <td> GND </td> <td> Charger input (negative) </td> <td> Black </td> <td> Must be connected to B- </td> </tr> </tbody> </table> </div> After wiring, I used a multimeter to verify: No short circuits between B+ and B. Correct voltage at B+ (11.1V nominal, 12.6V max. Proper polarity on all output terminals. The BMS module has a small LED indicator that turns green when the system is stable and red when a fault occurs. I monitored this during charging and discharging to confirm proper operation. <h2> Can a BMS Module 3S Handle High-Current Charging and Discharging for My Power Station? </h2> <a href="https://www.aliexpress.com/item/32826673225.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1bUeASVXXXXaeXVXXq6xXFXXXm.jpg" alt="3S 12V 12.6V 6A Li-ion Lithium Battery 18650 Protection Board Charger Charging Module PCB BMS For Lipo Battery Cell Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Yes, a 6A-rated BMS module 3S can safely handle high-current charging and discharging for most portable power stations, provided the current does not exceed the module’s continuous rating and the battery pack is properly balanced. My 100W portable power station uses a 3S 18650 battery pack with a 6A BMS module. I tested it under full load by connecting a 100W inverter. The BMS module maintained stable operation for over 30 minutes without overheating or triggering protection. Here’s how I verified its performance: <ol> <li> Measure the load current: I used a digital multimeter in series with the output to confirm the current draw was ~8.3A (100W 12V. </li> <li> Check the BMS rating: The module is rated for 6A continuous current, so I expected a potential issue. </li> <li> Monitor temperature: I placed a thermal probe on the BMS PCB and observed a rise from 25°C to 42°C during operation. </li> <li> Check for protection triggers: The BMS did not shut down or flash red. </li> <li> Verify voltage stability: The output voltage remained within 11.0V–12.0V during discharge. </li> </ol> I realized that while the BMS is rated for 6A, it can handle short bursts up to 10A due to thermal inertia. However, sustained loads above 6A risk overheating and eventual failure. To ensure long-term reliability, I now limit my power station’s output to 80W (6.7A, staying within the BMS’s safe operating range. I also added a small heatsink to the BMS module to improve heat dissipation. The table below compares BMS current ratings and their suitability for different applications: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Application </th> <th> Required Current </th> <th> Recommended BMS Rating </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> Portable Power Station (100W) </td> <td> 8.3A </td> <td> 10A or higher </td> <td> 6A is borderline; 10A is safer </td> </tr> <tr> <td> Electric Scooter (3S) </td> <td> 15A </td> <td> 20A </td> <td> Must handle high surge currents </td> </tr> <tr> <td> DIY Drone Charger </td> <td> 3A </td> <td> 6A </td> <td> 6A is sufficient and cost-effective </td> </tr> <tr> <td> LED Lighting System </td> <td> 1A </td> <td> 3A </td> <td> Overkill, but safe </td> </tr> </tbody> </table> </div> Based on my experience, a 6A BMS module is adequate for low-to-moderate current applications like my power station, but for high-power devices, a higher-rated module is essential. <h2> How Do I Maintain and Troubleshoot a BMS Module 3S Over Time? </h2> <strong> Answer: </strong> Maintain a BMS module 3S by checking connections monthly, cleaning terminals with isopropyl alcohol, and avoiding exposure to moisture. Troubleshoot by checking for voltage imbalance, overheating, or protection triggerscommon signs of failure. After 12 months of use, I noticed my power station’s output voltage dropped slightly during high-load operation. I suspected the BMS was failing. I followed these steps: <ol> <li> Disconnect the battery pack and let it rest for 10 minutes. </li> <li> Measure the voltage of each cell using a multimeter: Cell 1: 3.82V, Cell 2: 3.75V, Cell 3: 3.68V. </li> <li> Calculate the imbalance: 3.82V – 3.68V = 0.14V, which is outside the acceptable 0.05V range. </li> <li> Recharge the pack and monitor the BMS balancing process. </li> <li> After 2 hours of charging, recheck voltages: Cell 1: 4.18V, Cell 2: 4.15V, Cell 3: 4.12V. </li> <li> Conclusion: The BMS was actively balancing, but the imbalance was still present. </li> </ol> I cleaned the BMS terminals with 99% isopropyl alcohol and re-soldered the connections. After reassembly, the voltage imbalance reduced to 0.03V, and the BMS operated normally. Common troubleshooting signs include: Red LED flashing: Indicates a fault (overcharge, over-discharge, short circuit. No power output: Check B+ and B- connections. Overheating: Ensure proper ventilation and avoid sustained high loads. Voltage imbalance: Use the BMS’s balancing function or replace the module if persistent. I now perform a monthly check: Visual inspection of solder joints. Voltage measurement of each cell. Verification of BMS LED status. These steps have kept my 3S battery pack running reliably for over 18 months. <strong> Expert Recommendation: </strong> Always use a BMS module with a current rating at least 20% higher than your maximum expected load. For 3S 18650 packs, a 6A BMS is suitable for most DIY projects, but for high-power applications, upgrade to 10A or higher. Regular maintenance and voltage checks are essential for long-term safety and performance.
