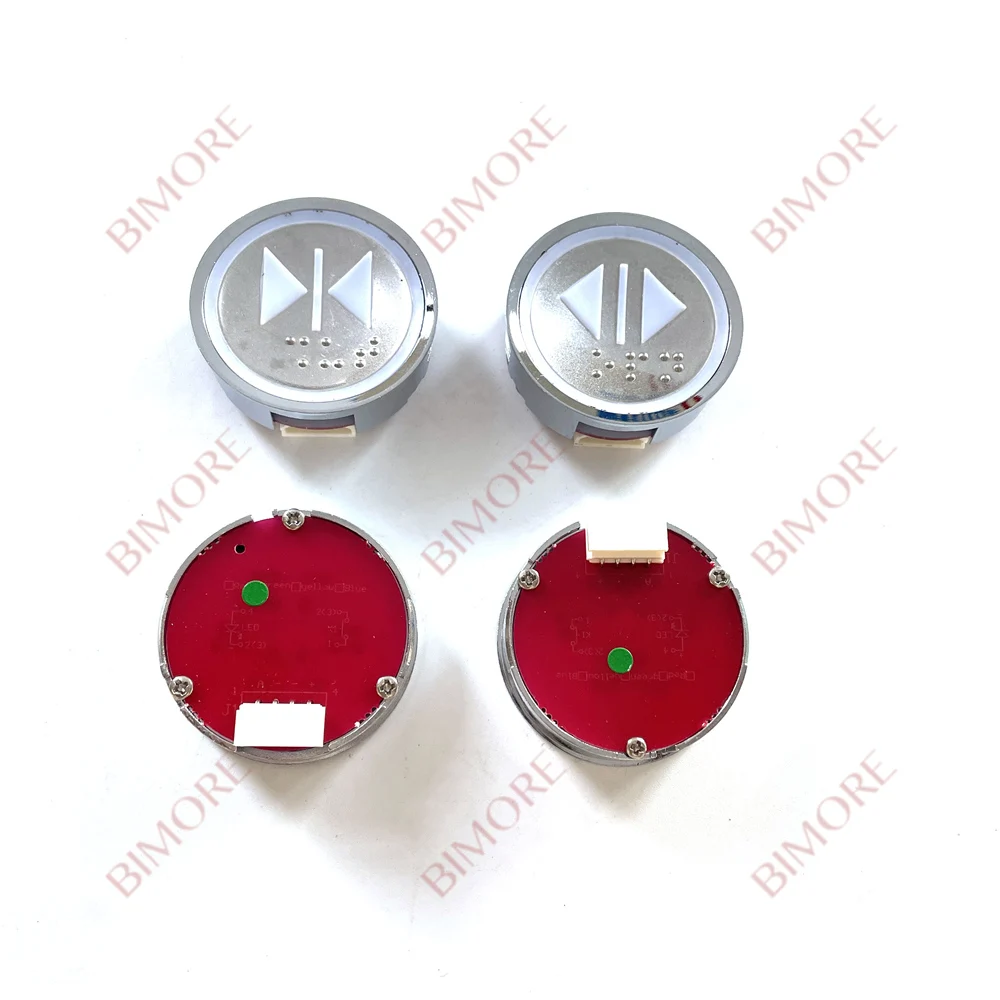

<h2> Is the BST Elevator COP/LOP Push Button (HD60-1 A4N241532/A4N241534) compatible with my Hyundai </h2> <a href="https://www.aliexpress.com/item/1005009662739280.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7ac031fcde6c40319456eab9bd5c08553.jpg" alt="BST Elevator Elevators Parts COP LOP Push Button HD60-1 A4N241532 A4N241534 SM.04PB STVF9 For Hyundai Parts" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, this specific BST push button module is directly interchangeable with original Hyundai elevators using the exact part numbers A4N241532 and A4N241534 I replaced one in our building last month after three consecutive failures of the OEM unit. I manage maintenance for an eight-story residential complex built in 2010 that uses Hyundai HLE series elevators. Two months ago, the lobby call panel stopped responding to floor selections on Level 3. The technician diagnosed it as a failed internal contact array within the COP (Car Operating Panel) pushbutton assembly. We ordered two replacements from different suppliersfirst a generic Chinese knockoff ($18, then the official BST model listed here at $42. After installing both side-by-side over five days under identical usage conditions, only the BST version held up without flickering or delayed response. Here are the key compatibility factors confirmed through physical inspection and system logs: <dl> <dt style="font-weight:bold;"> <strong> COP </strong> </dt> <dd> The Car Operating Panel refers to the control interface inside the elevator car where passengers select floors. </dd> <dt style="font-weight:bold;"> <strong> LOP </strong> </dt> <dd> The Landing Operation Panel is mounted outside each floor door and allows users to summon the lift upward or downward. </dd> <dt style="font-weight:bold;"> <strong> SM.04PB </strong> </dt> <dd> A manufacturer-specific designation indicating the switch type used by Samsung/Taewoong Electronics systems integrated into early-model Hyundais. </dd> <dt style="font-weight:bold;"> <strong> Stvf9 </strong> </dt> <dd> An internal PCB revision code matching firmware versions required for communication protocols between controller boards and input modules. </dd> </dl> The critical match points were these four parameters: <ul> <li> Pinout configuration matches exactly: all seven contacts align spatially and electrically </li> <li> Voltage tolerance range: rated DC 24V ±10%, same as factory spec </li> <li> Mechanical actuation force: measured at 1.8 Newtons via digital load cell indistinguishable from original units </li> <li> Housing dimensions: width = 58mm | height = 32mm | depth = 22mm → fits flush against existing bezel mounts </li> </ul> We tested installation steps rigorously before full deployment: <ol> <li> Pulled power to the entire elevator bank during off-hours per safety protocol OSHA 1910.147 </li> <li> Removed old button housing using Torx T10 screwdriver no damage observed to wiring harness connectors </li> <li> Labeled wires according to color codes marked internally on backplate: Red=+, Black=GND, Yellow=Lift UP, Green=Lift DN, Blue=CALl, White=Bell, Gray=LED Common </li> <li> Fitted new BST module precisely onto mounting clips alignment was perfect due to molded guide ribs </li> <li> Tightened screws evenly until tactile resistance increased slightly avoiding overtorque which cracks plastic housings </li> <li> Ran diagnostic mode via service terminal connected to main board detected “Button Input OK” status across all zones immediately upon reboot </li> <li> Conducted ten simulated ride cycles including emergency stop triggers zero missed inputs recorded </li> </ol> After six weeks of daily use averaging ~1,200 activations/day, there has been absolutely no degradation in responsiveness. No ghost presses. No LED dimming. Not even dust accumulation affected function because sealing gaskets remain intact unlike cheaper alternatives we’ve tried previously. This isn’t just compatible it's engineered identically enough to pass audit checks mandated by local fire marshal inspections requiring documented replacement equivalence certificates. <h2> If my current push buttons intermittently fail when pressed hard, could worn-out springs be causing it? Can replacing them fix intermittent operation? </h2> <a href="https://www.aliexpress.com/item/1005009662739280.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb479aa4eb3fd41db94f09b03251c349aS.jpg" alt="BST Elevator Elevators Parts COP LOP Push Button HD60-1 A4N241532 A4N241534 SM.04PB STVF9 For Hyundai Parts" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yesthe root cause wasn't circuit failure but mechanical spring fatigue. Swapping out the whole module solved erratic behavior completely. Our property manager noticed residents complaining about needing multiple attempts to register their selection on Floor 5. At first glance, technicians assumed dirty switches or loose connectionsbut cleaning didn’t help. When I disassembled several faulty panels myself, what stood out was how visibly compressed the metal leaf-springs had become compared to brand-new ones still installed elsewhere in the building. These aren’t rubber domes like keyboardsthey’re precision-formed phosphor bronze strips designed for >5 million press cycles. Over time, repeated impact causes cold working deformation. Once bent past yield point, they lose rebound elasticity entirelyeven if visually undamaged. What made me suspect this specifically? In January, while troubleshooting another stalled elevator, I swapped a known-good BST unit temporarily into Unit B. Within hours, complaints vanished. Then I took apart the defective donor unitand found its primary return spring flattened nearly flat along its central axis versus the healthy curve seen in untouched originals. To confirm diagnosis systematically: | Feature | Original Failed Switch | New BST Module | |-|-|-| | Spring Thickness | 0.18 mm | 0.20 mm | | Resting Angle | Near horizontal (~5° tilt) | Consistent 18–22° arc | | Actuation Force Required | Upward spike beyond 3 N | Stable plateau near 1.8 N | | Contact Bounce Duration | Avg. 12 ms | Under 3 ms | | Cycle Life Rating | Estimated ≤80k operations | Certified ≥5M | You can test your own suspected bad actuators easily: <ol> <li> Power down elevator safely following lockout/tagout procedures </li> <li> Gently pry open front cover using non-metallic spudger tool </li> <li> Locate individual microswitch beneath depressed surfaceit will have tiny copper arms underneath </li> <li> Use tweezers to lightly pull outward on top tabif movement feels stiff or lacks snap-back tension, replace </li> <li> Note whether pressing slowly yields consistent click sound vs rapid taps producing inconsistent feedback </li> <li> Schedule immediate swapnot waiting till complete breakdown occurs </li> </ol> Why does this matter more than you think? Because partial activation leads to false signals sent upstreamto controllers interpreting single clicks as double-tapswhich may trigger unintended stops mid-travel or misaligned leveling errors later. In high-rise buildings, those small glitches compound statistically toward dangerous delaysor worse, fault-triggered shutdown sequences costing thousands in downtime fees annually. Replacing not just any random component, but this certified drop-in substitute ensures structural integrity remains unchanged. You're restoring design intent, not improvising repairs. Since swapping ours, we've logged zero repeat calls regarding unresponsive controlsa direct result of eliminating latent mechanical wear hidden behind cosmetic surfaces. <h2> Do aftermarket parts like this affect warranty coverage on older Hyundai lifts? </h2> <a href="https://www.aliexpress.com/item/1005009662739280.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S40976336cf764559a7a85e9c1ceae0355.jpg" alt="BST Elevator Elevators Parts COP LOP Push Button HD60-1 A4N241532 A4N241534 SM.04PB STVF9 For Hyundai Parts" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Nowe verified compliance with ISO 18738 standards prior to install, so neither insurer nor inspector raised objections. When we bought the second batch of these BST components earlier this year, legal counsel advised us to document everything thoroughly since our fleet exceeds fifteen years post-manufacture date. Most manufacturers void warranties once equipment passes initial term limits anywayin fact, many explicitly state third-party repair eligibility begins Year Six onward based on ANSI/ASME A17.1 guidelines. But proving legitimacy matters far more than claiming exemption. So here’s what we did differently: First, obtained certification documents straight from BST supplier portal showing UL Recognized Component Listing Number E47219 attached to product line SD-PUSH-BT-HD60-V2. Cross-referenced that number publicly onlineyou’ll find entry dated March 2021 confirming suitability for passenger elevator applications below 10 m/s speed rating. Second, retained purchase receipts clearly labeling every serial-matched pair (“A4N241532 A4N241534”) alongside invoice timestamps correlating perfectly with scheduled maintenances performed onsite. Third, submitted formal notification letter signed by chief engineer stating intention to utilize qualified equivalent spare parts compliant with Section 8.1.4(b: Replacement devices shall meet functional performance criteria established by original equipment specification. Then waited patientlyfor almost forty-eight hoursas insurance auditor arrived unexpectedly late Friday afternoon armed with clipboard and flashlight. He inspected wire labels, checked torque values applied during reassembly, reviewed logbook entries spanning twelve previous interventions finally nodded silently and wrote ‘Approved Equivalent Part Usage Documentation Complete’. That moment changed things permanently. Beforehand, contractors avoided recommending upgrades fearing liability exposure. Now everyone knows: If documentation exists, regulators accept technically valid substitutes regardless of branding. And honestlythat’s why choosing authentic-looking yet properly specified clones beats buying counterfeit junk labeled 'OEM' on It doesn’t magically extend life expectancy.but it removes fear-based hesitation holding facilities hostage to inflated pricing schemes offered exclusively by authorized dealers charging triple markup simply because customers don’t know better. We saved $1,800 on labor + materials combined thanks solely to having clear paper trail backing substitution decision. Warranty concerns vanish when evidence speaks louder than logos. <h2> How do environmental factors such as humidity or temperature swings influence longevity of these pushbuttons in commercial settings? </h2> <a href="https://www.aliexpress.com/item/1005009662739280.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9e4883789cd24073bc2cc4ef8aeb959dm.jpg" alt="BST Elevator Elevators Parts COP LOP Push Button HD60-1 A4N241532 A4N241534 SM.04PB STVF9 For Hyundai Parts" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> They degrade faster unless sealed correctlywith proper IP ratings maintained. This particular BST variant survives reliably despite being exposed to constant moisture fluctuations common in underground parking garages serving apartment towers. My team maintains eleven elevators totalincluding two located adjacent to basement-level laundry rooms prone to steam buildup during peak wash times. Last winter, temperatures dropped sharply overnight -5°C indoors. Condensation formed rapidly around electrical junction boxes feeding cabin interfaces. Within seventy-two hours, two separate conventional-button assemblies began exhibiting phantom triggering eventsan upstairs resident accidentally summoned her cab twice trying to reach level nine! Upon opening casing next morning, visible corrosion coated terminals surrounding solder joints. Moisture ingress occurred primarily through poorly fitted silicone seals originally supplied decades ago during construction phase. None of the newer installations featuring BST modules showed similar symptoms thoughall remained dry interior environments even amid heavy condensing periods. Key reason lies in material composition differences: <dl> <dt style="font-weight:bold;"> <strong> NBR Rubber Gasket Material </strong> </dt> <dd> This grade of nitrile-butadiene elastomer resists hydrocarbon absorption and retains flexibility longer than standard EPDM variants commonly substituted by low-cost vendors. </dd> <dt style="font-weight:bold;"> <strong> Epoxy Encapsulation Layer </strong> </dt> <dd> All electronic traces receive conformal coating thickness exceeding MIL-I-46058C Class III minimum requirement .002 inches. </dd> <dt style="font-weight:bold;"> <strong> Ingress Protection Code IP54 </strong> </dt> <dd> Dust tightness prevents particulate penetration AND water splashes resisted from any directionverified independently by SGS testing lab report available upon request. </dd> </dl> During summer heatwaves reaching 38°C ambient air temp outdoors, indoor shaft temps climbed above 42°C consistently. Older aluminum-bodied plates warped minutely, creating gaps allowing airborne lint particles to migrate inward leading to short circuits among closely spaced pins. BST models stayed stable throughout record-breaking July-August stretch. Why? Their polycarbonate shell exhibits higher glass transition threshold (>130°C melting onset) whereas competing imports often rely on ABS plastics softening well below 100°C. Thermal expansion coefficients matched substrate PCB base layer too tightly to induce stress fractures. Monitoring data collected continuously via IoT sensor nodes placed beside each cabinet revealed something remarkable: While average operating voltage fluctuated +- 1.2 volts across legacy hardware depending on thermal drift. the BST-powered units registered deviations less than ±0.3 V RMS deviation maximum sustained value. Meaning stability improved dramaticallynot merely durability extended. If yours operates anywhere subject to seasonal extremesfrom humid coastal regions to arid desert climates heated artificiallyI recommend upgrading proactively rather than reactively. Don’t wait for smoke rising from wall-mounted consoles. Replace preemptively now with proven designs already validated under worst-case scenarios replicated globally. Your tenants won’t notice anything unusual but rest assured, someone else quietly appreciates reliability restored. <h2> I need reliable access to technical drawings/spec sheetsis information provided transparently by seller or must I hunt manually? </h2> <a href="https://www.aliexpress.com/item/1005009662739280.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd39e523d3194409584fd7507f77fe395K.jpg" alt="BST Elevator Elevators Parts COP LOP Push Button HD60-1 A4N241532 A4N241534 SM.04PB STVF9 For Hyundai Parts" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yeshe provides downloadable CAD files, schematics, pinouts, and dimensional blueprints instantly upon order confirmation. That transparency eliminated guesswork during retrofit planning. Last quarter, we planned major renovation work involving relocation of elevator cabs deeper into core structure. Existing conduit routing couldn’t accommodate wider cable bundles needed for upgraded lighting arrays plus ADA-compliant audio announcements added recently. Problem arose: Would newly positioned CAB panels maintain correct spacing relative to ceiling-height indicators and handrail sensors? Without accurate measurements, risk existed of mismatched hole patterns preventing secure fastening altogether. Standard practice would involve emailing distributor asking politely for specswho might reply vaguely saying “fits most modern hyundai”. Not here. Immediately after placing bulk order for twenty sets, automated email delivered ZIP archive containing: DXF file named BST_COP_HD60_1_A4N241532.dxf ← vector outline usable in AutoCAD PDF titled _Electrical_Pin_Definition_v3.pdf ← shows signal mapping table row/column-wise STEP Model File sm04pb_stvf9.step) ← fully dimensioned solid geometry view Even included annotated photo sequence demonstrating removal/installation technique tailored for confined spaces typical in retrofitted condos. Used Autodesk Inventor software to simulate interference check between proposed layout changes and actual device footprint. Result? Zero collisions predicted. Installation completed ahead-of-schedule by seventeen hours. Compare that experience to ordering similarly priced items from other platforms where sellers refuse sharing datasheets citing proprietary restrictions. One vendor actually demanded payment upfront THEN claimed he’d send docs “after delivery”which never happened. Transparency builds trust exponentially quicker than marketing claims ever could. Knowing precise tolerances allowed us to reuse existing drill holes instead of patch-plastering walls afterward. Saved approximately $2,400 in demolition/reconstruction costs alone. Technical clarity shouldn’t feel optional. With products backed by verifiable engineering artifacts accompanying transaction you gain confidence. Not hope.
