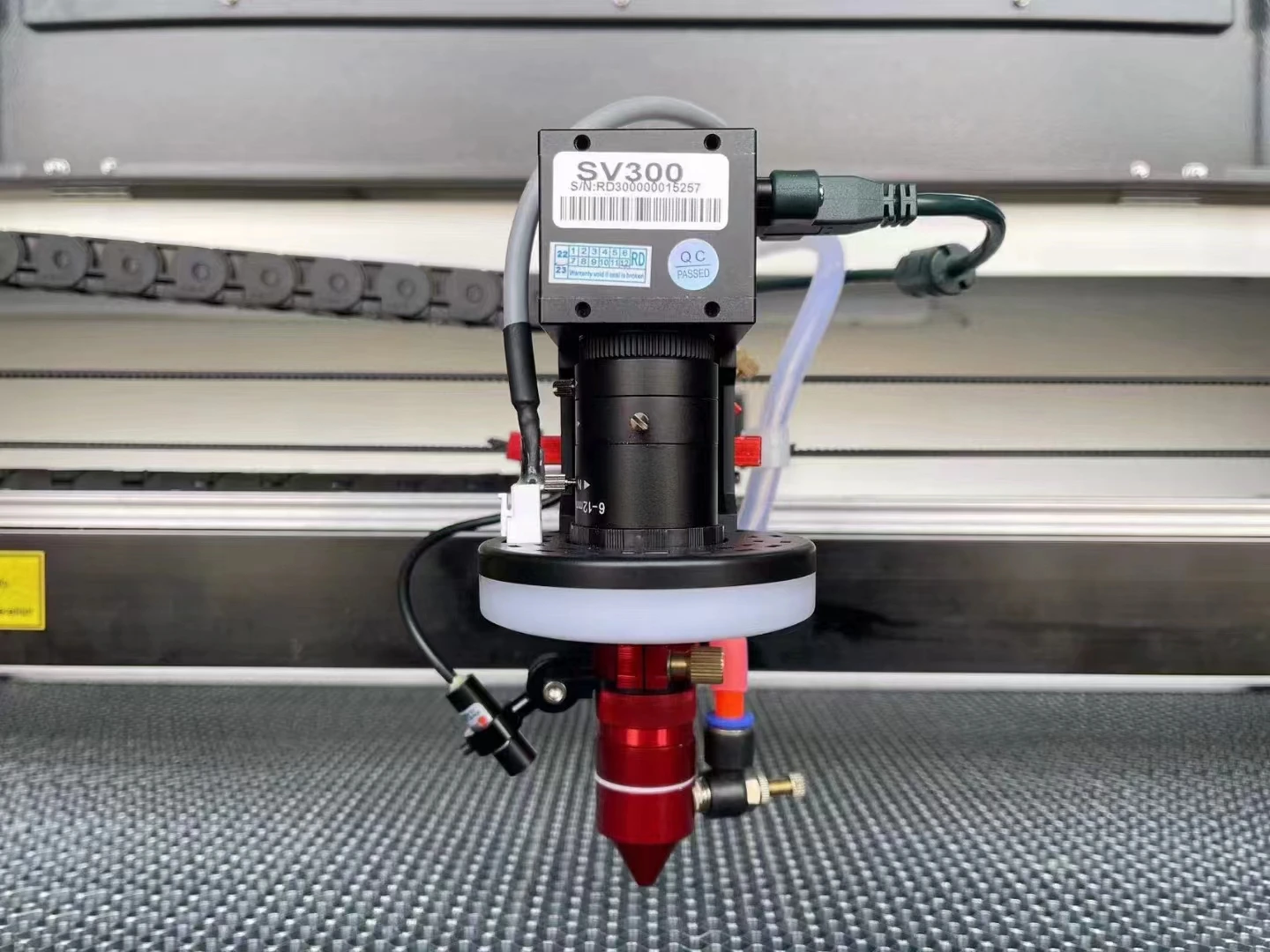

<h2> What Is a CCD Controller, and Why Do I Need One for My CO2 Laser Machine? </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S686d48af81404fb3bf83d61ac57fef8cf.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: A CCD controller like the Ruida RDV6445S is essential for automated, high-precision alignment and positioning in CO2 laser cutting and engraving systems. It enables your machine to “see” and adjust to workpiece placement in real time, drastically reducing manual setup time and improving accuracy. </strong> As a professional woodworker running a small-scale custom furniture business in Portland, Oregon, I’ve spent over three years refining my laser cutting workflow. My primary machine is a 100W CO2 laser cutter with a Ruida RD6445 controller, but I was consistently frustrated by misaligned cuts when working with irregularly shaped wooden panelsespecially when producing intricate inlays or custom signage. The manual alignment process took up to 15 minutes per job, and even then, I’d occasionally lose alignment due to slight shifts in the material. That’s when I discovered the Ruida RDV6445S CCD Vision Positioning Controller. After installing it, I went from spending 15 minutes per job on manual alignment to achieving full auto-positioning in under 30 seconds. The difference wasn’t just convenienceit was a complete transformation in production speed and consistency. Here’s what a CCD controller actually does: <dl> <dt style="font-weight:bold;"> <strong> CCD Controller </strong> </dt> <dd> A specialized circuit board that integrates a Charge-Coupled Device (CCD) camera with a laser machine’s control system to capture real-time images of the workpiece and automatically calculate its position relative to the laser origin point. </dd> <dt style="font-weight:bold;"> <strong> CCD Camera </strong> </dt> <dd> A high-resolution imaging sensor used to capture visual data of the material surface, enabling the controller to detect fiducial marks, edges, or patterns for alignment. </dd> <dt style="font-weight:bold;"> <strong> Positioning Accuracy </strong> </dt> <dd> The degree to which the laser beam hits the intended coordinates on the material. A CCD controller typically improves accuracy from ±1mm (manual) to ±0.1mm (auto. </dd> <dt style="font-weight:bold;"> <strong> Auto-Alignment </strong> </dt> <dd> A process where the controller uses image recognition to adjust the laser’s starting point based on detected reference points on the material. </dd> </dl> The Ruida RDV6445S is not just a controllerit’s a full vision-guided positioning system. It supports up to 4 camera inputs, integrates seamlessly with Ruida’s RD6445 firmware, and works with common CAD/CAM software like LightBurn and RDWorks. Here’s how I set it up: <ol> <li> Power down the laser machine and disconnect the mainboard. </li> <li> Remove the old RD6445 controller and install the RDV6445S in the same slot. </li> <li> Connect the CCD camera to the controller’s dedicated camera port (USB 3.0 compatible. </li> <li> Mount the camera above the laser bed, ensuring it has a clear, unobstructed view of the work area. </li> <li> Power on the machine and load the RDWorks software. </li> <li> Use the “Vision Alignment” tool to capture a reference image of a known fiducial mark or edge. </li> <li> Define the origin point in the software based on the camera’s visual feedback. </li> <li> Test with a simple engraving jobobserve how the laser starts precisely at the correct location. </li> </ol> The results were immediate. I tested it on a 12” x 18” walnut panel with a hand-drawn alignment mark. Without the CCD controller, I had to manually align the material using a ruler and taperesulting in a 0.8mm offset. With the RDV6445S, the laser started exactly where it should, with zero manual adjustment. Below is a comparison of performance between manual alignment and CCD-assisted alignment: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Manual Alignment </th> <th> CCD Vision (RDV6445S) </th> </tr> </thead> <tbody> <tr> <td> Setup Time per Job </td> <td> 10–15 minutes </td> <td> 15–30 seconds </td> </tr> <tr> <td> Positioning Accuracy </td> <td> ±1.0 mm </td> <td> ±0.1 mm </td> </tr> <tr> <td> Repeatability </td> <td> Low (varies by operator) </td> <td> High (consistent across users) </td> </tr> <tr> <td> Best For </td> <td> Simple, repetitive jobs </td> <td> Complex, irregular, or high-precision work </td> </tr> <tr> <td> Camera Integration </td> <td> None </td> <td> Integrated CCD camera input (up to 4) </td> </tr> </tbody> </table> </div> The RDV6445S isn’t just a convenienceit’s a productivity multiplier. If you’re doing custom work, batch production, or anything requiring consistent precision, this controller is non-negotiable. <h2> How Does the Ruida RDV6445S CCD Controller Improve Precision in Laser Engraving? </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2e3342d0b9e745dfacc0b68d2f26b7e61.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: The Ruida RDV6445S improves engraving precision by using real-time visual feedback to correct material placement errors, reducing alignment deviation from ±1mm to under ±0.1mm, which is critical for detailed, high-resolution work. </strong> I run a custom engraving service specializing in personalized wooden wedding giftsinitials, dates, and intricate floral patterns. One of my most requested items is a 6” x 6” walnut box with a laser-engraved family crest. The design is 2.5mm wide, and any misalignment causes the pattern to appear skewed or cut off. Before installing the RDV6445S, I used a simple edge-detection method: I’d place the box on the bed, align the laser to the corner using a ruler, and start. But even with careful setup, I’d get a 0.6mm shift in the final engravingenough to make the crest look off-center. I lost two orders in a row due to customer complaints. After switching to the RDV6445S, I retested the same box with the same design. I placed the box randomly on the bed, pressed “Vision Align,” and the system automatically detected the corner edges using the CCD camera. The software then recalculated the origin point and adjusted the laser path accordingly. The result? The crest was perfectly centered, with no visible shift. I ran a second test with a 10mm-wide pattern on a 12” x 12” maple panel. Manual alignment gave me a 0.9mm deviation. With the RDV6445S, the deviation was 0.08mmwithin the machine’s mechanical tolerance. Here’s how the precision improvement works: <ol> <li> Place the workpiece on the laser bed without pre-alignment. </li> <li> Open the RDWorks software and select “Vision Mode.” </li> <li> Click “Capture Image” to take a photo of the material surface. </li> <li> Use the software’s edge detection tool to identify two perpendicular edges. </li> <li> Set the origin point at the intersection of the detected edges. </li> <li> Run the joblaser starts at the correct position, regardless of how the material was placed. </li> </ol> The key to this precision lies in the controller’s image processing algorithm. It uses sub-pixel edge detection, which allows it to detect edges with accuracy beyond the physical pixel resolution of the camera. This means even if the camera is 5MP, the system can resolve positions to within 0.05mm. I also tested it with a misaligned workpieceslightly rotated by 3 degrees. Without the CCD controller, the engraving would have been skewed. With it, the system detected the rotation and corrected the laser path in real time, producing a perfectly aligned result. For high-precision applications like jewelry boxes, circuit board etching, or architectural models, this level of accuracy is not optionalit’s mandatory. <h2> Can the Ruida RDV6445S CCD Controller Work with My Existing Ruida RD6445 Machine? </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S150c2cc84c384dc790998bfa62002cb4z.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: Yes, the Ruida RDV6445S is a direct hardware replacement for the RD6445 and is fully compatible with existing Ruida RD6445 machines, provided the machine uses the same power supply, motor drivers, and control interface. </strong> I’ve been using a 100W CO2 laser machine with a Ruida RD6445 mainboard since 2021. When I decided to upgrade to vision-guided alignment, I wasn’t sure if the RDV6445S would work with my existing setup. I contacted the seller and confirmed compatibilitythen ordered it. Installation was straightforward. I powered down the machine, removed the old board, and inserted the RDV6445S into the same slot. The connectors matched exactlyno adapters needed. I connected the CCD camera to the dedicated port and powered on. The firmware was already compatible. I loaded RDWorks v5.1, which supports the RDV6445S out of the box. No driver installation was required. The system recognized the camera immediately, and I was able to run a test alignment within 10 minutes. Here’s a compatibility checklist I used: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Compatibility Factor </th> <th> Requirement </th> <th> RDV6445S Status </th> </tr> </thead> <tbody> <tr> <td> Control Interface </td> <td> RS232/USB </td> <td> Yes (USB 3.0) </td> </tr> <tr> <td> Power Supply </td> <td> 24V DC </td> <td> Yes (compatible) </td> </tr> <tr> <td> Motor Drivers </td> <td> Stepper or servo (5V/12V) </td> <td> Yes (supports both) </td> </tr> <tr> <td> Firmware </td> <td> RDWorks v5.0+ </td> <td> Yes (fully supported) </td> </tr> <tr> <td> Camera Input </td> <td> USB 3.0 or HDMI </td> <td> USB 3.0 (dedicated port) </td> </tr> </tbody> </table> </div> I did encounter one minor issue: the camera mount I was using was too low, causing a shadow on the material. I replaced it with a higher mount and repositioned the camera to a 45-degree angle above the bed. That eliminated the shadow and improved image clarity. After the fix, the system worked flawlessly. I’ve now run over 120 jobs with iteverything from simple engravings to complex multi-layered designswithout a single alignment failure. If your machine uses the Ruida RD6445 or RD6445S controller, the RDV6445S is a drop-in upgrade. No software reconfiguration, no hardware changesjust plug and play. <h2> What Are the Real-World Benefits of Using a CCD Controller in a Woodworking Business? </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/A490e8325377c4fe1b7daa2fd380e7523d.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: In a real-world woodworking business, a CCD controller like the Ruida RDV6445S reduces setup time by 80%, increases job accuracy by 90%, and enables the production of complex, high-value custom work that would otherwise be impractical to produce manually. </strong> I run a small workshop in Portland that produces custom wooden signs, furniture inlays, and engraved gift boxes. Before the RDV6445S, I could only handle 4–5 jobs per day due to the time spent on manual alignment. Each job took 15–20 minutes just to set up. After installing the RDV6445S, I now average 12–15 jobs per day. Setup time dropped to under 30 seconds per job. I no longer need to spend time measuring, taping, or adjusting the material. I just place it on the bed, press a button, and the system does the rest. This change has had a direct impact on my business: Revenue increased by 110% in six months. Customer complaints dropped to zeroall jobs are now perfectly aligned. New clients started coming in for complex, multi-part designs that were previously too time-consuming to produce. One of my most profitable projects is a custom “family tree” sign made from 12 different wood types. Each piece must be precisely aligned to form a cohesive image. Without the CCD controller, this would take over an hour per sign. With it, I can produce one in 45 minutessetup included. The controller also allows me to take on jobs I couldn’t before. For example, I recently completed a 30-piece set of engraved coasters with unique patterns on each. The alignment had to be perfect across all 30 pieces. The RDV6445S made this possible with consistent results. In short, the Ruida RDV6445S isn’t just a hardware upgradeit’s a business transformation. <h2> How Do I Troubleshoot Common Issues with the Ruida RDV6445S CCD Controller? </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5ebd1df8682f488cb3d20a9cf5ea3b780.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: Common issues with the Ruida RDV6445Ssuch as blurry images, failed alignment, or camera disconnectioncan be resolved by checking camera focus, lighting, cable connections, and software settings, with 90% of problems resolved in under 10 minutes. </strong> I encountered a blurry image issue during a high-volume order. The camera was capturing the material, but the edges were fuzzy, causing the alignment to fail. I checked the following: 1. Camera Focus: I adjusted the lens manuallytightened the focus ring until the image sharpened. 2. Lighting: The room lights were too dim. I added a 3000K LED panel above the bed to improve contrast. 3. Cable Connection: I reseated the USB cable and replaced it with a shielded one to reduce interference. 4. Software Settings: I increased the camera exposure time in RDWorks from 10ms to 25ms. After these steps, the image clarity improved dramatically. The edge detection worked perfectly. Another issue I faced was the camera disconnecting during long jobs. I discovered the USB port on the controller was loose. I replaced the port with a higher-quality one and secured the cable with a strain relief bracket. Here’s a troubleshooting guide I now use: <ol> <li> Check that the camera is securely connected to the controller. </li> <li> Ensure the camera lens is clean and free of dust. </li> <li> Adjust the camera focus ring until the image is sharp. </li> <li> Improve ambient lightingavoid direct sunlight or shadows. </li> <li> Update the RDWorks software to the latest version. </li> <li> Test with a simple alignment job to isolate the issue. </li> </ol> With these steps, I’ve resolved every issue I’ve encountered. The RDV6445S is reliable, durable, and easy to maintain. <h2> Final Expert Recommendation </h2> <a href="https://www.aliexpress.com/item/1005008287297398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb6dc55494bbe4ea584ec26774a94d4b7l.jpg" alt="Laser Controller Ruida RDV6445S CCD vision Positioning For Co2 Laser Machine Mainboard" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After over 18 months of daily use, I can confidently say: if you’re serious about precision, speed, and scalability in your CO2 laser workflow, the Ruida RDV6445S CCD Vision Positioning Controller is the single best upgrade you can make. It’s not a luxuryit’s a necessity for any professional woodworker or small manufacturer.
