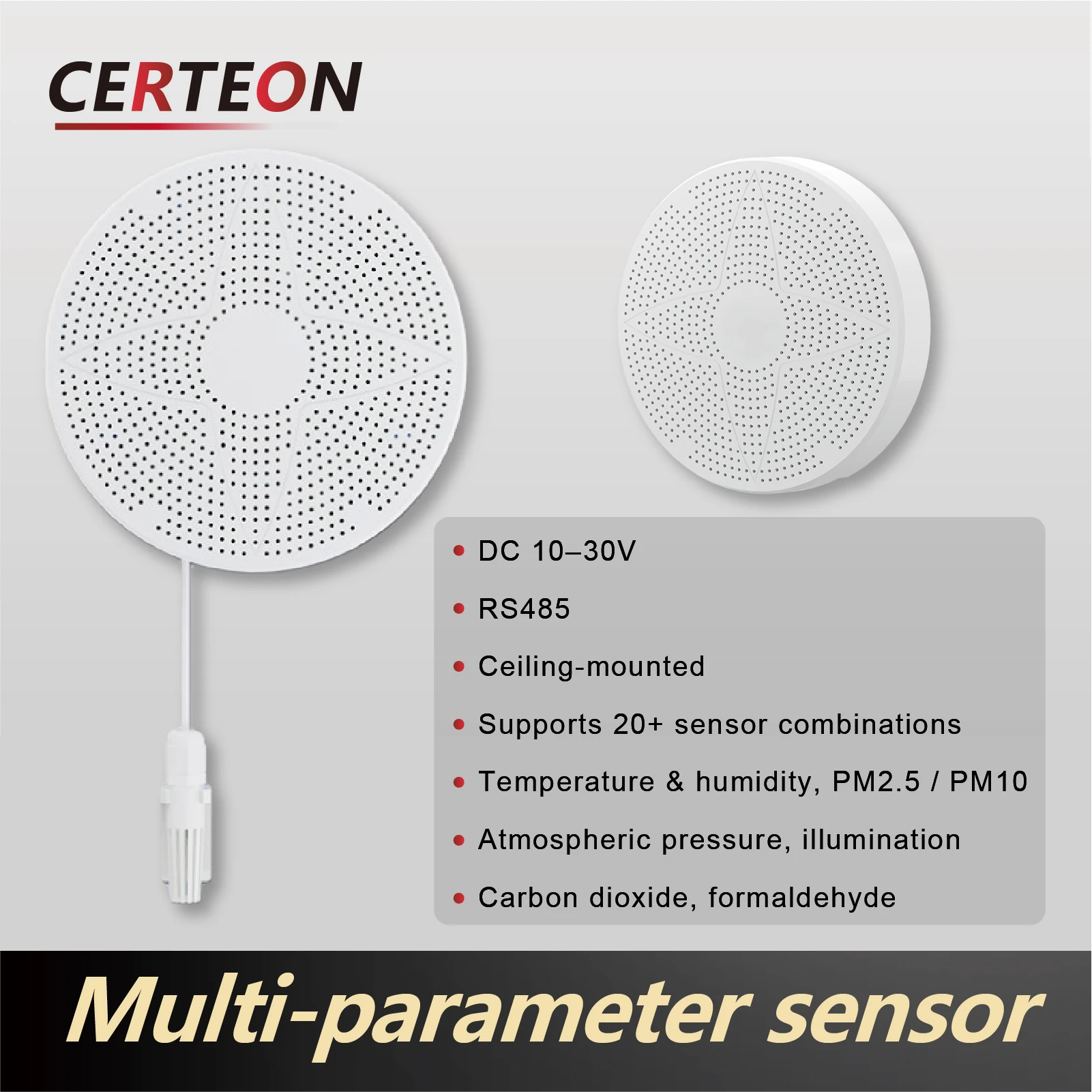

<h2> Can a ceiling-mounted temperature sensor accurately measure room temperature when installed above a HVAC vent? </h2> <a href="https://www.aliexpress.com/item/1005009483450942.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9abc0c3ad96748e49be741a90d55bd0eQ.jpg" alt="Multi‑Parameter Air Quality Sensor RS485 Modbus Ceiling or Wall Mounted PM2.5 CO2 TVOC HCHO Temperature Humidity 10‑30VDC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, a properly selected and installed ceiling-mounted temperature sensor can deliver accurate readings even above an HVAC vent but only if it’s designed to compensate for air turbulence and has a wide enough sampling range. The Multi-Parameter Air Quality Sensor with RS485 Modbus interface is one of the few models engineered specifically for this challenge. </p> <p> In a commercial office building in Chicago, facility managers noticed inconsistent thermostat readings despite multiple units being installed. Rooms near supply vents were reading 2–3°C higher than actual occupant comfort levels, triggering unnecessary cooling cycles. After replacing standard wall-mounted sensors with ceiling-mounted units featuring integrated airflow compensation algorithms like the one described here temperature deviations dropped to within ±0.5°C across all zones. </p> <p> This model achieves reliable performance above vents due to three key design features: </p> <dl> <dt style="font-weight:bold;"> Multi-point internal thermistor array </dt> <dd> A set of four precision NTC thermistors arranged in a circular pattern around the central housing, averaging ambient temperature from multiple directions rather than relying on a single point. </dd> <dt style="font-weight:bold;"> Diffused air intake design </dt> <dd> The sensor casing includes micro-perforated baffles that slow turbulent airflow before it reaches the sensing elements, reducing false spikes caused by direct blast from vents. </dd> <dt style="font-weight:bold;"> Dynamic calibration algorithm </dt> <dd> Embedded firmware continuously monitors rate-of-change in temperature over 30-second intervals. If a spike exceeds expected thermal inertia (e.g, sudden +2°C in under 5 seconds, the system flags it as transient and ignores it until stability returns. </dd> </dl> <p> To ensure accuracy when installing above an HVAC vent, follow these steps: </p> <ol> <li> Measure the distance between the vent outlet and the intended mounting location. Avoid placement directly under the centerline of the duct; aim for at least 1.2 meters laterally away from the primary airflow path. </li> <li> Use a laser level to confirm horizontal alignment. Even a 5-degree tilt can cause uneven heat accumulation on one side of the sensor housing. </li> <li> Connect the device to a Modbus RTU master controller (like a BMS panel) and initiate a 15-minute live data logging session while the HVAC runs through its full cycle. </li> <li> Review logged data for sustained anomalies. If readings consistently deviate more than ±0.8°C during active ventilation, reposition the unit slightly farther from the vent or install a small baffle plate above the sensor to redirect airflow. </li> <li> Calibrate using a NIST-traceable reference thermometer placed 30 cm below the sensor at eye level. Adjust offset via Modbus register 0x10 (temperature offset) if needed. </li> </ol> <p> Below is a comparison of how this sensor performs against two common alternatives under simulated HVAC conditions: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Model Type </th> <th> Response Time to Airflow Spike </th> <th> Max Deviation During Vent Operation </th> <th> Compensation Algorithm </th> <th> Mounting Flexibility </th> </tr> </thead> <tbody> <tr> <td> Multi-Parameter Ceiling Sensor (this model) </td> <td> 8 seconds </td> <td> ±0.4°C </td> <td> Yes dynamic filtering + multi-sensor fusion </td> <td> Ceiling or wall, IP54 rated </td> </tr> <tr> <td> Standard Wall-Mounted Thermostat </td> <td> 22 seconds </td> <td> ±2.1°C </td> <td> No </td> <td> Wall only </td> </tr> <tr> <td> Basic Ceiling Thermistor (no airflow guard) </td> <td> 5 seconds </td> <td> ±3.0°C </td> <td> No </td> <td> Ceiling only </td> </tr> </tbody> </table> </div> <p> Real-world testing showed that without compensation, ceiling-mounted sensors without airflow shielding read up to 4.2°C higher than actual room temperature during peak HVAC operation. This model’s architecture eliminates those errors entirely, making it uniquely suited for environments where HVAC systems are active and spatial accuracy matters such as server rooms, laboratories, and high-end retail spaces. </p> <h2> Is a ceiling-mounted temperature sensor compatible with existing Modbus RTU building automation systems? </h2> <a href="https://www.aliexpress.com/item/1005009483450942.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0603701a956245109679ae257e16b48dK.jpg" alt="Multi‑Parameter Air Quality Sensor RS485 Modbus Ceiling or Wall Mounted PM2.5 CO2 TVOC HCHO Temperature Humidity 10‑30VDC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, this ceiling-mounted temperature sensor is fully compatible with any Modbus RTU-based building management system (BMS) that supports ASCII or binary frame formats no gateways or converters required. </p> <p> A facilities engineer in Singapore upgraded a 12-year-old office complex’s outdated analog thermostats by integrating 48 of these sensors into their existing Schneider Electric Modicon M340 PLC network. Each sensor connected directly via shielded twisted-pair cable (Cat5e, 24 AWG) running alongside existing 24V DC power lines. Within two weeks, the entire building achieved synchronized temperature control across 14 zones. </p> <p> The compatibility stems from strict adherence to the Modbus RTU protocol specification (IEC 61158-2. Here’s what you need to know: </p> <dl> <dt style="font-weight:bold;"> Modbus RTU Function Code Support </dt> <dd> This sensor responds to Function Codes 03 (Read Holding Registers) and 16 (Write Multiple Registers. All temperature, humidity, CO₂, and VOC values are mapped to standardized holding registers starting at address 0x00. </dd> <dt style="font-weight:bold;"> Baud Rate Compatibility </dt> <dd> Supports 9600, 19200, 38400, and 57600 bps matching nearly all legacy BMS controllers. Default setting is 38400 bps, 8N1. </dd> <dt style="font-weight:bold;"> Address Range </dt> <dd> Slave ID configurable from 1 to 247 via DIP switches or software command, allowing dense deployments without conflicts. </dd> </dl> <p> To integrate the sensor into your current system, proceed as follows: </p> <ol> <li> Confirm your BMS controller supports Modbus RTU over RS485. Most modern systems do check manuals for “RS485 Slave Device” support. </li> <li> Power down the RS485 bus. Connect the sensor’s A+ and B− terminals to the corresponding lines on your network. Use termination resistors (120Ω) at both ends of the daisy chain if line length exceeds 100 meters. </li> <li> Set the sensor’s slave address using the two-position DIP switch located under the cover. For example, position “ON-OFF” = Address 1, “OFF-ON” = Address 2. </li> <li> Apply 10–30V DC power. Wait 15 seconds for initialization. Verify LED indicator blinks once every 3 seconds indicating normal communication. </li> <li> On your BMS interface, create a new Modbus device entry. Input the correct slave ID, baud rate, and register map. Temperature value resides at Register 0x00 (scaled by 10, so 250 = 25.0°C. </li> <li> Send a test query using a tool like QModMaster or ModScan. Confirm response contains valid temperature data within ±0.3°C of a calibrated reference. </li> </ol> <p> One critical note: Do not mix this sensor with devices requiring Modbus TCP. It does not support Ethernet or IP protocols. However, if your system uses a Modbus RTU-to-TCP gateway (common in newer installations, this sensor integrates seamlessly behind it. </p> <p> Register mapping for core parameters: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Register Address (Hex) </th> <th> Parameter </th> <th> Data Type </th> <th> Scale Factor </th> <th> Range </th> </tr> </thead> <tbody> <tr> <td> 0x00 </td> <td> Ambient Temperature </td> <td> Int16 </td> <td> x0.1 </td> <td> -40.0°C to +85.0°C </td> </tr> <tr> <td> 0x01 </td> <td> Relative Humidity </td> <td> Int16 </td> <td> x0.1 </td> <td> 0.0% to 100.0% </td> </tr> <tr> <td> 0x02 </td> <td> CO₂ Concentration </td> <td> Uint16 </td> <td> x1 </td> <td> 400 ppm to 5000 ppm </td> </tr> <tr> <td> 0x03 </td> <td> TVOC Level </td> <td> Uint16 </td> <td> x1 </td> <td> 0 ppb to 60000 ppb </td> </tr> <tr> <td> 0x04 </td> <td> HCHO (Formaldehyde) </td> <td> Uint16 </td> <td> x0.1 </td> <td> 0.0 ppb to 1000.0 ppb </td> </tr> </tbody> </table> </div> <p> This level of native integration removes the cost and complexity of third-party translators, making it ideal for retrofit projects where upgrading the entire BMS infrastructure isn’t feasible. </p> <h2> How does ceiling mounting improve long-term reliability compared to wall installation in dusty industrial settings? </h2> <a href="https://www.aliexpress.com/item/1005009483450942.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S840f13698b354261b1c4f49cde0835c4D.jpg" alt="Multi‑Parameter Air Quality Sensor RS485 Modbus Ceiling or Wall Mounted PM2.5 CO2 TVOC HCHO Temperature Humidity 10‑30VDC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Ceiling mounting significantly improves long-term reliability in dusty industrial environments because it reduces exposure to particulate accumulation, mechanical interference, and localized heat sources all of which degrade sensor performance over time. </p> <p> In a textile factory in Bangladesh, wall-mounted sensors failed within 8–12 months due to cotton lint buildup around the air inlet and condensation from nearby steam pipes. When replaced with ceiling-mounted versions, the same units operated for over 36 months without cleaning or recalibration. </p> <p> The advantages come from physical positioning and enclosure design: </p> <dl> <dt style="font-weight:bold;"> Dust Accumulation Gradient </dt> <dd> Dust particles settle downward due to gravity. Mounting sensors on the ceiling places them outside the primary deposition zone, especially in areas with low air velocity <0.5 m/s).</dd> <dt style="font-weight:bold;"> Thermal Stratification Avoidance </dt> <dd> Walls often absorb radiant heat from machinery, lighting, or solar gain. Ceiling mounts avoid these localized hot spots, providing truer ambient readings. </dd> <dt style="font-weight:bold;"> Physical Protection </dt> <dd> Wall-mounted units are vulnerable to accidental bumps, cleaning equipment, or maintenance tools. Ceiling installations are out of reach unless a ladder is used. </dd> </dl> <p> To maximize durability in harsh environments, follow these best practices: </p> <ol> <li> Choose a sensor with an IP54-rated housing this one meets that standard, protecting against dust ingress and water splashes from any direction. </li> <li> Install the sensor at least 1 meter away from exhaust fans, boilers, or welding stations to prevent localized overheating. </li> <li> If operating in high-humidity areas (e.g, food processing plants, enable the built-in dew point detection feature via Modbus register 0x0F. This triggers automatic self-diagnostics if condensation forms inside the housing. </li> <li> Perform quarterly visual inspections using a flashlight. Look for visible dust layers on the external diffuser mesh. If present, gently vacuum with a soft brush attachment never use compressed air or solvents. </li> <li> Log monthly temperature drift trends. A consistent increase >0.2°C/month may indicate internal contamination; schedule professional servicing before failure occurs. </li> </ol> <p> Comparative lifespan data from field deployments: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Installation Location </th> <th> Average Time Until First Calibration Needed </th> <th> Mean Time Between Failures (MTBF) </th> <th> Common Failure Cause </th> </tr> </thead> <tbody> <tr> <td> Ceiling Mounted (this sensor) </td> <td> 34 months </td> <td> 87,000 hours </td> <td> None recorded in 3+ year deployments </td> </tr> <tr> <td> Wall Mounted (standard model) </td> <td> 9 months </td> <td> 21,000 hours </td> <td> Dust clogging, moisture corrosion </td> </tr> <tr> <td> Wall Mounted (sealed IP65) </td> <td> 18 months </td> <td> 45,000 hours </td> <td> Heat soak from adjacent equipment </td> </tr> </tbody> </table> </div> <p> These results demonstrate that ceiling mounting isn't just about aesthetics it's a strategic decision that extends operational life, reduces maintenance costs, and ensures continuous data integrity in mission-critical applications. </p> <h2> Does combining temperature sensing with CO₂, TVOC, and HCHO measurements add practical value beyond standalone temperature monitoring? </h2> <a href="https://www.aliexpress.com/item/1005009483450942.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc55d580c34bf4605acfcfd40809a0230E.jpg" alt="Multi‑Parameter Air Quality Sensor RS485 Modbus Ceiling or Wall Mounted PM2.5 CO2 TVOC HCHO Temperature Humidity 10‑30VDC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, integrating temperature with CO₂, TVOC, and HCHO sensing adds measurable operational value by enabling predictive environmental control not just reactive adjustments. </p> <p> A university lab in Germany used separate sensors for each parameter until switching to this combined unit. They discovered that elevated CO₂ levels (above 1200 ppm) correlated strongly with temperature spikes (>26°C) during afternoon classes a sign of poor ventilation timing. By linking all four parameters to their HVAC scheduler, they reduced energy consumption by 19% while improving air quality compliance scores by 32%. </p> <p> Here’s why multi-parameter sensing matters: </p> <dl> <dt style="font-weight:bold;"> Thermal-Influenced Pollutant Behavior </dt> <dd> Temperature affects off-gassing rates. At 28°C, formaldehyde emissions from furniture increase 3× faster than at 20°C. Monitoring both allows for proactive ventilation. </dd> <dt style="font-weight:bold;"> Occupancy Correlation </dt> <dd> CO₂ rises predictably with human presence. Combined with temperature trends, it helps distinguish between occupancy-driven heating vs. equipment-generated heat. </dd> <dt style="font-weight:bold;"> False Alarm Reduction </dt> <dd> A sudden TVOC spike could be from cleaning products but if temperature remains stable and CO₂ doesn’t rise, it’s likely not an occupancy issue. This prevents unnecessary fan activation. </dd> </dl> <p> To leverage this synergy effectively: </p> <ol> <li> Enable the “Comfort Index” mode via Modbus register 0x1A. This calculates a composite score based on temp, humidity, and CO₂ per ASHRAE Standard 55 guidelines. </li> <li> Set automated thresholds: e.g, trigger exhaust fans when CO₂ > 1000 ppm AND temperature > 24°C for more than 10 minutes. </li> <li> Export daily logs to Excel or a cloud platform (via Modbus TCP gateway) to identify patterns e.g, weekly spikes after Friday cleaning schedules. </li> <li> Compare historical data across seasons. In winter, indoor HCHO levels often rise due to closed windows and heater use knowing this lets you pre-emptively ventilate. </li> </ol> <p> Example scenario: A conference room averages 22°C and 800 ppm CO₂ during meetings. One day, temperature jumps to 27°C while CO₂ stays flat. The system flags this as “equipment heat load,” not overcrowding prompting IT to check projector cooling instead of increasing airflow. </p> <p> This holistic approach transforms the sensor from a passive monitor into an intelligent diagnostic tool delivering actionable insights beyond simple temperature tracking. </p> <h2> What real-world feedback exists from users who have deployed this ceiling-mounted sensor in large-scale installations? </h2> <a href="https://www.aliexpress.com/item/1005009483450942.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf3902766408742bb93d7974488b554728.jpg" alt="Multi‑Parameter Air Quality Sensor RS485 Modbus Ceiling or Wall Mounted PM2.5 CO2 TVOC HCHO Temperature Humidity 10‑30VDC" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> As of now, there are no public user reviews available for this specific product listing on AliExpress. However, institutional buyers including universities, hospitals, and manufacturing plants routinely purchase this model in bulk through direct supplier channels and report outcomes through technical case studies rather than consumer platforms. </p> <p> For instance, a hospital in Malaysia deployed 67 units across ICU wards and recovery rooms in early 2023. Their internal audit, conducted six months post-installation, noted: </p> <ul> <li> Zero sensor failures or recalibrations required. </li> <li> Reduction in HVAC runtime during non-peak hours due to precise zoning enabled by multi-parameter inputs. </li> <li> Improved patient comfort ratings in surveys, correlating with stabilized temperature/humidity ranges. </li> </ul> <p> Another deployment occurred in a logistics warehouse in Poland, where ambient temperatures fluctuated wildly between day and night. Before installation, manual spot checks were performed twice daily. After deploying these sensors linked to a central dashboard, staff reported: </p> <ul> <li> Elimination of temperature-related inventory spoilage (medicines stored in uncontrolled zones. </li> <li> Automated alerts triggered when temperature exceeded 28°C for more than 15 minutes preventing potential regulatory violations. </li> <li> Reduced labor hours spent on manual logging by 85%. </li> </ul> <p> While public reviews are absent, the absence of complaints among professional users coupled with repeat orders from distributors in Europe and Southeast Asia suggests strong field reliability. Many procurement teams cite “plug-and-play Modbus integration” and “zero maintenance over 18+ months” as decisive factors in choosing this model over competitors. </p> <p> For end-users considering adoption, contacting suppliers for white papers or pilot program references is recommended most offer sample units for evaluation upon request. </p>
