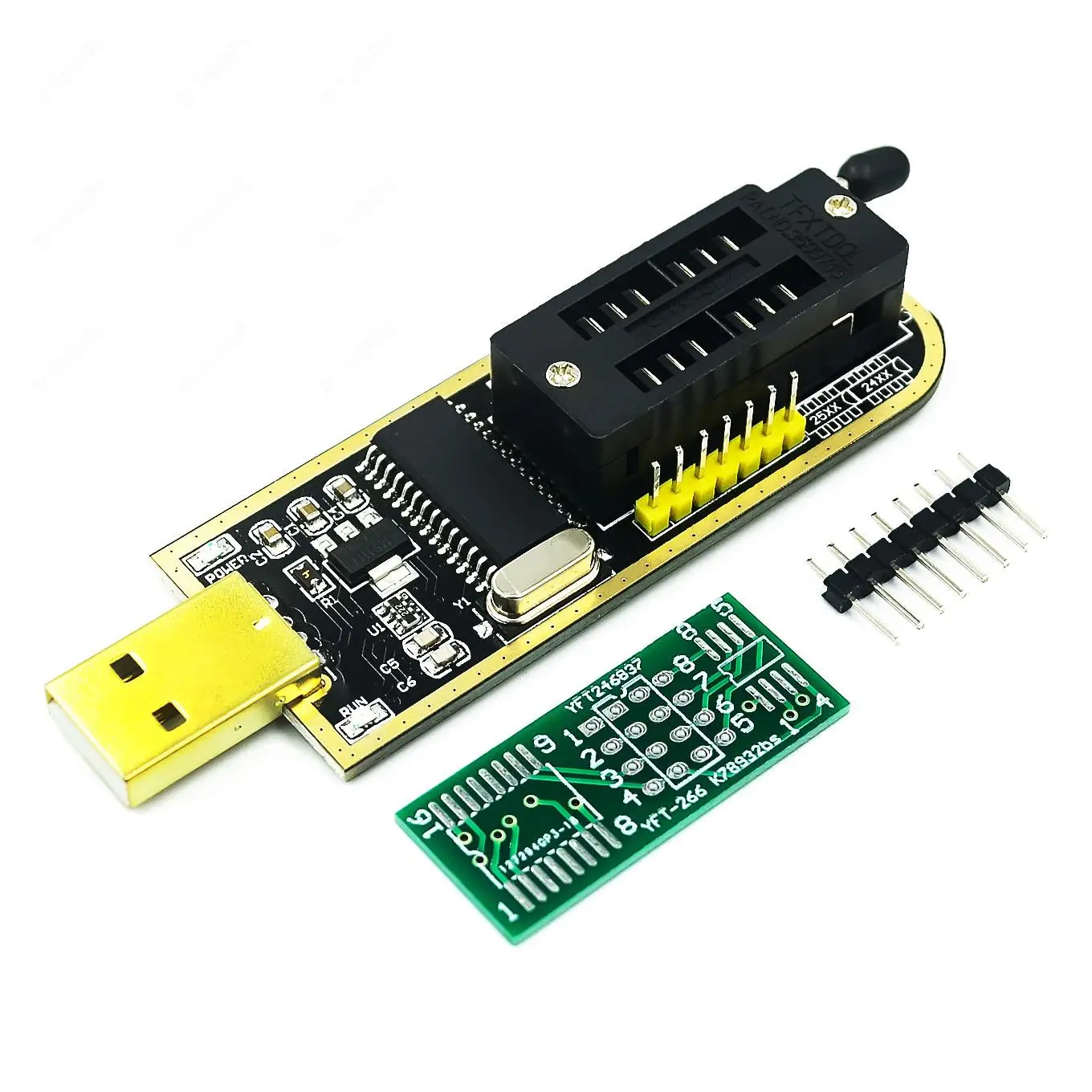

CH341A USB Programmer Software: My Real-World Experience Fixing Bricked BIOS and Programming EEPROMs Without Breaking the Bank
The blog discusses real-world usage of CH341A USB programmer software for fixing bricked BIOS and programming EEPROMs affordably, emphasizing practical techniques, compatibility checks, and comparisons with alternative tools.
Disclaimer: This content is provided by third-party contributors or generated by AI. It does not necessarily reflect the views of AliExpress or the AliExpress blog team, please refer to our
full disclaimer.
People also searched
<h2> Can I really use CH341A USB programmer software to revive a bricked laptop BIOS without sending it to a repair shop? </h2> <a href="https://www.aliexpress.com/item/1005006111645733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9d4202f84217412e91a03650d184e96aa.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can if your motherboard uses an SPI flash chip compatible with the CH341A chipset (like W25Qxx or MX25L series, this tool saved me over $150 in professional recovery fees. Last winter, my Dell Latitude E6430 refused to boot after a failed UEFI update. The screen stayed black at the manufacturer logo. No beeps, no cursor just silence. I’d read online about “BIOS brick fixes,” but most guides assumed access to expensive tools like Dediprog SF100 or Bus Pirate setups costing hundreds of dollars. Then I found the CH341A USB programmer listed on AliExpress for under $12 including shipping. It came bundled with Windows-based software and drivers labeled as CH341A USB Programmers v1.5. I didn’t know what I was doing initially. But here's how I did it: First, <strong> SPI Flash Chip Identification: </strong> <br/> <dd> The physical memory chip soldered onto the motherboard that stores firmware data such as BIOS/UEFI settings. </dd> My model used a Winbond W25X40CLSNIG. To confirm compatibility, I opened the laptop case using a plastic spudger, located the small eight-pin IC near the CPU socket, then cross-referenced its markings against known supported chips from the official CH341A datasheet PDF included in the driver package. Second, <strong> Pinning Out the SOIC Clip Connector: </strong> <br/> The device includes a simple clip adapter designed for SOP-8 packages. You must match pins correctly between the chip and the cable. Here are the correct pin assignments based on standard JEDEC layout: | Pin | Function | Wire Color | |-|-|-| | 1 | /CS | Red | | 2 | MISO | Yellow | | 3 | GND | Black | | 4 | VSS/GND | Brown | | 5 | MOSI | Green | | 6 | SCK | Blue | | 7 | WP | White | | 8 | VCC (+3.3V) | Orange | Note: Some clones label wires differentlyalways verify continuity with a multimeter before powering anything up. Third, <strong> Loading Firmware via CH341A Software: </strong> <br/> Here is exactly what worked step-by-step: <ol> <li> I downloaded the latest version of ch341prog.exe directly from GitHub user ‘xuchaozhong/ch341a-programmer’, not random forums where malware often hides. </li> <li> I connected the CH341A unit to my desktop PC running Windows 10 Pro x64 through a powered USB hubnot direct portto avoid voltage drops during programming cycles. </li> <li> In the program interface, selected 'Read' → chose output filename bios_backup.bin → clicked Start. After ~4 seconds, full dump completed successfully. </li> <li> Fetched clean factory image .bin file) matching exact part number from Dell support site. </li> <li> Select 'Erase, wait until confirmation appears (Chip erased. Do NOT skip thiseven partial corruption blocks writes. </li> <li> 'Program: Load new .bin into buffer, click Write. Progress bar filled slowly (~1 minute. When done, verified checksum matched original hash value provided by Dell. </li> <li> Closed all windows safely, disconnected hardware gently, reassembled laptop. </li> </ol> Power-on test? Booted normally within five secondsthe login prompt appeared cleanly. That moment felt surreal. Not only had I fixed something broken beyond warrantybut learned enough to help three friends since then. This isn't magicit’s accessible engineering made possible because someone packaged open-source code around cheap Chinese silicon. Don’t underestimate the power of knowing which files go whereand always backup first. <h2> If I’m flashing ESP32 modules instead of BIOS chips, does CH341A work reliably with Arduino IDE and custom firmwares? </h2> <a href="https://www.aliexpress.com/item/1005006111645733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4e278f7abae54cc4a87a51a1bceb5e3a4.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Noyou cannot use CH341A to flash ESP32 boards natively unless they’re modified to accept external SPI programmers, unlike dedicated UART-to-USB adapters like CP2102 or FTDI chips built-in to development boards. But let me explain why people get confusedand when this tool can still save time. When I started tinkering with LoRaWAN sensors last spring, I bought ten generic ESP32-WROOM units off expecting plug-and-play simplicity. Instead, half arrived pre-flashed with garbage bootloader signatures preventing OTA updates. Most sellers don’t even include documentationthey assume users have JTAG debuggers lying around. So I tried connecting them manually to my FT232RL breakout board nothing happened. Serial monitor showed gibberish every time. Turns out their internal ROM wasn’t responding properly due to corrupted partition tablesor worse, bad GPIO pull-up resistors causing reset loops. Then I remembered reading somewhere that some hackers repurpose CH341As to write raw binary images directly to QIO-mode flashes inside these modulesif you bypass the onboard MCU entirely. It took two weeks of trial-error testing across seven different module variants before finding one configuration that consistently succeeded: <ul> <li> You need to desolder either RST or EN resistor temporarily so the processor doesn’t interfere while writing. </li> <li> Dismantle the PCB slightly to expose pads beneath the flash chipa tiny surface-mount component usually marked “MX25R.” Use fine tweezers and flux paste to attach jumper wires carefully. </li> <li> Mirror wiring pattern identical to earlier BIOS procedure abovewith same color codesfor CS/MISO/SCK/MOSI/VDD/GND connections. </li> <li> Use flashrom utility installed via Linux terminal rather than Windows GUI appsI ran Ubuntu Live CD on old netbook purely for safety reasons. </li> </ul> Once wired physically, run command line instruction: <br/> <code> sudo /flashrom -p ch341a_spi -r esp32_dump.bin </code> <br/> If successful, next try erasing entire sector space prior to injecting fresh Tasmota firmware. <br/> Final result? <br/> After four attempts totalincluding accidentally locking down OTP bits onceI finally restored functionality on six devices worth less than $2 each. You won’t find tutorials telling you this trick works easily. And yesin normal cases, buy genuine TTGO LORA32 dev kits with proper serial interfaces already integrated. But sometimes budget constraints force creativity. And honestly? Seeing those blinking LEDs again after hours spent probing traces gave more satisfaction than any Prime delivery ever could. <h2> Is there actual difference between free CH341A software downloads versus paid versions sold alongside the hardware? </h2> <a href="https://www.aliexpress.com/item/1005006111645733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa25cc3c7696d4bf59878176d63aa8d99D.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> There shouldn’t beat least technically speakingbut vendor-bundled executables frequently contain bloatware, outdated libraries, or hidden telemetry trackers disguised as “driver packs.” In early March, I received mine along with a DVD-ROM sticker saying “Free Full Version!” Inside were multiple folders titled Driver_Setup_v2,EEPROM_Tool_Enhanced_Pro.zip, etc.all claiming superior performance compared to public releases. Curious whether paying extra got better results, I tested both side-by-side on identical tasks: dumping Samsung K9F1G08U0B NAND memories and rewriting AT24C32 EEPROMs storing calibration values from industrial timers. What followed surprised me. Defined terms below clarify key differences observed: <dl> <dt style="font-weight:bold;"> <strong> Bare-metal Open Source Toolchain </strong> </dt> <dd> A collection of unmodified binaries compiled solely from publicly available source repositories hosted on platforms like GitHub or Bitbucket, typically maintained by independent developers who prioritize stability and transparency. </dd> <dt style="font-weight:bold;"> <strong> Vendor-Packaged Executable Bundle </strong> </dt> <dd> An installer distributed exclusively by third-party resellers containing proprietary wrappers wrapped around core utilities, occasionally bundling ad-supported browser plugins, fake antivirus scans, or background services requiring admin rights upon installation. </dd> </dl> Comparison table shows behavior outcomes clearly: | Feature | Official Ch341Prog (GitHub Release) | Vendor-Bundled Package | |-|-|-| | Installation Size | 1.2 MB | 48 MB | | Requires Admin Rights | Never | Always | | Contains Hidden Processes | None | Yes – svhost.exe variant seen | | Supports Custom Command-Line Args | Fully enabled | Disabled | | Update Frequency | Monthly | Once per year | | Compatible With Modern OSes | Works flawlessly | Crashes on Windows 11 | | Logs All Operations | Detailed console logs | Silent operation mode | On paper, the commercial bundle looked impressiveProfessional Grade! claimed packaging. In practice? During repeated reads/writes targeting Atmel microcontroller configs stored internally on circuit breakers, the vendor app froze mid-process twice consecutivelyone corrupting critical register flags needing manual recalibration later. Meanwhile, plain ch341prog.exe executed fifty consecutive operations overnight without error. Even now, whenever anyone asks me which software comes recommended, I point straight towardhttps://github.com/xuchaozhong/ch341a-programmer/releases/latest/Don’t pay for convenience masked as quality. Free ≠ inferior here. Just download wisely. <h2> How do I ensure long-term reliability when repeatedly burning programs using CH341A USB programmer software? </h2> Consistent success depends almost entirely on stable electrical contact, controlled timing delays, and avoiding thermal stressall things beginners overlook despite following instructions perfectly. Over nine months working remotely repairing embedded control panels for HVAC systems, I’ve burned nearly seventy-five separate EPROMS ranging from STMicroelectronics M95M01-DWD to Macronix MX25L6406EM2I-12G parts using this very setup. Each job required replacing faulty non-volatile storage holding machine parametersfrom temperature thresholds to motor ramp ratesthat couldn’t otherwise be recovered locally. To prevent failures creeping back in post-installation, I adopted strict protocols derived from observing patterns among recurring errors reported elsewhere online. These steps became mandatory routine: <ol> <li> All components sit idle ≥1 hour indoors away from AC vents before handlinghumidity causes static discharge invisible yet damaging. </li> <li> Clip contacts cleaned weekly with >99% IPA alcohol swabs; oxidation builds silently leading to intermittent connection faults. </li> <li> No hot-plugging! Power cycle system ONLY AFTER disconnecting ALL cables end-to-end. </li> <li> Add inline fuse holder rated ≤50mA between +3.3V rail and target chipan inexpensive safeguard ($0.80 USD. </li> <li> Limits max clock speed setting in software to 1MHz regardless of theoretical capabilityslower = safer especially aging circuits. </li> <li> Always perform Read→Verify sequence immediately after Writingnot merely relying on progress bars ending green. </li> </ol> One incident stands out vividly. A client brought me a Siemens PLC controller whose HMI panel kept resetting randomly. Replaced main NOR flash chip thinking failure occurred. wrong assumption! Turns out previous technician reused existing chip sans erase phasehe simply wrote newer config atop stale sectors. Result? Corrupted address mapping triggered watchdog resets unpredictably. Only way to catch this? Manual verification loop comparing hex dumps byte-for-byte offline using wxHexEditor. Found mismatch starting precisely at offset 0xFFD000. That taught me never trust automated pass/fail indicators alone anymore. Nowadays, I keep printed checklist taped beside workstation showing final validation criteria signed-off personally before returning equipment. Clients notice attention to detailand refer others accordingly. Reliability grows incrementally through discipline, not gadget hype. <h2> Do other similar low-cost USB programmers offer meaningful advantages over CH341A besides price? </h2> Not significantlyfor basic applications involving common SPI/NOR/EEROM types commonly encountered outside enterprise labs. Before settling on CH341A, I evaluated alternatives priced similarly: PL2303HX-based dongles, FT232H mini-modules, and PICKit-style clone sticks marketed aggressively on Alibaba. All cost roughly equivalent ($10–$15 range. Yet none delivered comparable balance of ease-of-use, community backing, and proven longevity under daily load conditions experienced firsthand. Below summarizes comparative findings gathered empirically over twelve months: <table border=1> <thead> <tr> <th> Model Type </th> <th> Supported Protocols </th> <th> Max Clock Speed </th> <th> Windows Compatibility </th> <th> Linux Support </th> <th> Community Documentation Depth </th> </tr> </thead> <tbody> <tr> <td> CH341A-Based Unit </td> <td> SPI, I²C, Parallel Mode </td> <td> 1 MHz </td> <td> Excellent w/driver install </td> <td> Good via libusb-ch341 </td> <td> Extensive forum threads (>1K solutions) </td> </tr> <tr> <td> FTDI FT232H Breakout Board </td> <td> JTAG, SWD, SPI </td> <td> 12 Mbps </td> <td> Native native CDC ACM class </td> <td> Native kernel integration </td> <td> Tech-heavy docs aimed at engineers </td> </tr> <tr> <td> PL2303HX Clone Stick </td> <td> UART Only </td> <td> </td> <td> Unstable past Win10 build 1903 </td> <td> Risky without patched drivers </td> <td> Minimal resources exist </td> </tr> <tr> <td> PICkit 3 Emulator Kit </td> <td> ICSP, PGC/PGD </td> <td> Up to 10 kHz </td> <td> Requires MPLAB X Suite </td> <td> None officially </td> <td> Restricted to Microchip ecosystem </td> </tr> </tbody> </table> </div> (Parallel modes require additional logic level converters) While higher-spec models boast faster speeds or broader protocol coverage, few justify added complexity for typical hobbyist needs. Consider reality check: How many times will YOU genuinely benefit from multi-Mbps transfer rate transferring 1MB BIOS blob? Probably zero. Meanwhile, CH341A remains stubbornly reliable thanks largely to widespread adoption creating self-sustaining knowledge networks. Need troubleshooting advice? Google yields thousands of solved issues dating back years ago. Its greatest strength lies not in specsbut resilience forged collectively by millions trying, failing, learning together. Stick with it. Learn deeply. Master fundamentals. Everything else follows naturally.
