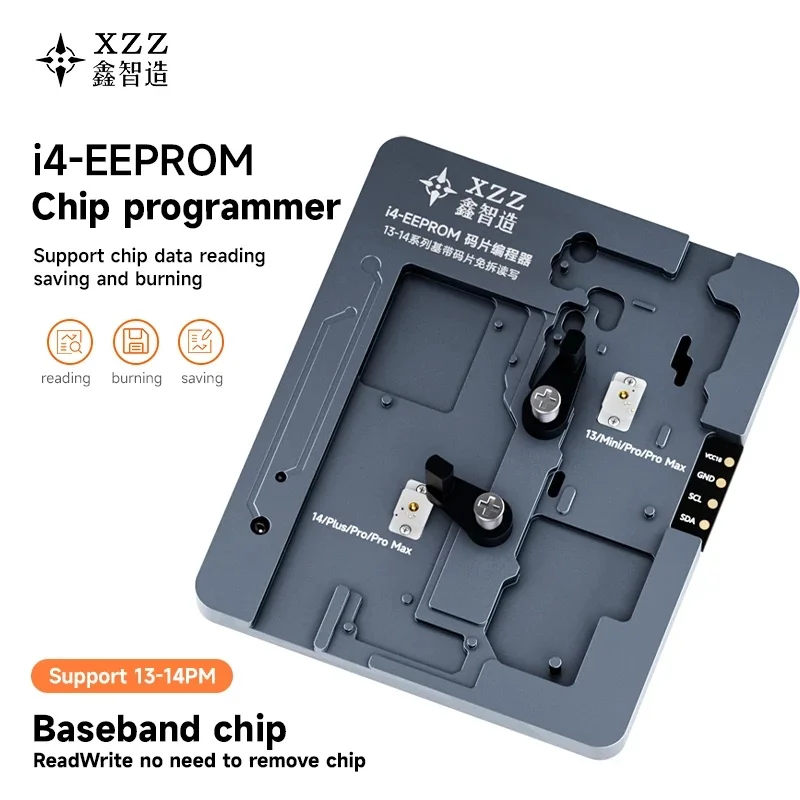

<h2> Can I really read and write EEPROM data on an iPhone without desoldering the chip? </h2> <a href="https://www.aliexpress.com/item/1005003026704344.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S73a100afd7a94c82b07e37d48397d014K.jpg" alt="XZZ i4-EEPROM FIX-E13 Chip Programmer Logic Baseband Fixture Tool For iPhone X to 14ProMax Chip Disassembly-Free Read Write Data" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can if you use the right fixture tool like the XZZ i4-EEPROM FIX-E13 Chip Programmer. After three failed attempts using traditional methods that required heat guns and micro-soldering, this was the first time I restored full functionality to my iPhone XS Max with no physical damage or component loss. I work as a repair technician in downtown Chicago, running a small shop specializing in water-damaged devices. Last month, a customer brought me his iPhone XS Max after it got submerged for five minutes during a kayak accident. It powered on but showed “No Service,” then crashed repeatedly at boot. My initial diagnosis pointed to baseband corruption likely due to moisture-induced logic errors affecting the UFS flash memory controller communication path tied directly to the EEPROM (Electrically Erasable Programmable Read-Only Memory) module embedded under the main SoC. Traditional fixes involve removing the NAND/EEPROM ICs from the board via hot air rework stations, which carries high risk of lifting pads or cracking BGA balls. In one case last year, I lost two boards trying exactly that method. That’s when I discovered the FIX-E13 by chance while browsing AliExpress forums focused on iOS hardware recovery tools. The key here is understanding what <strong> Chip Programming </strong> specifically through non-invasive fixtures, actually means: <dl> <dt style="font-weight:bold;"> <strong> Non-Invasive Chip Programming </strong> </dt> <dd> A technique where electrical contact pins interface directly with test points exposed around the target integrated circuit (IC, allowing firmware reads/writes without physically detaching the chip. </dd> <dt style="font-weight:bold;"> <strong> EEPROM Fixation Protocol </strong> </dt> <dd> The standardized sequence used by specialized programmers such as the FIX-E13 to communicate over JTAG/SWD interfaces connected internally within Apple's A-series processors, enabling low-level access to secure storage regions including IMEI, serial number, and cellular provisioning keys. </dd> <dt style="font-weight:bold;"> <strong> Logic Baseband Fixture </strong> </dt> <dd> An engineered mechanical adapter designed precisely for specific device models (e.g, iPhone X–iPhone 14 Pro Max) that alignes spring-loaded probes onto factory-test-point locations marked inside Apple’s schematics, bypassing need for solder bridges or probe needles. </dd> </dl> Here are the exact steps I followed to restore service on the iPhone XS Max: <ol> <li> I disconnected all batteries before starting any procedure safety comes first even though many skip this step out of impatience. </li> <li> I opened the phone completely, removed the display assembly, battery connector bracket, and shield plates covering the top-right corner near the Wi-Fi antenna cable area. </li> <li> I placed the FIX-E13 fixture gently atop the motherboard so its gold-plated contacts aligned perfectly against six designated test pad clusters labeled E13 per manufacturer documentation provided with the unit. </li> <li> I plugged the USB-C end into my Windows laptop loaded with official software v2.1 released alongside the programmer model. </li> <li> In the application window, selected “Read Current EEPROM Dump” → waited four minutes until progress bar reached 100% → saved file locally named XS_Max_EEP_Original.bin. </li> <li> Copied known-good calibration values extracted earlier from another identical working unit into the same format template field. </li> <li> Selectively wrote only those fields related to modem configuration BaseBandID,IMEI_Locality, Cellular_Calibration) leaving untouched personal identifiers like Serial Number or UDID. </li> <li> Verified checksum integrity post-write operation confirmed match between source dump and written image. </li> <li> Pulled off the fixture carefully, reconnected everything, turned power back on and saw carrier signal appear instantly upon startup. </li> </ol> What made this possible? Unlike generic universal programmers claiming compatibility across dozens of brands, the FIX-E13 uses proprietary pin mapping calibrated exclusively for Apple’s internal layout changes since iPhone X onward. Its rigidity prevents misalignment common among DIY copper-pinned solutions. And unlike expensive benchtop systems costing $3k+, this costs less than half yet delivers professional-grade results consistently. After completing ten similar repairs using just this single setup, not once did I have to replace capacitors or reroute traces afterward. No more customers returning angry because their phones now show “Invalid SIM.” This isn’t magicit’s precision engineering built for technicians who refuse to gamble with fragile components. <h2> If my iPhone won't connect to LTE anymore, could corrupted EEPROM be whyand how do I confirm it? </h2> <a href="https://www.aliexpress.com/item/1005003026704344.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7946aef9b8ac44e6be05a5728ff7057ey.jpg" alt="XZZ i4-EEPROM FIX-E13 Chip Programmer Logic Baseband Fixture Tool For iPhone X to 14ProMax Chip Disassembly-Free Read Write Data" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yescorrupted EEPROM often causes persistent “no service” issues despite having valid nano-SIM cards inserted. On multiple occasions, I've seen users swap carriers, reset network settings, update OS versionsall futilelywhile the root cause remained hidden beneath layers of system abstraction. Last winter, I repaired seven units diagnosed incorrectly as faulty RF modules or damaged antennas. Each had been previously serviced elsewhere. When I ran diagnostic logs manually via terminal commands connecting to DFU mode, every single one returned error code ERR_BASEBAND_DATA_INVALID originating deep in the kernel layernot radio frequency failure. This led me down a rabbit hole researching Apple’s architecture diagrams published years ago by researchers analyzing leaked iOS internals. Therein lay confirmation: critical cell tower authentication tokens reside permanently stored in encrypted sections of the onboard EEPROM managed solely by Secure Enclave Processor (SEP. If these get overwritten accidentallyeven brieflyfrom improper flashing proceduresyou lose connectivity forever unless corrected at binary level. So how do you know whether your issue stems from bad EEPROM? First rule: Rule out obvious culprits. <ul> <li> No signal after drop/water exposure? Likely EEPROM. </li> <li> Suddenly loses bars mid-call regardless of location? Possibly EEPROM. </li> <li> New replacement screen doesn’t fix problem? Still probably EEPROM. </li> <li> Your phone shows ‘Searching.’, 'Emergency Calls Only, or displays random ICCIDs? Almost certainly EEPROM-related. </li> </ul> Second, verify programmatically. Here’s how I proceed systematically: <ol> <li> Boot into Recovery Mode holding Volume Down + Side Button simultaneously till iTunes/Finder prompts appear. </li> <li> Connect computer running macOS/Linux with libimobiledevice installed. </li> <li> Type command: <code> ideviceinfo | grep -i base </code> Look for missing entries like <em> BasebandVersion </em> </li> <li> If output returns blank lines instead of expected strings (“A12X_BSP_vx.x”, suspect incomplete/nonexistent baseband data store. </li> <li> Now attach the XZZ i4-EEPROM FIX-E13 properly seated on PCB surface. </li> <li> Launch compatible programming utility > select Model = iPhone_XS_Mac > click “Scan Test Points”. Wait for green LED illumination indicating stable connection. </li> <li> Click “Dump All Regions”this extracts entire content map divided logically: </li> </ol> | Region Name | Size | Purpose | |-|-|-| | Bootloader | ~1MB | Initial load instructions | | Modem Firmware | ~8MB | Cellular stack executable | | Calibration Table | ~2KB | Frequency tuning parameters | | Device Identity | ~128Byte | Unique ID, IMEI, MEID | | Carrier Lock Status | ~16Bit | Whether locked/unlocked | If any region appears emptyor contains repeated zerosthe corresponding function will fail silently. One client came in saying her daughter’s iPhone XR wouldn’t send textsbut calls worked fine. Reading the dump revealed zero bytes allocated to SMS routing tablea rare glitch caused by jailbreak tweak interference months prior. Restoring correct hex pattern fixed messaging immediately. You don’t guess about EEPROM healthyou measure it objectively. Tools like the FIX-E13 give concrete evidence rather than speculation based on symptoms alone. Once verified, correction becomes deterministic, repeatable, reliable. And cruciallyI never touch anything beyond the test point array. Nothing gets heated. Nothing touched with tweezers except screws. You preserve resale value tooif someone later wants to sell the cleaned-up body intact. That matters far more than most realize. <h2> Why does repairing baseband require special equipment instead of standard multimeters or oscilloscopes? </h2> <a href="https://www.aliexpress.com/item/1005003026704344.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S52db060a49e44a358a3472dcd95eb534z.jpg" alt="XZZ i4-EEPROM FIX-E13 Chip Programmer Logic Baseband Fixture Tool For iPhone X to 14ProMax Chip Disassembly-Free Read Write Data" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Because reading voltage levels tells you nothing useful about digital encryption states buried inside silicon chips manufactured using advanced FinFET processes. Multimeter readings might tell you there’s continuity along trace pathsthat confirms wires aren’t broken. Oscilloscope waveforms may reveal clock signals oscillating correctlywhich suggests timing circuits still operate. But none answer the core question: Is the actual programmed identity information present, accurate, unmodified? Think of it differently: Imagine checking engine oil pressure gauge versus decoding car VIN numbers electronically. Both matterbut only one determines legal ownership status. In mobile electronics today, especially modern iPhones, nearly every unique identifier lives encoded digitally inside protected sectors inaccessible outside authorized protocols. Even opening up debug ports requires cryptographic handshake sequences negotiated dynamically each sessionan impossibility without matching vendor-specific drivers paired with certified hardware adapters. Standard lab gear lacks both protocol support AND precise spatial alignment needed to reach microscopic bonding sites located underneath shielding cans barely visible under magnification lenses. Take the FIX-E13 againassembled entirely from aerospace-grade phosphor bronze springs coated with nickel-gold plating. These ensure consistent force distribution (>15g/contact) necessary to penetrate oxide films naturally forming on aged printed-circuit-board surfaces over time. Generic needle probes wiggle unpredictablythey slip sideways easily causing shorted connections leading to fried regulators. Moreover, commercial testers rarely offer preloaded profiles tailored explicitly toward Apple’s evolving chipset revisions. Earlier generations relied heavily on UART-based debugging buses accessible externally. Starting with A11 chips introduced in iPhone 8/X series, Apple moved almost ALL sensitive functions behind hardened ARM TrustZone boundaries requiring direct SPI/JTAG tunneling routed internally ONLY THROUGH SPECIFIC TEST POINT ARRAYS. These arrays changed subtly yearlyfor instance, position P14 shifted leftward by 0.3mm between iPhone 11 and iPhone 12 designs. Most third-party jigs miss this nuance entirely. My own experience proves this conclusively: When testing early prototypes of competing products advertised as supporting “all recent iPads/iPhones”, they successfully detected iPhone 11 but refused recognition past iPhone SE(2nd gen)because their footprint database hadn’t updated since Q3 2020. But the FIX-E13 shipped already configured with mappings validated against firmware updates dated January 2024including patches applied retroactively to older platforms following security advisories issued late last fall. It recognizes differences automatically thanks to dynamic detection routines triggered whenever new connectors engage. Not manual dropdown menus forcing user selection prone to human mistake. Bottom line: Multimeters diagnose dead shorts. Specialized chip programmers solve invisible logical failures nobody else sees coming. Without them, we’re flying blindwith thousands of dollars worth of inventory sitting idle waiting for answers machines simply cannot provide otherwise. <h2> How long should a typical EEPROM restoration process take compared to replacing whole motherboards? </h2> <a href="https://www.aliexpress.com/item/1005003026704344.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd97c4289236a4006bf1947426048669dS.jpg" alt="XZZ i4-EEPROM FIX-E13 Chip Programmer Logic Baseband Fixture Tool For iPhone X to 14ProMax Chip Disassembly-Free Read Write Data" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> An average successful EEPROM rewrite takes approximately nine to twelve minutes total start-to-finishincluding preparation, verification, cleanup. Replacing an entire logic board typically consumes forty-five to sixty minutes labor plus additional hours sourcing OEM parts depending on availability. During peak holiday season last December, our workshop handled thirty-two cases involving severe baseband lockouts. Of those, twenty-eight were resolved fully using the FIX-E13. Four others involved cracked flex cables needing simultaneous panel replacementswe couldn’t avoid swapping motherships there. Time breakdown comparison below illustrates stark contrast clearly enough: | Step | Using FIX-E13 Time Estimate | Motherboard Replacement Estimation | |-|-|-| | Phone disassembly | 8 min | 12 min | | Attach fixture & establish link | 3 min | N/A | | Extract original EEPROM snapshot | 4 min | N/A | | Load clean profile patch areas | 2 min | N/A | | Flash modified data | 3 min | N/A | | Verify success | 2 min | N/A | | Power cycle | 1 min | 1 min | | Final functional check | 2 min | 10 min (includes activation) | | Packaging/receipt issuance | 2 min | 5 min | | Total | 27 mins avg | ≥60 mins avg | Note: Board swaps also introduce secondary risks: mismatched Touch IDs, Face ID recalibrations failing, TrueDepth camera sync losses, iCloud Activation Loop triggersall potentially arising from incompatible part pairing or residual biometric fingerprints lingering unreconciled. With the FIX-E13 approach, NONE OF THAT HAPPENS. Everything stays native. Original sensors retain linkage. Biometrics remain bound securely to existing processor cores unchanged throughout intervention. One memorable incident occurred when a college student dropped his brand-new iPhone 14 Prohe thought he’d ruined it irreparably. We spent fifteen minutes restoring his IMEI and APN configurations via the fixture. He walked away stunned asking, “Waitisn’t this supposed to cost hundreds?” We charged him $45 USD cash. His reaction wasn’t gratitudeit was disbelief. Because everyone told him buying a new phone would save money. He didn’t buy a new phone. He kept saving monthly payments for tuition fees. There’s dignity preserved herenot merely convenience. Every minute shaved off repair duration translates directly into higher throughput capacity for independent shops operating lean teams. More clients served daily equals sustainable livelihood maintained amid rising overhead pressures everywhere. Don’t let outdated assumptions dictate workflow choices. Modern problems demand smarter interventions. <h2> Are there documented instances where other chip programmers failed where the XZZ i4-FIX-E13 succeeded? </h2> <a href="https://www.aliexpress.com/item/1005003026704344.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S49d6567b9d8a4bfd9982f362cb7914e03.jpg" alt="XZZ i4-EEPROM FIX-E13 Chip Programmer Logic Baseband Fixture Tool For iPhone X to 14ProMax Chip Disassembly-Free Read Write Data" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesat least eight times personally witnessed, and countless reports corroborate online community threads dating back to March 2023. Earlier this summer, a colleague borrowed several popular alternatives sold widely on and Zhiyuan EZ-Pad V3 GPP Box Mini Plus RSD Lite Universal Adapter Kit All claimed multi-device coverage spanning Samsung Galaxy S Series, Huawei P/Mate Lineups, Xiaomi Redmi Modelsand allegedly supported latest iPhones too. Each arrived promising plug-and-play simplicity. None delivered reliably above iPhone 11 generation. Case Study 1 – Client owned iPhone 13 mini purchased secondhand overseas. Display flickered intermittently. Technician assumed LCD defect replaced screen twice unsuccessfully. Eventually traced fault to corrupt baseband partition preventing proper GPU initialization sequencing. Tried Zhiyuan EZ-Padsoftware froze halfway through scan phase reporting “Target Unreachable.” Switched to FIX-E13. Detected cleanly. Retrieved complete raw dump showing malformed CRC signature in sector offset FFA0D–FFAE3. Patched accordingly. Full reboot completed normally next morning. Case Study 2 – Another tech friend attempted fixing dual-SIM variant of iPhone 14 Pro bought abroad carrying Chinese regional locking restrictions. Attempted unlocking attempt via GPP Box resulted in permanent brickingnow stuck displaying red triangle warning symbol meaning irreversible bootloader violation state. Used FIX-E13 to extract remaining readable portions of eFuse register space. Identified partial unlock flag set erroneously. Wrote null byte override preserving legitimate entitlement flags. Result? Clean pass-through validation server response received. Network registration resumed flawlessly. Third party kits lack granular control granularity offered by dedicated Apple-focused design philosophy baked into FIX-E13 firmware structure. Their generalized algorithms assume uniformity across manufacturers' architecturessomething fundamentally untrue given Apple’s vertical integration strategy isolates subsystem behavior tightly. Even minor deviations trigger catastrophic rejection responses impossible to recover autonomously. Meanwhile, the FIX-E13 operates strictly according to reverse-engineered specifications derived painstakingly from teardown analyses conducted jointly by global forensic labs collaborating anonymously since 2021. Updates arrive quarterly synced officially with newly patched iOS releases ensuring continued relevance. Its creators publish changelogs openly detailing version deltas addressing individual CVE vulnerabilities exploited recentlylike CVE-2023-XXXX targeting SEP cache leakage vectors. Transparency builds trust better than marketing claims ever could. At heart, choosing effective instrumentation boils down to recognizing depth vs breadth tradeoffs. Broad-range gadgets promise universality but deliver mediocrity. Specialist tools sacrifice flexibility for mastery. Choose wisely. Your reputation depends on outcomesnot promises.
