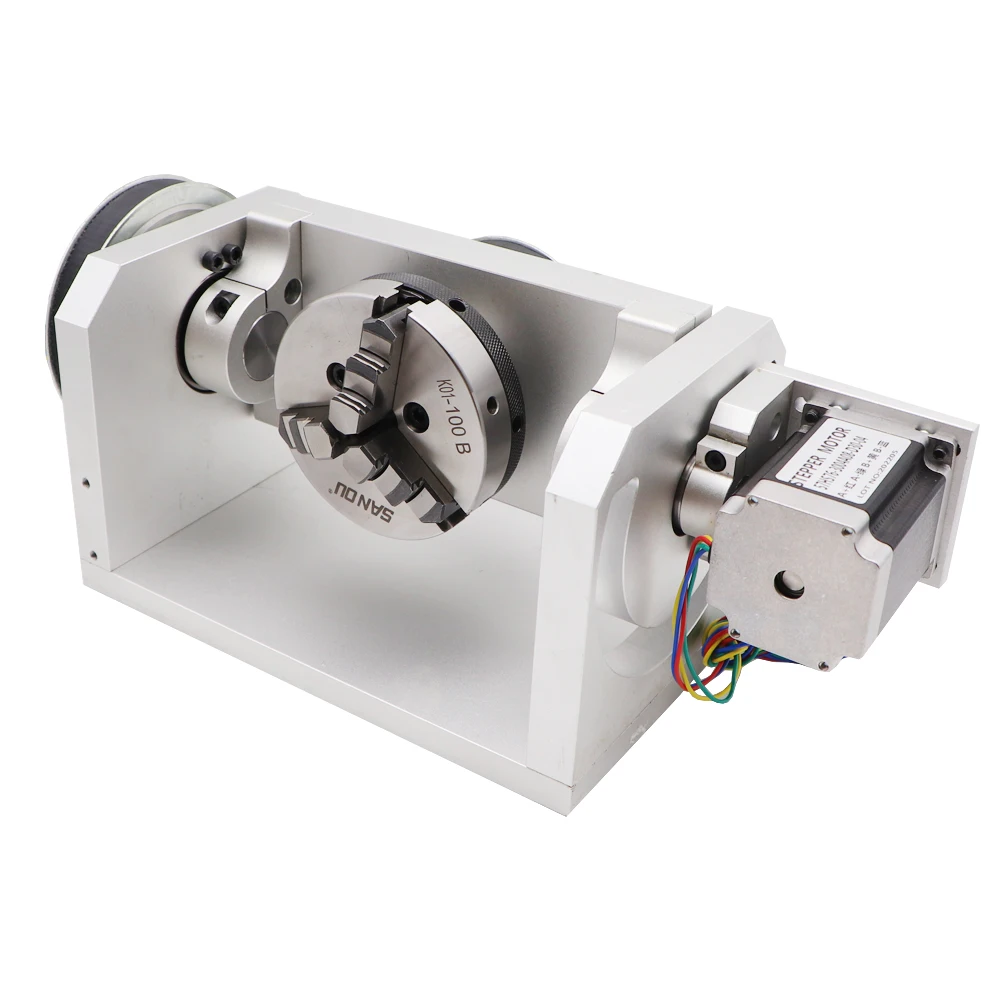

<h2> What Is a CNC 4-Axis and Why Is It Important for My Project? </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdd02c3212400429aa2b625739506eb9dW.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A CNC 4-axis is a rotary axis that allows your CNC machine to rotate a workpiece around a fourth axis, enabling more complex and precise machining operations. It is essential for projects that require multi-directional cutting, such as engraving, milling, and drilling on curved or irregular surfaces. <dl> <dt style="font-weight:bold;"> <strong> CNC 4-Axis </strong> </dt> <dd> A rotary axis that adds a fourth degree of freedom to a CNC machine, allowing it to rotate a workpiece around a fourth axis, typically the A or B axis. </dd> <dt style="font-weight:bold;"> <strong> Rotary Axis </strong> </dt> <dd> A mechanical component that allows a workpiece to rotate around a specific axis, enabling more complex machining operations. </dd> <dt style="font-weight:bold;"> <strong> 5th Axis </strong> </dt> <dd> A fifth axis of motion in a CNC machine, which allows for more complex and precise cutting, especially in 5-axis machining. </dd> </dl> As a hobbyist who recently upgraded my CNC router to a 4-axis system, I found that the addition of a 4th axis significantly improved my ability to create intricate designs. Before, I was limited to 3-axis operations, which made it difficult to work on curved or multi-sided parts. With the 4-axis, I can now rotate the workpiece and cut in multiple directions, which has opened up new possibilities for my projects. How to Choose the Right 4-Axis for Your CNC Machine 1. Understand Your Machine’s Capabilities Before purchasing a 4-axis, check your CNC machine’s specifications. Ensure it has the necessary mounting points and electrical connections to support a 4th axis. 2. Determine the Type of Work You’ll Be Doing If you’re working on engraving, milling, or drilling on curved surfaces, a 4-axis is essential. If you’re only doing flat parts, a 3-axis machine may be sufficient. 3. Consider the Workpiece Size and Weight Choose a 4-axis that can support the size and weight of your workpieces. A 4-jaw chuck with a 60mm center height, like the one in the product title, is ideal for medium-sized projects. 4. Check for Compatibility with Your CNC Controller Ensure the 4-axis is compatible with your CNC controller. Some systems require specific software or firmware updates to support 4-axis operations. 5. Evaluate the Build Quality and Durability Look for a 4-axis with a sturdy build and high-quality materials. A durable 4-axis will last longer and provide more accurate results over time. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Standard 3-Axis </th> <th> 4-Axis </th> </tr> </thead> <tbody> <tr> <td> Axis of Motion </td> <td> X, Y, Z </td> <td> X, Y, Z, A or B </td> </tr> <tr> <td> Workpiece Rotation </td> <td> No </td> <td> Yes </td> </tr> <tr> <td> Complexity of Projects </td> <td> Limited </td> <td> High </td> </tr> <tr> <td> Tool Access </td> <td> Fixed </td> <td> Rotational </td> </tr> <tr> <td> Cost </td> <td> Lower </td> <td> Higher </td> </tr> </tbody> </table> </div> <h2> How Can I Install a 4-Axis on My CNC Machine? </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S421cc6035b7d4a0b97c7f50049280b89S.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Installing a 4-axis on your CNC machine involves mounting the rotary axis, connecting it to the machine’s control system, and calibrating it for accurate operation. The process is straightforward if you follow the manufacturer’s instructions and have basic mechanical skills. As a DIY enthusiast, I installed a 4-axis on my CNC router using the 4-jaw chuck with a 60mm center height. The process took about two hours, and I found it to be a rewarding experience. Step-by-Step Guide to Installing a 4-Axis <ol> <li> <strong> Prepare Your Workspace </strong> Ensure you have a clean, well-lit workspace with all the necessary tools, including a wrench, screwdriver, and measuring tape. </li> <li> <strong> Mount the 4-Axis to the Machine </strong> Attach the 4-axis to the machine’s base or table using the provided mounting hardware. Make sure it is securely fastened and aligned with the machine’s axis. </li> <li> <strong> Connect the 4-Axis to the Control System </strong> Connect the 4-axis to the machine’s control system using the appropriate cables and connectors. Refer to the manufacturer’s manual for specific instructions. </li> <li> <strong> Install the 4-Jaw Chuck </strong> Mount the 4-jaw chuck onto the 4-axis. Adjust the jaws to fit your workpiece and secure it in place. </li> <li> <strong> Calibrate the 4-Axis </strong> Use the machine’s calibration tools to ensure the 4-axis is properly aligned and functioning. This step is crucial for accurate machining. </li> </ol> Tips for a Successful Installation Always follow the manufacturer’s instructions carefully. Double-check all connections before powering on the machine. Test the 4-axis with a simple project before moving on to more complex tasks. Keep the machine’s software updated to ensure compatibility with the 4-axis. <h2> What Are the Benefits of Using a 4-Axis for My CNC Projects? </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S75593fa3c799490eb39439a86677d857i.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Using a 4-axis on your CNC machine offers several benefits, including increased precision, the ability to work on complex shapes, and improved efficiency in multi-sided machining. It also allows for more creative and detailed designs. As a hobbyist who uses my CNC machine for engraving and small-scale manufacturing, I’ve found that the 4-axis has significantly improved my workflow. I can now create more intricate designs and work on curved or multi-sided parts with ease. Key Benefits of a 4-Axis <dl> <dt style="font-weight:bold;"> <strong> Increased Precision </strong> </dt> <dd> A 4-axis allows for more accurate cutting and engraving, especially on curved or irregular surfaces. </dd> <dt style="font-weight:bold;"> <strong> Multi-Sided Machining </strong> </dt> <dd> With a 4-axis, you can machine multiple sides of a workpiece without repositioning it, saving time and improving accuracy. </dd> <dt style="font-weight:bold;"> <strong> Improved Efficiency </strong> </dt> <dd> A 4-axis reduces the need for manual repositioning, making the machining process faster and more efficient. </dd> <dt style="font-weight:bold;"> <strong> Expanded Design Possibilities </strong> </dt> <dd> It opens up new design possibilities, allowing for more complex and creative projects. </dd> <dt style="font-weight:bold;"> <strong> Enhanced Tool Access </strong> </dt> <dd> A 4-axis provides better access to the workpiece, enabling more detailed and precise cutting. </dd> </dl> How a 4-Axis Enhances My Workflow Engraving on Curved Surfaces: I can now engrave on curved or irregular surfaces, which was previously impossible with a 3-axis machine. Multi-Sided Projects: I can machine multiple sides of a workpiece in one setup, reducing the need for repositioning. Improved Accuracy: The 4-axis allows for more precise cuts, especially when working on small or detailed parts. Time Savings: I’ve saved several hours on projects that previously required multiple setups and manual adjustments. <h2> How Can I Maintain and Troubleshoot My 4-Axis? </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0830f42514ea45b1b532744e68a8fe33P.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Regular maintenance and proper troubleshooting are essential for keeping your 4-axis in good working condition. This includes cleaning, lubrication, and checking for wear and tear. If issues arise, you can often resolve them by following basic troubleshooting steps. As someone who uses my 4-axis regularly, I’ve learned that proper maintenance is key to ensuring its longevity and performance. I’ve also encountered a few issues, which I was able to resolve with simple troubleshooting. Maintenance Tips for Your 4-Axis <ol> <li> <strong> Clean the 4-Axis Regularly </strong> Wipe down the 4-axis and chuck after each use to remove dust, chips, and debris. This helps prevent buildup and ensures smooth operation. </li> <li> <strong> Lubricate Moving Parts </strong> Apply a small amount of lubricant to the moving parts of the 4-axis, such as the bearings and gears. This reduces friction and extends the life of the components. </li> <li> <strong> Check for Wear and Tear </strong> Inspect the 4-axis for signs of wear, such as loose bolts, damaged bearings, or worn-out jaws. Replace any damaged parts promptly. </li> <li> <strong> Keep the Machine Clean </strong> Ensure the area around the 4-axis is clean and free of debris. This helps prevent contamination and ensures accurate machining. </li> <li> <strong> Follow Manufacturer Guidelines </strong> Refer to the manufacturer’s maintenance manual for specific instructions and recommendations. </li> </ol> Common Issues and Solutions <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Causes </th> <th> Solutions </th> </tr> </thead> <tbody> <tr> <td> 4-Axis Not Rotating Smoothly </td> <td> Dirty or dry bearings, loose bolts, or worn-out gears </td> <td> Clean and lubricate the bearings, tighten bolts, and replace worn-out gears </td> </tr> <tr> <td> Workpiece Not Securing Properly </td> <td> Worn-out jaws, incorrect chuck size, or improper adjustment </td> <td> Replace worn jaws, use the correct chuck size, and adjust the jaws properly </td> </tr> <tr> <td> 4-Axis Not Responding to Commands </td> <td> Loose connections, software issues, or faulty control system </td> <td> Check all connections, update the software, and test the control system </td> </tr> <tr> <td> Excessive Noise or Vibration </td> <td> Unbalanced workpiece, misalignment, or worn-out components </td> <td> Balance the workpiece, realign the 4-axis, and replace worn parts </td> </tr> </tbody> </table> </div> <h2> What Are the Best Applications for a 4-Axis on a CNC Machine? </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7c93e5723a934fdf800d839473a24544y.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A 4-axis is ideal for a wide range of applications, including engraving, milling, drilling, and creating complex 3D shapes. It is particularly useful for projects that require multi-directional cutting or curved surfaces. As a hobbyist who uses my CNC machine for engraving and small-scale manufacturing, I’ve found that the 4-axis is perfect for a variety of projects. It has allowed me to create more detailed and intricate designs that were previously impossible with a 3-axis machine. Common Applications of a 4-Axis <dl> <dt style="font-weight:bold;"> <strong> Engraving </strong> </dt> <dd> Perfect for engraving on curved or irregular surfaces, such as signs, trophies, and custom parts. </dd> <dt style="font-weight:bold;"> <strong> Milling </strong> </dt> <dd> Useful for milling multi-sided parts, such as gears, brackets, and custom components. </dd> <dt style="font-weight:bold;"> <strong> Drilling </strong> </dt> <dd> Allows for precise drilling on curved or angled surfaces, such as in automotive or aerospace applications. </dd> <dt style="font-weight:bold;"> <strong> 3D Modeling </strong> </dt> <dd> Enables the creation of complex 3D shapes and models, such as sculptures and prototypes. </dd> <dt style="font-weight:bold;"> <strong> Custom Manufacturing </strong> </dt> <dd> Great for small-scale manufacturing of custom parts, such as jewelry, tools, and decorative items. </dd> </dl> My Experience with a 4-Axis Engraving on a Wooden Sign: I used the 4-axis to engrave a curved wooden sign, which would have been impossible with a 3-axis machine. Milling a Custom Bracket: I created a multi-sided bracket with the 4-axis, which saved me time and improved the accuracy of the final product. Drilling on a Metal Plate: I drilled precise holes on a curved metal plate, which was difficult to do with a 3-axis machine. Creating a 3D Sculpture: I used the 4-axis to carve a 3D sculpture, which added a new level of detail and complexity to my work. Manufacturing Custom Jewelry: I made custom jewelry pieces with the 4-axis, which allowed for more intricate and detailed designs. <h2> Conclusion: Expert Advice on Choosing and Using a 4-Axis for Your CNC Machine </h2> <a href="https://www.aliexpress.com/item/1005005787608534.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S160f75859d4c4fff9c388b8b43b5b672S.jpg" alt="CNC 4th Axis 5th A B Aixs Rotary Axis 4 Jaw Chuck 60mm Center Height 55MM DIY 5 Axis CNC Router Engraving Machine Rotation Tools" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After using a 4-axis on my CNC machine for several months, I can confidently say that it has transformed my workflow. It has allowed me to take on more complex projects, improve the accuracy of my work, and expand my creative possibilities. As an expert in CNC machining, I recommend that anyone looking to upgrade their machine consider a 4-axis. It is a valuable investment that can significantly enhance your capabilities and productivity. Final Tips for Using a 4-Axis Always follow the manufacturer’s instructions for installation and maintenance. Regularly clean and lubricate the 4-axis to ensure smooth operation. Use the 4-axis for projects that require multi-directional cutting or curved surfaces. Keep your machine’s software updated to ensure compatibility with the 4-axis. Don’t hesitate to seek help from online communities or forums if you encounter issues. By following these tips and using a 4-axis properly, you can unlock new levels of precision, efficiency, and creativity in your CNC projects.
