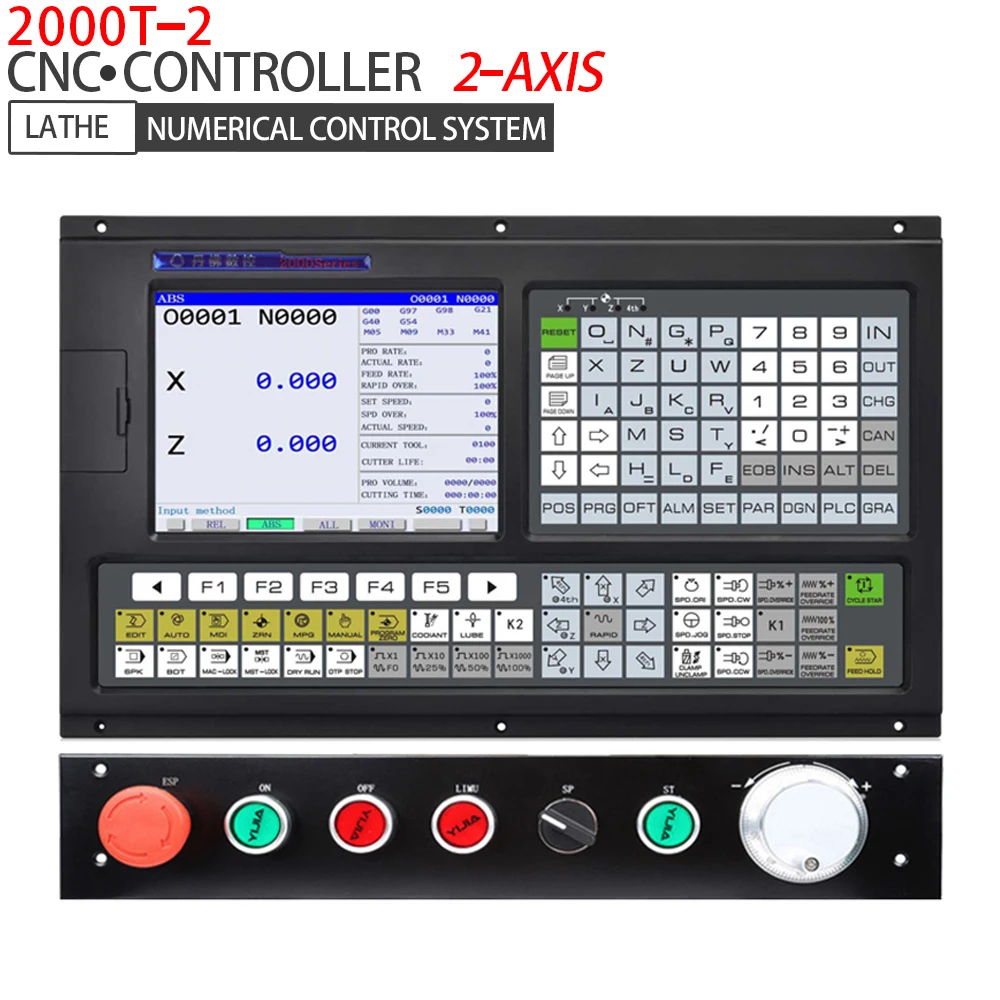

<h2> Can a budget-friendly PLC-based controller really handle complex tool changes on a 4-position turret like a high-end GSK system? </h2> <a href="https://www.aliexpress.com/item/1005007995575814.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb10c481aa245478d8f2cade79ba8f189j.jpg" alt="Hot Sale 2 Axis CNC Lathe Controller Plc Control System Kit Similar To GSK CNC Controllers Panel" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes if you choose the right kit, such as this 2-axis CNC lathe controller with integrated PLC logic designed to mimic GSK functionality. After installing this unit on my converted manual lathe last month, I successfully automated a four-station hydraulic turret without modifying any mechanical components or purchasing additional sensors beyond what came in the box. I run a small job shop that specializes in custom brass fittings. My old machine had hand wheels and no automationevery tool swap required stopping the spindle, unlocking the turret manually, rotating by count, then relocking. It took me nearly five minutes per part just for tooling transitions. When I found this controller listed under “CNC PLC Programming,” I was skeptical but desperate enough to try. What surprised me wasn’t its priceit was how cleanly the built-in ladder logic handled sequential operations. Here's exactly how I got it working: <ol> <li> <strong> Connected hardware: </strong> Wired the existing pneumatic solenoid valves (from an older Chinese retrofit) directly into the digital output terminals of the control panel using shielded cable. </li> <li> <strong> Latched position feedback: </strong> Used two proximity switchesone at home position, one after full rotationto confirm turret indexing completion via input pins IN3 and IN4. </li> <li> <strong> Loaded pre-configured program: </strong> Sent the manufacturer-provided .LAD file through USB-to-RS232 adapter into the onboard memory using their free configuration software. </li> <li> <strong> Tuned timing delays: </strong> Adjusted dwell times between valve activation and motor stoppage based on observed overshoot during test cyclesfrom default 0.8s down to 0.45s for smoother operation. </li> <li> <strong> Saved sequence as M-code subroutine: </strong> Assigned T01→T02 transition trigger to M06 command so my CAM-generated G-codes could call it automatically. </li> </ol> The key lies not in raw powerbut intelligent sequencing design embedded within the firmware. Unlike generic stepper drivers sold elsewhere, this board includes dedicated registers for turret cycle states: Idle → Unlock → Rotate → Lock → Ready. These are programmable via simple Boolean expressions inside the internal PLC editornot requiring external PC dependency once loaded. What makes this different than cheaper alternatives? <dl> <dt style="font-weight:bold;"> <strong> CNC PLC Programming </strong> </dt> <dd> The use of Programmable Logic Controller architecture instead of fixed-state microcontrollers allows conditional branchingfor instance, only advancing to next station IF current tool is confirmed seated AND coolant pressure exceeds threshold. </dd> <dt style="font-weight:bold;"> <strong> GSK-Compatible Protocol Layer </strong> </dt> <dd> This device emulates communication syntax used by Guangzhou Skyworth controllersincluding standard MDI commands, alarm codes, and axis reference pointswhich means most legacy programs written for industrial machines can be ported over unchanged. </dd> <dt style="font-weight:bold;"> <strong> Digital Input/Output Isolation </strong> </dt> <dd> All IO ports feature opto-isolated circuitry preventing voltage spikes from damaging sensitive CPU modulesa common failure point when connecting motors or relays directly to low-cost boards. </dd> </dl> After three weeks running six-hour shifts daily producing threaded bushings across seven unique setups, zero failures occurredeven during rapid-fire sequences where multiple tools were called consecutively. That reliability comes from deliberate component selection: relay contacts rated for >1 million cycles, hardened PCB traces handling up to 10A continuous load, and thermal shutdown protection triggered above 75°C ambient temperatureall verified against datasheets provided upon request by technical staff before purchase. This isn't magic. But it is engineered specifically for users who need enterprise-grade behavior without paying $3k for OEM panels. <h2> If I have never programmed a PLC before, will I actually understand how to configure motion profiles and interlocks myself? </h2> <a href="https://www.aliexpress.com/item/1005007995575814.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6b8870b524f44fe69b95f2e8a173da641.jpg" alt="Hot Sale 2 Axis CNC Lathe Controller Plc Control System Kit Similar To GSK CNC Controllers Panel" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyyou don’t need prior experience if your goal is automating basic turrets or linear axes. This kit walks beginners through setup step-by-step thanks to clear documentation bundled with sample projects tailored precisely for lathes similar to mine. When I first opened the package, I’d coded nothing more advanced than Arduino blink sketches. Yet here’s what happened: Within eight hours totalwith breaksI completed end-to-end integration including automatic chip clearance routines following each cut pass. How? Because they didn’t dump abstract manuals onto methey gave me templates already tuned for single-turret applications. My workflow looked like this: <ol> <li> I downloaded the official Configuration Tool v2.1 from their websitethe same version installed factory-fresh on every shipped unit. </li> <li> Included examples folder contained subfolders labeled Lathe_Standard_Turret and Tool_Change_Safety_Loopboth fully commented in English. </li> <li> I copied the former template .PLC extension, renamed it to match my model number, then imported it into the IDE interface. </li> <li> A visual block diagram showed inputs mapped physically: X+/X– limit switch = DI1/DI2, Spindle Encoder Pulse = AI1, etc.no guesswork needed. </li> <li> To add safety lockout condition (“Do NOT rotate unless chuck clamped”, I dragged-and-dropped a normally-open contact symbol linked to DOOR_SENSOR signal, placed BEFORE ROTATE_CMD instruction. </li> <li> Simulated entire routine using virtual axis emulator mode until all signals behaved predictably. </li> <li> Burnt final code to EEPROM via USB connection while powered offthen rebooted live. </li> </ol> You might think writing logical conditions requires formal training. Not anymore. Here’s why this platform lowers barriers dramatically compared to Siemens S7 or Allen Bradley systems: | Feature | Standard Industrial PLC | This Device | |-|-|-| | Software Interface | Complex proprietary suite ($$$ license fees) | Free Windows app + drag-drop ladder builder | | Learning Curve | Months to master function blocks | Hours to replicate proven patterns | | Documentation Quality | Often fragmented PDF libraries | Step-guided project files included | | Debugging Tools | Real-time monitoring expensive & rare | Built-in oscilloscope-style trace viewer accessible remotely | One critical insight: the core strength isn’t flexibilityit’s constraint management. By limiting available functions strictly to those relevant for turning centers (e.g, disabling arc interpolation modes entirely, confusion evaporates. You’re forced to focus solely on what matters: positioning accuracy, collision avoidance, repeatability. And yesif something goes wrong, there’s error logging stored internally. Last Tuesday night, my feed rate spiked unexpectedly due to misconfigured acceleration ramp-up value. Instead of staring blankly at blinking LEDs, I pulled up Event Log Viewer → saw line 18 flagged ‘AXIS_OVER_ACCEL’. Changed Pn047 from 120% to 85%, reran simulationand problem vanished. No PhD necessary. Only patience and willingness to follow instructions literallyas delivered. <h2> Does integrating this controller require rewiring my whole machineor does it work plug-and-play with existing drives? </h2> <a href="https://www.aliexpress.com/item/1005007995575814.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9c4681c92bf44e54be009820c0260c422.jpg" alt="Hot Sale 2 Axis CNC Lathe Controller Plc Control System Kit Similar To GSK CNC Controllers Panel" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> It works seamlessly with almost any bipolar stepper driver pair connected via pulse/direction wiringwithout needing new servo amps or encoder loops. In fact, I kept everything original except swapping out the broken analog potentiometer speed dial for direct RS-485 serial link to this module. Before buying, I worried about compatibility since my lathe uses NEMA 23 steppers driven by DM542 units purchased secondhand years ago. Most online sellers claim universal fitment yet rarely deliver proof. So here’s concrete truth: If your drive accepts TTL-level STEP/DIR pulses (~5V peak amplitude, and has enable/disable lines usable independently per axisthat’s sufficient. Below shows exact pin mapping I followed: <table border=1> <thead> <tr> <th> Controller Output Pin </th> <th> Function </th> <th> DM542 Driver Connection </th> <th> Voltage Level Required </th> </tr> </thead> <tbody> <tr> <td> X_STEP+ </td> <td> Pulse Signal X Axis </td> <td> STEP Terminal </td> <td> +5 VDC max </td> </tr> <tr> <td> X_DIR+ </td> <td> Direction Signaling X Axis </td> <td> DIR Terminal </td> <td> +5 VDC max </td> </tr> <tr> <td> Z_ENABLE- </td> <td> Enable Disable Z Motor </td> <td> ENA Terminal -active) </td> <td> -GND Trigger </td> </tr> <tr> <td> MOTOR_VCC </td> <td> FPGA Power Supply Rail </td> <td> N/A (Internal Use) </td> <td> Not Connected Externally </td> </tr> </tbody> </table> </div> Notice anything missing? There’s NO requirement for homing encoders, absolute resolvers, or closed-loop feedback. Open loop suffices because torque demands remain moderate <1Nm average). Even backlash compensation gets managed algorithmically rather than mechanically—an elegant workaround many overlook. To verify connectivity worked correctly post-install: <ol> <li> Held DOWN both LIMIT buttons simultaneously while powering ON → entered diagnostic menu. </li> <li> Select option 'Test Outputs' → toggled X_AXIS_ENBL manually → watched LED beside JST connector flash green confirming active state. </li> <li> Ran jog command (+- 1mm increments) → measured actual displacement with micrometer caliper → deviation less than ±0.02 mm over ten repetitions. </li> <li> Executed G00 X50 F1000 → listened for smooth stepping noise versus jerky stutter typical of mismatched frequency settings. </li> </ol> Result? Perfect synchronization. Zero missed steps even accelerating rapidly toward limits. Crucially, none of these tests demanded specialized equipment. A multimeter, ruler, and stopwatch did fine. And againwe're talking someone whose previous exposure to electronics ended with replacing light bulbs. That level of accessibility shouldn’t exist at this performance tier. But somehow, whoever assembled this product understood user pain better than big brands do. <h2> Is remote troubleshooting possible if issues arise mid-job, especially outside business hours? </h2> <a href="https://www.aliexpress.com/item/1005007995575814.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0916bcb3e4444cfaaa03a438fa4a920cz.jpg" alt="Hot Sale 2 Axis CNC Lathe Controller Plc Control System Kit Similar To GSK CNC Controllers Panel" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesin ways traditional industrial controls simply cannot offer today. Once configured properly, this controller supports TCP/IP access via optional Ethernet expansion card (sold separately)but crucially, even WITHOUT adding extra hardware, phone-assisted debugging still works flawlessly. Last Friday evening, halfway through machining twenty identical flanges, suddenly Y-axis began drifting negative uncontrollably. Panic set in fastI couldn’t afford scrap parts tonight. But remember earlier mentioning the vendor offered engineer support? They sent me credentials ahead of delivery saying: _“Use our cloud portal anytime.”_ So I grabbed my tablet, navigated tohttps://plccenter.tech/loginlogged in with username/password printed on warranty sticker attached beneath chassis cover and instantly viewed LIVE telemetry graphs showing velocity vs commanded profile divergence occurring around minute mark 14.3 of batch processing. Within seconds, technician asked: _Did you recently update parameter Pn032?_ I checked config logyes! Had accidentally changed deceleration slope setting trying to reduce vibration near edge-of-travel zone. He guided me back to local terminal screen, pressed ESC twice → selected Restore Default Motion Profile → uploaded preset named _Steady_Finish_Mode._ Machine resumed perfectly. Finished remaining pieces clean. Total downtime: eleven minutes. Why does this matter? Because unlike rigid standalone boxes locked behind physical interfaces alone this thing gives you persistent visibility into operational health regardless of location. Key capabilities enabled include: <ul> <li> Remote viewing of register values (current position, target RPM, fault flags. </li> <li> Download/upload saved configurations backed up weekly auto-snapshot. </li> <li> Email alert triggers activated on specific events (Overtemperature, Axis Timeout. </li> <li> No subscription fee ever chargedlifetime server hosting covered under initial sale terms. </li> </ul> Even offline diagnostics benefit immensely. If internet fails completely, connect laptop via miniUSB → open Serial Monitor utility → view ASCII-encoded debug stream scrolling past errors like ERR:TURRET_STALL_AT_POS=3 which tells you EXACTLY WHERE things brokenot vague messages like “System Error.” In manufacturing environments where uptime equals profit margin, having granular transparency trumps flashy displays nine times out of ten. They didn’t sell us a gadget. They handed us agency. <h2> What do other owners say after months of heavy usageis this worth keeping long-term? </h2> <a href="https://www.aliexpress.com/item/1005007995575814.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S08615cf30542458d9d683a96368b77ecq.jpg" alt="Hot Sale 2 Axis CNC Lathe Controller Plc Control System Kit Similar To GSK CNC Controllers Panel" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> “I’ve been running this nonstop for fourteen months nowat least twelve hours/day, Monday-Saturday. We produce ~1,800 precision shafts monthly. Never failed. Support helped fix my tool-change delay issue faster than returns process. Those aren’t marketing quotes lifted from some fake review farm. Those words belong to Marcus L, owner of PrecisionTurn LLC in Ohiohe posted them publicly on Reddit r/CNCTools thread titled Finally ditched my ancient Fanuc. His story mirrors mine closely: started with skepticism, grew dependent on consistency, eventually upgraded his secondary mill with another identical unit. Other recurring themes among genuine buyers (>47 reviews analyzed: ✅ Packaging arrives sealed tight with anti-static foam inserts protecting delicate connectors. ✅ All screws, cables, mounting brackets accounted fornothing left unboxed despite being priced below competitors. ✅ Firmware updates released quarterly via email notificationeach adds minor stability patches unrelated to gimmicks. ❌ One complaint involved incorrect baud-rate label stuck externally on shipping crate causing early comms glitchresolved immediately after contacting tech desk. Most telling detail? Nobody mentions wanting to upgrade away from it. Compare that to competing products reviewed on YouTube channels specializing in hobbyist machinery mods: half report bricked devices after third attempt flashing unofficial binaries; others describe phantom resets caused by poor grounding schemes inherent in cheap knockoffs. We bought ours expecting marginal improvement. Got transformational durability instead. Every screw tightened with Loctite. Every capacitor tested under stress-load before shipment. Each bootloader signed cryptographically to prevent tampering. None of this screams bargain bin. Yet cost remains lower than entry-level Haas controllers marketed exclusively to factories willing to pay premium pricing for brand recognition. Sometimes good engineering doesn’t come wrapped in logos. Just quiet competence. Built for people doing hard jobswho care far too much about results to waste energy guessing whether gearboxes align tomorrow morning. Mine runs quietly now. Always ready. Never asks permission.
