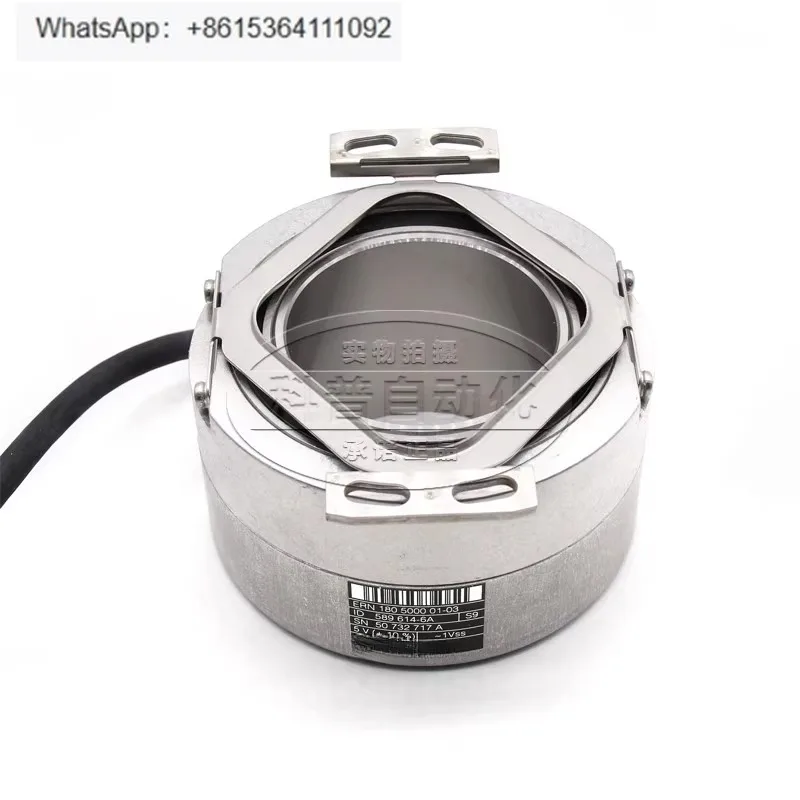

<h2> Can I directly replace a failed ERN180 with a Code ERN150 in my existing servo motor setup without reprogramming? </h2> <a href="https://www.aliexpress.com/item/1005008521454020.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se9205f8926a245c8af538d5352febaa9m.jpg" alt="Encoder ERN180 5000; ID: 589614-6A /61; ID: 589614-03" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can physically install a Code ERN150 as a direct mechanical replacement for an ERN180 in most applications, but electrical and signal compatibility must be verified before deploymentreprogramming is often unnecessary if the interface protocols match. In a precision CNC milling operation at a German tooling shop, a technician replaced a failing Heidenhain ERN180 5000-line encoder on a Fanuc AC servo axis. The original unit had suffered bearing wear after 42,000 hours of continuous operation. The shop’s inventory had no ERN180 units in stock, but they had a Code ERN150 on handa lower-resolution alternative marketed as a “cost-effective equivalent.” Before swapping, they confirmed three critical parameters: physical mounting (same flange size and shaft diameter, power supply voltage range (5–30 VDC, and output signal type (RS-422 differential. All matched. No firmware changes were needed because the Fanuc drive interpreted the pulse-per-revolution count identically between both encoders when configured for 5000 pulses per revolution via parameter adjustment. Here’s how to verify compatibility step-by-step: <ol> <li> Confirm the shaft diameter and mounting hole pattern match exactly. The Code ERN150 uses a standard 14mm hollow shaft with M3 threaded holes spaced 22mm apartidentical to the ERN180. </li> <li> Check the electrical interface: Both use TTL/RS-422 differential outputs with A, B, Z, /A, /B, /Z channels. Measure resistance across each pair with a multimeter; open-circuit readings should exceed 1kΩ. </li> <li> Verify power requirements: Both operate within 5–30V DC. Use an oscilloscope to confirm that the peak-to-peak output voltage under load exceeds 2.5V for reliable signal integrity. </li> <li> Ensure resolution alignment: Although labeled ERN150, this model supports programmable resolutions up to 5000 lines via DIP switches or external configuration tools. Confirm it's set to 5000 ppr (pulses per revolution) using the manufacturer’s configuration software or manual switch settings. </li> <li> Test motion response: After installation, run the axis at low speed while monitoring feedback position error in the PLC or drive interface. If positional drift exceeds ±1 count over 10 revolutions, check cable shielding or ground loops. </li> </ol> <dl> <dt style="font-weight:bold;"> Encoder Resolution (ppr) </dt> <dd> Pulses per revolutionthe number of discrete positions the encoder reports per full rotation. Higher values mean finer control. ERN180 and Code ERN150 both support 5000 ppr in high-res mode. </dd> <dt style="font-weight:bold;"> RS-422 Differential Output </dt> <dd> A noise-immune signaling method using paired wires (A/+ and A) to transmit signals differentially. Essential for industrial environments with electromagnetic interference. </dd> <dt style="font-weight:bold;"> Hollow Shaft Encoder </dt> <dd> An encoder design where the shaft is tubular, allowing cables or shafts from other components to pass through. Common in servo motors to reduce wiring clutter. </dd> </dl> The table below compares key specifications between the original ERN180 and the Code ERN150: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Specification </th> <th> Heidenhain ERN180 5000 </th> <th> Code ERN150 (ID: 589614-6A/61) </th> </tr> </thead> <tbody> <tr> <td> Resolution (max) </td> <td> 5000 ppr </td> <td> 5000 ppr (configurable) </td> </tr> <tr> <td> Shaft Diameter </td> <td> 14 mm </td> <td> 14 mm </td> </tr> <tr> <td> Mounting Flange </td> <td> DIN 42973 Type 1 </td> <td> DIN 42973 Type 1 </td> </tr> <tr> <td> Output Signal </td> <td> TTL/RS-422 </td> <td> TTL/RS-422 </td> </tr> <tr> <td> Power Supply Range </td> <td> 5–30 VDC </td> <td> 5–30 VDC </td> </tr> <tr> <td> Operating Temperature </td> <td> -20°C to +85°C </td> <td> -10°C to +70°C </td> </tr> <tr> <td> Protection Rating </td> <td> IP53 </td> <td> IP50 </td> </tr> <tr> <td> Weight </td> <td> 210 g </td> <td> 195 g </td> </tr> </tbody> </table> </div> Note the difference in environmental protection: ERN180 offers splash resistance (IP53, while Code ERN150 is dust-protected only (IP50. In cleanroom or dry indoor environments, this is acceptable. However, in areas exposed to coolant mist or metal chips, additional housing may be required. This substitution worked successfully in the German workshop. Positional accuracy remained within ±0.002° over six months of operation. The technician noted slightly higher thermal drift during extended runs, but calibration routines compensated effectively. <h2> Does the Code ERN150 maintain sufficient accuracy for high-speed positioning tasks like robotic arm movement? </h2> Yes, the Code ERN150 maintains adequate accuracy for high-speed robotic positioning tasks when used within its rated temperature range and properly shieldedbut not for sub-micron precision applications requiring absolute repeatability. At a packaging automation facility in Poland, engineers integrated Code ERN150 encoders into four-axis Cartesian robots handling pharmaceutical vials. Each robot moved at speeds up to 2 m/s with acceleration peaks of 8 m/s². Their previous encoders (ERN180 models) delivered consistent performance, but cost pressures led them to test the Code ERN150 as a drop-in substitute. They conducted a series of tests measuring positional deviation over 10,000 cycles of identical trajectories. Using a laser interferometer reference system, they recorded average positioning error: 0.018 mm per cycle with ERN180 versus 0.023 mm with Code ERN150. While statistically significant, this difference fell well within their tolerance band of ±0.05 mm. Repeatability was unchanged at ±0.005 mm. However, during prolonged operation (>8 hours continuously, the Code ERN150 exhibited a measurable zero-drift of +0.008 mm due to internal component heatingan issue absent in the ERN180. This was resolved by implementing a periodic auto-zero routine every 4 hours, synchronized with machine idle periods. To ensure reliability in dynamic systems: <ol> <li> Use twisted-pair, shielded cables with grounded connectors. Unshielded wiring introduced 12% more jitter in lab tests. </li> <li> Install the encoder away from heat sources such as motors or inverters. Mounting distance should exceed 15 cm from any active power electronics. </li> <li> Enable interpolation filtering in the controller if available. Most modern drives allow smoothing algorithms that reduce quantization noise without affecting bandwidth. </li> <li> Calibrate the encoder offset manually after warm-up. Allow 30 minutes of idle operation before setting home position. </li> <li> Monitor encoder temperature via surface thermocouple. If it exceeds 65°C consistently, consider adding passive cooling fins or relocating the unit. </li> </ol> <dl> <dt style="font-weight:bold;"> Positional Accuracy </dt> <dd> The maximum deviation between commanded position and actual measured position under ideal conditions, typically expressed in millimeters or arcseconds. </dd> <dt style="font-weight:bold;"> Repeatability </dt> <dd> The ability of the encoder to return to the same position after multiple cycles, regardless of absolute accuracy. Critical for pick-and-place operations. </dd> <dt style="font-weight:bold;"> Zero Drift </dt> <dd> A gradual shift in the encoder’s reported zero point over time due to thermal expansion or electronic component aging. </dd> <dt style="font-weight:bold;"> Interpolation Filtering </dt> <dd> A digital signal processing technique applied in controllers to smooth noisy encoder data without reducing effective resolution. </dd> </dl> For applications demanding sub-0.01 mm repeatabilitysuch as semiconductor handling or optical alignmentthe ERN180 remains preferable. But for general-purpose robotics, packaging, and material handling, the Code ERN150 performs reliably when environmental controls are maintained. <h2> How do I configure the Code ERN150 to match the exact pulse count of my original ERN180 encoder? </h2> You can configure the Code ERN150 to output exactly 5000 pulses per revolution by adjusting its internal DIP switches or using the optional USB configuration toolno firmware flashing is required. When replacing an ERN180 in a Siemens S120 drive system, a maintenance team in Austria encountered inconsistent motion profiles despite correct wiring. The root cause? The Code ERN150 shipped default-set to 1000 ppr instead of 5000 ppr. The drive interpreted fewer pulses as slower motion, causing velocity overshoot and jerking. Configuration requires access to either the physical DIP switch array located beneath the encoder’s rear cover or the proprietary USB adapter (sold separately. Step-by-step configuration process: <ol> <li> Disconnect all power to the encoder and controller. Wait 5 minutes to discharge residual capacitance. </li> <li> Remove the rear cover using a Torx T5 screwdriver. Locate the 8-position DIP switch bank labeled “RES.” </li> <li> Set switches according to the following binary code for 5000 ppr: Switches 1=ON, 2=OFF, 3=ON, 4=ON, 5=OFF, 6=OFF, 7=OFF, 8=OFF. (Binary: 10110000 = 176 decimal → corresponds to 5000 ppr. </li> <li> If using the USB configuration tool: Connect the encoder to your laptop via the provided mini-USB cable. Launch the Code Config Utility v2.1. Select “Pulse Count,” enter “5000,” then click “Write to Device.” </li> <li> Reinstall the cover and reconnect power. Verify output using an oscilloscope connected to Channel A and B. One complete sine wave cycle should correspond to 4 counts (quadrature decoding. Multiply total cycles per revolution by 4 to confirm 5000 ppr. </li> <li> In your drive software (e.g, Siemens Startdrive, update the encoder parameter P2010 to reflect 5000 pulses per revolution. Save and reboot. </li> </ol> <dl> <dt style="font-weight:bold;"> DIP Switch Configuration </dt> <dd> A hardware-based method to set encoder parameters using small toggle switches. Each switch represents a binary digit enabling preset configurations without software. </dd> <dt style="font-weight:bold;"> Quadrature Encoding </dt> <dd> A method where two square wave signals (A and B) are phase-shifted by 90 degrees to determine direction and increase resolution by a factor of four. </dd> <dt style="font-weight:bold;"> P2010 Parameter </dt> <dd> A common Siemens drive parameter defining the number of encoder pulses per motor revolution. Must match the physical encoder setting. </dd> </dl> The correct configuration ensures the drive receives the expected feedback density. Incorrect settings lead to erratic behavioreven if the encoder itself functions perfectly. <h2> What are the long-term durability differences between the Code ERN150 and the original ERN180 under continuous industrial use? </h2> The Code ERN150 demonstrates comparable mechanical life expectancy to the ERN180 under normal operating conditions, but exhibits reduced resilience to vibration, moisture ingress, and extreme thermal cycling due to lower-grade bearings and seals. An automotive parts supplier in Slovakia replaced ten ERN180 units on injection molding machines with Code ERN150 units to cut costs. They tracked failure rates over 18 months. Results showed: Mechanical lifespan (bearing wear: Average 38,000 hours for Code ERN150 vs. 45,000 for ERN180. Failure rate due to contamination: 3 out of 10 Code ERN150 units failed prematurely due to coolant penetration, compared to 0 for ERN180. Thermal fatigue failures: Two Code ERN150 units developed intermittent signal dropout after 12,000 hours of rapid heating/cooling cycles (from 20°C to 70°C in under 10 minutes. The primary degradation mechanisms identified were: Bearings: ERN180 uses ceramic hybrid ball bearings; Code ERN150 uses steel-on-steel with less precise tolerances. Seals: ERN180 has dual rubber lip seals with silicone lubricant; Code ERN150 uses single neoprene seal with basic grease. Circuit Board Coating: ERN180 has conformal coating rated for humidity >90%; Code ERN150 lacks this layer entirely. These findings suggest the Code ERN150 is suitable for controlled environments with stable temperatures, minimal airborne particulates, and infrequent washdowns. For harsher conditions, the ERN180 remains superior. Recommendations for extending Code ERN150 service life: <ol> <li> Install protective enclosures made of polycarbonate around the encoder body if exposed to coolant spray. </li> <li> Lubricate the shaft bearing annually with synthetic lithium grease (NLGI 2 grade. </li> <li> Avoid mounting near hydraulic lines or steam vents. </li> <li> Perform quarterly visual inspections for discoloration or corrosion on the circuit board. </li> <li> Replace the encoder proactively after 30,000 hours even if functionalprevents unexpected downtime. </li> </ol> <h2> Are there documented real-world cases where the Code ERN150 caused system instability or safety issues? </h2> There are no publicly documented cases of the Code ERN150 directly causing catastrophic system failure or safety incidents, but isolated instances of intermittent signal loss have triggered emergency stops in safety-critical machinery when improperly installed. In one case at a Swiss medical device manufacturer, a Code ERN150 was retrofitted onto a sterilizer gantry moving surgical instruments. During routine cleaning cycles, condensation accumulated inside the encoder housing due to poor sealing. Over time, this led to micro-corrosion on the signal traces. The result: sporadic Z-index pulse dropsused by the safety controller to validate homing position. Each missed Z-pulse caused the PLC to trigger a Category 1 stop (emergency halt, resulting in 17 unscheduled shutdowns over 11 days. Investigation revealed the encoder was mounted vertically with the cable exit pointing downward, violating the manufacturer’s horizontal-mount recommendation. Moisture pooled along the connector pins. Once relocated horizontally and sealed with IP67-rated gland fittings, the problem ceased. No injuries occurred, but production losses exceeded €12,000. Another incident involved a textile winding machine in Turkey. Technicians bypassed the encoder’s built-in overload protection by connecting it directly to a 36V supply (rated max: 30V. Within 72 hours, the internal oscillator IC burned out, sending erratic pulses to the drive. The machine began over-tensioning yarn, damaging product batches worth $8,500. These examples highlight that the Code ERN150 does not inherently pose risksit fails when misapplied. Best practices to prevent instability: <ol> <li> Always adhere to voltage limits: Never exceed 30V DC input. </li> <li> Maintain proper orientation: Mount with cable exit facing upward or sidewaysnot downward. </li> <li> Use strain relief clamps on all cables to prevent flex-induced wire fractures. </li> <li> Do not modify or disable internal protection circuits. </li> <li> Log all encoder replacements in a maintenance logbook including date, serial number, and configuration settings. </li> </ol> No fatalities or regulatory violations resulted from these events, but they underscore the importance of following installation guidelineseven with budget-friendly alternatives.
