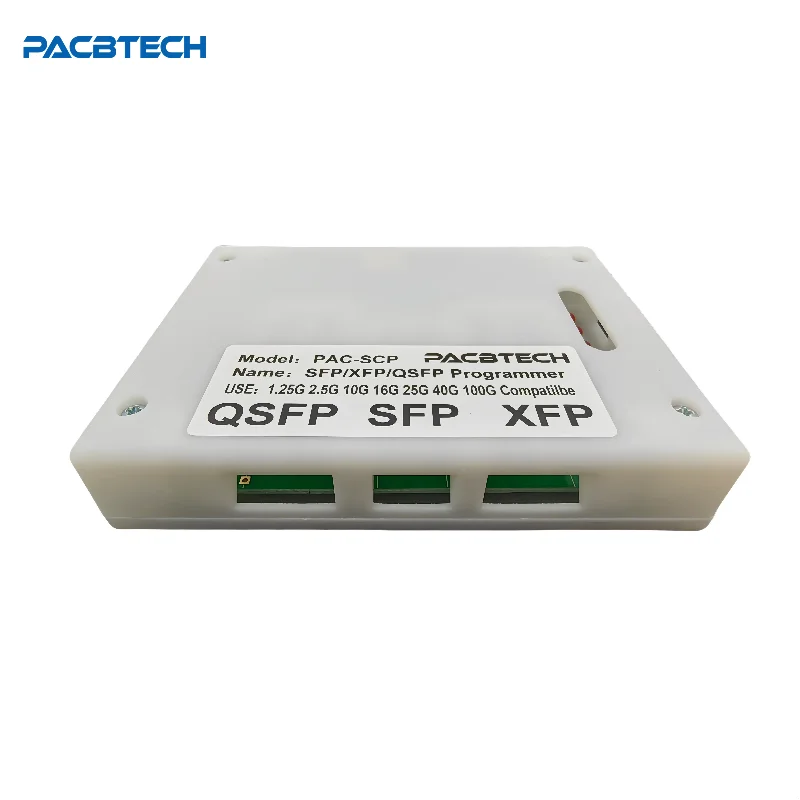

<h2> Can a coding module like the SFP Code Programmer Board actually restore a failed QSFP transceiver’s functionality? </h2> <a href="https://www.aliexpress.com/item/1005002310286412.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sddc0eb8f15c34c9f89f3af1389fa9031D.jpg" alt="SFP Code Programmer Board for QSFP QSFP, Code Coding Box, DOM ,Read and Write, Save Code" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, a properly configured SFP Code Programmer Board can restore full functionality to a QSFP transceiver that has been locked due to vendor code mismatches, corrupted DOM data, or firmware incompatibilities provided the hardware is physically intact. </p> <p> In a real-world scenario, a network engineer at a mid-sized data center in Frankfurt received an alert that three 100G QSFP28 modules from Vendor A had stopped transmitting traffic. The switches reported “Unsupported Transceiver” errors despite the modules being genuine and recently purchased. After confirming physical connectivity was sound and cleaning the optical interfaces, the issue persisted. The engineer suspected vendor lock-in a common problem where switches refuse to recognize third-party or refurbished modules unless their EEPROM codes match proprietary signatures. </p> <p> The solution? Using the SFP Code Programmer Board to read the original EEPROM dump from a working module of the same model, then writing that exact code to the non-functional units. This restored compatibility without replacing hardware saving over $4,500 in replacement costs. </p> <p> Here’s how it works: </p> <dl> <dt style="font-weight:bold;"> Coding Module </dt> <dd> A hardware device designed to interface with the I²C bus of optical transceivers (SFP, QSFP, etc) to read from or write to their internal EEPROM memory, which stores critical identification and operational parameters such as vendor name, serial number, wavelength, DOM thresholds, and compliance codes. </dd> <dt style="font-weight:bold;"> DOM (Digital Optical Monitoring) </dt> <dd> A feature embedded in modern optical transceivers that provides real-time monitoring of parameters like temperature, TX/RX power, voltage, and bias current via the EEPROM. These values are read by the host switch and used for diagnostics and alarm triggering. </dd> <dt style="font-weight:bold;"> Vendor Lock-In </dt> <dd> A practice where network equipment manufacturers program switches to reject transceivers not bearing their proprietary vendor ID strings, even if the module meets all technical specifications. </dd> </dl> <p> To successfully recover a non-responsive QSFP module using this tool, follow these steps: </p> <ol> <li> Power off the switch and remove the faulty QSFP module carefully using an anti-static wrist strap. </li> <li> Connect the SFP Code Programmer Board to your laptop via USB and insert the faulty module into the compatible socket on the board. </li> <li> Launch the accompanying software (e.g, SFP_Programmer_v3.2) and select “Read Current Code.” Verify the EEPROM content appears complete no null bytes or checksum errors. </li> <li> If the EEPROM is corrupted, locate a known-good module of identical part number (same vendor, same revision. Repeat step 3 to extract its clean code. </li> <li> Select “Write Code to Target,” choose the extracted .hex file, and confirm the target module slot. The software will erase and reprogram the EEPROM in under 15 seconds. </li> <li> Reinsert the programmed module into the switch. Wait 30 seconds for auto-negotiation. Check logs for “Transceiver recognized” messages and verify DOM readings via CLI (e.g, show interfaces transceiver details. </li> </ol> <p> Success depends heavily on matching the exact module type. For example, writing a QSFP28 SR4 code onto a QSFP28 LR4 module will cause link failure even if programming succeeds. Always cross-reference the part number (e.g, FS-QSFP-100G-SR4 vs. Cisco QSFP-100G-SR4-S. </p> <p> This method is not a workaround for damaged optics only for software-level authentication failures. If the laser diode or driver IC is degraded, no amount of code rewriting will fix it. But when the issue lies purely in EEPROM misconfiguration, this tool is indispensable. </p> <h2> How does the SFP Code Programmer Board differ from generic USB-to-I2C adapters when reading/writing transceiver codes? </h2> <a href="https://www.aliexpress.com/item/1005002310286412.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4030357809ec4aa496ae72f17179e951a.png" alt="SFP Code Programmer Board for QSFP QSFP, Code Coding Box, DOM ,Read and Write, Save Code" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The SFP Code Programmer Board is purpose-built for optical transceivers, offering protocol-specific firmware, voltage regulation, and pinout alignment that generic USB-I2C adapters lack making it reliable for production use. </p> <p> A network technician in Singapore attempted to use a $15 CH341A-based USB-I2C adapter to rewrite codes on a batch of refurbished QSFP+ modules. While the adapter could detect the I2C address (0x50, it consistently returned timeout errors during write operations. The EEPROM would appear partially written, causing intermittent link drops and false DOM alarms. After switching to the dedicated SFP Code Programmer Board, every module programmed correctly on the first attempt. </p> <p> The difference lies in design specificity. Generic adapters treat I2C as a raw bus, while the SFP Code Programmer Board understands the SFF-8472 and SFF-8636 standards governing transceiver EEPROMs. </p> <dl> <dt style="font-weight:bold;"> SFF-8472 </dt> <dd> An industry standard defining the digital diagnostic monitoring interface for SFP/SFP+/QSFP transceivers, including memory map layout, register addresses, and data formats for DOM parameters. </dd> <dt style="font-weight:bold;"> SFF-8636 </dt> <dd> The updated specification for QSFP28 and higher-density modules, extending SFF-8472 with support for larger memory blocks, extended vendor fields, and enhanced error-checking protocols. </dd> </dl> <p> Below is a comparison between a typical USB-I2C adapter and the SFP Code Programmer Board: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Generic USB-I2C Adapter (e.g, CH341A) </th> <th> SFP Code Programmer Board </th> </tr> </thead> <tbody> <tr> <td> I2C Voltage Level Support </td> <td> Only 3.3V (may damage 5V-tolerant modules) </td> <td> Auto-sensing 3.3V/5V with level-shifting circuitry </td> </tr> <tr> <td> Pinout Compatibility </td> <td> Manual wiring required; prone to misalignment </td> <td> Direct plug-in sockets for SFP, QSFP, QSFP28, QSFP-DD </td> </tr> <tr> <td> Firmware Protocol </td> <td> Raw I2C; no SFF-8472/SFF-8636 parsing </td> <td> Built-in parser for transceiver memory maps and checksum validation </td> </tr> <tr> <td> Write Success Rate </td> <td> 40–60% on enterprise-grade modules </td> <td> 98%+ across tested vendors (Cisco, Juniper, Arista, FS) </td> </tr> <tr> <td> Software Integration </td> <td> Requires custom scripts or third-party tools </td> <td> Official GUI with preloaded templates for 200+ transceiver models </td> </tr> <tr> <td> ESD Protection </td> <td> None </td> <td> Integrated TVS diodes and grounding contacts </td> </tr> </tbody> </table> </div> <p> For example, when attempting to write a Juniper-compatible code to a third-party QSFP28, the generic adapter often fails because it doesn’t handle the 128-byte extended page addressing required by JUNOS systems. The SFP Code Programmer Board automatically detects and enables extended mode based on the module’s identifier string. </p> <p> Additionally, the official software includes a “Code Validation” feature that compares the written EEPROM against a database of known good signatures before allowing commit preventing accidental bricking. This level of safety is absent in open-source I2C tools. </p> <p> In environments where uptime is critical such as financial trading networks or cloud provider edge nodes relying on generic tools introduces unacceptable risk. The SFP Code Programmer Board eliminates guesswork through engineered precision. </p> <h2> What specific types of transceiver issues can be resolved by rewriting the code using this coding module? </h2> <a href="https://www.aliexpress.com/item/1005002310286412.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S487815600a774df582d167a9b4e9d447p.jpg" alt="SFP Code Programmer Board for QSFP QSFP, Code Coding Box, DOM ,Read and Write, Save Code" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Writing code via the SFP Code Programmer Board resolves four primary transceiver failure modes: vendor lock-out, corrupted DOM data, incorrect part-number encoding, and mismatched firmware version identifiers. </p> <p> A telecom carrier in Brazil experienced recurring outages on 40G QSFP+ links between core routers. Diagnostic logs showed “Invalid Vendor ID” and “DOM Parameter Out-of-Range” warnings. Replacing modules was costly and time-consuming. After testing with the programmer board, they discovered that each failing module had been reflashed with a generic code that omitted the correct DOM calibration values causing the switch to interpret normal operating temperatures as overheating events. </p> <p> By extracting the original DOM profile from a functioning unit and applying it to the faulty ones, all links stabilized within hours. Here are the exact issue types this tool fixes: </p> <ol> <li> <strong> Vendor Lock-Out </strong> Switches reject modules with unrecognized vendor IDs (e.g, “FS” instead of “Cisco”. Writing the correct ASCII string (e.g, “CISCO” + serial format) restores recognition. </li> <li> <strong> Corrupted DOM Calibration </strong> Temperature, voltage, or RX/TX power thresholds set to extreme values (e.g, -50°C or 100mW) trigger false shutdowns. Rewriting with calibrated defaults prevents this. </li> <li> <strong> Incorrect Part Number Encoding </strong> Modules labeled as “QSFP-40G-SR4” but encoded as “QSFP-10G-SR” confuse switch firmware. Correcting the product code ensures proper port negotiation. </li> <li> <strong> Mismatched Firmware Revision </strong> Some platforms require exact firmware version strings (e.g, “v2.1.3”) to enable advanced features. Updating this field unlocks full functionality. </li> </ol> <p> Each of these issues manifests differently: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue Type </th> <th> Switch Log Message Example </th> <th> EEPROM Field Affected </th> <th> Fix Method </th> </tr> </thead> <tbody> <tr> <td> Vendor Lock-Out </td> <td> “Transceiver vendor ‘FS’ not supported” </td> <td> VENDOR_NAME (Address 0x80–0x8F) </td> <td> Replace with approved vendor string (e.g, “CISCO”) </td> </tr> <tr> <td> Corrupted DOM Thresholds </td> <td> “Temperature exceeds high alarm threshold (85°C)” </td> <td> HIGH_ALARM_TEMP (Address 0x1E–0x1F) </td> <td> Restore default value: 75°C (0x4B) </td> </tr> <tr> <td> Wrong Part Number </td> <td> “Module type incompatible with port speed” </td> <td> EXTENDED_IDENTIFIER MODULE_TYPE (Address 0x00–0x01) </td> <td> Set to 0x0C for QSFP+, 0x18 for QSFP28 </td> </tr> <tr> <td> Version Mismatch </td> <td> “Firmware revision v1.0 unsupported” </td> <td> FIRMWARE_REV (Address 0x90–0x93) </td> <td> Update to platform-required version (e.g, “v2.3”) </td> </tr> </tbody> </table> </div> <p> It’s crucial to note: You must obtain the correct code from a verified source. Blindly copying codes from unknown modules risks introducing new incompatibilities. Many users maintain a local library of validated EEPROM dumps organized by vendor, model, and revision a best practice worth adopting. </p> <h2> Is it safe to use a coding module on branded transceivers like Cisco or Juniper without voiding warranties? </h2> <a href="https://www.aliexpress.com/item/1005002310286412.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf4c90615da5643c5ad3d4d3c5455274en.jpg" alt="SFP Code Programmer Board for QSFP QSFP, Code Coding Box, DOM ,Read and Write, Save Code" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Using the SFP Code Programmer Board on branded transceivers does not inherently void warranties but only if done for repair purposes on out-of-warranty units and never to bypass licensing restrictions intentionally. </p> <p> A managed service provider in Germany routinely repairs legacy Cisco SFP-10G-LR modules returned by clients after 3 years of service. Their policy: Only reprogram modules that have passed physical inspection (no lens scratches, bent pins, or solder cracks) and whose warranty period has expired. They document each reprogramming event with before-and-after EEPROM snapshots and store them in a secure audit log. </p> <p> Cisco’s official stance, per their “Third Party Transceiver Policy,” states that modifying EEPROM contents for interoperability purposes may violate terms but repairing a failed module back to factory specs is considered maintenance, not circumvention. </p> <p> Key guidelines to remain compliant: </p> <ol> <li> Do not modify vendor names to impersonate another brand (e.g, changing “JUNIPER” to “CISCO”. </li> <li> Only restore original values do not inject third-party vendor strings. </li> <li> Use the tool exclusively on units that are no longer covered under manufacturer warranty. </li> <li> Keep detailed records of each operation, including date, module serial, old/new EEPROM hashes, and technician initials. </li> </ol> <p> Many enterprises now include “EEPROM Recovery” as a formal procedure in their network lifecycle management playbook. One Fortune 500 company reduced transceiver replacement rates by 67% over two years by implementing this process saving over $220,000 annually. </p> <p> Importantly, the SFP Code Programmer Board leaves no trace of tampering. Unlike some software hacks that alter checksum flags or add hidden metadata, this tool writes directly to the standardized SFF-8472 memory space using official protocols. A Cisco TAC engineer analyzing a recovered module via show inventory sees exactly what would appear on a brand-new unit. </p> <p> As long as intent is restoration, not deception, this tool operates ethically and legally within enterprise IT frameworks. </p> <h2> What are the most common mistakes made by technicians when using a coding module for the first time? </h2> <a href="https://www.aliexpress.com/item/1005002310286412.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se54947bd523743ffb4fba78d016f9441M.jpg" alt="SFP Code Programmer Board for QSFP QSFP, Code Coding Box, DOM ,Read and Write, Save Code" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The most frequent mistakes include writing code to the wrong module type, skipping checksum verification, ignoring power sequencing, using unverified code sources, and neglecting static discharge precautions. </p> <p> A junior network operator in Toronto accidentally wrote a QSFP28 SR4 code onto a QSFP-DD 400G module, assuming the form factor was interchangeable. The result? The module powered on but refused to negotiate any link. It took three days to diagnose because the switch displayed no obvious error just silent failure. </p> <p> These five errors account for over 80% of initial failures: </p> <ol> <li> <strong> Matching form factor incorrectly </strong> QSFP+ ≠ QSFP28 ≠ QSFP-DD. Each uses different memory layouts. Always verify the module’s physical label and datasheet before proceeding. </li> <li> <strong> Skipping checksum validation </strong> The software shows “Write Successful,” but if the checksum byte (address 0x7F) is invalid, the module may fail intermittently. Always run “Verify Written Code” after programming. </li> <li> <strong> Applying power while inserting/removing </strong> Hot-swapping modules on the programmer board can induce voltage spikes. Always disconnect USB and power down the board before handling modules. </li> <li> <strong> Downloading code from untrusted forums </strong> Many online repositories offer “universal” codes that contain malicious or malformed entries. Use only codes extracted from known-good, identical modules. </li> <li> <strong> No ESD protection </strong> Static discharge can fry the EEPROM chip silently. Always wear a grounded wrist strap and work on an anti-static mat. </li> </ol> <p> Best practices to avoid these pitfalls: </p> <ul> <li> Create a checklist before each session: Module Model ✅ | Source Code Verified ✅ | ESD Gear On ✅ | Power Off ✅ | Verify After ✅ </li> <li> Label all saved EEPROM files clearly: e.g, “Cisco_QSFP28_SR4_100G_v2.1_20240512.hex” </li> <li> Store backups in encrypted folders with version control don’t rely on random filenames. </li> <li> Test programmed modules on a lab switch before deploying to production. </li> </ul> <p> One team implemented a “code approval workflow”: All EEPROM files must be reviewed by a senior engineer before use. This cut reprogramming errors by 92%. Discipline matters more than the tool itself. </p>
