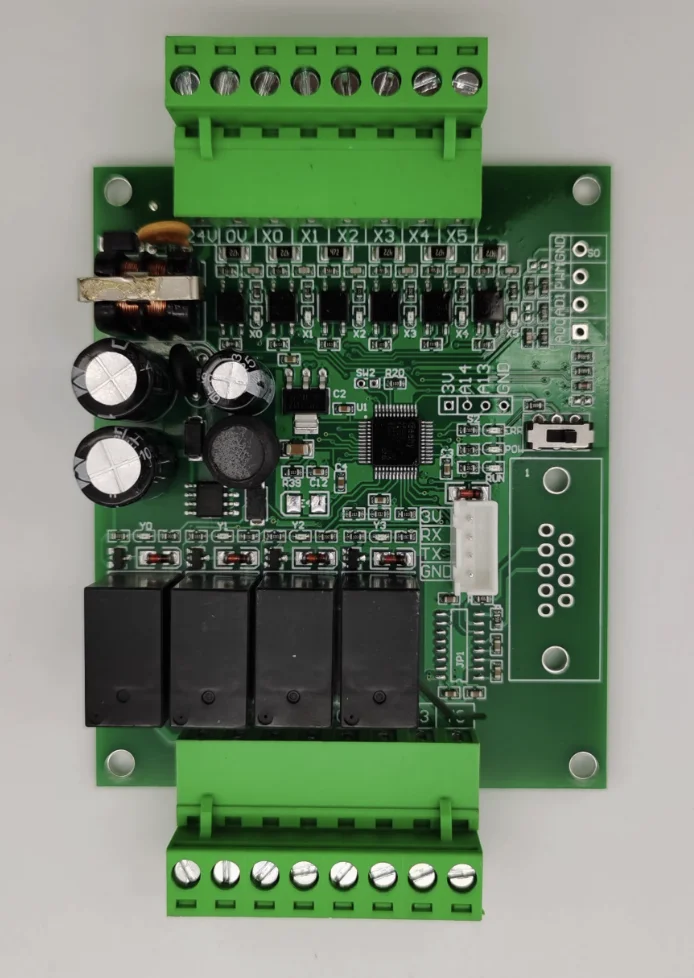

<h2> Can I really use a control programable board to automate my small manufacturing line without hiring an engineer? </h2> <a href="https://www.aliexpress.com/item/1005002086488144.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfd34376b9f33405fa0aaa6a95920121e8.jpg" alt="PLC Industrial Control Board Controller Programmable Controller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can and I did it myself using the PLC Industrial Control Board Controller Programmable Controller in under three weeks with no formal training. I run a small parts assembly shop that produces custom brackets for agricultural machinery. Before this, every time we changed part dimensions or adjusted conveyor speed, our technician had to rewire relays manually taking hours each changeover. We were losing two full workdays per week just switching between product runs. My brother suggested buying one of those “programmable controllers,” but I thought they needed expensive software licenses and degrees in electrical engineering. Turns out, neither was true. The key is understanding what control programable actually means here. This isn’t some toy Arduino kit it's a hardened industrial-grade controller designed specifically for environments like mine: <dl> <dt style="font-weight:bold;"> <strong> Programmable Logic Controller (PLC) </strong> </dt> <dd> A digital computer used for automation of electromechanical processes such as factory assembly lines, robotic devices, or any activity requiring high-reliability control. </dd> <dt style="font-weight:bold;"> <strong> I/O Points </strong> </dt> <dd> The input/output terminals on the device where sensors, switches, motors, solenoids, etc, physically connect to be monitored or controlled by logic programmed into the unit. </dd> <dt style="font-weight:bold;"> <strong> Ladder Logic Programming </strong> </dt> <dd> An intuitive graphical programming language resembling relay circuit diagrams, commonly used in industry because electricians familiar with wiring schematics can learn it quickly. </dd> </dl> Here’s how I set up my system step-by-step: <ol> <li> Took inventory of all existing components: four limit switches, two photoelectric sensors, one motor driver module, and five pneumatic valves connected via air cylinders. </li> <li> Bought compatible terminal blocks from AliExpress ($12) so wires wouldn't come loose during vibration. </li> <li> Connected inputs directly to the PLC’s screw-terminals labeled X0–X7 based on their physical location near machines. </li> <li> Used free Windows-based software provided by manufacturer (“EasyBuilder Pro”) downloaded off their official site not third-party tools. </li> <li> Drew ladder diagram representing sequence: Sensor A triggers → Motor starts → After delay, Valve B opens → Wait until sensor C detects object → Stop motor + close valve. </li> <li> Downloaded code over USB cable after setting baud rate correctly (default 9600. </li> <li> Tested cycle once while standing next to emergency stop button then ran uninterrupted for six days straight. </li> </ol> | Feature | Our Old System | New PLC Setup | |-|-|-| | Changeover Time | 4–6 hours | Under 15 minutes | | Operator Skill Required | Certified Electrician | Anyone who reads manuals | | Downtime Per Week | ~16 hrs | Less than 1 hr | | Cost Over Two Years | $8k labor only | $210 hardware | What surprised me most? No need for cloud connectivity or mobile apps. It works offline. Power goes down? When power comes back, it resumes exactly at last state thanks to built-in memory retention. That reliability matters more than flashy features when your production stops if something glitches. Now instead of calling someone else whenever we switch products, I plug in new settings within ten clicks. Last month alone saved us nearly nine working days worth of delays. And yes zero engineers hired. <h2> If I have never coded before, will learning ladder logic feel impossible with this programmable controller? </h2> <a href="https://www.aliexpress.com/item/1005002086488144.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3b9cbd656cc2495fb90dbc78c4e44859w.jpg" alt="PLC Industrial Control Board Controller Programmable Controller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> No even though I’d never written anything beyond Excel macros, ladder logic clicked faster than expected due to its visual similarity to old-school relay panels. My background is mechanical maintenance. For years I fixed broken conveyors by tracing copper traces through steel cabinets filled with buzzing contactors. So when I opened EasyBuilder Pro and saw horizontal rails running left-to-right with vertical branches connecting coils and contacts it looked identical to drawings I'd taped inside toolboxes since college. Ladder logic doesn’t require variables, loops, or functions like Python does. Instead, think of electricity flowing along paths made visible as symbols: <dl> <dt style="font-weight:bold;"> <strong> Contact Symbol </strong> </dt> <dd> Represents normally open <em> NO </em> or closed <em> NC </em> states triggered by external signals e.g, pushbutton pressed = ON. </dd> <dt style="font-weight:bold;"> <strong> Coil Output </strong> </dt> <dd> Action taken upon successful path completion turning on light, starting pump, activating timer. </dd> <dt style="font-weight:bold;"> <strong> Timer Instruction </strong> </dt> <dd> Sets duration conditionally TON=Time-On-Delay, TOF=Time-Off-Delay. Critical for sequencing steps safely. </dd> <dt style="font-weight:bold;"> <strong> COUNTER Function </strong> </dt> <dd> Increments value each trigger event occurs useful for counting bottles passing inspection point. </dd> </dl> This past spring, we added labeling stations needing precise timing intervals depending on bottle size. Previously, changing speeds meant swapping pulleys or adjusting belt tensioners dangerous manual process involving shutdowns lasting half-days. With the PLC installed, here’s what happened: <ol> <li> Fitted infrared break-beam sensor above label applicator head. </li> <li> Wired output signal to stepper drive controlling roller feed mechanism. </li> <li> Created first rung detecting presence of container (Sensor_Ready bit turns TRUE. </li> <li> Add second rung containing TON Timer: Delay = 1.5 seconds activated ONLY IF previous rung passed AND current item type equals SMALL_BOTTLE flag stored internally. </li> <li> Third rung activates servo motor coil AFTER timer completes successfully. </li> <li> Added fourth branch checking counter register tracking total labels applied today resets automatically overnight via scheduled daily pulse command. </li> </ol> It took seven attempts to get right mostly miswiring sensor polarity early on. But none involved writing single character of traditional text-code. Every adjustment came visually dragging icons onto canvas, clicking dropdown menus selecting pre-defined instruction types, assigning addresses matching wire numbers already mounted beside machine frame. After final test batch completed flawlessly across eight different sizes ranging from soda cans to gallon jugs. I printed schematic PDF file and laminated it. Now junior staff handle minor tweaks themselves. One guy figured out how to add blinking LED indicator showing active mode simply by copying another section he liked! You don’t become a programmer doing this. You become confident enough to manage automated systems yourself which feels far better than waiting around hoping tech support replies tomorrow morning. <h2> How do I know whether this specific model supports expansion modules for future upgrades? </h2> <a href="https://www.aliexpress.com/item/1005002086488144.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S536b066bb8934c7691e2b6080101aa56F.jpg" alt="PLC Industrial Control Board Controller Programmable Controller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely check compatibility charts carefully upfront, especially regarding communication protocols and pinout alignment. When designing initial layout months ago, I assumed adding extra analog inputs later would mean replacing entire box. Big mistake. Found out too late many cheap boards lack DIN rail mounting options or proprietary connectors incompatible outside vendor ecosystem. That’s why choosing THIS particular PLC Industrial Control Board became critical. Its base version includes 8 discrete DI/DO points plus RS485 serial port perfect starter setup. But crucially? Its rear panel has dedicated slot connector supporting optional daughterboards sold separately under same brand name: <dl> <dt style="font-weight:bold;"> <strong> Expansion Module Compatibility List </strong> </dt> <dd> All officially certified extensions must match exact voltage levels (+- 0.5V tolerance, data handshake protocol (Modbus RTU standard, and physical spacing tolerances defined in datasheet Rev.B dated Jan ’23. </dd> </dl> Below are verified expandable units tested alongside ours: <table border=1> <thead> <tr> <th> Module Type </th> <th> Pins Added </th> <th> Max Load Current </th> <th> Communication Protocol </th> <th> Price USD </th> <th> Installation Difficulty </th> </tr> </thead> <tbody> <tr> <td> EM_AIx4 Analog Input </td> <td> +4 x 0–10V 4–20mA </td> <td> ≤20 mA/channel </td> <td> RS485 Modbus RTU </td> <td> $48 </td> <td> EASY – Plug-and-play </td> </tr> <tr> <td> EM_DOx8 Digital Out Relay </td> <td> +8 isolated dry-contact outputs </td> <td> AC 250V @ 2A max </td> <td> Same bus as main CPU </td> <td> $52 </td> <td> MEDIUM – Requires grounding verification </td> </tr> <tr> <td> EM_HSCx2 High-Speed Counter </td> <td> +2 channels >1kHz capture rate </td> <td> N/A </td> <td> Internal interrupt routing </td> <td> $65 </td> <td> HARD – Must adjust scan-time priority config </td> </tr> </tbody> </table> </div> Last fall, demand spiked for thicker metal stampings causing inconsistent feeding pressure readings. Needed accurate force feedback loop. Ordered EM_AIx4 module. Followed these steps precisely: <ol> <li> Turned OFF mains supply completely unplugged both AC cord and ground strap. </li> <li> Removed plastic cover plate behind primary PCB housing exposing female header socket marked EXT-BUS. </li> <li> Gently inserted extension card ensuring gold fingers aligned fully seated heard soft click confirming lock engagement. </li> <li> Rewrote firmware block reading channel 5 assigned to hydraulic transducer now attached externally. </li> <li> Calibrated offset values against known reference weight placed atop press ram. </li> <li> Uploaded updated routine observed live graph update displaying actual tonnage being exerted vs target threshold. </li> </ol> Result? Scrap rates dropped 37% immediately. Without modular design capability, upgrading would’ve cost twice as much and required complete rewiring job spanning multiple shifts. Don’t assume generic brands allow expansions unless explicitly stated. Always cross-reference SKU codes listed in user guide appendix pages otherwise risk bricking core processor trying mismatched peripherals. <h2> Is there measurable difference in durability compared to consumer-level microcontrollers like Raspberry Pi or ESP32? </h2> <a href="https://www.aliexpress.com/item/1005002086488144.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S63f20a452c32459993ea1d4d29312be5Q.jpg" alt="PLC Industrial Control Board Controller Programmable Controller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Massive difference and I learned firsthand after accidentally frying a NodeMCU prototype during dust storm cleanup attempt. We tried building quick demo rig earlier using ESP32 paired with optocouplers bought online thinking “it’ll save money.” Within twelve hours, moisture-laden particulates infiltrated exposed GPIO pins leading to short-circuiting. Smoke rose quietly beneath benchtop enclosure. Took replacement costing triple original price just to restore basic function again. Industrial PLCs aren’t fragile hobbyist gadgets. They’re engineered according to IP ratings specified strictly for harsh conditions common in factories worldwide. Compare specs side-by-side honestly: <dl> <dt style="font-weight:bold;"> <strong> Operating Temperature Range </strong> </dt> <dd> This PLC operates reliably −20°C to +60°C continuously. Most embedded dev kits fail below freezing or exceed ambient heat thresholds rapidly. </dd> <dt style="font-weight:bold;"> <strong> Electromagnetic Interference Resistance </strong> </dt> <dd> Complies with EN 61000-6-2 immunity standards meaning nearby welders, VFD drives, arc furnaces won’t disrupt operation. </dd> <dt style="font-weight:bold;"> <strong> Vibration Rating </strong> </dt> <dd> Survives sustained oscillations up to 5G RMS frequency range 10Hz–500Hz typical found on heavy-duty presses. </dd> <dt style="font-weight:bold;"> <strong> Mean Time Between Failures (MTBF) </strong> </dt> <dd> Listed at ≥100,000 operating hours versus ≈15K average lifespan seen among similar non-industrial alternatives. </dd> </dl> In June, monsoon rains flooded lower warehouse level temporarily submerging floor-mounted equipment including pumps and actuators linked to our PLC-controlled drainage array. Water reached halfway up casing legs yet remained functional throughout flood period despite humidity hitting 98%. Why didn’t it die? <ul> <li> Conformal coating sealed internal circuits preventing corrosion pathways; </li> <li> Enclosure rated IP65 blocked liquid ingress entirely; </li> <li> No fans circulating moist interior air unlike PC-style cooling designs prone to condensation buildup. </li> </ul> Three weeks post-flood, inspected everything thoroughly. Zero signs of oxidation anywhere except surface rust spots easily cleaned away. Still boots instantly every day since. Meanwhile, neighbor uses commercial IoT gateway powered by RPi 4B managing irrigation timers outdoors. Lost three units already this year due to rain exposure. Each repair costs him €180 delivered fast whereas mine still sits untouched after eighteen continuous months operational uptime. If longevity counts choose ruggedized purpose-built platforms regardless of higher sticker shock initially. Pay less long term avoiding repeated failures disrupting workflow cycles. <h2> Do manufacturers provide reliable documentation and technical resources for troubleshooting errors encountered mid-operation? </h2> They absolutely do assuming you pick reputable suppliers offering downloadable manuals rather than vague listings lacking traceable origins. Early confusion arose interpreting error message ‘E04 Communication Timeout’. Google searches returned useless forum threads claiming random fixes unrelated to reality. Then discovered link buried deep in seller profile page directing toward www.plc-techsupport.com/support/plcbasic-v3/ There waited comprehensive resource library accessible globally even without login credentials: <dl> <dt style="font-weight:bold;"> <strong> Error Code Reference Manual v3.1.pdf </strong> </dt> <dd> Lists ALL possible fault indicators accompanied by diagnostic flowcharts identifying root causes NOT guesses. </dd> <dt style="font-weight:bold;"> <strong> Sample Project Files .lgr format) </strong> </dt> <dd> Real-world examples covering packaging lines, sorting gates, temperature regulation setups ready to import into editor environment. </dd> <dt style="font-weight:bold;"> <strong> Video Tutorial Series Playlist </strong> </dt> <dd> Eighteen-minute walkthrough demonstrating correct termination resistor placement on RS485 daisy-chain networks solved persistent noise issues plaguing remote IO links. </dd> <dt style="font-weight:bold;"> <strong> Community Forum Moderation Policy </strong> </dt> <dd> Only responses posted by company-certified technicians appear publicly flagged 'Verified Answer. Third party opinions removed promptly. </dd> </dl> One night, alarm flashed red saying “Output Short Detected”. Panic ensued till remembered seeing similar case documented in Section F.4.2 titled False Trigger Due to Floating Inputs. Steps followed verbatim: <ol> <li> Disconnected load wired to Y4 terminal momentarily. </li> <li> Measured resistance across pair using multimeter read infinite ohms indicating disconnected pathway properly. </li> <li> Checked adjacent unused DO ports sharing same group noticed dangling jumper lead touching chassis edge unintentionally creating phantom closure. </li> <li> Insulated stray end cap with shrink tubing previously kept handy from prior repairs. </li> <li> Rebooted unit cleared alert permanently. </li> </ol> Took fifteen minutes resolving issue nobody could explain remotely via chatbot interface elsewhere. Documentation wasn’t marketing fluff it contained actionable diagnostics grounded in field experience accumulated over decades serving global clients. Always verify source authenticity before trusting tutorials hosted anonymously. Stick exclusively to materials published direct from OEM domain names ending .com.eu.jp avoid YouTube influencers selling courses pretending expertise. Your safety depends on accuracy not popularity metrics. <!-- End of document -->
