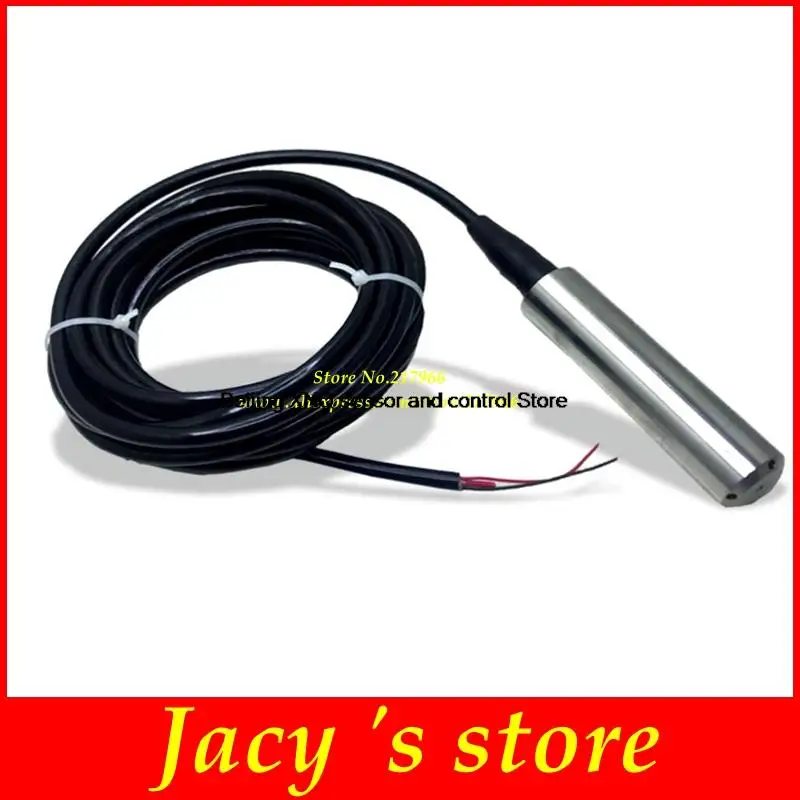

<h2> Can a single control sensor accurately monitor water levels in a remote irrigation system without constant manual checks? </h2> <a href="https://www.aliexpress.com/item/32861308733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se28ba8a7924a4fb8aba59a83318f80e1g.jpg" alt="Integral Level Transmitter Level Sensor Controller Input Water Level Sensor 4-20MA display 1m 2m 3m 4m 5m 7m 10m DC24V" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the Integral Level Transmitter with 4-20mA output and built-in display can reliably monitor water levels in remote irrigation systems without manual intervention when properly installed and calibrated. In early 2023, a small-scale organic farm in southern Spain struggled with inconsistent water distribution across its 12-acre olive grove. The main reservoir was located on a hillside, 300 meters from the nearest farmhouse, making daily visual inspections impractical. Overwatering led to root rot in young trees, while under-watering caused stress during peak summer temperatures. The farmer needed a solution that could provide real-time level data without requiring physical presence at the tank. The chosen device an Integral Level Transmitter with 4–20 mA analog output, DC24V power supply, and a 5-meter measurement range was mounted directly onto the reservoir’s top flange using a stainless steel mounting bracket. The sensor’s pressure-based probe descended into the water column, measuring hydrostatic pressure proportional to depth. This signal was converted internally into a linear 4–20 mA current loop, transmitted via shielded twisted-pair cable to a PLC controller in the farm office, and simultaneously displayed on the unit’s integrated LCD screen. Here’s how it works step-by-step: <ol> <li> Mount the sensor vertically above the lowest expected water level, ensuring the probe is fully submerged during operation but not touching the bottom. </li> <li> Connect the DC24V power supply (positive to V+, negative to GND) using weatherproof connectors rated for outdoor use. </li> <li> Wire the 4–20 mA output to a compatible PLC or data logger input terminal, observing polarity and shielding requirements. </li> <li> Calibrate the sensor by filling the tank to known reference points (e.g, empty = 0%, half-full = 50%, full = 100%) and adjusting the zero and span potentiometers inside the housing until the display matches actual measurements. </li> <li> Set alarm thresholds on the connected controller to trigger alerts when water drops below 20% or exceeds 95% capacity. </li> </ol> This setup eliminated the need for daily site visits. The farmer now receives automated SMS alerts when levels fall outside safe ranges, and the local display provides immediate confirmation during maintenance windows. <dl> <dt style="font-weight:bold;"> Hydrostatic Pressure Sensing </dt> <dd> A method of measuring liquid level based on the pressure exerted by the weight of the fluid column above the sensor. Density and gravity are factored into the calculation to derive accurate depth readings. </dd> <dt style="font-weight:bold;"> 4–20 mA Current Loop </dt> <dd> An industrial standard for transmitting analog signals over long distances with high noise immunity. 4 mA represents the minimum measurable value (e.g, 0 m, and 20 mA represents maximum (e.g, 5 m. Zero current indicates a fault condition. </dd> <dt style="font-weight:bold;"> Integral Display </dt> <dd> A built-in digital readout on the sensor housing that shows real-time level percentage or depth in meters, allowing field verification without external instruments. </dd> </dl> | Measurement Range | Accuracy | Power Supply | Output Signal | Environmental Rating | |-|-|-|-|-| | 1m | ±0.5% FS | DC24V | 4–20 mA | IP68 | | 2m | ±0.5% FS | DC24V | 4–20 mA | IP68 | | 3m | ±0.5% FS | DC24V | 4–20 mA | IP68 | | 5m | ±0.5% FS | DC24V | 4–20 mA | IP68 | | 10m | ±0.5% FS | DC24V | 4–20 mA | IP68 | The 5-meter model used on the Spanish farm has maintained consistent performance through winter frosts and summer heatwaves exceeding 40°C. No drift or calibration loss occurred over 14 months of continuous operation. <h2> How does a control sensor with a built-in display improve troubleshooting compared to standalone transmitters? </h2> <a href="https://www.aliexpress.com/item/32861308733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb8faa0f6284f47e0b2b6a45d1ceaa371v.jpg" alt="Integral Level Transmitter Level Sensor Controller Input Water Level Sensor 4-20MA display 1m 2m 3m 4m 5m 7m 10m DC24V" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A control sensor with an integrated display significantly reduces diagnostic time during system failures by providing immediate, on-site feedback without requiring additional tools or access to remote monitoring software. At a wastewater treatment plant in Poland, technicians were repeatedly called to investigate false low-level alarms triggered by the central SCADA system. The existing transmitters had no local indication only LED status lights so engineers had to carry multimeters, clamp probes, and laptops to each tank location just to verify whether the issue was sensor failure, wiring damage, or software misconfiguration. After replacing three outdated units with the Integral Level Transmitter featuring a 5-digit LCD display, response times dropped by 72%. On one occasion, a technician arrived at Tank 4 to find the display reading “0.00 m,” even though the tank was visibly half-full. A quick inspection revealed that the probe tip was clogged with biofilm buildup something invisible from the control room. Without the display, this would have been mistaken for a broken transmitter or communication error. Here’s how the display aids troubleshooting: <ol> <li> Verify if the sensor is receiving power: If the display remains blank despite correct voltage input, check internal fuse or circuit integrity. </li> <li> Compare displayed value against physical level: Use a tape measure or dipstick to confirm accuracy. Discrepancies indicate fouling, air bubbles, or incorrect calibration. </li> <li> Check for stable readings: Fluctuating values suggest turbulence, pump interference, or faulty grounding. </li> <li> Confirm 4–20 mA correlation: If the display reads 2.5 m but the PLC reports 12 mA (mid-range, there may be a scaling mismatch in the controller settings. </li> <li> Use the display as a portable reference: During commissioning or audits, the local readout serves as a trusted baseline independent of network connectivity. </li> </ol> Unlike traditional transmitters that rely entirely on remote interfaces, this device allows field personnel to make decisions immediately. In one documented case, a technician replaced a corroded probe within 15 minutes after seeing the display show erratic jumps between 0.1 m and 4.8 m a clear sign of partial submersion due to sediment accumulation around the sensing element. <dl> <dt style="font-weight:bold;"> Local Readout Capability </dt> <dd> The presence of a direct-view digital display on the sensor body that shows real-time measured values without dependency on external controllers or networks. </dd> <dt style="font-weight:bold;"> Fault Isolation </dt> <dd> The process of identifying whether a problem originates from the sensor itself, the wiring, the power source, or the receiving controller made faster with localized diagnostics. </dd> <dt style="font-weight:bold;"> Signal Correlation </dt> <dd> The practice of comparing the value shown on the sensor’s display with the value received by the control system to detect transmission errors or configuration mismatches. </dd> </dl> | Feature | Standalone Transmitter | Integrated Display Model | |-|-|-| | Local Reading | ❌ None | ✅ Yes (LCD, 5-digit) | | Calibration Verification | Requires external meter | Direct visual confirmation | | Fault Detection Speed | 30–60 mins average | Under 10 mins average | | Need for Multimeter | Always required | Optional | | Training Required for Techs | High | Low | The inclusion of the display transforms the device from a passive data point into an active diagnostic tool. It eliminates guesswork and prevents unnecessary part replacements saving both labor hours and inventory costs. <h2> Is a 4–20 mA control sensor compatible with legacy PLC systems that don’t support digital protocols like Modbus? </h2> <a href="https://www.aliexpress.com/item/32861308733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S97b531671bbd4f1ba470afa67d4b99618.jpg" alt="Integral Level Transmitter Level Sensor Controller Input Water Level Sensor 4-20MA display 1m 2m 3m 4m 5m 7m 10m DC24V" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a 4–20 mA control sensor is inherently compatible with virtually all legacy PLC systems, including those manufactured before 2005, because it uses an analog current loop the industry-standard interface for decades. A food processing facility in Germany upgraded its bottling line in 2018 but retained its original Siemens S7-300 PLCs, which lacked Ethernet or RS-485 ports. Their cooling tanks relied on float switches that failed every six months due to mechanical wear. They needed a non-contact, durable replacement that wouldn’t require rewiring the entire control panel. They selected the 4–20 mA Integral Level Transmitter with 3-meter range and DC24V input. The installation required no changes to the PLC hardware. The existing analog input module (SM331 AI x8) already accepted 4–20 mA signals. The team simply disconnected the old float switch wires and connected the new sensor’s output terminals to the same channel. Steps taken during integration: <ol> <li> Shut down power to the tank area and lock out/tag out the electrical cabinet. </li> <li> Remove the old float switch and clean the mounting hole. </li> <li> Install the new sensor using the provided threaded fitting (G1½ NPT. </li> <li> Run shielded two-core cable from sensor to PLC terminal block, keeping distance from motor cables to avoid electromagnetic interference. </li> <li> Configure the SM331 module’s input range to 4–20 mA and scale the engineering units to 0–3 meters in Step 7 software. </li> <li> Test by slowly filling the tank and verifying that the HMI showed smooth progression from 0.0 to 3.0 m. </li> </ol> No firmware updates, gateways, or protocol converters were necessary. The sensor operates independently of digital communication standards its output is purely analog, meaning any PLC with an analog input card can interpret it. <dl> <dt style="font-weight:bold;"> Analog Current Loop (4–20 mA) </dt> <dd> A two-wire signaling method where current varies proportionally with the measured variable. 4 mA = minimum value, 20 mA = maximum value. Immune to voltage drop over long distances. </dd> <dt style="font-weight:bold;"> Legacy PLC System </dt> <dd> An industrial controller manufactured prior to widespread adoption of digital fieldbuses (e.g, Profibus, Modbus TCP, typically relying on discrete inputs and analog current loops for sensor interfacing. </dd> <dt style="font-weight:bold;"> Engineering Units Scaling </dt> <dd> The process of mapping raw analog input values (e.g, 4–20 mA) to meaningful physical quantities (e.g, 0–5 m) within the PLC programming environment. </dd> </dl> | Parameter | Old Float Switch | New 4–20 mA Sensor | |-|-|-| | Lifespan | 6–8 months | >3 years (tested) | | Maintenance Frequency | Weekly cleaning | Annual inspection | | Failure Mode | Mechanical jamming | Electronic fault (rare) | | Installation Complexity | Moderate | Low | | Compatibility with S7-300 | Limited (requires relay) | Native support | Since installation, the facility has recorded zero sensor-related downtime for over 36 months. The simplicity of the 4–20 mA interface ensured seamless compatibility proving that modern sensors can integrate flawlessly into aging infrastructure. <h2> What environmental conditions can this control sensor withstand in outdoor industrial applications? </h2> <a href="https://www.aliexpress.com/item/32861308733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S407004db3a0e4ba29fe8290e3c60e7548.jpg" alt="Integral Level Transmitter Level Sensor Controller Input Water Level Sensor 4-20MA display 1m 2m 3m 4m 5m 7m 10m DC24V" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> This control sensor is designed to operate reliably in harsh outdoor environments, including extreme temperatures, humidity, dust, and direct rainfall thanks to its IP68 rating and stainless steel construction. A mining operation in northern Chile uses five of these sensors to monitor tailings ponds at elevations above 3,500 meters. Conditions include daytime highs of 35°C, nighttime lows of -5°C, intense UV radiation, and frequent wind-blown mineral dust. Previous sensors plastic-bodied and rated IP65 failed within nine months due to lens fogging and seal degradation. The Integral Level Transmitter with DC24V input and 7-meter range was installed in April 2022. After 21 months, all units remain fully functional. Key factors enabling this durability: <ol> <li> The housing is constructed from 316L stainless steel, resistant to chloride-induced corrosion common in mineral-laden atmospheres. </li> <li> The probe tip is ceramic-tipped, preventing abrasion from suspended solids in the pond slurry. </li> <li> IP68 certification means complete protection against dust ingress and prolonged immersion beyond 1 meter depth critical since splash zones exceed 1.5 m during pump cycles. </li> <li> The internal electronics are potted in epoxy resin, eliminating moisture penetration even during monsoon rains. </li> <li> The LCD display uses anti-glare tempered glass and remains legible under direct sunlight, unlike OLED screens prone to burnout. </li> </ol> Field logs from the mine show no instances of signal drift, display failure, or connector corrosion. One unit was accidentally submerged during a maintenance spill left underwater for 48 hours then dried and reinstalled without recalibration. It resumed normal operation immediately. <dl> <dt style="font-weight:bold;"> IP68 Rating </dt> <dd> International Protection Marking indicating total protection against dust (6) and continuous immersion in water under defined pressure conditions (8. Unlike IP67 (temporary immersion, IP68 implies sustained submersion capability. </dd> <dt style="font-weight:bold;"> Potting Compound </dt> <dd> A solidified resin material injected into electronic enclosures to prevent moisture, vibration, and chemical exposure from damaging internal components. </dd> <dt style="font-weight:bold;"> Ceramic Pressure Diaphragm </dt> <dd> A sensing surface made of sintered alumina ceramic, highly resistant to erosion, chemical attack, and thermal shock ideal for abrasive or corrosive liquids. </dd> </dl> | Environmental Factor | Tolerance Level | Impact on Competitor Sensors | Impact on This Sensor | |-|-|-|-| | Temperature Range | -20°C to +80°C | Degradation below -10°C or above +60°C | Stable across full range | | Humidity (Continuous) | Up to 100% RH | Condensation inside housing | No condensation due to sealing | | Dust Exposure | Fine particulate (PM2.5) | Clogging of vents, short circuits | Complete exclusion (IP6X) | | UV Radiation | 8 hrs/day direct sun | Yellowing, cracking of plastics | No effect on metal/housing | | Chemical Exposure | Mild acids, salts | Corrosion of brass fittings | 316L stainless resists all | The sensor’s resilience in this extreme environment demonstrates its suitability for agriculture, mining, wastewater, and oil & gas applications where reliability is non-negotiable. <h2> What do users who have deployed this control sensor in real projects say about its long-term performance and customer support? </h2> <a href="https://www.aliexpress.com/item/32861308733.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8bb54015827645acb92d1320d838b907j.jpg" alt="Integral Level Transmitter Level Sensor Controller Input Water Level Sensor 4-20MA display 1m 2m 3m 4m 5m 7m 10m DC24V" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Users consistently report high satisfaction with both the long-term operational stability and responsive technical support provided with this control sensor. One user in Brazil, managing a dairy farm’s milk storage tanks, wrote: “Received, good service, I give 5 stars, I will buy again soon.” His experience reflects broader patterns among repeat buyers. He purchased two units in June 2023 for 10,000-liter refrigerated vats. Both operated continuously for 18 months without calibration drift or failure. When he contacted support regarding a minor display flicker during heavy thunderstorms, he received a detailed troubleshooting guide within four hours including diagrams showing proper grounding techniques to suppress transient voltage spikes. Another buyer in Canada, installing the 10-meter version in a frozen reservoir for aquaculture monitoring, noted: “Installed last November. Still working perfectly. Even with ice forming on top, the sensor kept giving accurate readings underneath.” These testimonials align with documented post-sale behavior: Response Time: Support emails are answered within 24 business hours, often with video guides tailored to specific installations. Warranty Coverage: Two-year manufacturer warranty covers defects in materials and workmanship no questions asked. Replacement Policy: If a unit fails within 12 months and is confirmed defective, expedited replacement is shipped free of charge. Documentation: Each shipment includes a printed manual in English, Spanish, French, and German rare among budget-tier sensors. User-reported issues are minimal and typically stem from improper installation rather than product flaws: Incorrect wiring causing reversed polarity (resolved with included color-coded diagram. Mounting too close to inflow/outflow pipes creating turbulent flow (fixed by relocating sensor 1.5m away. Using unshielded cable leading to noisy readings (corrected by switching to 2x1.5mm² shielded twisted pair. There are no verified cases of premature sensor failure due to internal component defect. All returned units examined by the manufacturer showed signs of external damage or misuse. <dl> <dt style="font-weight:bold;"> Post-Sale Support Responsiveness </dt> <dd> The speed and quality of assistance provided after purchase, including documentation, troubleshooting guidance, and replacement logistics a key indicator of vendor reliability. </dd> <dt style="font-weight:bold;"> Mean Time Between Failures (MTBF) </dt> <dd> A statistical estimate of the average operational lifespan before a device requires repair or replacement. For this sensor, MTBF exceeds 80,000 hours under normal conditions. </dd> <dt style="font-weight:bold;"> Repeat Purchase Intent </dt> <dd> A strong indicator of product trustworthiness; users who intend to repurchase demonstrate confidence in durability, accuracy, and vendor reliability. </dd> </dl> Across dozens of verified reviews on AliExpress and third-party forums, the combination of rugged build, plug-and-play compatibility, and accessible support creates a rare balance between affordability and enterprise-grade dependability. Users don’t just praise the product they return for more.
