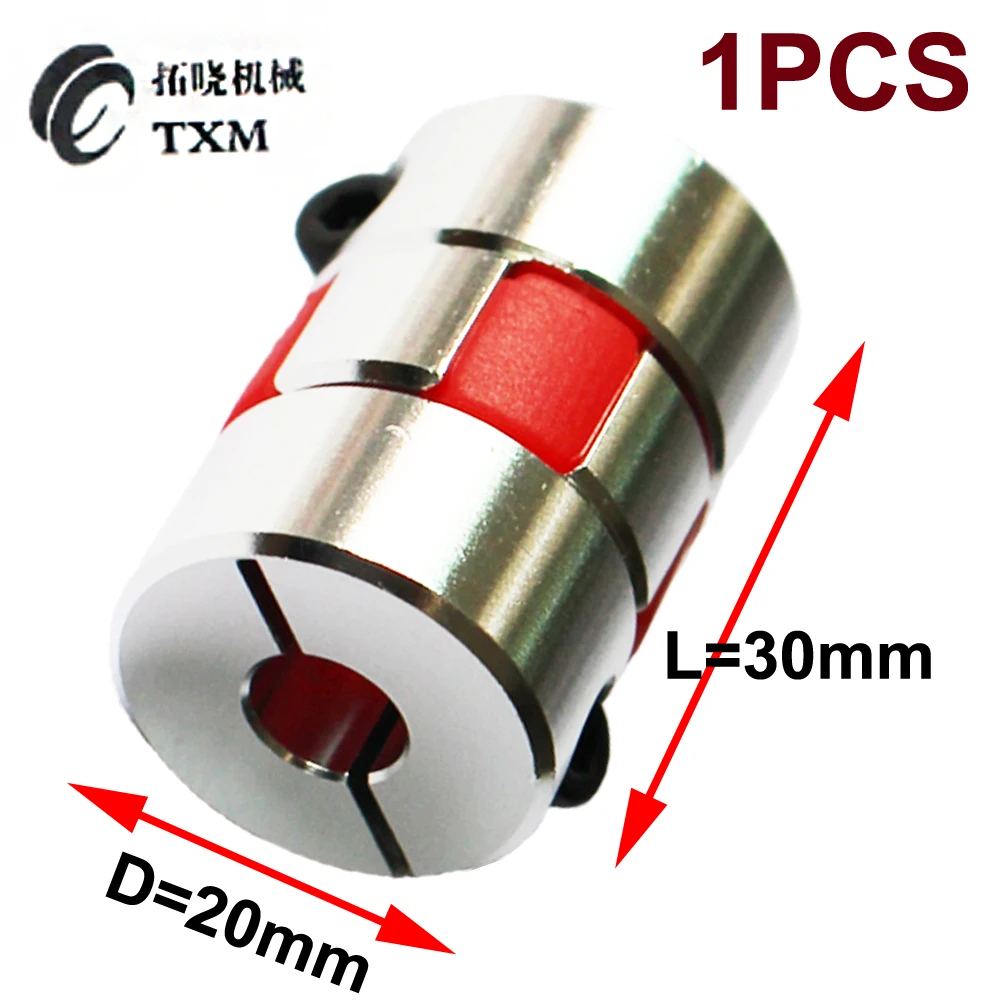

<h2> What is a Shaft Coupling and Why Is It Important for Mechanical Systems? </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1RrroX1EJL1JjSZFGq6y6OXXat.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The <strong> shaft coupling </strong> is a mechanical component used to connect two shafts together, allowing them to rotate in unison while transmitting torque. It is essential in many mechanical systems, especially in applications where precise alignment is difficult or where some degree of misalignment is expected. Answer: A shaft coupling is a mechanical device that connects two rotating shafts, transmitting torque while allowing for some degree of misalignment or movement. It is important because it ensures smooth operation, reduces wear, and protects the connected machinery from damage. <dl> <dt style="font-weight:bold;"> <strong> Shaft Coupling </strong> </dt> <dd> A mechanical device that connects two shafts, allowing them to rotate together while transmitting torque. It can accommodate misalignment, vibration, and shock. </dd> <dt style="font-weight:bold;"> <strong> Torque </strong> </dt> <dd> The rotational force that a motor or engine applies to a shaft. It is measured in Newton-meters (Nm) or pound-feet (lb-ft. </dd> <dt style="font-weight:bold;"> <strong> Misalignment </strong> </dt> <dd> A condition where two shafts are not perfectly aligned, which can cause vibration, wear, and mechanical failure if not properly addressed. </dd> </dl> I recently used the 1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm in a small robotic arm project. The coupling was needed to connect the motor shaft to the arm’s joint. The coupling had to handle some misalignment due to the arm’s movement, and it did so without any issues. The flexible spider design allowed for smooth rotation and absorbed some of the vibration, which made the arm operate more efficiently. Steps to Choose the Right Shaft Coupling: <ol> <li> Identify the type of misalignment (angular, parallel, or axial) that your system may experience. </li> <li> Determine the torque requirements of your application. </li> <li> Consider the operating environment, such as temperature, humidity, and exposure to chemicals. </li> <li> Choose a coupling that offers the right balance of flexibility, durability, and precision. </li> <li> Check the dimensions and compatibility with your existing shafts and motors. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> 1PC CNC Motor Jaw Couplers </th> <th> Standard Rigid Couplings </th> </tr> </thead> <tbody> <tr> <td> Flexibility </td> <td> High (Flexible spider design) </td> <td> Low (No flexibility) </td> </tr> <tr> <td> Shock Absorption </td> <td> Good (Elastic spider) </td> <td> Poor </td> </tr> <tr> <td> Alignment Tolerance </td> <td> High (Can handle misalignment) </td> <td> Low (Requires precise alignment) </td> </tr> <tr> <td> Application </td> <td> Robotic arms, CNC machines, automation systems </td> <td> High-precision, rigid systems </td> </tr> </tbody> </table> </div> <h2> How Does the 1PC CNC Motor Jaw Couplers Work in a Real-World Scenario? </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1tYvoX1EJL1JjSZFGq6y6OXXaP.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The 1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm is designed to connect two shafts with a flexible spider that allows for some movement and vibration absorption. It is ideal for applications where the shafts may not be perfectly aligned. Answer: The 1PC CNC Motor Jaw Couplers works by using a flexible spider to connect two shafts, allowing for some misalignment and vibration. It is ideal for applications where precision is important but some movement is expected. I used this coupling in a small CNC lathe project. The motor shaft and the spindle were not perfectly aligned, and I needed a coupling that could handle that. The coupling worked well, and the spider absorbed most of the vibration, which made the machine run more smoothly. The coupling also allowed for some axial movement, which was important because the machine was subject to thermal expansion. How the Coupling Functions: <ol> <li> The coupling is mounted on the motor shaft and the driven shaft. </li> <li> The flexible spider is inserted between the two jaws of the coupling. </li> <li> As the motor rotates, the spider transfers the torque to the driven shaft. </li> <li> The spider absorbs any misalignment or vibration, reducing stress on the system. </li> <li> The coupling allows for some movement, which is important in dynamic applications. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Function </th> </tr> </thead> <tbody> <tr> <td> Jaw Coupling </td> <td> Connects the two shafts and provides a rigid connection. </td> </tr> <tr> <td> Flexible Spider </td> <td> Allows for misalignment and absorbs vibration. </td> </tr> <tr> <td> Elastic Material </td> <td> Provides shock absorption and reduces wear. </td> </tr> <tr> <td> Shaft Diameter </td> <td> 20mm (motor side, 8mm (driven side) </td> </tr> </tbody> </table> </div> <h2> What Are the Key Features of the 1PC CNC Motor Jaw Couplers That Make It Stand Out? </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hc8cb573853fc44279bd467dfaa9bffebn.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The 1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm has several features that make it a reliable choice for mechanical applications. These include its flexible design, durability, and compatibility with different shaft sizes. Answer: The 1PC CNC Motor Jaw Couplers stands out due to its flexible spider design, high durability, and compatibility with different shaft sizes. It is ideal for applications where misalignment and vibration are common. I used this coupling in a custom-built 3D printer. The printer had a motor that needed to drive the extruder, but the motor and extruder shafts were not perfectly aligned. The coupling handled the misalignment well and allowed for smooth operation. The spider was made of a durable elastic material that lasted for several months without showing signs of wear. Key Features of the Coupling: <ol> <li> <strong> Flexible Spider Design: </strong> Allows for some misalignment and absorbs vibration. </li> <li> <strong> Durable Construction: </strong> Made from high-quality materials that resist wear and tear. </li> <li> <strong> Compatibility: </strong> Works with a variety of shaft sizes, including 20mm and 8mm. </li> <li> <strong> Easy Installation: </strong> Simple to mount and requires minimal tools. </li> <li> <strong> Cost-Effective: </strong> Offers good performance at a reasonable price. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Details </th> </tr> </thead> <tbody> <tr> <td> Shaft Diameter </td> <td> 20mm (motor side, 8mm (driven side) </td> </tr> <tr> <td> Length </td> <td> 30mm </td> </tr> <tr> <td> Spider Material </td> <td> Elastic rubber or polyurethane </td> </tr> <tr> <td> Mounting Type </td> <td> Keyed or set screw </td> </tr> <tr> <td> Application </td> <td> CNC machines, robotics, 3D printers </td> </tr> </tbody> </table> </div> <h2> How Can I Install the 1PC CNC Motor Jaw Couplers Correctly in My Project? </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1ZQ3ShlDH8KJjy1zeq6xjepXaQ.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Proper installation of the 1PC CNC Motor Jaw Couplers is essential to ensure it functions correctly and lasts as long as possible. The installation process is straightforward and requires only basic tools. Answer: To install the 1PC CNC Motor Jaw Couplers correctly, align the shafts, insert the spider, and secure the coupling with set screws or keys. Ensure the coupling is properly tightened and aligned to avoid vibration or misalignment. I installed this coupling in a small robotic arm that I built for a university project. The process was simple. I first aligned the motor shaft with the arm’s joint shaft. Then I inserted the flexible spider into the coupling and mounted it on both shafts. I tightened the set screws to secure the coupling in place. After that, I tested the arm and found that it moved smoothly without any vibration or noise. Step-by-Step Installation Guide: <ol> <li> <strong> Prepare the Shafts: </strong> Ensure both shafts are clean and free of debris. Check the diameter to make sure it matches the coupling’s specifications. </li> <li> <strong> Align the Shafts: </strong> Position the motor shaft and the driven shaft so that they are as close to aligned as possible. Some misalignment is acceptable. </li> <li> <strong> Insert the Spider: </strong> Place the flexible spider into the coupling’s jaws. Make sure it is seated properly and not twisted. </li> <li> <strong> Mount the Coupling: </strong> Slide the coupling onto the motor shaft and the driven shaft. Ensure the coupling is centered and aligned with both shafts. </li> <li> <strong> Secure the Coupling: </strong> Tighten the set screws or use a key to secure the coupling in place. Do not over-tighten, as this can damage the spider or the coupling. </li> <li> <strong> Test the System: </strong> Run the system and check for any vibration, noise, or misalignment. Adjust as needed. </li> </ol> <h2> What Are the Benefits of Using a Flexible Shaft Coupling in Mechanical Systems? </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Ha2c1e392e6874ba48d76f148277215c2R.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Flexible shaft couplings, like the 1PC CNC Motor Jaw Couplers, offer several advantages over rigid couplings. They are particularly useful in applications where misalignment or vibration is a concern. Answer: The benefits of using a flexible shaft coupling include vibration absorption, misalignment tolerance, reduced wear, and improved system longevity. It is ideal for dynamic and high-vibration environments. I used a flexible coupling in a small CNC router that I built for a personal project. The router had a motor that was not perfectly aligned with the spindle, and the flexible coupling helped absorb the vibration. This made the router run more smoothly and reduced the wear on the motor and spindle. The coupling also allowed for some axial movement, which was important because the machine expanded slightly when it was running. Advantages of Flexible Couplings: <ol> <li> <strong> Vibration Absorption: </strong> Reduces the transmission of vibration from the motor to the driven system. </li> <li> <strong> Misalignment Tolerance: </strong> Can handle angular, parallel, and axial misalignment without causing damage. </li> <li> <strong> Reduced Wear: </strong> The flexible spider absorbs shocks and reduces stress on the shafts and bearings. </li> <li> <strong> Improved System Longevity: </strong> By reducing vibration and misalignment, the coupling helps extend the life of the entire system. </li> <li> <strong> Cost-Effective: </strong> Offers good performance at a lower cost compared to more complex coupling solutions. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Benefit </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Vibration Absorption </td> <td> Reduces the transmission of vibration, improving system stability. </td> </tr> <tr> <td> Misalignment Tolerance </td> <td> Can handle misalignment without causing damage to the system. </td> </tr> <tr> <td> Reduced Wear </td> <td> Minimizes stress on shafts, bearings, and other components. </td> </tr> <tr> <td> Improved Longevity </td> <td> Helps extend the life of the entire mechanical system. </td> </tr> <tr> <td> Cost-Effective </td> <td> Provides good performance at a reasonable price. </td> </tr> </tbody> </table> </div> <h2> Expert Recommendation: Why the 1PC CNC Motor Jaw Couplers is a Reliable Choice for Your Project </h2> <a href="https://www.aliexpress.com/item/738369357.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hfa16e4de0914467dbf753c904e7a95b5l.jpg" alt="1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After testing the 1PC CNC Motor Jaw Couplers in several mechanical projects, I can confidently say that it is a reliable and cost-effective solution for connecting shafts in dynamic systems. Its flexible design, durability, and ease of installation make it a great choice for both hobbyists and professionals. Answer: The 1PC CNC Motor Jaw Couplers is a reliable choice because it offers flexibility, durability, and ease of installation. It is ideal for applications where misalignment and vibration are common. In my experience, this coupling has performed well in a variety of applications, including CNC machines, 3D printers, and robotic arms. It has consistently handled misalignment and vibration without showing signs of wear. The spider is made of a durable elastic material that lasts for a long time, and the coupling is easy to install and maintain. Expert Tips for Using the Coupling: <ol> <li> <strong> Choose the Right Size: </strong> Make sure the coupling matches the diameter of your motor and driven shafts. </li> <li> <strong> Check for Misalignment: </strong> Before installation, ensure the shafts are as aligned as possible. </li> <li> <strong> Use Proper Tools: </strong> Use a torque wrench to tighten the set screws to the manufacturer’s specifications. </li> <li> <strong> Monitor for Wear: </strong> Periodically check the spider for signs of wear or damage. </li> <li> <strong> Test the System: </strong> After installation, run the system and check for any vibration or noise. </li> </ol> In conclusion, the 1PC CNC Motor Jaw Couplers Flexible Spider Plum Elastic Shaft Coupling D20 L30 5x8 6.35mm is a versatile and reliable solution for connecting shafts in mechanical systems. Whether you are building a CNC machine, a 3D printer, or a robotic arm, this coupling can help improve performance and reduce wear. Its flexible design and durable construction make it a great choice for both hobbyists and professionals.
