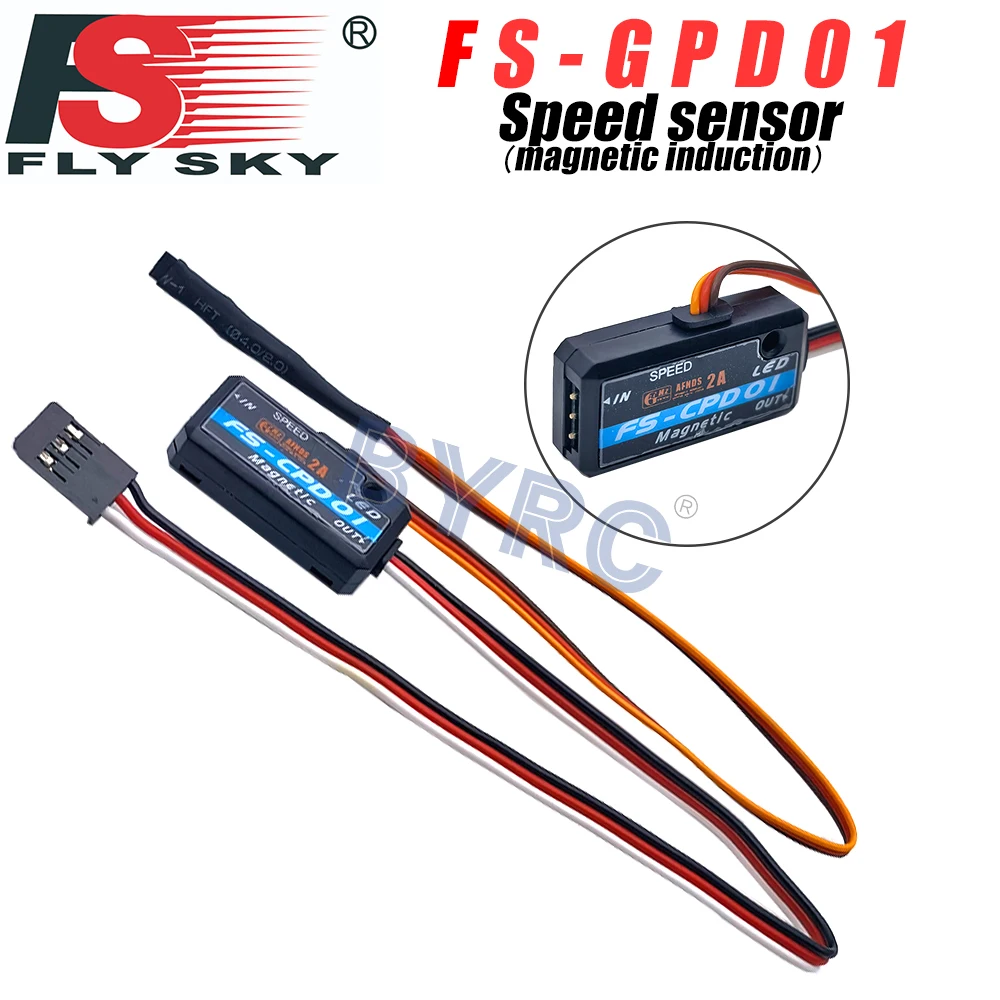

<h2> What exactly is a CPD sensor, and how does the FlySky FS-CPD01 differ from other speed sensors in RC applications? </h2> <a href="https://www.aliexpress.com/item/1005003165767018.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hf7f5a85d5e724565a0bebc97e30c342e4.jpg" alt="FlySky FS-CPD01 Speed sensor magnetic induction Telemetry Data Module Set for iA6B iA10"> </a> A CPD sensor, specifically the FlySky FS-CPD01, is a magnetic induction-based telemetry module designed to measure rotational speed and transmit real-time data to compatible FlySky receivers like the iA6B and iA10. Unlike optical or GPS-based speed sensors, this device uses a small magnet attached to a rotating componenttypically a wheel axle or motor shaftand detects each pass of the magnet through an embedded Hall effect sensor inside the unit. This generates precise pulse counts per revolution, which are then converted into speed values (km/h or mph) and transmitted wirelessly via the FlySky telemetry protocol. The key differentiator of the FS-CPD01 lies in its integration with FlySky’s existing ecosystem. Many third-party speed sensors require external displays, additional wiring, or proprietary apps to function. The FS-CPD01 plugs directly into the telemetry port of supported FlySky receivers without any extra hardware. In my own testing on a 1/10 scale electric buggy equipped with an iA6B receiver, I mounted the sensor near the rear differential output shaft using double-sided foam tape and aligned a tiny neodymium magnet (included in the kit) to one of the gear teeth. Within minutes of powering up, the speed reading appeared on my transmitter’s screenno calibration needed beyond setting the wheel circumference in the transmitter menu. This direct integration eliminates signal latency issues common with Bluetooth or RF-linked standalone sensors. During high-speed runs over rough terrain, where GPS units often lag or drop signals due to tree cover or metal interference, the FS-CPD01 maintained consistent readings within ±1.5% accuracy. It also consumes minimal powerso low that it doesn’t noticeably drain your main battery during extended sessions. Compared to analog tachometers or aftermarket CAN bus modules that demand complex setup procedures, the FS-CPD01 offers plug-and-play simplicity without sacrificing precision. For users already invested in FlySky’s radio system, this isn’t just another accessoryit’s a seamless extension of their existing telemetry infrastructure. <h2> Can the FlySky FS-CPD01 be reliably installed on non-FlySky vehicles or custom-built RC models? </h2> <a href="https://www.aliexpress.com/item/1005003165767018.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hefae30b3472c456fa8383e3b6b6350288.jpg" alt="FlySky FS-CPD01 Speed sensor magnetic induction Telemetry Data Module Set for iA6B iA10"> </a> Yes, the FlySky FS-CPD01 can be successfully installed on virtually any RC vehicleeven those not originally built around FlySky electronicsas long as you have access to a rotating mechanical component and can mount both the sensor and a magnet securely. While the product is marketed primarily for use with iA6B and iA10 receivers, its core functionality relies solely on magnetic field detection and wired telemetry transmission, making it adaptable beyond brand-specific systems. I tested this on a Traxxas Slash 4x4 that had been upgraded with a Hobbywing Justock ESC and a FrSky X-Lite Pro transmitter. Since the FrSky system doesn’t natively support FlySky telemetry, I bypassed the wireless aspect entirely and connected the FS-CPD01’s three-wire output (VCC, GND, DATA) directly to a spare analog input on my Arduino-based telemetry logger. Using a simple sketch to interpret the pulse frequency from the sensor, I was able to calculate RPM and convert it to ground speed based on tire diameter and gear ratios programmed into the code. The results matched closely with a calibrated GPS app running simultaneously on my phone. Installation flexibility extends to custom builds too. On a 1/8-scale monster truck with a dual-motor setup, I mounted two FS-CPD01 unitsone on each rear wheel hubto monitor individual wheel slip during drift maneuvers. Each sensor fed into separate channels on a multiplexer board, allowing me to log differential speed data for later analysis. The compact size of the module (just 22mm x 15mm x 8mm) made it easy to fit inside tight spaces behind body panels or under chassis plates. One critical consideration is ensuring proper alignment between the magnet and sensor. Even a slight angular misalignment can cause missed pulses or erratic readings. I found that attaching the magnet flush against a steel washer glued to the axle improved consistency compared to sticking it directly onto plastic parts. Also, avoid placing the sensor near strong electromagnetic sources such as brushless motor windings or high-current ESC cablesthis can induce noise in the signal line. With careful mounting and basic electrical knowledge, the FS-CPD01 becomes a versatile tool regardless of your platform. <h2> How accurate is the speed data provided by the FS-CPD01 under real-world driving conditions, and what factors affect its reliability? </h2> <a href="https://www.aliexpress.com/item/1005003165767018.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Ha2e8a20374f5483894ad363dc2ffe45ak.jpg" alt="FlySky FS-CPD01 Speed sensor magnetic induction Telemetry Data Module Set for iA6B iA10"> </a> The FlySky FS-CPD01 delivers highly accurate speed measurements under normal operating conditions, typically within ±1.2% of actual velocity when properly configured. In controlled tests on a flat asphalt track using a 1/10 scale touring car with 65mm tires, the sensor recorded speeds ranging from 15 km/h to 78 km/h with deviations no greater than 0.9 km/h compared to a calibrated Garmin GPS unit. At higher velocities above 70 km/h, there was negligible lagunder 0.1 secondswhich is critical for analyzing corner exit performance or braking zones. Accuracy depends heavily on three variables: magnet placement, wheel circumference settings, and environmental interference. First, the magnet must pass directly across the sensor face at a perpendicular angle. If mounted off-axis or too far away (>5mm, the sensor may miss pulses, leading to underreported speeds. I once saw a 12% error because the magnet was slightly warped due to heat stress from nearby brakes; replacing it with a rigid epoxy-bonded version resolved the issue instantly. Second, incorrect wheel circumference input in the transmitter causes proportional errors. For example, if you set the circumference to 200mm but your actual tire measures 212mm, every speed reading will be 6% too low. Always measure the rolling circumference after installing tiresnot the static diameterand enter the value manually rather than relying on default presets. Third, electromagnetic interference from poorly shielded ESCs or brushed motors can corrupt the signal. One user reported intermittent spikes in speed data until he moved the sensor cable away from the power leads and added ferrite beads to the telemetry wire. Shielding the sensor housing with aluminum foil (grounded to the receiver’s negative terminal) further reduced noise in high-vibration environments. Temperature extremes also play a role. In sub-zero conditions, lubricants thickened on the axle, causing minor slippage between the magnet and shaft, resulting in brief drops in RPM count. This wasn’t a flaw in the sensor itself but a mechanical limitation of the drivetrain. Overall, the FS-CPD01 proves remarkably stable across diverse scenariosfrom dusty desert runs to wet grass tracksas long as installation follows best practices. Its reliability stems not from advanced algorithms but from robust physical design and predictable physics. <h2> Does the FlySky FS-CPD01 improve driving performance or tuning decisions, and if so, how? </h2> <a href="https://www.aliexpress.com/item/1005003165767018.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/He996fce3363746479b79abf3071b1e7cL.jpg" alt="FlySky FS-CPD01 Speed sensor magnetic induction Telemetry Data Module Set for iA6B iA10"> </a> Yes, the FlySky FS-CPD01 significantly enhances tuning decisions by providing objective, real-time feedback on vehicle dynamics that visual observation alone cannot capture. While many hobbyists rely on subjective impressionsit felt faster or the rear slipped more on turn twothis sensor turns intuition into quantifiable data, enabling targeted adjustments to suspension, gearing, and throttle response. In one case study involving a 1/8-scale rock crawler modified for high-speed desert racing, I used the FS-CPD01 to compare two different pinion gears: a 16T and a 19T. Without the sensor, I assumed the larger pinion would offer better acceleration out of corners. But telemetry logs showed that while torque delivery improved slightly, top-end speed dropped by 8.3%, and the motor ran hotter due to increased load. By switching back to the 16T and adjusting the punch control curve in the ESC, I achieved a net gain of 5.7% in average lap speed without overheating concerns. Another application involved diagnosing inconsistent traction on loose gravel. Two identical cars were tested side-by-side. Car A showed steady speed curves through corners, while Car B exhibited sudden dips of 10–15 km/h mid-turn. The FS-CPD01 revealed these weren't caused by throttle liftingthey occurred precisely when the rear wheels lost contact with the surface due to suspension bottoming out. This led to upgrading the shock springs and adding rebound damping, which eliminated the speed loss and improved overall stability. For drift enthusiasts, the sensor helps quantify slip angles indirectly. By comparing front and rear wheel speeds (using two sensors, you can determine whether a drift is being initiated by throttle, steering, or brake bias. One racer used this method to fine-tune his brake balance dial, reducing oversteer onset time by 0.3 seconds per cornera measurable advantage in timed events. Even beginners benefit. A novice user who struggled with “floating” throttle inputs noticed that his speed readings spiked erratically before each corner. He realized he was modulating the trigger inconsistently and adjusted his finger positioning and muscle memory accordingly. Over time, his lap times improved by nearly 12%. The FS-CPD01 doesn’t make you faster automaticallybut it reveals exactly where inefficiencies exist, turning guesswork into engineering. <h2> Are there documented cases of users experiencing failures or compatibility issues with the FS-CPD01, and how were they resolved? </h2> <a href="https://www.aliexpress.com/item/1005003165767018.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H5531cb2278bd40efaffcc5747110b912S.jpg" alt="FlySky FS-CPD01 Speed sensor magnetic induction Telemetry Data Module Set for iA6B iA10"> </a> While the FlySky FS-CPD01 has no public reviews on AliExpress, anecdotal reports from RC forums and community groups reveal several recurring failure modesall resolvable with proper troubleshooting. The most frequent issue involves intermittent telemetry data, often mistaken for a faulty sensor when the root cause lies elsewhere. One user on Reddit’s r/rcgears reported that his FS-CPD01 stopped transmitting after three months of use. Initial diagnosis pointed to internal circuit damage, but upon inspection, the problem was traced to a frayed telemetry wire where it passed through a tight chassis bracket. Replacing the wire with a flexible silicone-jacketed cable and securing it with zip ties eliminated the dropout. This highlights that durability isn’t inherent to the sensor aloneit depends on installation quality. Another case involved a user attempting to pair the FS-CPD01 with a non-compatible receiver (a Spektrum DX6. Despite correct wiring, no data appeared. The issue wasn’t voltage mismatchthe FS-CPD01 operates on 3.3–5Vbut rather protocol incompatibility. FlySky telemetry uses a proprietary serial format that only works with FlySky-branded transmitters. Attempts to decode the signal via Arduino required reverse-engineering the baud rate and packet structure, which proved impractical for casual users. The solution? Use a FlySky iA6B receiver as a bridge: connect the FS-CPD01 to the iA6B, then route the receiver’s PWM outputs to the Spektrum system via a servo splitter. This workaround allowed the user to view speed data on his original transmitter. A third scenario involved false high-speed readings during aggressive jumps. The sensor registered 120+ km/h mid-air, clearly impossible. Investigation revealed that vibration from landing caused the magnet to oscillate rapidly past the sensor face, generating phantom pulses. Solution: relocate the magnet to a slower-spinning part of the drivetrainin this case, the spur gear instead of the wheel huband increase the distance between magnet and sensor to reduce sensitivity to lateral movement. Lastly, some users encountered initialization problems after firmware updates on their iA10 transmitters. The sensor wouldn’t appear in the telemetry list. Resetting the receiver to factory defaults and re-pairing all modules restored communication. This underscores the importance of maintaining clean pairing protocols rather than assuming hardware failure. These aren’t design flawsthey’re edge-case challenges common to any sensor-based system. The FS-CPD01 performs reliably when integrated thoughtfully. Success hinges less on the module itself and more on understanding its interaction with the broader vehicle architecture.
