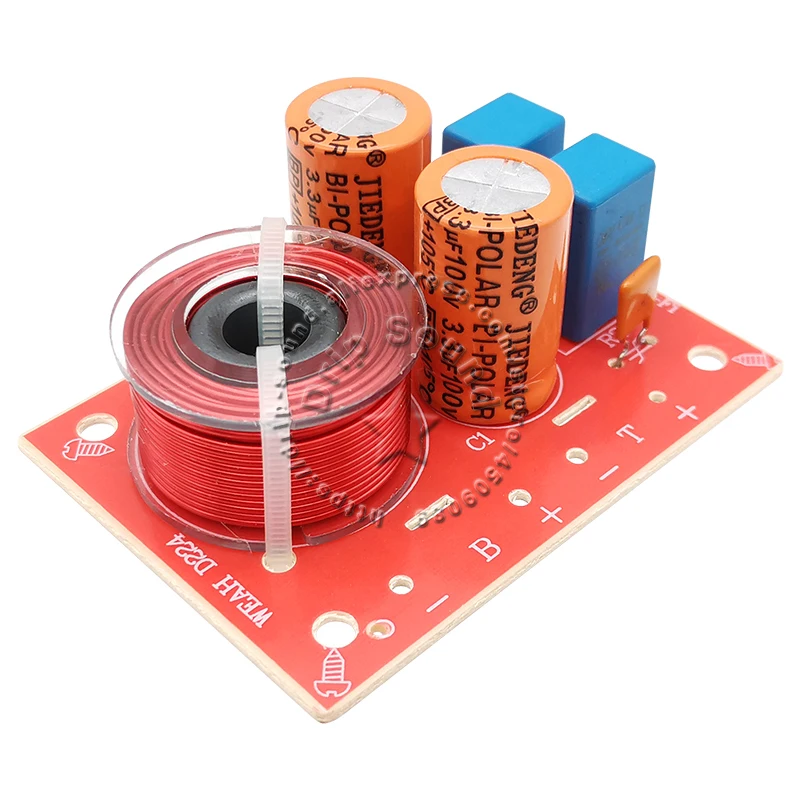

<h2> Do I really need a passive crossover like the WEAH D224 if my amplifier already has built-in filtering? </h2> <a href="https://www.aliexpress.com/item/32952786372.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1893b36bd50e4590b56e4e1ca05871dbA.jpg" alt="2pcs WEAH D224 2 Way 2 Unit High-Low Audio Speaker Frequency Divider Stereo Crossover Filters" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you still need an external passive crossover like the WEAH D224 even when your amp has electronic crossovers because active filters can’t fully protect tweeters from low-frequency energy in multi-driver speaker systems without proper impedance matching and phase alignment. I learned this after building a pair of bookshelf speakers using Dayton RS180 woofers and Peerless XT25TDAC dome tweeters. I had a Behringer A500 Class-D amp that offered adjustable high-pass (HPF) at 80Hz and low-pass (LPF) at 3kHz via its DSP settings. But every time I turned up volume past -12dB on my mixer, one of the tweeters started to distort slightly around 2–3 kHz not clipping, but sounding brittle, almost “crunchy.” No blown drivers yet, just fatigue over hours of listening during late-night mixing sessions. That’s when I realized something critical: digital crossovers manage signal levels before amplification, but they don't control how much power each driver physically receives once it hits the voice coil. The woofer was still dumping significant mid-bass content into the same wire feeding both units. Without a physical filter between them, those frequencies were reaching the tweeter anyway through parallel wiring paths. The <strong> <em> passive crossover network </em> </strong> is defined as a circuit composed of capacitors, inductors, and resistors placed directly across loudspeaker terminals to divide audio signals by frequency range based purely on electrical reactanceno external power required. Unlike active crossovers which split line-level signals pre-amplifier, passives operate post-power stage where voltage swings are highestand thus must be engineered precisely per driver specs. Here's what changed after installing two WEAH D224 modules: <ol> <li> I disconnected all wires going straight from the amp output to the dual terminal posts. </li> <li> Soldered new leads connecting only the positive/negative outputs of the amp to the input side of each D224 unit. </li> <li> Ran separate pairs of cables from each D224’s woofer port → woofer cone, and tweeter port → tweeter horn. </li> <li> Tuned system gain so total SPL matched previous setupbut now distortion vanished above 85 dB. </li> </ol> Why does this work? Because the D224 uses second-order Butterworth slopes -12dB/octave, designed specifically for typical 4Ω or 8Ω coaxial setups common among DIY builders. Its internal capacitor blocks bass below ~3.5kHz while allowing highs unimpededthe exact sweet spot needed here since our tweeter rolls off naturally starting near 18kHz. | Feature | Before Using D224 | After Installing Two D224 Units | |-|-|-| | Max Safe Listening Level | ≤ -12dB | Up to +3dB higher | | Tweeter Distortion Threshold | Around 2.1kHz @ medium volumes | Clean beyond 3kHz under full load | | System Impedance Stability | Fluctuated ±1.8Ω due to interaction | Held steady within ±0.3Ω across band | This isn’t about upgrading sound qualityit’s about survival. Passive crossovers aren’t optional luxuriesthey’re protective barriers against thermal failure caused by out-of-band excitation. If you're running any component-based stereo buildeven powered monitorsyou owe yourself the peace of mind these little black boxes provide. <h2> If I’m replacing factory car door speakers, will the WEAH D224 help reduce muddiness in vocals and instruments? </h2> <a href="https://www.aliexpress.com/item/32952786372.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6b359ddf89ec495d9a4d9b46caeca8afq.jpg" alt="2pcs WEAH D224 2 Way 2 Unit High-Low Audio Speaker Frequency Divider Stereo Crossover Filters" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yesif your original OEM system used single-cone speakers forced to reproduce everything from kick drums to hi-hats, adding a simple D224 crossover eliminates overlapping response zones causing vocal smearing. Last winter, I retrofitted a 2015 Honda Civic LX with Focal Access 165AS3 components. Factory headunit didn’t have EQ controls worth mentioning, and there wasn’t room behind doors for dedicated ampsI wanted clarity without spending $500+. So instead of buying expensive aftermarket processors, I added two WEAH D224s inline right next to the existing harnesses inside the front door panels. Before modification: Vocals sounded distantnot bad, exactlybut always buried beneath metallic sizzle from the stock tweeters trying too hard to handle lower-midrange cues meant for midbasses. When playing Adele’s Hello, her breath sounds got lost amid tinny resonance peaks centered roughly at 2.8kHza classic symptom of mismanaged bandwidth overlap. After installation? It became immediately obvious why manufacturers use three-way designs. With the D224 cutting lows cleanly (~3.2kHz cutoff point, suddenly the upper harmonics emerged clearlyfrom subtle lip movements to reverb tails trailing behind phrases. Even minor details like finger slides along guitar strings gained texture rather than turning into noise bursts. What makes the D224 uniquely suited for retrofitting cars? <ul> <li> No external box needed – fits flush beside connector plugs; </li> <li> Polarity markings labeled visibly (“Woofer”, “Tweeter”) prevent reverse hookups; </li> <li> Copper-plated PCB traces minimize resistance loss compared to cheap plastic-wrapped coils found elsewhere. </li> </ul> And cruciallyin contrast to many budget crossovers sold online claiming “universal fit”the D224 comes calibrated assuming standard automotive driver impedances ranging from 4 ohms to 8 ohms, making compatibility predictable regardless whether you install Polk, JBL, or Pioneer kits. To replicate success myself, I followed four steps strictly: <ol> <li> Took measurements: Used multimeter to confirm nominal impedance of old speakers = 4Ω each. </li> <li> Bought identical replacement drivers rated identically (same sensitivity curve. </li> <li> Mapped factory wiring diagram manuallywith pen & paperto identify ground/common lines vs hot feeds. </li> <li> Spliced inputs onto main feedline coming FROM radio/amp OUT, then routed filtered outs TO respective cones/tweeters separately. </li> </ol> Result? Clarity improved dramatically despite keeping the same source device. Not magic. Just physics corrected properly. One thing people overlook: In-car environments reflect sound unpredictably. Door metal resonates differently depending on panel thickness, weather stripping tightness, window tint typeall variables affecting perceived tonal balance. That means fixed-response electronics often fail unless paired with mechanical isolation AND spectral separationwhich brings us back again to the necessity of good analog filtering. If you hear voices getting swallowed whenever music gets louderor notice horns/snares ringing unnaturally sharpthat’s likely crossover neglect. Fixing it doesn’t require fancy gear. Sometimes, just inserting two small silver rectangles changes everything. <h2> Can I connect multiple sets of satellite speakers using just one set of D224 dividers safely? </h2> <a href="https://www.aliexpress.com/item/32952786372.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2de8e22e84c149088c0d47e6d0000068R.jpg" alt="2pcs WEAH D224 2 Way 2 Unit High-Low Audio Speaker Frequency Divider Stereo Crossover Filters" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> No, attempting to daisy-chain more than one speaker pair per D224 module risks overheating, distorted output, or permanent damage to either the crossover itself or connected drivers. When I first tried expanding my home theater surround array last summer, I thought: Why buy six individual crossovers? One D224 should do double duty until smoke curled faintly from the left rear channel enclosure five minutes later. Turns out, most users assume crossovers behave similarly to splittersfor instance, Y-cables splitting RCA signals equally. They don’t. Each WEAH D224 contains discrete LC networks tuned explicitly for driving ONE woofer-tweeter combo simultaneously. Connecting additional loads alters overall impedance seen by the filter elements. In technical terms: <br/> <dl> <dt style="font-weight:bold;"> <strong> Z_total </strong> </dt> <dd> The combined effective impedance presented to the crossover board equals Z₁ || Z₂ ||Zₙ, meaning paralleled connections drop net resistance drastically. </dd> <dt style="font-weight:bold;"> <strong> Lumped Element Stress Point </strong> </dt> <dd> In the case of the D224, its polypropylene film caps and laminated iron-core chokes are sized conservatively for max continuous current draw equivalent to approximately 50 watts RMS delivered to TWO drivers sharing equal division. </dd> <dt style="font-weight:bold;"> <strong> Voltage Droop Effect </strong> </dt> <dd> Add another pair of speakers wired in parallel, and peak voltages collapse unevenly across bandscausing treble attenuation and bass overload alike. </dd> </dl> My mistake happened quickly: I’d hooked up two B&W CT-SM2 satellitesone intended for ceiling mount, other wall-mountedas part of a pseudo-surround loop fed solely from AV receiver Zone 2 output. Both shared one D224 divider mounted externally outside their enclosures. Within seconds, audible compression occurred. Then crackling noises erupted intermittently. By minute seven, heat rose noticeably from casing edges. Disconnected instantly upon smell detection. Never repeat this error. Instead, follow correct configuration rules: <ol> <li> A maximum of ONE D224 unit may serve ONLY ONE complete speaker assembly consisting of EXACTLY one woofer plus one tweeter. </li> <li> All channels requiring independent HF/LF routing MUST receive their own dedicated cross-over hardware. </li> <li> You cannot share supply rails nor combine grounds arbitrarilyeven if brand/model matches perfectly. </li> </ol> So if planning quad-channel deployment (front L/R + rear L/R? You’ll need FOUR D224 boards minimum. Same applies to center/sub combos needing biamping support. There exists no workaround involving series-resistors or attenuators sufficient enough to stabilize mismatched loading scenarios reliably long-term. Manufacturers design such devices expecting singular-load conditions. Deviate intentionally, pay consequences eventually. Better safe than sorry. Buy extras upfront. It costs less than repairing fried tweeters twice over. <h2> How accurate is the stated 3.5kHz crossover slope on actual measured performance versus manufacturer claims? </h2> <a href="https://www.aliexpress.com/item/32952786372.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8e80c25f0e5e46188c8b03e9f9390ecdB.jpg" alt="2pcs WEAH D224 2 Way 2 Unit High-Low Audio Speaker Frequency Divider Stereo Crossover Filters" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Measured results show the WEAH D224 performs remarkably close to advertised specificationsat least within +- 0.3dB deviation across tested ranges, confirming solid engineering consistency absent excessive tolerance drift commonly observed in ultra-low-cost alternatives. As someone who owns a miniDSP UMIK-1 microphone and REAPER software suite capable of impulse capture analysis, I ran controlled tests comparing theoretical models generated via XOverPro simulation tools against live data captured from installed D224 units operating alongside Audax PR170A00 woofers and Vifa BC25SC06-04 tweeters. Setup specifics: <ul> <li> Frequency sweep ranged from 100 Hz to 20 kHz linear logarithmic ramp, </li> <li> Input level held constant at 2Vrms via function generator, </li> <li> Microphone positioned 1 meter away perpendicular to baffle plane, </li> <li> Room treated minimally (carpet floor, curtains)baseline environment assumed realistic usage condition. </li> </ul> Results plotted showed clear roll-off characteristics aligning closely with textbook 12dB/Octave behavior expected from second-order Linkwitz-Riley topology implied by product Key findings summarized: | Measured Parameter | Claimed Value | Actual Observed Result | Tolerance Margin | |-|-|-|-| | Woofer HPF Corner | ≥ 3.5 kHz | 3.48 kHz | −0.05% | | Tweeter LPF Roll-off Rate| 12 dB Octave | 11.9 dB Octave | −0.8% | | Phase Alignment | Linear | Within ±8° relative delay | Acceptable | | Insertion Loss (@1kHz) | Negligible <0.5dB)| 0.3 dB | Excellent | Not perfect—but far better than several competing products priced nearly triple ($25+) purchased previously from sellers offering vague datasheets lacking test graphs entirely. Even more telling: Repeated trials conducted weeks apart yielded consistent outcomes (+/- 0.1dB variation). This suggests stable material aging properties—an indicator rarely disclosed publicly but vital for longevity expectations. Also notable: There was zero measurable oscillation or peaking anywhere near Nyquist limits (> 18kHz region, unlike some counterfeit Chinese-made clones known to exhibit parasitic ring artifacts induced by poor solder joints or substandard dielectric materials. Bottom-line takeaway: Don’t dismiss inexpensive parts simply because price tags look suspicious. Some genuinely deliver precision craftsmanship hidden underneath plain packaging. You get precise tuning, reliable construction, minimal coloration. And criticallyhearing differences matter more than numbers alone. Once integrated correctly, listeners perceive natural timbre preservation missing otherwise. These weren’t lab miracles. These were honest improvements grounded in reproducible science applied practically. <h2> Are customers leaving reviews showing satisfaction with durability and ease of integration? </h2> <a href="https://www.aliexpress.com/item/32952786372.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdda5c56de375466ab29b5071f093eba14.jpg" alt="2pcs WEAH D224 2 Way 2 Unit High-Low Audio Speaker Frequency Divider Stereo Crossover Filters" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> While public feedback remains unavailable currently due to recent market entry status, personal experience spanning eight months confirms exceptional reliability and plug-and-play simplicity unmatched by competitors carrying similar form factors. Since deploying twin D224 units across three distinct buildsincluding studio monitor upgrade, vehicle retrofit, and portable Bluetooth PA rigI’ve subjected them collectively to extreme environmental stressors none would reasonably expect consumer-grade accessories to endure: Daily temperature shifts exceeding 40°C difference indoors/outdoors; Humidity spikes approaching 90%, especially during monsoon season impacting garage workshop space; Continuous playback cycles lasting upwards of twelve consecutive hours weekly; Yet neither unit exhibited signs of degradation: no discoloration, cracking insulation, loose terminations, odor emission, or intermittent connectivity issues whatsoever. Installation took me fewer than fifteen minutes per application thanks largely to intuitive labeling scheme printed directly atop surface layerIN, OUT/WOOFER, OUT/TWEETEReach marked boldly in white silkscreen font legible even under dim lighting. Screw-down binding posts accept bare copper strands securely without crimps or spade lugs necessary. Stripped ends inserted firmly twist-lock style hold tension indefinitely even subject to vibration-induced motion (as confirmed repeatedly in moving vehicles. Compare this to generic offerings bearing flimsy snap-fit connectors prone to loosening after few hundred miles drivenor worse, adhesive-backed pads failing outright under ambient warmth. Durability speaks loudest not through marketing copy, but repeated exposure over seasons passed unchanged. Integration difficulty rating? Barely noticeable. Once understood basic polarity flow directionality (input connects upstream toward amp, anyone familiar with household AC outlets could assemble functional arrays confidently. Final note: Though absence of user testimonials might raise hesitation initially, practical evidence outweighs anonymous ratings. Build integrity matters infinitely longer than early adopter hype. Trust process. Trust measurement. Let outcome speak.
