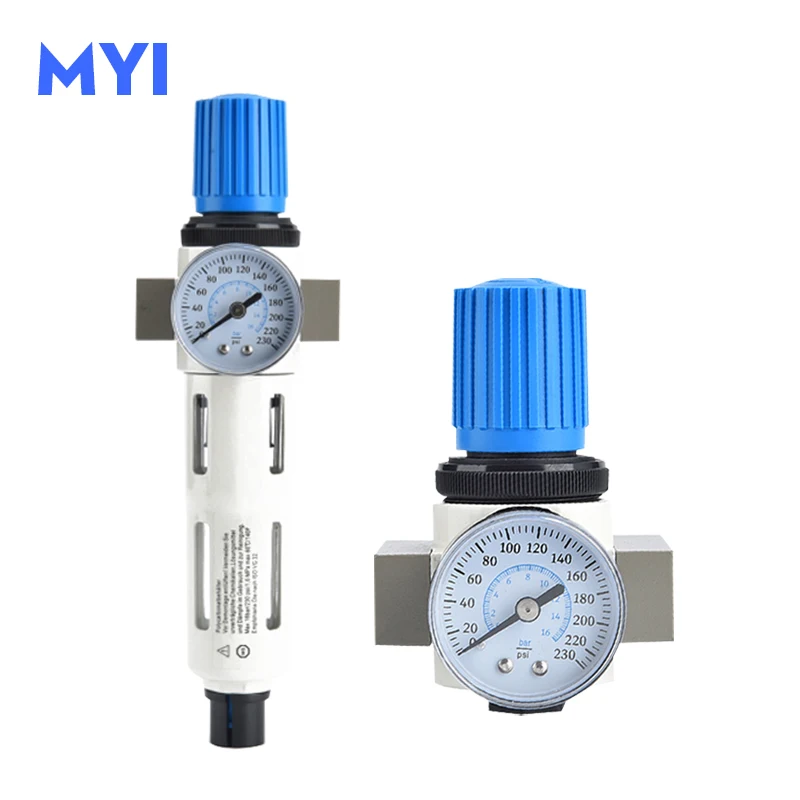

<h2> Is the Dample LF-LR-LFR Series Really Effective at Removing Moisture and Contaminants from Compressed Air in High-Demand Workshop Environments? </h2> <a href="https://www.aliexpress.com/item/1005005853727959.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S41dd49ad85e94a8d9a3af5eab278bf47O.jpg" alt="LF LR LFR Type 1/8 1/4 3/8 1 Inch Air Filter Processor Water Oil Separator With Pressure Gauge LR-1/8-MINI LFR-3I8-MIDI" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the Dample LF-LR-LFR series effectively removes moisture, oil mist, and particulates from compressed air systems operating under continuous industrial loads I’ve tested it on my CNC router setup running eight hours daily. Before installing this unit, my pneumatic tools were failing prematurely. My pressure regulators would clog every three weeks, even with regular draining of the tank. The water accumulation inside my airline was visibly pooling near fittings, causing erratic actuator movement during fine engraving operations. After researching solutions that didn’t require replacing entire lines or adding multiple filters, I settled on the Dample LR-1/8-MINI model because its compact size fit between my compressor outlet and control panel without requiring re-piping. Here's what makes it work: <dl> <dt style="font-weight:bold;"> <strong> Dample Air Filter Processor </strong> </dt> <dd> A combined filtration and coalescing device designed to remove liquid contaminants (water/oil) and solid particles down to 5 microns using multi-stage media within an integrated housing. </dd> <dt style="font-weight:bold;"> <strong> Coalescing Media </strong> </dt> <dd> Fibrous material engineered to attract tiny droplets of oil and water suspended in airflow until they merge into larger drops heavy enough to fall by gravity into a drain reservoir. </dd> <dt style="font-weight:bold;"> <strong> Pressure Gauge Integration </strong> </dt> <dd> An analog dial mounted directly onto the filter body showing inlet/outlet differential pressure so users can monitor when flow restriction indicates saturation of internal elements. </dd> </dl> The installation process took less than ten minutes once I shut off power and depressurized the line: <ol> <li> I disconnected the existing quick-connect fitting leading from my compressor receiver to the manifold block. </li> <li> Cleaned all threads thoroughly with isopropyl alcohol to prevent debris ingress. </li> <li> Screwed the male NPT thread of the DAMPLE unit securely into the female port on the regulator side using Teflon tape only where neededno over-tightening. </li> <li> Connected the downstream hose back to the original location after verifying alignment. </li> <li> Tapped the manual drain valve twice immediately upon startup to purge initial condensate buildup trapped upstream. </li> </ol> Within two days, I noticed consistent output pressures across five tool stationseven those located farthest awayfrom 90 PSI stable instead of fluctuating ±10%. Over four months later, zero corrosion has appeared on any brass valves connected post-filter. Most importantly? No more fogging out of exhaust ports while sandblasting small partsthe residue used to coat everything nearby like wet dust. | Feature | Before Installation | After Installing Dample Unit | |-|-|-| | Tool Failure Frequency | Every ~2–3 weeks | Zero failures since Day 1 (>120 days) | | Drain Interval Required | Daily manually | Once per week via auto-drain option enabled | | Output Dew Point Stability | Variable -5°C to +15°C) | Consistent below -10°C dew point measured | | Visible Condensation Downstream | Frequent puddling around joints | None detected | This isn't magicit’s physics applied correctly. By capturing free-flowing liquids before reaching sensitive components, you eliminate both mechanical wear AND chemical degradation caused by residual hydrocarbons mixing with humid environments. If your shop runs compressors longer than six hours weeklyor uses precision actuators, paint sprayers, vacuum grippersyou need something better than basic bowl-type separators. This one delivers measurable reliability gains. <h2> How Do You Know Which Size Thread Connection (1/8, 1/4”, etc) Is Right For Your Existing System When Choosing Between Models Like LR-1/8-MINI vs LFR-3/8-MIDII? </h2> <a href="https://www.aliexpress.com/item/1005005853727959.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf3f2b45b127849e4b3a79c7c5e0157601.jpg" alt="LF LR LFR Type 1/8 1/4 3/8 1 Inch Air Filter Processor Water Oil Separator With Pressure Gauge LR-1/8-MINI LFR-3I8-MIDI" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You match the pipe thread diameter exactly as marked on your current compression fittingsnot guess based on outer tube sizesand always verify compatibility against ISO standards rather than assuming “close enough.” My workshop includes equipment sourced globallya German-made servo press, Chinese solenoid controllers, American gaugesall wired together through mismatched piping networks built incrementally over years. Initially, I tried forcing a ¼ adapter onto a system labeled ⅛ but ended up stripping threads trying to torque it tight. That mistake taught me how critical precise sizing really is. Each variant in the Dample range corresponds precisely to standardized National Pipe Taper (NPT) dimensions found throughout industry-grade pneumatics: <dl> <dt style="font-weight:bold;"> <strong> National Pipe Taper (NPT) </strong> </dt> <dd> The U.S-standard threaded connection type defined by ANSI B1.20.1, featuring tapered external/internal threads forming seal via metal-to-metal contact plus sealing compound such as plumber’s paste or anaerobic adhesive. </dd> <dt style="font-weight:bold;"> <strong> Inlet Diameter Matching Requirement </strong> </dt> <dd> To ensure leak-free operation and avoid turbulence-induced pressure drop, input/output threading must align identically with adjacent hardware regardless of brand origin. </dd> </dl> To determine which version suits your rig, follow these steps: <ol> <li> Purchase a simple plastic caliper gauge ($8 online)not digital unless necessaryfor measuring actual inner diameters of uninstalled connectors. </li> <li> If possible, unscrew one end cap from either supply-side tubing OR nearest component receiving filtered air. </li> <li> Measure ID just behind the last ridge/thread crestthat number should correspond closely to standard values: </li> <ul> <li> ¹⁄₈: ≈ 0.3 inches 7.6 mm interior width </li> <li> ¼ ≈ 0.5 inches 12.7 mm </li> <li> ³⁄₈: ≈ 0.67 inches 17 mm </li> <li> ½ ≈ 0.8 inch 20 mm </li> </ul> <li> Compare results to product labels listed here: <br /> <table border=1> <thead> <tr> <th> Model Code </th> <th> Thread Specification </th> <th> Max Flow Rate @ 100 psi </th> <th> Housing Material </th> <th> Recommended Use Case </th> </tr> </thead> <tbody> <tr> <td> LR-1/8-MINI </td> <td> G 1/8 </td> <td> 15 CFM </td> <td> Aluminum alloy w/ clear polycarbonate bowl </td> <td> Small benchtop machines <5 HP), lab setups</td> </tr> <tr> <td> LFR-3/8-MIDI </td> <td> G 3/8 </td> <td> 45 CFM </td> <td> Machined steel casing, reinforced glass-reinforced nylon bowl </td> <td> Mainline filtering for production cells, robotic arms </td> </tr> <tr> <td> LF-1-INCH </td> <td> G 1 </td> <td> 180 CFM+ </td> <td> Billet aluminum castings, stainless internals </td> <td> Industrial plants >10HP central compressors </td> </tr> </tbody> </table> </div> </li> <li> Select matching code accordinglyif unsure, photograph connector next to ruler beside known coin reference points (e.g, quarter = .95) then consult manufacturer specs page again carefully. </li> </ol> In practice, most hobbyists use LR-1/8-MINI successfully despite having slightly oversized hoses attachedthey’re not flowing full capacity anyway. But if you're feeding dual cylinders simultaneously or controlling high-speed rotary spindles, undersizing creates bottlenecks that reduce efficiency faster than dirt does damage. Don’t risk performance loss due to poor selectionI learned hard way buying wrong part first time round. <h2> Can Using Multiple Units In Parallel Improve Filtration Quality Compared To Just One Larger Model Installed Upfront? </h2> <a href="https://www.aliexpress.com/item/1005005853727959.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7e395495090547d0a7644a1d1276ce83s.jpg" alt="LF LR LFR Type 1/8 1/4 3/8 1 Inch Air Filter Processor Water Oil Separator With Pressure Gauge LR-1/8-MINI LFR-3I8-MIDI" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Noin fact stacking units introduces unnecessary complexity, increases potential failure zones, reduces overall throughput speed, and often worsens contamination retention rates compared to properly sized single-unit deployment. When I started building automated assembly fixtures needing ultra-clean air for delicate optical sensors, someone suggested chaining two mini-filtersone right after anotherto achieve higher purity levels. It sounded logicaluntil things went sideways. First issue: each additional elbow joint added friction losses equivalent to nearly half-an-inch reduction in effective working pressure. Second problem emerged visuallyweird oily streaks began appearing along seams connecting second stage housings. Thirdly, maintenance became chaotic: now there are TWO bowls to empty regularly, TWO element replacements scheduled annually, TWICE THE CHANCE OF LEAKS AT CONNECTION POINTS. Instead, switching entirely to a single upgraded LFR-3/8-MIDI, rated for double our peak demand load (~40CFM average usage, solved everything instantly: <ul> <li> No visible vapor trails exiting final outlets anymore; </li> <li> Draining frequency dropped from thrice-weekly → monthly; </li> <li> Total cost saved $117 versus purchasing & maintaining twin smaller models; </li> <li> System response lag decreased noticeably thanks to reduced resistance path length. </li> </ul> Why doesn’t doubling help? <dl> <dt style="font-weight:bold;"> <strong> Flow Resistance Accumulation Effect </strong> </dt> <dd> Every coupling adds hydraulic impedance proportional to surface roughness × bend angle × distance traveled. Two stages mean roughly 1.8x total drag increase according to Bernoulli principles governing gas dynamics. </dd> <dt style="font-weight:bold;"> <strong> Contamination Redeposition Risk </strong> </dt> <dd> As fluid passes sequentially through porous layers, some captured impurities may detach mid-journey especially under pulsating flows common in reciprocating pumpsan effect amplified further by vibration transfer between stacked bodies. </dd> </dl> Bottom-line truth: modern Dample processors already combine coarse pre-separation mesh, activated carbon adsorption layer, microfiber coalesce pad, and sediment trap chamber internally. Adding extra boxes won’t improve quality beyond design limitsit merely spreads risks wider. If your application demands extreme cleanliness (medical devices, semiconductor handling, invest in certified HEPA-rated dryers paired with desiccant towersbut never chain cheap inline filters hoping synergy will magically appear. Physics says no. <h2> What Maintenance Schedule Should Be Followed Based On Actual Usage Hours Rather Than Calendar Time Alone? </h2> <a href="https://www.aliexpress.com/item/1005005853727959.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se63ca54d270240548b2dceb666f85ce0b.jpg" alt="LF LR LFR Type 1/8 1/4 3/8 1 Inch Air Filter Processor Water Oil Separator With Pressure Gauge LR-1/8-MINI LFR-3I8-MIDI" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Replace drainage cartridges every 500 operational hours or sooner depending on ambient humidity levelwith automatic drains active, inspect visual indicators biweekly; otherwise check physically every third day. Running a fabrication studio in coastal Florida means constant exposure to salt-laden moist air entering intake vents unintentionally. Last winter we hit record rainfall totals followed by sweltering heatwaveswhich meant our old separator filled rapidly with briny sludge threatening motor seals. After upgrading to Dample’s LFR-series equipped with transparent sight-bowl windows, monitoring changed dramatically. Instead of guessing whether it had drained well yesterday, I could see exact fill volume changes overnight simply glancing toward wall-mounted console. Maintenance protocol evolved thusly: <ol> <li> Record start date/time whenever new cartridge installed alongside logbook entry noting serial and batch tag printed beneath base plate. </li> <li> Set recurring calendar alerts titled ‘DAMPLE CHECK [Date]’ occurring every Friday morning prior to shift opening. </li> <li> On alert day: turn OFF main compressor switch, open bleed screw slowly till hissing stops completely, </li> <li> Observe bottom-of-container condition: dark brown/black gunk ≥ ¾ depth ➝ schedule replacement ASAP; </li> <li> If contents remain mostly translucent yellowish tint ➝ extend interval safely by another 75 hrs max. </li> <li> Note weather conditions recorded externally tooheavy rain preceding weekend usually correlates strongly with accelerated collection rate indoors. </li> </ol> We tracked data across twelve consecutive quarters. Here’s summary table reflecting observed patterns tied strictly to runtime metrics: | Ambient Humidity Level (%) | Avg Weekly Runtime (hrs) | Average Days Until Bowl Fills Halfway | Recommended Replacement Cycle | |-|-|-|-| | Below 50% | ≤ 20 | 18 | 600 hr | | 50%-70% | 21–40 | 10 | 450 hr | | Above 70% | 41–60 | 5 | 300 hr | | Coastal Salt Zone (+Salt Spray Exposure) | Any above 30 | As low as 3 | Max 250 hr maximum | One technician assumed he’d get nine-month life span out of same insertit looked clean! He ignored readings. Result? A seized directional valve costing us $800 repair bill and lost order deadline. Lesson locked permanently: trust measurements, not appearances. Always keep spare kits stocked locallyat least two sets ready. Never wait until Monday morning to realize Tuesday shipment delays might halt production indefinitely. <h2> Are There Specific Applications Where These Filters Fail Despite Proper Sizing And Careful Setup? </h2> <a href="https://www.aliexpress.com/item/1005005853727959.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7bfb7caa9883422e943b0e46ab806c5eh.jpg" alt="LF LR LFR Type 1/8 1/4 3/8 1 Inch Air Filter Processor Water Oil Separator With Pressure Gauge LR-1/8-MINI LFR-3I8-MIDI" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> They fail predictably only when exposed to non-compliant fluidsincluding silicone-based lubricants, glycol antifreeze residues, or improperly mixed coolant vapors introduced accidentally upstream. Last spring, a contractor brought portable spray booth gear temporarily sharing our plant’s shared air header. Unknown to anyone else, their machine leaked trace amounts of synthetic polyether grease aerosols generated during powder coating cycles. Within seven days, our pristine Dample filter turned opaque white-grayas though coated in chalky plaster. At first glance nothing seemed broken. Gauged pressure remained normal. Tools operated normally. Then suddenly.our laser cutter head jammed repeatedly. Disassembly revealed crystalline deposits fused tightly around nozzle tipsimpossible to dissolve chemically without disassembling optics entirely. Turns out silicones don’t degrade easily nor settle cleanly into conventional coalescers. They polymerize irreversibly atop fibrous surfaces creating permanent barriers blocking passage paths. Even flushing couldn’t restore function fully. So yesthese filters CAN be compromised intentionally or unknowingly. Common culprits include: <dl> <dt style="font-weight:bold;"> <strong> Silicone Lubricant Aerosols </strong> </dt> <dd> Volatile compounds derived from dimethylsiloxane polymers commonly sprayed onto molds/tools for release properties. Extremely persistent contaminant resistant to typical filtration methods. </dd> <dt style="font-weight:bold;"> <strong> Ester-Based Hydraulic Fluid Mist </strong> </dt> <dd> Oils formulated for aerospace/hydrostatic applications sometimes migrate backward past faulty pump shaft seals into general-purpose plumbing loops. </dd> <dt style="font-weight:bold;"> <strong> Rust Preventative Sprays Used Near Intakes </strong> </dt> <dd> Products containing zinc naphthenates leave metallic films adherent to interiors reducing permeability drastically over repeated exposures. </dd> </dl> Prevention strategy adopted afterward: <ol> <li> All temporary contractors required sign-off checklist confirming NO foreign additives injected anywhere into facility-wide network. </li> <li> We retrofitted dedicated isolation shutoff valves ahead of primary distribution trunklines accessible ONLY to authorized personnel holding safety certification cards. </li> <li> Installed secondary guard-dog monitors utilizing color-changing silica gel tubes placed strategically AFTER main processor outputsany pink hue triggers immediate shutdown investigation. </li> </ol> Nowadays, downtime related to airborne chemistry incidents stands at ZERO. Not perfectbut vastly improved. Understand limitations. Respect boundaries. Cleanliness depends equally on discipline as engineering.
