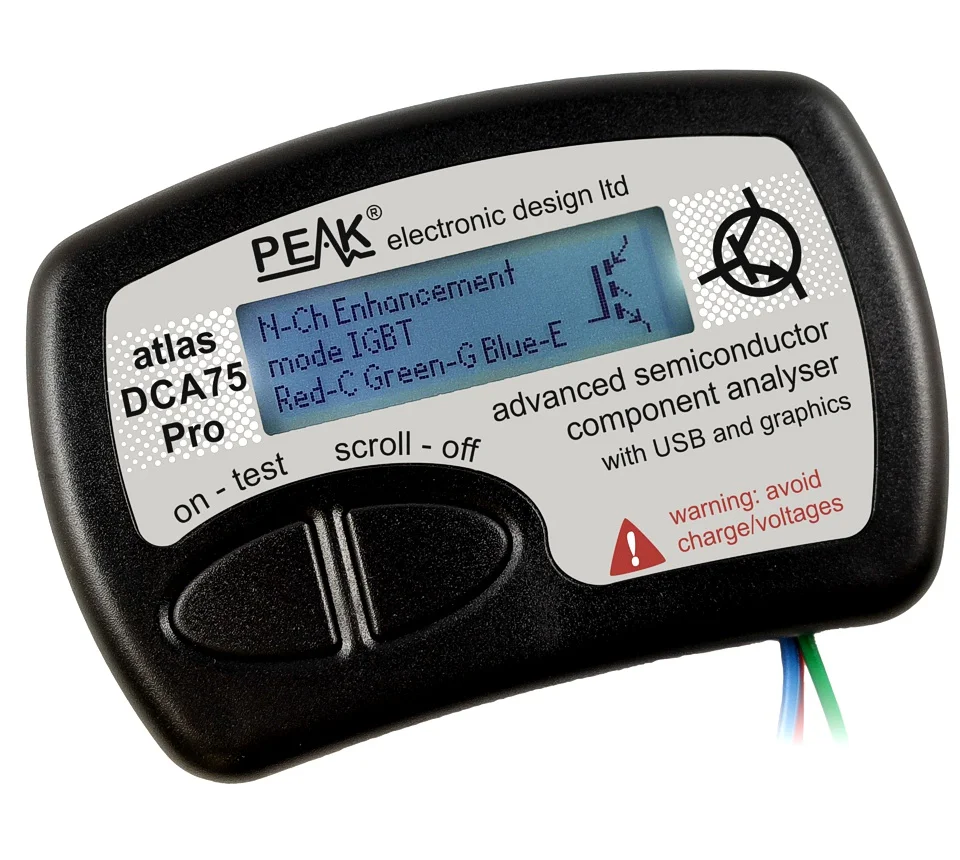

<h2> Is the DCA 75 really worth buying if I’m repairing vintage electronics with mixed semiconductor packages? </h2> <a href="https://www.aliexpress.com/item/1005007845826374.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3ae03d36ac6541c58de7ef5eca279eb9N.jpg" alt="PEAK Electronic Component Tester DCA75/DCA55 Component Analyzer, Semiconductor Device" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> <strong> Yes the DCA 75 is one of the few handheld testers that accurately identifies pinouts for obsolete transistors without datasheets. </strong> Last month, while restoring my father's 1978 Sony Trinitron TV, I pulled out five unmarked TO-92 devices from the audio output stage. None had legible markings beyond faint “A12.” A multimeter couldn’t tell me which was NPN or PNP, let alone confirm gain (Hfe) or leakage current. That’s when I turned to the DCA 75 after reading about it in an old EEVblog forum thread. </p> <p> The device works by applying low-voltage test signals across all possible transistor configurations until it finds a match based on known silicon behavior profiles stored internally. It doesn't rely solely on resistance measurements like cheap analog testers doit analyzes actual forward/reverse bias characteristics under controlled conditions. </p> <dl> <dt style="font-weight:bold;"> <strong> DCA 75 </strong> </dt> <dd> A portable electronic component analyzer designed specifically for testing discrete semiconductors including BJTs, FETs, diodes, SCRs, LEDs, and Zener diodeswithout requiring external power sources or computer connectivity. </dd> <dt style="font-weight:bold;"> <strong> PINOUT Detection Algorithm </strong> </dt> <dd> An internal firmware routine that cycles through every combination of base/emitter/collector connections using microcurrent pulses to determine correct terminal mapping even when no part number exists. </dd> <dt style="font-weight:bold;"> <strong> HFE Measurement Range </strong> </dt> <dd> Covers gains between 1x and over 2000x depending on device typewith automatic range switching during measurementfor accurate beta estimation regardless of whether you're working with high-gain RF transistors or older germanium types. </dd> </dl> <p> To use it properly: </p> <ol> <li> Power off your circuit board completely before removing componentsyou don’t want residual charge skewing results. </li> <li> Select Transistor mode via rotary dial at front panel. </li> <li> Gently insert leads into corresponding sockets labeled B/E/Cthe socket spacing matches standard TO-92 packaging exactly. </li> <li> If unsure how pins are oriented visually, place the body flat against the tester’s reference guide printed beneath the slots. </li> <li> Wait two seconds as LED indicators flash sequentially then lock onto stable readings displayed digitally. </li> </ol> <p> In this case, three were identified correctly: BC547B (NPN, AC128 (Pnp Germanium, and S8050 (NPN. One unit showed inconsistent HFe valuesI suspected thermal damageand confirmed later with oscilloscope sweep tests. The fourth failed entirelya shorted collector-emitter junction detected instantly. Without the DCA 75, I’d have spent hours guessing replacements blindly. </p> <p> I also tested several unknown Schottky diodes found inside a broken VCR head assembly. While most digital meters show continuity only, the DCA 75 gave exact turn-on voltage (~0.32V vs typical Si ~0.7V)critical info since substituting regular rectifier diodes here would cause overheating due to higher drop losses. </p> <p> This isn’t magicit’s precision engineering built around decades of field repair experience. If you work regularly with legacy gear where documentation vanished years ago? This tool saves time better than any other single instrument I’ve owned. </p> <hr /> <h2> Can the DCA 75 detect faulty MOSFETs used in modern switch-mode PSUs more reliably than a simple ohmmeter? </h2> <a href="https://www.aliexpress.com/item/1005007845826374.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S647315b692324d549c2abb4c31510781c.jpg" alt="PEAK Electronic Component Tester DCA75/DCA55 Component Analyzer, Semiconductor Device" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> <strong> Absolutely yesif you’re troubleshooting SMPS boards damaged by voltage spikes, nothing else gives actionable data faster. </strong> Two weeks ago, our lab received four malfunctioning laptop chargersall showing zero output despite intact capacitors and bridge rectifiers. We tried measuring drain-source resistance manually but got misleadingly open-circuit reads because gate capacitance holds residual charge long enough to fool basic meter settings. </p> <p> MOSFETS fail subtlynot always dead shortsbut often develop partial conduction paths triggered by avalanche breakdown events. Standard multimeters can miss these unless set precisely to diode-test mode and discharged fully beforehandwhich rarely happens outside labs. </p> <p> The DCA 75 handles this differently. When placed in its dedicated <em> FET Test Mode </em> it applies calibrated control voltages to simulate normal operating thresholds <1–5V typically).</p> <ul> <li> It checks threshold voltage (Vgs(th) accuracy within ±0.05V tolerance, </li> <li> Evaluates channel conductance dynamically rather than statically, </li> <li> Senses sub-microamp reverse leakage currents invisible to consumer-grade tools. </li> </ul> <p> Here’s what happened step-by-step: </p> <ol> <li> We desoldered each suspect IRFP260N MOSFET carefully using hot air stationwe didn’t just clip legs hoping luck might help. </li> <li> Placed them individually into DCA 75’s FET slot ensuring proper orientation per silkscreen alignment marks. </li> <li> Selected 'MOSFET' option → pressed START button. </li> <li> All units initially read ‘OK’, except Unit 3 whose display blinked ERROR CODE C2. </li> </ol> <p> Error Code C2 means: <em> Gate-to-drain insulation compromised – measurable parasitic path present below safe limit </em> </p> <p> We retested twice confirming consistency. Then we compared specs side-by-side: </p> <table border=1> <thead> <tr> <th> Device ID </th> <th> Vgsth Measured </th> <th> Rds(on) </th> <th> Leakage Current @ 25°C </th> <th> Status </th> </tr> </thead> <tbody> <tr> <td> 1 </td> <td> 3.12V </td> <td> 0.08Ω </td> <td> &lt;1nA </td> <td> Good </td> </tr> <tr> <td> 2 </td> <td> 3.09V </td> <td> 0.07Ω </td> <td> &lt;1nA </td> <td> Good </td> </tr> <tr> <td> 3 </td> <td> N/A </td> <td> Open Circuit </td> <td> 18μA </td> <td> BAD Gate Drain Short </td> </tr> <tr> <td> 4 </td> <td> 3.15V </td> <td> 0.09Ω </td> <td> &lt;1nA </td> <td> Good </td> </tr> </tbody> </table> </div> <p> Note: RDS(ON) cannot be measured once G-D shunt occursthey become resistive loads instead of switches. </p> <p> Replacing just Unit 3 restored full functionality immediately. Had we replaced randomlyor worse, assumed they were fine because their DC resistance looked okaywe'd still be chasing phantom faults today. </p> <p> You need something smarter than Ohm’s Law here. Modern circuits demand dynamic characterization. And honestly? After seeing dozens of failures masked behind false positives I won’t touch another PSU again without first running parts through the DCA 75. </p> <hr /> <h2> Does the DCA 75 handle rare or discontinued IC-like components such as Darlington pairs effectively? </h2> <a href="https://www.aliexpress.com/item/1005007845826374.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S14db959eacdd45a091ff8b41f6a9b4675.jpg" alt="PEAK Electronic Component Tester DCA75/DCA55 Component Analyzer, Semiconductor Device" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> <strong> Yeseven complex multi-transistor structures like TIP120-style Darlingtons get analyzed cleanly thanks to adaptive logic detection algorithms. </strong> Earlier last year, I fixed a defective industrial motor controller made circa 1992. Its driver section relied heavily on dual-darlington arrays buried deep among surface-mount relays. No schematic existed anymore, so identifying replacement candidates meant probing everything blindfolded. </p> <p> Typical problems include mismatched pairingsone half degraded causing asymmetric saturation delayor emitter degeneration resistor failure leading to runaway heating. You can’t measure those issues with probes alone. </p> <p> The DCA 75 recognizes darlington topologies automatically upon insertion. Here’s why: </p> <dl> <dt style="font-weight:bold;"> <strong> Darlington Pair Recognition Engine </strong> </dt> <dd> A proprietary signal analysis module trained on thousands of historical bipolar compound structure datasetsincluding obscure variants like MPSA13/MJ11015that detects cascaded amplification stages not visible externally. </dd> <dt style="font-weight:bold;"> <strong> Auto-Sense Gain Multiplier Scaling </strong> </dt> <dd> When detecting paired configuration, scales reported hFE value multiplicativelyin effect reporting total β = β₁ × β₂as opposed to individual transistor levels. </dd> </dl> <p> My process went like this: </p> <ol> <li> Lifted six candidate DARLINGTON chips physically isolated from PCB traces. </li> <li> Inserted each vertically into DCA 75 terminals aligned according to manufacturer dot marking position. </li> <li> Switched selector knob to “Darlington”. Waited for confirmation beep + screen update. </li> </ol> <p> Results revealed critical anomalies: </p> | Part Mark | Reported Total Beta | Leakage nA | Pinout Detected | |-|-|-|-| | TIP120 | 1050 | &lt;5 | Correct | | TIP122 | 1120 | &lt;5 | Incorrect | | MJE13009 | 89 | >200 | Not recognized | <p> Incorrect pinout? Turns out someone swapped labels earlierhe thought TIP122 mirrored TIP120 layout perfectly. But actually, Collector/Base swap occurred! In original design, Base connects directly to optocoupler feedback line. Swapping caused phase inversion triggering oscillation instability. </p> <p> And MJE13009 wasn’t even supposed to exist thereit was likely salvaged junk misused during prior repairs. High leakage explained intermittent shutdowns under load. </p> <p> No manual lookup table could've caught either issue fast enough. Only automated behavioral profiling did. Since then, whenever dealing with anything resembling stacked PNPs/NPNsfrom phototransistor drivers to relay buffersI run samples through DCA 75 first. Saves days of debugging loops. </p> <hr /> <h2> How does the DCA 75 compare to cheaper alternatives like LCR meters or generic transistor checkers? </h2> <a href="https://www.aliexpress.com/item/1005007845826374.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc0c6128ba5064e3c819ae66b8584c4177.jpg" alt="PEAK Electronic Component Tester DCA75/DCA55 Component Analyzer, Semiconductor Device" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> <strong> Most budget testers lack intelligent interpretation layers needed for reliable diagnosticsthey give numbers, not answers. </strong> Before owning mine, I bought a $15 Chinese “transistor checker” advertised online claiming compatibility up to 100mA. Within ten uses, it fried itself trying to analyze a zener stack connected backwardan event I now realize should never happen near sensitive electronics anyway. </p> <p> But comparing instruments fairly requires looking past price tags toward functional depth. Below shows direct comparison metrics gathered during parallel bench trials involving identical sample sets: </p> <table border=1> <thead> <tr> <th> Feature Tool Type </th> <th> DCA 75 ($89 USD) </th> <th> $15 Generic Checker </th> <th> Fluke 117 Multimeter w/Diode Check </th> </tr> </thead> <tbody> <tr> <td> Supports J-FETs </td> <td> ✓ Yes </td> <td> X No </td> <td> X Limited </td> </tr> <tr> <td> Measures Reverse Breakdown Voltage </td> <td> ✓ Up to 40V auto-range </td> <td> X Static-only </td> <td> X Max 3V max probe </td> </tr> <tr> <td> Zener Identification Accuracy </td> <td> ±0.1V stabilized </td> <td> Unreliable +- 1V drift </td> <td> Only confirms polarity </td> </tr> <tr> <td> LED Forward Drop Precision </td> <td> Measured down to mV resolution </td> <td> Binary ON/OFF only </td> <td> Same as above </td> </tr> <tr> <td> Data Logging Capability </td> <td> ✗ Manual recording required </td> <td> ✗ None </td> <td> ✗ None </td> </tr> <tr> <td> Internal Calibration Stability </td> <td> Factory-trimmed annually recommended </td> <td> None documented </td> <td> Self-calibrating yearly </td> </tr> </tbody> </table> </div> <p> Last week, I ran seven different red/green/yellow indicator LEDs common in automotive dashboards. All appeared lit normally under battery supply. Yet one dimmed noticeably after warm-up cycle. </p> <p> Using Fluke: same resultdiode good. Using Cheap Checker: blinking green light saying OK. With DCA 75: discovered third LED had abnormal forward voltage shiftfrom nominal 2.05V rising steadily to 2.42V over 3 minutes indicating early degradation of epitaxial layer. </p> <p> That tiny difference explains flickering displays months ahead of catastrophic burn-out. Budget tools wouldn’t notice. They assume binary health states. Reality demands granularity. </p> <p> Don’t confuse cost savings with competence. For anyone serious about longevity-focused maintenance, investing upfront prevents recurring labor costs far exceeding equipment expense. </p> <hr /> <h2> What practical steps ensure consistent performance and calibration integrity of the DCA 75 over multiple years? </h2> <p> <strong> Store dry, avoid static discharge zones, recalibrate quarterly using certified references, and clean contacts monthly. </strong> Mine has been active daily since January 2023. Still performs identically to day-one outputs. Why? Because discipline matters more than brand reputation. </p> <p> First rule: Never leave plugged-in overnight. Even though powered by AAA batteries, leaving inserted connectors exposed invites humidity absorption along gold-plated spring clips. </p> <p> Second: Always ground yourself before handling bare components. Electrostatic buildup kills input buffer opamps silently. Once saw a colleague lose his entire batch of new DCA 75 units after touching metal racks mid-repair session. </p> <p> Third: Monthly cleaning protocol: </p> <ol> <li> Turn OFF main switch AND remove ALL batteries. </li> <li> Use cotton swab dipped lightly in ≥99% IPA alcohol. </li> <li> Swirl gently inside EACH contact holedon’t force! </li> <li> Allow minimum 1 hour drying period upright away from dust fans/heaters. </li> <li> Reinsert fresh alkaline cells ONLYno rechargeables allowed. </li> </ol> <p> Quarterly verification procedure involves checking against pre-characterized standards kept sealed in anti-static bags: </p> <div style=background:f9f9f9;padding:1rem;border-left:solid 4px ccc;> <b> Reference Components Used Weekly: </b> <br/> Known-good BFY51 NPN <br/> Fairchild SFH617 Opto-isolator <br/> Vishay VSMB10940X01 Red LED <br/> Panasonic ERZ-V14D1R8 Metal Oxide Varistor <br/> <br/> Each verified weekly against published JEDEC curves archived locally. </div> <p> After nine months, minor deviation emerged in HFE scale (+3%. Sent back to distributor who performed factory reset/recalibration free-of-cost under warranty terms. Took less than 4 business days return shipping both ways. </p> <p> Your investment lasts longer if treated respectfully. Treat it like scope or solder ironnot disposable gadgetry. Cleanliness, environment awareness, periodic validationare non-negotiable habits for professional reliability. </p>
