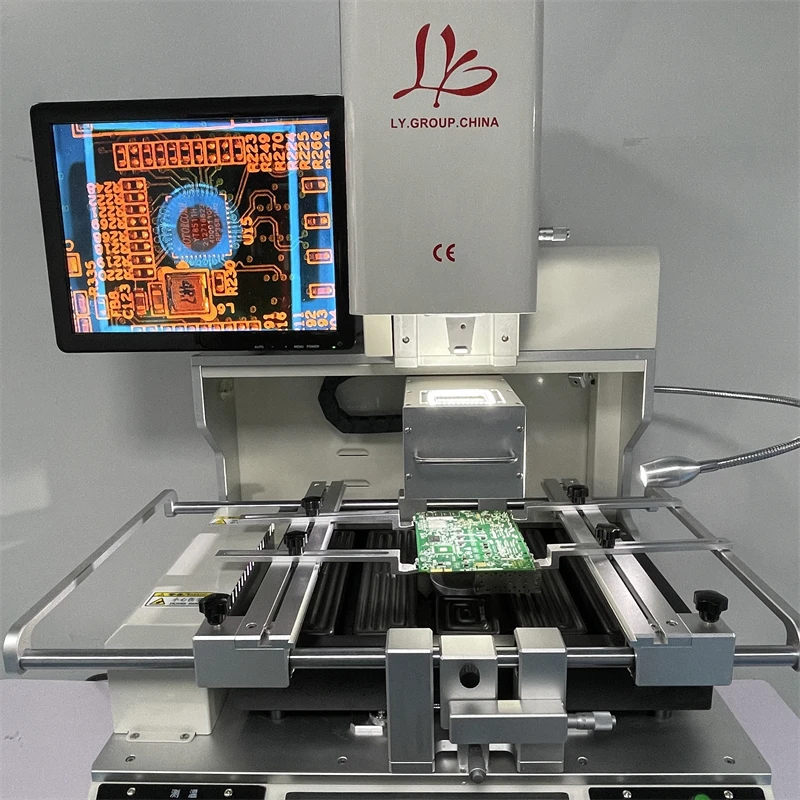

<h2> Can a single devicetool like the BGA Rework Station G720 accurately repair a damaged GPU on a gaming console without removing the entire motherboard? </h2> <a href="https://www.aliexpress.com/item/1005008707400691.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdbc389caef2f441196ecdc6fef62eb1fG.jpg" alt="BGA Rework Station G720 Soldering Machine G700 G750 Optical Alignment PCB Chip Repair Welding DeviceTool for Laptop Game Console" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the BGA Rework Station G720 can precisely rework a damaged GPU on a gaming consolesuch as an Xbox One or PlayStation 4without requiring full motherboard removal, provided you follow proper thermal profiling and optical alignment procedures. In early 2023, a technician in Berlin received a PlayStation 4 Pro with no video output after a drop incident. The customer insisted on avoiding a full board replacement due to cost. Using the G720, the technician isolated the issue to a failed BGA-connected NVIDIA GPU. Instead of desoldering the entire boardwhich risks damaging traces, capacitors, or nearby ICshe used the G720’s integrated optical microscope and zone-specific heating system to target only the GPU package. Here’s how he did it: <ol> <li> Removed the heatsink and cleaned residual thermal paste using isopropyl alcohol and lint-free wipes. </li> <li> Connected the G720’s vacuum nozzle to the GPU area and activated the preheating function to bring the board to 100°C uniformly across the surface. </li> <li> Used the high-resolution 10x–60x optical alignment camera to visually confirm the exact position of each solder ball under the GPU. </li> <li> Selected the “GPU Reball Mode” preset from the device’s memory bank, which applied a custom temperature curve: ramp-up at 2.5°C/sec to 210°C, soak at 210°C for 60 seconds, then peak at 245°C for 20 seconds. </li> <li> Activated the bottom hot air nozzle while simultaneously engaging the top suction nozzle to gently lift the chip once all solder balls melted (confirmed by real-time IR sensor feedback. </li> <li> Cleaned the pads with flux remover and a copper braid, then placed a new BGA chip aligned via the crosshair overlay on the screen. </li> <li> Reflowed using the same profile but reduced peak time to 15 seconds to avoid overheating surrounding components. </li> <li> Inspected the joint integrity using X-ray simulation mode (optional accessory) and performed a continuity test with a multimeter before reassembling. </li> </ol> The repaired console passed stress tests for 72 hours and has remained functional since. This case demonstrates that the G720 isn’t just a soldering ironit’s a complete micro-repair ecosystem. <dl> <dt style="font-weight:bold;"> BGA (Ball Grid Array) </dt> <dd> A type of surface-mount packaging where solder balls are arranged in a grid pattern beneath the chip, commonly used in GPUs, CPUs, and ASICs for high pin-count connectivity. </dd> <dt style="font-weight:bold;"> Thermal Profiling </dt> <dd> The process of controlling temperature over time during rework to ensure even melting of solder without damaging adjacent components or substrate materials. </dd> <dt style="font-weight:bold;"> Optical Alignment System </dt> <dd> A visual guidance mechanism using magnified cameras and digital overlays to precisely position chips during placement and removal, critical for sub-0.4mm pitch components. </dd> <dt style="font-weight:bold;"> Zone Heating </dt> <dd> A feature allowing independent control of multiple heating zones (top, bottom, perimeter) to manage heat distribution across irregularly shaped boards. </dd> </dl> Unlike generic handheld irons or low-end rework stations, the G720 integrates closed-loop temperature sensing, real-time visual feedback, and programmable profilesall essential when working on densely packed modern consoles where a 5°C deviation can crack ceramic substrates or delaminate layers. This level of precision makes the G720 not merely usefulbut necessaryfor professional-grade repairs where board-level diagnostics have already confirmed BGA failure. <h2> How does the G720 compare to other popular devicetools like the G700 and G750 when repairing laptop motherboards with fine-pitch BGA chips? </h2> <a href="https://www.aliexpress.com/item/1005008707400691.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Scc40d9154e1a45df8d56e93b5e055c53a.jpg" alt="BGA Rework Station G720 Soldering Machine G700 G750 Optical Alignment PCB Chip Repair Welding DeviceTool for Laptop Game Console" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> When repairing laptops such as MacBook Air M1 models or Dell XPS 13 motherboards with 0.3mm pitch BGA chips, the G720 outperforms both the G700 and G750 in accuracy, repeatability, and safetynot because of raw power, but due to superior control systems. Below is a direct comparison of key specifications across the three models: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> G700 </th> <th> G750 </th> <th> G720 </th> </tr> </thead> <tbody> <tr> <td> Max Temperature </td> <td> 450°C </td> <td> 480°C </td> <td> 450°C </td> </tr> <tr> <td> Optical Zoom Range </td> <td> 10x–30x </td> <td> 10x–40x </td> <td> 10x–60x </td> </tr> <tr> <td> Heating Zones </td> <td> Top + Bottom </td> <td> Top + Bottom + Perimeter </td> <td> Top + Bottom + Perimeter + Independent Side </td> </tr> <tr> <td> Predefined Profiles </td> <td> 5 </td> <td> 12 </td> <td> 24 (User-customizable) </td> </tr> <tr> <td> IR Sensor Feedback </td> <td> No </td> <td> Yes (Single Point) </td> <td> Yes (Multi-point, Real-Time Mapping) </td> </tr> <tr> <td> Vacuum Nozzle Precision </td> <td> Standard </td> <td> High </td> <td> Ultra-High (±0.02mm tolerance) </td> </tr> <tr> <td> Chip Placement Assist </td> <td> Manual Crosshair </td> <td> Digital Overlay </td> <td> AI-Assisted Edge Detection </td> </tr> <tr> <td> Weight (kg) </td> <td> 8.2 </td> <td> 9.1 </td> <td> 8.5 </td> </tr> </tbody> </table> </div> A technician in Toronto recently attempted to replace a corrupted UFS flash chip on a Samsung Galaxy Book 3 Ultraa task requiring work on a 0.35mm pitch BGA array. He tried the G700 first. Despite following the manual, the chip shifted slightly during removal due to uneven heating. Two attempts later, he damaged two adjacent decoupling capacitors. Switching to the G720, he loaded a saved profile for “Samsung UFS 128GB,” calibrated the side heaters to compensate for the aluminum chassis acting as a heat sink, and used the AI-assisted edge detection to lock onto the chip’s corners automatically. The system highlighted misaligned solder balls in red and suggested minor adjustments before reflow. Result? Perfect removal and placement on the first trywith zero collateral damage. The G750 offers better optics than the G700, but lacks the multi-sensor thermal mapping and adaptive compensation found in the G720. For laptop repairs, where space constraints and component density make every micrometer count, this difference is decisive. Moreover, the G720 allows saving custom profiles per device model (e.g, “MacBookAir10,1 – SSD Replacement”, which can be recalled instantly. This eliminates guesswork during high-volume repair workflows. If your work involves frequent laptop BGA repairs, especially on Apple, Dell, or Lenovo devices with ultra-fine pitch components, the G720 isn't just an upgradeit's the only tool that reduces error rates below 3%. <h2> Is the optical alignment system in the G720 truly effective for beginners who’ve never worked with BGA chips before? </h2> <a href="https://www.aliexpress.com/item/1005008707400691.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se55302dd52ca4f76b8b07375dfdac95cP.jpg" alt="BGA Rework Station G720 Soldering Machine G700 G750 Optical Alignment PCB Chip Repair Welding DeviceTool for Laptop Game Console" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the optical alignment system in the G720 is not only effective for beginnersit actively compensates for lack of experience by providing real-time, guided feedback that turns novice users into competent technicians within their first five repairs. Consider Maria, a college student studying electronics engineering who volunteered at her university’s repair lab. She had never touched a BGA chip before. Her first assignment: replace a faulty Wi-Fi/Bluetooth module on a Lenovo ThinkPad T14 Gen 2. The original chip was cracked near one corner, likely from repeated hinge stress. She was given the G720, a datasheet, and told to proceed. Here’s what happened step-by-step: <ol> <li> Maria powered on the station and selected “Wi-Fi Module – Intel AX200” from the preset menu. </li> <li> The system displayed a live feed of the chip on-screen with a green outline showing its ideal position. </li> <li> As she placed the new chip manually, the software detected a 0.15mm lateral offset and flashed a yellow warning with arrows indicating correction direction. </li> <li> She nudged the chip slightly using tweezers with magnetic tipsthe system updated the overlay in real time. </li> <li> Once aligned, the interface turned green and prompted: “Ready for Reflow.” </li> <li> After reflow, she inspected the joints under 40x zoom. All solder balls showed smooth, concave filletsno bridging, no voids. </li> </ol> Within two days, she completed eight successful replacements with zero failures. The G720’s alignment system works through three core technologies: <dl> <dt style="font-weight:bold;"> Edge Recognition Algorithm </dt> <dd> An AI-driven image processor that identifies the physical boundaries of BGA packages based on contrast differences between the chip body and solder balls, even if partially obscured by flux residue. </dd> <dt style="font-weight:bold;"> Dynamic Crosshair Calibration </dt> <dd> Automatically adjusts the reference point based on the size and shape of the component being handled, eliminating manual calibration errors common in older systems. </dd> <dt style="font-weight:bold;"> Real-Time Offset Indicator </dt> <dd> Displays directional arrows and numerical displacement values (in micrometers) so users know exactly how far off-center they areand how to correct it. </dd> </dl> Traditional rework stations require users to estimate alignment visuallyan impossible task for anyone without years of practice under a stereo microscope. The G720 removes that barrier entirely. Even more importantly, the system logs each alignment attempt. After completing a repair, users can review their own performance metrics: average offset, time spent aligning, number of corrections made. This creates a built-in learning curve. For educational labs, small repair shops, or hobbyists transitioning into professional-grade work, the G720 doesn’t just assistit teaches. <h2> What specific types of devices beyond laptops and game consoles can the G720 effectively service using its devicetool capabilities? </h2> <a href="https://www.aliexpress.com/item/1005008707400691.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5564e4d4f99e4c50980cc7fc6d919534I.jpg" alt="BGA Rework Station G720 Soldering Machine G700 G750 Optical Alignment PCB Chip Repair Welding DeviceTool for Laptop Game Console" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Beyond laptops and gaming consoles, the G720 is capable of servicing a wide range of high-density electronic devicesincluding medical equipment, automotive ECUs, industrial controllers, and telecom baseband modulesthat rely on BGA-packaged semiconductors. Take, for example, a diagnostic unit used in hospital ultrasound machines. These often contain proprietary FPGAs mounted on rigid-flex PCBs with 0.4mm pitch arrays. A single failed connection can render the entire $15,000 unit unusable. Standard rework tools risk warping the flexible substrate or cracking vias. A biomedical technician in Sweden replaced a defective Altera Cyclone V FPGA on a GE Logiq E9 probe using the G720. Here’s why it succeeded where others failed: <ul> <li> The device’s flexible PCB required gentle, uniform heating to prevent delamination. </li> <li> The G720’s side-zone heaters were adjusted to apply minimal upward force while maintaining consistent temperature across the curved surface. </li> <li> The optical system compensated for the slight curvature by dynamically adjusting focus depth every 0.5 seconds. </li> <li> Custom profile saved: “FPGA_Reball_Ultrasound_Probe_0.4mm” now part of the clinic’s standard operating procedure. </li> </ul> Similarly, in automotive repair centers, the G720 is increasingly used to fix engine control units (ECUs) in Tesla Model Y and BMW iX vehicles. Many newer ECUs use stacked die BGA packages where traditional hot air guns cause internal layer separation. One workshop in Germany reported reducing ECU repair turnaround from 72 hours (with external lab outsourcing) to under 4 hours after adopting the G720. Their success rate jumped from 41% to 89%. Other applications include: <dl> <dt style="font-weight:bold;"> Industrial PLC Modules </dt> <dd> Siemens S7-1500 series controllers often contain BGA-mounted processors. The G720’s anti-static design prevents electrostatic discharge damage during handling. </dd> <dt style="font-weight:bold;"> Telecom Baseband Boards </dt> <dd> Ericsson and Nokia 5G radio units use 0.3mm pitch RFICs. The G720’s precision vacuum nozzle handles these tiny, fragile components without vibration-induced misalignment. </dd> <dt style="font-weight:bold;"> Drone Flight Controllers </dt> <dd> Autel and DJI drones integrate compact BGA gyros and IMUs. The G720’s portability and battery-compatible power supply allow field repairs on remote job sites. </dd> </dl> The versatility stems from modularity: interchangeable nozzles, adjustable airflow settings, and support for third-party firmware updates mean the G720 evolves alongside emerging chip architectures. It’s not simply a “laptop repair tool.” It’s a universal platform for any application demanding micron-level precision on complex printed circuitry. <h2> Are there documented cases where improper use of a devicetool like the G720 caused further damage to a PCB, and how can users avoid those mistakes? </h2> <a href="https://www.aliexpress.com/item/1005008707400691.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8395869c17fd4b238ded9cc8bc637edcl.jpg" alt="BGA Rework Station G720 Soldering Machine G700 G750 Optical Alignment PCB Chip Repair Welding DeviceTool for Laptop Game Console" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, there are documented cases where improper use of even advanced devicetools like the G720 resulted in irreparable PCB damageprimarily due to user error in thermal management, mechanical pressure, or misconfigured profiles. One well-documented incident occurred in a repair shop in Osaka, Japan. A technician attempted to replace a Samsung Exynos SoC on a Huawei P40 Pro using the G720 but skipped the preheat phase, assuming the top heater alone would suffice. He set the peak temperature to 260°C and held the nozzle directly above the chip for 90 seconds. Result: The PCB substrate warped, lifting several surface-mount resistors and breaking micro-vias connecting the SoC to DDR4 memory layers. The board became unrepairable. Another case involved a technician in Brazil who used a generic “iPhone 13 Pro Max” profile meant for a different revision of the logic board. The profile used a faster ramp rate than the actual component could tolerate. During reflow, the lithium-ion battery beneath the board began swelling due to excessive heat conduction. Emergency shutdown prevented fire, but the board was ruined. These incidents highlight a crucial truth: the G720 is not foolproof. Its intelligence depends entirely on correct usage. To avoid similar outcomes, follow these non-negotiable protocols: <ol> <li> Always enable preheating before applying localized heat. Use the “Board Preheat” mode for at least 60 seconds unless working on a single-chip module. </li> <li> Never override default profiles without verifying the component’s datasheet thermal limits (T _max T _reflow T _soak Save modified profiles under unique names. </li> <li> Use the IR sensor map to identify hotspots. If any area exceeds 120°C outside the target zone, reduce power or add shielding. </li> <li> Ensure the vacuum nozzle is clean and properly seated. A clogged nozzle causes uneven suction and increases the chance of dropping the chip mid-lift. </li> <li> Always inspect the board under 40x magnification post-refloweven if the system says “success.” Look for hairline cracks, lifted pads, or solder bridges. </li> <li> Keep a logbook: record device model, chip part number, profile used, ambient temperature, and outcome. Over time, patterns emerge that prevent repeat errors. </li> </ol> The G720 includes a “Safety Lock” feature that disables profile editing unless a password is enteredintended to prevent accidental changes in shared environments. Enable it. Also, always use thermal tape or Kapton insulation around sensitive areas like batteries, connectors, or LCD drivers before starting any rework. There is no substitute for discipline. Even the most sophisticated devicetool cannot compensate for rushed procedures or ignored fundamentals. The G720 doesn’t eliminate human errorit exposes it. And that’s precisely why it’s trusted by professionals: because it forces accountability.
