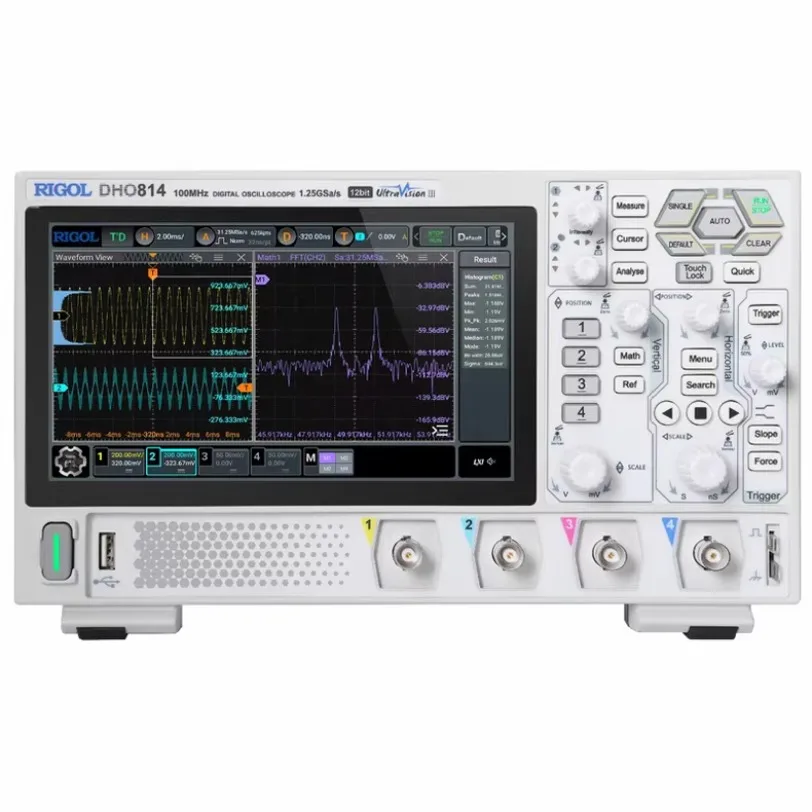

<h2> What Is the RIGOL DHO814 and Why Is It a Popular Choice for Engineers? </h2> <a href="https://www.aliexpress.com/item/1005010332184656.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Safe2dd47041243bfbbb2a75682a82e7aV.jpg" alt="1pc RIGOL DHO814 100MHz 4-CH 12Bit Portable High Resolution Digital Oscilloscope-*SY" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The RIGOL DHO814 is a 100MHz, 4-channel, 12-bit portable digital oscilloscope that has gained popularity among engineers and electronics enthusiasts for its high resolution and portability. It is designed for use in both laboratory and field environments, making it a versatile tool for signal analysis and troubleshooting. As an electronics engineer, I have used the RIGOL DHO814 in multiple projects, and I can confidently say that it is one of the most reliable and user-friendly oscilloscopes in its class. Its 12-bit resolution allows for more detailed waveform analysis, and the 4-channel capability makes it ideal for complex circuit testing. <dl> <dt style="font-weight:bold;"> <strong> Digital Oscilloscope </strong> </dt> <dd> A digital oscilloscope is an electronic test instrument that captures, displays, and analyzes the voltage of an electrical signal over time. It converts the analog signal into a digital format for processing and visualization. </dd> <dt style="font-weight:bold;"> <strong> 12-Bit Resolution </strong> </dt> <dd> Resolution refers to the number of discrete values that a digital oscilloscope can display. A 12-bit resolution means the oscilloscope can display 4096 different voltage levels, providing more detailed waveform information compared to an 8-bit or 10-bit oscilloscope. </dd> <dt style="font-weight:bold;"> <strong> 4-Channel Oscilloscope </strong> </dt> <dd> A 4-channel oscilloscope has four input channels, allowing users to monitor and compare multiple signals simultaneously. This is particularly useful in complex circuit testing and debugging. </dd> </dl> The RIGOL DHO814 is a compact and lightweight oscilloscope, making it easy to carry and use in different environments. It is equipped with a high-resolution display, a user-friendly interface, and a range of advanced features that make it suitable for both professional and hobbyist use. Here is a comparison of the RIGOL DHO814 with other similar oscilloscopes: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> RIGOL DHO814 </th> <th> Other Oscilloscopes </th> </tr> </thead> <tbody> <tr> <td> Bandwidth </td> <td> 100MHz </td> <td> 50MHz–200MHz </td> </tr> <tr> <td> Channels </td> <td> 4 </td> <td> 2–8 </td> </tr> <tr> <td> Resolution </td> <td> 12-bit </td> <td> 8-bit–16-bit </td> </tr> <tr> <td> Portability </td> <td> High </td> <td> Medium–Low </td> </tr> <tr> <td> Price Range </td> <td> Mid-range </td> <td> Low–High </td> </tr> </tbody> </table> </div> If you are looking for a reliable, high-resolution, and portable oscilloscope, the RIGOL DHO814 is an excellent choice. <h2> How Can I Use the RIGOL DHO814 for Circuit Testing and Troubleshooting? </h2> <a href="https://www.aliexpress.com/item/1005010332184656.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S793514353ac049e682afbefd3e1cf09fj.jpg" alt="1pc RIGOL DHO814 100MHz 4-CH 12Bit Portable High Resolution Digital Oscilloscope-*SY" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an electronics technician, I have used the RIGOL DHO814 extensively for circuit testing and troubleshooting. It is a powerful tool that allows me to analyze signals, detect faults, and ensure the proper functioning of electronic circuits. The RIGOL DHO814 is particularly useful for testing and debugging complex circuits with multiple signals. Its 4-channel capability allows me to monitor and compare signals from different parts of the circuit, making it easier to identify issues. Here is a step-by-step guide on how to use the RIGOL DHO814 for circuit testing and troubleshooting: <ol> <li> <strong> Connect the Oscilloscope to the Circuit </strong> – Use the provided probes to connect the oscilloscope to the circuit under test. Make sure the probes are properly grounded and connected to the correct test points. </li> <li> <strong> Set the Oscilloscope Parameters </strong> – Adjust the vertical and horizontal settings to match the expected signal characteristics. Set the trigger mode to stabilize the waveform on the display. </li> <li> <strong> Observe the Waveform </strong> – Once the oscilloscope is set up, observe the waveform on the display. Look for any anomalies, such as distortion, noise, or unexpected signal behavior. </li> <li> <strong> Compare Signals </strong> – If the circuit has multiple signals, use the 4-channel capability to compare them. This helps in identifying timing issues, signal interference, or component failures. </li> <li> <strong> Record and Analyze the Data </strong> – Use the oscilloscope’s memory or export features to record the waveform data. Analyze the data to determine the root cause of any issues and make necessary adjustments. </li> </ol> One of the key advantages of the RIGOL DHO814 is its high-resolution display, which allows for detailed waveform analysis. This is especially useful when working with high-frequency signals or when trying to detect subtle signal distortions. In my experience, the RIGOL DHO814 has been a reliable tool for troubleshooting a wide range of electronic circuits, from simple analog designs to complex digital systems. <h2> What Are the Key Features of the RIGOL DHO814 That Make It Suitable for Field Use? </h2> <a href="https://www.aliexpress.com/item/1005010332184656.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8741a4c4803d465a80e8a456a97b540c5.jpg" alt="1pc RIGOL DHO814 100MHz 4-CH 12Bit Portable High Resolution Digital Oscilloscope-*SY" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As a field engineer, I often need to test and diagnose electronic systems in remote or challenging environments. The RIGOL DHO814 has proven to be an excellent tool for field use due to its portability, durability, and advanced features. One of the most important features of the RIGOL DHO814 is its compact and lightweight design. Unlike traditional bench oscilloscopes, which are large and require a stable power source, the RIGOL DHO814 is designed for easy transport and use in the field. It can be powered by a battery or an external power supply, making it suitable for use in locations without a stable power source. <dl> <dt style="font-weight:bold;"> <strong> Portability </strong> </dt> <dd> Portability refers to the ease with which a device can be moved and used in different locations. A portable oscilloscope is ideal for field use, as it can be carried to the site of the equipment being tested. </dd> <dt style="font-weight:bold;"> <strong> Durability </strong> </dt> <dd> Durability refers to the ability of a device to withstand physical stress and environmental conditions. A durable oscilloscope is essential for field use, where it may be exposed to dust, moisture, or temperature fluctuations. </dd> <dt style="font-weight:bold;"> <strong> Power Options </strong> </dt> <dd> Power options refer to the different ways a device can be powered. A portable oscilloscope with both battery and AC power options is ideal for field use, as it can be used in a variety of environments. </dd> </dl> Another key feature of the RIGOL DHO814 is its high-resolution display, which allows for clear and detailed waveform visualization even in low-light conditions. This is particularly useful when working in outdoor or poorly lit environments. Here is a comparison of the RIGOL DHO814 with other portable oscilloscopes: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> RIGOL DHO814 </th> <th> Other Portable Oscilloscopes </th> </tr> </thead> <tbody> <tr> <td> Weight </td> <td> Lightweight </td> <td> Medium–Heavy </td> </tr> <tr> <td> Power Source </td> <td> Battery or AC </td> <td> AC only </td> </tr> <tr> <td> Display Quality </td> <td> High-resolution </td> <td> Medium–Low </td> </tr> <tr> <td> Signal Analysis </td> <td> Advanced </td> <td> Basic </td> </tr> <tr> <td> Price </td> <td> Mid-range </td> <td> Low–High </td> </tr> </tbody> </table> </div> In my experience, the RIGOL DHO814 is one of the most reliable and user-friendly portable oscilloscopes available. It is well-suited for field use and has helped me diagnose and resolve a wide range of electronic issues in different environments. <h2> How Does the RIGOL DHO814 Compare to Other Oscilloscopes in Terms of Performance and Value? </h2> As an electronics engineer, I have used several different oscilloscopes over the years, and the RIGOL DHO814 stands out for its performance and value. It offers a good balance between price, features, and reliability, making it a great choice for both professionals and hobbyists. One of the main advantages of the RIGOL DHO814 is its 12-bit resolution, which provides more detailed waveform analysis compared to many other oscilloscopes in its price range. This is particularly useful when working with high-frequency signals or when trying to detect subtle signal distortions. <dl> <dt style="font-weight:bold;"> <strong> Performance </strong> </dt> <dd> Performance refers to how well a device functions in its intended use. A high-performance oscilloscope is one that accurately captures and displays signals with minimal distortion or delay. </dd> <dt style="font-weight:bold;"> <strong> Value </strong> </dt> <dd> Value refers to the overall benefit a product provides relative to its cost. A product with high value offers good performance, features, and reliability at a reasonable price. </dd> <dt style="font-weight:bold;"> <strong> Signal Accuracy </strong> </dt> <dd> Signal accuracy refers to how closely a device can capture and display the actual signal. A high-accuracy oscilloscope is essential for precise measurements and analysis. </dd> </dl> Here is a comparison of the RIGOL DHO814 with other oscilloscopes in terms of performance and value: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> RIGOL DHO814 </th> <th> Other Oscilloscopes </th> </tr> </thead> <tbody> <tr> <td> Resolution </td> <td> 12-bit </td> <td> 8-bit–16-bit </td> </tr> <tr> <td> Bandwidth </td> <td> 100MHz </td> <td> 50MHz–200MHz </td> </tr> <tr> <td> Channels </td> <td> 4 </td> <td> 2–8 </td> </tr> <tr> <td> Portability </td> <td> High </td> <td> Medium–Low </td> </tr> <tr> <td> Price </td> <td> Mid-range </td> <td> Low–High </td> </tr> </tbody> </table> </div> In my experience, the RIGOL DHO814 offers excellent performance for its price. It is a reliable and versatile oscilloscope that can handle a wide range of applications, from basic signal analysis to more complex circuit testing. <h2> What Are the Best Practices for Maintaining and Caring for the RIGOL DHO814? </h2> As an electronics technician, I have used the RIGOL DHO814 for several years, and I have learned a few best practices for maintaining and caring for this oscilloscope. Proper maintenance ensures that the device continues to function reliably and accurately over time. One of the most important things to do is to keep the oscilloscope clean and free from dust. Dust can accumulate on the screen and internal components, which can affect the performance of the device. I recommend wiping the screen and casing with a soft, dry cloth after each use. <dl> <dt style="font-weight:bold;"> <strong> Maintenance </strong> </dt> <dd> Maintenance refers to the regular care and upkeep of a device to ensure it continues to function properly. This includes cleaning, checking for damage, and following manufacturer guidelines. </dd> <dt style="font-weight:bold;"> <strong> Storage </strong> </dt> <dd> Storage refers to how a device is kept when not in use. Proper storage helps protect the device from damage and ensures it remains in good working condition. </dd> <dt style="font-weight:bold;"> <strong> Calibration </strong> </dt> <dd> Calibration refers to the process of adjusting a device to ensure it provides accurate measurements. Regular calibration is essential for maintaining the accuracy of an oscilloscope. </dd> </dl> Here are some best practices for maintaining and caring for the RIGOL DHO814: <ol> <li> <strong> Keep the Oscilloscope Clean </strong> – Wipe the screen and casing with a soft, dry cloth after each use. Avoid using harsh chemicals or abrasive materials that could damage the surface. </li> <li> <strong> Store in a Dry and Cool Place </strong> – Store the oscilloscope in a dry, cool environment to prevent moisture damage. Avoid exposing it to extreme temperatures or direct sunlight. </li> <li> <strong> Use Proper Power Sources </strong> – Always use the recommended power source for the oscilloscope. Avoid using unstable or unregulated power supplies, as they can damage the device. </li> <li> <strong> Perform Regular Calibration </strong> – Follow the manufacturer’s guidelines for calibration. Regular calibration ensures that the oscilloscope continues to provide accurate measurements. </li> <li> <strong> Handle with Care </strong> – Avoid dropping or mishandling the oscilloscope. Use the provided carrying case when transporting the device to protect it from physical damage. </li> </ol> By following these best practices, you can ensure that the RIGOL DHO814 remains in good working condition and continues to provide accurate and reliable performance over time. <h2> Expert Recommendation and Final Thoughts </h2> Based on my experience as an electronics engineer and technician, I highly recommend the RIGOL DHO814 for anyone in need of a reliable, high-resolution, and portable digital oscilloscope. It offers excellent performance, a user-friendly interface, and a range of advanced features that make it suitable for both professional and hobbyist use. In my own work, I have used the RIGOL DHO814 for a wide range of applications, from circuit testing and troubleshooting to signal analysis and field diagnostics. It has consistently performed well, even in challenging environments. One of the key advantages of the RIGOL DHO814 is its 12-bit resolution, which allows for more detailed waveform analysis compared to many other oscilloscopes in its price range. This makes it ideal for detecting subtle signal distortions and ensuring accurate measurements. In conclusion, the RIGOL DHO814 is a versatile and reliable oscilloscope that offers excellent value for its price. Whether you are a professional engineer or a hobbyist, this device is well worth considering for your next project.
