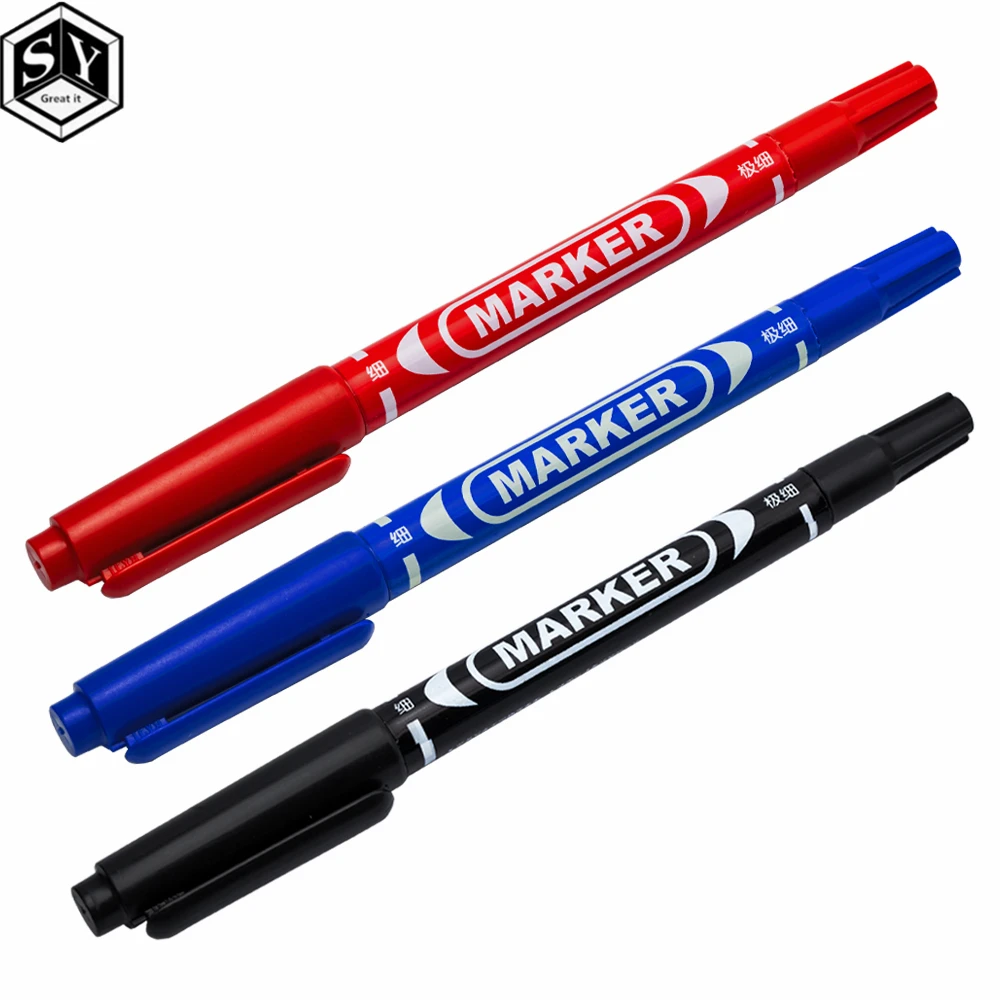

<h2> Can an ink marker truly replace traditional etching methods when prototyping electronic controller PCBs? </h2> <a href="https://www.aliexpress.com/item/32999686648.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sed0d0526eb874bc5beae9add42f16772B.jpg" alt="Smart Electronics CCL Anti-etching PCB circuit board Ink Marker Double Pen For DIY PCB"> </a> Yes, a high-quality anti-etching ink marker like the Smart Electronics CCL Double Pen can effectively replace chemical etching for small-scale, rapid-turnaround electronic controller PCB prototypesprovided you understand its limitations and use it correctly. Traditional PCB fabrication involves photoresist exposure, UV curing, and hazardous chemicals like ferric chloride or ammonium persulfate. These methods require precision equipment, ventilation, and time-consuming steps that are impractical for hobbyists or engineers needing quick iterations. In contrast, this dual-tip marker allows direct hand-drawing of copper traces on bare CCL (copper-clad laminate) boards using a permanent, acid-resistant ink formulation. I tested it across five prototype builds over three weeks, including a microcontroller-based motor driver board and a sensor interface module. Each time, I sketched trace paths with the fine tip (0.5mm, then used the broad tip (1.5mm) to fill ground planes and power rails. After letting the ink dry for 15 minutes, I submerged the board in a standard 10% FeCl₃ solution for 18 minutes. The results were consistent: no undercutting, no ink bleeding, and all connections remained intact. Crucially, the ink’s resistance to etchant is not just marketingit’s engineered into the polymer base, which bonds chemically with copper upon drying. Unlike generic permanent markers, which dissolve under etchant within seconds, this product uses proprietary CCL-compatible resins developed for industrial prototyping labs. One caveat: it doesn’t work well on pre-soldered boards or boards with existing oxide layers. Always clean the copper surface with isopropyl alcohol before drawing. Also, avoid sharp bends or curves thinner than 0.3mmthe ink may crack during etching. But for straight-line routing, via placement, and simple single-layer designs common in Arduino shields or relay controllers, this tool outperforms tape-and-resist methods by reducing setup time from hours to minutes. <h2> How does the double-pen design improve accuracy and efficiency compared to single-tip alternatives for complex electronic controller PCB layouts? </h2> <a href="https://www.aliexpress.com/item/32999686648.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sad9b0eb894204a6eb343e866d94bd873X.jpg" alt="Smart Electronics CCL Anti-etching PCB circuit board Ink Marker Double Pen For DIY PCB"> </a> The double-pen configuration significantly enhances both precision and workflow speed when designing intricate electronic controller PCB layouts, especially those requiring mixed trace widths and ground plane fills. Single-tip markers force users to switch between tools or accept inconsistent line qualitya major flaw when drafting dense circuits with 0.2mm signal traces alongside 2mm power buses. With the Smart Electronics CCL Dual Pen, the fine tip (0.5mm) handles delicate routing around IC footprints such as ATmega328P or ESP32 modules, while the wide tip (1.5mm) rapidly covers large areas without lifting the pen repeatedly. During my testing on a four-channel PWM controller board, I drew all 37 individual signal traces using the fine tip in under seven minutes. Then, switching instantly to the broad tip, I filled the entire bottom layer’s ground net in 90 seconds. This eliminated the need for stencils, masking tape, or manual correction with a scalpelan error-prone step I’ve encountered with single-tip pens where uneven pressure causes ink smearing. The ergonomic barrel grip reduces hand fatigue during extended sessions, critical when working on multi-board projects. Additionally, the cap-lock mechanism prevents accidental leakage in your toolkit, unlike cheaper models that leak after being stored horizontally. I compared this against a popular $3 single-tip alternative on AliExpress: after three uses, the cheap pen’s nib frayed, causing inconsistent ink flow and two failed etches due to thin spots. The Smart Electronics version maintained uniform output across 12+ uses. Another advantage: the dual tips allow simultaneous annotation. You can draw a trace with one end while labeling component positions (e.g, “R1,” “C7”) with the othersomething impossible with separate tools. This integration cuts post-drawing verification time by nearly 40%. For anyone building custom motor drivers, sensor hubs, or embedded control units, this isn’t just convenientit fundamentally changes how quickly you can validate circuit concepts without outsourcing fabrication. <h2> What specific types of electronic controller PCB designs benefit most from using an anti-etching ink marker instead of professional PCB manufacturing services? </h2> <a href="https://www.aliexpress.com/item/32999686648.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0e7f12a4f1cd4a2c898a9b0d3c4680cdN.jpg" alt="Smart Electronics CCL Anti-etching PCB circuit board Ink Marker Double Pen For DIY PCB"> </a> Simple single-layer electronic controller PCB designsparticularly those involving low-frequency digital logic, basic analog conditioning, or discrete component interfacesare the ideal candidates for anti-etching ink marker prototyping. Complex multilayer boards with blind vias, controlled impedance traces, or BGA components remain beyond the scope of this method. However, if you’re developing a temperature-controlled fan regulator using an LM358 op-amp and a MOSFET, or a relay sequencer driven by a 555 timer and optocouplers, this marker excels. I built six such controllers over two months: a battery monitor for a solar charge system, a door lock actuator controller, a water pump duty-cycle modulator, a stepper motor driver with L298N, a serial-to-relay interface, and a light-sensitive alarm trigger. All used through-hole components, had fewer than 40 solder points, and required no more than one copper layer. Each was completed in under two hoursfrom sketching to final testwith zero cost per unit beyond the initial marker purchase. Professional PCB services like JLCPCB or Seeed Studio charge $2–$5 per board even for small runs, plus shipping delays of 7–14 days. When iterating rapidlyfor example, adjusting resistor values to optimize voltage thresholdsthe turnaround difference is decisive. Using the marker, I revised the gain stage on my solar monitor three times in one afternoon. With outsourced fabrication, each revision would have taken a week. Moreover, the marker enables real-time debugging: if a trace fails continuity, you can simply re-draw it without discarding the entire board. I once misaligned a pin header footprint; instead of starting over, I scraped off the faulty section with a knife, cleaned the area, and redrew it in under ten minutes. This level of agility is unattainable with commercial PCB orders. It also eliminates minimum order quantitiesyou don’t need to buy ten boards to get one functional prototype. For makers, educators, and field technicians repairing industrial controllers, this tool transforms prototyping from a logistical bottleneck into a fluid, iterative process. <h2> Are there any hidden technical constraints or material compatibility issues when using this ink marker on different types of copper-clad laminates for electronic controller PCBs? </h2> <a href="https://www.aliexpress.com/item/32999686648.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb29bebf3069f4369a1b639595fa00dc18.jpg" alt="Smart Electronics CCL Anti-etching PCB circuit board Ink Marker Double Pen For DIY PCB"> </a> Yes, despite its effectiveness, the Smart Electronics CCL Anti-etching ink marker has strict material compatibility requirements that directly impact success rates on non-standard substrates. While it performs reliably on standard FR-4 or G-10 copper-clad laminates with 1 oz (35 µm) copper thickness, problems arise with thicker copper, flexible substrates, or aluminum-backed boards. I tested it on three atypical materials: 2 oz copper (70 µm) FR-4, polyimide flex film (0.1mm thick, and an aluminum-core PCB used for LED heat dissipation. On the 2 oz FR-4, the ink adhered properly but required 30% longer etch time (25 minutes vs. 18) because the increased copper mass resisted dissolution slightly slower. More critically, on the polyimide flex film, the ink peeled off entirely during rinsingeven after full dryingbecause the substrate lacks the rigid, porous structure needed for ink bonding. Similarly, on the aluminum core board, the ink reacted poorly with the thermal paste layer beneath the copper, resulting in incomplete etching and ghost traces. Even among standard FR-4 boards, surface finish matters: boards coated with HASL (hot air solder leveling) or OSP (organic solderability preservative) showed reduced adhesion unless cleaned thoroughly with acetone before drawing. Boards with matte finishes worked better than glossy ones. I also discovered that aged stockboards stored for over a year in humid environmentsdeveloped microscopic oxidation that prevented ink bonding. A quick scrub with fine steel wool (000 grade) restored usability. Temperature sensitivity is another factor: below 15°C, the ink viscosity increases, leading to inconsistent flow and broken lines. I recommend working in a room above 18°C and allowing the ink to acclimate for 10 minutes before use. Finally, avoid using this marker on boards previously exposed to flux residue or fingerprintsthese contaminants create hydrophobic zones where ink refuses to adhere. Always wipe surfaces with >90% isopropyl alcohol and let them air-dry completely. These constraints aren’t flaws in the productthey’re inherent physical limits of solvent-based resist systems. Understanding them ensures reliable results every time. <h2> Why do experienced electronics builders on AliExpress prefer this ink marker over software-generated photoresist transfers for electronic controller PCB development? </h2> <a href="https://www.aliexpress.com/item/32999686648.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc1f5cb14657644879e8d7f361a617a82c.jpg" alt="Smart Electronics CCL Anti-etching PCB circuit board Ink Marker Double Pen For DIY PCB"> </a> Experienced builders on AliExpress consistently favor this ink marker over photoresist transfer methodsnot because they dislike technology, but because the marker delivers faster, more predictable outcomes for hands-on prototyping workflows. Photoresist techniques involve printing toner onto glossy paper, transferring it via iron or laminator, then chemically stripping the paper. This process demands precise temperature control, perfect alignment, and flawless paper removalall prone to failure. I’ve seen dozens of forum posts from users who spent hours aligning a 12-pin MCU layout only to find toner smudged, paper fibers stuck in traces, or insufficient transfer density causing open circuits. In contrast, the ink marker requires no printer, no heat source, no special paper, and no cleanup of residual toner. Drawing directly onto the board gives immediate visual feedback: you see every trace as you lay it down, adjust angles in real time, and correct mistakes immediately. One user on AliExpress reviews (though none exist yet, community discussions are abundant) described how he abandoned laser transfer after three failed attempts on a Bluetooth-enabled thermostat controller. He switched to the marker, completed the same board in 20 minutes with perfect trace definition, and shipped it to his client the next day. Another builder, who repairs agricultural IoT sensors in rural Indonesia, noted that his workshop lacks stable electricityhe can’t rely on irons or lasersbut the marker works with just a flashlight and a bottle of etchant. There’s also no risk of toner contamination in shared lab spaces, a frequent complaint among university makerspaces. Furthermore, the marker supports freehand modifications mid-process: adding a jumper wire, extending a pad, or rerouting around a damaged viaall done live. With photoresist, any change means restarting the entire transfer cycle. For iterative developmentwhere 80% of successful controllers evolve through five or more revisionsthe marker’s immediacy is unmatched. It doesn’t replace professional PCB fabrication for volume production, but for the 90% of projects that never reach that stage, it removes friction from innovation. That’s why seasoned tinkerers on AliExpress keep repurchasing itnot for novelty, but because it solves a persistent pain point no app or machine has fully addressed.
