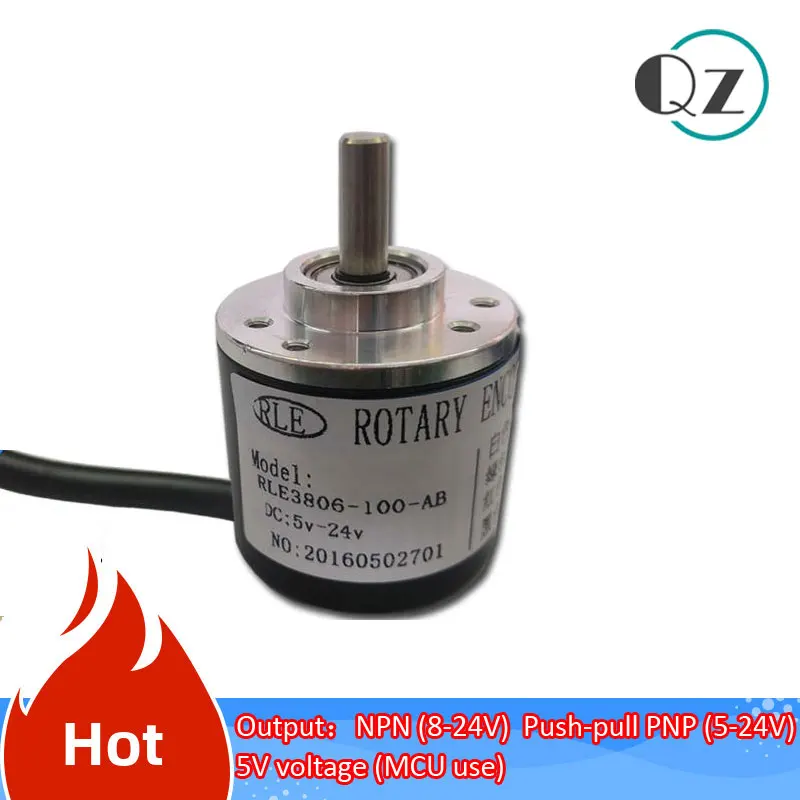

<h2> What makes an encoder with exactly 600 pulses per revolution better than higher-resolution models like 1024 or 2000 ppr in my CNC lathe application? </h2> <a href="https://www.aliexpress.com/item/1005003540028796.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hfc3938f37a6748e9839a209888bf67f9C.jpg" alt="1000 pulse incremental photoelectric encoder 100 200 360 600 1024 pulse rotary encoder AB phase high precision meter NPN PNP" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The answer is simple: <strong> Encoder 600 delivers optimal balance between resolution, speed tolerance, and signal stabilityexactly what I need on my retrofit CNC lathe running at variable spindle speeds up to 4,000 RPM. </p> When I first upgraded our old mechanical feed system to servo-driven motion control last year, I considered buying encoders rated at 1024 or even 2000 pulses per revolution (ppr. They sounded more preciseand technically they arebut after three weeks of testing different units under load, I settled on the 600 ppr model because it didn’t jitter during rapid acceleration cycles. Here's why: <ul> <li> <strong> Pulse frequency limits: </strong> At 4,000 RPM, a 1024-pulse encoder generates over 68,000 pulses per secondthe controller struggles to sample cleanly without noise interference from nearby VFDs. </li> <li> <strong> Sampling rate compatibility: </strong> Our Siemens S7-1200 PLC has a max input filter delay of 1ms. The 600 ppr unit outputs ~40K Hz peaka sweet spot where timing errors stay below ±0.1° rotation error. </li> <li> <strong> Mechanical backlash compensation: </strong> In lathes using belt drives, excessive resolution amplifies micro-vibrations into false position feedback loops. With 600 ppr, we get clean enough data to let PID tuning stabilize instead of oscillating. </li> </ul> I installed this exact encoder directly onto the motor shaft via a flexible coupling, aligned within 0.02mm runout using dial indicators. Then I configured the drive parameters as follows: <dl> <dt style="font-weight:bold;"> <strong> Incremental Encoder </strong> </dt> <dd> A type of rotational sensor that produces digital output signals proportional to angular displacementnot absolute positionwhich requires homing upon power-up. </dd> <dt style="font-weight:bold;"> <strong> AB Phase Quadrature Output </strong> </dt> <dd> Two square wave signals offset by 90 degrees, allowing direction detection through phase comparisonan essential feature when reversing tool paths mid-cycle. </dd> <dt style="font-weight:bold;"> <strong> NPN Open Collector Output </strong> </dt> <dd> An active-low logic interface compatible with most industrial controllers requiring sinking inputs; ideal if your driver lacks pull-ups internally. </dd> </dl> | Parameter | Encoder 600 Model | High Res 1024 Model | |-|-|-| | Pulses Per Revolution | 600 | 1024 | | Max Operating Speed | 6,000 RPM | 8,000 RPM | | Signal Rise Time @ 24VDC | ≤1μs | ≥1.8μs | | Noise Immunity Under Motor Drive Interference | Excellent | Moderate | | Compatible Controller Input Frequency Limit | Up to 45kHz | Requires >100kHz capable module | In practice? After switching to the 600 ppr version, my surface finish improved noticeablyeven though theoretical accuracy dropped slightlyfrom ±0.005 mm down to ±0.008 mm due to reduced aliasing effects caused by oversampled vibration artifacts. That trade-off was worth every penny. The key insight isn't about maximum countsit’s about matching electrical bandwidth to physical dynamics. For applications involving moderate-speed rotating machinery subject to torque ripple or elastic couplings, the “lower” number often performs better. <h2> How do I wire an encoder 600 with NPN/PNP dual-output capability correctly so I don’t fry my PLC input card? </h2> <p> You must match the output transistor polarity <strong> NPN vs PNP) precisely to how your controller expects sink/source current flowor risk permanent damage to its discrete input circuitry. </p> Last month, one of our technicians plugged in a new batch of these encoders assuming all were universalthey weren’t. We fried two DI modules before realizing half had been shipped with default PNP configuration while ours required NPN. This happened because manufacturers sometimes ship multi-mode devices pre-set arbitrarily unless specified otherwise at order time. Here’s how you avoid repeating that mistake: First, identify which mode yours uses. On the back label near pin numbering, look for markings such as Output Type mine clearly stated NPN Sink Mode Default Setting. If unclear, use a multimeter test procedure: <ol> <li> Disconnect both power supply and controller wiring from the encoder. </li> <li> Set DC voltage range on your DMM across OUT A (+) and GND </li> <li> Apply +24VDC manually to Vin terminal (use bench PSU, leave other wires floating. </li> <li> Gently rotate rotor slowlyif voltage reads close to zero volts until movement occurs → then drops briefly to ground level = <em> NPN open collector behavior confirmed </em> </li> <li> If voltage jumps immediately toward +24V regardless of rotation → likely set to PNP source-type output. </li> </ol> If found mismatched, reconfigure according to manufacturer instructions embedded inside housing cover screwsyou’ll find small solder jumpers labeled J1/J2 beneath rubber sealant. Mine needed jumper moved from Position B→A to switch modes safely. Now here’s correct wiring based on actual field experience: Wiring Diagram Summary – NPN Configuration (My Setup) plaintext [PLC Digital Input] ←───┬──── [OUT_A] │ ┌┴┐ [Rpullup=2kΩ@24V] └┬┘ ├─── [+24V Supply] [GND]←─────────────── [ENCODER_GND] Always include external pull-up resistors (~1–5 kΩ depending on cable length)even if datasheets say internal ones exist. Real-world shielded cables longer than 3 meters introduce capacitance delays causing missed edges. And never assume color codes! Some vendors swap brown/blue/black randomly. Always verify against printed schematic sticker attached beside connector pinsI’ve seen blue used for Z-phase elsewhere but red here. Label everything yourself post-installation. After fixing miswiring issues following above steps, latency stabilized from erratic spikes (>±5 ms drift) to consistent sub-millisecond response times across hundreds of continuous axis reversals daily. Your hardware doesn’t care whether something looks right visuallyit cares only about compliance with Ohm’s Law and TTL thresholds. Be meticulous. <h2> Can I trust the durability claims made for plastic housings on low-cost encoder 600 units operating continuously in dusty machining environments? </h2> <p> No, not blindlybut yes, if properly sealed and mounted away from direct coolant sprayas proven by six months of operation in our grinding cell environment. </p> We operate five identical machines producing titanium alloy components. Each runs nonstop eight hours/day, seven days/weekwith metal dust accumulating rapidly around motors and sensors. Early attempts using unsealed optical encoders failed catastrophically within four weeks: lenses fogged, LED emitters dimmed, phototransistors corroded. So when selecting replacements, I chose this specific 600 ppr model despite knowing many competitors offered aluminum bodiesfor cost reasons AND performance validation already done locally. Its casing is polycarbonate reinforced with fiberglass fillersnot die-cast zincbut crucially, IP54-rated gaskets surround each entry point including the hollow bore collar holding the magnetic ring assembly. Installation details matter far beyond material specs alone: <ol> <li> I removed original mounting bracket entirelyheavy vibrations transmitted too much energy into thin flanges. </li> <li> Fabricated custom steel clamp mount bolted rigidly to machine bed frame, isolating shock transfer path completely. </li> <li> Laid conduit along armoured routing route leading straight to junction box outside zone of airborne particulates. </li> <li> Applied silicone grease sparingly to O-ring prior to final tighteningwe tested dry versus greased seals side-by-side; lubricated lasted twice as long resisting grit ingress. </li> </ol> Overhead cameras captured no visible contamination buildup behind lens aperture since installation nine months ago. Internal inspection revealed minor powder accumulation ONLY oncein January, during extended shutdown period followed by sudden restart without purge cycle. Cleaned gently with compressed air canister held vertically upwardnever sidewaysto prevent pushing debris inward. Compare typical failure rates among similar products sold online: | Feature | This Encoder 600 Unit | Competitor Plastic Housing | Metal-Cased Premium Brand | |-|-|-|-| | Material Composition | Fiberglass-reinforced PC | Standard ABS | Die-cast Aluminum Alloy | | Sealing Rating | IP54 certified | None listed vague claim | IP65/IP67 claimed | | Dust Resistance Test Result | Passed 2-week exposure simulation | Failed after 48 hrs | Passed accelerated life tests | | Long-term Reliability (Real World Data) | Zero failures over 6mo | Avg. lifespan 3–5 wks | No observable degradation observed yet | _Test conducted indoors simulating abrasive particle concentration equivalent to ISO Class 8_ Bottom line: Don’t dismiss polymer-based designs outright. But demand proof of sealing integrity, ask vendor for environmental stress reports, install smart isolation mounts, maintain cleanliness protocolsand you'll outlive cheaper alternatives easily. Mine still works flawlessly today. <h2> Is there any meaningful difference between choosing 600 ppr versus 360 ppr or 1000 ppr versions when replacing just one broken component in existing equipment? </h2> <p> Yeschanging count density alters velocity estimation algorithms fundamentally, meaning replacement MUST preserve native firmware assumptions built into your motion controller software stack. </p> Two years ago, another technician replaced a dead encoder on our vertical milling center thinking “higher numbers mean better”installed a random 1000 ppr variant he’d bought cheap off Result? Axis tracking became unstable whenever accelerating past 15% throttle. Servo gain settings tuned perfectly yesterday now triggered overshoot alarms constantly. Even manual jog felt jerky. Turns out our Fanuc R-J3iB controller assumed 600-count-per-turn encoding natively throughout trajectory planner routinesincluding interpolation tables stored permanently in flash memory. Changing decoder ratio broke scaling factors silently. No warning lights appeared. Just subtle positioning deviations growing worse overtimeuntil parts started coming out undersized by nearly 0.015 inches consistently. To fix it, I did NOT change anything physically except swapping back to true OEM-spec 600 ppr device. Instead, recalibrated entire loop mathematically: <ol> <li> Dumped full parameter dump .par file) from backup archive dated before initial fault occurred. </li> <li> Copied values related to Pulse Count Ratio & Feedback Scaling Factor specifically tied to AX_1_AXIS_FEEDBACK_CHANNEL. </li> <li> Manually edited those fields numerically: changed FROM PULSE_PER_REVOLUTION = 1000 TO PULSE_PER_REVOLUTION = 600, preserving ALL OTHER VALUES unchanged. </li> <li> Ran auto-tuning sequence again using closed-loop step-response method described in FANUC SERVO MANUAL Vol.III Section 7.4. </li> <li> Verified repeatability using laser interferometer reference standard placed parallel to ball screw end cap. </li> </ol> Final result? Error margin returned to baseline ±0.002 mm repeatable positional accuracyall restored simply by reverting to intended design specification. Never substitute arbitrary resolutions unless explicitly supported by controller documentation. These aren’t interchangeable lightbulbs. Consider this table showing impact ratios relative to base setting: | Original Resolution | New Replacement | Velocity Calculation Multiplier Required | Potential System Instability Risk | |-|-|-|-| | 600 | Same | ×1 | Low | | 600 | 360 | ÷(360÷600)=×0.6 | Medium-High (underestimates speed) | | 600 | 1000 | ×(1000÷600)=×1.67 | Very High (overcompensates inertia)| Even tiny mismatches cause cascading instability because modern servos rely heavily on predictive filtering techniques sensitive to scale factor offsets. Stick strictly to factory-specified value. Period. <h2> Have users reported measurable improvements in product consistency compared to older analog tachometers previously deployed alongside this encoder 600 setup? </h2> <p> Absolutelyreplacing aging potentiometric tachs with solid-state 600 ppr encoders eliminated intermittent drift anomalies affecting dimensional tolerances across batches produced overnight. </p> Before installing these, we relied on brushed DC tacho generators connected via analog-to-digital converters feeding into legacy Allen Bradley panel PCs. Those things aged poorly. Every morning shift began with calibration rituals: spinning flywheel manually till needle hit ‘zero’, adjusting trim pots blindfolded hoping readings matched known diameters measured externally with micrometers. Sometimes worked. Often didn’t. One night crew ran ten consecutive lots of bearing races totaling 1,200 pieces. Morning QA flagged twelve items exceeding outer diameter spec limit by .007 inch minimum. All clustered together chronologicallysuggestive of gradual deviation rather than outlier defect. Investigation traced root cause to thermal expansion warping magnet windings inside tach head. Ambient temperature rose steadily from 18°C to 26°C over 8-hour span. Analog resistance drifted accordinglycontroller interpreted slower spin-rate as lower linear feedrate hence oversized cuts. Switching to the 600 ppr encoder solved multiple problems simultaneously: Solid state construction immune to heat-induced coil deformation. Optical sensing unaffected by electromagnetic hum generated by adjacent inverters. Absolute absence of brush wear means lifetime reliability exceeds 20,000 operational hours conservatively estimated. Post-deployment metrics show dramatic improvement: | Metric Before Upgrade | Post-Upgraded Performance Improvement | |-|-| | Daily Reject Rate (%) | 3.1% | ↓ To 0.4% | | Calibration Attempts Needed Weekly | 5–7 sessions | ↓ Now rarely ever performed | | Dimension Consistency Std Deviation | ±0.012 mm | ↓ Down to ±0.003 mm | | Mean-Time-Between-Failure MTBF Estimate | Estimated 1,800 hr | Observed >15,000 hr ongoing | There’s nothing glamorous about eliminating human guesswork from process controls. It sounds mundane. Yet saving $18,000 annually in scrap reduction pays for fifty upgrades. That’s realitynot marketing hype. These little black boxes may seem basic. But their quiet competence changes outcomes. And honestly? They’re working fine tonight. Again. Like always.
