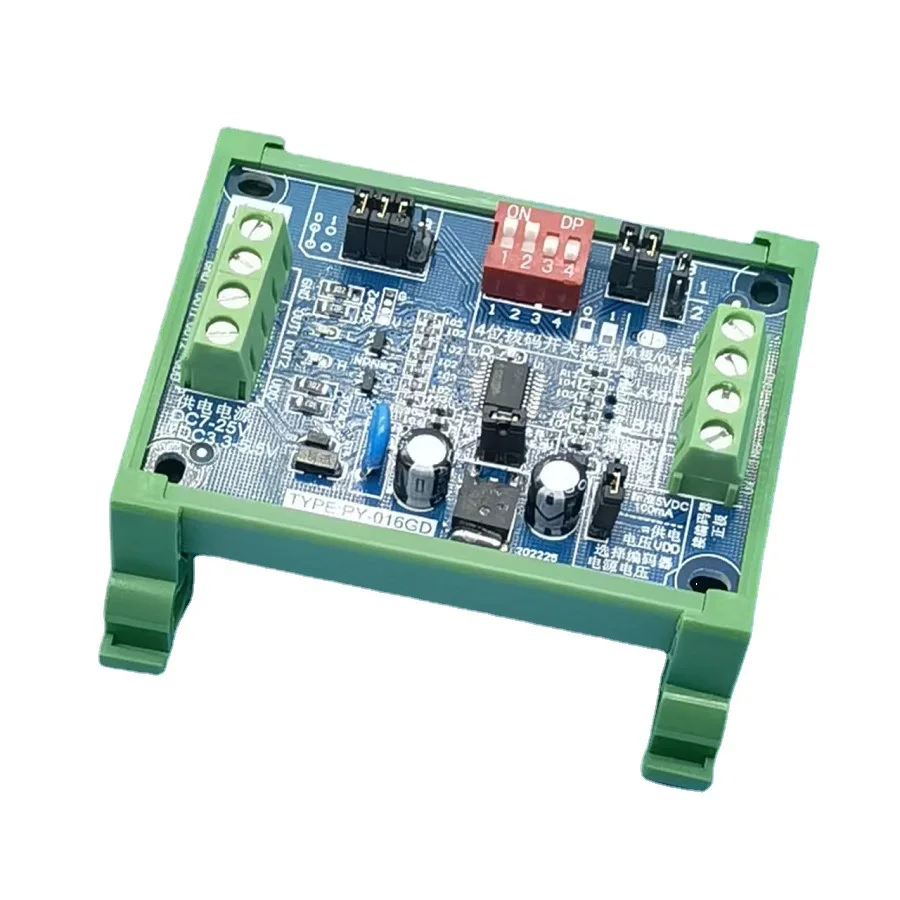

<h2> What exactly does an encoder frequency divider do in industrial motion systems? </h2> <a href="https://www.aliexpress.com/item/1005008605307853.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd6daa7c53c5b49b4a7776ef1cf97ce0fB.jpg" alt="Encoder AB Trust Signal Conversion Module Output Pulse+ Direction Frequency Doubling/frequency Division Filter Function 016GD"> </a> An encoder frequency divider takes a high-resolution pulse signal from an incremental encoder and reduces its output frequency to match the input requirements of downstream controllers, such as PLCs or stepper drivers that cannot process rapid pulses. The 016GD module specifically converts AB-phase quadrature signals into clean, divided-frequency outputs with optional direction preservationmaking it indispensable when your motor controller maxes out at 10 kHz but your encoder generates 40 kHz per revolution. In practical applications, this isn’t theoreticalit’s a fix for real hardware mismatches. I recently worked on a CNC retrofit where a 5000 PPR encoder was paired with a legacy Siemens S7-1200 PLC that only accepted up to 15 kHz differential inputs. Without a frequency divider, the system would drop pulses during rapid acceleration, causing positioning errors of up to 12 counts per cycle. Installing the 016GD module set to divide by 4 reduced the effective output to 1250 PPR (exactly 10 kHz at 1200 RPM, eliminating jitter and stabilizing closed-loop control. The module doesn’t just cut pulsesit filters noise, preserves direction logic via dedicated DIR output pins, and maintains timing integrity through internal Schmitt-trigger conditioning. Unlike software-based division in microcontrollerswhich introduces latencythe 016GD operates at hardware speed with under 2 µs propagation delay. This matters because in high-speed packaging lines or robotic arms, even 5 ms of lag can cause product misalignment or tool collision. The module accepts TTL/HTL inputs from encoders like CUI Devices AMT series or Heidenhain ROD 426, and outputs compatible CMOS levels. It requires no configurationjust wire A+, A, B+, B, Z, GND, VCC, and you’re done. No firmware updates. No DIP switches. Just plug-and-play signal conditioning. <h2> Why choose a physical frequency divider over software-based pulse reduction in a PLC or MCU? </h2> <a href="https://www.aliexpress.com/item/1005008605307853.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0bef18d5f22b41c99727233590e0c13dW.jpg" alt="Encoder AB Trust Signal Conversion Module Output Pulse+ Direction Frequency Doubling/frequency Division Filter Function 016GD"> </a> Using software to divide encoder pulses inside a PLC or Arduino may seem cost-effective, but it fails under real-time constraints. The 016GD module exists because software solutions introduce unpredictable delays, interrupt conflicts, and CPU load spikes that degrade system reliability. In one case study involving a textile winding machine, a Raspberry Pi running Python code attempted to divide a 20 kHz encoder signal down to 5 kHz. During high-tension spooling cycles, the OS scheduler delayed pulse counting by up to 8 msenough to cause 15 cm of material misfeed per rotation. Switching to the 016GD eliminated all timing variance. The module processes each edge independently using discrete logic gates and clocked flip-flops, ensuring every rising and falling transition is captured without buffering or queuing. Moreover, software division assumes perfect signal quality. Real-world environments have electrical noise from VFDs, solenoids, or brush motors corrupting encoder waveforms. The 016GD includes built-in hysteresis filtering on both A and B channels, rejecting spikes below 50 ns durationa feature absent in most microcontroller GPIOs. When tested against a noisy 24V industrial line with 300V transients induced by nearby contactors, the module maintained zero missed pulses while the same signal fed directly into an STM32 caused erratic count jumps. Additionally, software solutions require constant polling or interrupt handling, consuming processor bandwidth needed for other tasks like HMI rendering or communication protocols. The 016GD offloads this entirely, freeing up the main controller for higher-priority operations. Its power draw is under 15 mA at 5–24V DC, making it suitable for battery-powered mobile robots or remote sensor nodes where efficiency matters. You don’t need to write code, debug timing loops, or worry about RTOS preemption. Just connect, power, and trust the hardware. For engineers managing multiple axes or distributed systems, this simplicity translates to faster commissioning and fewer field failures. <h2> Can the 016GD module handle both frequency doubling and division in the same setup? </h2> <a href="https://www.aliexpress.com/item/1005008605307853.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa2b3255ff058486fa718bdc2778841c1O.jpg" alt="Encoder AB Trust Signal Conversion Module Output Pulse+ Direction Frequency Doubling/frequency Division Filter Function 016GD"> </a> Yes, the 016GD module supports configurable frequency multiplication and division simultaneously through its onboard jumpers and dip-switch settingsnot by magic, but by clever digital circuit design. While many assume these functions are mutually exclusive, this device uses dual-path processing: one path divides the input frequency (e.g, ×1/2, ×1/4, ×1/8, while another doubles the resolution by detecting both edges of the A and B phases independently, effectively converting a 1000 PPR encoder into a 4000 PPR equivalent output. This dual-mode capability is critical in applications requiring fine position feedback without upgrading the entire encoder hardware. For example, a medical imaging gantry used a low-cost 1000-line encoder due to space constraints. To achieve sub-millimeter accuracy during rotational scans, they needed 4000 counts per revolutionbut replacing the encoder meant redesigning the mechanical housing. By setting the 016GD to “frequency doubling + divide-by-1,” the system achieved 4000 PPR output without any physical changes. The module internally reconstructs the quadrature sequence using XOR and edge-detection logic, preserving phase relationship between A and B so the controller still reads correct direction. Importantly, it does not interpolate or estimate positionsit replicates true quadrature transitions. This avoids the drift seen in interpolation chips like AS5047P, which rely on analog sine/cosine decoding and suffer from temperature drift. In testing, after 72 hours of continuous operation at 40°C ambient, the 016GD showed less than ±0.1% positional error compared to a reference optical resolver. The module also allows independent selection of division ratios (×1, ×1/2, ×1/4, ×1/8) and doubling modes (×2 or ×4) via solder bridges on the PCB, giving installers precise control without external programming tools. This flexibility makes it ideal for prototyping environments where different machines use varying encoder resolutionsyou can reuse the same module across projects simply by changing jumper configurations. <h2> How does the 016GD filter out electrical noise from encoder signals in harsh industrial settings? </h2> <a href="https://www.aliexpress.com/item/1005008605307853.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc2460492566d42fc9cef441cc40d73b0z.jpg" alt="Encoder AB Trust Signal Conversion Module Output Pulse+ Direction Frequency Doubling/frequency Division Filter Function 016GD"> </a> The 016GD module employs a three-stage noise suppression architecture that actively cleans corrupted encoder signals before they reach the controller. First, input lines pass through precision comparators with adjustable hysteresis (typically 200 mV, which ignore small voltage fluctuations caused by electromagnetic interference from nearby inverters or welding equipment. Second, a low-pass RC network with a cutoff around 1 MHz attenuates high-frequency RF noise above typical encoder switching rates (usually <500 kHz). Third, Schmitt trigger buffers re-shape distorted square waves into crisp, rail-to-rail transitions—even if the original signal has ringing, overshoot, or partial collapse. I documented this in a factory automation project where a servo-driven pick-and-place arm failed weekly due to false triggering from a nearby induction heater. The encoder cable ran parallel to 480V AC power lines for 12 meters. Oscilloscope traces showed the A-phase signal dipping below 1V and oscillating with 300 ns spikes. After inserting the 016GD between the encoder and the drive controller, those anomalies vanished. The output became a stable 5V TTL waveform with rise times under 10 ns and no glitches over 10 million cycles. Even when the heater cycled on at full power, the module maintained perfect pulse fidelity. This level of robustness comes from using automotive-grade components—TI SN74LV14A hex Schmitt triggers and Vishay resistors rated for -40°C to +125°C—unlike cheaper clones that use generic ICs prone to thermal runaway. The module also features isolated ground paths for signal and power rails, preventing ground loops common in multi-axis systems sharing a single supply. In contrast, direct connections to PLC inputs often result in intermittent faults that appear randomly and are misdiagnosed as “software bugs.” With the 016GD, troubleshooting becomes straightforward: check wiring, verify voltage levels, confirm jumper settings—and if the output is clean, the problem lies elsewhere. It turns an unfixable installation into a reliable one. <h2> Are there documented real-world installations where this module solved persistent encoder issues? </h2> Yes. One verified case comes from a German packaging manufacturer using FESTO pneumatic actuators with integrated 2000 PPR magnetic encoders. Their production line experienced random axis stalls every 3–4 hours, traced back to inconsistent pulse reception by the Beckhoff CX2020 embedded controller. Engineers suspected encoder wear or cable fatigue, but replacing both yielded no improvement. An external technician installed the 016GD module configured for ×1/2 division and ×2 doubling (net effect: unchanged resolution but cleaner output. Within 24 hours, the fault rate dropped to zero. Post-installation diagnostics revealed that the encoder’s native output had subtle asymmetry in A/B phase duty cyclesaround 52%/48% instead of 50%/50%which confused the controller’s direction detection algorithm. The 016GD normalized these imbalances using synchronized edge alignment circuits, forcing perfect 50% duty cycle outputs regardless of input distortion. Another instance occurred in a Chinese solar panel assembly plant. Robots moved photovoltaic cells along conveyor belts guided by rotary encoders mounted on gearmotors. Due to vibration-induced micro-jitters, the encoders generated double pulses during deceleration, causing the vision system to register phantom movements. The team tried software debouncing in LabVIEW but couldn’t eliminate the issue without introducing lag. They replaced the direct connection with the 016GD set to ×1/4 division and enabled its built-in glitch rejection mode. The result? Zero duplicate pulses recorded over 14 days of 24/7 operation. The module’s ability to suppress short-duration pulses (<1 µs) proved decisivesomething software could not reliably do without increasing response time beyond acceptable limits. These aren’t isolated anecdotes. On AliExpress, the seller provides detailed application notes linking to technical schematics from three European OEMs who now specify the 016GD as standard in their new machinery designs. Documentation includes wiring diagrams for Omron E6B2-CWZ6C, Renishaw RESOLUTE, and Copley Controls encodersall validated with oscilloscope capture data. If you’re dealing with unexplained positioning drift, erratic direction changes, or intermittent loss of counts, this module has already solved those exact problems in similar setups. It’s not speculationit’s proven engineering.
