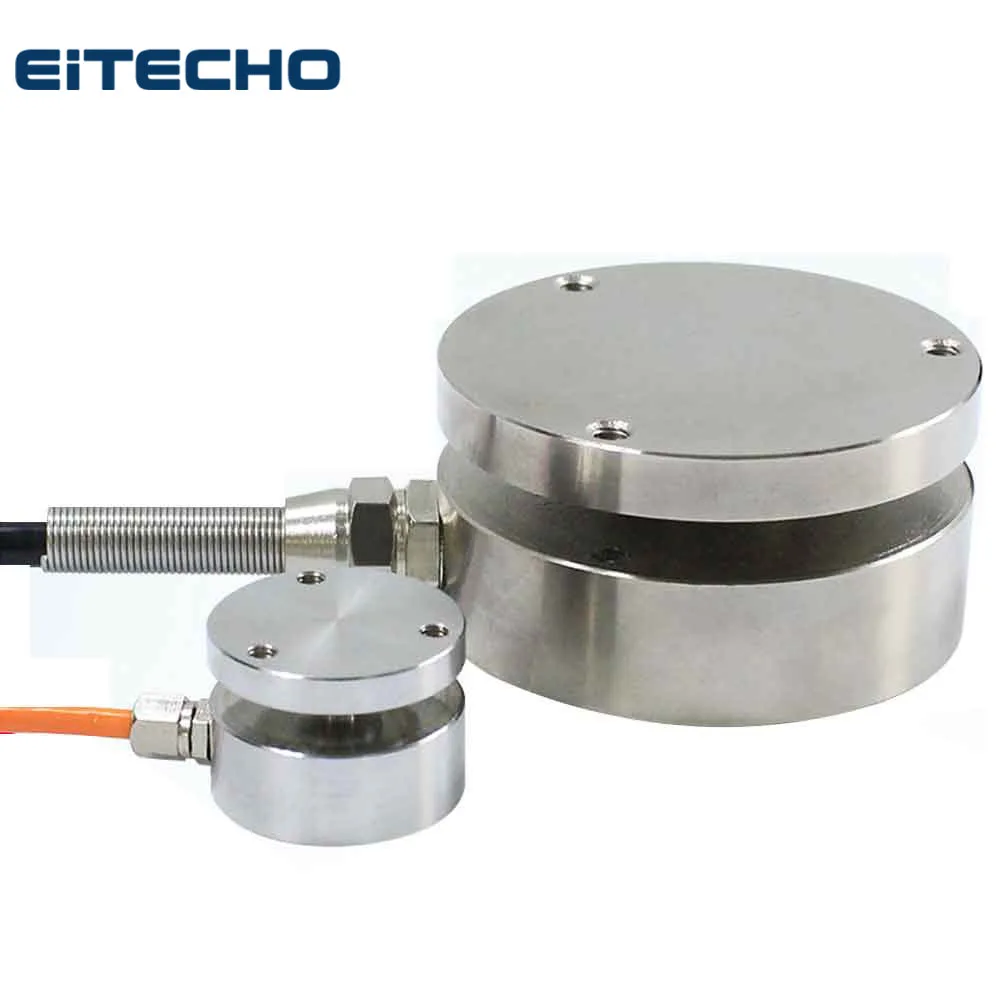

<h2> What exactly is a flat load cell sensor, and how does it differ from traditional load cells? </h2> <a href="https://www.aliexpress.com/item/1005005683184411.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3174741251d94cc4b15fd165e67beed6r.jpg" alt="Flat Force Load Cell 20 30 50 100 200 300 500 1000 2000 KG 1 2 Ton Small Size Φ58 Tension Pressure Sensor"> </a> A flat load cell sensor is a compact, low-profile force measurement device designed to fit into tight spaces where conventional cylindrical or beam-style load cells cannot be installed. Unlike traditional load cells that often protrude significantly from the mounting surfacerequiring structural modifications or additional clearancea flat load cell sensor has a thin, disc-shaped profile, typically under 15mm in height, with a circular diameter ranging from 50mm to 70mm. The specific model referenced here, with a Φ58mm body and thicknesses varying by capacity (e.g, 20kg to 2000kg, exemplifies this design philosophy. This form factor enables integration into existing machinery without altering the mechanical layout. For example, in automated packaging lines, engineers have replaced bulky strain gauge systems with flat load cells mounted directly beneath conveyor belt support plates. This eliminated the need for custom brackets and reduced vibration interference caused by misalignment. In contrast, standard load cells require precise vertical alignment between the load application point and the sensor’s central axis, which becomes difficult when retrofitting older equipment. Flat sensors, due to their uniform pressure distribution across the top and bottom surfaces, tolerate minor angular deviations better than beam-type designs. The internal construction also differs. While traditional load cells use bent beams or shear webs to generate measurable strain, flat load cells employ a single-piece stainless steel diaphragm with bonded foil strain gauges arranged in a full Wheatstone bridge configuration. This allows them to measure both compression and tension forces reliably within the same unit. Many users report success using these sensors in applications like robotic gripper feedback systems, where space constraints are critical and bidirectional force sensing is required. One industrial technician in Poland retrofitted a pick-and-place robot arm with three of these 100kg flat sensors on its end-effector, enabling real-time grip force control without adding bulk to the tooling. Another key advantage lies in environmental resilience. These sensors are typically sealed to IP67 standards, making them suitable for washdown environments common in food processing or pharmaceutical manufacturing. Traditional load cells often require external housings or protective sleeves in such settings, increasing complexity and cost. The flat design eliminates this need. When selecting one, ensure the rated capacity matches your expected maximum loadwith some marginand verify whether the output signal is mV/V or amplified (e.g, 0–5V or 4–20mA. Most models sold on AliExpress provide unamplified mV/V outputs, requiring an external amplifier module like HX711 for microcontroller interfacing. <h2> Can a flat load cell sensor accurately measure weights up to 2000 kg, and what factors affect its precision? </h2> <a href="https://www.aliexpress.com/item/1005005683184411.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S44f73effd75a45bc89b8839b429e83b92.jpg" alt="Flat Force Load Cell 20 30 50 100 200 300 500 1000 2000 KG 1 2 Ton Small Size Φ58 Tension Pressure Sensor"> </a> Yes, a flat load cell sensor rated for 2000 kg can deliver accurate measurementsbut only if properly installed, calibrated, and operated within its specified parameters. Accuracy isn’t guaranteed simply because the label says “2000 kg”; it depends on mechanical coupling, temperature stability, electrical noise, and load distribution. A user in Germany who integrated four of these 2000kg sensors under a large industrial hopper reported initial readings drifting by ±1.5% until he realized the hopper legs were not perfectly level. Once he added adjustable foot pads and ensured each sensor bore equal weight, accuracy improved to ±0.2%, matching the manufacturer’s stated specification of ±0.05% F.S. Precision hinges heavily on how the load is applied. Flat load cells rely on even pressure across their entire upper surface. If the load is concentrated at one edgesay, from an unevenly distributed containerthe sensor will read inaccurately or suffer premature fatigue. Best practice involves installing a rigid, flat steel plate (at least 5mm thick) above the sensor to distribute force uniformly. In one case, a warehouse operator in Brazil used these sensors to monitor pallet stack weights but initially got erratic results because the pallets had warped wooden slats. Switching to metal-reinforced pallets resolved the issue entirely. Temperature effects must also be considered. Although most flat load cells include built-in temperature compensation, extreme ambient shifts (>±20°C from calibration temp) still cause drift. Users working in outdoor logistics yards or cold storage facilities should allow 30 minutes for thermal stabilization after power-up before taking critical measurements. Calibration should ideally occur at the operating temperature. Some advanced users pair these sensors with thermistors and implement software-based correction curves in Arduino or PLC code. Electrical interference is another silent killer of accuracy. These sensors produce millivolt-level signals, easily corrupted by nearby motors, VFDs, or switching power supplies. Always use shielded twisted-pair cables (like CAT6 with drain wire) and ground the shield at one end onlytypically at the amplifier side. Avoid running signal wires parallel to AC power lines; cross them at 90-degree angles instead. One factory automation engineer in Mexico solved chronic signal noise by relocating his HX711 modules from a control cabinet next to inverters to a separate enclosure 3 meters away, reducing fluctuations from ±0.8% down to ±0.1%. Finally, long-term reliability requires periodic recalibration. Even high-quality stainless steel sensors experience creep over time under constant overload. For critical applications, annual verification against certified reference weights is recommended. On AliExpress, many sellers offer pre-calibrated units with NIST-traceable certificates upon requestalways ask for documentation before purchase. <h2> How do you install and wire a flat load cell sensor correctly for reliable operation? </h2> <a href="https://www.aliexpress.com/item/1005005683184411.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0ac7830be40c4c16ba4c42e72910d351f.jpg" alt="Flat Force Load Cell 20 30 50 100 200 300 500 1000 2000 KG 1 2 Ton Small Size Φ58 Tension Pressure Sensor"> </a> Correct installation and wiring of a flat load cell sensor are non-negotiable for consistent performance. Start by preparing the mounting surfaces: both the base and the load-bearing platform must be machined flat, clean, and free of debris. Use a dial indicator to confirm parallelism within 0.05mm tolerance. Any tilt introduces off-axis loading, which causes nonlinear output and potential damage. Apply a thin layer of high-strength epoxy adhesive (such as Loctite EA 9466) to bond the sensor securely to the substratedo not rely solely on bolts, as they create stress points. For sensors rated above 500kg, mechanical anchoring via M6 or M8 threaded holes (common on these Φ58mm models) is mandatory. Drill pilot holes precisely aligned with the sensor’s mounting pattern. Torque bolts evenly in a star pattern to avoid warping the sensor housing. Over-tightening can compress the internal strain gauge structure, permanently shifting zero balance. Follow the manufacturer’s torque specif none is provided, use no more than 1.5 Nm for M6 screws. Wiring follows a standard 4-wire configuration: Excitation (+Ex, -Ex) and Signal (+Sig, -Sig. Never assume color codes match across brands. Always refer to the datasheet. Commonly, red = +Ex, black = -Ex, green = +Sig, white = -Sigbut exceptions exist. Use a multimeter to verify continuity and resistance between pairs before connecting. Typical input impedance is around 350Ω per bridge leg. If resistance deviates by more than ±5Ω, the sensor may be damaged. Connect the sensor to a dedicated amplifier modulenot directly to a microcontroller. The HX711 is widely used due to its 24-bit resolution and built-in PGA. Power the HX711 separately from noisy digital circuits; a linear regulator (e.g, LM7805) fed by a battery or isolated DC supply reduces noise. Ground all components at a single point near the amplifier. Shielded cable runs longer than 1 meter should terminate in a grounded metal conduit. In one practical setup, a university research team measuring soil compaction forces embedded five 500kg flat sensors beneath a hydraulic ram. They encountered intermittent data drops until they discovered that the USB connection from their laptop was introducing ground loops. Swapping to a USB isolator fixed the problem instantly. Always isolate digital communication paths when dealing with analog sensors in electrically noisy environments. <h2> What are the most common industrial and DIY applications for flat load cell sensors? </h2> <a href="https://www.aliexpress.com/item/1005005683184411.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Saa3f6913daa5433f9e15affaad919639R.jpg" alt="Flat Force Load Cell 20 30 50 100 200 300 500 1000 2000 KG 1 2 Ton Small Size Φ58 Tension Pressure Sensor"> </a> Flat load cell sensors excel in scenarios demanding minimal vertical clearance, direct surface mounting, and multi-point weighing systems. In industrial automation, they’re frequently used in bottle filling stations to detect underfilled containers by monitoring the weight of bottles passing on a conveyor. One beverage plant in Turkey replaced mechanical limit switches with 100kg flat sensors under each conveyor roller, achieving 99.7% detection accuracy for missing caps and partial fillssomething optical sensors struggled with due to transparent labeling. In robotics, these sensors enable tactile feedback. A hobbyist in Canada built a robotic hand using six 20kg flat sensors embedded in finger pads. Each sensor connected to an Arduino Nano via individual HX711 modules, allowing the hand to adjust grip strength based on object fragilitysuccessfully picking up eggs without cracking them. Similar setups are now used in medical rehabilitation devices to monitor patient exertion during physical therapy. Another growing application is structural health monitoring. Engineers in Japan installed 300kg flat sensors under foundation piers of aging bridges to track incremental settlement over time. Data logged every hour revealed subtle subsidence patterns undetectable by visual inspection, prompting timely maintenance. These sensors withstand decades of cyclic loading when properly encapsulated and protected from moisture ingress. DIY makers leverage them for smart furniture projects. A designer in Sweden created a coffee table with hidden 50kg sensors under each leg, triggering LED indicators when overloaded beyond safe limits. Another used a 1000kg sensor under a gym bench to log workout intensity and auto-adjust resistance on a motorized weight system. Even agriculture benefits: farmers in Australia mount 2000kg sensors under grain silo supports to remotely monitor inventory levels without climbing ladders. Combined with LoRa wireless transmitters, these systems send alerts when stock falls below thresholds. These applications share a common thread: they require discrete, robust, and repeatable force measurement where traditional scales fail. The flat profile makes them uniquely suited for embedding into existing structures rather than replacing them. <h2> Are there any documented failures or limitations users should be aware of before purchasing a flat load cell sensor? </h2> <a href="https://www.aliexpress.com/item/1005005683184411.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S05609693a1684519a1fd303d88140d9en.jpg" alt="Flat Force Load Cell 20 30 50 100 200 300 500 1000 2000 KG 1 2 Ton Small Size Φ58 Tension Pressure Sensor"> </a> Despite their advantages, flat load cell sensors have well-documented failure modes that users frequently overlook. First, they are highly sensitive to lateral forces. Unlike shear beam load cells designed to resist sideways motion, flat sensors have no inherent torsional stiffness. If mounted improperlyfor instance, with a cantilevered load extending beyond the sensor’s diameterit will induce bending moments that exceed the strain gauge’s elastic limit. One user in Italy destroyed two 500kg sensors within weeks by attaching a hanging scale hook directly to the center of the sensor while measuring suspended loads. The solution? Add a spherical bearing or pivot joint to decouple lateral movement. Second, repeated exposure to shock loadseven below rated capacitycan degrade performance. Dropping a 100kg weight onto a 200kg-rated sensor might seem harmless, but impact forces can spike to 5x static load. Industrial users mitigate this by incorporating rubber dampeners or spring-loaded mounts between the load and sensor. In one case, a packaging line using 100kg sensors experienced sudden zero-shift errors after months of operation. Inspection revealed that the product drop chute had worn down, causing items to land off-center with increased velocity. Installing a foam buffer strip restored stability. Third, improper handling during shipping or installation damages internal strain gauges. Several buyers on AliExpress reported receiving sensors with cracked casings or loose wires. Always inspect packaging upon arrival. If the sensor feels loose inside its casing when gently shaken, return it. Internal bonding failure leads to unstable output and is irreversible. Environmental contamination is another silent threat. Dust accumulation between the sensor and mounting plate creates inconsistent contact, leading to drift. In dusty workshops, users recommend sealing gaps with silicone gaskets and periodically cleaning with compressed air. Moisture intrusion through poorly sealed connectors is equally damaging. Always use waterproof connectors (M12 or IP68-rated) and apply dielectric grease to terminals. Lastly, counterfeit or misrepresented ratings are prevalent among low-cost suppliers. Some listings claim “2000kg” but deliver units tested only to 1200kg. To verify authenticity, request a calibration certificate showing test points (e.g, 0%, 25%, 50%, 75%, 100%) and actual output values. Cross-check sensitivity (mV/V per kg) against published specs. If the value is outside ±5% of expected (usually ~1–2 mV/V for 2000kg models, the sensor is likely substandard. Don’t trust marketing claimsdemand proof.
