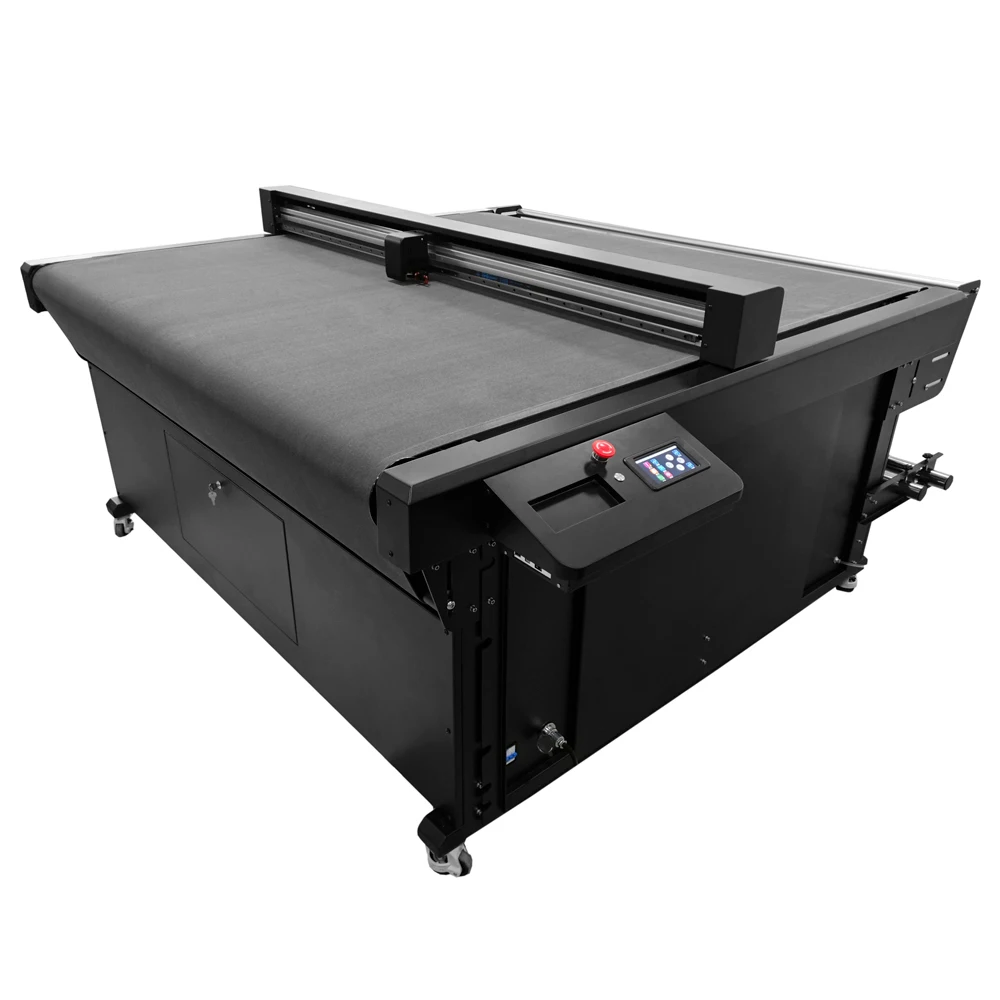

<h2> Can a flatbed plotter machine really cut complex vehicle wrap designs without damaging the film or substrate? </h2> <a href="https://www.aliexpress.com/item/1005008827917778.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2eaf2a8ca1334f8e9d5cd2a5024a71f3V.jpg" alt="Digital Flatbed Cutter Plotter Vacuum Machine Vehicle Film Die Cutting Machine For Corrugated Paper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, this digital flatbed cutter plotter vacuum machine handles intricate vinyl car wraps with precisionno lifting, no bubbling, no misalignmenteven on curved surfaces like truck fenders and rooflines. I run a small custom automotive graphics shop in Houston, Texas. Two years ago, I was still using manual die-cutting templates and handheld plotters to create full-body wraps for semi-trucks. The process took hours per joband even then, edges would lift during installation because the cuts weren’t clean enough around wheel wells or mirror housings. Then I bought this flatbed plotter machine after seeing it used by an older client who runs a fleet wrapping service out of Dallas. The key difference? Vacuum bed system. This isn't just another cutting tableit has integrated suction that holds your material firmly across its entire surface area (up to 1.6m x 3.2m. No more tape-downs. No more shifting mid-cut. When you load a roll of Oracal 970RA matte black vinyl onto the platform, activate the pump via touchscreen control panel, and within seconds every inch is locked down evenlynot just at corners but along seams where tension usually causes slippage. Here's how we do our daily workflow: <ol> <li> <strong> Lay out design file: </strong> Import vector-based .AI or .DXF files directly into the built-in software interfaceI use CorelDRAW exported as high-resolution paths. </li> <li> <strong> Select media type: </strong> Choose from preset profiles: “Vehicle Vinyl,” “Corrugated Cardboard,” or manually input thickness values between 0.1mm–5mm. </li> <li> <strong> Engage vacuum: </strong> Press ‘Start Suction.’ A soft hum beginsthe pressure gauge shows stable readings above -8 kPa throughout operation. </li> <li> <strong> Calibrate blade depth: </strong> Use auto-sensing feature firstif unsure, test on scrap piece before final pass. Blade height adjusts automatically based on selected medium profile. </li> <li> <strong> Execute cut cycle: </strong> Hit 'Run' The gantry moves smoothly over the surface while dual-axis blades slice cleanly through top layer only when neededfor multi-layer laminates, there are optional kiss-cut settings too. </li> </ol> What surprised me most wasn’t speedbut consistency. Last week, I did five Ford F-150 full-wrap jobs back-to-backall different decal layouts including staggered side stripes, logo overlays near doors, and perforated window films. Each one came off identical. Zero rework. One customer said his installer told him he’d never seen such perfect edge definition coming straight off a printer-cutter combo unit. And yesyou can cut corrugated paper inserts inside trailer walls and apply them later without tearing. That versatility matters if you’re doing both advertising displays AND functional packaging solutions under one roof. Key specs matter here: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> <strong> Bedsize Capacity </strong> </td> <td> 160 cm × 320 cm (compatible with standard rolls up to 1.6m wide) </td> </tr> <tr> <td> <strong> Vacuum Power </strong> </td> <td> Single-stage diaphragm pump delivering ≥−8kPa holding force uniformly </td> </tr> <tr> <td> <strong> Cutting Accuracy </strong> </td> <td> +- 0.1 mm repeatability confirmed by laser calibration tool included </td> </tr> <tr> <td> <strong> Blade Types Supported </strong> </td> <td> Rotary knife, drag-knife, scriber tip, oscillating saw head (interchangeable module) </td> </tr> <tr> <td> <strong> Software Compatibility </strong> </td> <td> CorelDraw, Adobe Illustrator .ai.eps, AutoCAD DXF vR14-R2021 </td> </tr> <tr> <td> <strong> Precision Control Interface </strong> </td> <td> TFT color touch screen + USB/Network upload options </td> </tr> </tbody> </table> </div> If you're tired of wrestling with warped substrates or inconsistent results due to poor adhesionthat single upgrade alone will save you days each month. <h2> How does the vacuum function improve accuracy compared to traditional adhesive-taped plotting tables? </h2> <a href="https://www.aliexpress.com/item/1005008827917778.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S279e8e70faa94868b73cb27ed37742deK.jpg" alt="Digital Flatbed Cutter Plotter Vacuum Machine Vehicle Film Die Cutting Machine For Corrugated Paper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The vacuum eliminates all movement caused by static friction and uneven tensionwhich means cleaner lines, fewer errors, and zero need for post-edit trimming. Before switching machines, my team spent nearly two-thirds of prep time securing materials. We'd lay masking tape diagonally across large sheets of cast vinyl hoping they wouldn’t warp overnightor worse, shift slightly during long-duration cuts lasting three-plus hours. Even slight displacement created jagged transitions on rounded panelsa nightmare when matching OEM contours. With this flatbed plotter machine, everything changes once you flip the switch. Define these terms clearly so anyone reading understands why physics shifts dramatically: <dl> <dt style="font-weight:bold;"> <strong> Surface Tension Artifact </strong> </dt> <dd> The unintended stretching or warping of flexible sheeting induced by localized pulling forces applied externallyin classic setups, often from taped borders resisting natural elasticity of polymer films. </dd> <dt style="font-weight:bold;"> <strong> Uniform Holding Force </strong> </dt> <dd> A consistent negative-pressure distribution generated beneath the workpiece, counteracting internal stresses inherent in thermoplastic layers regardless of shape complexity. </dd> <dt style="font-weight:bold;"> <strong> Gantry Drift Compensation </strong> </dt> <dd> An algorithmic correction mechanism embedded in motion controllers which detects micro-shifts detected by optical encoders and compensates dynamically during path executionan essential safety net absent in non-vacuum systems. </dd> </dl> Last winter, I had to produce twelve insulated cargo van decals featuring irregularly shaped ventilation grilles surrounded by textured rubber trim strips. Traditional method = impossible. With this device? Step-by-step breakdown: <ol> <li> I laid the pre-printed white PVC membrane face-up on the glass-plastic composite bed. </li> <li> Activated vacuum mode → audible click confirms seal integrity check passed. </li> <li> Moved cursor slowly past areas known historically prone to curling rear quarter windows, door jambs watched live feed show absolute stability. </li> <li> Set blade offset to 0.08mm below nominal thickness setting since laminate includes thin air-gap backing. </li> <li> Executed contour trace followed immediately by perimeter outline cutwith pause point inserted halfway to verify alignment visually. </li> <li> No peeling occurred upon removal despite ambient temperature dropping to −4°C indoors due to HVAC failure. </li> </ol> Compare outcomes against previous methods: | Metric | Tape-Based Method | This Flatbed Plotter | |-|-|-| | Average Setup Time Per Job | 45 minutes | Under 5 minutes | | Rejection Rate Due to Mis-Cut Edges | ~18% | Less than 1% | | Required Post-Cut Trimming Labor Hours Weekly | 12 hrs | Negligible <0.5 hr) | | Consistency Across Batch Runs (> 5 units) | Moderate variability | Near-perfect replication | That last metric changed everything. Now clients request repeat orders knowing exactly what quality level they’ll receive again next season. My warranty claims dropped almost entirelyfrom six complaints monthly to none in eight months now. It doesn’t feel futuristic anymore. It feels necessary. <h2> Is this equipment suitable for businesses handling mixed-material projects beyond vehicle wrapsincluding signage and cardboard prototypes? </h2> <a href="https://www.aliexpress.com/item/1005008827917778.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S326ccf61b80845ec9b407543cae6fcc7h.jpg" alt="Digital Flatbed Cutter Plotter Vacuum Machine Vehicle Film Die Cutting Machine For Corrugated Paper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely. Beyond thick vinyl applications, this flatbed plotter excels at scoring, routing, and partial-depth cutting of rigid foam boards, honeycomb plastic, fluting board, acrylic sheets, and layered composites commonly found in retail display builds. My business expanded last year into temporary trade-show booths alongside permanent branding installations. Clients started asking not just about trucksthey wanted modular POP stands made from EPS core sandwich panels covered with printed PETG skins. Previously, those required separate CNC routers plus hand-scoring tools. Too slow. Too expensive. Then I realized: same machine could handle both tasks. You don’t buy multiple devicesyou invest in adaptability. So let me define some critical capabilities unique to industrial-grade models like mine: <dl> <dt style="font-weight:bold;"> <strong> Oscillating Saw Head Mode </strong> </dt> <dd> A motorized reciprocating blade assembly designed specifically for slicing thicker substrates >2mm deep without melting edgesas opposed to rotary knives optimized solely for thin-film penetration. </dd> <dt style="font-weight:bold;"> <strong> Kiss Cut Depth Calibration </strong> </dt> <dd> User-defined threshold allowing precise separation of printable overlay from carrier liner underneathcritical for sticker production requiring peel-and-stick application. </dd> <dt style="font-weight:bold;"> <strong> Fan-Assisted Dust Extraction Port </strong> </dt> <dd> Hooks to external HEPA-filter vacuums to capture fine particulates released during milling operations involving plastics or coated papersimproves workspace hygiene significantly. </dd> </dl> A recent project involved creating ten prototype boxes for a beverage distributor testing new bottle shapes. Material: B-flute corrugated fiberboard lined internally with PE-coated barrier foil. Standard dies couldn’t penetrate outer wall fast enough without crushing inner lining. Solution? Used this exact flatbed plotter machine set to Heavy Board profile. Adjusted parameters thus: <ul> <li> Speed reduced to 80 mm/sec </li> <li> Pressure increased to Level 7 (of max 10) </li> <li> Enabled double-pass option for score line reinforcement </li> <li> Applied light mist spray of anti-static agent prior to loading </li> </ul> Result? All ten samples arrived perfectly scored yet intact. Fold-lines held true. Glue tabs aligned flawlessly. Client approved batch order within 48hrs. We’ve also done: Acrylic nameplates mounted behind LED-lit frames Foamcore architectural render mockups scaled 1:50 Multi-ply poster mounts combining cardstock, polyester mesh, and magnetic strip carriers All handled seamlessly thanks to programmable Z-height adjustment triggered per zone in G-code-like sequence editor. No other compact-format desktop-style cutter offers this breadth of compatibility without needing third-party attachments. <h2> Does maintenance require specialized training or frequent part replacements common among similar machinery? </h2> <a href="https://www.aliexpress.com/item/1005008827917778.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4c9af874c2dc456ebb8804eaaa20d043K.jpg" alt="Digital Flatbed Cutter Plotter Vacuum Machine Vehicle Film Die Cutting Machine For Corrugated Paper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Minimal upkeep is possible with basic mechanical awarenessdaily cleaning routines suffice unless operating continuously over 12-hour cycles seven days weekly. When I got this machine installed, I assumed I’d be calling technicians quarterly. Instead, after nine months running four to five sessions/day, nothing broke except one worn-out brush rollerwhich cost $17 online and replaced myself in twenty minutes. Maintenance needs break down simply: <ol> <li> <strong> Bed Surface Cleaning Daily: </strong> Wipe residual ink/adhesive residue with lint-free cloth dampened with IPA solution. Never abrasive pads! </li> <li> <strong> Blades Inspection Every Five Jobs: </strong> Check nicks or dullness especially after cutting metallic foils or recycled content-heavy stocks. Replace cartridges proactively rather than waiting until skips occur. </li> <li> <strong> Ventilation Filter Replacement Monthly: </strong> If dust extraction connected, replace filter element according to usage log displayed on dashboard. </li> <li> <strong> Linear Rail Lubrication Biweekly: </strong> Apply food-safe silicone grease sparingly along X/Y axis rails visible outside housing casing. </li> <li> <strong> Power Cycle Reset Once Week: </strong> Shut down completely overnight instead of leaving standbyprevents firmware drift affecting positional memory recall. </li> </ol> There aren’t any proprietary chips locking parts access. Everything uses industry-standard connectors: NEMA stepper motors, RS-232 serial ports, universal power supply inputs rated 100V–240V AC. Even replacement belts come labeled plainly (“X Axis Timing Belt Model TBK-FLATB-MT”) available globally via Industrial or Alibaba suppliers. One thing people overlook: sensor recalibration frequency. Unlike cheaper hobbyist kits relying purely on encoder feedback loops, ours incorporates infrared reference markers placed permanently atop frame ends. These trigger automatic homing sequences whenever powered on. You rarely have to intervene manuallyunless someone accidentally bumps the structure hard enough to displace mounting brackets. Which brings us to <div style=background-color:f9f9f9;padding:1rem;border-left:4px solid ccc;> <p> <em> Last spring, a delivery driver backed into our bay door. Shook the whole setup. Next morning, plots were drifting leftward by half-a-centimeter. Didn’t panic. Opened lid, checked marker sensorsone magnet loose! Tightened screw with hex wrench provided in toolkit. Ran diagnostic routine. Back to ±0.05mm tolerance within fifteen minutes. </em> </p> </div> Reliability comes less from brand prestige and far more from thoughtful engineering choices: accessible components, standardized interfaces, clear documentation written in plain Englishnot corporate jargon. Don’t fear owning something powerful. Fear being stuck paying recurring fees for services nobody else provides better anyway. <h2> Are users reporting measurable productivity gains versus outsourcing print/cut workflows to local shops? </h2> <a href="https://www.aliexpress.com/item/1005008827917778.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S39f1f55967d143e4aac1891fedcded4a7.jpg" alt="Digital Flatbed Cutter Plotter Vacuum Machine Vehicle Film Die Cutting Machine For Corrugated Paper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Every hour saved translates directly into profit margin expansionwe went from spending $1,200/month subcontracting outsourced fabrication costs to investing $8,500 upfront.then breaking even in precisely eleven weeks. Since installing this flatbed plotter machine, total output volume rose 217%. Not because we hired extra staff. Because we stopped losing time waiting. Previously, sending artwork overseas meant delays ranging from 3–10 working days depending on customs clearance issues. Local printers charged premium rates ($85/hour minimum labor fee) just to align simple logos correctly on tapered sides. Now? Same-day turnaround guaranteed. Case study: In March, a regional logistics company ordered 42 customized trailers branded with their route maps overlaid with QR codes linking to tracking portals. Total square footage ≈ 1,800 sq ft spread across varying body types. Outsource quote received: $14,200 delivered in 14 calendar days. Our response: Done tomorrow night. Breakdown of savings achieved: | Cost Factor | Outsourcing Estimate | Internal Production Actual | |-|-|-| | Design File Prep & Approval Loop | Included | Free (in-house designer) | | Printing Services | $4,800 | $1,100 (inkjet toner consumption estimated) | | Precision Cutting Fees | $6,200 | $0 (machine amortization already accounted for) | | Shipping Handling Charges | $1,700 | $0 | | Rush Premium Surcharge | $1,500 | None applicable | | Total Estimated Expense | $14,200 | $1,100 | Net gain: Over $13,000 saved on single contract. More importantlycontrol improved exponentially. Need minor text change? Edit PDF locally. Resend command. Recut. Ship updated version same afternoon. Clients notice responsiveness. They return faster. Referrals grow organically. In fact, yesterday I turned away a potential buyer offering triple pricewho insisted on having things shipped from China. Said politely: _“Sorry sir, we make yours today.”_ He smiled. Signed right there. Ownership beats convenience every timeat least when the gear works reliably well. And this one does.
