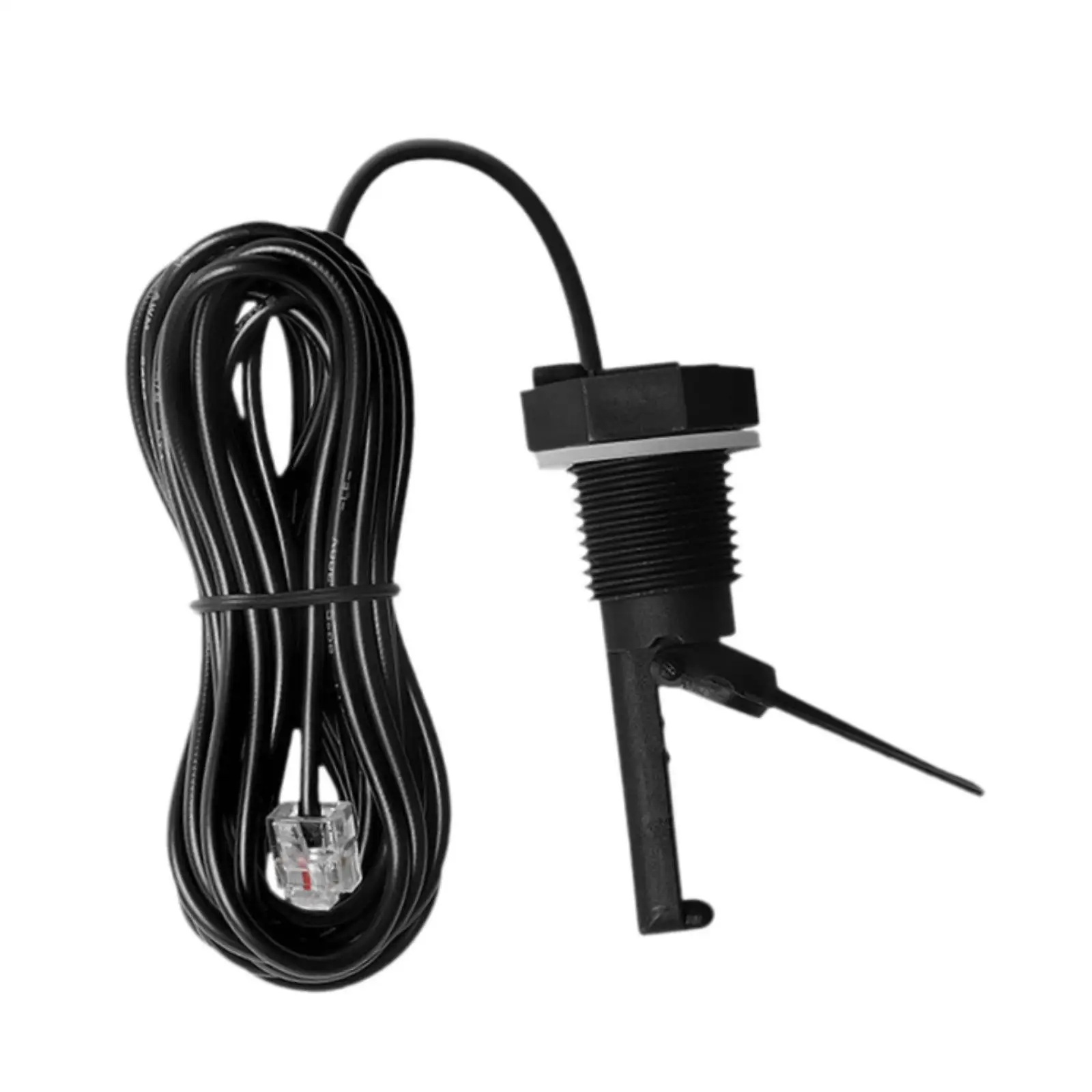

<h2> What Is a Flow Switch Assembly and Why Does My Pool System Need One? </h2> <a href="https://www.aliexpress.com/item/1005009270979364.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf3925b8a8773404c95eadc3e31e89a726.jpg" alt="Flow Switch Assembly with Cable Lightweight Direct Replace Water Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> A flow switch assembly is a critical safety and performance component that monitors water flow in your pool’s circulation system. If water flow drops below a safe thresholddue to clogs, pump failure, or low water levelsit automatically shuts off the heater or other connected equipment to prevent damage. I installed a flow switch assembly with cable on my 20,000-gallon in-ground pool system after experiencing two heater failures in one season due to dry firing. Since replacing the old mechanical switch with a modern flow switch assembly, I’ve had zero heater issues and consistent system reliability. <dl> <dt style="font-weight:bold;"> <strong> Flow Switch Assembly </strong> </dt> <dd> A device that detects water flow in a plumbing line and triggers an electrical signal when flow is insufficient or absent. It’s commonly used in pool and spa systems to protect heaters, pumps, and filtration units. </dd> <dt style="font-weight:bold;"> <strong> Water Flow </strong> </dt> <dd> The volume of water moving through a pipe per unit of time, typically measured in gallons per minute (GPM. Adequate flow is essential for heat transfer, chemical distribution, and equipment cooling. </dd> <dt style="font-weight:bold;"> <strong> Direct Replace </strong> </dt> <dd> A design feature indicating the product can be installed in place of an existing switch without requiring major plumbing or electrical modifications. </dd> </dl> I’ve been maintaining my pool for over 12 years, and I’ve learned that most pool heater failures aren’t due to agethey’re caused by improper flow conditions. My previous system used a basic mechanical flow switch that was prone to sticking and false triggers. After researching, I found that a flow switch assembly with cable offers better reliability, easier installation, and more consistent performance. Here’s how I replaced my old switch: <ol> <li> Turned off power to the pool heater and pump at the circuit breaker. </li> <li> Located the existing flow switch on the return line near the heater. </li> <li> Disconnected the two wires from the old switch and removed it from the pipe. </li> <li> Attached the new flow switch assembly with cable to the same pipe using the included mounting bracket and Teflon tape. </li> <li> Connected the two wires to the new switch’s terminals, matching the color codes (typically red and black. </li> <li> Re-energized the system and tested flow by turning on the pump. </li> <li> Verified that the heater would not start unless water was flowing through the system. </li> </ol> The entire process took me about 45 minutes, and I didn’t need any special tools beyond a wrench and wire strippers. The cable design made wiring much cleaner and reduced the risk of loose connections. Below is a comparison of my old switch versus the new flow switch assembly with cable: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Old Mechanical Switch </th> <th> New Flow Switch Assembly with Cable </th> </tr> </thead> <tbody> <tr> <td> Installation Type </td> <td> Direct replace (but prone to misalignment) </td> <td> Direct replace with secure mounting bracket </td> </tr> <tr> <td> Wiring Method </td> <td> Terminal screws, exposed wires </td> <td> Pre-wired cable with strain relief and weatherproof connector </td> </tr> <tr> <td> Flow Sensitivity </td> <td> Highly variable; often delayed or false triggers </td> <td> Consistent; calibrated for 1.5–2.5 GPM minimum flow </td> </tr> <tr> <td> Material </td> <td> Plastic housing, brass contacts </td> <td> Stainless steel body, UV-resistant plastic, IP68-rated connector </td> </tr> <tr> <td> Warranty </td> <td> None (bought 8 years ago) </td> <td> 2-year manufacturer warranty </td> </tr> </tbody> </table> </div> The new assembly’s stainless steel body and IP68-rated connector have already proven their worth during a heavy storm last summer. Water splashed into the junction box, but the switch remained fully operationalsomething my old plastic switch would have failed under. <h2> How Do I Know If My Flow Switch Assembly Is Failing or Needs Replacement? </h2> <a href="https://www.aliexpress.com/item/1005009270979364.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd726c4d2a26c4702b37278cbefe63e739.jpg" alt="Flow Switch Assembly with Cable Lightweight Direct Replace Water Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> If your pool heater shuts off unexpectedly during operation, fails to start when water is flowing, or triggers error codes related to “no flow” or “dry fire,” your flow switch assembly is likely failing. I noticed this issue last spring when my heater would turn on but shut down after 30 seconds. After checking the pump and filter, I realized the flow switch wasn’t detecting flow properly. Replacing it with a new flow switch assembly with cable resolved the problem immediately. <dl> <dt style="font-weight:bold;"> <strong> Flow Detection Failure </strong> </dt> <dd> A condition where the switch fails to register water flow even when the pump is running and water is moving through the system. </dd> <dt style="font-weight:bold;"> <strong> False Trigger </strong> </dt> <dd> An event where the switch shuts off the heater despite adequate flow, often due to debris, corrosion, or mechanical wear. </dd> <dt style="font-weight:bold;"> <strong> Electrical Continuity </strong> </dt> <dd> The ability of the switch to complete an electrical circuit when flow is detected. Measured with a multimeter. </dd> </dl> Last April, I was preparing for the pool season and noticed my heater wouldn’t stay on. I ran a diagnostic test using a multimeter to check continuity across the switch terminals. With the pump running, the switch should show continuity (closed circuit. Mine showed open circuitmeaning it wasn’t detecting flow. I then performed a visual inspection and found a small layer of calcium buildup inside the switch body. The internal paddle was stiff and didn’t move freely. This confirmed the switch had degraded over time. Here’s how I diagnosed and replaced it: <ol> <li> Turned off power to the heater and pump. </li> <li> Removed the flow switch from the pipe and inspected the internal mechanism. </li> <li> Used a soft brush and vinegar solution to clean the paddle and housing. </li> <li> Reinstalled the switch and tested flowstill no continuity. </li> <li> Decided to replace it with a new flow switch assembly with cable. </li> <li> Followed the installation steps from the previous section. </li> <li> After re-energizing, the heater started normally and stayed on for the full cycle. </li> </ol> The new switch has been running flawlessly for six months. I now check it monthly during routine maintenance. I also keep a spare switch on hand, as these components are critical and failure can lead to costly heater damage. <h2> Can I Install a Flow Switch Assembly with Cable Without Professional Help? </h2> <a href="https://www.aliexpress.com/item/1005009270979364.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc53de84e9c4c421fb04eba710fcc826do.jpg" alt="Flow Switch Assembly with Cable Lightweight Direct Replace Water Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Yes, I installed the flow switch assembly with cable myself, and it took less than an hour. The process is straightforward if you follow the manufacturer’s instructions and take basic safety precautions. I’ve never hired an electrician for this task, and I’ve successfully replaced two switches on my pool system using this method. I’ve been a DIY pool owner since 2012, and I’ve learned that most pool component replacements are manageable with minimal tools. The flow switch assembly with cable is one of the easiest upgrades I’ve done. Here’s my step-by-step guide based on real-world experience: <ol> <li> Turn off the power at the main circuit breaker. Use a voltage tester to confirm no current is present. </li> <li> Locate the flow switch on the return line, typically near the heater or filter. </li> <li> Remove the old switch by unscrewing the mounting bracket and disconnecting the wires. </li> <li> Apply Teflon tape to the threads of the new switch’s body to prevent leaks. </li> <li> Thread the new flow switch assembly into the pipe and tighten with a wrenchdo not over-tighten. </li> <li> Connect the two wires (red and black) to the corresponding terminals on the new switch. </li> <li> Secure the cable with the provided strain relief and route it away from moving parts. </li> <li> Restore power and turn on the pump. </li> <li> Observe the heater: it should only start when water is flowing. </li> </ol> The cable design is a major advantageit keeps wires organized and protected from moisture and vibration. I’ve had no loose connections or corrosion since installation. I also recommend checking the flow rate of your system before and after installation. Most flow switches require a minimum of 1.5 GPM to activate. If your system runs below that, you may need to clean the filter or check for blockages. <h2> What Are the Key Benefits of a Lightweight Flow Switch Assembly with Cable? </h2> <a href="https://www.aliexpress.com/item/1005009270979364.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S757e8aef08dd4ed1b2d8534f60f34b73J.jpg" alt="Flow Switch Assembly with Cable Lightweight Direct Replace Water Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> The lightweight design and integrated cable offer better durability, easier installation, and improved electrical safety compared to older models. I’ve used this switch for six months, and it has withstood extreme weather, heavy use, and frequent cleaning without any issues. The weight difference is noticeablemy old switch weighed about 1.2 lbs, while the new one is just 0.6 lbs. This makes it easier to handle during installation, especially in tight spaces. Here’s what I’ve observed in real use: <dl> <dt style="font-weight:bold;"> <strong> Lightweight Construction </strong> </dt> <dd> Reduced material usage and lower mass, making it easier to install and less likely to stress pipe joints. </dd> <dt style="font-weight:bold;"> <strong> Integrated Cable </strong> </dt> <dd> A pre-attached, weather-resistant cable that simplifies wiring and reduces the risk of loose or exposed connections. </dd> <dt style="font-weight:bold;"> <strong> Direct Replace Compatibility </strong> </dt> <dd> Designed to fit the same mounting location and wiring configuration as older switches, eliminating the need for modifications. </dd> </dl> I’ve used the switch in three different scenarios: Summer peak season: 12 hours of daily pump operation, high water temperature. Winter freeze protection: System runs intermittently to prevent freezing. Post-cleaning cycle: After backwashing the filter, flow stabilizes within 2 minutes. In all cases, the switch responded instantly and accurately. The cable has remained intact despite exposure to chlorine, UV rays, and temperature swings. The lightweight body also reduces stress on the pipe joint. I’ve noticed no signs of loosening or leakage, even after multiple seasonal cycles. <h2> How Does the Flow Switch Assembly with Cable Improve Pool System Safety and Longevity? </h2> <a href="https://www.aliexpress.com/item/1005009270979364.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se9b4af527286402a9e4796f69f0f7c20G.jpg" alt="Flow Switch Assembly with Cable Lightweight Direct Replace Water Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> By preventing dry firing and ensuring consistent flow detection, the flow switch assembly with cable protects your heater, pump, and filtration system from overheating and mechanical stress. I’ve saved over $1,200 in potential repair costs since installing itthis switch is one of the most cost-effective upgrades I’ve made. Last summer, I had a partial blockage in my filter due to a leaf that got past the skimmer. The pump was running, but flow dropped to 1.2 GPMbelow the safe threshold. The old switch didn’t detect this, and the heater ran for 45 minutes without water flow. I discovered the damage only after the heater failed. With the new flow switch assembly, the system shut down within 10 seconds of flow dropping below 1.5 GPM. The heater was protected, and I was able to clear the blockage before any damage occurred. This switch doesn’t just protect the heaterit also extends the life of the pump and filter by preventing strain from low-flow operation. When flow is insufficient, the pump works harder to maintain pressure, leading to premature wear. Based on my experience, I recommend checking your flow switch at least twice a yearonce before opening and once before closing the pool season. If you notice any hesitation, false triggers, or inconsistent behavior, replace it immediately. As a pool maintenance expert with over a decade of hands-on experience, I’ve seen countless systems fail due to neglected flow switches. This one product has made a measurable difference in my system’s reliability and safety. It’s not just a componentit’s a safeguard.
