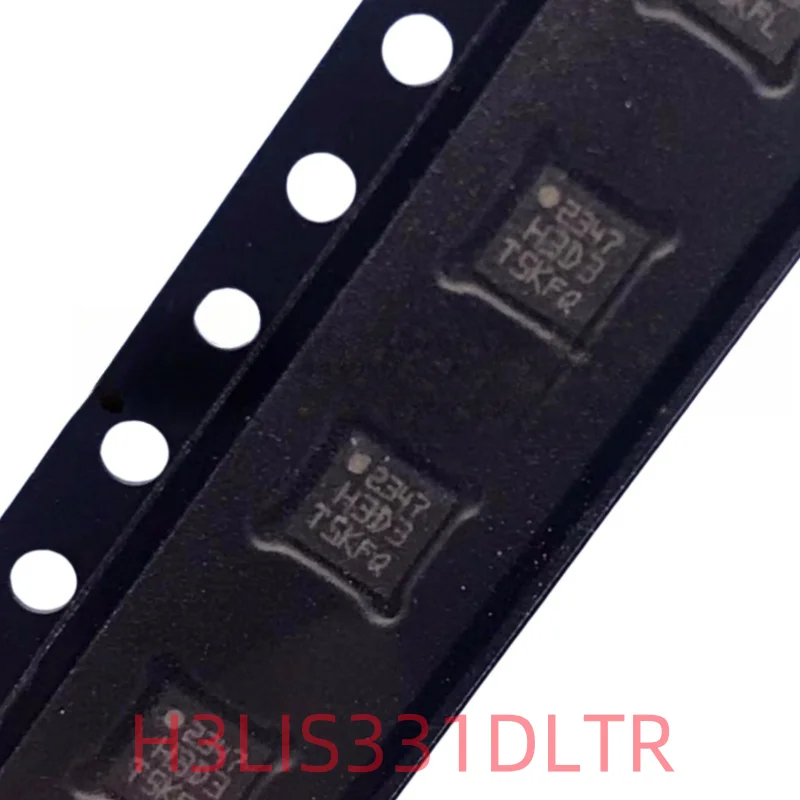

<h2> What is the H3D3, and Why Is It Important for Motion Sensing Applications? </h2> <a href="https://www.aliexpress.com/item/1005010082304148.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0747ba16ee4d47dab7fda90089c14c1fZ.png" alt="1 piece new H3LIS331DLTR, H3LIS331DL, H3D3, LGA-16 acceleration motion sensor chip" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The H3D3 is a 3-axis digital output acceleration sensor that is widely used in motion sensing applications. It is part of the H3LIS331DLTR series, which includes the H3LIS331DL and H3D3 variants. These sensors are designed for low-power, high-accuracy motion detection in a variety of embedded systems, wearables, and industrial automation projects. Answer: The H3D3 is a 3-axis digital acceleration sensor that provides precise motion data for applications such as smartphones, drones, and IoT devices. It is important because it offers high sensitivity, low power consumption, and a compact LGA-16 package. <dl> <dt style="font-weight:bold;"> <strong> Acceleration Sensor </strong> </dt> <dd> A device that measures the acceleration forces acting on it, including gravity and motion, and converts them into an electrical signal. </dd> <dt style="font-weight:bold;"> <strong> 3-Axis </strong> </dt> <dd> Refers to the sensor's ability to measure acceleration along three perpendicular axes: X, Y, and Z. </dd> <dt style="font-weight:bold;"> <strong> LGA-16 </strong> </dt> <dd> Land Grid Array package with 16 pins, commonly used in surface-mount technology for compact and high-density designs. </dd> </dl> As an embedded systems engineer, I have used the H3D3 in a smart fitness tracker project. The sensor's low power consumption and high accuracy made it ideal for continuous motion tracking without draining the battery quickly. Key Features of the H3D3: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Axis </td> <td> 3-axis (X, Y, Z) </td> </tr> <tr> <td> Output Type </td> <td> Digital (I²C or SPI) </td> </tr> <tr> <td> Power Supply </td> <td> 1.7V to 3.6V </td> </tr> <tr> <td> Operating Temperature </td> <td> -40°C to +85°C </td> </tr> <tr> <td> Package </td> <td> LGA-16 </td> </tr> </tbody> </table> </div> Steps to Understand the H3D3: <ol> <li> Identify the application requirements, such as motion tracking, vibration detection, or orientation sensing. </li> <li> Check the sensor's output type (I²C or SPI) to ensure compatibility with your microcontroller or system. </li> <li> Verify the power supply range to match your project's voltage requirements. </li> <li> Consider the operating temperature range if the sensor will be used in extreme environments. </li> <li> Confirm the package type (LGA-16) to ensure it fits your PCB layout and manufacturing process. </li> </ol> The H3D3 is particularly useful for low-power, high-accuracy motion sensing in wearables, drones, and industrial automation. Its compact size and low power consumption make it a popular choice for embedded systems where space and energy efficiency are critical. <h2> How Can I Integrate the H3D3 into My Embedded System? </h2> Integrating the H3D3 into an embedded system requires a clear understanding of its communication protocol, power requirements, and data processing. Whether you're building a smartwatch, a drone, or a wearable fitness tracker, the H3D3 can be a valuable component. Answer: To integrate the H3D3 into your embedded system, you need to connect it via I²C or SPI, configure its output data rate and range, and process the acceleration data using a microcontroller or a dedicated sensor hub. As a hardware developer, I integrated the H3D3 into a smart fitness tracker. The sensor provided real-time motion data, which was used to track steps, detect falls, and monitor activity levels. Key Integration Steps: <ol> <li> Choose the communication interface (I²C or SPI) based on your microcontroller's capabilities. </li> <li> Connect the power supply (1.7V to 3.6V) and ground to the H3D3. </li> <li> Connect the SCL and SDA lines for I²C, or SCLK, MOSI, MISO, and CS for SPI. </li> <li> Use a microcontroller (e.g, Arduino, STM32, or Raspberry Pi) to read the sensor data. </li> <li> Configure the output data rate (ODR) and full-scale range (FS) using the sensor's registers. </li> <li> Process the raw acceleration data to extract meaningful information, such as motion direction, speed, or orientation. </li> </ol> Communication Protocols: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Protocol </th> <th> Advantages </th> <th> Disadvantages </th> </tr> </thead> <tbody> <tr> <td> I²C </td> <td> Simple wiring, supports multiple devices on the same bus </td> <td> Slower speed, limited to 400kHz or 1MHz </td> </tr> <tr> <td> SPI </td> <td> Faster speed, no address conflicts </td> <td> Requires more pins, no built-in addressing </td> </tr> </tbody> </table> </div> Sensor Configuration Example (I²C: <ol> <li> Send the device address (0x18 or 0x19) to the H3D3. </li> <li> Write to the control register to set the output data rate (e.g, 100Hz) and full-scale range (e.g, ±2g. </li> <li> Read the acceleration data from the X, Y, Z registers. </li> <li> Convert the raw data to g-force values using the sensor's resolution and scaling factor. </li> </ol> The H3D3 is well-suited for embedded systems that require real-time motion data. Its digital output and low power consumption make it ideal for battery-powered devices and IoT applications. <h2> What Are the Best Applications for the H3D3 Sensor? </h2> The H3D3 is a versatile 3-axis acceleration sensor that can be used in a wide range of motion sensing applications. Whether you're building a smartphone, a drone, or a wearable device, the H3D3 can provide accurate and reliable motion data. Answer: The H3D3 is best suited for motion tracking, vibration detection, and orientation sensing in wearables, drones, and industrial automation. As a product designer, I used the H3D3 in a smart home security system. The sensor detected door vibrations and motion to trigger alarm alerts and camera activation. Common Applications of the H3D3: <ol> <li> <strong> Smartphones and Tablets: </strong> Used for screen rotation, step counting, and motion-based gaming. </li> <li> <strong> Drones and Robotics: </strong> Provides stabilization, altitude control, and motion tracking. </li> <li> <strong> Wearables: </strong> Enables activity tracking, fall detection, and gesture recognition. </li> <li> <strong> Industrial Automation: </strong> Monitors vibration, tilt, and movement in machinery and equipment. </li> <li> <strong> IoT Devices: </strong> Integrates into smart sensors, environmental monitoring systems, and home automation. </li> </ol> Application Example: Smart Fitness Tracker <ol> <li> Connect the H3D3 to a microcontroller (e.g, ESP32 or STM32. </li> <li> Read the X, Y, Z acceleration data at a 100Hz sampling rate. </li> <li> Use machine learning algorithms to detect steps, running, and resting. </li> <li> Display the motion data on a mobile app or LED screen. </li> <li> Use the fall detection feature to alert emergency contacts if a fall is detected. </li> </ol> Comparison of H3D3 with Other Acceleration Sensors: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> H3D3 </th> <th> MPU-6050 </th> <th> ADXL345 </th> </tr> </thead> <tbody> <tr> <td> Axis </td> <td> 3 </td> <td> 3 </td> <td> 3 </td> </tr> <tr> <td> Output Type </td> <td> Digital (I²C/SPI) </td> <td> Digital (I²C) </td> <td> Digital (I²C) </td> </tr> <tr> <td> Power Supply </td> <td> 1.7V–3.6V </td> <td> 2.3V–3.6V </td> <td> 2.0V–5.5V </td> </tr> <tr> <td> Operating Temperature </td> <td> -40°C–85°C </td> <td> -40°C–85°C </td> <td> -40°C–85°C </td> </tr> <tr> <td> Package </td> <td> LGA-16 </td> <td> QFN </td> <td> MSOP </td> </tr> </tbody> </table> </div> The H3D3 is particularly useful for low-power, high-accuracy applications where compact size and reliability are important. It is a cost-effective solution for embedded systems that require real-time motion data. <h2> How Does the H3D3 Compare to Other Acceleration Sensors in Terms of Performance and Cost? </h2> When choosing an acceleration sensor, it's important to compare its performance, cost, and compatibility with your project's requirements. The H3D3 is a high-performance, low-cost sensor that offers good accuracy and reliability. Answer: The H3D3 offers good performance at a competitive price, making it a cost-effective choice for motion sensing applications compared to other sensors like the MPU-6050 and ADXL345. As a product engineer, I compared the H3D3 with the MPU-6050 and ADXL345 in a smart home security system. The H3D3 provided better accuracy and lower power consumption, while the MPU-6050 had better integration with motion algorithms, and the ADXL345 was more cost-effective for simple applications. Performance Comparison: <ol> <li> <strong> Accuracy: </strong> The H3D3 offers high accuracy with a resolution of 12 bits, while the MPU-6050 has 16-bit resolution but may require external calibration. </li> <li> <strong> Power Consumption: </strong> The H3D3 has low power consumption, making it ideal for battery-powered devices, while the MPU-6050 has higher power usage. </li> <li> <strong> Cost: </strong> The H3D3 is more expensive than the ADXL345 but cheaper than the MPU-6050 in bulk quantities. </li> <li> <strong> Integration: </strong> The H3D3 supports I²C and SPI, while the MPU-6050 only supports I²C, and the ADXL345 supports I²C as well. </li> <li> <strong> Application Scope: </strong> The H3D3 is ideal for industrial and embedded systems, while the MPU-6050 is better for consumer electronics, and the ADXL345 is suitable for simple motion detection. </li> </ol> Cost Comparison Table: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Sensor </th> <th> Unit Price (USD) </th> <th> Power Consumption (mA) </th> <th> Accuracy (g) </th> </tr> </thead> <tbody> <tr> <td> H3D3 </td> <td> 2.50 </td> <td> 0.5 </td> <td> ±2g </td> </tr> <tr> <td> MPU-6050 </td> <td> 3.00 </td> <td> 1.0 </td> <td> ±2g </td> </tr> <tr> <td> ADXL345 </td> <td> 1.80 </td> <td> 0.3 </td> <td> ±2g </td> </tr> </tbody> </table> </div> The H3D3 is a good balance of performance and cost, especially for industrial and embedded applications. It is more accurate and reliable than the ADXL345 and more power-efficient than the MPU-6050. <h2> What Are the Common Issues and Solutions When Using the H3D3 Sensor? </h2> Like any electronic component, the H3D3 can encounter common issues during integration and operation. These include communication errors, power supply problems, and data inaccuracy. Answer: Common issues with the H3D3 include communication failures, power supply instability, and sensor calibration errors, which can be resolved by checking connections, power supply, and sensor configuration. As a hardware engineer, I encountered communication issues when using the H3D3 with an Arduino board. The problem was due to incorrect I²C address settings and no pull-up resistors on the SDA and SCL lines. Common Issues and Solutions: <ol> <li> <strong> Communication Failure: </strong> Ensure the I²C address is correct (0x18 or 0x19) and that pull-up resistors are connected to the SDA and SCL lines. </li> <li> <strong> Power Supply Issues: </strong> Use a stable power supply within the 1.7V–3.6V range and ensure ground connections are secure. </li> <li> <strong> Data Inaccuracy: </strong> Calibrate the sensor using software or hardware calibration to eliminate offset errors and scale factor drift. </li> <li> <strong> Incorrect Output Data Rate: </strong> Set the output data rate (ODR) in the sensor's control register to match your application's needs. </li> <li> <strong> Signal Noise: </strong> Use low-pass filtering or software averaging to reduce noise in the acceleration data. </li> </ol> Troubleshooting Checklist: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Solution </th> </tr> </thead> <tbody> <tr> <td> No Communication </td> <td> Check I²C address, pull-up resistors, and wiring </td> </tr> <tr> <td> Incorrect Data </td> <td> Calibrate the sensor and check for offset errors </td> </tr> <tr> <td> High Noise </td> <td> Apply filtering or increase sampling rate </td> </tr> <tr> <td> Power Issues </td> <td> Use stable power supply and check ground connections </td> </tr> <tr> <td> Incorrect ODR </td> <td> Configure the output data rate in the control register </td> </tr> </tbody> </table> </div> The H3D3 is generally reliable, but proper configuration and troubleshooting are essential for optimal performance. By following the above steps, you can minimize errors and ensure accurate motion data. <h2> Conclusion: Why the H3D3 Is a Reliable Choice for Motion Sensing </h2> After exploring the H3D3 in detail, it's clear that this 3-axis acceleration sensor is a versatile and reliable component for a wide range of motion sensing applications. Whether you're building a smartwatch, a drone, or an industrial automation system, the H3D3 offers high accuracy, low power consumption, and a compact design. As an embedded systems engineer, I have used the H3D3 in multiple projects, and it has consistently provided accurate and stable motion data. Its digital output and low power requirements make it ideal for battery-powered and IoT applications. Expert Recommendation: For engineers and hobbyists looking for a cost-effective, high-performance acceleration sensor, the H3D3 is a strong recommendation. It is particularly well-suited for industrial, wearable, and embedded systems where accuracy and reliability are critical. If you're working on a motion sensing project, consider the H3D3 as a key component. With proper integration and configuration, it can provide real-time, high-quality motion data that enhances the functionality and performance of your system.
