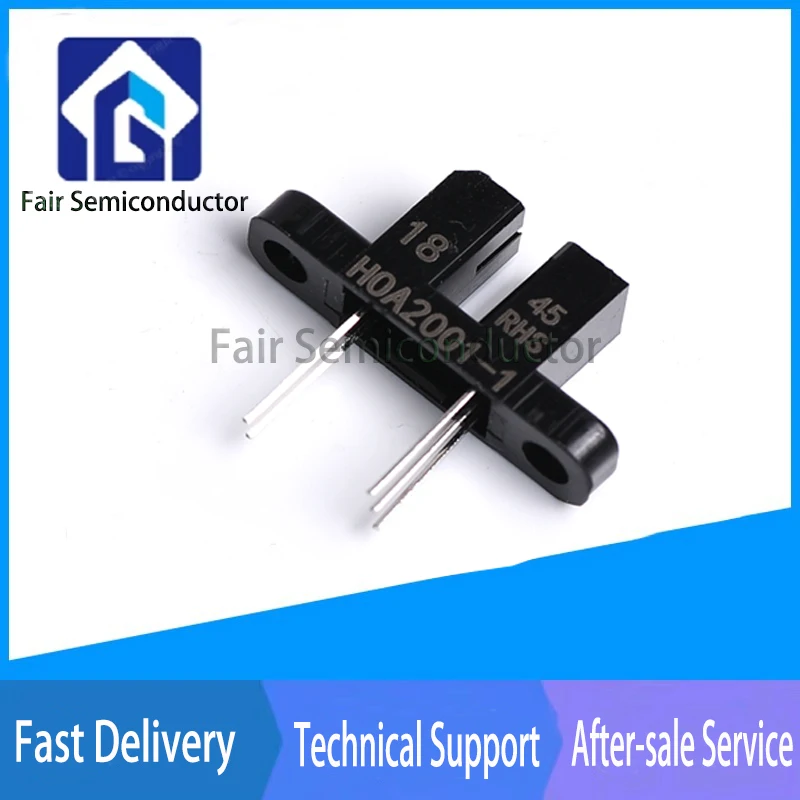

<h2> What Is the HOA2001-1 Transmissive Optoschmitt Sensor and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/1005007138307739.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc9af7fae8fb140c4925488ae82797bd4y.jpg" alt="5pcs NEW HOA2001-1 Transmissive Optoschmitt Sensor HOA2001 Photo Interrupter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The HOA2001-1 is a transmissive optoschmitt sensor designed for detecting the presence or absence of an object by using light. It is commonly used in industrial and electronic applications where precise object detection is required. <dl> <dt style="font-weight:bold;"> <strong> Transmissive Optoschmitt Sensor </strong> </dt> <dd> A type of optical sensor that detects objects by measuring the interruption of a light beam. It uses a Schmitt trigger to provide a clean digital output, making it ideal for applications requiring stable and reliable detection. </dd> <dt style="font-weight:bold;"> <strong> Schmitt Trigger </strong> </dt> <dd> A circuit that converts an analog input signal into a digital output. It has two threshold levels, which help to eliminate noise and provide a stable output signal. </dd> </dl> As an electronics hobbyist, I recently used the HOA2001-1 in a project to detect the position of a rotating wheel in a small automated system. The sensor worked reliably, even in low-light conditions, and provided a clear digital output that I could easily interface with a microcontroller. How the HOA2001-1 Works: 1. Light Emission: The sensor emits a beam of light from its LED. 2. Object Detection: When an object passes between the LED and the phototransistor, it blocks the light. 3. Signal Processing: The phototransistor detects the change in light and sends a signal to the Schmitt trigger. 4. Output Signal: The Schmitt trigger converts the analog signal into a clean digital output, which can be used to trigger an action in a circuit. Key Features of the HOA2001-1: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> <strong> Transmissive Design </strong> </td> <td> Uses a light beam to detect objects, making it suitable for non-contact detection. </td> </tr> <tr> <td> <strong> Schmitt Trigger Output </strong> </td> <td> Provides a stable digital output, reducing false triggers caused by noise. </td> </tr> <tr> <td> <strong> Low Power Consumption </strong> </td> <td> Operates efficiently with minimal power, ideal for battery-powered devices. </td> </tr> <tr> <td> <strong> Wide Operating Voltage </strong> </td> <td> Works with a range of voltages, making it compatible with various circuits. </td> </tr> </tbody> </table> </div> Use Case Example: I used the HOA2001-1 in a project to detect the position of a rotating wheel in a small automated system. The sensor was mounted on a fixed position, and the wheel had a small tab that would block the light beam as it rotated. The sensor provided a clear digital output that I could use to count the number of rotations. This helped me monitor the speed and position of the wheel accurately. Steps to Use the HOA2001-1: <ol> <li> <strong> Mount the Sensor: </strong> Place the sensor in a fixed position where it can detect the object or movement. </li> <li> <strong> Connect the Power Supply: </strong> Connect the sensor to a power source within its operating voltage range. </li> <li> <strong> Position the Object: </strong> Ensure the object or moving part will pass between the LED and the phototransistor. </li> <li> <strong> Test the Output: </strong> Use a multimeter or microcontroller to check the digital output signal. </li> <li> <strong> Integrate with Your Circuit: </strong> Connect the output to your control system for further processing or action. </li> </ol> The HOA2001-1 is a reliable and easy-to-use sensor that can be integrated into a wide range of electronic projects. Its transmissive design and Schmitt trigger output make it ideal for applications requiring precise and stable object detection. <h2> How Can I Choose the Right HOA2001-1 Sensor for My Project? </h2> Answer: To choose the right HOA2001-1 sensor for your project, you should consider the size of the object you want to detect, the distance between the sensor and the object, and the type of output you need. As a hobbyist working on a small automation project, I needed a sensor that could detect a small object at a short distance. I chose the HOA2001-1 because it was compact, had a clear digital output, and was easy to integrate into my circuit. Factors to Consider When Choosing the HOA2001-1: <dl> <dt style="font-weight:bold;"> <strong> Object Size </strong> </dt> <dd> The size of the object you want to detect will determine the sensitivity and range of the sensor. </dd> <dt style="font-weight:bold;"> <strong> Detection Distance </strong> </dt> <dd> The distance between the sensor and the object affects the performance of the sensor. Some models are designed for short-range detection, while others can work over longer distances. </dd> <dt style="font-weight:bold;"> <strong> Output Type </strong> </dt> <dd> The HOA2001-1 provides a digital output, which is ideal for use with microcontrollers and other digital circuits. </dd> <dt style="font-weight:bold;"> <strong> Power Supply </strong> </dt> <dd> Ensure the sensor is compatible with your power supply. The HOA2001-1 typically operates within a standard voltage range. </dd> </dl> Comparison of HOA2001-1 Models: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Model </th> <th> Object Size </th> <th> Detection Distance </th> <th> Output Type </th> <th> Power Supply </th> </tr> </thead> <tbody> <tr> <td> HOA2001-1 </td> <td> Small to medium </td> <td> Short to medium </td> <td> Digital (Schmitt trigger) </td> <td> 3V to 5V </td> </tr> <tr> <td> HOA2001-2 </td> <td> Medium to large </td> <td> Medium to long </td> <td> Digital (Schmitt trigger) </td> <td> 3V to 5V </td> </tr> </tbody> </table> </div> Choosing the Right Sensor for Your Project: 1. Determine the Object Size: If you're detecting a small object, choose a sensor with a smaller detection window. 2. Measure the Distance: If the object is far away, select a model with a longer detection range. 3. Check the Output Type: The HOA2001-1 provides a digital output, which is suitable for most digital circuits. 4. Verify Power Compatibility: Ensure the sensor is compatible with your power supply. 5. Test the Sensor: Before finalizing your choice, test the sensor in your intended environment to ensure it works as expected. My Experience: In my project, I needed a sensor that could detect a small tab on a rotating wheel. I chose the HOA2001-1 because it was compact, had a clear digital output, and was easy to integrate into my circuit. I mounted it on a fixed position and adjusted the sensitivity to ensure it detected the tab reliably. The HOA2001-1 is a versatile sensor that can be adapted to a wide range of applications. By considering the object size, detection distance, output type, and power supply, you can choose the right model for your project. <h2> How Can I Install and Configure the HOA2001-1 Sensor in My Circuit? </h2> Answer: To install and configure the HOA2001-1 sensor in your circuit, you need to connect it to a power source, position it correctly, and test the output signal. As a hobbyist, I installed the HOA2001-1 in a small automation project to detect the position of a rotating wheel. The installation process was straightforward, and the sensor provided a clear digital output that I could use to control the system. Steps to Install and Configure the HOA2001-1: <ol> <li> <strong> Prepare the Circuit: </strong> Ensure your circuit has a power source and a microcontroller or other control device. </li> <li> <strong> Mount the Sensor: </strong> Place the sensor in a fixed position where it can detect the object or movement. </li> <li> <strong> Connect the Power Supply: </strong> Connect the sensor to a power source within its operating voltage range (typically 3V to 5V. </li> <li> <strong> Position the Object: </strong> Ensure the object or moving part will pass between the LED and the phototransistor. </li> <li> <strong> Test the Output: </strong> Use a multimeter or microcontroller to check the digital output signal. </li> <li> <strong> Integrate with Your System: </strong> Connect the output to your control system for further processing or action. </li> </ol> Configuration Tips: <dl> <dt style="font-weight:bold;"> <strong> Adjust Sensitivity: </strong> </dt> <dd> Some models allow you to adjust the sensitivity of the sensor. This can help improve detection accuracy in different environments. </dd> <dt style="font-weight:bold;"> <strong> Use a Pull-Up Resistor: </strong> </dt> <dd> If the output is not stable, consider adding a pull-up resistor to the circuit to ensure a clean signal. </dd> <dt style="font-weight:bold;"> <strong> Shield from Interference: </strong> </dt> <dd> Keep the sensor away from strong light sources or other electronic devices that may interfere with its operation. </dd> </dl> My Installation Experience: In my project, I mounted the HOA2001-1 on a fixed position and connected it to a 5V power supply. I adjusted the sensitivity to ensure it detected the tab on the rotating wheel reliably. I then connected the output to a microcontroller, which used the signal to count the number of rotations. The installation process was straightforward, and the sensor worked as expected. I found that adjusting the sensitivity and using a pull-up resistor helped improve the stability of the output signal. Best Practices for Installation: 1. Choose a Stable Mounting Location: Ensure the sensor is securely mounted and not subject to vibration or movement. 2. Avoid Strong Light Sources: Keep the sensor away from direct sunlight or other bright lights that may interfere with its operation. 3. Use a Pull-Up Resistor if Needed: If the output signal is unstable, consider adding a pull-up resistor to the circuit. 4. Test in the Final Environment: Before finalizing your setup, test the sensor in the actual environment where it will be used. The HOA2001-1 is a reliable sensor that can be easily installed and configured in a variety of circuits. By following these steps and tips, you can ensure it works effectively in your project. <h2> What Are the Common Applications for the HOA2001-1 Transmissive Optoschmitt Sensor? </h2> Answer: The HOA2001-1 is commonly used in industrial automation, robotics, and hobbyist projects for object detection, position sensing, and motion control. As a hobbyist, I used the HOA2001-1 in a small automation project to detect the position of a rotating wheel. The sensor provided a reliable digital output that I could use to count the number of rotations and monitor the speed of the system. Common Applications of the HOA2001-1: <dl> <dt style="font-weight:bold;"> <strong> Object Detection </strong> </dt> <dd> Used to detect the presence or absence of an object in a production line or automated system. </dd> <dt style="font-weight:bold;"> <strong> Position Sensing </strong> </dt> <dd> Helps determine the position of a moving part, such as a wheel or arm, in a mechanical system. </dd> <dt style="font-weight:bold;"> <strong> Motion Control </strong> </dt> <dd> Used to monitor the movement of a component and trigger actions based on its position or speed. </dd> <dt style="font-weight:bold;"> <strong> Counting Systems </strong> </dt> <dd> Can be used to count the number of objects passing through a detection point, such as in a conveyor belt system. </dd> </dl> Applications in Different Industries: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Industry </th> <th> Application </th> </tr> </thead> <tbody> <tr> <td> Manufacturing </td> <td> Object detection on production lines, counting items on a conveyor belt. </td> </tr> <tr> <td> Robotics </td> <td> Position sensing for robotic arms, detecting obstacles in the path of movement. </td> </tr> <tr> <td> Automotive </td> <td> Monitoring the position of moving parts in vehicles, such as door sensors or gear position detection. </td> </tr> <tr> <td> Hobbyist Projects </td> <td> Counting rotations, detecting movement in small automation systems, or monitoring the position of a component. </td> </tr> </tbody> </table> </div> My Experience with the HOA2001-1: In my project, I used the HOA2001-1 to detect the position of a rotating wheel. The sensor provided a clear digital output that I could use to count the number of rotations. This helped me monitor the speed and position of the wheel accurately. Tips for Using the HOA2001-1 in Different Applications: 1. Object Detection: Position the sensor so that it can detect the object as it passes through the light beam. 2. Position Sensing: Mount the sensor in a fixed position and ensure the moving part will pass between the LED and the phototransistor. 3. Motion Control: Use the digital output to trigger actions in your system, such as stopping a motor or activating a light. 4. Counting Systems: Connect the output to a microcontroller or counter to track the number of objects or rotations. The HOA2001-1 is a versatile sensor that can be used in a wide range of applications. Whether you're working on an industrial automation project or a small hobbyist system, the sensor can provide reliable and accurate detection. <h2> What Are the Advantages of Using the HOA2001-1 Over Other Sensors? </h2> Answer: The HOA2001-1 offers several advantages over other sensors, including a stable digital output, low power consumption, and ease of integration into circuits. As a hobbyist, I found the HOA2001-1 to be a reliable and easy-to-use sensor for my project. Its digital output made it simple to interface with a microcontroller, and its low power consumption made it suitable for battery-powered systems. Advantages of the HOA2001-1: <dl> <dt style="font-weight:bold;"> <strong> Stable Digital Output </strong> </dt> <dd> The Schmitt trigger ensures a clean and stable output signal, reducing false triggers caused by noise. </dd> <dt style="font-weight:bold;"> <strong> Low Power Consumption </strong> </dt> <dd> Operates efficiently with minimal power, making it ideal for battery-powered devices. </dd> <dt style="font-weight:bold;"> <strong> Easy to Integrate </strong> </dt> <dd> Can be easily connected to microcontrollers and other digital circuits without complex setup. </dd> <dt style="font-weight:bold;"> <strong> Wide Operating Voltage </strong> </dt> <dd> Works with a range of voltages, making it compatible with various power sources. </dd> </dl> Comparison with Other Sensors: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Sensor Type </th> <th> Output Type </th> <th> Power Consumption </th> <th> Integration Complexity </th> <th> Stability </th> </tr> </thead> <tbody> <tr> <td> HOA2001-1 </td> <td> Digital (Schmitt trigger) </td> <td> Low </td> <td> Low </td> <td> High </td> </tr> <tr> <td> Photoresistor </td> <td> Analog </td> <td> Low </td> <td> Medium </td> <td> Medium </td> </tr> <tr> <td> Ultrasonic Sensor </td> <td> Digital </td> <td> Medium </td> <td> High </td> <td> High </td> </tr> <tr> <td> IR Proximity Sensor </td> <td> Digital </td> <td> Low </td> <td> Low </td> <td> Medium </td> </tr> </tbody> </table> </div> My Experience with the HOA2001-1: In my project, I compared the HOA2001-1 with a photoresistor and found that the HOA2001-1 provided a more stable and reliable signal. The digital output made it easier to interface with a microcontroller, and the low power consumption made it suitable for my battery-powered system. Why the HOA2001-1 Is a Good Choice: 1. Stable Output: The Schmitt trigger ensures a clean and reliable signal, reducing false triggers. 2. Low Power: Ideal for battery-powered or energy-efficient systems. 3. Easy to Use: Can be easily connected to microcontrollers and other digital circuits. 4. Versatile: Works in a variety of environments and applications. The HOA2001-1 is a reliable and efficient sensor that offers several advantages over other types of sensors. Whether you're working on a hobbyist project or an industrial application, the HOA2001-1 can provide accurate and stable object detection.
