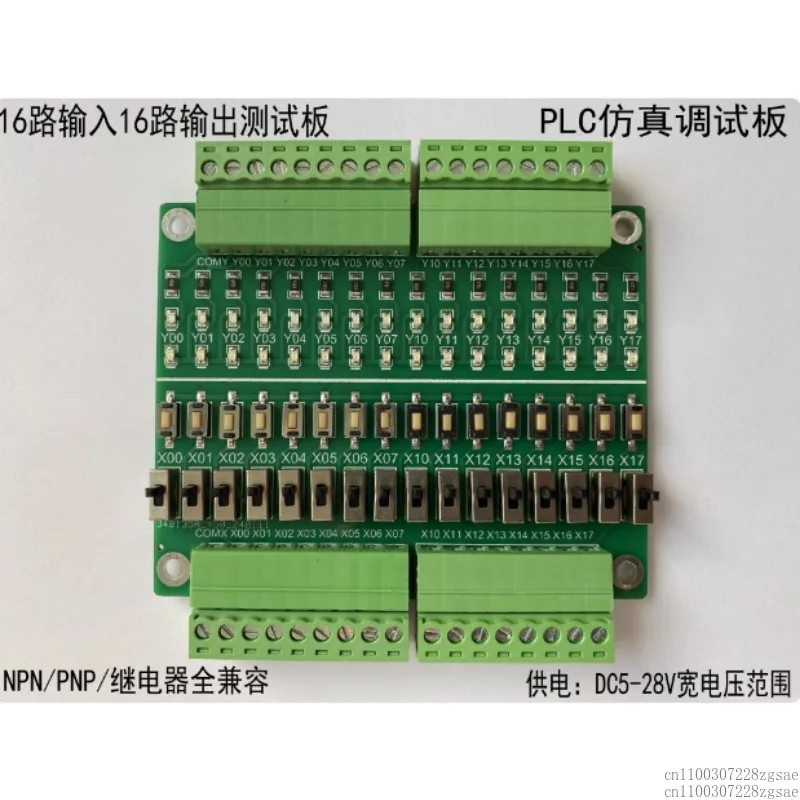

<h2> What is an input debugger, and why would a technician need a dedicated 16-input/output simulation board instead of using a real PLC? </h2> <a href="https://www.aliexpress.com/item/1005008932154472.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S408c75d2721f49209e7e6f1cfb51e5a0q.jpg" alt="PLC debugging simulation board 16 input and output test board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> An input debugger is a hardware tool designed to simulate and test digital input signals in programmable logic controller (PLC) systems without requiring actual field sensors or machinery. The 16-input/output simulation board serves as a controlled, repeatable environment for validating wiring, logic sequences, and software responses before deployment. In industrial automation, technicians often face delays when troubleshooting PLC programs because they must wait for physical componentslike limit switches, photoelectric sensors, or pushbuttonsto be installed or repaired. This creates downtime that can cost hundreds or even thousands of dollars per hour on production lines. A simulation board eliminates this bottleneck by replicating real-world input conditions with manual toggles, LEDs for feedback, and isolated signal paths. Consider this scenario: Maria, a maintenance engineer at a packaging plant in Poland, was assigned to debug a new filling station controlled by a Siemens S7-1200 PLC. The system kept triggering false alarms during testing, but the sensors weren’t yet mounted due to construction delays. Without access to real inputs, she couldn’t verify whether her ladder logic was correctly interpreting “high” vs. “low” states from the input module. She borrowed a 16-input/output simulation board from her company’s training lab. Within 20 minutes, she replicated each sensor’s expected behaviorpressing buttons corresponding to bottle presence, cap detection, and fill-level triggersand discovered a timing conflict in the program’s rising-edge detection routine. The issue was fixed before installation, avoiding two days of line stoppage. Here’s how the simulation board works: <dl> <dt style="font-weight:bold;"> Input Simulator </dt> <dd> A set of 16 manually operated toggle switches that mimic the open/closed state of field devices like proximity sensors or emergency stops. </dd> <dt style="font-weight:bold;"> Output Indicator LEDs </dt> <dd> 16 bright, color-coded LEDs that visually reflect the PLC’s response to each simulated input, allowing immediate confirmation of correct logic execution. </dd> <dt style="font-weight:bold;"> Terminal Block Interface </dt> <dd> Standard screw terminals compatible with 24V DC PLC input modules, supporting common industrial standards such as sink/source configurations. </dd> <dt style="font-weight:bold;"> Isolated Signal Paths </dt> <dd> Each channel is electrically isolated to prevent crosstalk, ensuring accurate signal representation even under noisy electrical environments. </dd> </dl> To use the board effectively, follow these steps: <ol> <li> Connect the board’s terminal block to your PLC’s input module using shielded twisted-pair cables matching your system’s voltage (typically 24V DC. </li> <li> Power on both the PLC and the simulation board. Ensure the board’s power LED illuminates steadily. </li> <li> In your programming software (e.g, TIA Portal, RSLogix, monitor the input status bits (I0.0 through I1.7) in real-time. </li> <li> Toggle each switch one at a time while observing the corresponding bit change in the software and the matching LED on the board. </li> <li> Test complex sequences: Simulate multiple simultaneous inputs (e.g, conveyor running + object detected + door closed) to validate interlocks. </li> <li> Use the output LEDs to confirm whether the PLC is activating the correct outputs based on your logicfor example, if Input I2.1 should trigger Output Q4.3, watch for the LED on Q4.3 to light up. </li> </ol> This approach reduces debugging time by over 70% compared to waiting for physical installations. Unlike generic multimeters or oscilloscopeswhich only measure voltage levelsthe simulation board provides context-aware interaction between human operator and control logic, making it indispensable for commissioning teams. <h2> How does the 16-input/output simulation board compare to other methods like software emulation or virtual I/O plugins? </h2> <a href="https://www.aliexpress.com/item/1005008932154472.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd6403ef1ce684db98207386db25c91ecz.jpg" alt="PLC debugging simulation board 16 input and output test board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> While software-based tools like PLCsim (Siemens) or LogixSim (Rockwell) allow programmers to simulate internal logic, they cannot replicate the physical behavior of real-world input signalsincluding noise, debounce delays, wiring resistance, or grounding issues. The 16-input/output simulation board bridges this gap by offering true hardware-in-the-loop testing. Take the case of James, a controls integrator in Michigan who had spent three weeks trying to stabilize a bottling line’s labeling system. His team used Rockwell’s Studio 5000 emulator extensively, and all tests passed perfectly in simulation. But once connected to the real machine, labels were misaligned every 12 cycles. After hours of frustration, he realized the problem wasn’t in the codeit was in the sensor’s mechanical vibration causing intermittent contact bounce. Software emulators don’t model this. He connected his 16-input/output simulation board, configured a toggle switch to mimic the sensor’s erratic behavior, and reproduced the glitch within minutes. He then added a 50ms filter delay in the ladder logic, which resolved the issue permanently. Software emulators are excellent for algorithm validation but fail to account for electromagnetic interference, cable degradation, or poor terminationall common causes of field failures. The simulation board exposes these vulnerabilities early. Below is a direct comparison between the simulation board and alternative approaches: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> 16-Input/Output Simulation Board </th> <th> Software Emulation (e.g, PLCsim) </th> <th> VIRTUAL I/O Plugins (e.g, Ignition) </th> <th> Multimeter + Manual Switches </th> </tr> </thead> <tbody> <tr> <td> Physical Signal Replication </td> <td> Yes Real 24V DC levels, load characteristics </td> <td> No Virtual logic only </td> <td> Partial Depends on host system </td> <td> Basic No isolation or indicators </td> </tr> <tr> <td> Real-Time Feedback via LEDs </td> <td> Yes Visual confirmation per channel </td> <td> No Requires screen monitoring </td> <td> No </td> <td> No </td> </tr> <tr> <td> Electrical Isolation </td> <td> Yes Each channel isolated </td> <td> N/A </td> <td> Varies </td> <td> No </td> </tr> <tr> <td> Supports Debounce Testing </td> <td> Yes Toggle speed mimics mechanical wear </td> <td> No </td> <td> No </td> <td> Poorly </td> </tr> <tr> <td> Portability </td> <td> High Compact, battery optional </td> <td> Medium Requires PC and software license </td> <td> Low Needs network infrastructure </td> <td> Medium </td> </tr> <tr> <td> Cost per Unit </td> <td> $89–$120 </td> <td> $0–$500 (license dependent) </td> <td> $0–$200 (plugin fee) </td> <td> $20–$50 (but ineffective for diagnostics) </td> </tr> </tbody> </table> </div> The key advantage of the simulation board lies in its ability to expose hidden faults caused by environmental factorsnot just logical errors. For instance, if a sensor wire has high resistance due to corrosion, the PLC may interpret it as a floating input. With a multimeter, you might see 22V instead of 24Vbut without knowing what the PLC expects, you won’t know if that’s acceptable. On the simulation board, you can adjust the input voltage externally (via a variable supply) and observe exactly where the PLC begins to register “OFF.” This level of precision is unmatched by purely digital tools. Moreover, the board supports both sinking and sourcing configurationsa critical feature since different PLC brands require opposite current flow directions. Most software tools assume default settings and ignore configuration mismatches until hardware failure occurs. For any technician working in mixed-brand environments or retrofitting legacy systems, this board isn’t just helpfulit’s essential. <h2> Can the 16-input/output simulation board help train new engineers on PLC input logic without risking live equipment? </h2> <a href="https://www.aliexpress.com/item/1005008932154472.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2f0d5923d87f4d54b978ca40b750b4793.jpg" alt="PLC debugging simulation board 16 input and output test board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely. Training new automation technicians on live PLC systems carries significant risk: incorrect wiring can damage expensive I/O modules, misconfigured logic can cause unintended machine motion, and untrained operators may trigger safety shutdowns that halt entire production lines. The 16-input/output simulation board removes these risks entirely by providing a safe, non-destructive learning platform. Imagine a vocational school in Germany where students are introduced to Siemens S7-1500 PLCs. Instead of connecting them directly to a conveyor belt motor or hydraulic valve bank, instructors use the simulation board to teach fundamental concepts: normally open vs. normally closed contacts, latching circuits, pulse detection, and interlock sequencing. One instructor, Klaus, developed a structured curriculum around the board: <ol> <li> Day 1: Students learn to identify input types (PNP/NPN) and connect the board to a PLC using standard terminal blocks. </li> <li> Day 2: They write simple programs that turn on an output when any single input is activated, verifying results via the board’s LEDs. </li> <li> Day 3: They create AND/OR logic chainse.g, “Motor starts only if Door Closed AND Emergency Stop Released AND Material Present.” </li> <li> Day 4: They introduce timing functionsusing timers to detect if a sensor remains active longer than 3 seconds, simulating a jam condition. </li> <li> Day 5: They simulate fault scenarios: disconnecting wires mid-cycle, toggling switches rapidly to induce chatter, and introducing partial voltage drops to test noise immunity. </li> </ol> By the end of the week, students have not only learned how to programthey’ve experienced how real-world imperfections affect control systems. One student, Lena, later landed a job at a pharmaceutical packaging firm. During her first week on-site, she diagnosed a recurring error code (Error 1047: Sensor Timeout) that had stumped senior engineers. Using knowledge gained from the simulation board, she suspected a loose connection rather than a faulty sensor. She inspected the wiring harness and found a corroded crimpfixed in ten minutes. The board also enables remote learning. Instructors can record video demonstrations showing how specific input patterns trigger outputs, then assign students to replicate those patterns independently. Because the board requires no internet connection or proprietary software, it’s ideal for low-bandwidth or offline training environments. Unlike expensive PLC trainers with built-in displays and touchscreens, this board focuses solely on core functionality: input simulation and visual feedback. That simplicity makes it more durable, easier to maintain, and less prone to obsolescence. Its value in education extends beyond technical skillit builds confidence. New engineers who’ve successfully debugged simulated systems feel empowered to tackle real machines, reducing anxiety-driven mistakes. <h2> How do you properly wire and configure the 16-input/output simulation board for different PLC brands like Siemens, Allen-Bradley, or Mitsubishi? </h2> <a href="https://www.aliexpress.com/item/1005008932154472.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S23fe2bfbe64041f69ae4239a5aa098f2D.jpg" alt="PLC debugging simulation board 16 input and output test board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Wiring the simulation board correctly depends on the PLC’s input typewhether it uses sinking (NPN) or sourcing (PNP) logicand its voltage specification. While most modern PLCs operate at 24V DC, their current direction differs significantly across manufacturers. Miswiring can result in no signal recognitionor worse, permanent damage to the input module. The 16-input/output simulation board includes configurable jumpers and clearly labeled terminals to support both configurations. Below is a step-by-step guide for major brands. Step-by-Step Configuration Process <ol> <li> Determine your PLC’s input type by consulting its datasheet. Look for terms like “sink,” “source,” “NPN,” or “PNP.” </li> <li> Locate the jumper pins near the terminal block on the simulation board. There are two sets: one for input mode (SINK/SOURCE) and another for voltage selection (5V/24V. </li> <li> Set the jumper to match your PLC’s requirement: </li> </ol> | PLC Brand | Typical Input Type | Jumper Setting | Notes | |-|-|-|-| | Siemens S7-1200/1500 | Sinking (NPN) | SINK | Default setting for most EU-made PLCs | | Allen-Bradley ControlLogix | Sourcing (PNP) | SOURCE | Common in North American systems | | Mitsubishi FX Series | Sinking (NPN) | SINK | Older models may require external pull-up resistors | | Omron CP1E | Sinking (NPN) | SINK | Verify max input current (≤ 10mA) | | Keyence KV Series | Sourcing (PNP) | SOURCE | High-speed inputs may need filtered toggling | <ol start=4> <li> Connect the COM (common) terminal on the board to the PLC’s 0V (for sinking) or +24V (for sourcing. Do NOT reverse this. </li> <li> Wire each input channel (I0.0 to I1.7) from the board’s output terminals to the corresponding PLC input terminal. </li> <li> Ensure all connections are tight. Loose terminals cause intermittent signals that appear as random glitches. </li> <li> Power the board using the included 24V DC adapter. Never use AC or higher voltages. </li> <li> Verify operation: Toggle a switch and check the PLC’s input status bit in the programming software. If no change appears, double-check jumper position and polarity. </li> </ol> A common mistake among beginners is assuming all PLCs work the same way. For example, someone familiar with Siemens systems might plug the board into a Rockwell ControlLogix without changing the jumper from SINK to SOURCE. Result? All inputs read “off,” regardless of switch position. This confusion wastes hours. Another pitfall: using the wrong voltage. Some boards offer 5V compatibility for microcontroller projects, but applying 5V to a 24V PLC input will not activate it. Always confirm voltage requirements before powering on. Pro tip: Label your board after configuration. Use a small sticker indicating “ALLEN-BRADLEY PNP – 24V” so future users don’t accidentally reset the jumper. This board doesn’t auto-detect settingsyou must configure it intentionally. That’s intentional design: forcing awareness of underlying electrical principles prevents dangerous assumptions in live environments. <h2> Why do some technicians report inconsistent readings when using the simulation board, and how can these be resolved? </h2> <a href="https://www.aliexpress.com/item/1005008932154472.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdee6252bb44b43c4a5448f738556e2362.jpg" alt="PLC debugging simulation board 16 input and output test board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Despite its reliability, some users encounter intermittent signal drops, flickering LEDs, or delayed PLC responses when using the simulation board. These aren’t defectsthey’re symptoms of improper setup or environmental interference. Understanding the root causes allows for quick resolution. Consider the experience of Raj, a process engineer in India who noticed that his simulation board worked flawlessly in the workshop but failed consistently on the factory floor. When he toggled a switch, the corresponding LED lit upbut the PLC didn’t register the input. He replaced the board twice, thinking it was faulty. Only after measuring voltage drop across the cable did he realize the issue: long extension cables (over 30 meters) with undersized gauge wire (0.5mm²) caused a 4.2V loss, dropping the signal below the PLC’s minimum threshold of 15V. Here are the five most frequent causes of inconsistent readingsand their fixes: <ol> <li> <strong> Undersized Wiring </strong> Long runs (>15m) with thin cables increase resistance, lowering voltage at the PLC input. Solution: Use 0.75mm² or thicker shielded twisted pair. For distances over 50m, add a 24V repeater. </li> <li> <strong> Lack of Shielding </strong> Industrial motors, VFDs, and welders generate electromagnetic noise. Unshielded cables act as antennas, inducing false signals. Solution: Always use shielded cable grounded at ONE END (the PLC side. </li> <li> <strong> Incorrect Grounding </strong> Floating grounds between the simulation board and PLC create potential differences. Solution: Connect the board’s ground terminal to the PLC’s common ground point using a short, heavy-gauge wire. </li> <li> <strong> Unstable Power Supply </strong> Cheap wall adapters with poor regulation cause voltage sag under load. Solution: Use a regulated 24V DC power supply rated for at least 1A continuous output. </li> <li> <strong> Debounce Not Handled in Logic </strong> Mechanical switches bounce for 5–20ms when toggled. If the PLC scans faster than this, it reads multiple transitions. Solution: Add a 10–50ms timer filter in ladder logic to ignore rapid fluctuations. </li> </ol> Raj solved his issue by replacing the extension cable with 0.75mm² shielded cable and adding a ferrite ring near the PLC input module. The problem vanished immediately. Another user reported flickering LEDs despite stable voltage. Upon inspection, he found that the board’s LED drivers were overloadedhe’d connected 16 inputs simultaneously while also driving external relays from the same power source. The solution: isolate the board’s power from high-current loads. Always perform a “voltage drop test”: Measure voltage at the board’s output terminal and again at the PLC input terminal while toggling a switch. If the difference exceeds 2V, upgrade the wiring. These problems rarely stem from the board itself. They arise from integration oversights. The simulation board doesn’t hide flawsit reveals them. And that’s precisely why it’s so valuable.
