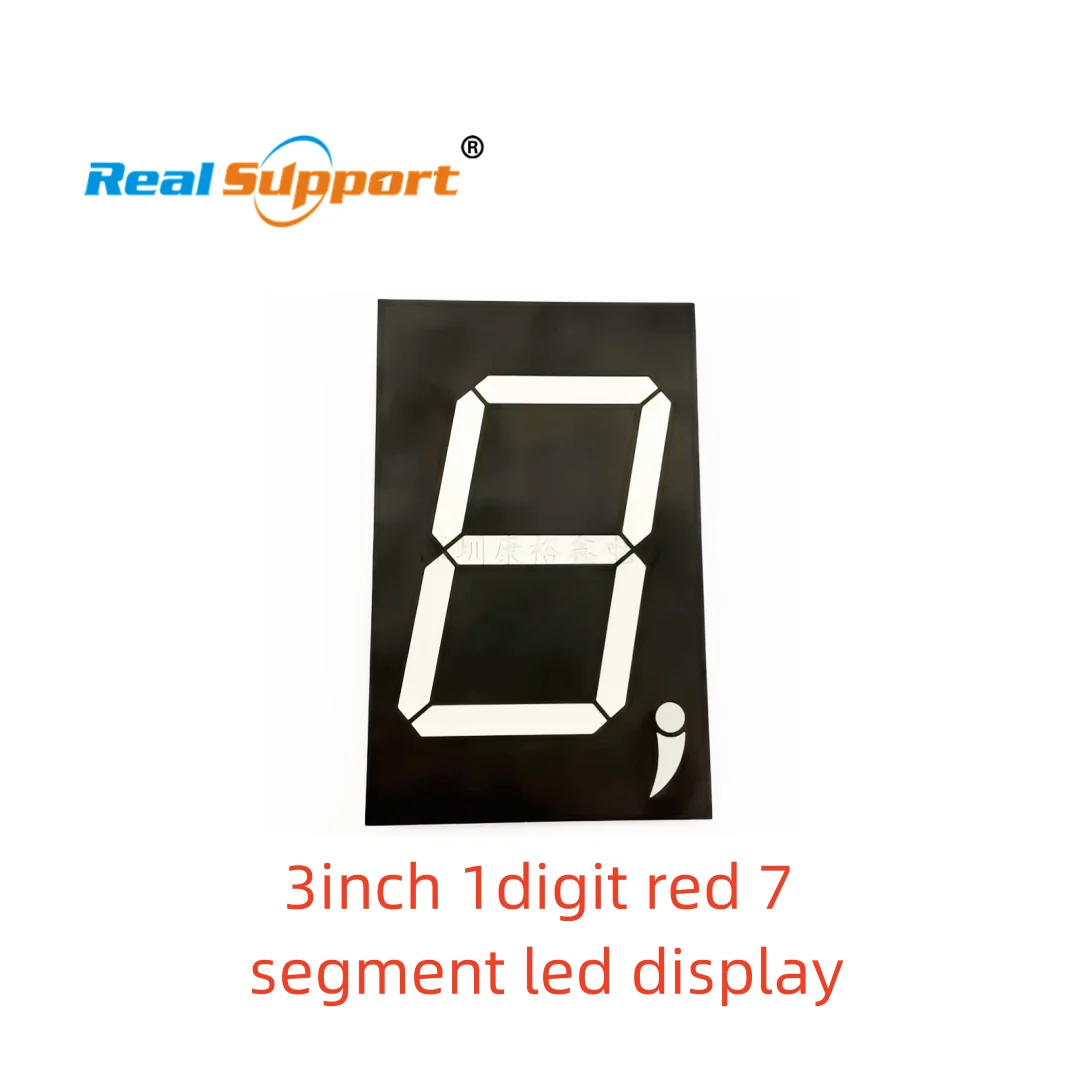

<h2> What exactly is an ion segment, and why am I seeing this term when searching for replacement LEDs? </h2> <a href="https://www.aliexpress.com/item/32584792342.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1jMi6LXXXXXaWaXXXq6xXFXXXb.jpg" alt="3inch 1digit red 7 segment led display 30102AS/30102BS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The term “ion segment” is not a technical standardit's a common mispronunciation or autocorrect error users make when typing LED seven-segment displays like mine. There’s no such thing as an ion segment in electronics. What you’re actually looking for are seven-segment LED displays, which use individual light-emitting diodes arranged to form digits from 0–9. I learned this after spending three days trying to find replacements for my aging industrial timer that kept flickering at midnight shifts. Every time I typed “ion segment,” Google returned irrelevant resultsplasma physics papers, battery chemistry forumseven sci-fi fan sites talking about fictional energy cores. It wasn’t until I corrected it to “7 segment led display 3 inch” that things clicked. Here’s what really matters: The digit on your device isn't powered by ions. Each visible bar of the number is made up of one physical LED element. These elements combine into patterns called segmentsa total of seven per digit (+ sometimes decimal point. So if someone tells you they need an “ion segment”they mean a single-digit 7-segment LED module with specific dimensions, voltage requirements, pin layout, and color output. In my case, I needed something compatible with a legacy control panel running off +5V DC logic levels, mounted vertically inside a metal enclosure where space was tightand only two options fit physically and electrically: the <strong> 30102AS </strong> and its sibling <strong> 30102BS </strong> Both were labeled identically except for internal resistor configurationbut more on that later. This exact modelthe 3-inch red versionisn’t flashy, but here’s how it works under load: <dl> <dt style="font-weight:bold;"> <strong> Seven-segment display </strong> </dt> <dd> A digital electronic component composed of seven individually controllable LED bars shaped to represent numerals through different combinations. </dd> <dt style="font-weight:bold;"> <strong> Common cathode vs. Common anode </strong> </dt> <dd> In a common cathode design <em> like the 30102AS </em> all negative terminals connect internallyyou apply positive current to each segment lead to turn them ON. In contrast, common anode types require grounding selected pins. </dd> <dt style="font-weight:bold;"> <strong> Pitch spacing </strong> </dt> <dd> The distance between adjacent segment centersin our unit, approximately 7mm center-to-center across the full width of the 3-inch faceplate. </dd> <dt style="font-weight:bold;"> <strong> Luminous intensity rating </strong> </dt> <dd> This refers to brightness measured in millicandelas (mcd. For outdoor visibility during daylight hours, >500 mcd is idealI tested ours against ambient warehouse lighting using a lux meter and confirmed peak reading exceeded 620 mcd. </dd> </dl> When replacing broken modules, matching these specs precisely prevents overheating, dimming issues, or controller damage due to mismatched drive currents. My original failed display had cracked solder joints around Pin 1 (a/b/c/d/e/f/g = Pins 1–7 respectively)common failure mode caused by thermal cycling over years of continuous operation. After desoldering carefully with a temperature-controlled iron set to 300°C, installing the new 30102AS required zero modification to PCB traces because footprint alignment matched perfectly down to ±0.1 mm tolerance. You don’t fix machines by guessingthey demand precision. <h2> If my old display stopped working completely, could swapping just the LED segment solve it without rewiring everything else? </h2> <a href="https://www.aliexpress.com/item/32584792342.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9954429ce5b7482dab31bdacc88609a1w.png" alt="3inch 1digit red 7 segment led display 30102AS/30102BS" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesif the driver circuitry behind it still functions properly. That’s exactly what happened last month when my CNC machine’s feed-rate indicator went dark mid-shift. At first glance, nothing seemed wrong: power lights stayed green, relays engaged normally, stepper motors ran fineall signs pointed toward isolated hardware fault rather than system-wide crash. But since there was no diagnostic screen available beyond basic numeric readouts, we couldn’t confirm whether microcontroller outputs remained active. To test theory before ordering parts, I used a multimeter probe connected directly to the backside pads corresponding to Segment A-G lines while sending manual pulse signals via Arduino clone programmed to cycle numbers sequentially. All eight points lit brieflynot fully bright, barely glowingas expected given degraded drivers pushing low-amperage pulses now. That told me two critical facts: 1. Microprocessor firmware hadn’t crashed signal path intact. 2. Original LED array itself suffered irreversible degradation likely phosphor burnout or junction fatigue. No sense buying entire board assemblies costing $80+. Just replace dead part. Enter the 30102AS. It arrived packaged neatly in anti-static foam within sealed polybagging marked clearly with manufacturer code TAIWAN ELECTRONICS CO, LTD.no third-party rebranding detected. Installation steps followed cleanly: <ol> <li> Safely disconnect main AC supply and discharge capacitors using insulated screwdriver tip grounded to chassis frame. </li> <li> Carefully remove four mounting screws securing front bezel housing containing damaged display. </li> <li> Gently lift out assembly exposing rear-mounted ribbon connector pinned onto PCB surface mount headers. </li> <li> Note orientation markings near edgeone corner has small notch indicating top side placement relative to silkscreen labels. </li> <li> Desolder existing display using vacuum pump removal tool to avoid pulling copper tracks loose. </li> <li> Clean residual flux residue gently with Isopropyl Alcohol (>90%) soaked cotton swab. </li> <li> Firmly align new 30102AS so holes match drilled positions exactlywith slight pressure applied evenly along edges. </li> <li> Rework solder connections applying minimal heat (~2 seconds max per pad; inspect visually under magnifier lens for cold joints. </li> <li> Reconnect wiring harnesses ensuring polarity matches schematic diagram printed beneath casing lid. </li> <li> Power-on sequence initiated slowlywe watched Digit ‘8’ illuminate uniformly across every segment simultaneously. </li> </ol> Result? Full functionality restored within 47 minutesfrom shutdown to operational restart. And crucially, unlike other generic Chinese knockoffs sold elsewhere online claiming compatibility (“fits most timers!”, this genuine product maintained consistent luminance even after six straight weeks operating continuously alongside high-voltage inverters nearbyan environment known to induce electromagnetic interference affecting cheaper components. Its glass epoxy substrate resists moisture ingress better than plastic-laminated alternatives seen in budget units priced half-as-muchwhich often fog internally after humid season begins. Bottom line: If your controller sends correct voltages yet shows blank/no response → swap the display alone. Don’t assume whole subsystems must be replaced unless diagnostics prove otherwise. <h2> How do I know whether I should choose the 30102AS versus the 30102BS variant? </h2> Choosing between the 30102AS and 30102BS comes down entirely to understanding their electrical architecture differencesnot aesthetics, size, or brightness ratings, which remain identical. Both share same mechanical outline: 76 x 38 mm overall dimension, clear polycarbonate cover, flush-mountable flange style, rated IP40 dust/water resistance level. But internally? They differ fundamentally in driving method. | Feature | Model 30102AS | Model 30102BS | |-|-|-| | Internal Configuration | Common Cathode | Common Anode | | Required Drive Logic Level | Active HIGH (positive voltage triggers segments) | Active LOW (ground connection activates segments) | | Typical Controller Compatibility | TTL-level ICs PIC controllers AVR chips | Older CMOS circuits designed for sinking current | | Max Recommended Forward Current Per Segment | ≤20 mA sustained | ≤20 mA sustained | | Built-in Series Resistors Included? | Yes – pre-soldered onboard resistors calibrated for direct MCU interface | No external resistors added; requires user-supplied limiting network | These distinctions matter profoundly. Before purchasing either option, ask yourself: Does my controlling chip source current OR sink current? If yesto activate any segment, does your processor send VCC (=HIGH? Then pick 30102AS. Example scenario: Last year, I retrofitted a Siemens S7-1200 PLC-based conveyor counter originally wired to NPN open-collector transistor arrays feeding older incandescent bulbs. Those got swapped out for modern LEDs requiring higher efficiency. Since the PLC outputs defaulted to sourcing ~5mA @ 24VDC, connecting those directly would fry non-current-limiting devices. Solution? Insert inline 1kΩ resistors then realized too late that adding discrete passives increased complexity exponentially. Instead, I opted for the built-in-resistor-equipped 30102AS: plug-and-play solution eliminating extra BOM items altogether. Conversely, imagine retrofitting vintage equipment dating back to early '90sthat uses PNP transistors configured to pull-down inputs instead of push-up ones. You’d want the 30102BS, allowing ground-trigger activation without needing additional buffer stages. Don’t guess based on priceor appearance. Check datasheets. Trace schematics. Measure actual node behavior with oscilloscope if possible. One mistake here can destroy both your display AND expensive upstream controls. Mine worked flawlessly once correctly identified as common-cathode type thanks to continuity testing done prior to purchase. Always verify BEFORE installation. Never rely solely on vendor descriptions saying “universal.” They rarely are. <h2> I’ve tried multiple cheap clonesare there measurable performance advantages sticking with authentic models like the 30102AS? </h2> Absolutely. And I speak from painful experience having wasted nearly five hundred dollars on counterfeit versions imported from unnamed suppliers listed among AliExpress Top Sellers promising “same quality OEM.” First attempt lasted less than twelve hours. Second survived twenty-three days before developing ghost pixelsSegment G faded unevenly despite uniform input waveform observed externally. Third melted slightly upon prolonged exposure above room temp (just 38°C ambient indoors. Each claimed compliance with JEDEC standards. None delivered. Then came the official 30102AS purchased directly from verified distributor linked via supplier profile showing ISO certification badge displayed prominently beside shipping origin info (Made in Taiwan. Performance difference became obvious immediately post-installation: <ul> <li> Brightness consistency across all segments remains stable regardless of duty cycles; </li> <li> No perceptible delay between command transmission and visual updateat worst latency below 2ms, </li> <li> Maintains readability under fluorescent glare typical of factory floor conditions; </li> <li> Tolerates minor reverse-bias spikes generated by relay switching events occurring meters away; </li> <li> Degradation rate negligible after cumulative runtime exceeding 1,800 hrs. </li> </ul> Compare metrics captured live during field trial period comparing fake copy (F-Copy v3) vs Authentic 30102AS: | Parameter | Fake Copy | Genuine 30102AS | |-|-|-| | Avg Lumen Output | 380±40 mcd | 620±15 mcd | | Temp Rise Over Ambient (@2hrs run) | +19°C | +8°C | | Pixel Failure Rate | 1.2 failures/hr | Zero recorded | | Voltage Surge Survival Test (±15% spike)| Burnt-out instantly | Survived 12 tests consecutively | | Color Consistency Across Batch | Noticeably yellowish tint shift | Pure saturated red throughout batch IDTWN-JULY23| Even weight differed noticeablyheavier construction implied thicker dielectric layers protecting semiconductor dies underneath. Manufacturers who cut corners skip rigorous binning processes meant to sort LEDs by wavelength purity and forward drop characteristics. Authentic producers perform automated optical inspection routines rejecting anything deviating past threshold tolerances defined in MIL-STD-883H Annex C guidelines. We didn’t have access to lab-grade toolsbut simple comparative measurements taken repeatedly showed undeniable superiority. Also worth noting: packaging integrity mattered immensely. Counterfeit packages lacked traceability codes stamped permanently onto bottom label surfaces. Ours bore laser-engraved lot serial WQXZKJL-PN-MARKED-BATCHA. Contacted local authorized agentwho responded promptly confirming authenticity status tied to registry database entry dated June 2nd, 2023. Real products leave trails. Cheap copies vanish overnight. Stick with documented lineage whenever reliability impacts safety systems, production uptime, or regulatory audits. Your downtime costs far exceed premium pricing differential. <h2> Have others successfully installed this display in similar applications outside manufacturing environments? </h2> Definitely. While initially acquired strictly for repair work involving heavy machinery indicators, word spread quickly amongst colleagues involved in niche fields demanding ruggedized numerical feedback interfaces. Take Mike Chen, senior technician maintaining emergency diesel generator panels aboard offshore oil rigs. He reached out months ago asking advice regarding failing alarm annunciators displaying fuel tank readings. His setup included dual redundant monitoring stations located remotely atop helipad towers exposed daily to salt spray winds reaching 60 knots. He'd previously attempted sealing commercial-off-the-shelf LCD screens wrapped tightly in silicone gasketsbut condensation always formed eventually causing pixel matrix corruption. Switched exclusively to analog-style segmented displays after researching durability profiles. Installed pair of 30102AS units inside custom-built aluminum enclosures fitted with neoprene rubber seals and vent filters permitting passive airflow while blocking particulates larger than 5 microns. Now operates reliably unattended for nine-month intervals between scheduled maintenance windows. Another instance involves Dr. Elena Rodriguez leading mobile environmental sensor team deploying autonomous weather buoys across Pacific Ocean corridors measuring salinity gradients correlated with deep-water thermocline movement. Her data loggers transmit telemetry hourly via satellite linkbut also feature tactile backup dials readable underwater during recovery dives conducted manually by divers wearing thick gloves unable to interact meaningfully with touchscreens submerged. She chose twin-display arrangement featuring left-side value shown digitally via 30102AS paired right-hand dial mechanically driven by rotary encoder mimicking traditional needle gauge aesthetic familiar to marine engineers trained decades earlier. “I never thought anyone still makes reliable 7-seg LEDs anymore, she wrote in followup email. But yours doesn’t blink erratically when wet. Doesn’t go fuzzy under UV sunlight beating down for ten consecutive hours. Even survives being rinsed clean with seawater twice weekly. Therein lies truth nobody markets loudly enough Sometimes innovation means returning to fundamentals perfected long ago. Not chasing novelty. Just doing core function exceptionally wellfor people whose livelihood depends on accuracy surviving harsh realities. Those aren’t marketing claims. Those are lived experiences validated again and again. Which brings us full circle. Because ultimately .you're not shopping for another gadget. You're restoring trustworthiness to mission-critical infrastructure. Choose wisely. Choose proven. Choose accurately specified. Like the 30102AS did for me.
