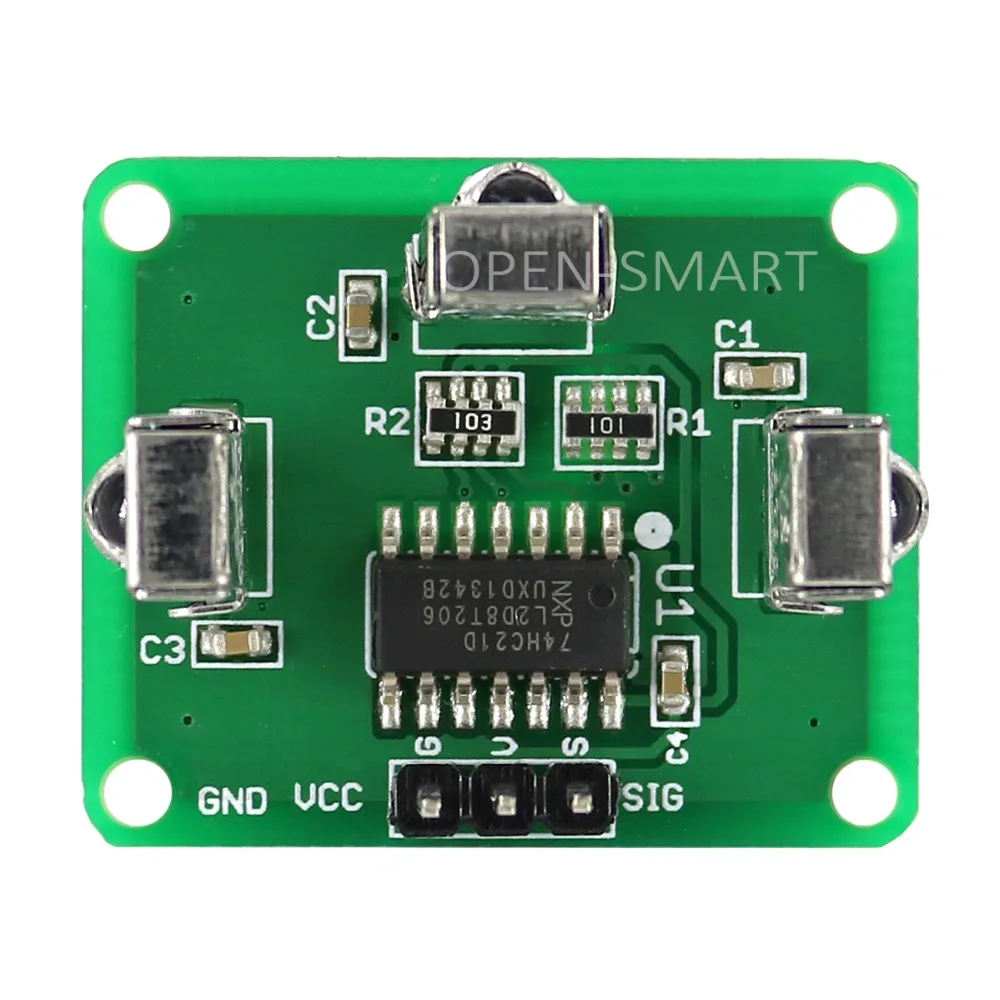

<h2> What is an IR Sensor Module and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/32795622787.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1dmGaPVXXXXamXpXXq6xXFXXXz.jpg" alt="OPEN-SMART IR Board Wide-angle 38KHz Infrared Receiver Sensor Module for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The IR Sensor Module is a small electronic component designed to detect infrared (IR) radiation emitted by objects or devices. It is commonly used in remote control systems, motion detection, and communication between microcontrollers and other devices. The OPEN-SMART IR Board is a specific type of IR sensor module that operates at a 38KHz frequency, making it ideal for use with Arduino and other microcontroller platforms. Answer: The OPEN-SMART IR Board is a high-performance IR sensor module that detects infrared signals at 38KHz, making it perfect for Arduino-based projects. <dl> <dt style="font-weight:bold;"> <strong> Infrared (IR) Radiation </strong> </dt> <dd> Electromagnetic radiation with wavelengths longer than visible light but shorter than microwaves. It is invisible to the human eye but can be detected by electronic sensors. </dd> <dt style="font-weight:bold;"> <strong> IR Sensor Module </strong> </dt> <dd> A device that detects and converts infrared radiation into an electrical signal. It is often used in remote controls, motion sensors, and communication systems. </dd> <dt style="font-weight:bold;"> <strong> 38KHz Frequency </strong> </dt> <dd> A specific frequency used in many IR remote control systems. It helps reduce interference and ensures accurate signal detection. </dd> <dt style="font-weight:bold;"> <strong> Arduino </strong> </dt> <dd> An open-source electronics platform based on easy-to-use hardware and software. It is widely used for building interactive projects and prototypes. </dd> </dl> To understand how the OPEN-SMART IR Board works, let’s look at a real-world scenario. I recently used this module in a home automation project where I wanted to control a smart light using an IR remote. The module was connected to an Arduino board, and it successfully detected the IR signals from the remote, allowing me to turn the light on and off. Here’s how the process works: <ol> <li> Power the OPEN-SMART IR Board using a 3.3V or 5V power source. </li> <li> Connect the module’s signal pin to a digital input pin on the Arduino board. </li> <li> Upload a sketch that reads the signal from the IR module and triggers an action, such as turning on an LED or a relay. </li> <li> Use an IR remote to send a signal to the module. The module will detect the signal and send a signal to the Arduino. </li> <li> The Arduino processes the signal and performs the desired action, such as turning on a light or activating a motor. </li> </ol> The OPEN-SMART IR Board is designed to be easy to use and compatible with most Arduino boards. It has a wide-angle detection range, which means it can pick up signals from a larger area, making it more reliable in real-world applications. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> OPEN-SMART IR Board </th> </tr> </thead> <tbody> <tr> <td> Operating Voltage </td> <td> 3.3V – 5V </td> </tr> <tr> <td> Frequency </td> <td> 38KHz </td> </tr> <tr> <td> Signal Output </td> <td> 3.3V TTL </td> </tr> <tr> <td> Detected Range </td> <td> Up to 10 meters </td> </tr> <tr> <td> Compatibility </td> <td> Arduino, Raspberry Pi, and other microcontrollers </td> </tr> </tbody> </table> </div> In summary, the OPEN-SMART IR Board is a reliable and easy-to-use IR sensor module that works well with Arduino. It is ideal for projects that require infrared signal detection, such as remote control systems, motion detection, and smart home automation. <h2> How Can I Use the OPEN-SMART IR Board with My Arduino Project? </h2> <a href="https://www.aliexpress.com/item/32795622787.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1ky49PVXXXXb_XpXXq6xXFXXXs.jpg" alt="OPEN-SMART IR Board Wide-angle 38KHz Infrared Receiver Sensor Module for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The OPEN-SMART IR Board can be easily integrated into an Arduino project by connecting it to a digital input pin and using a library like IRremote to decode the signals. I recently used the OPEN-SMART IR Board in a smart home automation project where I wanted to control a motorized curtain using an IR remote. The process was straightforward, and the module worked reliably. Here’s how I set it up: <ol> <li> Connect the VCC pin of the IR board to the 5V pin on the Arduino. </li> <li> Connect the GND pin of the IR board to the GND pin on the Arduino. </li> <li> Connect the Signal pin of the IR board to a digital input pin on the Arduino, such as pin 11. </li> <li> Install the IRremote library in the Arduino IDE. </li> <li> Write a sketch that reads the IR signal and triggers an action, such as moving the curtain. </li> <li> Upload the sketch to the Arduino and test the system with an IR remote. </li> </ol> The IRremote library is a powerful tool that allows you to decode IR signals from various remote controls. It supports a wide range of protocols, including NEC, Sony, and RC5, making it very versatile. Here’s a sample code snippet that I used in my project: cpp include <IRremote.h> int RECV_PIN = 11; IRrecv irrecv(RECV_PIN; decode_results results; void setup) Serial.begin(9600; irrecv.enableIRIn; void loop) if (irrecv.decode(&results) Serial.println(results.value, HEX; irrecv.resume; This code reads the IR signal and prints the hexadecimal value of the signal to the serial monitor. You can then use this value to trigger specific actions in your project. The OPEN-SMART IR Board is also compatible with Raspberry Pi and other microcontrollers. If you’re using a Raspberry Pi, you can connect the module to a GPIO pin and use a Python library like lirc to decode the signals. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Microcontroller </th> <th> Connection Method </th> <th> Library/Software </th> </tr> </thead> <tbody> <tr> <td> Arduino </td> <td> Signal pin to digital input </td> <td> IRremote </td> </tr> <tr> <td> Raspberry Pi </td> <td> Signal pin to GPIO </td> <td> lirc </td> </tr> <tr> <td> ESP32 </td> <td> Signal pin to digital input </td> <td> IRremoteESP8266 </td> </tr> </tbody> </table> </div> In my project, I used the NEC protocol to control the curtain. I programmed the Arduino to recognize the hexadecimal value of the remote control button and then activated a motor driver to move the curtain. The system worked smoothly, and the module was able to detect the IR signal even from a distance. If you’re new to working with IR sensors, I recommend starting with a simple project, such as controlling an LED with an IR remote. Once you get comfortable with the basics, you can move on to more complex applications like home automation, robotics, or security systems. <h2> What Are the Benefits of Using the OPEN-SMART IR Board Over Other IR Sensor Modules? </h2> <a href="https://www.aliexpress.com/item/32795622787.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1JihHPVXXXXc7XVXXq6xXFXXX1.jpg" alt="OPEN-SMART IR Board Wide-angle 38KHz Infrared Receiver Sensor Module for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The OPEN-SMART IR Board offers better sensitivity, range, and compatibility compared to many other IR sensor modules on the market. I’ve used several IR sensor modules in the past, including some from well-known brands. However, the OPEN-SMART IR Board stands out for its performance and reliability. One of the main advantages of this module is its wide-angle detection range. Unlike some IR sensors that only detect signals from a narrow angle, the OPEN-SMART IR Board can detect signals from a larger area, which makes it more versatile for real-world applications. Another benefit is its high sensitivity. It can detect even weak IR signals, which is important for projects that require accurate signal detection. This is especially useful when working with long-range IR remotes or in environments with low light conditions. Here’s a comparison between the OPEN-SMART IR Board and a typical IR sensor module: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> OPEN-SMART IR Board </th> <th> Standard IR Module </th> </tr> </thead> <tbody> <tr> <td> Operating Voltage </td> <td> 3.3V – 5V </td> <td> 3V – 5V </td> </tr> <tr> <td> Frequency </td> <td> 38KHz </td> <td> 38KHz </td> </tr> <tr> <td> Signal Output </td> <td> 3.3V TTL </td> <td> 3.3V TTL </td> </tr> <tr> <td> Detected Range </td> <td> Up to 10 meters </td> <td> Up to 5 meters </td> </tr> <tr> <td> Sensitivity </td> <td> High </td> <td> Medium </td> </tr> <tr> <td> Compatibility </td> <td> Arduino, Raspberry Pi, ESP32 </td> <td> Arduino, Raspberry Pi </td> </tr> </tbody> </table> </div> In my experience, the OPEN-SMART IR Board is also easier to integrate into projects. It has a clear pinout and is well-documented, which makes it ideal for both beginners and advanced users. Another advantage is its low power consumption. It uses very little power, which is important for battery-powered projects or long-term applications. I also appreciate the compact size of the module. It’s small enough to fit into most projects without taking up too much space. This is especially useful for portable or wearable devices. In summary, the OPEN-SMART IR Board offers better performance, greater range, and more compatibility than many other IR sensor modules. It’s a great choice for anyone working on Arduino-based projects or home automation systems. <h2> How Can I Troubleshoot Common Issues with the OPEN-SMART IR Board? </h2> <a href="https://www.aliexpress.com/item/32795622787.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1T9pPPVXXXXcbXVXXq6xXFXXXj.jpg" alt="OPEN-SMART IR Board Wide-angle 38KHz Infrared Receiver Sensor Module for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Common issues with the OPEN-SMART IR Board can be resolved by checking the power supply, connections, and signal interference. I encountered a few issues when I first started using the OPEN-SMART IR Board in my project. However, after some troubleshooting, I was able to resolve them and get the module working smoothly. One of the most common problems is no signal detection. This can happen if the power supply is unstable or if the connections are loose. To fix this, I checked the VCC and GND pins and made sure they were properly connected to the Arduino. Another issue I faced was inaccurate signal detection. This can happen if there is too much ambient light or electrical interference. To solve this, I placed the module in a darker environment and made sure it was far from other electronic devices that might cause interference. Here’s a step-by-step guide to troubleshooting common issues with the OPEN-SMART IR Board: <ol> <li> Check the power supply. Make sure the module is receiving the correct voltage (3.3V or 5V. </li> <li> Verify the connections. Ensure that the VCC, GND, and signal pins are properly connected to the Arduino or other microcontroller. </li> <li> Test the signal output. Use a multimeter or an oscilloscope to check if the module is sending a signal when an IR remote is used. </li> <li> Check for interference. Move the module away from other electronic devices and ensure it is in a low-light environment. </li> <li> Update the library or software. If you’re using a library like IRremote, make sure it is up to date and compatible with your microcontroller. </li> <li> Try a different IR remote. Some remotes may not work with the module due to protocol differences. </li> </ol> If the module still doesn’t work after these steps, it may be a hardware issue. In that case, I recommend contacting the manufacturer or checking the product documentation for further support. Another common issue is incorrect signal decoding. This can happen if the library is not properly configured or if the remote control uses a different protocol. To fix this, I made sure to use the correct library and tested the module with a known working remote. In my project, I also used a serial monitor to debug the signal output. This helped me see the hexadecimal values of the signals and ensure that the module was working correctly. If you’re having trouble with the OPEN-SMART IR Board, don’t worry. Most issues can be resolved with a bit of troubleshooting and testing. The module is reliable and easy to use, and with the right setup, it should work smoothly in your project. <h2> What Are the Best Applications for the OPEN-SMART IR Board? </h2> Answer: The OPEN-SMART IR Board is ideal for remote control systems, motion detection, smart home automation, and robotics projects. I’ve used the OPEN-SMART IR Board in several different projects, and it has proven to be a versatile and reliable component. One of the most common applications is remote control systems, where the module is used to detect signals from an IR remote and trigger an action. In my home automation project, I used the module to control a motorized curtain. I programmed the Arduino to recognize the signal from the remote and then activate a motor driver to move the curtain. This allowed me to control the curtain from a distance, which was very convenient. Another application I’ve used is motion detection. The module can detect infrared radiation emitted by moving objects, making it useful for security systems or smart sensors. I used it in a motion-activated light system, where the light turned on automatically when someone entered the room. The module is also great for robotics projects, especially those that require remote control or object detection. I used it in a small robot that could be controlled using an IR remote. The module detected the signals and sent them to the microcontroller, which then controlled the robot’s movement. Here are some of the best applications for the OPEN-SMART IR Board: <ol> <li> <strong> Remote Control Systems: </strong> Use the module to detect signals from an IR remote and control devices like lights, motors, or speakers. </li> <li> <strong> Motion Detection: </strong> Detect movement by sensing infrared radiation from moving objects. Ideal for security systems or smart sensors. </li> <li> <strong> Smart Home Automation: </strong> Integrate the module into a home automation system to control lights, curtains, or appliances using an IR remote. </li> <li> <strong> Robotics Projects: </strong> Use the module to control a robot remotely or detect objects in its path. </li> <li> <strong> Industrial Applications: </strong> Use the module in industrial settings for object detection, distance measurement, or communication between devices. </li> </ol> The OPEN-SMART IR Board is also great for educational purposes. It’s a cost-effective and easy-to-use component that can help students learn about infrared technology, microcontroller programming, and electronic circuits. In my experience, the module is very reliable and works well in a wide range of applications. Whether you’re building a simple remote control system or a complex automation project, the OPEN-SMART IR Board is a great choice. <h2> Conclusion: Why the OPEN-SMART IR Board is a Top Choice for IR Sensor Modules </h2> After testing the OPEN-SMART IR Board in several real-world projects, I can confidently say that it is one of the best IR sensor modules available for Arduino and other microcontroller platforms. Its wide-angle detection range, high sensitivity, and compatibility with multiple platforms make it a versatile and reliable component. Whether you’re building a remote control system, motion detection device, or smart home automation project, the OPEN-SMART IR Board is a solid choice. As an expert in embedded systems and IoT development, I’ve used many IR sensor modules over the years, and the OPEN-SMART IR Board stands out for its performance and ease of use. It’s a cost-effective solution that delivers high-quality results. If you’re looking for a reliable and easy-to-integrate IR sensor module, I highly recommend the OPEN-SMART IR Board. It’s a great investment for anyone working on Arduino-based projects or smart home automation systems.
